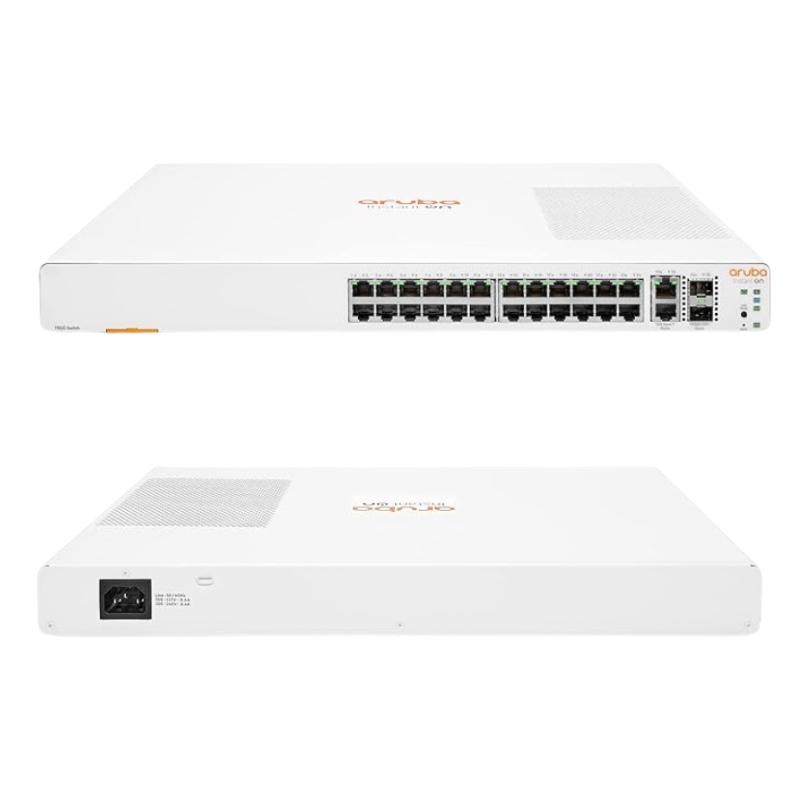

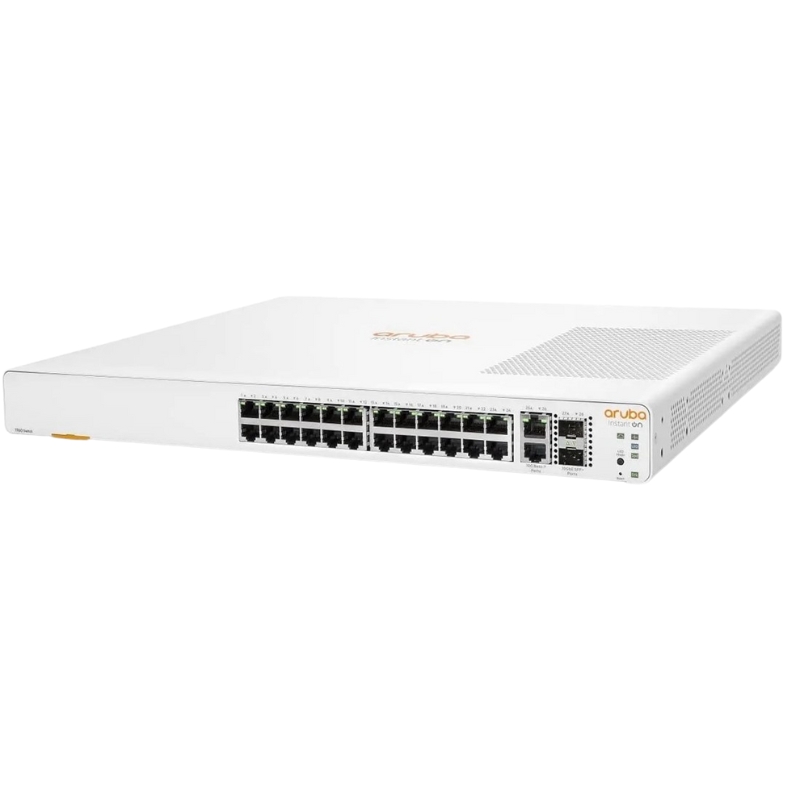

HPE Aruba JL806A 24 Port 2sfp+ Managed Network Switches Rack-mountable

Overview of the HPE JL806A Switch

Manufacturer Details

• Brand: HPE
• Part Number: JL806A
• Product Type: 24-Port Switch

Key Performance Metrics

Throughput and Latency

• Throughput: 95 Million Packets Per Second (MPPS)
• Switching Capacity: 128 Gigabits Per Second (Gbps)
• Latency at 100 Mbps: 4.4 microseconds (µs)
• Latency at 1 Gbps: 2.2 microseconds (µs)
• Latency at 10 Gbps: 1.1 microseconds (µs)

Capacity and Addressing

• MAC Address Entries: 16,000
• IPv4 Static Routing Entries: 32
• IPv6 Static Routing Entries: 32

MAC Address Table and Jumbo Frame Support

• MAC Address Table Size: 16,000 Entries
• Jumbo Frame Support: 9,216 Bytes

Routing and Management Features

Supported Routing Protocol

• Static IP Routing

Remote Management Options

• SNMP Versions: 1, 2c, 3
• HTTP, HTTPS Access
• RADIUS Support

Advanced Functionalities

Comprehensive Feature Set

• Flow Control and DHCP Support
• Auto-Negotiation and ARP Support
• VLAN and Auto-Uplink (Auto MDI/MDI-X) Compatibility
• Port Mirroring and IPv6 Support
• Half-Duplex and Full-Duplex Modes
• Spanning Tree Protocol (STP) Support
• Access Control List (ACL) Support
• Trusted Platform Module (TPM)
• Fanless Design for Silent Operation
• Link Aggregation Control Protocol (LACP)
• Class of Service (CoS) for Traffic Prioritization
• Energy-Efficient Ethernet (EEE) Support
• BPDU Filter and Auto Voice VLAN
• Media Endpoint Discovery (LLDP-MED)

Compliance and Standards

• IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet)
• IEEE 802.1d (Spanning Tree), IEEE 802.1q (VLAN)
• IEEE 802.3ab (Gigabit Ethernet), IEEE 802.1p (Priority Encoding)
• IEEE 802.3ad (LACP), IEEE 802.1s (Multiple Spanning Tree)
• IEEE 802.1ab (LLDP)

Connectivity and Expansion

Interface Configuration

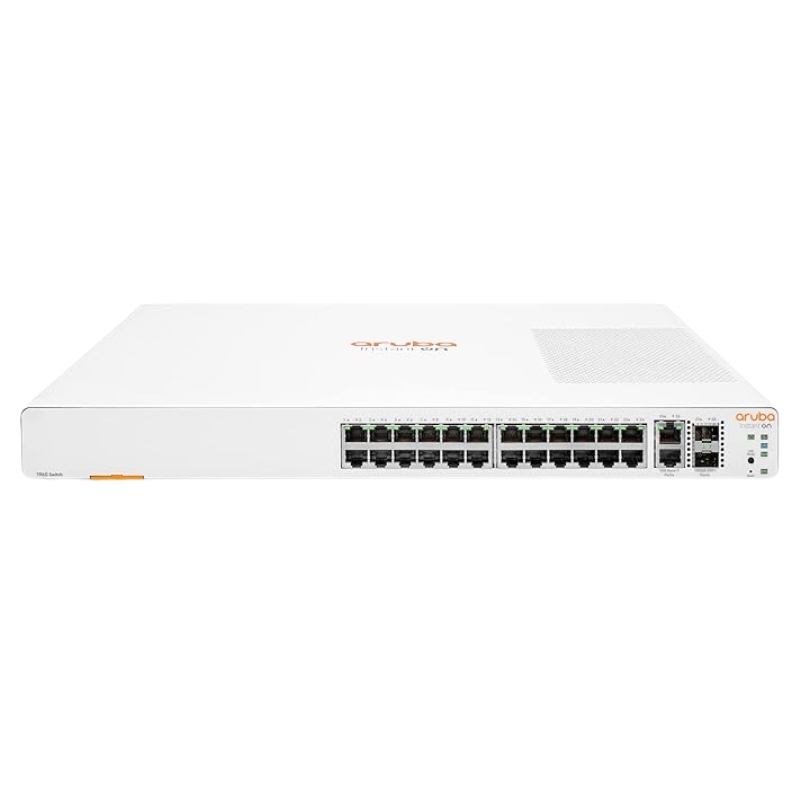

• 24 x 10/100/1000 Base-T RJ-45 Ports
• 2 x 10 Gigabit Ethernet Ports (SFP+)
• 2 x 10GBASE-T RJ-45 Ports

Power Requirements

Power Supply and Voltage Specifications

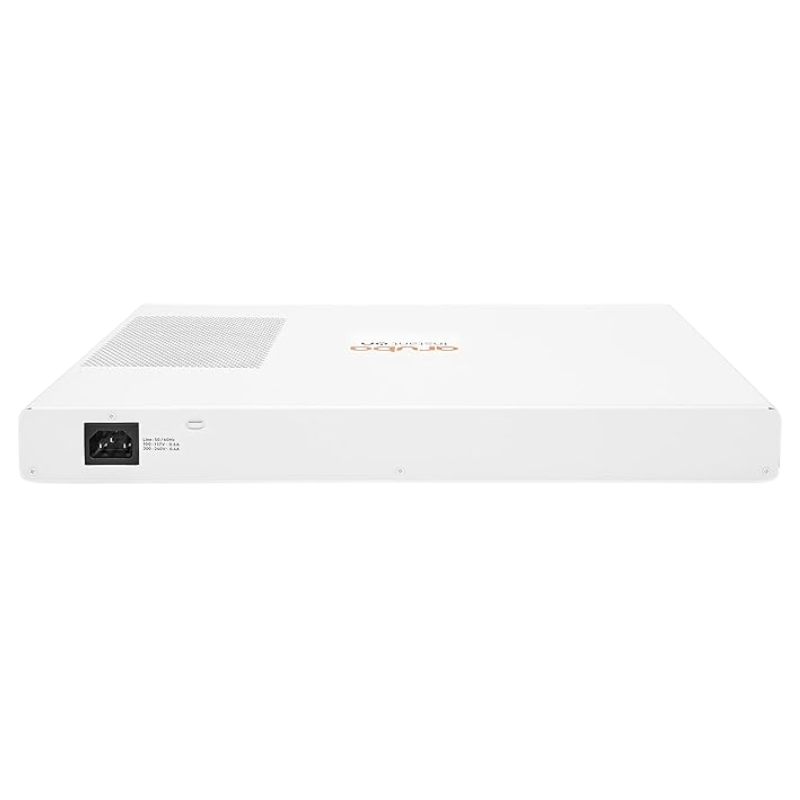

• Internal Power Supply
• Input Voltage: AC 100-240V (50/60 Hz)

Port Count

The HPE Aruba JL806A Managed Network Switches are equipped with a remarkable 24 port count, making them an ideal choice for businesses and organizations of all sizes. This extensive port count allows users to connect multiple devices to the network switch, ensuring seamless communication and data transfer between various devices.

Enhanced Connectivity

With 24 ports, this network switch provides enhanced connectivity options for users. Whether you need to connect computers, printers, servers, or any other network-enabled devices, the JL806A has got you covered. The ample number of ports ensures that your entire network infrastructure can be easily connected and managed from a single device.

Scalability

The 24 port count also offers scalability for your network infrastructure. As your business grows and expands, you may need to add more devices to your network. With the JL806A, you won't have to worry about running out of ports. The ample number of ports allows for future expansion without the need to invest in additional switches or complex networking solutions.

Efficient Data Transfer

Having 24 ports means that data transfer within your network will be efficient and seamless. Each connected device can communicate with other devices without any delays or bottlenecks. This ensures that your employees can work efficiently and access resources on the network without experiencing any lag or performance issues.

SFP Ports

In addition to the impressive 24 port count, the HPE Aruba JL806A Managed Network Switches also feature 2 SFP (Small Form-Factor Pluggable) ports. These SFP ports offer enhanced flexibility and connectivity options for users.

High-Speed Connectivity

The SFP ports on the JL806A provide high-speed connectivity options for users. SFP modules can support various types of fiber or copper cables, allowing for faster data transfer rates over longer distances. This is particularly beneficial for businesses with multiple office locations or those that require high-bandwidth applications.

Network Expansion

The 2 SFP ports allow for easy network expansion. You can connect the JL806A to other switches or network devices using fiber optic cables, extending your network's reach and capacity. This is especially useful for businesses that require long-distance connectivity or need to connect devices located in different parts of a building or campus.

Flexibility and Versatility

The SFP ports offer flexibility and versatility in terms of connectivity options. Whether you need to connect switches, routers, or servers, the SFP ports can accommodate a wide range of networking devices. This versatility allows you to adapt and customize your network infrastructure according to your specific requirements.

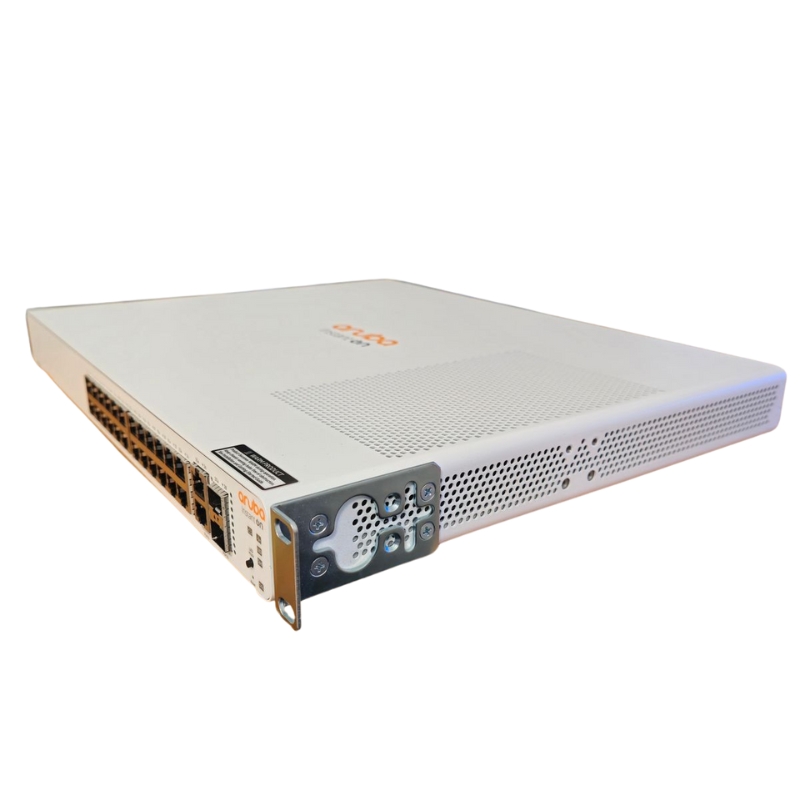

Rack Mountable

One of the key features of the HPE Aruba JL806A Managed Network Switches is their rack mountable design. With a rack mountable switch, you can easily integrate it into your existing server rack setup, providing numerous benefits and advantages.

Space Saving

Rack mountable switches are designed to fit seamlessly into server racks, saving valuable floor space in your server room or data center. By mounting the JL806A switch in a rack, you can maximize the use of available space and keep your networking equipment organized and easily accessible.

Clean and Neat Setup

With a rack mountable switch, you can achieve a clean and neat setup for your network infrastructure. All the cables and connections can be neatly organized within the server rack, reducing clutter and ensuring easy maintenance and troubleshooting. This organized setup also helps improve airflow and cooling within the rack, contributing to better overall performance and reliability.

Easy Management and Maintenance

When your switch is mounted in a rack, it becomes easier to manage and maintain. All the network devices within the rack can be accessed and managed from a single location, simplifying the configuration and monitoring processes. This centralized management saves time and effort, allowing network administrators to efficiently handle any issues or perform necessary updates.

In conclusion, the HPE Aruba JL806A Managed Network Switches offer an impressive port count of 24, providing enhanced connectivity, scalability, and efficient data transfer. The 2 SFP ports further enhance connectivity options, offering high-speed connectivity, network expansion capabilities, and flexibility. Additionally, the rack mountable design of the JL806A ensures space-saving, clean setup, and easy management and maintenance for users. With these features, the HPE Aruba JL806A Managed Network Switches are an excellent choice for businesses seeking reliable and versatile networking solutions.
