Product Summary

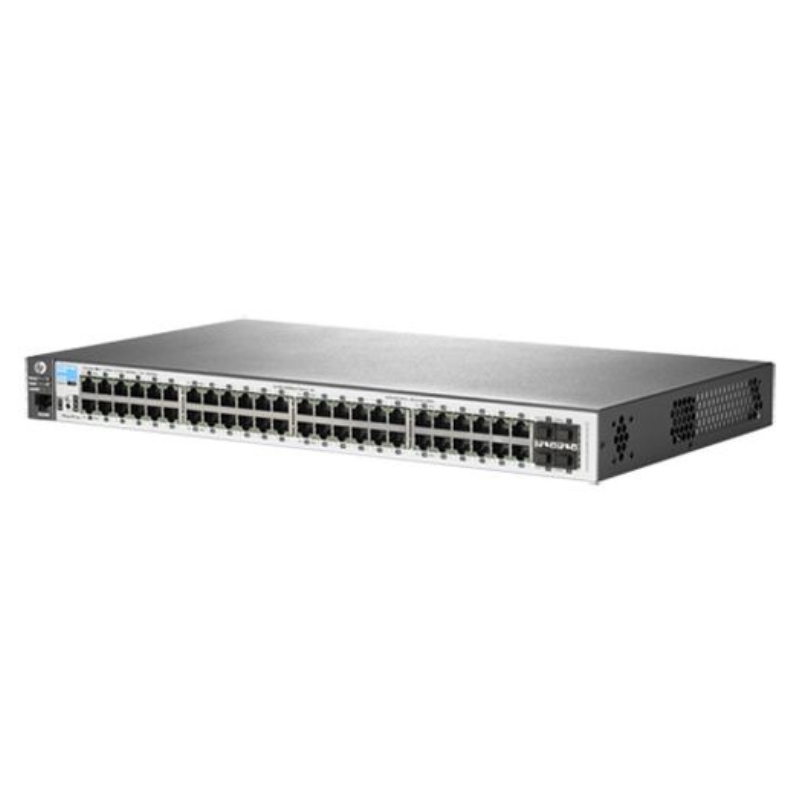

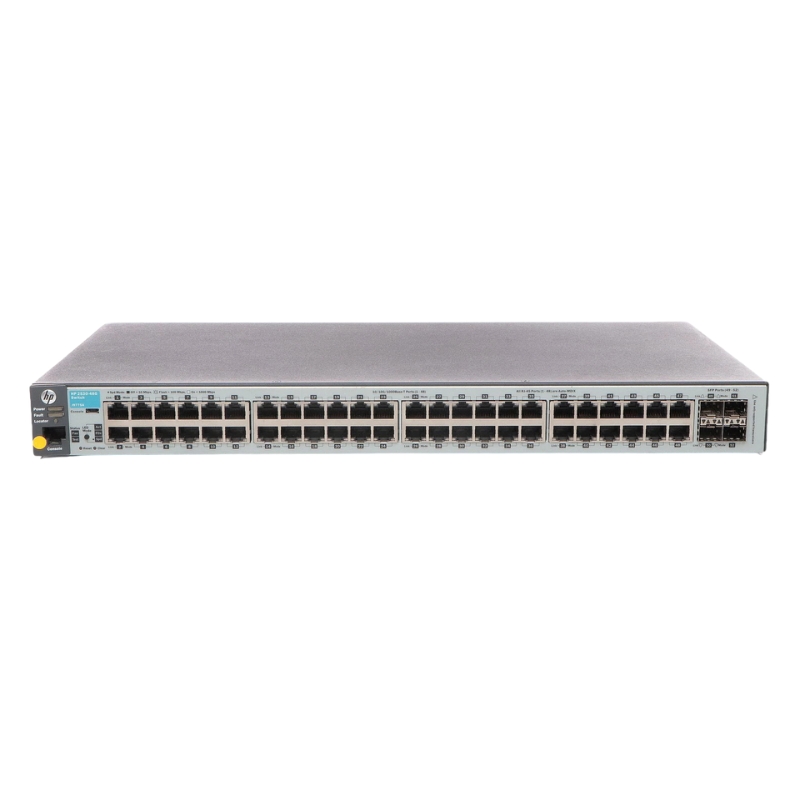

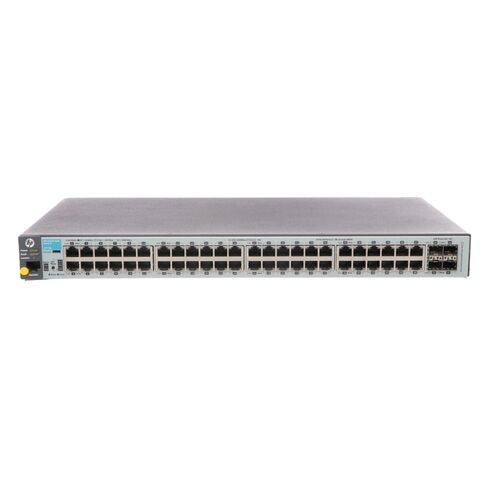

The HPE J9775-61101 Aruba 2530 48g Switch offers a robust solution for network management with its comprehensive features and capabilities. This device is ideal for various mounting options, including desktop, rack, or wall installations.
Specifications
Device Characteristics
- Type: Managed Switch with 48 Ports

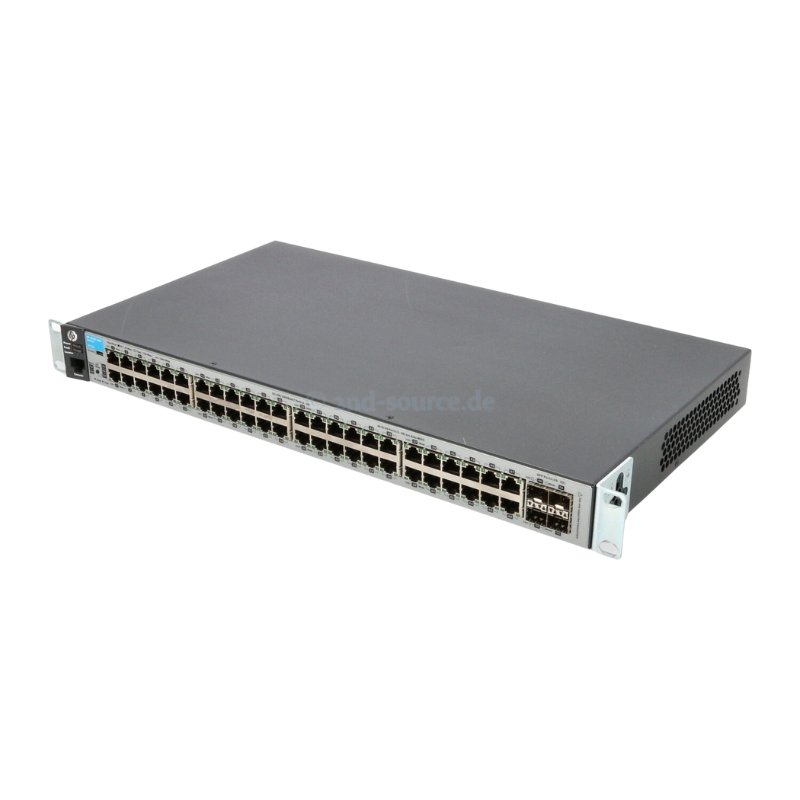

- Form Factor: Desktop, Rack-Mountable, Wall-Mountable - 1U
- Processor: ARM-based, 800 MHz
- RAM: 128 MB DDR3 SDRAM
- Flash Storage: 256 MB
Networking Features
Port Configuration
- 48 x 10/100/1000 Mbps Ethernet Ports
- 4 x Gigabit SFP Interfaces
Performance Metrics
- Throughput: 77.3 Mpps
- Switching Capacity: 104 Gbps
- MAC Address Table: Supports up to 16,000 entries
- Jumbo Frame Support: Up to 9220 bytes
Remote Management Protocols
- SNMP (Versions 1, 2c, 3)
- RMON (1, 2, 3, 9)
- Telnet, HTTP, TFTP, SSH-2
- Command-Line Interface (CLI)
Security Features
- Encryption: SSL
- Authentication: RADIUS, TACACS+, Secure Shell (SSH2)
Compliance Standards
- IEEE 802.3, 802.3u, 802.1d, 802.1q, 802.3ab
- 802.1p, 802.3x, 802.3ad (LACP), 802.1w
- 802.1x, 802.1s, 802.1ab (LLDP), 802.3az
Expansion and Connectivity Options
Interface Details
- 48 x RJ-45 (10BASE-T/100BASE-TX/1000BASE-T)
- 4 x SFP Ports
- Management Console: 1 x RJ-45

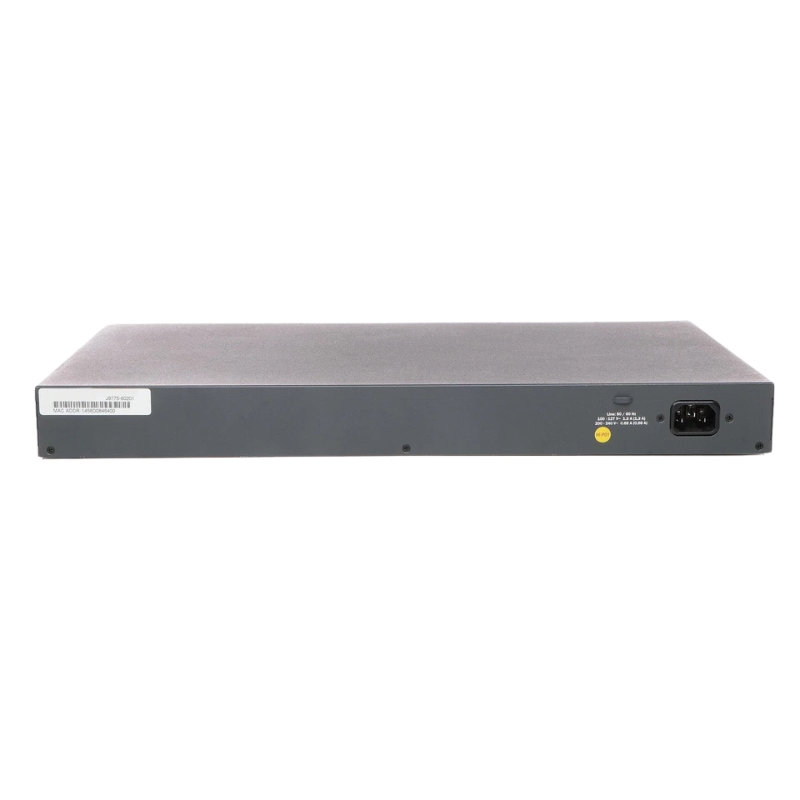

Power Requirements
- Power Supply: Standard Power Device
- Voltage: AC 120/230 V (50/60 Hz)
Ports
The HPE J9775-61101 Desktop Network Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. These ports allow for the connection of multiple devices such as computers, printers, servers, and other networking equipment.
Increased Connectivity
With 48 ports available, the HPE J9775-61101 Desktop Network Switch provides users with the ability to connect a large number of devices to their network. This is particularly beneficial for businesses that have a high demand for connectivity, such as those in the IT industry or large organizations with numerous employees.
Efficient Data Transfer
Having 48 ports means that data transfer between devices is faster and more efficient. With a greater number of ports, the switch can handle a larger amount of network traffic without any degradation in performance. This is especially important for businesses that rely on fast and reliable data transfer, such as those involved in video production or data analysis.
Scalability
The HPE J9775-61101 Desktop Network Switch's 48 ports also provide scalability for future growth. As businesses expand and add more devices to their network, having additional ports readily available ensures that there is no need for additional switches or complicated network configurations. This saves both time and money by simplifying network management and reducing the need for additional hardware.
Management
One of the key features of the HPE J9775-61101 Desktop Network Switch is its managed functionality. This means that the switch can be centrally controlled and configured, providing users with greater control over their network infrastructure.
Enhanced Security
The managed feature of the HPE J9775-61101 Desktop Network Switch allows for advanced security measures to be implemented. Users can configure the switch to enforce access control policies, monitor network traffic for suspicious activity, and implement encryption protocols to protect sensitive data. This is particularly important for businesses that handle confidential information or have strict compliance requirements.
Improved Performance
With managed functionality, users have the ability to prioritize network traffic based on their specific requirements. This ensures that critical applications and services receive the necessary bandwidth and resources, resulting in improved performance and reduced latency. Additionally, users can monitor and troubleshoot network issues more effectively, minimizing downtime and optimizing network performance.
Centralized Management
The managed feature of the HPE J9775-61101 Desktop Network Switch allows for centralized management of multiple switches within a network. This means that network administrators can configure and monitor all switches from a single interface, simplifying network management and reducing administrative overhead. This is particularly beneficial for businesses with multiple locations or distributed networks.
Mounting

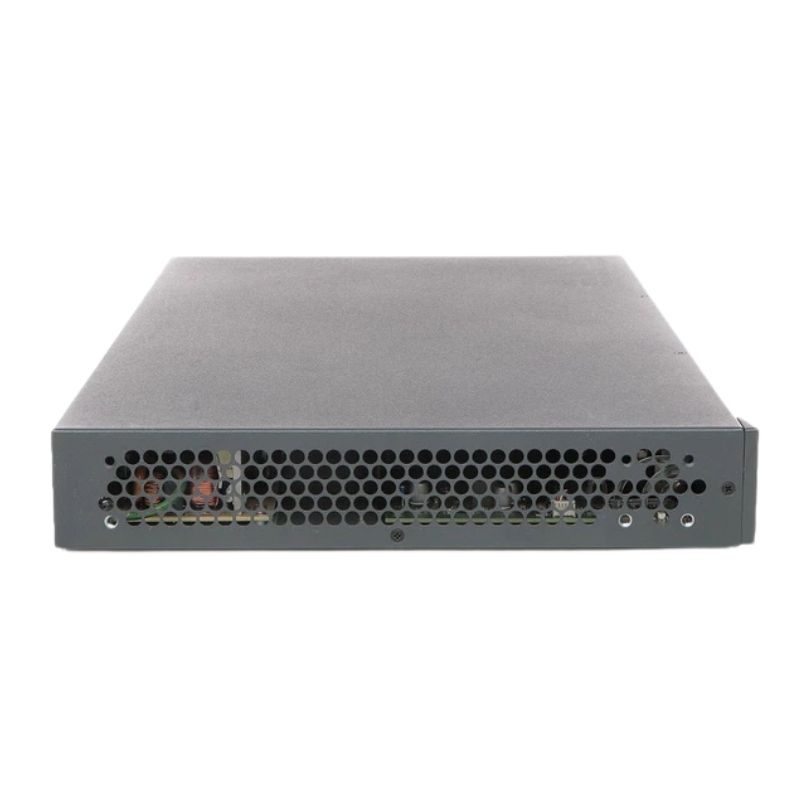

The HPE J9775-61101 Desktop Network Switch is designed to be wall mountable, providing users with flexibility in terms of installation options. This feature offers several benefits and is especially useful in environments where space is limited or where wall mounting is preferred.
Space Saving
Wall mounting the HPE J9775-61101 Desktop Network Switch frees up valuable desk or floor space. In environments where every square foot counts, such as small offices or crowded server rooms, wall mounting the switch allows for efficient use of space. Additionally, wall mounting eliminates the need for additional shelves or racks, reducing clutter and simplifying cable management.
Better Airflow
When the switch is wall mounted, it is positioned away from other equipment and obstacles, allowing for improved airflow around the device. This helps to prevent overheating and ensures optimal performance and longevity of the switch. Proper airflow also reduces the risk of hardware failure, minimizing downtime and maintenance costs.
Easy Access
Wall mounting the HPE J9775-61101 Desktop Network Switch provides easy access to the ports and cables. This makes it convenient for network administrators to connect and disconnect devices without having to reach behind a desk or crawl under a rack. Additionally, the visible placement of the switch allows for quick visual inspection and troubleshooting if any issues arise.
In conclusion, the HPE J9775-61101 Desktop Network Switch offers a multitude of benefits with its 48 ports, managed functionality, and wall mountable design. The high number of ports provides increased connectivity, efficient data transfer, and scalability for future growth. The managed feature enhances security, improves performance, and allows for centralized management of multiple switches. Lastly, the wall mountable design saves space, improves airflow, and provides easy access to ports and cables. Overall, this network switch is a versatile and reliable solution for businesses and organizations seeking robust networking capabilities.
