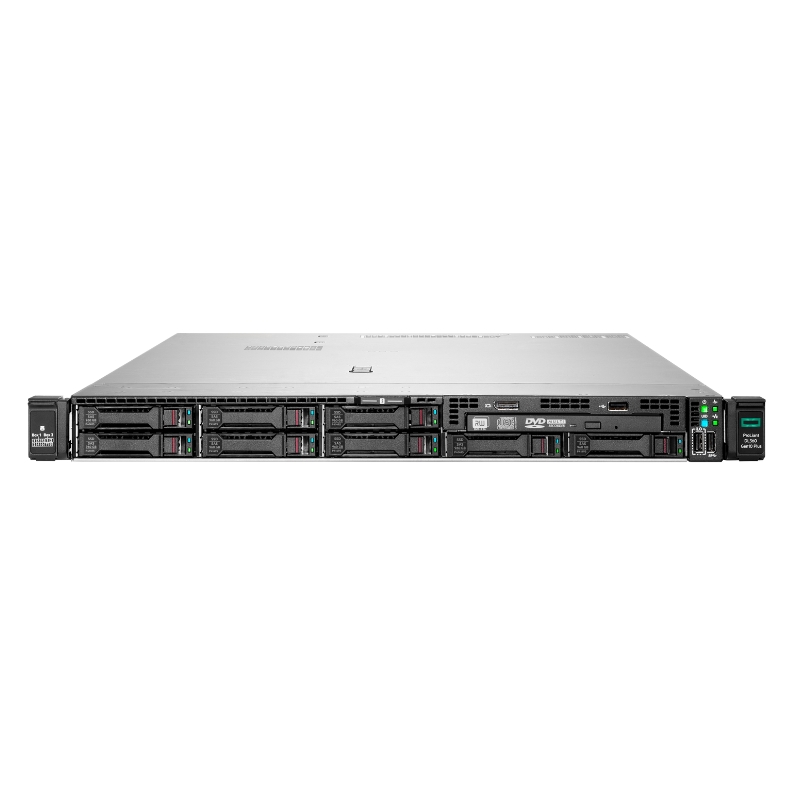

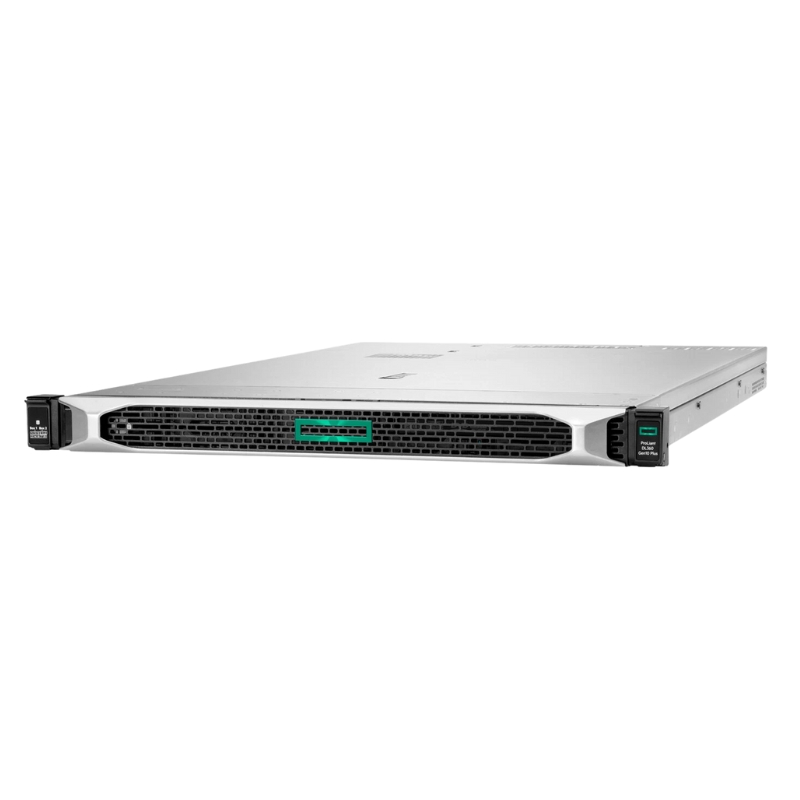

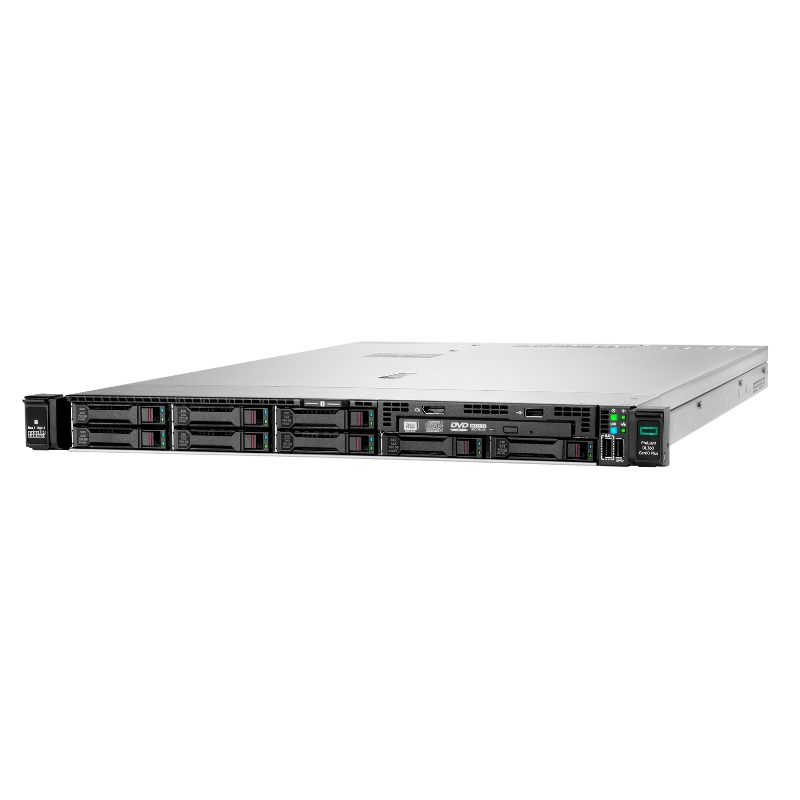

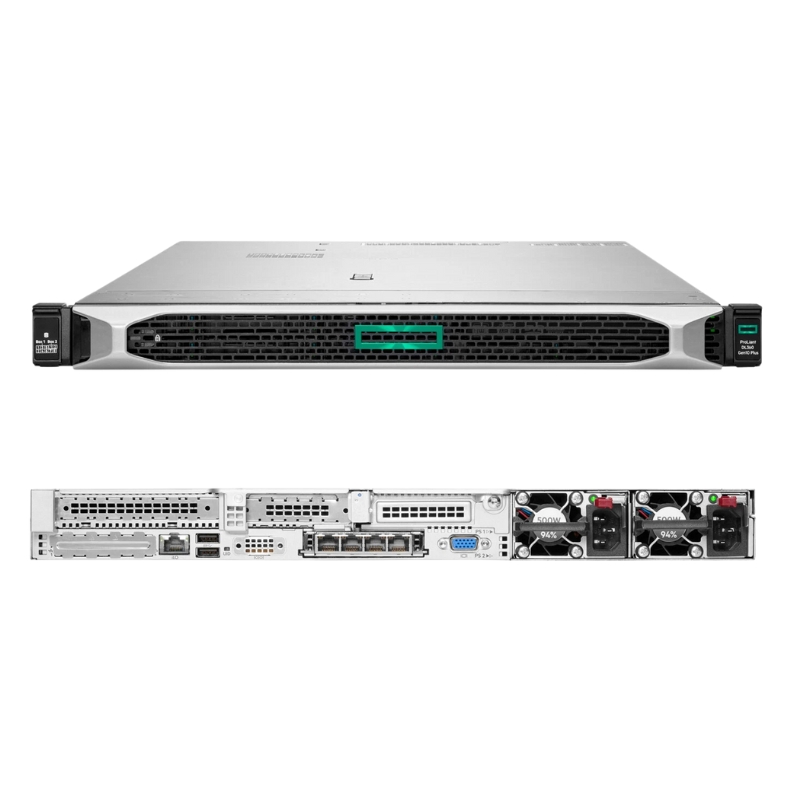

HPE DL360 Gen10 Plus 8SFF NC CTO Rack Server P28948-B21

CPU

The HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server is equipped with a powerful CPU, making it an ideal choice for businesses and organizations that require high-performance computing capabilities. However, this particular model comes with a unique feature - it has no CPU included. While this may seem unusual, there are several benefits and advantages to opting for a server without a pre-installed CPU.

General Information

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: P28948-B21

Server Scalability

• Scalability: 2-way
• Rack Units: 1U

Product Overview

• Model: HPE DL360 Gen10 Plus 8SFF NC CTO Server

Processor & Chipset

CPU and Chipset

• CPU: None Installed
• Supported CPU Quantity: Up to 2
• Socket Type: FCLGA4189
• Chipset Model: Intel C621A
• Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory

Cache Details

• Installed Cache Size: 0 MB
• Cache Per Processor: 0 MB

RAM Specifications

Memory Capacity and Technology

• Installed RAM Size: 0 GB
• Maximum RAM Capacity: 4 TB
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Memory Speed: 3200 MHz
• Form Factor: DIMM 288-pin
• Available Slots: 32 total / 32 empty
• Features: Registered, Dual Rank, HPE SmartMemory

Hard Drive

Storage Details

• Hard Drive Type: No HDD Included

Storage Controllers

Controller Features

• Controller Type: Embedded with 14 SATA Ports
• Supported Technologies: AHCI, HPE Smart Storage SR100i, Intel VROC Software RAID

Optical Storage

Optical Drive Information

• Optical Drive: None

Monitor

Monitor Specifications

• Monitor: Not Included

Network & Communication

Network Options

• Network Cards: Choice of OCP or Stand-Up Cards

Expansion & Connectivity

Expansion Bays

• Hot-Swap Bays: 8 (total) / 8 (available) for 2.5” SFF

Expansion Slots

• PCIe 4.0 X16 Slots: 1 full-height / 1 low-profile

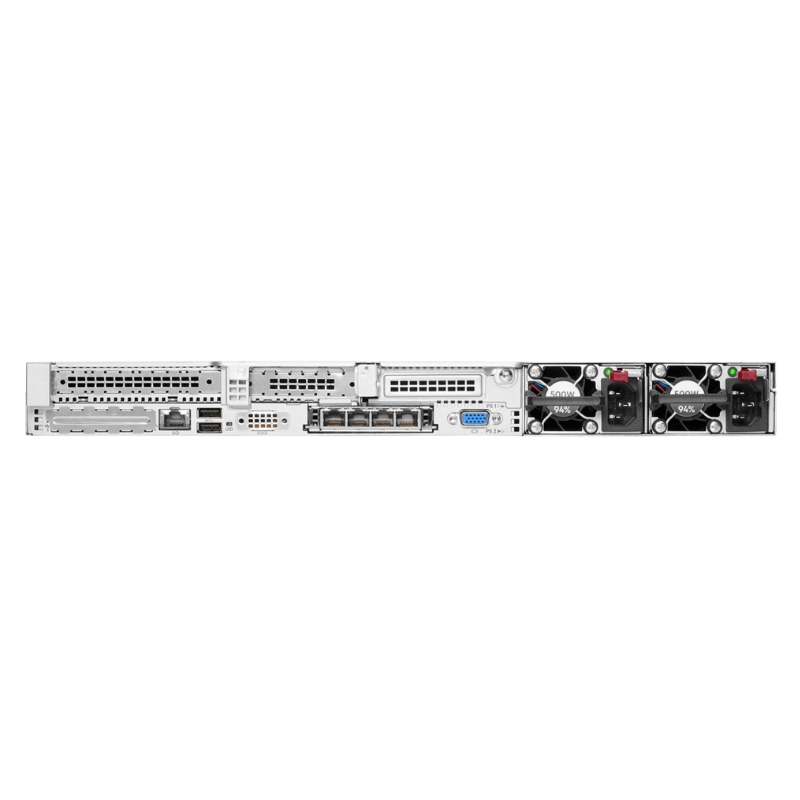

Interfaces & Ports

• USB 3.0 Ports: 3 (1 front, 2 rear, 2 internal)
• HPE iLO Port: 1 front (Service Port)
• DisplayPort: 1 front
• USB 2.0 Port: 1 front
• VGA Port: 1

Operating System / Software

OS Information

• Operating System: None Provided

Environmental Standards

Energy Efficiency

• Energy Star Certified: Yes
• Energy Star Version: 3.0

Dimensions & Weight

Physical Specifications

• Width: 17.1 inches
• Depth: 29.2 inches
• Height: 1.7 inches
• Weight: 29.3 lbs

Flexibility in CPU Selection

By not including a CPU, HPE allows users to have complete control and flexibility in selecting the most suitable processor for their specific requirements. This means that users can choose a CPU that best matches their workload demands, whether it's for running complex applications, virtualization, or data-intensive tasks. The absence of a pre-installed CPU ensures that users aren't limited to a specific model or generation and can take advantage of the latest advancements in CPU technology.

Cost Savings

Another significant benefit of the "No CPU" feature is cost savings. Since the server does not come bundled with a processor, users have the freedom to choose a CPU that fits their budget. This allows businesses to allocate their financial resources more efficiently and invest in other areas that may be more critical for their operations. Additionally, by being able to select from a range of CPUs, users can find the most cost-effective option without compromising performance.

Future-Proofing

Technology evolves rapidly, and CPUs are no exception. By not including a CPU, HPE enables users to future-proof their investment. As new and more powerful processors are released, users can easily upgrade their server by simply installing the latest CPU without having to replace the entire system. This scalability ensures that businesses can keep up with changing demands and stay competitive in their respective industries.

Customization and Optimization

Having the freedom to choose a CPU allows for customization and optimization of the server's performance. Different workloads require different CPU specifications, such as clock speed, number of cores, cache size, and power consumption. With the "No CPU" feature, users can tailor the server's processing power to their specific needs, ensuring optimal performance and efficiency. This level of customization enables businesses to maximize their productivity and achieve better results.

Enhanced Compatibility

One aspect often overlooked is compatibility. By not including a specific CPU, HPE ensures that their server chassis is compatible with a wide range of processors from various manufacturers. This compatibility gives users the freedom to choose from Intel, AMD, or other CPU options without worrying about compatibility issues. This flexibility is invaluable when it comes to integrating the server into existing infrastructure or working with specific software requirements.

Reduced E-Waste

By offering a server without a pre-installed CPU, HPE contributes to reducing electronic waste. This approach aligns with environmental sustainability efforts by allowing users to repurpose or recycle existing CPUs rather than discarding them unnecessarily. It also promotes responsible consumption by discouraging the unnecessary disposal of functional components.

Conclusion

The "No CPU" feature of the HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server provides users with flexibility, cost savings, future-proofing capabilities, customization options, enhanced compatibility, and reduced e-waste. By allowing users to select and install their preferred CPUs, HPE empowers businesses to optimize their server's performance according to their unique requirements. With this feature, users can stay at the forefront of technology advancements while efficiently managing their resources.

RAM

When it comes to server performance, one crucial component that cannot be overlooked is RAM (Random Access Memory). The HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server offers a unique feature - it comes without any pre-installed RAM. While this may seem unconventional, there are several benefits and advantages to this approach.

Flexibility in RAM Configuration

By not including RAM, HPE allows users to have complete control and flexibility in configuring the server's memory according to their specific requirements. Different workloads have varying memory demands, and businesses can choose the optimal amount of RAM that aligns with their applications and data processing needs. This flexibility ensures that the server's memory resources are allocated efficiently, resulting in improved performance and responsiveness.

Cost Optimization

One of the significant benefits of the "No RAM" feature is cost optimization. RAM prices can fluctuate, and by not including pre-installed memory, users can take advantage of market dynamics and choose the most cost-effective options available. This allows businesses to allocate their resources more efficiently and invest in other critical areas that may contribute directly to their operations' success.

Scalability and Future Expansion

Technology advancements and evolving business requirements often necessitate scaling up server resources over time. The absence of pre-installed RAM in the HPE DL360 Gen10 Plus Rack Server enables users to easily scale their memory capacity as needed. Whether it's due to increased data processing demands or expanding virtualization requirements, businesses can add more RAM modules or upgrade existing ones without any hardware limitations. This scalability ensures that the server can adapt to changing needs and remain efficient in the long run.

Customization for Optimal Performance

Memory configurations play a vital role in achieving optimal server performance. By not specifying the RAM, HPE allows users to customize their server's memory according to their workload demands. Businesses can choose the memory type, speed, and capacity that best fits their applications, ensuring that data processing is seamless and efficient. This level of customization helps avoid overprovisioning or underutilization of resources, leading to improved productivity and cost savings.

Compatibility with Existing Infrastructure

Another advantage of the "No RAM" feature is improved compatibility with existing infrastructure. By not bundling specific memory modules, HPE ensures that the server chassis is compatible with a wide range of RAM options from different manufacturers. This compatibility enables businesses to leverage their existing memory modules or select the most suitable ones based on their current infrastructure and requirements. It simplifies the integration process and minimizes compatibility issues that may arise when using pre-configured RAM.

Reduced E-Waste

By offering a server without pre-installed RAM, HPE contributes to reducing electronic waste. This approach promotes responsible consumption by allowing businesses to utilize existing memory modules or recycle them instead of disposing of functional components unnecessarily. It aligns with environmental sustainability efforts and encourages businesses to take a proactive approach in minimizing their impact on the environment.

Conclusion

The "No RAM" feature of the HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server provides users with flexibility in memory configuration, cost optimization, scalability, customization for optimal performance, compatibility with existing infrastructure, and reduced e-waste. By allowing users to choose and install their preferred RAM modules, HPE empowers businesses to optimize their server's memory according to their unique requirements. With this feature, users can ensure efficient resource allocation, improve performance, and stay adaptable to future needs.

PartNumber

The HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server is identified by its unique PartNumber - P28948-B21. This specific identifier plays a crucial role in identifying and procuring the exact server model, ensuring compatibility, and simplifying the overall procurement process.

Uniqueness and Accuracy

The PartNumber serves as a unique identifier for the HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server model. It distinguishes this specific server configuration from other variations, ensuring accuracy and precision in product identification. When searching for or procuring this server model, the PartNumber is crucial in ensuring that the correct product is selected, reducing any potential confusion or compatibility issues.

Compatibility and Interchangeability

The PartNumber also plays a crucial role in determining compatibility and interchangeability. By using the PartNumber, users can verify if a specific server configuration is compatible with their existing infrastructure or if it can be seamlessly integrated into their current setup. This simplifies the decision-making process and ensures that the server will work seamlessly with other components and systems.

Efficient Procurement

Having a unique PartNumber greatly streamlines the procurement process. With a specific identifier like P28948-B21, users can easily communicate their requirements to vendors or suppliers, reducing chances of errors or confusion during ordering. The PartNumber ensures that the exact server model is procured, avoiding any potential delays or complications that may arise from incorrect or ambiguous specifications.

Warranty and Support

The PartNumber is also crucial for warranty and support purposes. When registering the server for warranty or seeking technical support, the PartNumber allows HPE and authorized service providers to identify the specific server model and provide appropriate assistance. This ensures that users can access the necessary support and resources throughout the server's lifecycle.

Documentation and Documentation

The PartNumber plays a significant role in documentation and documentation management. By referencing the PartNumber, users can access the relevant documentation, including user manuals, technical specifications, and compatibility guides. This helps users understand the server's capabilities, installation procedures, and best practices, ensuring optimal utilization of the server's features and resources.

Easy Upgrades and Expansion

As businesses grow and their requirements change, upgrading or expanding server resources becomes inevitable. The PartNumber simplifies this process by allowing users to identify the exact server model they currently possess. When seeking to upgrade or expand their server infrastructure, users can easily reference the PartNumber to ensure compatibility and seamless integration with existing systems.

Conclusion

The PartNumber (P28948-B21) of the HPE DL360 Gen10 Plus Rack Server 8SFF NC CTO Chassis Rack Server ensures uniqueness, accuracy, compatibility, efficient procurement, warranty and support, documentation management, and easy upgrades and expansion. By utilizing this specific identifier, businesses can confidently procure and manage their server infrastructure, ensuring optimal performance and long-term scalability.
