HPE DL380 Gen10 875761-S01 Server 5115 1P 16GB-R P408I-A 8 SFF 1X500W

Processor

The HPE Proliant DL380 Gen10 875761-S01 Server has an impressive processor, the 5115. This high-performance processor offers numerous benefits and plays a crucial role in enhancing the overall capabilities of the server.

General Overview of 875761-S01

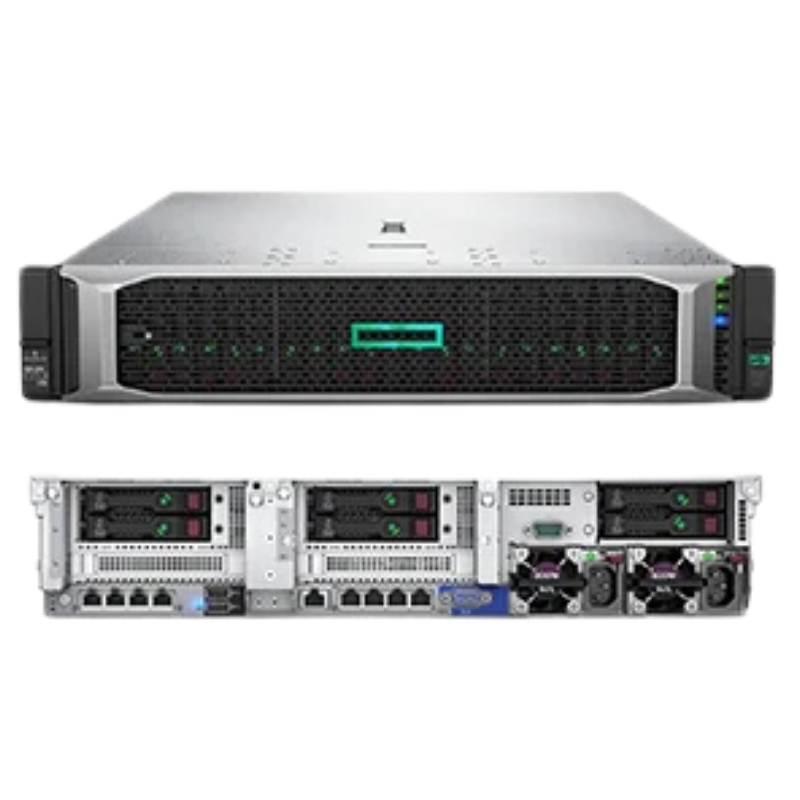

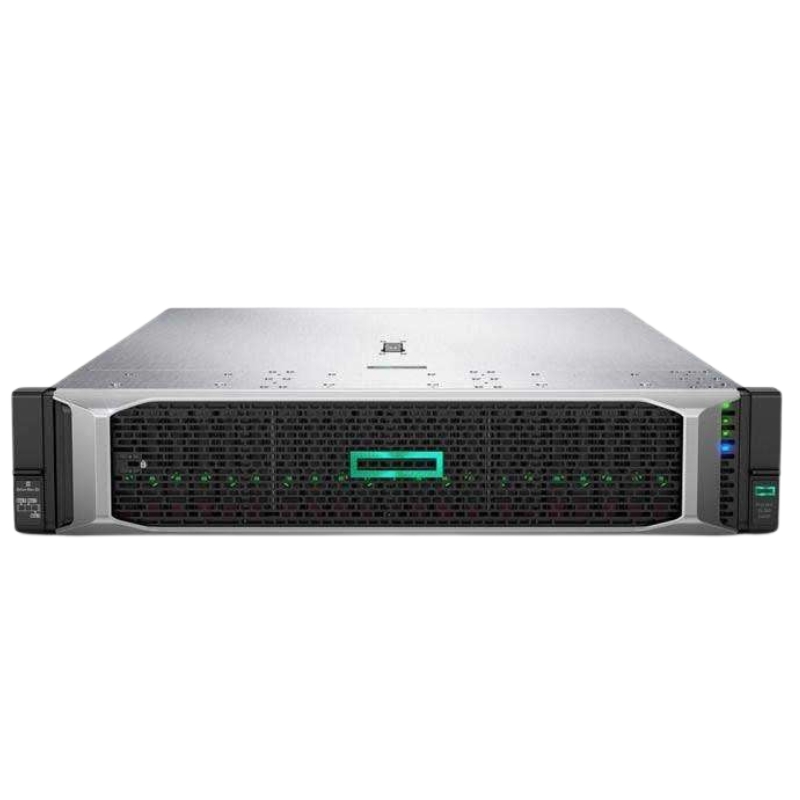

Discover the robust ProLiant DL380 Gen10, a versatile 2U rack-mountable server designed for optimal performance and reliability. Manufactured by Hewlett Packard Enterprise (HPE), this Smart Buy model offers advanced features suited for a variety of demanding applications.

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Model Number: 875761-S01

Processor and Chipset Specifications

• Processor Type: Intel Xeon Gold 5115
• Base Clock Speed: 2.4 GHz
• Max Turbo Frequency: 3.2 GHz
• Core Count: 10 Cores
• Processor Quantity: 1 (Supports Up to 2)
• Socket Type: Socket P
• Chipset: Intel C621
• Advanced Technologies: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Total Cache Size: 13.75 MB L3 Cache
• Cache Per Processor: 13.75 MB

Memory Specifications

• Standard Memory: 16 GB
• Maximum Supported Memory: 384 GB
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Memory Form Factor: DIMM 288-pin
• Memory Features: Registered, Dual Rank, HP SmartMemory, 6-Channel Architecture
• Configuration: 1 x 16 GB
• Supported RAM Configurations: PC4-20800 up to 384 GB Registered or 768 GB Load-Reduced

Storage and Controllers

• Hard Drives: None Included
• Optical Drives: None Included

Storage Controllers

• Controller Type: RAID Controller
• Interface Type: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display and Graphics

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• Expansion Bays:
  • 1 x External (Free)
  • 8 x Hot-Swap 2.5" SFF (All Free)
• Expansion Slots:
  • 2 x CPU Slots (1 Free)
  • 12 x DIMM 288-pin Slots (11 Free)
  • 1 x FlexibleLOM Slot (1 Free)
  • 1 x PCIe 3.0 x16 Slot (Half-Length, Full-Height, 1 Free)
  • 2 x PCIe 3.0 x8 Slots (Half-Length, Full-Height, 2 Free)
  • 1 x MicroSD Card Slot (Internal, 1 Free)

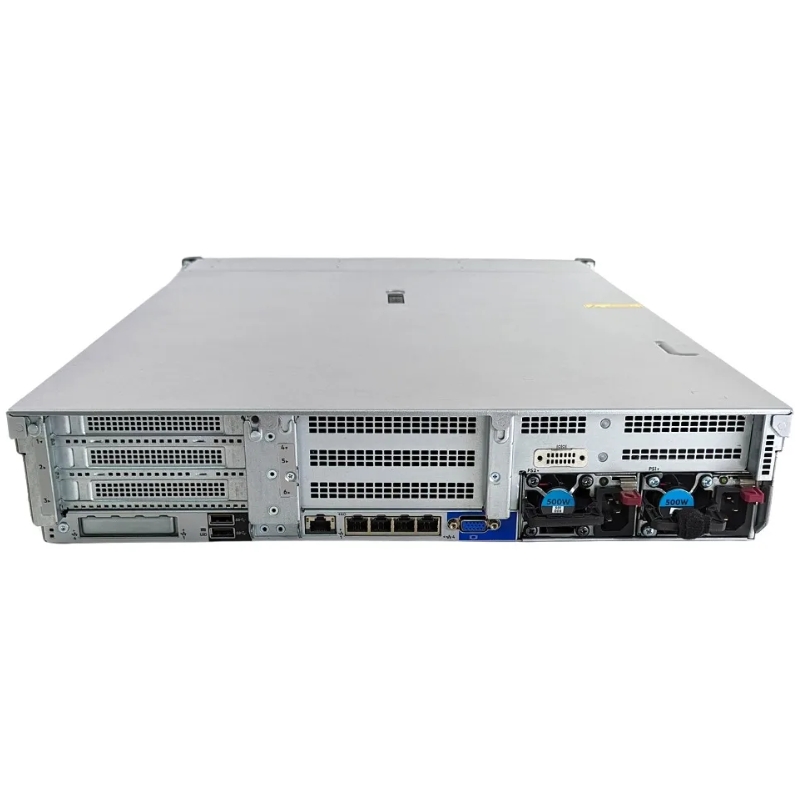

Interfaces and Ports

• 4 x LAN (Gigabit Ethernet) - RJ-45
• 1 x HP iLO - RJ-45 (Rear)
• 1 x VGA (Rear)
• 8 x SATA-600 / SAS 3.0
• 1 x HP iLO - Type A (Front)
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous

• HP Easy Install Rail Kit
• 4 x Standard Hot Plug Fans
• Standard CPU Heatsink

Compliance and Standards

• AES, FIPS 140-2
• IPv6 Ready
• PCI DSS, TLS v1.2
• ASHRAE Class A4, A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

HPE Smart Buy

Power Specifications

• Type: Hot-Plug / Redundant
• Redundancy: 1+1
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Physical Dimensions and Weight

• Width: 17.5 inches
• Depth: 28.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Unmatched Performance

The 5115 processor is designed to deliver unparalleled performance, making it an ideal choice for demanding workloads and resource-intensive applications. With its 10 cores and 20 threads, this processor can handle multiple tasks simultaneously, ensuring smooth and efficient operation even under heavy workloads.

Increased Productivity

Thanks to the powerful performance of the 5115 processor, users can experience increased productivity and enhanced efficiency. Complex calculations, data analysis, and virtualization tasks can be executed swiftly, allowing businesses to optimize their operations and achieve higher output levels.

Improved Responsiveness

The 5115 processor significantly improves the responsiveness of the HPE Proliant DL380 Gen10 875761-S01 Server. It ensures quick response times for user requests, reducing latency and minimizing delays in accessing applications and data. This enhances user experience and allows for seamless multitasking.

Enhanced Security

The 5115 processor incorporates advanced security features to protect sensitive data and ensure the integrity of the server. With built-in hardware-level encryption and secure boot capabilities, it safeguards against unauthorized access and helps businesses comply with data protection regulations.

Efficient Power Consumption

Despite its exceptional performance capabilities, the 5115 processor is designed to be energy-efficient. It intelligently manages power consumption based on workload requirements, optimizing energy usage without compromising performance. This not only reduces operational costs but also contributes to a greener IT infrastructure.

Scalability and Future-Proofing

The 5115 processor offers scalability, allowing for future expansion and growth. Its advanced architecture supports higher memory capacities and increased storage capabilities, ensuring that the HPE Proliant DL380 Gen10 875761-S01 Server can adapt to evolving business needs without requiring a complete hardware upgrade.

Reliability and Durability

HPE is renowned for its commitment to quality, and the 5115 processor is no exception. Built with robust components and subjected to rigorous testing, this processor delivers exceptional reliability and durability. It can withstand demanding environments and continuous operation, minimizing the risk of hardware failures and downtime.

Optimized Virtualization

Virtualization is a key technology in modern IT infrastructures, and the 5115 processor excels in this area. Its high core count and thread capacity enable efficient virtual machine deployment and management, maximizing utilization of server resources. This makes it an ideal choice for organizations looking to consolidate their infrastructure and improve resource allocation.

Memory

The HPE Proliant DL380 Gen10 875761-S01 Server comes equipped with 16GB-R memory, providing ample capacity for handling demanding workloads and enabling smooth multitasking. The memory feature plays a crucial role in the overall performance and efficiency of the server.

Improved System Responsiveness

The 16GB-R memory ensures swift data access and retrieval, resulting in improved system responsiveness. Applications load faster, and data-intensive tasks can be executed without delays, enhancing user experience and productivity.

Efficient Workload Management

With 16GB-R memory, the HPE Proliant DL380 Gen10 875761-S01 Server can efficiently handle multiple workloads simultaneously. Users can run resource-intensive applications, virtual machines, and databases without experiencing performance bottlenecks or slowdowns.

Scalability for Future Growth

The 16GB-R memory provides scalability, allowing businesses to accommodate future growth and expansion. It supports memory upgrades to higher capacities, ensuring that the server can meet the evolving needs of the organization without requiring a complete hardware replacement.

Optimized Virtualization

Virtualization heavily relies on memory capacity, and the 16GB-R memory enables efficient virtual machine deployment and management. It allows for higher consolidation ratios, maximizing the utilization of server resources and reducing infrastructure costs.

Enhanced Data Processing

The 16GB-R memory enables faster data processing, which is essential for data-intensive tasks such as analytics, database management, and big data processing. Users can analyze large datasets more efficiently, make informed decisions in real-time, and derive valuable insights from their data.

Reliability and Data Integrity

HPE servers are known for their reliability, and the 16GB-R memory is no exception. It undergoes thorough testing to ensure its durability and stability, minimizing the risk of memory-related errors and failures. This ensures data integrity and helps maintain uninterrupted operations.

Improved Multitasking

With 16GB-R memory, users can effortlessly multitask without experiencing performance degradation. They can run multiple applications simultaneously, switch between tasks seamlessly, and maintain high productivity levels.

Future-Proof Investment

Investing in a server with ample memory capacity like the HPE Proliant DL380 Gen10 875761-S01 ensures future-proofing. As businesses grow and their workloads increase, the server can accommodate higher memory demands without requiring immediate hardware upgrades. This helps organizations save costs in the long run.

Storage

The storage feature of the HPE Proliant DL380 Gen10 875761-S01 Server is highlighted by its 8 SFF (Small Form Factor) capability. This storage configuration offers numerous benefits and plays a vital role in the overall performance and data management capabilities of the server.

Increased Storage Capacity

The 8 SFF configuration provides ample storage capacity, allowing businesses to store and manage large amounts of data efficiently. With support for multiple hard drives or solid-state drives (SSDs), the server can accommodate growing data volumes without compromising performance.

Enhanced Data Redundancy

The 8 SFF storage configuration enables the implementation of RAID (Redundant Array of Independent Disks) technology, enhancing data redundancy and protection against drive failures. By distributing data across multiple drives, businesses can ensure that critical information remains accessible even if one or more drives fail.

Improved I/O Performance

The 8 SFF storage configuration supports high-performance SAS (Serial Attached SCSI) or SATA (Serial ATA) drives, delivering improved I/O (Input/Output) performance. This translates to faster data transfer rates, reduced latency, and quicker access to stored information. It is particularly beneficial for applications that rely on rapid data retrieval and processing.

Flexible Storage Options

The 8 SFF storage configuration offers flexibility in terms of storage options. Businesses can choose between hard disk drives (HDDs) or solid-state drives (SSDs) based on their specific requirements. SSDs provide faster access times and higher read/write speeds, making them ideal for applications that demand exceptional performance.

Scalability for Growing Data Needs

As businesses generate and accumulate more data, the 8 SFF storage configuration allows for easy scalability. Additional drives can be added to the server without disrupting operations, ensuring that the storage capacity can keep up with evolving data needs.

Streamlined Data Management

The 8 SFF storage configuration enables efficient data management, with support for features such as hot-swapping and online RAID expansion. This simplifies maintenance tasks, improves system uptime, and allows for seamless capacity expansion without interrupting critical operations.

Enhanced Data Security

The 8 SFF storage configuration facilitates data security measures such as hardware-level encryption and secure erase functionality. This ensures that sensitive information remains protected, even if physical drives are compromised or retired.

Optimized Virtualization Performance

Virtualized environments benefit from the 8 SFF storage configuration by providing faster data access and improved I/O performance to virtual machines. This allows for smoother operation of virtualized applications and reduces the impact of storage bottlenecks on overall system performance.

Power Supply

The HPE Proliant DL380 Gen10 875761-S01 Server is equipped with a reliable 1X500W power supply. The power supply feature is of utmost importance as it ensures the server operates efficiently and provides uninterrupted performance.

Stability and Reliability

The 1X500W power supply ensures a stable and reliable power source for the server. It is designed to deliver consistent power with minimal fluctuations, reducing the risk of hardware damage and system failures caused by power irregularities.

Energy Efficiency

The 1X500W power supply is optimized for energy efficiency, contributing to lower operational costs. It adheres to industry-standard efficiency ratings, such as 80 PLUS certification, ensuring that a significant portion of the input power is converted into usable output power. This helps organizations save on electricity bills and promotes environmental sustainability.

Redundancy for Enhanced Availability

The HPE Proliant DL380 Gen10 875761-S01 Server supports redundant power supply configurations. By adding a second power supply unit, businesses can ensure continuous operation even in the event of a single power supply failure. This redundancy feature enhances system availability and minimizes the risk of downtime.

Scalability for Growing Demands

The 1X500W power supply provides scalability options for businesses with increasing power demands. If additional components are added to the server or if future expansions require higher power capacities, the power supply can be upgraded accordingly. This scalability ensures that the server can adapt to changing requirements without compromising performance.

Efficient Cooling

The 1X500W power supply is designed to operate with efficient cooling mechanisms, ensuring optimal airflow within the server chassis. This helps dissipate heat efficiently, preventing overheating and maintaining a suitable operating temperature for critical components. Proper cooling improves system stability and longevity.

Remote Monitoring and Management

HPE servers are equipped with advanced management tools that allow remote monitoring and control of power supply units. Administrators can monitor power usage, configure power allocation, and receive alerts in case of any issues or anomalies. This enables proactive maintenance and efficient management of the server infrastructure.

Reliable Protection for Critical Data

The 1X500W power supply incorporates various protection features to safeguard critical data and components. It includes built-in surge protection, voltage regulation, and short-circuit protection mechanisms, ensuring that the server remains resilient against power-related incidents.

Compliance with Industry Standards

The 1X500W power supply adheres to industry standards and certifications, guaranteeing its quality and safety. It meets various regulatory requirements, ensuring that businesses maintain compliance with relevant industry guidelines and regulations.

In conclusion, the HPE Proliant DL380 Gen10 875761-S01 Server offers exceptional features that contribute to its overall performance, reliability, and efficiency. The powerful 5115 processor delivers unmatched performance, enabling increased productivity, improved responsiveness, and enhanced security. The 16GB-R memory provides ample capacity for multitasking, scalability for future growth, and optimized virtualization capabilities. The 8 SFF storage configuration offers increased storage capacity, enhanced data redundancy, and improved I/O performance. The 1X500W power supply ensures stability, energy efficiency, and scalability for growing power demands. With these features combined, the HPE Proliant DL380 Gen10 875761-S01 Server is a versatile and reliable solution for businesses of all sizes.
