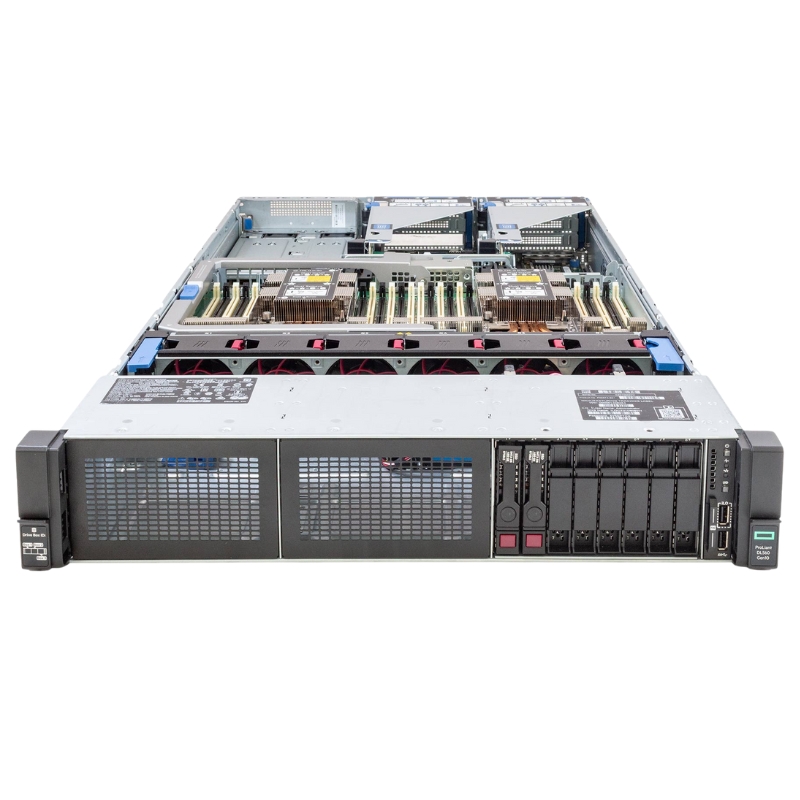

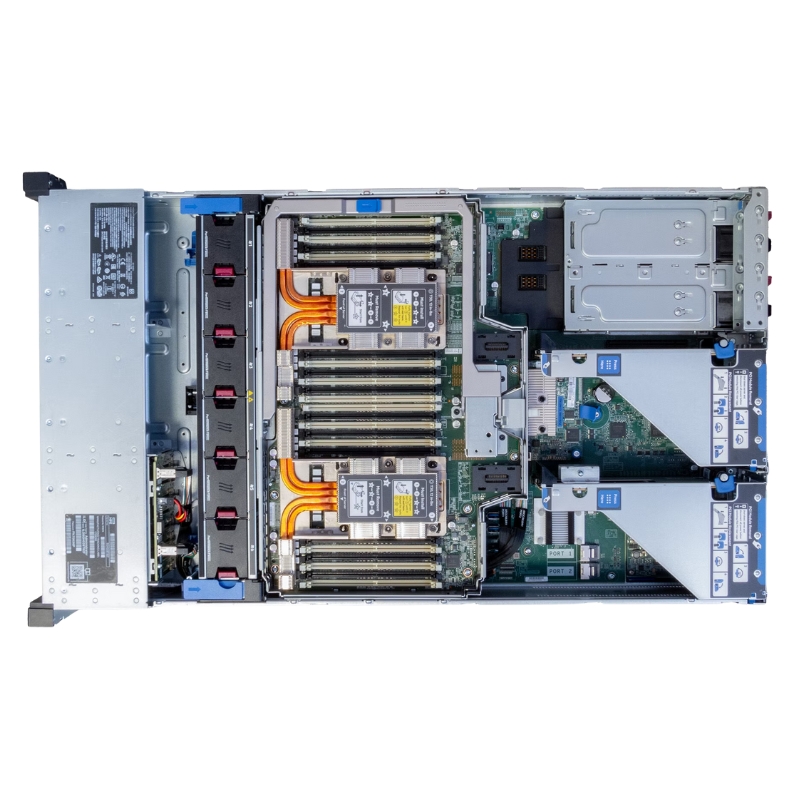

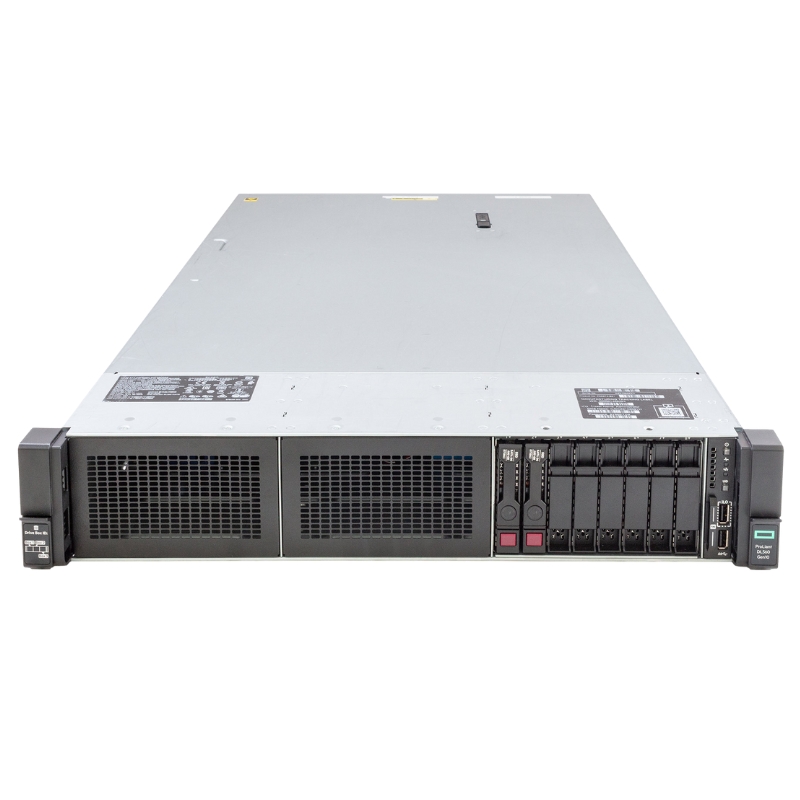

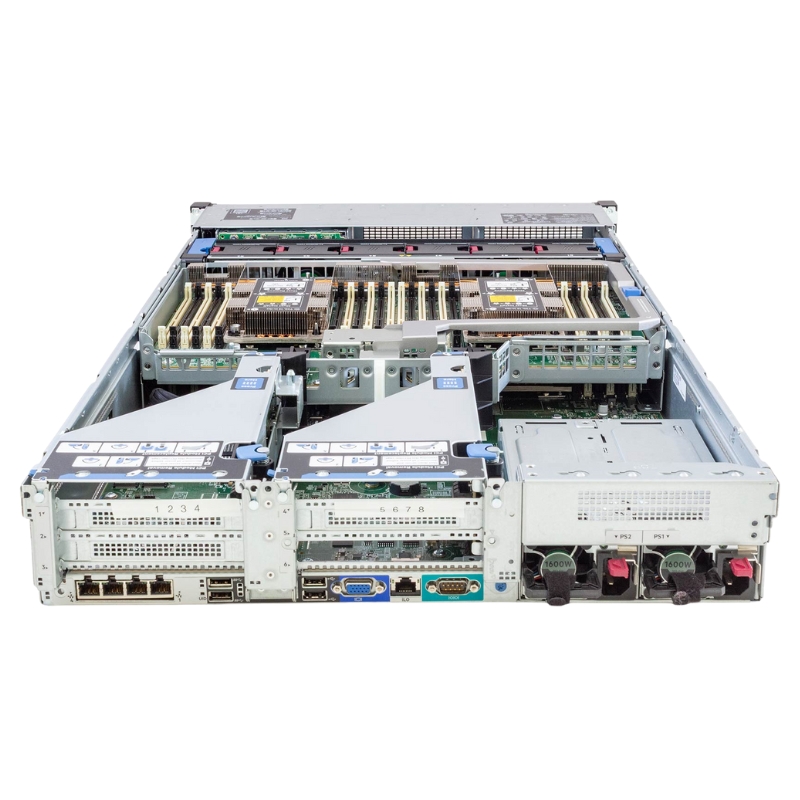

P02874-B21 HPE DL560 Gen10 Server System, 6254 4P, 256GB RAM, 8 SFF Storage

Product Specifications

Manufacturer and Model Details

• Brand: HPE
• Manufacturer Part Number: P02874-B21

• Product Name: ProLiant DL560 Gen10 - 2U Rack Server (Base Configuration)

Processor and Chipset Information

• CPU Model: 2nd Generation Intel Xeon Gold 6254
• Clock Speed: 3.1 GHz (Max Turbo Speed: 4.0 GHz)
• Core Count: 18-core
• CPU Quantity: 4 (Maximum Supported: 4)
• Upgradability: Supported
• Key Features: Turbo Boost Technology 2, Hyper-Threading, Intel Smart Cache
• Socket Type: FCLGA3647
• Chipset: Intel C621

Cache and Memory Details

• L3 Cache: 99 MB (24.75 MB per processor)
• Installed RAM:

  HPE DL560 Gen10 Server System - P02874-B21

  The HPE DL560 Gen10 Server System (P02874-B21) is a high-performance, flexible, and reliable solution designed to meet the needs of enterprise environments that require high computing power and exceptional scalability. This server system is optimized for mission-critical applications, supporting the latest technologies and providing substantial storage and memory resources. It is equipped with a 6254 4P processor configuration, offering four powerful processors for exceptional multi-tasking and processing capabilities, making it ideal for demanding workloads such as virtualization, databases, and enterprise applications.

  Key Features of the HPE DL560 Gen10

  The HPE DL560 Gen10 Server offers several advanced features that enhance its performance, security, and manageability. Below are some key highlights:

  • Powerful 6254 4P Processor Configuration: The 6254 processor is one of the most powerful CPUs available, providing four processing units capable of handling the most demanding tasks with ease.
  • 256GB RAM: With 256GB of memory, this server is capable of supporting resource-heavy applications and can efficiently manage high-performance workloads.
  • 8 SFF Storage Bays: This server supports eight Small Form Factor (SFF) storage drives, providing ample space for data storage and ensuring that it can accommodate a variety of applications and data processing needs.
  • HPE Smart Array Controllers: The server is equipped with advanced RAID controllers, offering a range of redundancy and performance optimization options for storage systems.
  • Enhanced Security Features: The HPE DL560 Gen10 offers robust security features, including silicon root of trust and integrated security technologies that safeguard against unauthorized access and cyber threats.

  HPE DL560 Gen10 Processor and Performance

  Processor Specifications

  The HPE DL560 Gen10 Server comes with the Intel Xeon Scalable processors, specifically the 6254 4P processor configuration. These processors are engineered to provide top-tier performance for demanding applications.

  Intel Xeon Scalable 6254 Processor

  The Intel Xeon Scalable 6254 processor is part of the third-generation Xeon family and features advanced technology designed for enterprise workloads. With 18 cores per processor and a base clock speed of 3.1 GHz, it offers incredible computational performance. The high core count and frequency allow the DL560 Gen10 server to handle workloads such as high-performance computing (HPC), data analytics, and AI-driven tasks with ease.

  Scalability and Multi-Core Performance

  One of the primary advantages of the HPE DL560 Gen10 server is its scalability. With a 4P configuration, the server can scale across multiple processors to handle intensive workloads. The combination of high core counts and hyper-threading enables seamless performance in virtualized environments, making it a top choice for organizations that rely on large-scale server infrastructures.

  Optimized for Virtualization and Data-Intensive Applications

  The 6254 processors are specifically optimized for virtualization tasks and data-intensive applications. This makes the HPE DL560 Gen10 ideal for deployment in private and hybrid cloud environments, as well as enterprise data centers that require robust virtualization support.

  Memory Capacity and Performance

  256GB RAM for High-Performance Workloads

  The HPE DL560 Gen10 comes pre-configured with a massive 256GB of RAM, ensuring it can handle a variety of high-demand applications without any performance degradation. The large memory pool allows for better multi-tasking, enhanced application performance, and optimized data processing.

  DDR4 Memory Technology

  This server uses DDR4 memory technology, which offers faster data transfer rates and lower power consumption compared to previous generations. DDR4 memory is widely used in data centers and high-performance computing because it can provide the speed and efficiency required by modern workloads.

  Memory Expansion and Flexibility

  One of the key advantages of the HPE DL560 Gen10 is its flexibility. The server features 24 DIMM slots, enabling you to scale up memory as needed. Whether you need additional memory for large-scale data processing or to support more virtual machines, the DL560 Gen10 provides the ability to expand memory capacity to meet your specific needs.

  Supporting Multi-Tenant and Multi-Workload Environments

  The server's substantial memory capacity makes it well-suited for multi-tenant environments. Whether you're running virtual machines, containers, or enterprise applications, the DL560 Gen10 provides the memory performance required to ensure smooth operations.

  Storage Capabilities

  Flexible Storage Options with 8 SFF Bays

  The HPE DL560 Gen10 is equipped with eight Small Form Factor (SFF) storage bays, which provide flexible storage solutions that can be tailored to your enterprise’s needs. The SFF bays support both SSDs and HDDs, offering a wide range of performance and capacity options.

  Storage Drive Types and Configurations

  Depending on your needs, you can opt for either solid-state drives (SSDs) or hard disk drives (HDDs) to configure your storage setup. SSDs offer superior performance with faster read and write speeds, making them ideal for applications that require low-latency data access. HDDs, on the other hand, provide greater storage capacities at a lower cost per terabyte, making them suitable for archival purposes and high-capacity data storage.

  HPE Smart Storage Controllers

  The HPE DL560 Gen10 comes with advanced Smart Array controllers, ensuring that your data storage system is optimized for both performance and reliability. These controllers support a variety of RAID levels, including RAID 0, RAID 1, RAID 5, and RAID 10, providing a balance of redundancy and speed.

  Enhanced Storage Management

  HPE's Intelligent Provisioning and HPE OneView provide streamlined storage management, allowing you to configure and monitor your storage environment with ease. These tools enable the efficient management of both local and networked storage, ensuring that your storage infrastructure remains aligned with your business requirements.

  Networking and Connectivity

  High-Performance Networking Options

  The HPE DL560 Gen10 Server supports a wide range of networking technologies, making it ideal for high-performance environments where connectivity is critical. It includes built-in 1GbE and 10GbE network adapters, ensuring that data can be transferred efficiently and without bottlenecks.

  Flexible Network Interface Cards (NICs)

  The server’s flexibility is further enhanced with its support for various Network Interface Cards (NICs). With support for 10GbE, 25GbE, and 40GbE adapters, the DL560 Gen10 can easily scale to accommodate increasing data throughput requirements. This makes it suitable for environments where high-speed network connectivity is essential, such as data centers and virtualized infrastructure.

  Advanced Network Management

  With integrated tools like HPE Intelligent Management Center (IMC) and HPE OneView, network management becomes more streamlined. These tools provide visibility into network health, help with configuration, and assist in troubleshooting potential connectivity issues, ensuring that the network remains operational and secure.

  Security Features of the HPE DL560 Gen10

  Built-in Security Technologies

  HPE has designed the DL560 Gen10 with a comprehensive suite of security features to help protect your data, hardware, and infrastructure. From the firmware level to the operating system, the HPE DL560 Gen10 employs a multi-layered approach to security.

  Silicon Root of Trust

  One of the core security features of the HPE DL560 Gen10 is the silicon root of trust, which provides a hardware-based foundation for secure boot and system integrity. This technology helps to ensure that the server’s firmware has not been tampered with and that the system remains secure from the start-up process onward.

  Secure Memory and Firmware Updates

  HPE's secure memory and firmware update technology ensures that your server's software is up-to-date and protected against vulnerabilities. HPE's firmware auto-signed updates guarantee the authenticity and integrity of all firmware updates, preventing unauthorized modifications.

  Trusted Platform Module (TPM)

  The HPE DL560 Gen10 also includes a Trusted Platform Module (TPM) that encrypts sensitive data and prevents unauthorized access to critical system components. This feature enhances data protection and ensures that the server remains secure throughout its lifecycle.

  Management and Monitoring

  HPE OneView Management

  The HPE DL560 Gen10 is compatible with HPE OneView, a powerful management tool that simplifies the configuration and monitoring of the server. OneView allows IT administrators to automate repetitive tasks, monitor server health, and receive alerts for potential issues, making it easier to maintain optimal performance across your infrastructure.

  Proactive Monitoring and Diagnostics

  HPE OneView offers real-time monitoring of server components, including CPU, memory, storage, and network health. With this tool, IT teams can proactively address issues before they affect performance, reducing the risk of downtime and enhancing operational efficiency.

  Integrated Remote Management

  Remote management capabilities allow administrators to monitor and control the server from anywhere, providing the flexibility to manage infrastructure without needing to be physically present. This makes it ideal for organizations with distributed data centers or remote offices.
