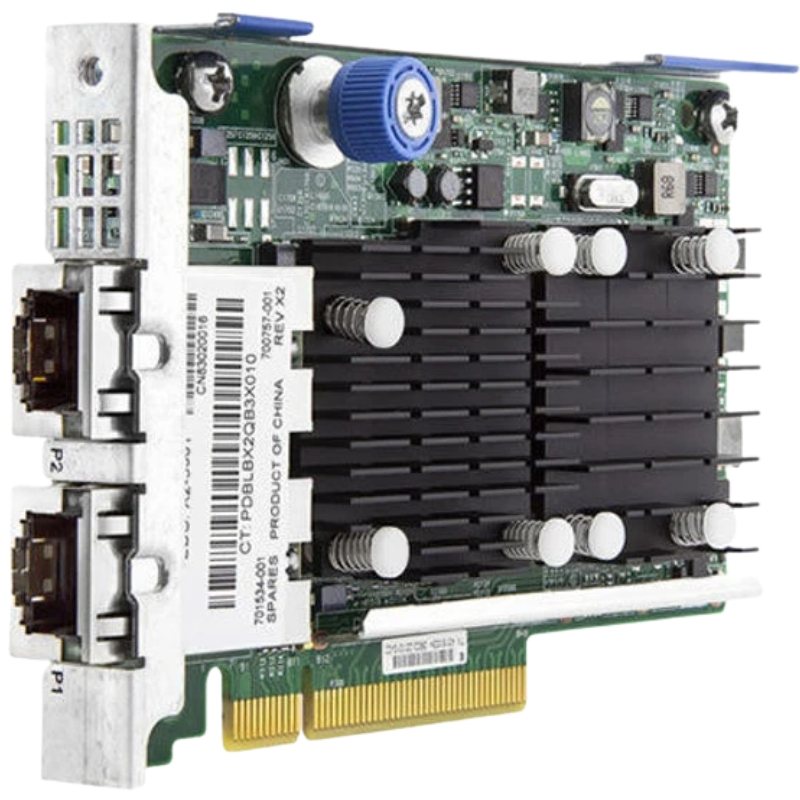

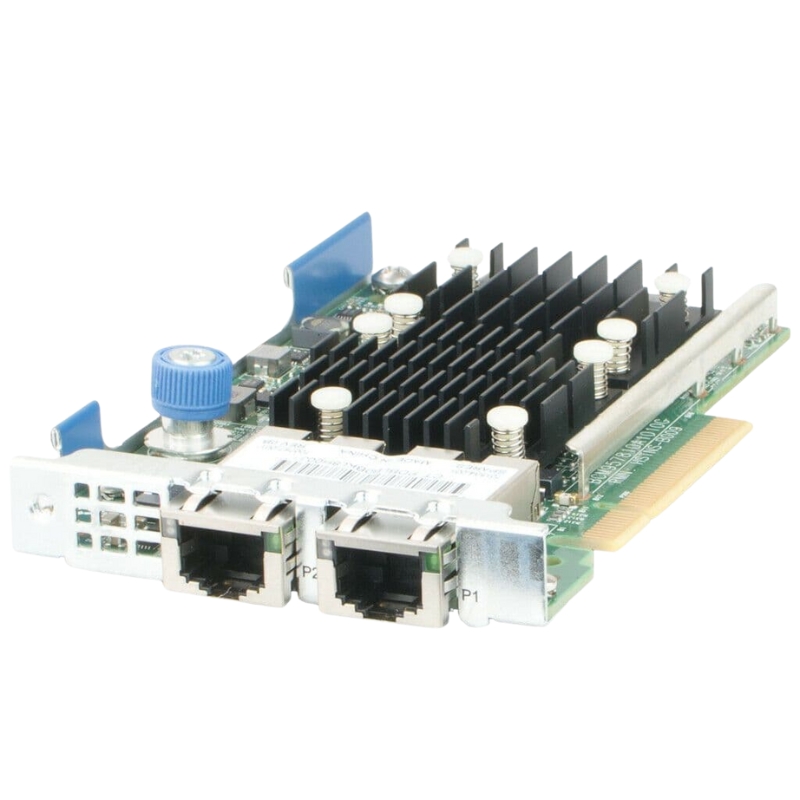

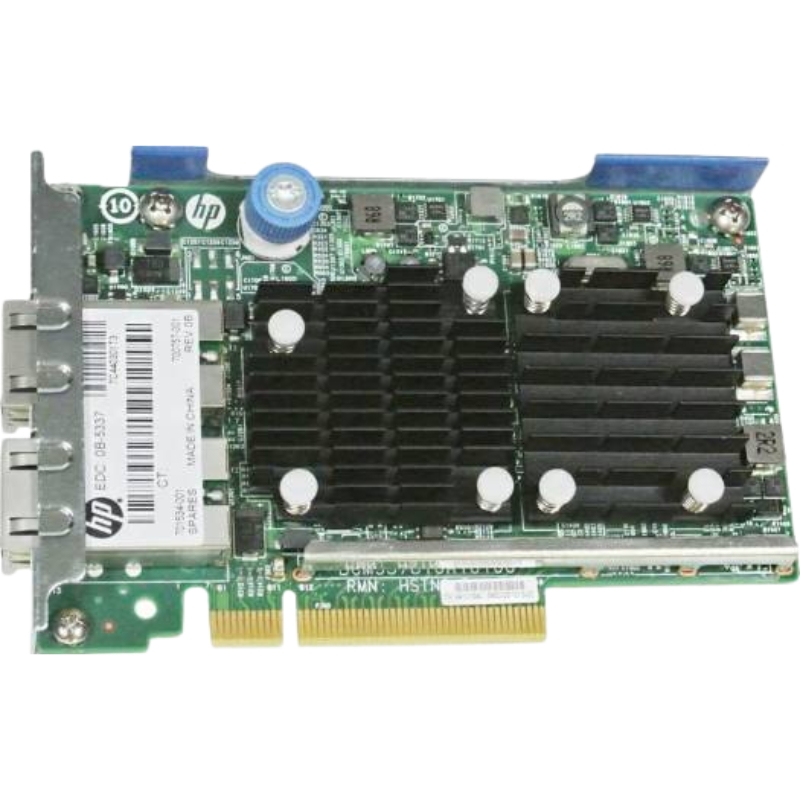

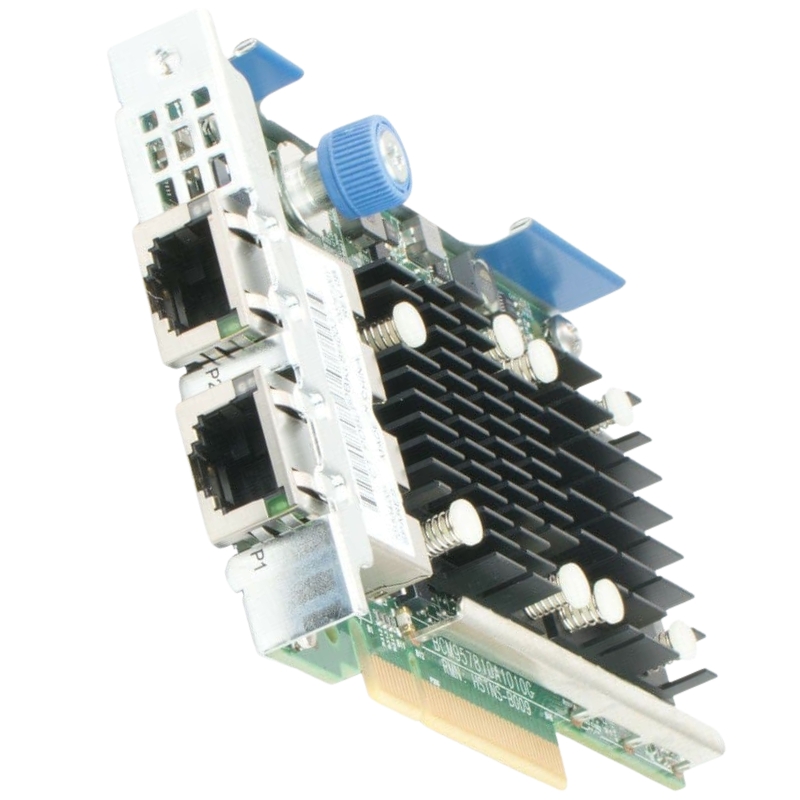

HPE 701534-001 533FLR-T FlexFabric 2-Ports 10Gb PCIe 2.0 Adapter G9-G10

701534-001
Hover on image to enlarge

Brief Overview of 701534-001

HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter G9-G10 701534-001. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE 701534-001 533FLR-T FlexFabric 2-Ports 10Gb PCIe 2.0 Adapter G9-G10
$109.35
$81.00
You save: $28.35 (26%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPN701534-001Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Main Features

Manufacturer & Model Information

  • Brand: HPE
  • Part Number: 701534-001
  • Spare Part Number: 700760-B21

Network Adapter Specifications

  • Type: Network Adapter (Includes Full-Height and Half-Height Brackets)
  • Form Factor: FlexibleLOM (Plug-In Card)
  • Interface: PCI Express 2.0 x8
  • PCI Revision: PCIe 2.0

Networking Features

  • Cabling Type: 10GBase-T Ethernet
  • Connectivity: Wired
  • Supported Protocols: GigE, 10 GigE
  • Data Transfer Rate: 10 Gbps per port, 40 Gbps total
  • Ports: Dual 10Gb Ethernet (x2)
  • Indicators: Port Status, Link/Activity LEDs
  • Network Processor: Cavium 57810S
  • Maximum Jumbo Frame Size: 9000 KB

Advanced Networking Features

  • 802.1Q VLAN Support
  • Checksum & Segmentation Offload
  • DPDK (Data Plane Development Kit)
  • IPv6 & iSCSI/FCoE Support
  • Network Adapter Teaming & Partitioning
  • Virtualization Optimization (Single-Root I/O Virtualization)
  • Receive Side Scaling (RSS)
  • Preboot Execution Environment (PXE) Support
  • Message Signaled Interrupt (MSI-X)
  • Tunnel Offload & TOE (TCP Offload Engine)
  • Support for VMware NewQueue and Microsoft Virtual Machine Queue (VMQ)

IEEE Compliance

  • Complies with IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1Q, 802.3az, 1588, 802.1as

Processor & Memory

  • Processor: Cavium 57810S
  • RAM: 256 MB

Expansion & Connectivity

  • Interface: 2 x 10GBase-T (RJ-45)

Operating System Compatibility

  • SuSE Linux Enterprise Server 11 (x86/AMD64/Intel EM64T)
  • Microsoft Windows Server 2008/2012
  • Oracle Solaris 10
  • Red Hat Enterprise Linux 5.x to 6.x
  • Citrix XenServer 6.0+
  • VMware vSphere 5.0+

Power Specifications

  • Max Power Consumption: 18.20 Watts
  • Typical Power Consumption: 15.50 Watts

Environmental Conditions

  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Non-Operating Temperature: -65°C to 85°C (-85°F to 185°F)
  • Operating Humidity: 10% to 90%, non-condensing
  • Non-Operating Humidity: 5% to 95%, non-condensing

Certifications & Standards

  • FCC Class A, UL Certified
  • VCCI Class A ITE, EN55024, EN55022 Class A
  • WEEE, RoHS Compliant
  • BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008

Physical Specifications

  • Height: 2.25 inches
  • Width: 9.50 inches
  • Depth: 7.50 inches
  • Weight: 1.00 lbs

Compatibility Information

  • Servers: HPE Apollo 4200 Gen9, HPE ProLiant DL Series (DL20 Gen9, DL360 Gen9, DL380 Gen9, etc.)
  • HPE Apollo 2000 XL Series, HPE Apollo 4500 XL Series

Part Number: 701534-001

The HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter is a high-performance network adapter designed to provide seamless connectivity and enhanced network performance for your server infrastructure. One of its key features is the part number: 701534-001. This unique identifier plays a crucial role in identifying and distinguishing this specific adapter model from others in the market.

Identification and Compatibility

The part number serves as a universal identifier for the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter, enabling easy recognition and compatibility assessment. By referring to this part number, users can quickly identify whether this adapter is compatible with their existing server hardware and infrastructure.

Whether you are upgrading your current server or building a new one, knowing the specific part number of the adapter is essential to ensure that it fits seamlessly into your system. The HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with part number 701534-001 is specifically designed for HPE servers, making it an ideal choice for businesses relying on HPE infrastructure.

Streamlined Installation and Configuration

Having the correct part number simplifies the installation process. When you have the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with part number 701534-001, you can be confident that it is precisely engineered to seamlessly integrate with your HPE server. This compatibility ensures a smooth installation process, reducing any potential downtime or complications.

Furthermore, the part number enables efficient configuration and management of the adapter. With a standardized part number, it becomes easier for system administrators to identify and manage the network adapters across their server infrastructure. This simplifies the overall IT management process, allowing for quick troubleshooting, upgrades, and optimizations.

Enhanced Performance and Reliability

The part number 701534-001 signifies that the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter is specifically designed to deliver high-performance networking capabilities. Equipped with advanced features and technologies, this adapter ensures reliable and efficient data transfer within your network infrastructure.

With support for 10 Gigabit Ethernet speeds, users can experience lightning-fast data transfers, enabling quick access to critical information and applications. The high bandwidth provided by this adapter helps eliminate bottlenecks in data-intensive tasks, ensuring smooth operation even under heavy workloads.

Scalability and Future-Proofing

The HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with part number 701534-001 offers scalability, allowing businesses to expand their network infrastructure without worrying about compatibility issues. By choosing an adapter with a specific part number designed for HPE servers, you can be confident that it will seamlessly integrate with future HPE server models.

Moreover, the part number ensures compatibility with future firmware updates and driver releases from HPE. This guarantees ongoing support and performance optimizations, keeping your network infrastructure up-to-date with the latest advancements in networking technology.

Cost Efficiency and Investment Protection

Investing in the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with part number 701534-001 provides long-term benefits by protecting your investment. By choosing an adapter specifically designed for HPE servers, you minimize the risk of compatibility issues or the need for additional hardware upgrades.

Additionally, the high-performance capabilities and scalability of this adapter ensure that it can meet the evolving demands of your network infrastructure. This adaptability helps extend the lifespan of your server infrastructure, saving costs in the long run by reducing the need for frequent hardware replacements.

Compatibility: G9-G10

Another significant feature of the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter is its compatibility with G9-G10 servers. This compatibility allows users to seamlessly integrate this adapter into their existing server infrastructure, providing enhanced networking capabilities and performance benefits.

Wide Range of Server Compatibility

The compatibility of the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with G9-G10 servers ensures that it can be utilized across a wide range of HPE server models. Whether you have HPE Gen9 or Gen10 servers, this adapter is designed to fit into your system without any compatibility issues.

This adaptability is particularly beneficial for businesses that have a mixed server environment or are planning to upgrade their servers gradually. The compatibility with both generations of servers ensures that you can leverage the advantages of this adapter across your entire infrastructure without worrying about server-specific limitations.

Seamless Integration and Interoperability

By selecting an adapter compatible with G9-G10 servers, users can enjoy a seamless integration process. The HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter is designed to slot effortlessly into your existing server configuration, ensuring minimal disruption during installation.

In addition to easy integration, this compatibility also enables interoperability between different servers within your infrastructure. You can mix and match G9 and G10 servers, utilizing the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter across multiple systems, enhancing overall network performance and management capabilities.

Enhanced Network Performance and Availability

The compatibility with G9-G10 servers ensures that the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter can leverage the full potential of your server infrastructure. By integrating this adapter into your servers, you can enhance network performance, reduce latency, and improve overall data transfer speeds.

Moreover, the compatibility helps ensure high availability of your network infrastructure. By utilizing this adapter across both generations of servers, you can establish redundant network connections and failover mechanisms, minimizing the risk of downtime and improving business continuity.

Future-Proofing and Investment Protection

Investing in an adapter compatible with G9-G10 servers offers future-proofing benefits for your network infrastructure. As your business grows and evolves, you may need to upgrade or expand your server fleet. The compatibility of the HPE FlexFabric 2-Ports 10Gb PCIe 2.0 533FLR-T Adapter with G9-G10 servers allows for seamless integration with future server models.

This compatibility also ensures ongoing support from HPE in terms of firmware updates, driver releases, and technical assistance. By selecting an adapter that aligns with HPE's server roadmap, you protect your investment and ensure that your network infrastructure can continue to leverage the latest advancements in networking technology.
