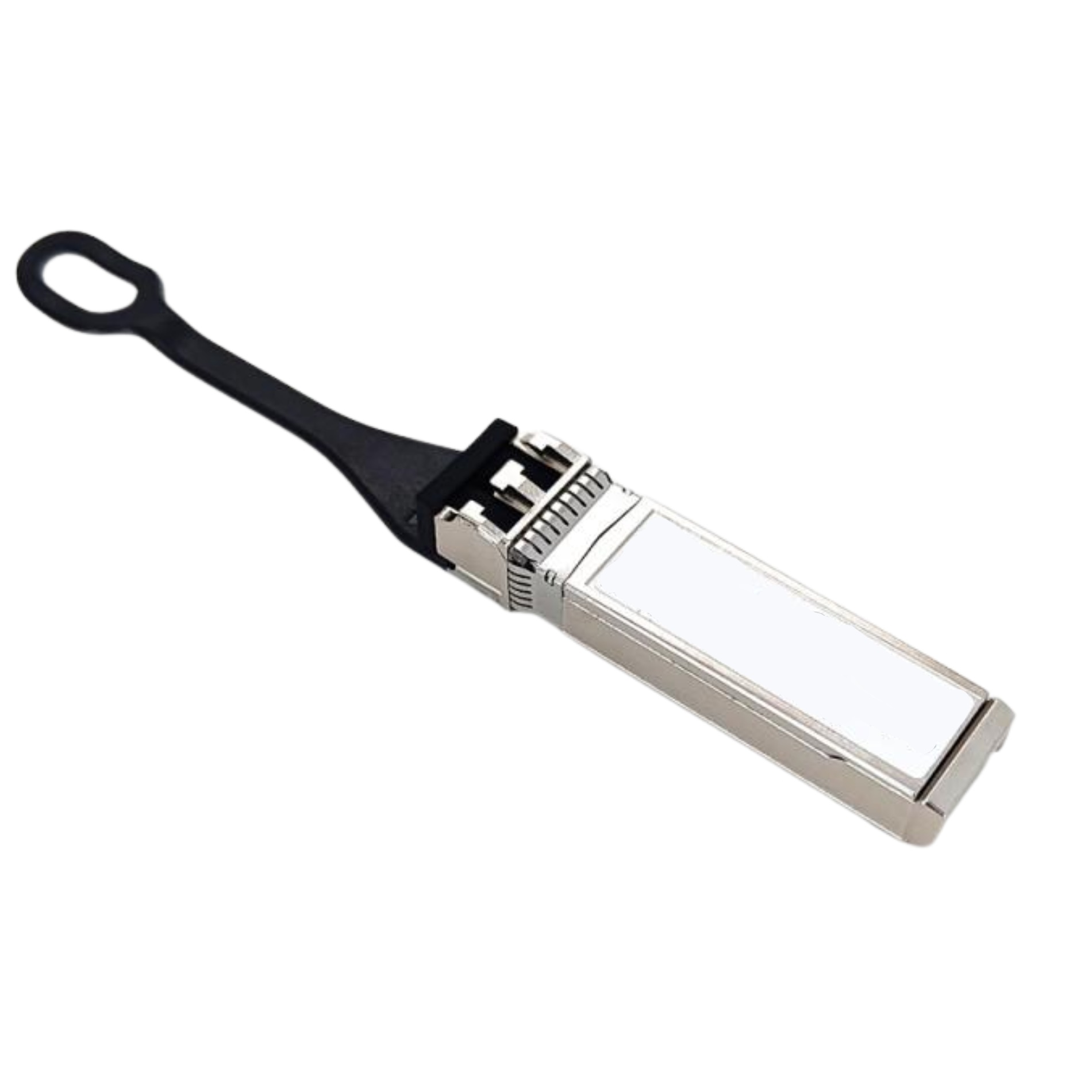

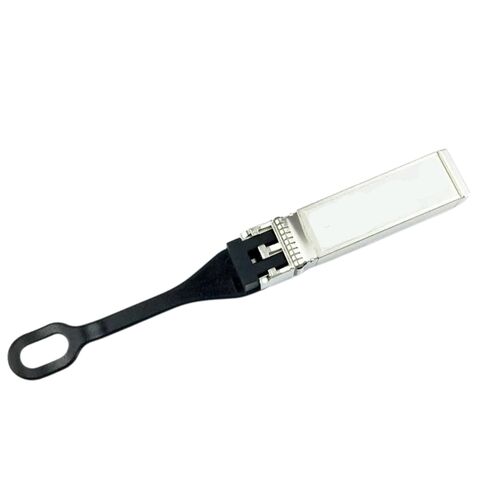

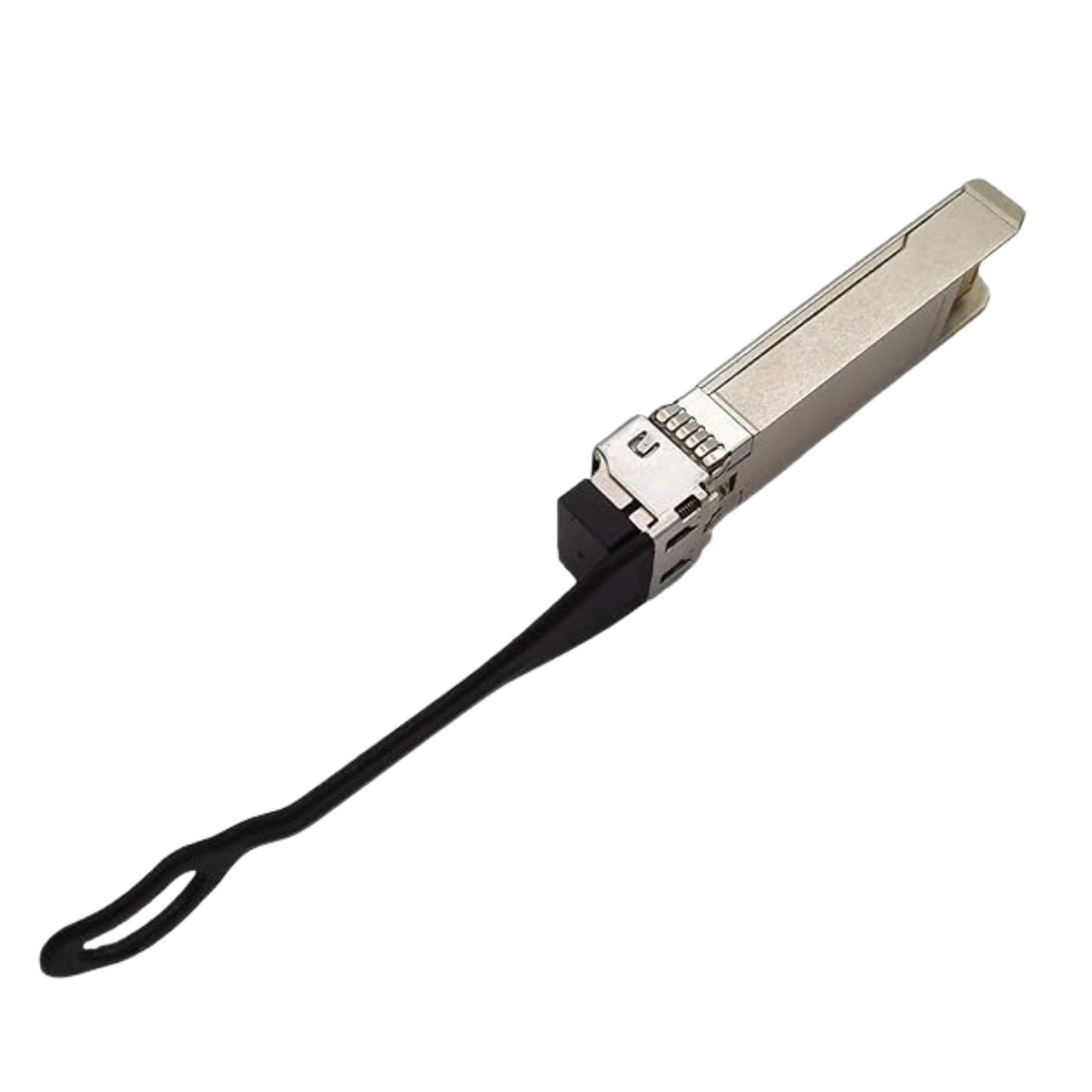

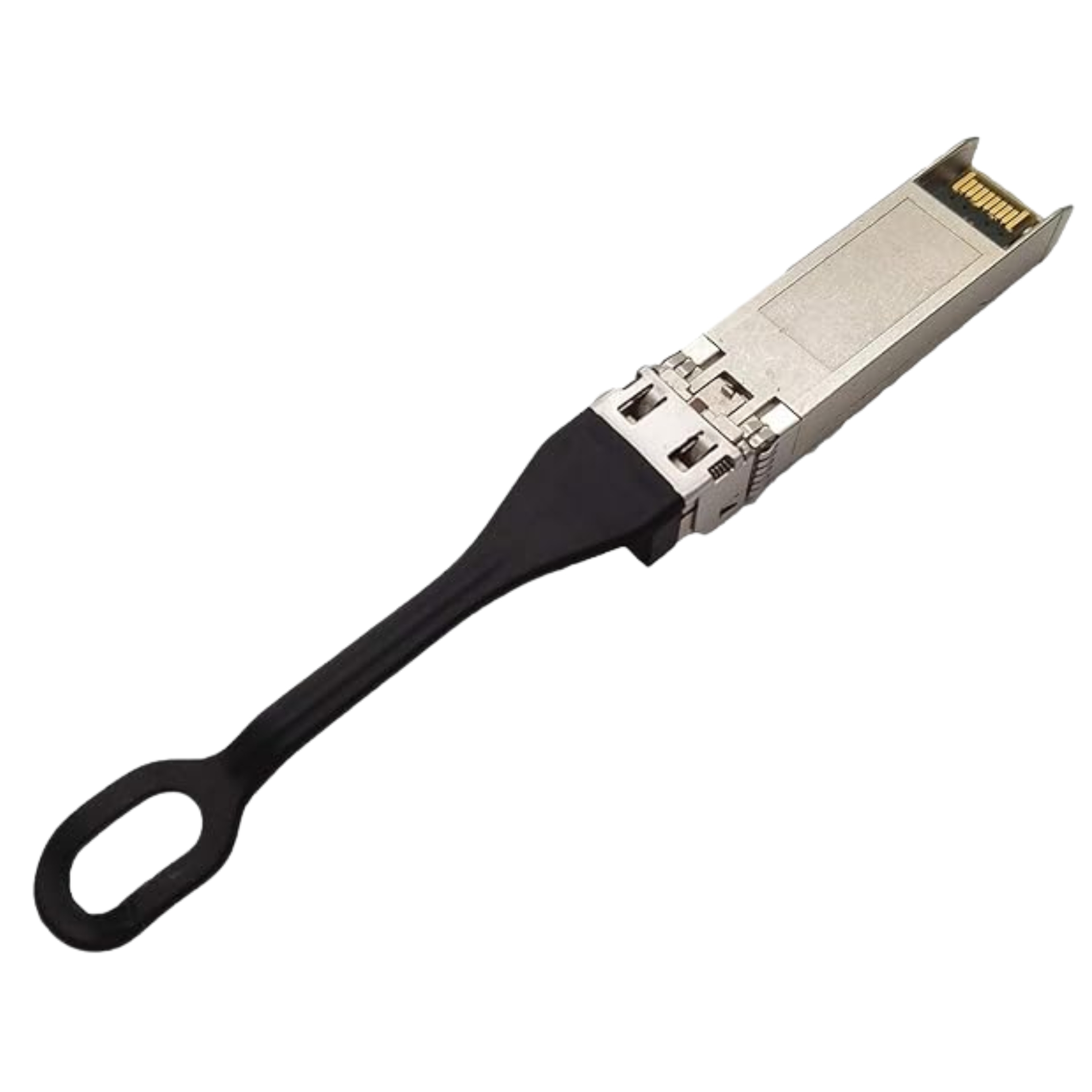

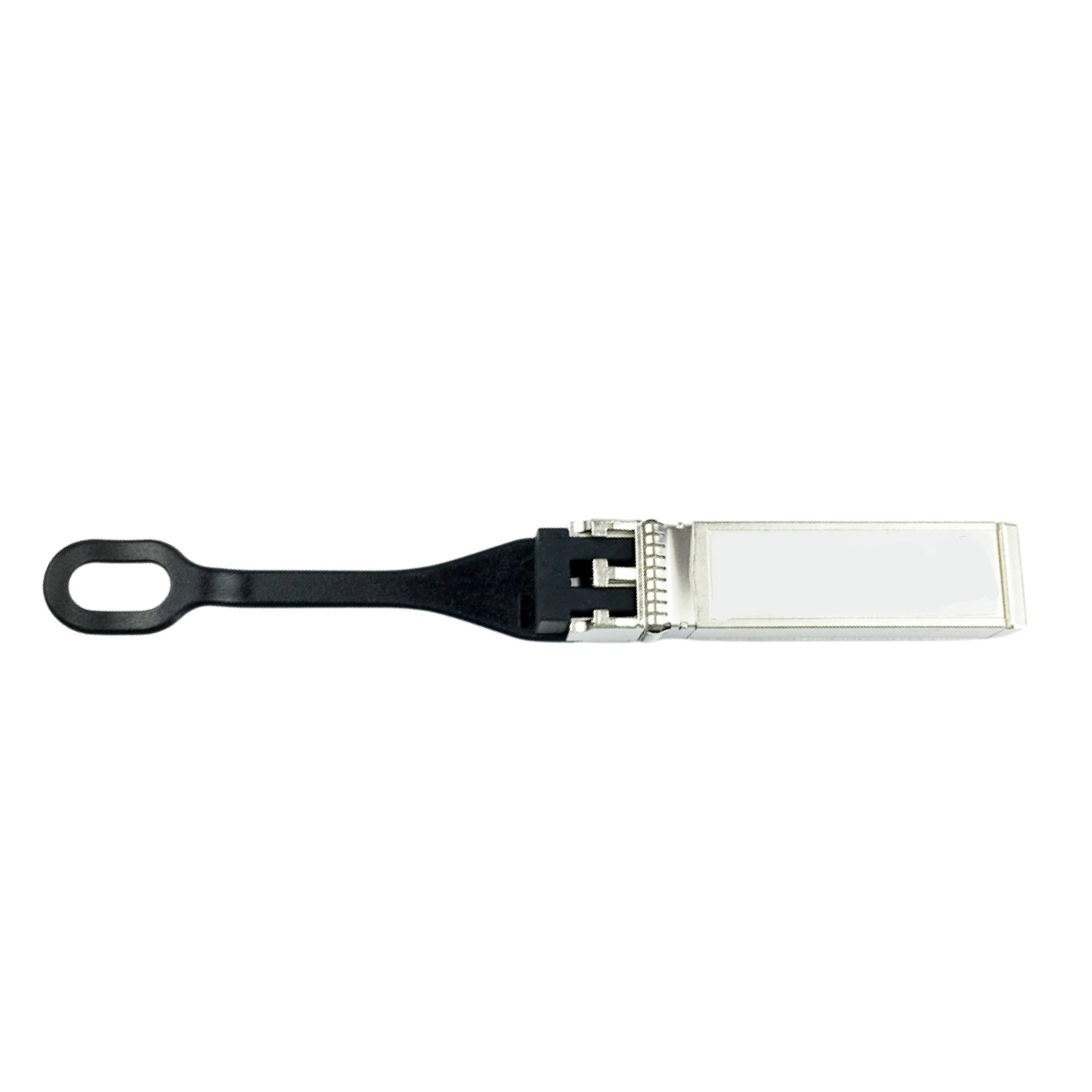

FTLF8536P4PCL-HP HPE 25GB SFP28 Transceiver

Highlights of HPE 25GB SFP28 Transceiver

The FTLF8536P4PCL-HP HPE 25GB SFP28 Transceiver is a high-performance optical module designed to deliver reliable connectivity for enterprise networking environments. Engineered by HPE, this transceiver ensures seamless data transmission with advanced specifications.

Main Information

• Brand Name: HPE
• Model Number: FTLF8536P4PCL-HP
• Category: Optical Transceiver

Technical Specifications

Port & Interface Details

• Single LC 25-GbE port (IEEE 802.3 Type 25GBASE-SR)
• Supports full duplex operation only
• Connector type: LC

Optical Characteristics

• Wavelength: 850 nm
• Fiber type: Multi-mode
• Cable compatibility: OM3 and OM4
• Transmission distance: Up to 70m (OM3), up to 100m (OM4)

Physical Dimensions

• Length: 2.19 in (55.7 mm)
• Width: 0.54 in (13.8 mm)
• Height: 0.47 in (11.9 mm)
• Weight: 0.04 lb (20 g)
• Form factor: SFP28

Environmental Conditions

Operating Range

• Temperature: 32°F to 158°F (0°C to 70°C)
• Relative humidity: 5% to 85% (non-condensing)

Storage & Non-Operating Range

• Temperature: -4°F to 185°F (-40°C to 85°C)
• Altitude: Up to 10,000 ft (3 km)

Power Efficiency

Consumption Levels

• Typical usage: 0.7W
• Maximum usage: 0.8W

Installation Notes

Fiber Patch Cord Guidelines

• Recommended termination: Ultra Physical Contact (UPC) polish
• Not recommended: Angled Physical Contact (APC)

HPE FTLF8536P4PCL-HP 25GB SFP28 Transceiver Overview

The HPE FTLF8536P4PCL-HP 25GB SFP28 Short Wave 1-pack Pull Tab Optical Transceiver is engineered to deliver high-speed 25 Gigabit Ethernet connectivity for enterprise-class networking environments. Designed for compatibility with modern data center architectures, this SFP28 optical module provides reliable short-range fiber connectivity with optimized performance, low latency, and energy efficiency. Built to meet rigorous industry standards, it ensures seamless interoperability with HPE servers, switches, and storage platforms, enabling scalable and future-ready network deployments.

Advanced 25GbE SFP28 Optical Transceiver Technology

The 25GB SFP28 Short Wave optical transceiver category represents a significant evolution in Ethernet networking, offering enhanced bandwidth compared to traditional 10GbE SFP+ modules while maintaining compact form factors and efficient power consumption. The HPE FTLF8536P4PCL-HP module is specifically designed for short-range multimode fiber connections, supporting high-speed data transmission within racks, across rows, and between aggregation layers in enterprise and cloud data centers.

SFP28 Form Factor Advantages

The SFP28 form factor maintains physical compatibility with SFP+ ports while enabling higher throughput. This compact and hot-pluggable design simplifies installation and maintenance without requiring extensive infrastructure modifications. Network administrators can upgrade to 25GbE performance while preserving existing rack density and switch port configurations.

High Port Density and Scalability

With its small footprint, the SFP28 optical module enables greater port density on switches and network interface cards. This allows organizations to scale horizontally without increasing physical rack space. High-density deployments reduce overall infrastructure costs and improve airflow management within data center racks.

Energy Efficiency Optimization

Compared to deploying multiple 10GbE links, a single 25GbE SFP28 module reduces power consumption per gigabit of throughput. This improved energy profile supports sustainable IT initiatives and lowers operational expenditure, particularly in large-scale cloud and enterprise facilities.

Short Wave Multimode Fiber Performance

The HPE FTLF8536P4PCL-HP operates using short wave laser technology optimized for multimode fiber applications. It supports transmission over OM3 and OM4 fiber cables, making it ideal for short-distance interconnections such as top-of-rack to aggregation switch links.

Transmission Distance Capabilities

When deployed with OM3 multimode fiber, this optical transceiver typically supports distances up to 70 meters. With OM4 multimode fiber, it can extend connectivity up to 100 meters. These ranges are sufficient for most intra-data center connections and structured cabling environments.

Low Latency Data Transmission

Short wave optical signaling ensures minimal latency, which is critical for latency-sensitive applications such as real-time analytics, virtualization clusters, financial transaction systems, and high-performance computing workloads.

Compatibility with HPE Networking and Server Infrastructure

The HPE FTLF8536P4PCL-HP 25GB SFP28 transceiver is validated for use with a wide range of HPE networking switches and server adapters. Its firmware and hardware integration ensure optimized communication, reduced error rates, and full compliance with HPE system requirements.

Integration with HPE ProLiant Servers

When paired with HPE ProLiant servers equipped with 25GbE network adapters, this SFP28 module enables high-bandwidth connectivity for virtualization, hyperconverged infrastructure, and storage area network traffic. It supports high-throughput workloads including database management systems and enterprise applications.

Support for HPE Switch Platforms

The module is compatible with HPE top-of-rack and aggregation switches supporting 25GbE ports. Its plug-and-play configuration ensures immediate recognition and seamless link establishment without complex configuration requirements.

Reliable Link Establishment

Automatic negotiation and stable optical signaling reduce link flapping and connectivity disruptions. This reliability is crucial for mission-critical enterprise environments where downtime can impact productivity and revenue.

Enterprise Data Center Networking Applications

The 25GB SFP28 Short Wave optical transceiver category is widely adopted in modern data centers that require higher bandwidth without transitioning directly to 40GbE or 100GbE. It provides an optimal balance between performance and cost-effectiveness.

Virtualization and Cloud Computing

High-density virtualized environments generate substantial east-west traffic within the data center. The 25GbE optical transceiver ensures sufficient bandwidth for hypervisor communication, virtual machine migration, and distributed storage replication.

Hyperconverged Infrastructure Deployments

In hyperconverged infrastructure setups, compute and storage traffic share the same network fabric. The increased throughput of 25GbE links supports simultaneous storage replication and application traffic without congestion.

High-Performance Storage Networking

Storage systems utilizing NVMe over Fabrics, iSCSI, or high-speed Ethernet-based protocols benefit from 25GbE connectivity. The optical transceiver ensures stable and high-throughput links between servers and storage arrays.

Reduced Network Bottlenecks

Upgrading from 10GbE to 25GbE reduces congestion and improves overall data center performance, particularly in environments with large data transfers and backup operations.

Key Details and Optical Characteristics

The HPE FTLF8536P4PCL-HP optical module adheres to industry standards for 25 Gigabit Ethernet transmission. It operates at a nominal wavelength of 850nm, which is standard for short wave multimode fiber applications. The module supports digital diagnostic monitoring, allowing administrators to monitor temperature, voltage, optical output power, and receiver sensitivity.

Digital Diagnostic Monitoring Interface

Digital diagnostics provide real-time operational insights that help maintain optimal performance. Administrators can proactively identify potential issues such as fiber degradation or abnormal temperature fluctuations before they result in network outages.

Hot-Pluggable Design

The transceiver supports hot insertion and removal without powering down the host device. This feature simplifies maintenance and replacement processes, reducing service interruption risks.

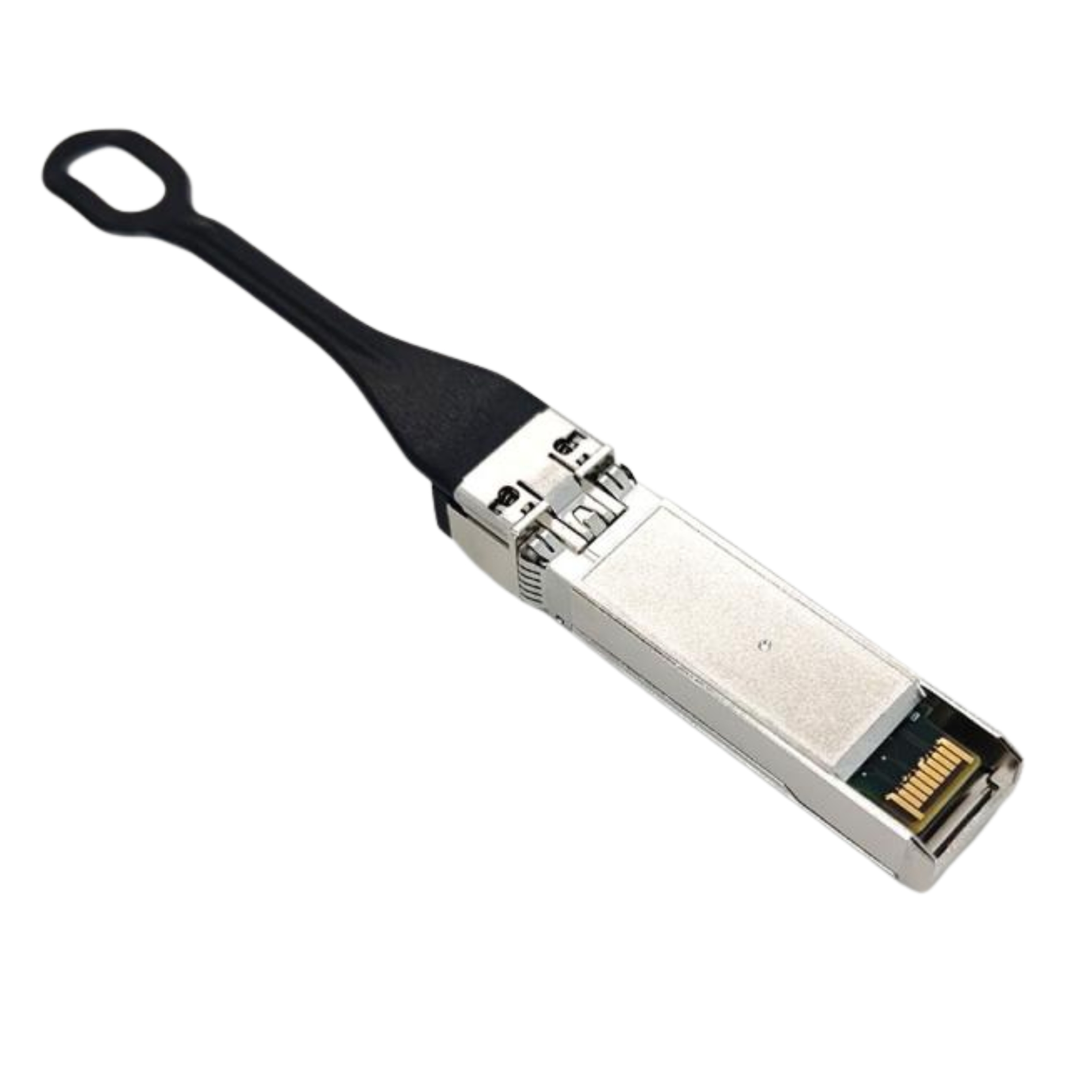

Pull Tab Design for Easy Handling

The 1-pack Pull Tab configuration enhances usability in dense rack environments. The pull tab mechanism allows technicians to remove the module quickly and safely without damaging adjacent ports or cables.

Improved Cable Management

The ergonomic pull tab supports efficient cable routing and module extraction in tight spaces. This contributes to improved airflow and organized cabling within racks.

Reduced Risk of Port Damage

By providing a clear grip point, the pull tab minimizes accidental stress on the transceiver housing and switch ports during maintenance activities.

Cost-Effective 25GbE Migration Strategy

The 25GB SFP28 Short Wave transceiver category offers a practical upgrade path from 10GbE infrastructure. Organizations can achieve 2.5 times the bandwidth while leveraging similar cabling systems and maintaining manageable capital expenditures.

Future-Proof Network Architecture

Adopting 25GbE optical modules prepares enterprises for evolving bandwidth demands, supporting next-generation applications and increasing data volumes without frequent infrastructure overhauls.

Enhanced Network Reliability and Performance

Reliable optical signal integrity ensures minimal packet loss and stable data transmission. The module’s advanced design reduces bit error rates, supporting mission-critical workloads that require consistent network performance.

Optimized Thermal Performance

Efficient heat dissipation contributes to long-term reliability. The module operates within specified temperature ranges suitable for high-density data center environments.

Stable Long-Term Operation

Continuous data center operation demands durable networking components. The HPE FTLF8536P4PCL-HP transceiver is engineered to deliver consistent performance over extended service periods.
