J3258B HPE JetDirect 170X External LAN Interface Module Print Server

Overview of the Print Server

The J3258B HPE JetDirect 170X External LAN Interface Module Print Server represents a reliable and widely deployed network printing solution designed to integrate legacy and modern printers into enterprise TCP/IP environments. As part of the Hewlett-Packard Enterprise JetDirect family, this external print server enables efficient network sharing of parallel printers without requiring internal network cards or direct workstation connections. It is particularly valued in environments where printer longevity, compatibility, and stable LAN-based printing are essential.

Main Specifications

• Manufacturer: Hewlett Packard Enterprise (HPE)

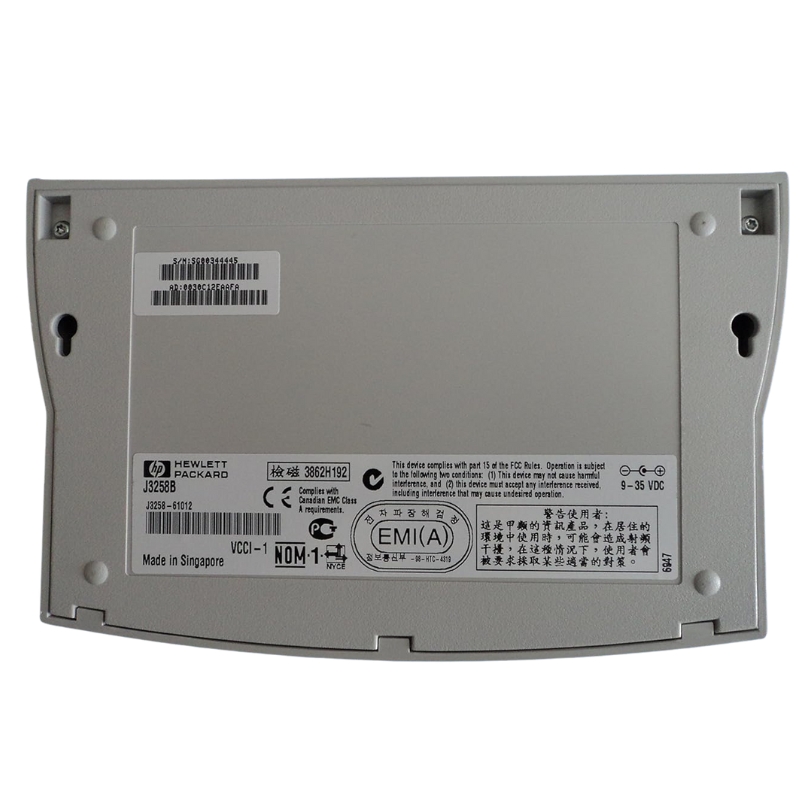

• Part Number: J3258B
• Product Type: External Print Server

Technical Information

• Form Factor: Small standalone external hardware chassis.

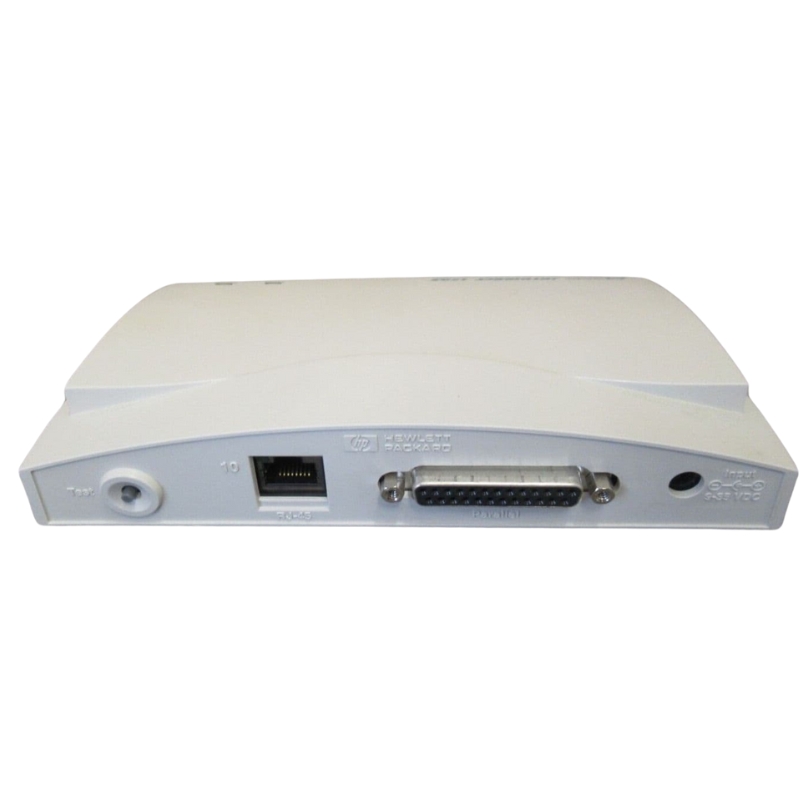

• Printer Port: One bidirectional IEEE 1284 parallel connection port.
• Parallel Connector: Standard 25-pin D-Sub or 36-pin Centronics interface.
• Network Port: One RJ-45 10Base-T Ethernet port.
• Data Transfer Speed: Maximum wired network speed of 10 Mbps.
• Network Standards: Fully compliant with basic IEEE 802.3 infrastructure.
• Supported Protocols: Processes TCP/IP, IPX/SPX, AppleTalk, and DLC/LLC data.
• Printing Services: Supports LPD, IPP, and RAW Port 9100 protocols.
• Remote Management: Configurable via built-in HTTP Web Server or Telnet.
• Network Management: Compatible with basic SNMP 1 and SNMP 2C frameworks.
• Diagnostic Hardware: Physical test button prints hardware configuration pages.

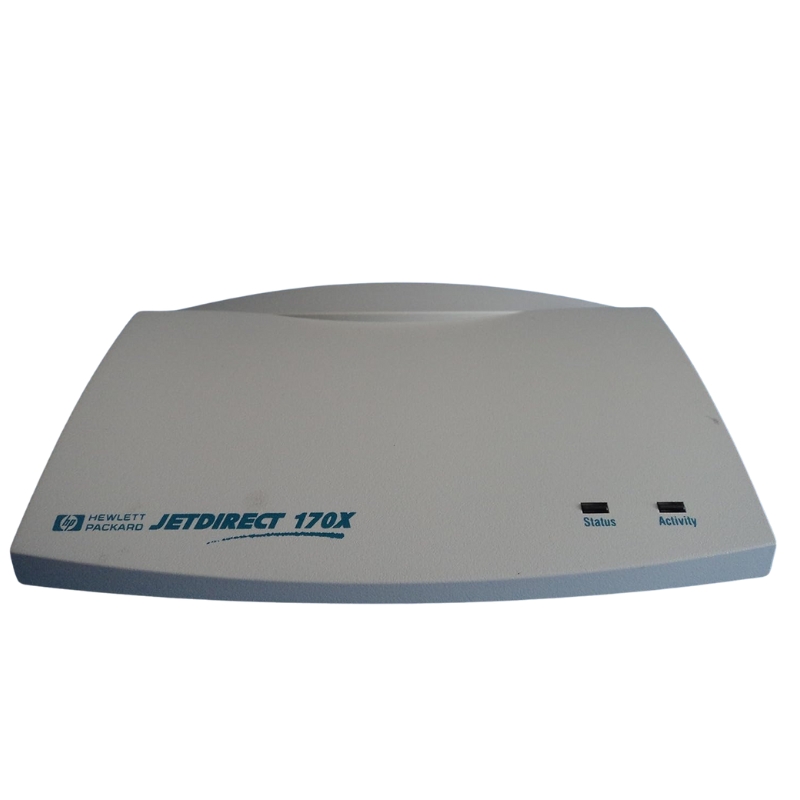

• Status Indicators: Integrated LEDs for network link, activity, and power.

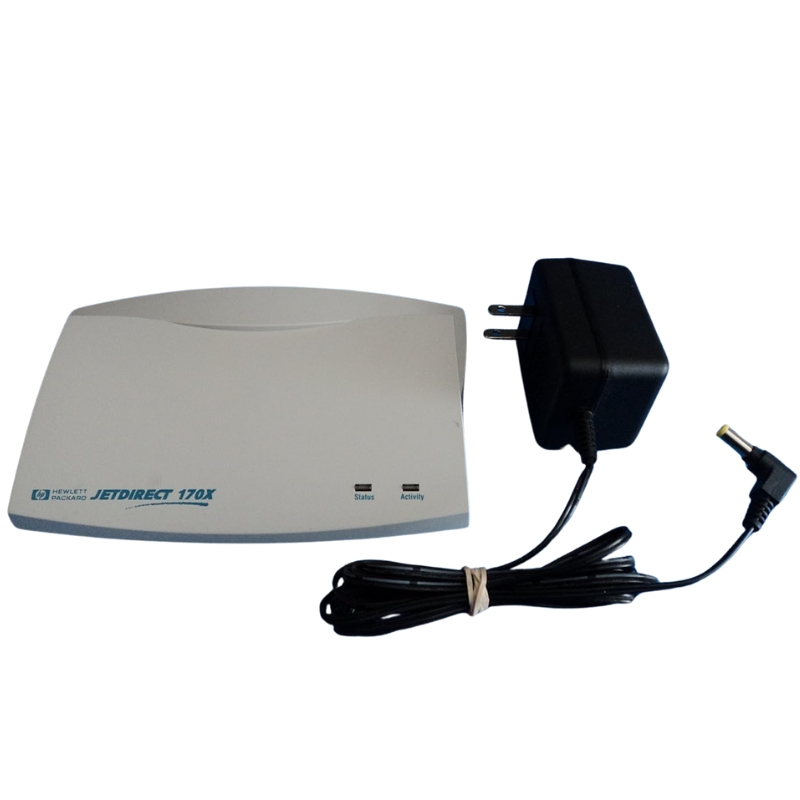

• Power Device: Requires an external AC power adapter module.
• Power Consumption: Operational consumption rates average below 2 Watts.

Compatibility

• Printer Requirements: Works with virtually any printer featuring a parallel port.
• HP Officejet: Compatible with 6210, 9110, 9120, and 9130 units.
• HP Designjet: Certified for legacy 400, 500, and 800 series plotters.
• Non-HP Hardware: Broad operational compatibility with third-party parallel printers.
• Incompatible Printers: Does not support host-based GDI or Deskjet 710/720/820 systems.
• Legacy Windows OS: Compatible with Windows 95, 98, and NT 3.51 environments.
• Network Operating Systems: Works with Novell NetWare and Artisoft LANtastic 7.0.
• Modern Linux OS: Integrates seamlessly with CUPS printer management utilities

The HPE 170X External LAN Interface Module Print Server

This category of external print servers is engineered for organizations that require seamless printer-to-network conversion, allowing traditional parallel interface printers to function as network-accessible devices. The J3258B model is known for its robust compatibility, straightforward configuration, and support for essential network printing protocols.

Core Functionality of JetDirect 170X Print Servers

The primary function of the HPE JetDirect 170X is to convert a standard parallel printer interface into a fully network-capable printing node. By connecting through a LAN interface, multiple users can access a single printer simultaneously without relying on a dedicated host PC. This reduces infrastructure dependency and increases printing efficiency across departments.

Standalone External Interface Design

Unlike internal printer expansion cards, the J3258B JetDirect 170X operates as an external module. It connects via a parallel port to the printer and uses Ethernet connectivity to integrate into a network. This external design makes it compatible with a wide range of legacy printers that do not support internal upgrades.

Plug-and-Play Network Integration

Many enterprise environments benefit from the plug-and-play capabilities of this print server. Once connected, the device can be assigned an IP address either manually or through DHCP, enabling immediate visibility across the network. This simplifies deployment in environments with multiple printing devices.

Ethernet Connectivity

The device uses a standard RJ-45 Ethernet interface, supporting 10Base-T and 100Base-TX environments depending on network configuration. This allows integration into both older switched networks and more modern infrastructure setups with backward compatibility requirements.

Data Handling and Print Processing

The J3258B JetDirect 170X offloads print processing tasks from client machines by acting as an intelligent print gateway. It receives print jobs over the network, buffers them internally, and transmits them to the printer via parallel connection. This improves workflow efficiency and reduces workstation load.

Enterprise Printing Use Cases

In corporate environments, centralized printing is essential for cost control and operational efficiency. The JetDirect 170X allows multiple departments to share a single printer over the network, reducing redundancy and minimizing hardware expenses.

Educational Institutions

Schools, colleges, and universities benefit from deploying external print servers to extend the life of existing printers. Computer labs and administrative offices can share printing resources without investing in new network-enabled printers.

Government and Public Sector Systems

Public sector environments often rely on stable, long-term hardware solutions. The J3258B model supports legacy infrastructure while enabling secure network printing, making it suitable for government offices and archival systems.

Industrial and Manufacturing Facilities

Manufacturing environments often use durable legacy printers for labels, documentation, and operational logs. The JetDirect 170X ensures these printers remain functional within modern network ecosystems without requiring hardware replacement.

Security and Access Control Features

Although designed in an earlier networking era, the JetDirect 170X supports foundational security practices such as IP filtering and controlled access through network segmentation. This helps restrict unauthorized printing access within shared environments.

Print Job Management

Administrators can manage print queues and restrict access based on workstation or department-level configurations. This ensures that printing resources are allocated efficiently and securely across users.

Enterprise Compatibility Considerations

While newer print servers offer advanced encryption, the J3258B remains widely used in isolated or segmented networks where legacy compatibility is prioritized over modern security enhancements.

Compatibility with Printers and Systems

This print server is specifically designed for printers that use parallel (Centronics) interfaces. It extends the usability of older HP LaserJet and compatible printers that lack built-in networking capabilities.

Cross-Platform Printing

The JetDirect 170X enables cross-platform printing by standardizing communication through network protocols rather than device-specific drivers alone. This makes it suitable for mixed IT environments.

Performance and Reliability Characteristics

Designed for enterprise uptime requirements, the J3258B print server operates reliably in continuous usage scenarios. It is commonly deployed in environments where printers must remain accessible 24/7.

Efficient Print Job Buffering

The internal memory buffer allows the device to store incoming print jobs temporarily, ensuring smooth transmission to the printer even under heavy network load conditions.

Low Latency Network Processing

By minimizing processing overhead, the JetDirect 170X ensures quick response times between job submission and print execution, enhancing productivity in busy office environments.

Advantages of External Print Server Deployment

Organizations can avoid purchasing new network-enabled printers by using external JetDirect modules, significantly reducing capital expenditure.

Extended Printer Lifecycle

Legacy printers can continue functioning in modern network environments, extending their operational lifespan and maximizing return on investment.

Centralized Printing Management

IT administrators gain centralized control over printing resources, making it easier to monitor usage, manage queues, and troubleshoot issues across departments.

Flexible Network Expansion

The external design allows easy expansion of printing capabilities without modifying existing printer hardware or internal components.

Configuration Utilities and Management Software

HP Web JetAdmin provides centralized management for JetDirect devices, allowing administrators to configure multiple print servers from a single interface. This is especially useful in large-scale deployments.

Embedded Web Server Access

The device includes an embedded web interface accessible via IP address. This interface provides configuration options such as network settings, diagnostics, and status monitoring.

Command Line and Legacy Tools

Advanced administrators may use command-line utilities and legacy HP tools to configure network parameters, especially in UNIX-based environments.

Integration in Modern Hybrid Networks

The J3258B JetDirect 170X plays a critical role in hybrid IT environments where legacy printers must coexist with modern cloud and network systems. It bridges the gap between outdated hardware and current infrastructure.

Virtualized Environment Compatibility

Even in virtualized server environments, the print server can be mapped as a network device, allowing virtual machines to access shared printing resources without hardware dependency.

Network Segmentation Use

Organizations often deploy JetDirect print servers within segmented VLANs to isolate print traffic and improve network efficiency while maintaining accessibility.

Deployment Best Practices

Assigning static IP addresses ensures consistent printer mapping across user systems, preventing connection loss due to DHCP reassignment.

Optimal Network Placement

Positioning the print server close to network switches and printers reduces cable length and improves signal stability.

Load Distribution Planning

In environments with multiple printers, distributing JetDirect devices across departments helps balance network traffic and improve performance.

Long-Term Operational Value

The JetDirect 170X supports scalable deployment strategies, allowing organizations to expand printing infrastructure without replacing existing hardware systems.

Reduced IT Overhead

Centralized network printing reduces the need for workstation-specific printer configurations, lowering IT maintenance workload.

Dependable Legacy Support

The continued relevance of the J3258B model highlights its importance in maintaining legacy printer ecosystems within modern enterprise networks.
