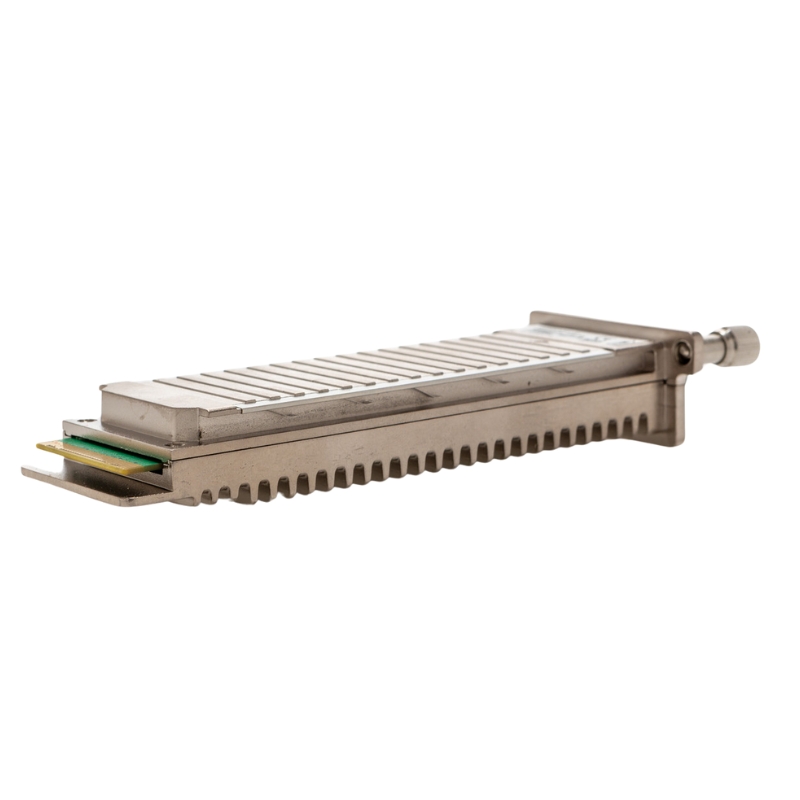

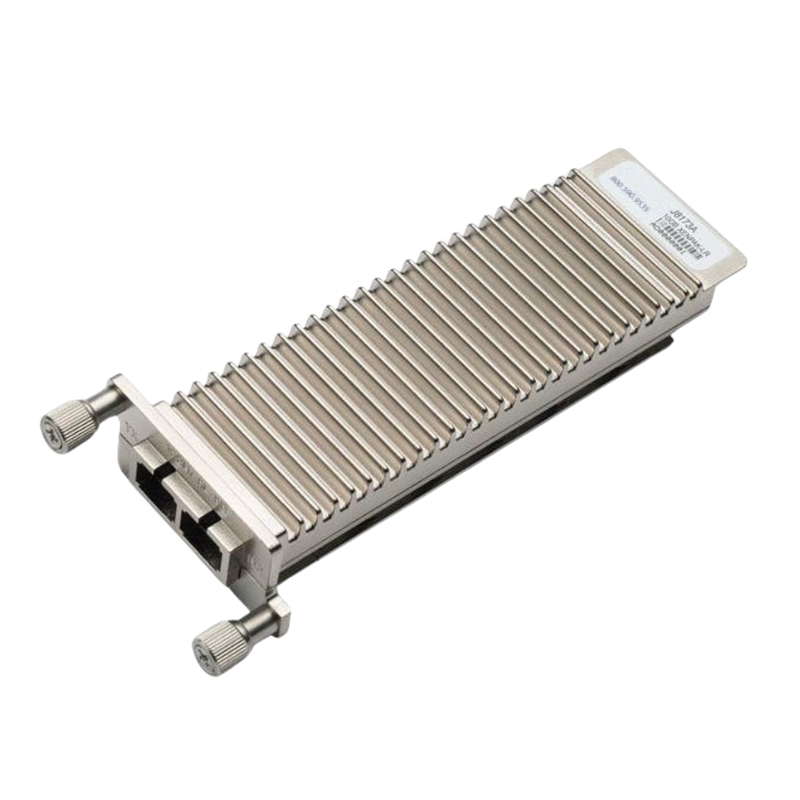

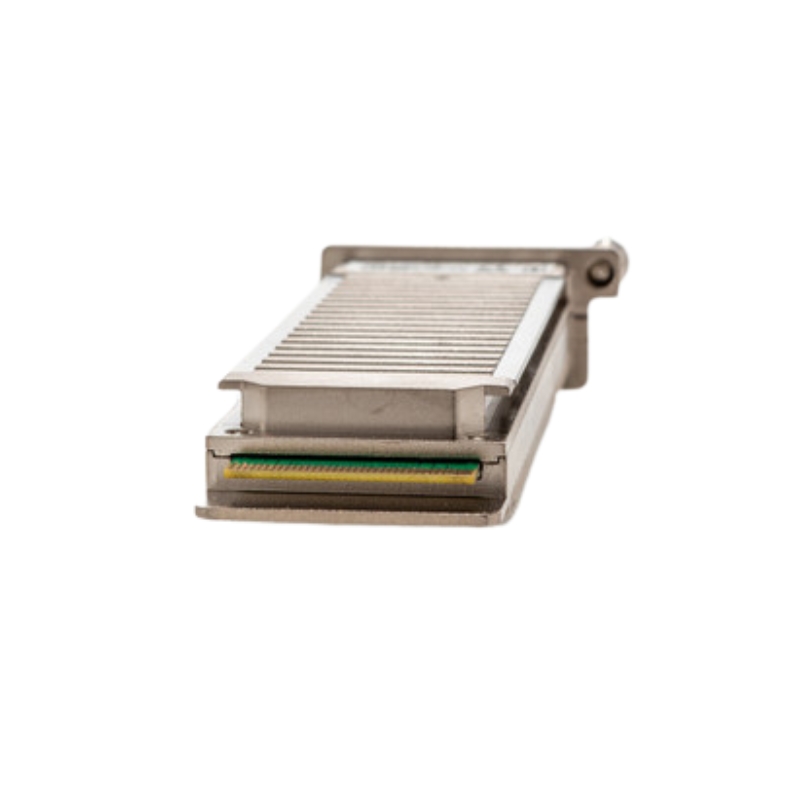

J8175A HPE ProCurve 9300 10Gbps 10GBase-SR SC Connector Transceiver.

The HPE J8175A ProCurve 9300 10GB Transceiver Module

The HPE J8175A ProCurve 9300 XENPAK Transceiver Module is a high-performance 10 Gigabit Ethernet optical networking solution engineered for enterprise-class data communication environments. Designed to support 10GBASE-SR connectivity over multimode fiber optic cabling, this transceiver provides reliable, high-speed data transmission with exceptional signal integrity and low latency. It is an ideal choice for organizations seeking dependable optical connectivity for data centers, campus networks, aggregation layers, and mission-critical networking infrastructures.

Featuring an 850nm wavelength and support for distances up to 300 meters, the HPE J8175A optical transceiver delivers efficient short-range fiber networking while maintaining compatibility with industry-standard multimode fiber installations. The duplex SC interface ensures secure and stable optical connections, making the module suitable for bandwidth-intensive applications requiring continuous network availability.

General Information

• Manufacturer: HPE
• Part Number: J8175A
• Series: ProCurve 9300
• Technology Type: XENPAK Optical Transceiver

Technical Specifications

• Port Configuration: 1 x Duplex SC Connector
• Network Standard: 10GBASE-SR
• Connection Type: Fiber Optic
• Interface Technology: Optical Ethernet

Fiber Optic Characteristics

• Media Type: Optical Fiber
• Fiber Mode: Multi-mode Fiber (MMF)
• Operating Wavelength: 850nm
• Maximum Distance: Up to 300m

Physical Specifications

• Approximate Weight: 4.80 oz
• Form Factor: XENPAK
• Installation Type: Hot-pluggable optical module

The J8175A HP ProCurve 9300 10Gbps Transceiver Module

The J8175A HP ProCurve 9300 10Gbps 10GBase-SR XENPAK Transceiver Module is designed to deliver reliable high-speed optical connectivity for enterprise-class network infrastructures. As organizations continue to expand data-intensive applications, virtualization platforms, storage environments, and high-bandwidth communication services, the demand for dependable 10 Gigabit Ethernet connectivity remains significant. This transceiver module provides a practical solution for network administrators seeking stable and efficient fiber-optic communication across multimode fiber cabling installations.

Built around the 10GBase-SR networking standard, this optical transceiver enables data transmission rates of up to 10 Gigabits per second while utilizing an 850nm wavelength. The module supports multimode fiber connections and offers transmission distances of up to 300 meters depending on fiber quality and deployment conditions. Its XENPAK form factor makes it compatible with specific enterprise switches, routers, and networking platforms that support XENPAK-based optical interfaces.

Understanding 10GBase-SR Optical Technology

10GBase-SR represents one of the most widely deployed optical Ethernet standards for short-range fiber communications within enterprise campuses, data centers, telecommunications facilities, and network aggregation environments. The abbreviation "SR" stands for Short Reach, indicating its optimization for relatively short-distance optical transmission using multimode fiber infrastructure.

The J8175A module leverages Vertical Cavity Surface Emitting Laser technology operating at an 850nm wavelength. This wavelength is commonly utilized for multimode fiber deployments because it provides efficient optical performance while maintaining cost-effective implementation across network infrastructures. Organizations can utilize existing multimode fiber cabling systems while achieving substantial bandwidth improvements compared to older Gigabit Ethernet solutions.

XENPAK Form Factor Architecture

The XENPAK form factor represents one of the earliest standardized pluggable transceiver technologies developed for 10 Gigabit Ethernet applications. Although newer form factors such as SFP+, XFP, QSFP+, and QSFP28 have emerged over time, many enterprise environments continue to operate network equipment designed around XENPAK technology.

The J8175A transceiver provides a robust physical design that integrates optical transmission and reception circuitry within a single hot-swappable module. The XENPAK architecture was engineered to simplify deployment, maintenance, and upgrades by allowing administrators to install or replace optical interfaces without extensive hardware modifications.

Advantages of XENPAK Deployments

Many enterprise networks continue utilizing XENPAK modules because of their proven reliability in mission-critical applications. The larger physical footprint of XENPAK transceivers allows substantial thermal management capabilities and robust component integration. These design characteristics contributed to widespread adoption during the early stages of 10 Gigabit Ethernet implementation.

Network administrators responsible for maintaining existing HP ProCurve infrastructures frequently seek compatible XENPAK solutions that preserve network stability while ensuring seamless interoperability with installed equipment. The J8175A module serves this requirement by supporting established networking architectures and optical connectivity standards.

Multimode Fiber Connectivity

Multimode fiber remains one of the most common optical media types deployed throughout enterprise buildings, campuses, educational institutions, healthcare facilities, and corporate data centers. The J8175A transceiver is specifically optimized for multimode fiber operation, making it suitable for numerous short-range networking applications.

Unlike single-mode fiber, multimode fiber utilizes a larger core diameter that permits multiple light paths to travel simultaneously. This design simplifies optical alignment and often reduces infrastructure deployment costs. The 850nm wavelength used by the J8175A transceiver aligns closely with the operational characteristics of multimode fiber systems.

850nm Optical Wavelength Performance

The 850nm wavelength represents an industry-standard operating frequency for short-range multimode fiber communications. This wavelength is particularly effective in conjunction with VCSEL-based optical transmitters, delivering efficient signal propagation and dependable network performance.

The optical characteristics of 850nm transmission support high-speed data movement while maintaining low signal degradation across supported fiber distances. This makes the J8175A transceiver appropriate for environments requiring consistent bandwidth availability and predictable network operation.

Signal Integrity and Reliability

Optical communication quality depends heavily on maintaining signal integrity throughout the transmission path. The J8175A module incorporates optical components engineered to support stable signal generation and reception. Reliable optical performance helps reduce packet loss, transmission errors, and communication disruptions across connected networking devices.

Consistent signal quality becomes increasingly important as organizations rely on cloud applications, unified communications platforms, storage replication systems, and real-time business services. High-performance optical modules contribute significantly to maintaining dependable network operations.

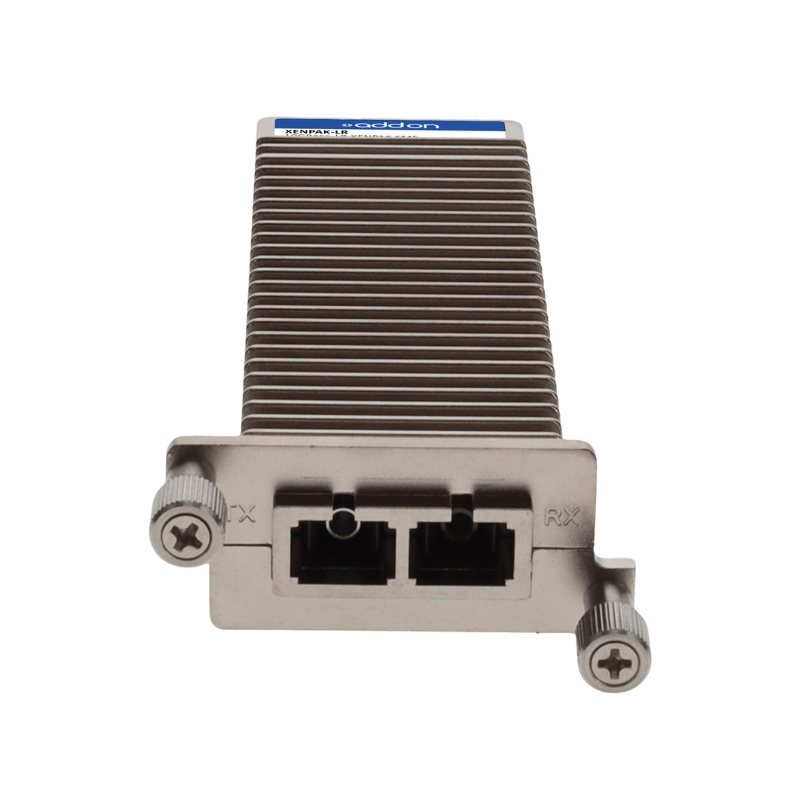

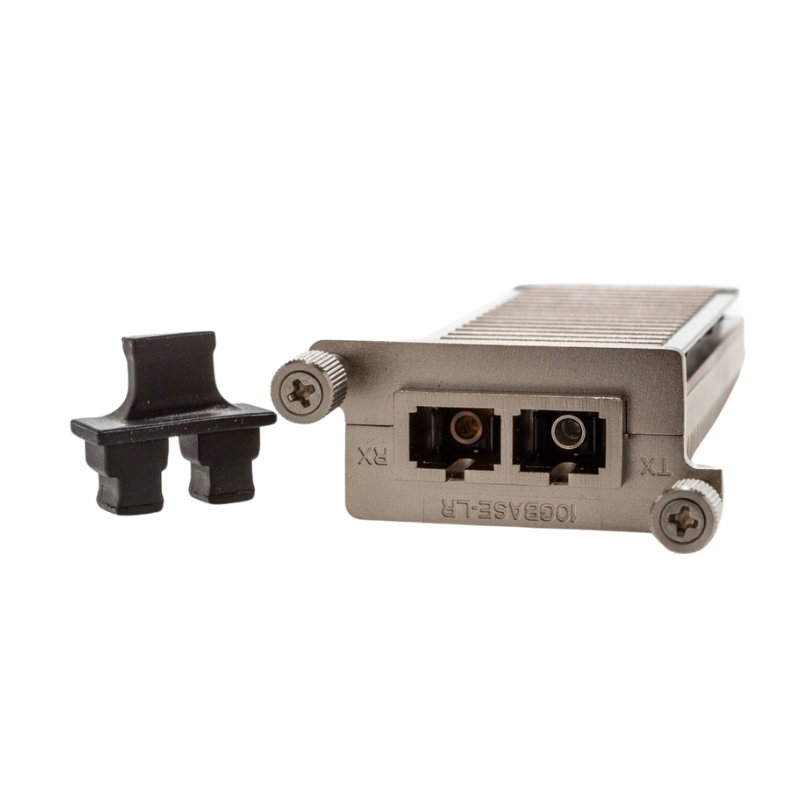

Duplex SC Connector Design

The J8175A transceiver utilizes a duplex SC connector interface that supports simultaneous transmit and receive optical communication channels. Duplex connectivity enables full-duplex Ethernet operation, allowing bidirectional data transmission without performance limitations associated with half-duplex communication methods.

SC connectors have long been recognized for their reliability, ease of installation, and secure physical connection characteristics. Their push-pull locking mechanism simplifies cable insertion and removal while maintaining stable optical alignment.

Connector Reliability

Reliable physical connectivity remains essential for maintaining network uptime. Optical connectors serve as critical interfaces between network equipment and fiber infrastructure. The duplex SC design offers dependable mechanical stability while minimizing the risk of accidental disconnections.

Enterprise IT departments frequently prioritize connector technologies that facilitate efficient maintenance activities and simplify troubleshooting procedures. The SC connector format supports these objectives by providing straightforward optical connectivity management.

10 Gigabit Ethernet Bandwidth Capabilities

Network performance requirements continue increasing as organizations deploy advanced digital services, virtualized workloads, and large-scale data processing environments. The J8175A transceiver supports a 10 Gigabit Ethernet data rate that significantly exceeds traditional Gigabit Ethernet bandwidth capacities.

At 10 Gbps, organizations can support demanding network applications including storage area networking, high-definition video distribution, large-scale virtualization platforms, cloud service integration, disaster recovery replication, and enterprise backup operations. Increased bandwidth availability helps reduce network bottlenecks and improves overall application responsiveness.

Server Aggregation and Storage Connectivity

Server aggregation environments benefit from high-bandwidth optical connections capable of supporting substantial traffic loads. The J8175A transceiver enables reliable communication between access switches, aggregation switches, and core networking infrastructure.

Storage networking applications also require dependable high-speed connectivity. Backup operations, replication services, and centralized storage architectures generate significant network traffic volumes that can benefit from 10 Gigabit Ethernet optical transport.

Distribution Layer Connectivity

The distribution layer serves as a critical intermediary between access networks and core infrastructure. High-speed optical links help ensure efficient traffic movement throughout the network hierarchy. The J8175A transceiver supports these communication pathways by delivering reliable Ethernet connectivity between networking layers.

Network architects frequently deploy optical technologies within distribution environments to maintain performance consistency and accommodate future growth requirements. Scalable optical connectivity supports evolving organizational networking demands.

Compatibility with HP ProCurve Infrastructure

The J8175A transceiver was designed for integration with compatible HP ProCurve networking platforms that support XENPAK optical interfaces. Maintaining hardware compatibility is essential for ensuring stable operation and predictable network performance.

Organizations operating HP ProCurve environments often prefer transceivers specifically engineered to meet platform requirements. Compatible optical modules help simplify deployment processes while reducing interoperability concerns that may arise when using unsupported networking components.

Supporting Legacy Network Investments

Many enterprises continue utilizing established networking platforms because they provide dependable operational performance and support critical business functions. The availability of compatible optical transceivers helps extend the service life of these systems while preserving previous infrastructure investments.

Rather than undertaking costly equipment replacement projects, organizations can often enhance existing environments through strategic optical upgrades that improve connectivity capabilities without requiring complete network redesigns.
