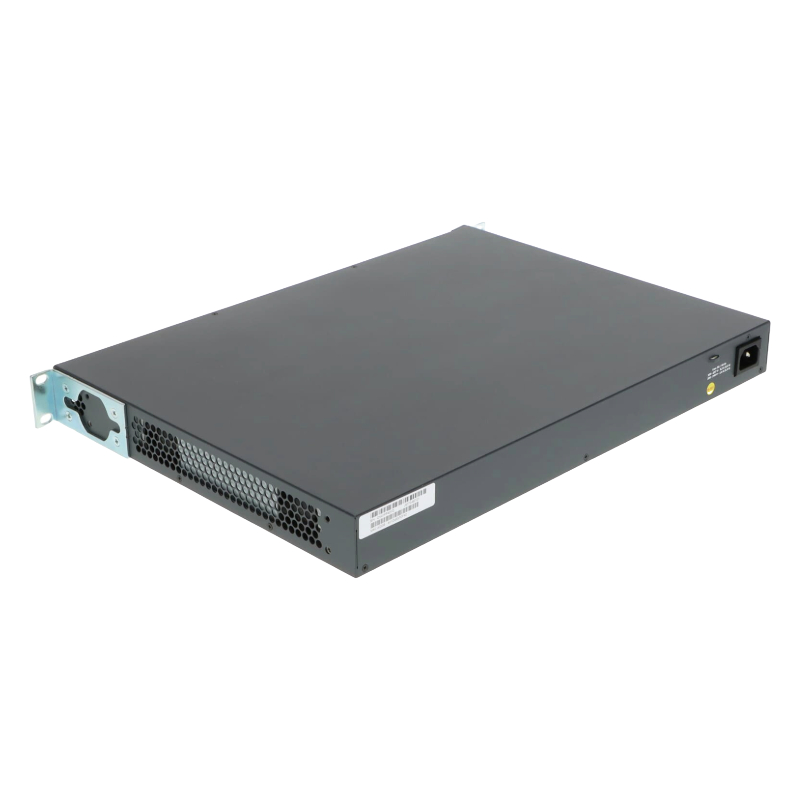

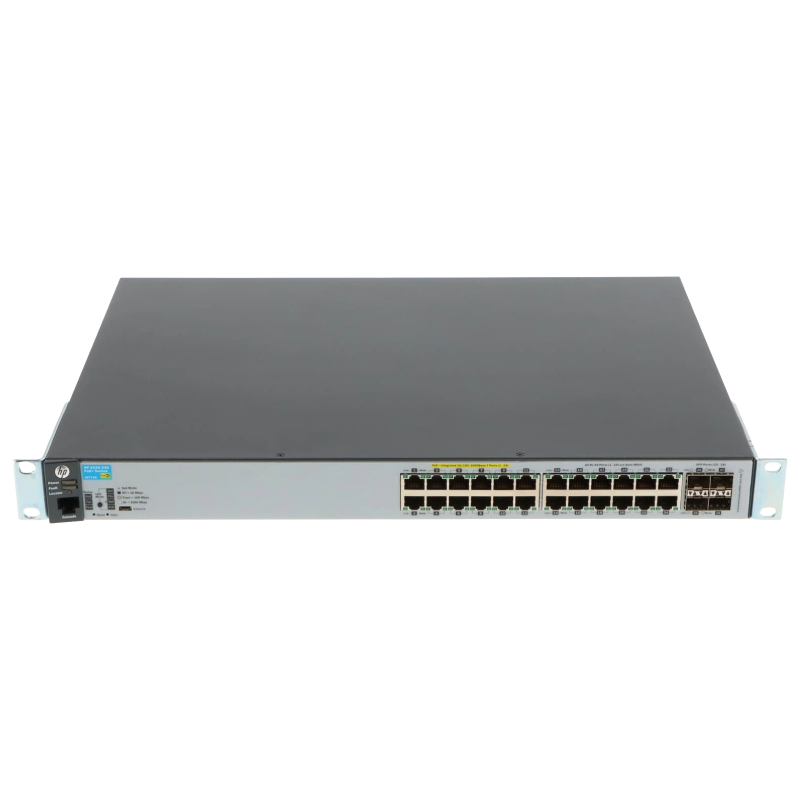

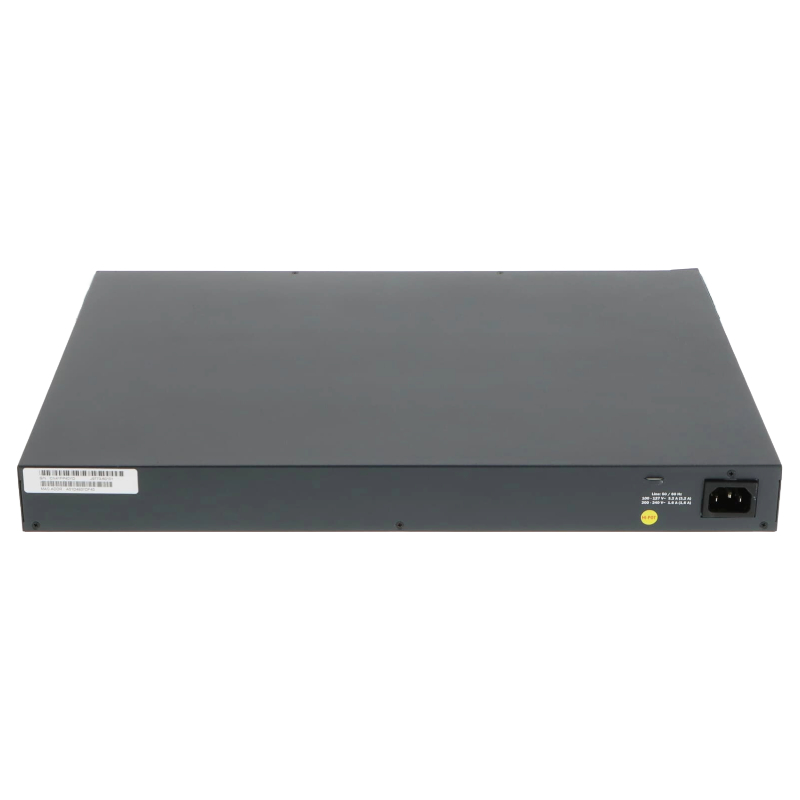

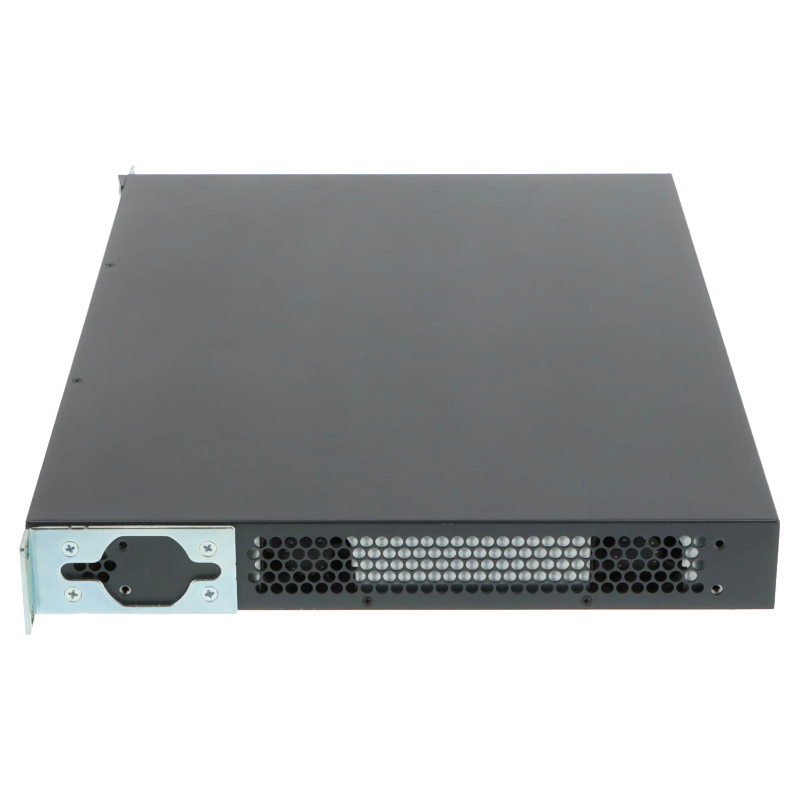

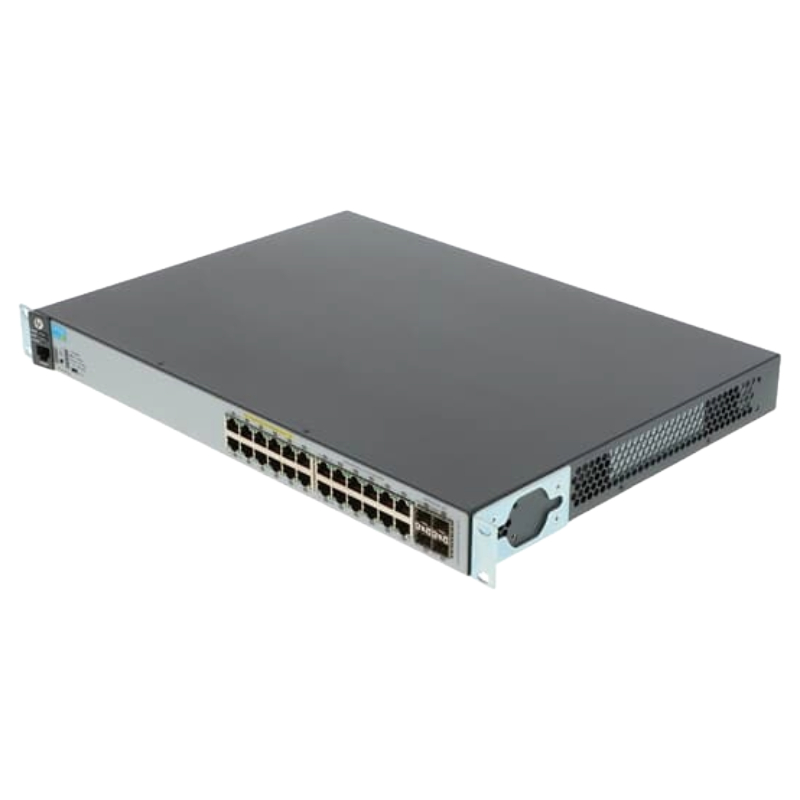

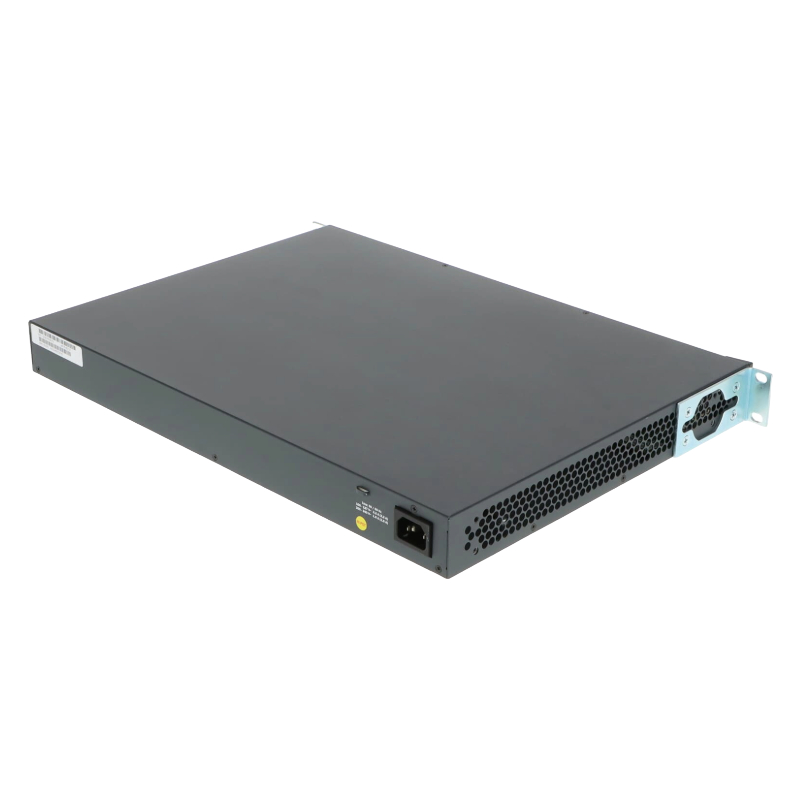

HPE J9773-61101 Aruba 24 Ports Desktop Rack Mountable Managed Switch
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Overview of HPE J9773-61101 Aruba 2530 24G PoE+ Switch
- Offers 24 Gigabit PoE+ ports and 4 expansion slots for seamless connectivity.
- Supports 10/100/1000Base-T speeds, ensuring high-performance networking.
- Designed for versatility: suitable for desktop, rack-mount, or wall-mount installations.
Main Specifications
Brand and Model
- Brand: HPE
- Model Number: J9773-61101
Hardware Specifications
- Device Type: Managed switch with 24 ports
- Processor: Single ARM processor running at 800 MHz
- Memory: 128 MB DDR3 SDRAM and 256 MB flash memory
Networking Capabilities
Port Configuration
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x Gigabit SFP expansion slots
Performance Metrics
- Switching capacity: 56 Gbps
- Forwarding rate: 41.6 Mpps
- MAC address table size: 16,000 entries
- Jumbo frame supports up to 9220 bytes
Remote Management and Protocols
- Remote protocols: SNMP (v1, v2c, v3), RMON (1, 2, 3, 9), Telnet, HTTP, SSH-2
- Management via CLI and TFTP
- Encryption supported with SSL
Compliance and Standards
- Compatible with IEEE standards including 802.3, 802.3u, 802.1d, 802.1q, 802.3ab, and others
- Supports PoE+ standard (IEEE 802.3at) for enhanced power delivery
- Energy-efficient compliance with IEEE 802.3az
Expansion and Connectivity
Interface Options
- 24 x RJ-45 ports supporting 10Base-T/100Base-TX/1000Base-T with PoE+
- 4 x SFP slots for extended networking
- 1 x RJ-45 console port for direct management
Power and Energy Specifications
Power Supply
- AC input: 120/230 V at 50/60 Hz
- Efficient power delivery through a dedicated power supply unit
PoE Capabilities
- Power over Ethernet (PoE+) for simplified cabling
- Supports high-power devices like IP cameras and wireless access points
Overview of J9773-61101 HPE Aruba 2530 2530-24G-PoE+ Switch
The J9773-61101 HPE Aruba 2530 2530-24G-PoE+ is a high-performance, reliable managed switch designed to meet the demands of small to mid-sized businesses and enterprise networks. This 24-port Gigabit Ethernet switch offers Power over Ethernet Plus (PoE+) capabilities, making it ideal for deploying VoIP phones, wireless access points, and other network-powered devices. Its compact design supports both desktop and rack-mounted installations, ensuring versatility for various environments.
Key Features and Specifications
Gigabit Ethernet Performance
Equipped with 24 10/100/1000BASE-T ports, the HPE Aruba 2530-24G-PoE+ switch delivers robust and consistent network speeds. Its Gigabit Ethernet support ensures seamless data transfer for bandwidth-intensive applications, including video conferencing, large file sharing, and cloud-based services.
PoE+ Functionality
The PoE+ capability enables the switch to supply power to connected devices, reducing the need for additional power outlets. With a total PoE power budget of 195W, the switch can easily support multiple high-powered devices such as IP cameras and advanced wireless access points, streamlining network deployments.
Advanced Layer 2 Features
The HPE Aruba 2530 switch includes advanced Layer 2 capabilities such as VLANs, link aggregation, and Spanning Tree Protocol (STP). These features enhance network segmentation, redundancy, and performance, making it a reliable choice for diverse networking needs.
Secure and Reliable Operation
Security is a priority with the HPE Aruba 2530. It includes features such as access control lists (ACLs), IEEE 802.1X authentication, and dynamic VLAN assignments to safeguard the network from unauthorized access. The switch also supports RADIUS and TACACS+ protocols for centralized authentication and management.
Use Cases for the J9773-61101 HPE Aruba 2530 Switch
Small to Mid-Sized Business Networks
This switch is perfectly suited for small to mid-sized businesses that require reliable connectivity and simplified management. The PoE+ functionality reduces cabling complexity, making it a cost-effective solution for businesses deploying VoIP systems and surveillance networks.
Enterprise Edge Deployments
The HPE Aruba 2530 is ideal for edge deployments within enterprise environments. Its robust performance and security features ensure smooth operations for branch offices, retail locations, and remote sites.
Education and Hospitality Sectors
Educational institutions and hospitality venues benefit from this switch's scalability and PoE+ support. It can power and manage extensive networks, including wireless access points and IP cameras, ensuring seamless connectivity for students, guests, and staff.
Design Options
Desktop and Rack-Mount Flexibility
The switch's compact design supports both desktop and rack-mounted configurations, providing installation versatility. Its fanless operation ensures quiet performance, making it suitable for noise-sensitive environments.
Energy Efficiency
With Energy Efficient Ethernet (EEE) technology and advanced power management, the HPE Aruba 2530 minimizes energy consumption without compromising performance. This eco-friendly design aligns with sustainable business practices.
Capabilities
Simple and Intuitive Management
The switch supports a user-friendly web interface and command-line interface (CLI) for simplified configuration and monitoring. Additionally, it integrates seamlessly with the HPE Intelligent Management Center (IMC) for centralized control of multiple network devices.
Network Monitoring Tools
Comprehensive monitoring features, such as port mirroring and SNMP support, enable administrators to proactively identify and address network issues. These tools ensure optimal network performance and reliability.
Compatibility and Integration
Seamless Integration with HPE Ecosystem
The HPE Aruba 2530 switch is designed to integrate seamlessly with other HPE networking products, including access points, routers, and servers. This compatibility ensures a unified and efficient networking solution.
