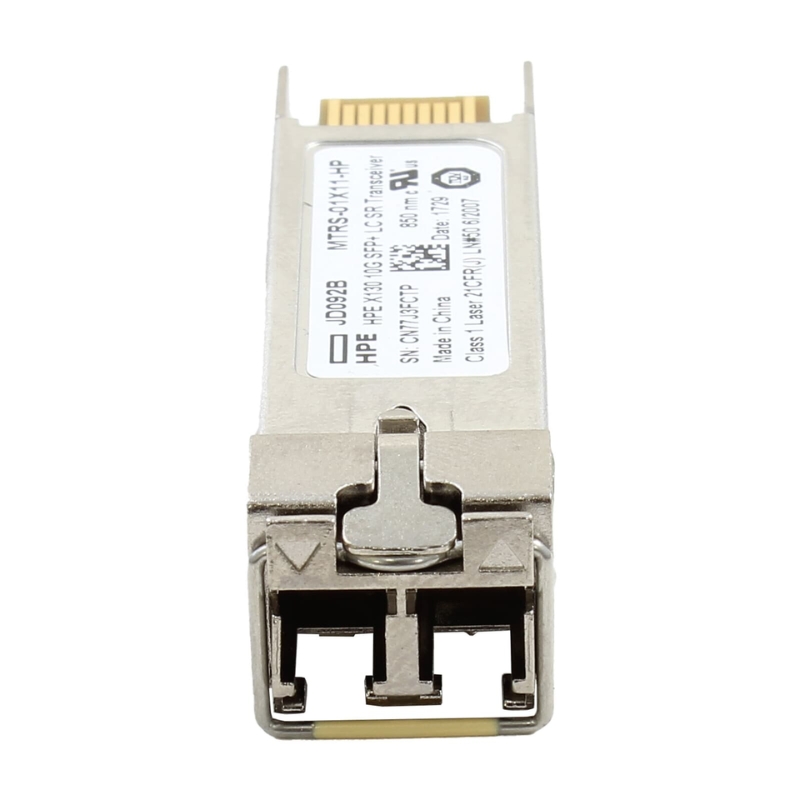

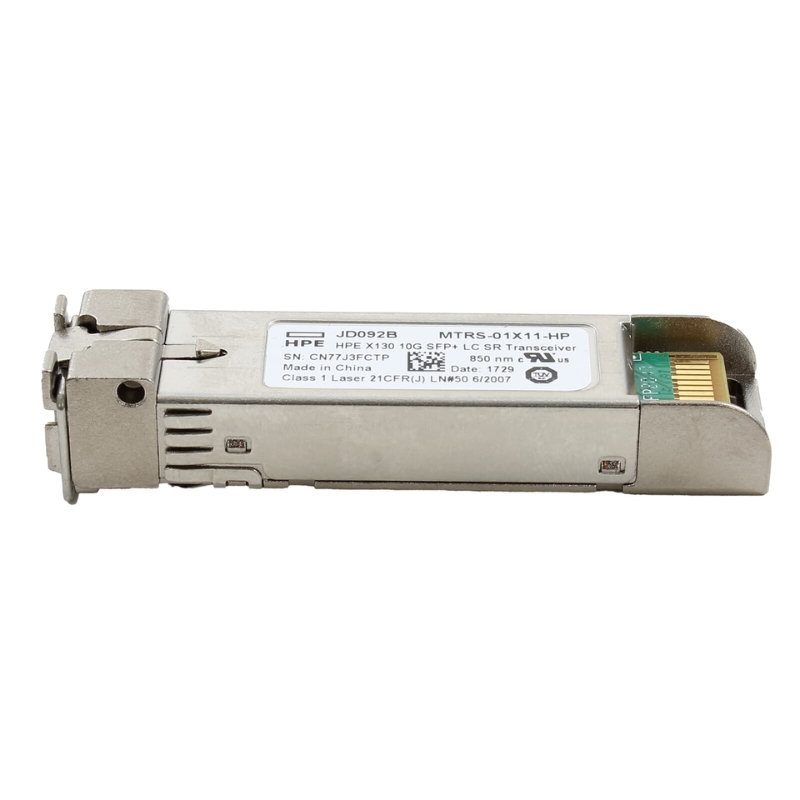

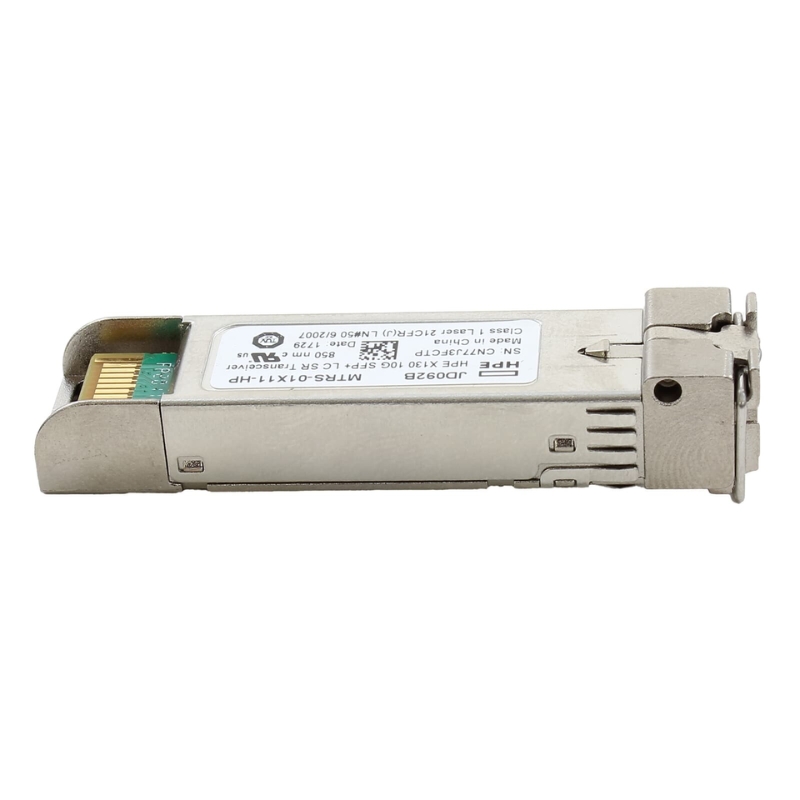

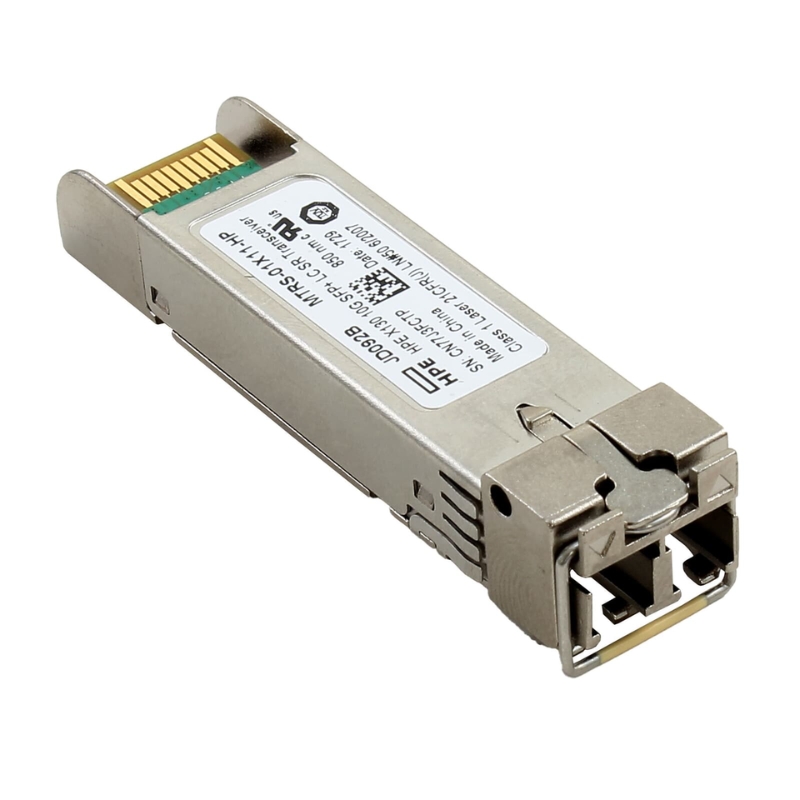

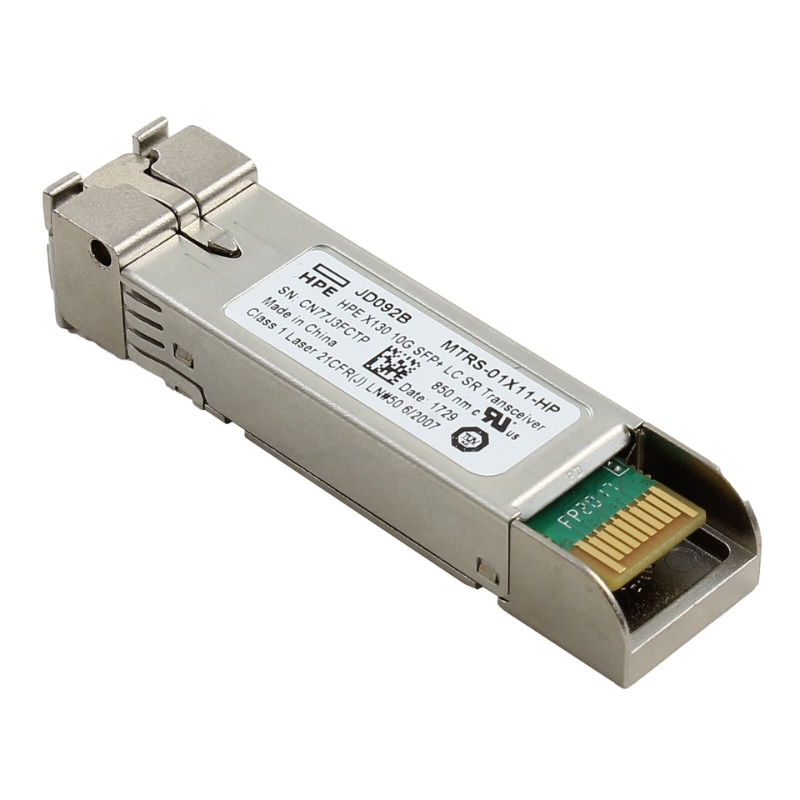

JD092BR HPE X130 10G SFP+ LC SR Transceiver

HPE JD092BR 10G SFP+ LC SR Transceiver Module

The HPE JD092BR X130 SFP+ transceiver is a compact, plug-in optical module designed to deliver reliable 10 Gigabit Ethernet performance over short-range fiber links. It is engineered to support high-bandwidth communication in enterprise switching, data center interconnects, and advanced networking environments.

Product Information

• Brand: HPE
• Part Number: JD092BR
• Drive Type: SFP+ Transceiver Module

Core Performance

• Delivers stable 10Gbps data transfer over fiber-optic connections
• Optimized for short-range 10GBASE-SR multimode transmission
• Ensures low-latency and high-throughput network performance
• Designed for seamless integration into SFP+ enabled devices

Module Type and Form Factor

• Device Type: SFP+ optical transceiver module
• Form Factor: Hot-pluggable plug-in design
• Enclosure: Compact module optimized for switch compatibility

10GBASE-SR Fiber Performance

• Supports 10 Gigabit Ethernet over multimode fiber
• Provides up to 10Gbps high-speed data link communication
• Ensures stable and consistent optical signal transmission

LC Connector Interface

• Equipped with LC duplex fiber connector
• Supports reliable short-distance optical connectivity
• Compatible with standard multimode fiber cabling systems

SFP+ Slot Integration

• Designed for 1 x SFP+ network interface slot
• Hot-swappable for flexible deployment and maintenance
• Enables quick upgrades in high-performance networks

Network Device Compatibility

• Works with a wide range of SFP+ enabled switches and routers
• Supports enterprise-grade and data center networking hardware
• Ensures interoperability in mixed vendor environments

Enterprise Data Networks

• Ideal for high-speed internal LAN backbone connections
• Enhances server-to-switch communication efficiency
• Supports bandwidth-intensive enterprise applications

Data Center Interconnects

• Optimized for short-range data center fiber links
• Improves rack-to-rack and row-to-row connectivity
• Supports virtualization and cloud infrastructure traffic

High-Performance Networking Environments

• Suitable for latency-sensitive computing workloads
• Enhances throughput in storage and compute clusters
• Supports scalable high-speed architecture expansion

Stable Data Transmission Performance

• Maintains consistent 10GbE link stability under load
• Reduces packet loss in high-traffic conditions
• Ensures dependable optical communication channels

Plug-and-Play Deployment Advantage

• Enables fast installation without system downtime
• Supports hot-swapping for minimal service disruption
• Streamlines network maintenance and upgrades

HPE JD092BR X130 10G SFP+ LC SR Transceiver

The HPE JD092BR X130 10G SFP+ LC SR Transceiver belongs to the high-performance short-range optical transceiver category designed for 10 Gigabit Ethernet (10GbE) networking environments. This class of component is engineered to provide reliable, low-latency, and high-bandwidth optical connectivity between network devices such as switches, routers, servers, and storage systems within data centers and enterprise campus networks. As part of the SFP+ (Small Form-Factor Pluggable Plus) ecosystem, the module enables flexible, modular network design where optical interfaces can be added or replaced without modifying core switching hardware.

Within the broader category of 10GbE optical modules, the HPE JD092BR X130 10G SFP+ LC SR Transceiver is specifically optimized for short-range multimode fiber applications, making it an essential component for intra-data center communication, rack-to-rack connectivity, and high-density server environments. Its LC connector interface and SR (Short Range) classification ensure compatibility with OM3 and OM4 multimode fiber infrastructure commonly deployed in modern enterprise networking architectures.

Modular Optical Networking Design

The HPE JD092BR X130 10G SFP+ LC SR Transceiver is built on the SFP+ modular standard, which defines a compact, hot-swappable form factor for high-speed optical communication modules. This modularity allows network administrators to deploy optical interfaces only where needed, improving cost efficiency and operational flexibility in enterprise environments.

The SFP+ architecture separates the physical optical interface from the switching hardware, enabling organizations to adapt their network media types without replacing entire switches. This design approach is critical in dynamic IT environments where network scaling and reconfiguration are frequent.

Hot-Swappable Integration and Network Continuity

A key feature of the JD092BR X130 10G SFP+ LC SR Transceiver is its hot-swappable capability. This allows installation or replacement while network devices remain operational, eliminating downtime during maintenance or upgrades. In mission-critical environments such as cloud data centers, financial systems, and enterprise core networks, this feature ensures uninterrupted service availability.

Short Range (SR) Optical Signal Characteristics

The SR classification of the HPE JD092BR X130 10G SFP+ LC SR Transceiver indicates its optimization for short-distance optical transmission using multimode fiber. Typically operating at 850nm wavelength, SR transceivers are designed for distances up to approximately 300 meters depending on fiber quality, with OM3 and OM4 fibers providing enhanced reach and performance.

This makes the module ideal for data center environments where high-speed communication between servers, switches, and storage systems occurs within relatively short physical distances.

Optical Signal Conversion and Data Integrity

The transceiver performs high-speed conversion between electrical signals from the host device and optical signals transmitted over fiber optic cables. This conversion is handled by integrated laser and photodetector components designed for precise modulation at 10Gbps data rates.

Dual LC Connector Configuration

The HPE JD092BR X130 10G SFP+ LC SR Transceiver utilizes a dual LC connector interface, which provides separate transmit and receive channels for full-duplex communication. This standardized connector type is widely used in enterprise fiber optic networks due to its compact size and reliable alignment characteristics.

The LC interface ensures secure and stable fiber connections, reducing signal loss and improving long-term operational reliability in high-density cabling environments.

Compatibility with Multimode Fiber Standards

This transceiver is designed specifically for multimode fiber infrastructure, including OM3 and OM4 cabling standards. These fiber types are optimized for short-range, high-bandwidth transmission, making them ideal for intra-data center connectivity.

Fiber Mode Optimization and Transmission Efficiency

Multimode fiber allows multiple light paths to propagate simultaneously, enabling high-bandwidth transmission over short distances. The JD092BR transceiver is calibrated to maintain signal clarity across these modes, ensuring consistent performance across supported fiber types.

High-Speed 10Gbps Data Throughput

The module supports a data rate of up to 10 Gigabits per second, making it suitable for high-performance networking applications. This throughput capacity supports modern enterprise workloads such as virtualization, cloud computing, big data analytics, and high-speed storage replication.

Consistent 10GbE performance ensures that network bottlenecks are minimized, allowing applications to operate efficiently even under heavy traffic conditions.

Low Latency Optical Transmission Design

Latency is minimized through direct optical signal transmission, reducing the need for complex electrical processing. This results in near-instantaneous data transfer across connected network devices, which is critical for real-time applications.

Server-to-Switch Connectivity in Virtualized Environments

The HPE JD092BR X130 10G SFP+ LC SR Transceiver is widely used for connecting servers to top-of-rack or end-of-row switches in virtualized data center environments. Its high bandwidth and low latency characteristics support efficient virtual machine migration and workload distribution.

This ensures that virtualized applications can communicate efficiently across physical infrastructure boundaries.

Storage Area Network Integration and High-Speed Storage Access

In storage area network environments, the transceiver provides the high-speed connectivity required for accessing distributed storage systems. This is essential for applications that require rapid data retrieval and replication.

Data Center Spine-Leaf Architecture Deployment

The module is commonly deployed in spine-leaf network architectures, where it facilitates high-speed interconnections between leaf switches and spine switches, enabling scalable and non-blocking network topologies.

Flexible Deployment in Layered Network Designs

The JD092BR transceiver integrates seamlessly into layered network architectures including access, aggregation, and core layers. Its standardized interface ensures consistent performance across all network tiers.

This flexibility allows enterprises to design scalable infrastructures that can evolve with changing bandwidth demands.

Redundant Network Pathways

The module supports redundant network designs where multiple optical links are used to ensure failover capabilities. This improves network resilience and ensures continuous availability.

Link Aggregation and Load Balancing

When used in link aggregation configurations, multiple transceivers can operate together to increase bandwidth and provide redundancy in case of link failure.

Enterprise-Grade Operational Consistency

The HPE JD092BR X130 10G SFP+ LC SR Transceiver is designed for continuous operation in enterprise environments. Its robust construction ensures stable performance even under sustained high-throughput conditions.

Thermal Efficiency and Low Power Consumption

The module is engineered for energy efficiency, minimizing power consumption while maintaining high-speed optical transmission. This reduces heat generation and improves overall system cooling efficiency.

Optimized Power-to-Performance Ratio

Efficient laser operation ensures that the transceiver delivers high performance without excessive energy usage, contributing to lower operational costs in large-scale deployments.

Digital Diagnostics Monitoring

The JD092BR transceiver supports digital diagnostics monitoring capabilities that allow administrators to track real-time performance metrics such as optical power levels, temperature, and signal integrity.

Proactive Fault Detection and Maintenance

By continuously monitoring operational parameters, the module enables proactive identification of potential issues before they impact network performance.

Physical Layer Security Advantages

Although encryption occurs at higher network layers, optical fiber transmission inherently provides improved security compared to copper-based systems due to reduced susceptibility to electromagnetic interception.

Secure Infrastructure Integration

When integrated into secure network architectures, the transceiver supports compliance with enterprise security policies and regulatory requirements.

Incremental Optical Network Expansion

The modular nature of the HPE JD092BR X130 10G SFP+ LC SR Transceiver allows organizations to expand network capacity incrementally without redesigning infrastructure.

Long-Term Compatibility and Infrastructure Evolution

Designed for compatibility with HPE networking platforms, the module ensures long-term usability across evolving enterprise environments.
