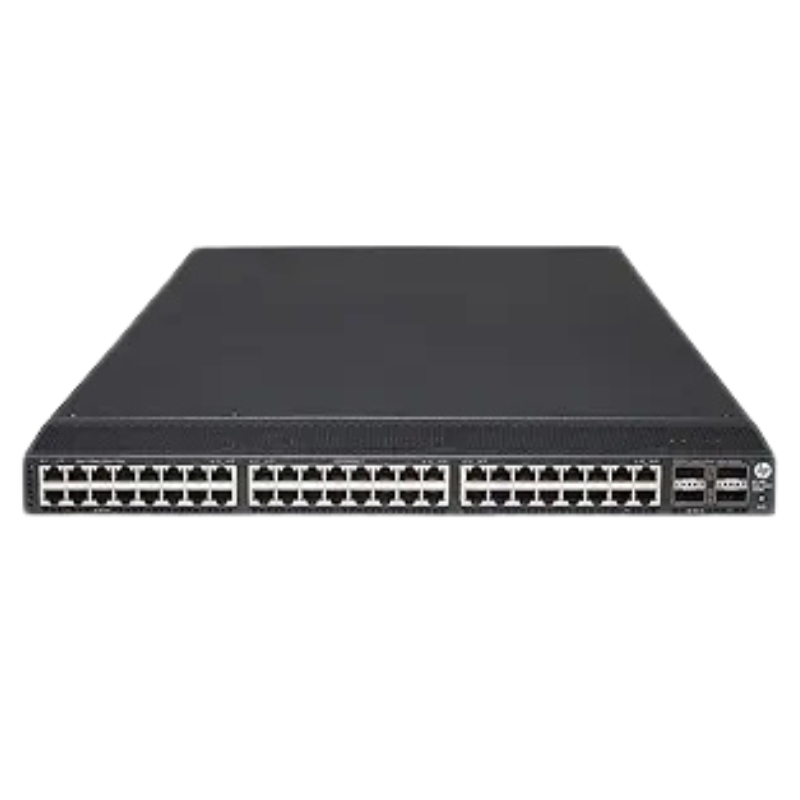

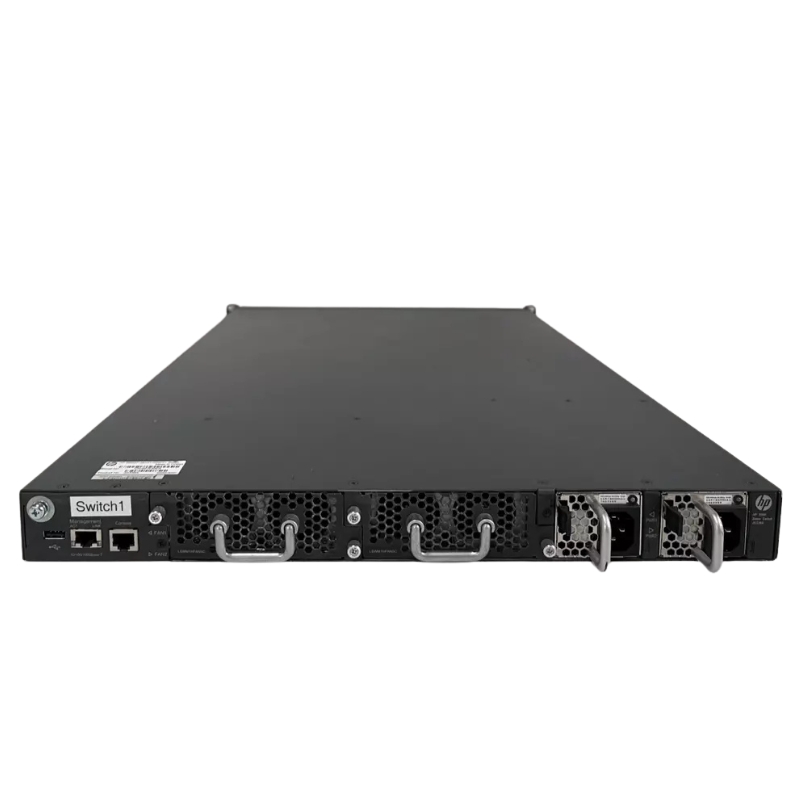

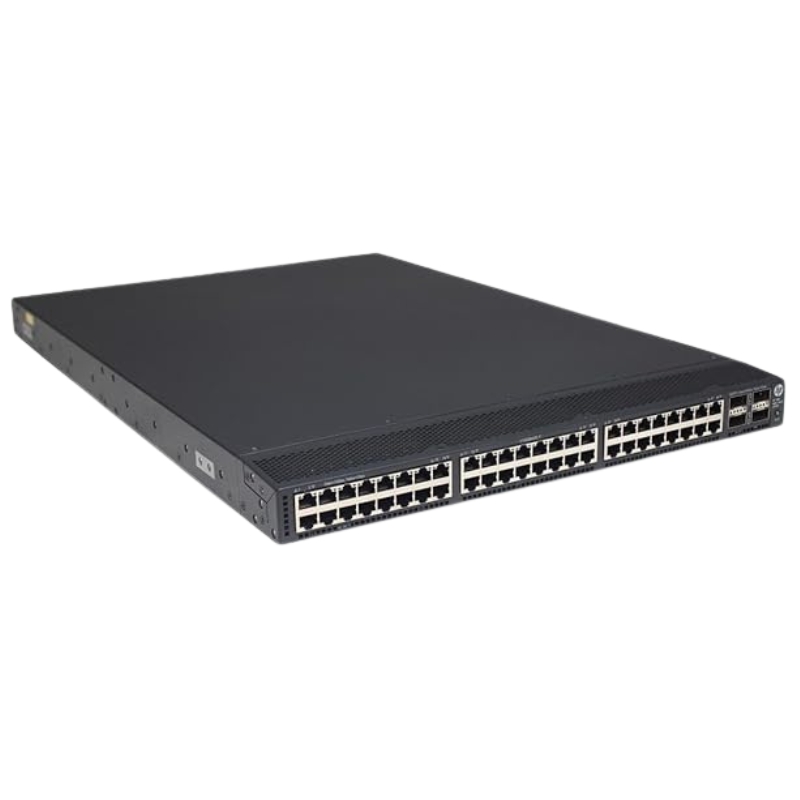

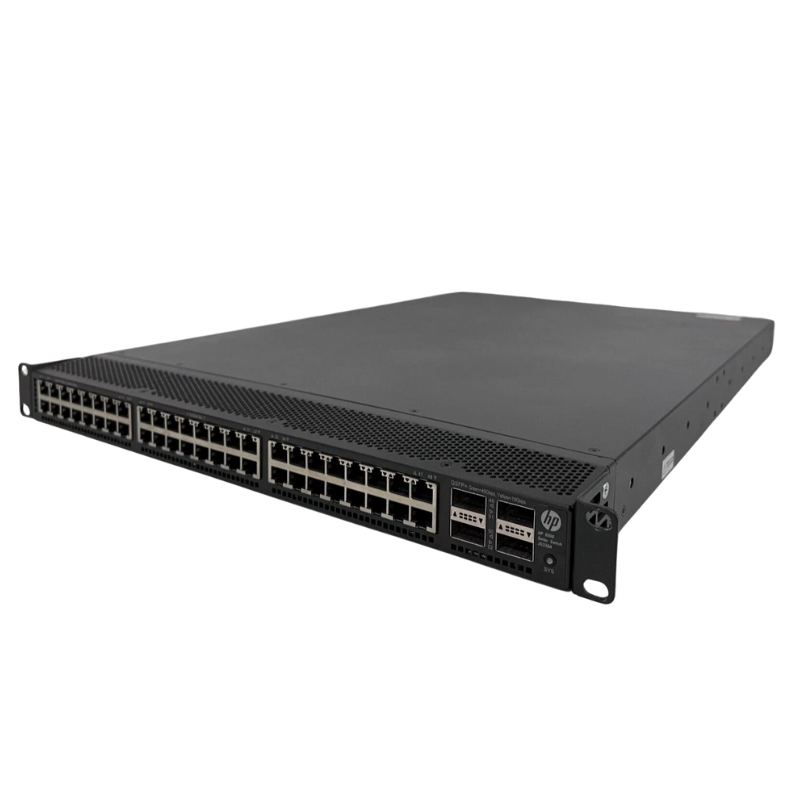

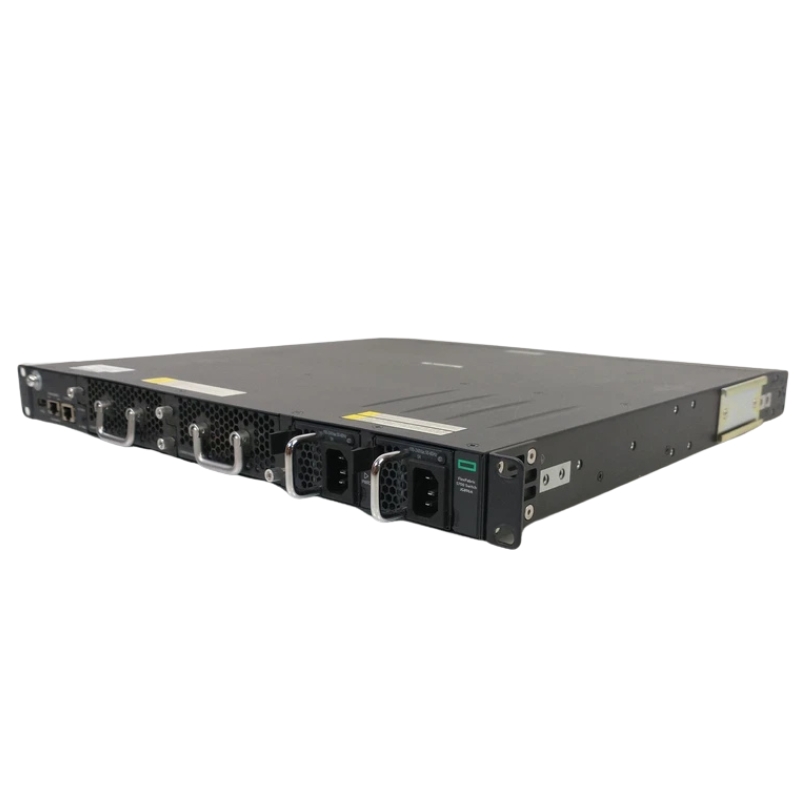

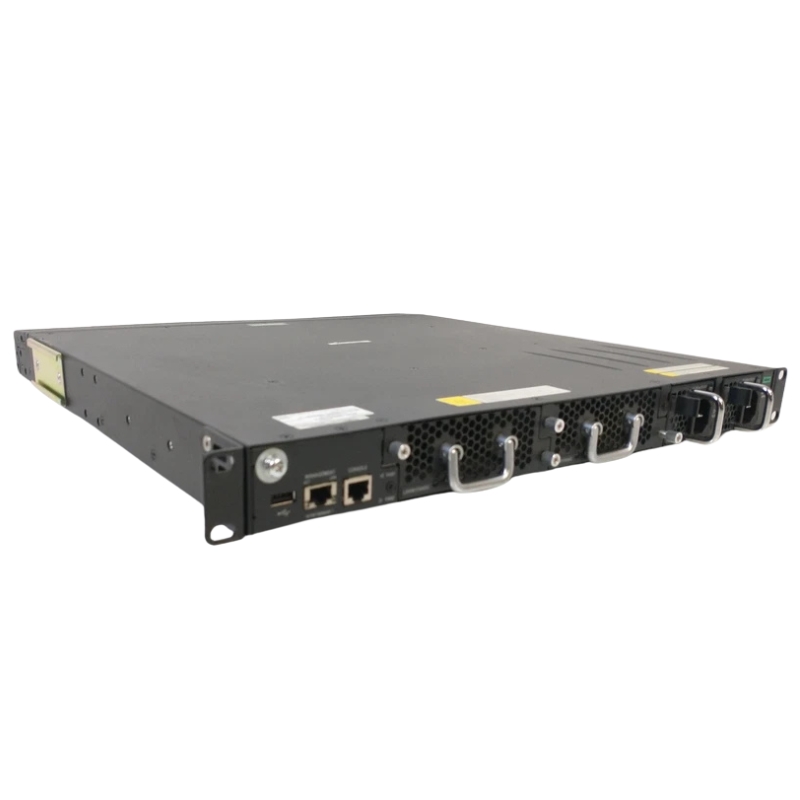

Switch 48 Ports Managed HPE JG336-61001 Rack-mountable.
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Overview of HPE 5900af-48xgt-4qsfp+ Switch
Discover the HPE 5900af-48xgt-4qsfp+ Switch, a high-performance, 48-port managed device designed to meet the demands of modern network infrastructures. With support for advanced routing protocols and robust features, this switch is ideal for businesses seeking reliable and scalable networking solutions.
Key Specifications
- Device Type: 48-Port Managed Switch
- Enclosure: Rack-Mountable (1U)
- Interfaces: 10 Gigabit Ethernet
- Port Configuration: 48 x 10/100/1000/10000 + 4 x 40 Gigabit QSFP+
High-Performance Features
- Throughput: 952 Mpps
- Routing/Switching Capacity: 1280 Gbps
- Routing Table Capacity: 16,000 Entries
- Jumbo Frame Support: Yes
Routing and Protocols
- Supported Routing Protocols: OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, Static IP Routing, ECMP
- Remote Management: SNMP v1/v2c/v3, Telnet, CLI
- Authentication: Secure Shell (SSH), Secure Shell V2 (SSH2)
Advanced Features and Support
- DHCP and ARP Support
- VLAN and Port Mirroring Support
- IPv6 and DiffServ Support
- Broadcast Storm Control and WRED
- Rapid Spanning Tree Protocol (RSTP)
- Multiple Spanning Tree Protocol (MSTP)
- Access Control List (ACL) Support
- Quality of Service (QoS) Features
- STP Root Guard
Compliant Standards
- IEEE 802.1D, 802.1Q, 802.1P, 802.3AD (LACP)
- IEEE 802.1W, 802.3AE, 802.1S, 802.1AB (LLDP), 802.3AN
Memory and Storage
- RAM: 2GB SDRAM
- Flash Memory: 512MB
Expansion and Connectivity Options
- 48 x 10Gb Ethernet Ports (RJ-45)
- 4 x 40Gb Ethernet Ports (QSFP+)
- 1 x Console Port (RJ-45)
- 1 x USB 2.0 Type-A Port
- 1 x Management Port (RJ-45)
Power Management
- Power Device: Internal Hot-Plug Power Supply
- Installed Power Supplies: 0 (Installed) / 2 (Maximum)
- Power Redundancy: Optional (1+1 Redundancy with Optional Power Supply)
- Voltage Requirements: AC 120/230V (50/60 Hz)
- Operational Power Consumption: 260W
HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch Overview
The HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch is a powerful and versatile networking solution designed to provide exceptional performance for high-demand enterprise environments. With 48 ports featuring Gigabit Ethernet (GbE) and 4 QSFP+ ports for high-speed uplinks, this managed rack-mountable switch is ideal for data centers, large office buildings, and other network-intensive applications.
Key Features of the HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch
The HPE 5900AF-48XGT-4QSFP+ Switch integrates cutting-edge technology to provide network reliability, scalability, and efficiency. Below are some of the key features of this switch:
High-Performance Ports
The HPE JG336-61001 offers 48 Gigabit Ethernet (GbE) ports, which enable seamless data transmission across a wide array of devices within your network. The 4 QSFP+ ports allow for high-speed connections, facilitating 10GbE, 25GbE, or even 40GbE bandwidth for demanding network traffic.
Advanced Network Management
This switch comes with advanced management capabilities, allowing IT administrators to monitor, configure, and troubleshoot their network with ease. Through HPE’s Intelligent Management Center (IMC) or the command-line interface (CLI), network professionals can ensure optimal network performance and security.
Flexible Rack-Mountable Design
The HPE 5900AF-48XGT-4QSFP+ is designed to fit seamlessly into a standard 19-inch rack, allowing you to save space in your network infrastructure while ensuring an organized and efficient setup.
Stackable Architecture
One of the key benefits of the HPE JG336-61001 switch is its stackable architecture. This feature enables users to connect multiple switches together, simplifying network expansion and management, while offering increased bandwidth and reliability.
Performance and Scalability
The HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch provides industry-leading performance, ensuring your network can handle heavy traffic loads and high-demand applications. Whether you're operating in a small office or a large data center, this switch offers scalability and flexibility to grow with your network's needs.
Optimized for High-Demand Environments
The 48 Gigabit Ethernet ports provide high bandwidth for demanding applications such as VoIP, video conferencing, and cloud-based services. The switch's high throughput capabilities ensure that even the most data-intensive tasks are handled with ease, minimizing downtime and network latency.
Seamless Integration with Other HPE Products
The HPE JG336-61001 Switch is designed to integrate seamlessly with other HPE networking products, such as the HPE Aruba 5400R and 2930M Series. This allows for a cohesive network infrastructure, optimizing network performance across different areas of the enterprise.
Bandwidth Flexibility with QSFP+ Ports
The inclusion of four QSFP+ ports allows for enhanced flexibility in configuring your network. With the ability to support multiple speeds ranging from 10GbE to 40GbE, you can tailor the switch's uplink capabilities based on your specific network requirements, ensuring minimal bottlenecks and maximum throughput.
Future-Proof Design
The HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch supports the latest Ethernet standards, ensuring your network remains relevant for years to come. As networking technologies evolve, the switch’s ability to support advanced protocols and speeds means it can handle the demands of tomorrow's applications and services without requiring a complete overhaul of your infrastructure.
Advanced Security Features
Network security is a top priority for businesses today. The HPE JG336-61001 Switch incorporates a suite of robust security features that help protect sensitive data and prevent unauthorized access. These security mechanisms ensure that your network remains secure and reliable, even as your business grows.
Access Control Lists (ACLs)
The HPE JG336-61001 Switch includes access control lists (ACLs), which allow administrators to define granular traffic rules based on IP address, protocol type, and port number. ACLs can be used to limit access to certain network resources, providing an added layer of security.
Port Security
With built-in port security features, the HPE JG336-61001 Switch can block unauthorized devices from connecting to the network, ensuring that only approved devices are able to transmit data. This is critical for preventing network breaches and reducing the risk of attacks from malicious actors.
802.1X Authentication
The switch supports IEEE 802.1X authentication, which provides an additional layer of security by requiring devices to authenticate before they can access the network. This feature is commonly used in enterprise environments to enforce strict access control policies and prevent unauthorized users from gaining access to sensitive systems.
Secure Management Protocols
HPE's JG336-61001 5900AF-48XGT-4QSFP+ Switch also supports secure management protocols such as SSH (Secure Shell) and SNMPv3 (Simple Network Management Protocol), ensuring that management traffic is encrypted and protected from potential interception during network configuration and monitoring activities.
Energy Efficiency and Cost-Effectiveness
In addition to its high performance, the HPE JG336-61001 Switch is designed with energy efficiency in mind. It features advanced power management features that help reduce power consumption, lowering operational costs and contributing to a more environmentally friendly network infrastructure.
Energy-Efficient Design
The HPE 5900AF Series switches are engineered to meet modern energy standards, incorporating features like Energy Efficient Ethernet (EEE) to minimize power consumption without compromising performance. This helps reduce the overall energy footprint of your network, especially when deployed in large-scale environments.
Smart Cooling Technology
The switch's design includes intelligent cooling technology, which adjusts the fan speed based on temperature readings. This helps ensure that the system stays cool and operates efficiently while minimizing energy usage. The result is a switch that delivers reliable performance without excessive energy consumption.
Lower Total Cost of Ownership
By combining energy efficiency with high performance and scalability, the HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch offers a lower total cost of ownership (TCO) over time. Businesses can enjoy reduced energy costs and less frequent hardware replacements, making this switch a smart investment for the long term.
Deployment and Use Cases
The HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch is suitable for a wide range of enterprise environments. Below are some typical use cases for this versatile networking switch:
Data Centers
Data centers require high-performance, reliable switches that can handle large amounts of traffic without sacrificing performance. The HPE 5900AF series, including the JG336-61001 model, is ideal for large-scale data center deployments, providing robust performance for applications like virtualization, cloud computing, and storage networking.
Enterprise Networks
For large enterprises, managing a complex network can be challenging. The HPE JG336-61001 switch offers enterprise-grade management features and scalability, making it a strong choice for businesses with large, geographically dispersed networks. The ability to stack switches together also ensures that your network can scale as the business grows.
Campus Networks
Campus networks are often spread across multiple buildings and require reliable, high-speed networking. The HPE JG336-61001 5900AF-48XGT-4QSFP+ Switch is perfect for campus network environments, offering 48 Ethernet ports and four high-speed uplinks to ensure that each part of the network is well-connected.
High-Demand Applications
Businesses with high-demand applications, such as video conferencing, VoIP, and online collaboration tools, can benefit from the HPE JG336-61001 switch's robust bandwidth and performance. The switch’s ability to support a variety of network configurations ensures that high-priority traffic is managed effectively, leading to enhanced user experiences and reduced latency.
