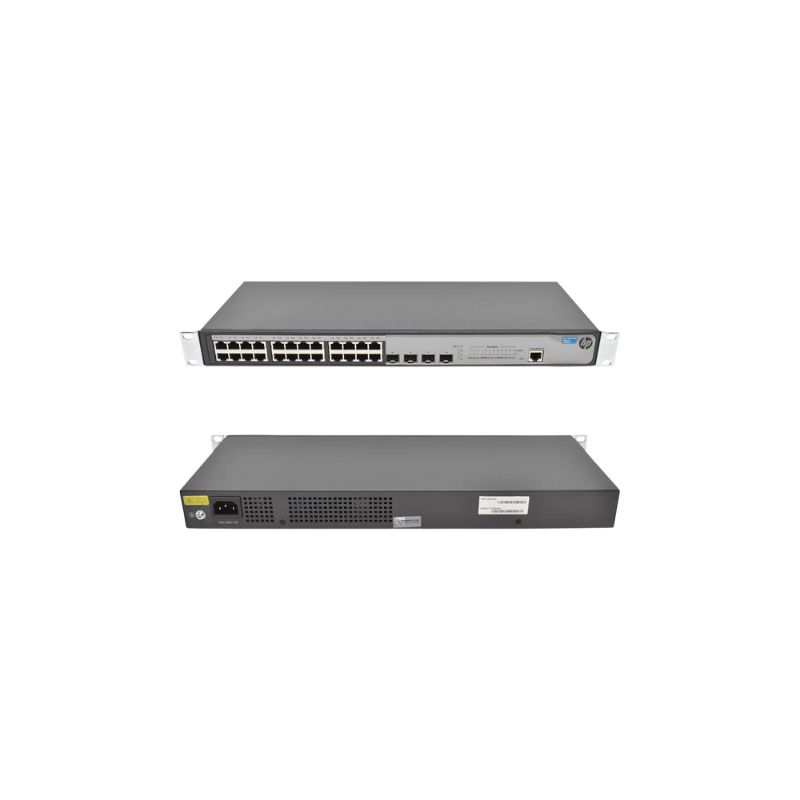

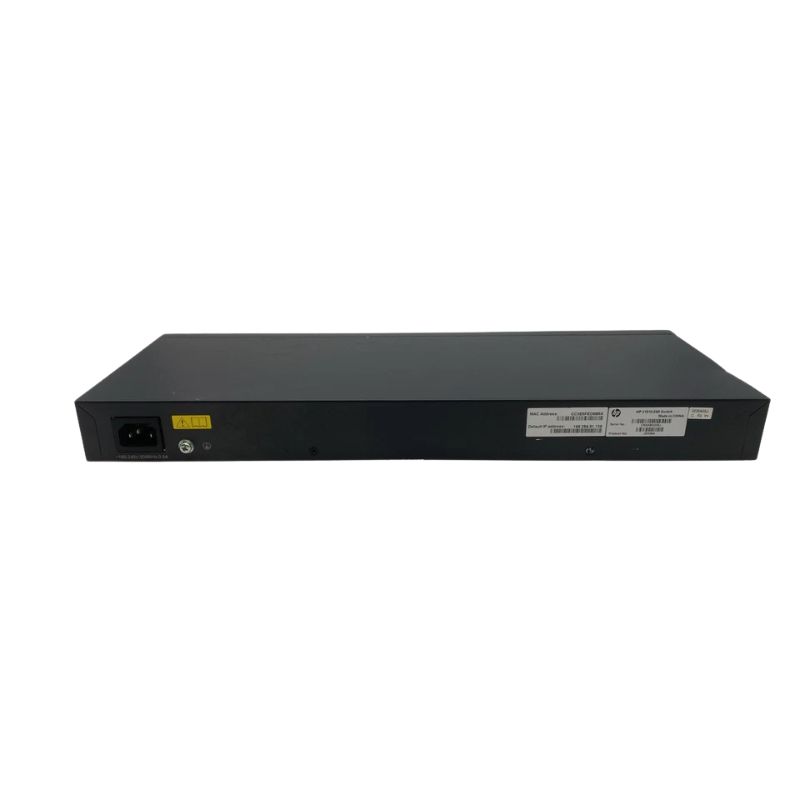

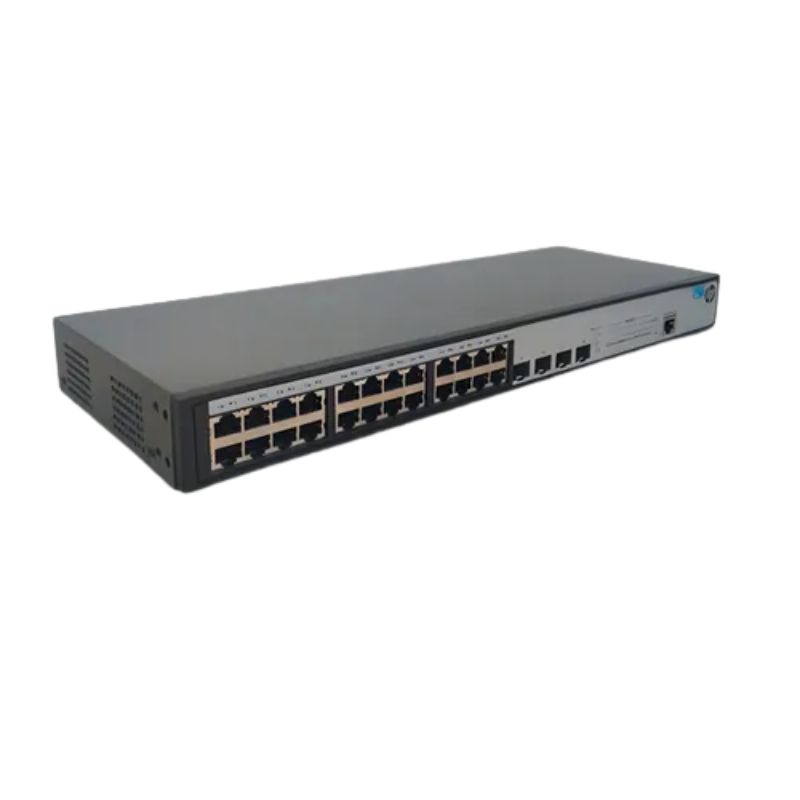

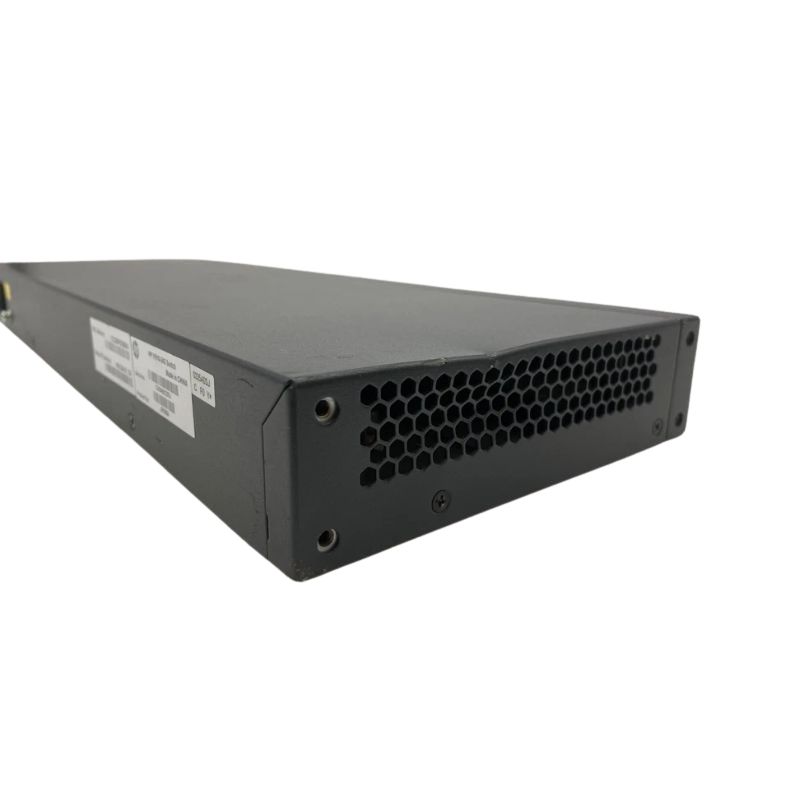

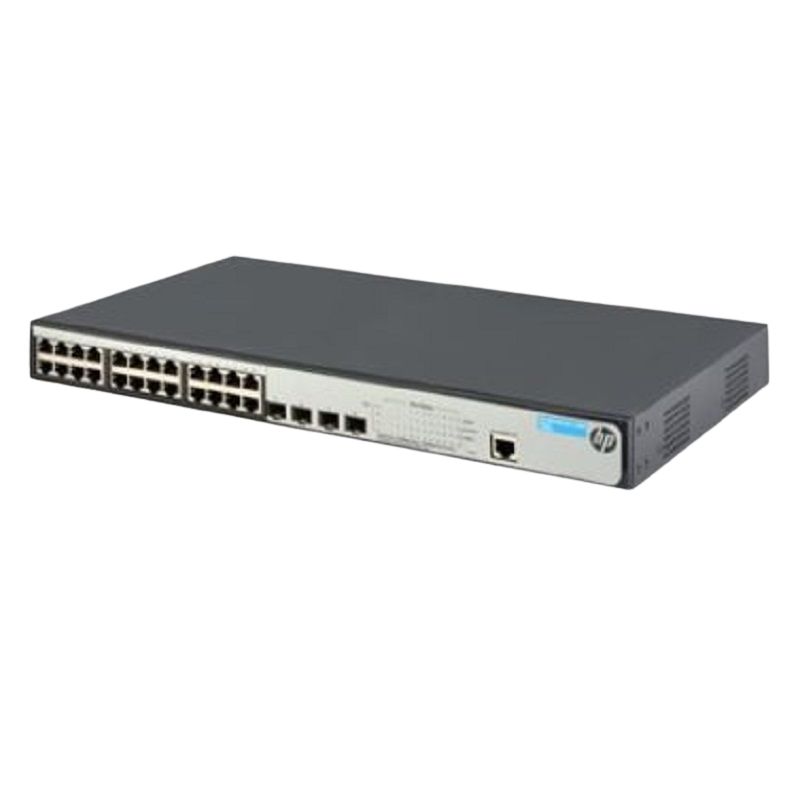

HPE 1920-24G-PoE+ JG926A Gigabit SFP Ethernet Network Switch

Ports

The HPE JG926A Ethernet Network Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity for various devices, such as computers, printers, servers, and network storage devices.

Product Information: HPE JG926A

Manufacturer Details

• Brand: HPE
• Part Number: JG926A
• Product Type: Networking Switch

Technical Specifications

• Enclosure Type: Desktop or Rack-Mountable (1U)
• Switch Type: 24-Port
• Interface Type: Gigabit Ethernet

Ports Configuration:

• 24 x 10/100/1000 (PoE+)
• 4 x Gigabit SFP

Power Over Ethernet (PoE)

• PoE Standard: PoE+
• PoE Budget: 370 W

Performance Metrics

• Throughput: Up to 41.7 Mpps
• Routing/Switching Capacity: 56 Gbps
• IPv4 Routing Table Entries: 32
• IPv6 Routing Table Entries: 32
• MAC Address Table Size: 8192 Entries
• Jumbo Frame Support: Up to 10KB

Routing and Management

• Routing Protocols: Static IPv4 and IPv6 Routing
• Remote Management Protocols: SNMP v1, SNMP v2c, SNMP v3, RMON 1, 2, 3, 9, Telnet, HTTP, HTTPS, TFTP, CLI
• Encryption: SSL
• Authentication: Secure Shell (SSH), RADIUS

Advanced Features

• Flow Control
• Layer 2 Switching
• Auto-Negotiation
• ARP Support
• VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Syslog Support
• Port Mirroring
• Weighted Round Robin (WRR) Queuing
• IPv6 Support
• Spanning Tree Protocol (STP) Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Jumbo Frames Support
• MLD Snooping
• Cable Diagnostics Function
• STP Root Guard
• DHCP Relay
• Port Security
• DHCP Client
• Dual Firmware Images
• Strict Priority Queuing (SPQ)
• Port Isolation
• Static Routing
• Class of Service (CoS)
• Single IP Management (SIM)

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z
• IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p
• IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP)
• IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
• IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Hardware Specifications

• Processor: 1 x MIPS, 500 MHz
• RAM: 128 MB SDRAM
• Flash Memory: 32 MB

Dimensions and Weight

• Width: 17.3 inches
• Depth: 10.2 inches
• Height: 1.7 inches
• Weight: 7.50 lbs

Connectivity and Expansion

• Interfaces: 24 x 1000BASE-T (RJ-45) PoE+
• 4 x 1000BASE-X (SFP)
• 1 x Console (RJ-45) for Management

Increased Connectivity

The 24 ports on the HPE JG926A Ethernet Network Switch offer increased connectivity options for users. With a larger number of ports, businesses can connect more devices to their network without the need for additional switches or hubs. This allows for better organization and management of network connections, simplifying the overall network infrastructure.

Flexibility and Scalability

The HPE JG926A Ethernet Network Switch's 24 ports provide flexibility and scalability for businesses. Users can easily add or remove devices from the network without disrupting the entire system. This makes it easier to accommodate future growth and adapt to changing business needs. Additionally, the switch supports features like VLANs (Virtual Local Area Networks), which allow for logical segmentation of the network and improved security.

Improved Network Performance

Having 24 ports on the HPE JG926A Ethernet Network Switch ensures that each connected device has sufficient bandwidth and does not experience congestion or slowdowns. This is especially important in environments where multiple users are simultaneously accessing network resources or transferring large files. The switch's high-performance capabilities ensure smooth data transmission and reduce latency, resulting in improved network performance and user satisfaction.

Efficient Data Transfer

The 24 ports on the HPE JG926A Ethernet Network Switch support Gigabit Ethernet, which offers fast data transfer speeds of up to 1000 Mbps. This allows for quick file transfers and seamless streaming of multimedia content. Users can efficiently share and access data across the network without experiencing delays or bottlenecks.

Enhanced Productivity

With 24 ports, the HPE JG926A Ethernet Network Switch enables businesses to connect multiple devices, promoting collaboration and productivity. Employees can easily connect their computers, printers, and other devices to the network, facilitating seamless communication and resource sharing. This feature is particularly beneficial in office environments where teamwork and data sharing are essential.

Cost-Effective Solution

The HPE JG926A Ethernet Network Switch's 24 ports offer a cost-effective solution for businesses. Instead of investing in multiple switches, users can consolidate their network infrastructure with a single switch that provides ample connectivity options. This reduces equipment and maintenance costs, making it an economical choice for small to medium-sized businesses.

Reliable Network Connectivity

The 24 ports on the HPE JG926A Ethernet Network Switch ensure reliable network connectivity for all connected devices. The switch supports features like Quality of Service (QoS), which prioritizes network traffic based on specific requirements. This ensures that critical applications, such as VoIP (Voice over Internet Protocol) or video conferencing, receive uninterrupted network connectivity and optimal performance.

Power

The HPE JG926A Ethernet Network Switch is equipped with Power over Ethernet Plus (PoE+) technology, providing a total power budget of 370W. This feature offers numerous benefits for users, making it an excellent choice for businesses that require both data connectivity and power supply to their network devices.

Simplified Deployment

The PoE+ technology on the HPE JG926A Ethernet Network Switch simplifies the deployment of network devices. With PoE+, users can power devices such as IP phones, wireless access points, and surveillance cameras directly through the Ethernet cable, eliminating the need for separate power adapters. This reduces clutter and makes installation more straightforward, especially in areas where power outlets are limited or inaccessible.

Cost Savings

By utilizing the PoE+ feature of the HPE JG926A Ethernet Network Switch, businesses can save on installation and maintenance costs. The switch eliminates the need for additional electrical wiring and power outlets for connected devices, reducing installation expenses. Moreover, since PoE+ allows for centralized power management, businesses can save on electricity costs by efficiently monitoring and controlling power usage across the network.

Flexibility in Device Placement

The PoE+ technology on the HPE JG926A Ethernet Network Switch provides flexibility in device placement. Users can install network devices in locations where power outlets are not readily available, such as ceilings or walls. This enables businesses to optimize their network infrastructure without being constrained by power supply limitations.

Improved Reliability

The HPE JG926A Ethernet Network Switch's PoE+ capability enhances the reliability of network devices. In case of a power outage, devices connected to the switch continue to receive power through an uninterruptible power supply (UPS) or backup generator. This ensures uninterrupted operation of critical network services, such as IP telephony or surveillance systems.

Remote Power Management

The HPE JG926A Ethernet Network Switch's PoE+ technology enables remote power management of connected devices. Users can monitor and control the power status of individual ports or devices through a centralized management interface. This allows for efficient troubleshooting and reduces the need for physical intervention in case of power-related issues.

Future-Proofing

Investing in the HPE JG926A Ethernet Network Switch with PoE+ ensures future-proofing of the network infrastructure. As more devices support PoE+, businesses can easily integrate new technologies into their network without the need for additional power infrastructure upgrades. This scalability and flexibility allow businesses to adapt to evolving technological advancements without significant disruptions or costs.

Speed

The HPE JG926A Ethernet Network Switch offers Gigabit Ethernet speed, providing users with fast and reliable data transmission capabilities. This feature is crucial for businesses that require high-speed connectivity for data-intensive applications and seamless communication.

Fast Data Transfer

The Gigabit Ethernet speed of the HPE JG926A Ethernet Network Switch allows for fast data transfer rates of up to 1000 Mbps. This enables users to quickly transfer large files, such as multimedia content or database backups, between devices connected to the network. Fast data transfer speeds contribute to increased productivity and reduced waiting times.

Smooth Multimedia Streaming

With Gigabit Ethernet, the HPE JG926A Ethernet Network Switch ensures smooth streaming of multimedia content across the network. Users can enjoy high-quality video conferencing, online collaboration, and multimedia presentations without experiencing buffering or lag. This is especially important for businesses that rely on multimedia applications for training, client presentations, or remote collaborations.

Enhanced User Experience

The high-speed connectivity provided by the Gigabit Ethernet speed of the HPE JG926A Ethernet Network Switch enhances the overall user experience. Users can access network resources and cloud-based applications with minimal latency, resulting in a seamless and responsive computing environment. This contributes to improved efficiency, user satisfaction, and productivity.

Support for Bandwidth-Intensive Applications

The Gigabit Ethernet speed of the HPE JG926A Ethernet Network Switch supports bandwidth-intensive applications. This includes applications that require significant network resources, such as video editing, CAD/CAM software, or data-intensive research tools. Users can run these applications smoothly without experiencing network bottlenecks or slowdowns.

Future-Proof Investment

Investing in the HPE JG926A Ethernet Network Switch with Gigabit Ethernet speed ensures a future-proof network infrastructure. As more devices and applications demand higher bandwidth, businesses can accommodate these requirements without the need for additional infrastructure upgrades. This scalability allows businesses to stay ahead of technological advancements and remain competitive in the ever-changing business landscape.

Compatibility with Existing Infrastructure

The Gigabit Ethernet speed of the HPE JG926A Ethernet Network Switch is compatible with existing network infrastructure. Users can seamlessly integrate the switch into their current network environment without the need for extensive reconfiguration or replacement of existing devices. This ensures a smooth transition and reduces downtime during the implementation process.

Interface

The HPE JG926A Ethernet Network Switch features SFP (Small Form-factor Pluggable) interfaces, offering versatility and flexibility in network connectivity options. These interfaces provide businesses with the ability to connect to various types of network media, including fiber optic cables.

Versatile Connectivity

The SFP interfaces on the HPE JG926A Ethernet Network Switch enable businesses to connect to different types of network media. Users can choose between copper or fiber optic connections based on their specific requirements. This versatility allows for seamless integration into existing network infrastructures and facilitates connectivity with devices located at different distances.

Fiber Optic Connectivity

The SFP interfaces support fiber optic connectivity on the HPE JG926A Ethernet Network Switch. Fiber optic cables offer several advantages over traditional copper cables, including longer distance transmission, immunity to electromagnetic interference, and higher bandwidth capabilities. Businesses can utilize fiber optic connections for applications that require high-speed and reliable data transfer, such as long-distance network links or connections between buildings.

Scalability and Future-Proofing

The SFP interfaces on the HPE JG926A Ethernet Network Switch offer scalability and future-proofing of the network infrastructure. Users can easily upgrade or change their network media by swapping out the SFP modules. This eliminates the need for extensive reconfiguration or replacement of the entire switch, reducing costs and minimizing disruptions to the network.

Long-Distance Connectivity

Fiber optic connections provided by the SFP interfaces allow for long-distance connectivity. Users can connect devices located in different parts of a building or even in separate buildings without experiencing signal degradation or loss. This is particularly beneficial for businesses with distributed offices or remote locations that require seamless communication and resource sharing.

Improved Network Security

Fiber optic connections offered by the SFP interfaces on the HPE JG926A Ethernet Network Switch enhance network security. Unlike copper cables, fiber optic cables do not emit electromagnetic signals that can be intercepted or tapped into. This makes fiber optic connections more secure against eavesdropping or unauthorized access, ensuring the privacy and integrity of sensitive data transmitted over the network.

High Bandwidth Capabilities

Fiber optic connections supported by the SFP interfaces provide high bandwidth capabilities. Businesses can take advantage of these high-speed connections for applications that require large data transfers or real-time streaming, such as video surveillance systems or data centers. The high bandwidth capabilities ensure smooth and uninterrupted data transmission, even in demanding network environments.
