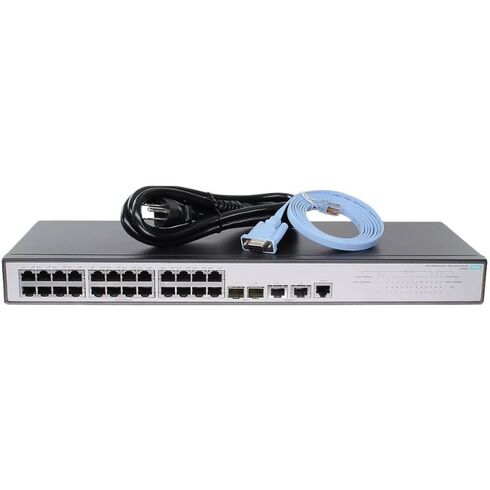

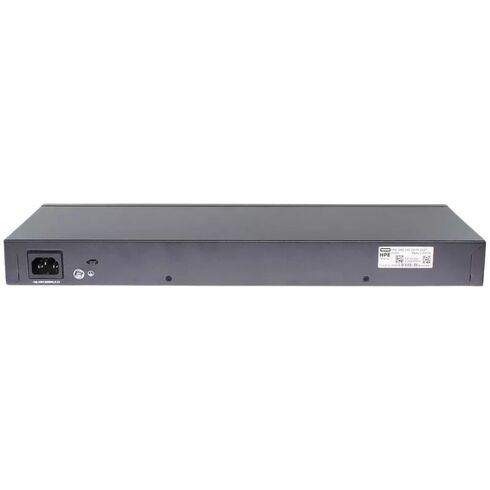

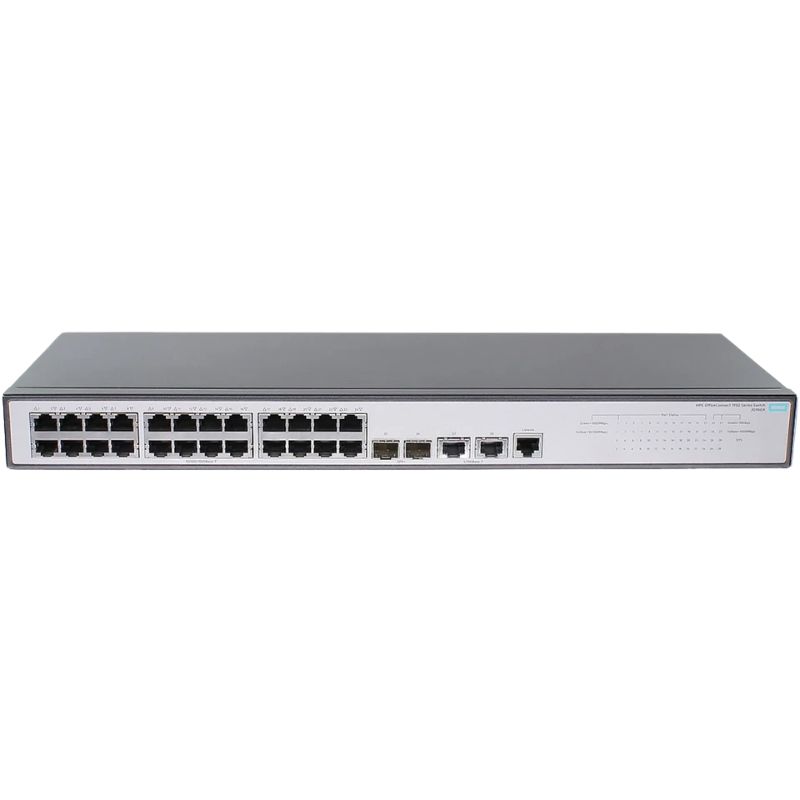

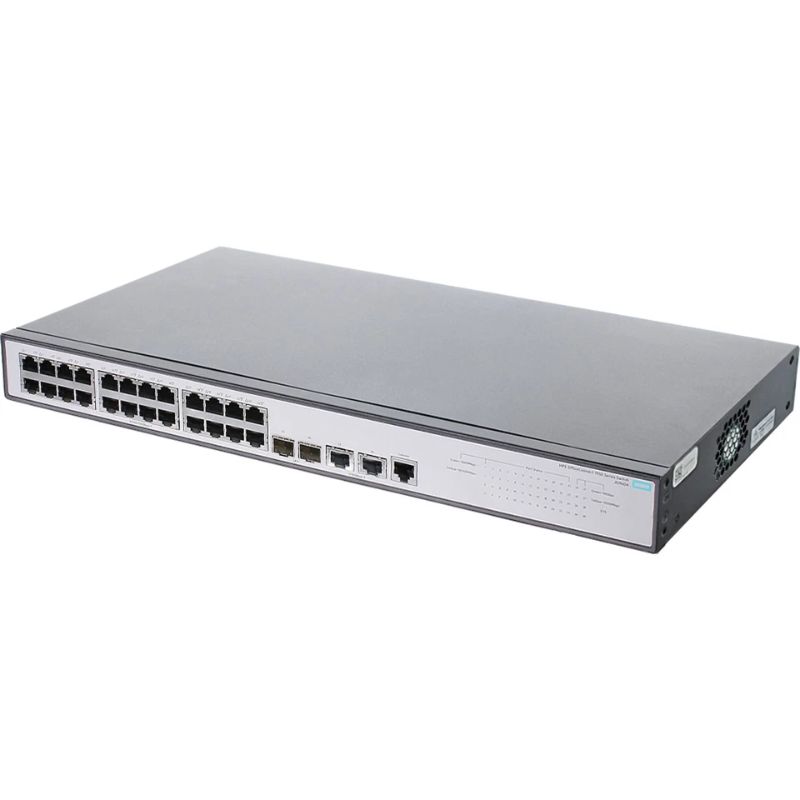

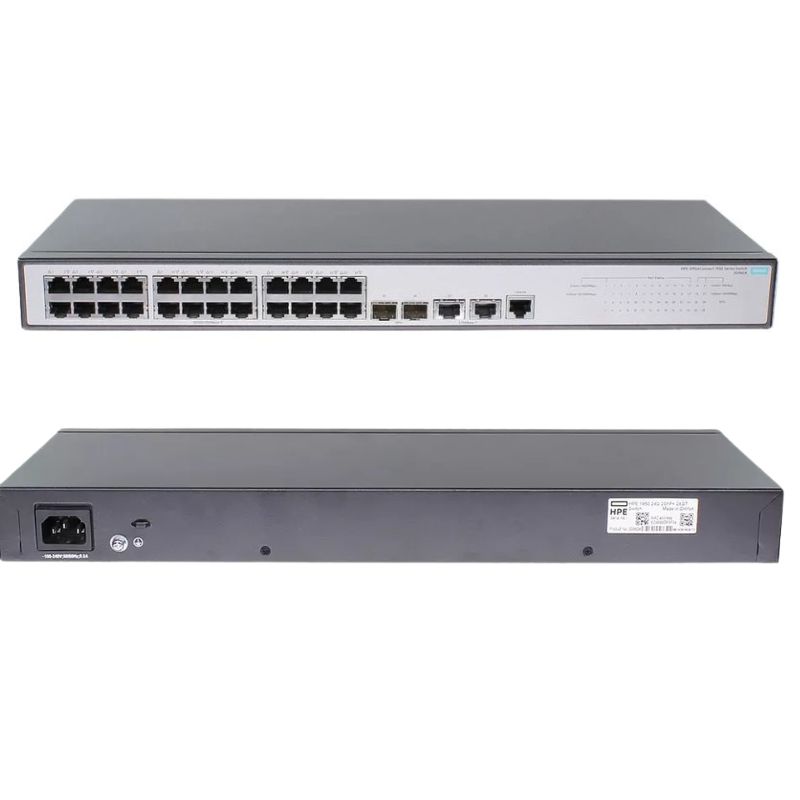

HPE JG960A 1950 24G 2sfp 2xgt Managed Rack-Mountable Switch 24 Ports

Key Specifications for HPE Managed Switch

Device Overview

• Manufacturer: Hewlett Packard Enterprise
• Part Number: JG960A
• Device Type: Fully Managed Network Switch

Physical Design and Mounting

• Enclosure: 1U Rack-Mountable Design
• Dimensions: 1.7 inches (height) x 17.2 inches (width) x 6.3 inches (depth)
• Weight: 7 pounds

Networking Capabilities and Ports

Port Configuration

• 24 x 10/100/1000 Mbps RJ-45 Ports
• 2 x 10Gb Ethernet / SFP+ Combo Ports
• 2 x 10Gb Ethernet (RJ-45)
• 1 x RJ-45 Console Port for Management

Ethernet and Performance

• Switching Capacity: 128 Gbps
• Throughput: Up to 95.2 Mpps (64-byte packets)
• MAC Address Table: Supports up to 16,384 entries
• Jumbo Frames: Maximum size of 10 KB

Routing and Management Features

Routing Capabilities

• Supports both IPv4 and IPv6 static routing
• 32 static routes for IPv4
• 32 static routes for IPv6
• Supports ECMP (Equal-Cost Multi-Path routing)

Management Protocols

• SNMP versions 1, 2c, and 3
• RMON 1 and 2
• HTTP, HTTPS, CLI (Command-Line Interface)

Advanced Features

Traffic Control and Optimization

• IGMP Snooping for optimized multicast traffic
• STP (Spanning Tree Protocol) with Root Guard functionality
• Port Mirroring for monitoring traffic
• QoS (Quality of Service) and CoS (Class of Service) to prioritize traffic

Security and Compliance

• Access Control Lists (ACL) for network security
• IEEE 802.1X authentication support
• DHCP Client for dynamic IP configuration
• Packet storm protection to avoid network flooding

Standards and Compliance

IEEE Standards Supported

• IEEE 802.3, IEEE 802.3i, IEEE 802.3z
• IEEE 802.1D, IEEE 802.1Q, IEEE 802.1P
• IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3x
• IEEE 802.1W (Rapid Spanning Tree Protocol)
• IEEE 802.1AB (LLDP)

Memory and Expansion

Hardware Resources

• RAM: 1 GB (Max)
• Flash Memory: 128 MB for system storage

Expansion and Connectivity

• 2 x 10Gb SFP+ ports for fiber connectivity
• 2 x 10Gb Ethernet ports for high-speed data transmission

Ports

24 Gigabit Ethernet Ports

The HPE 1950 24G 2sfp 2xgt Managed Rack-Mountable Switch is equipped with 24 high-speed Gigabit Ethernet ports. This feature provides users with a large number of ports to connect their devices, ensuring seamless network connectivity for small to medium-sized businesses. With such a significant number of ports, this switch offers enhanced flexibility and scalability, allowing users to easily expand their network as their business grows.

Improved Network Performance

Having 24 Gigabit Ethernet ports enables users to achieve superior network performance. Each port supports data transfer rates of up to 1000 Mbps, allowing for fast and reliable data transmission throughout the network. Whether it's transferring large files, streaming high-definition videos, or running bandwidth-intensive applications, this switch ensures that data flows smoothly and efficiently.

Efficient Network Management

The abundance of ports on the HPE 1950 24G switch simplifies network management tasks. Users can easily connect multiple devices such as computers, printers, servers, and VoIP phones without the need for additional switches or complex configurations. This streamlines the network infrastructure, making it easier to monitor and troubleshoot connectivity issues.

VLAN Support

With 24 Gigabit Ethernet ports, this switch offers extensive VLAN support. Virtual LANs enable users to segment their network into smaller logical networks, enhancing security and performance. By creating separate VLANs for different departments or groups within the organization, users can isolate traffic and improve network efficiency. This feature is particularly beneficial in environments where sensitive data needs to be protected or where specific applications require dedicated resources.

Power over Ethernet (PoE) Capability

The HPE 1950 24G switch also supports Power over Ethernet (PoE) technology on select ports. This feature eliminates the need for separate power cables for devices such as IP cameras, wireless access points, and VoIP phones. With PoE, power and data can be transmitted over a single Ethernet cable, simplifying installation and reducing clutter. This capability not only saves costs but also provides greater flexibility in device placement, as it eliminates the reliance on nearby power outlets.

Simplified Deployment

By supporting PoE, this switch offers simplified deployment of network devices. Users can easily connect and power compatible devices with a single Ethernet cable, eliminating the need for additional power sources. This reduces installation time and effort, making it ideal for businesses with limited IT resources or remote locations where power outlets may be scarce.

Scalability and Flexibility

The PoE capability of the HPE 1950 24G switch enhances scalability and flexibility in network design. Users can effortlessly add or relocate PoE-enabled devices without the constraint of proximity to power outlets. This allows for greater freedom in network expansion and rearrangement, accommodating changing business needs and ensuring optimal device placement.

Additional Connectivity Options

In addition to the 24 Gigabit Ethernet ports, this switch features 2 small form-factor pluggable (SFP) ports and 2 gigabit combo ports (2xGT). These additional connectivity options provide users with flexibility in network design. The SFP ports allow for fiber optic connections, extending network reach over longer distances or enabling connections to other switches or networking equipment. The combo ports offer the choice between copper or fiber connections, providing versatility in network configuration.

Enhanced Network Resilience

The inclusion of SFP ports and combo ports on the HPE 1950 24G switch enhances network resilience. By supporting fiber optic connections, users can overcome distance limitations and potential electromagnetic interference. Fiber optic connections provide greater stability and reliability, making them suitable for environments with high levels of electrical noise or for connecting devices in separate buildings. The combo ports offer backup options, allowing users to choose between copper or fiber connections based on their specific requirements or availability.

Future-Proofing

The additional connectivity options on this switch ensure future-proofing for evolving network needs. As technology advances and network demands increase, having the flexibility to incorporate fiber optic connections or switch between copper and fiber becomes crucial. By providing these options, the HPE 1950 24G switch allows users to adapt their network infrastructure without the need for significant upgrades or replacements.

Conclusion

With its 24 Gigabit Ethernet ports, Power over Ethernet capability, and additional connectivity options, the HPE 1950 24G 2sfp 2xgt Managed Rack-Mountable Switch offers users a versatile and scalable solution for their networking needs. The abundance of ports provides flexibility and room for growth, enabling seamless network expansion as businesses evolve. Whether it's enhancing network performance, simplifying network management, or ensuring connectivity for various devices, the Ports feature of this switch proves to be a critical component in building a reliable and efficient network infrastructure.
