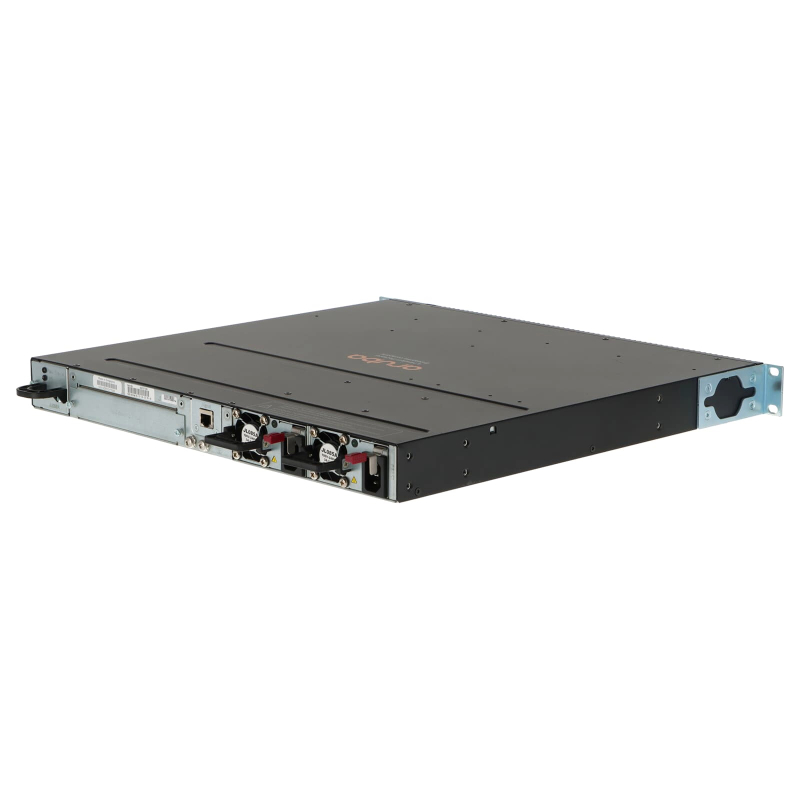

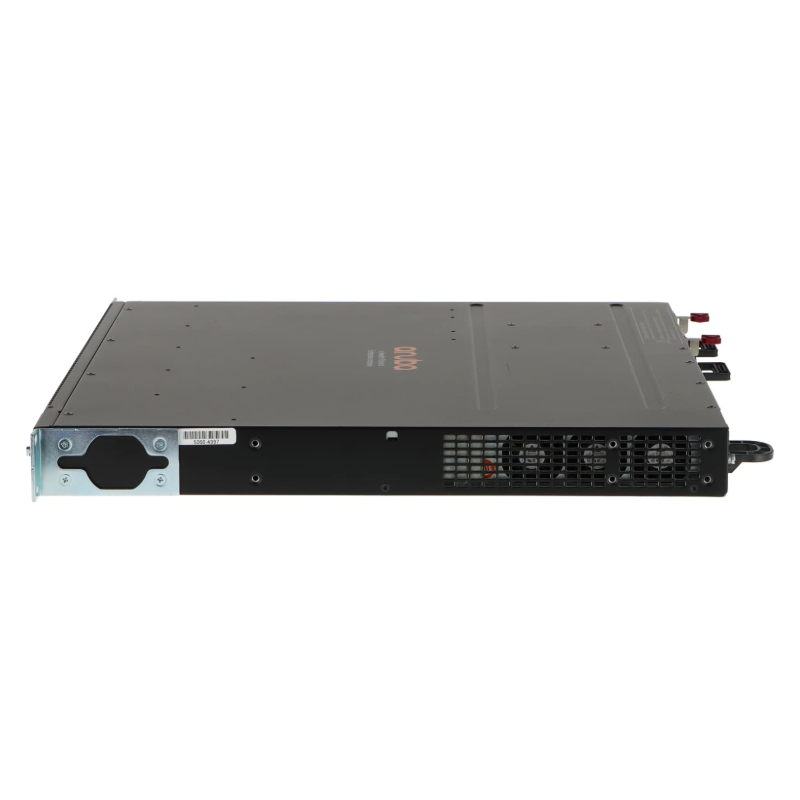

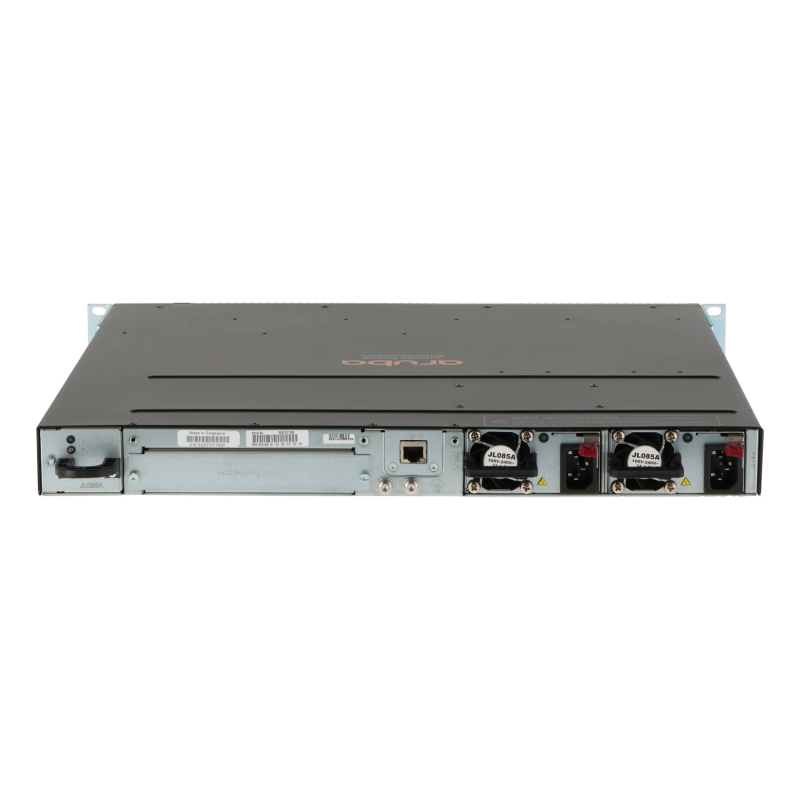

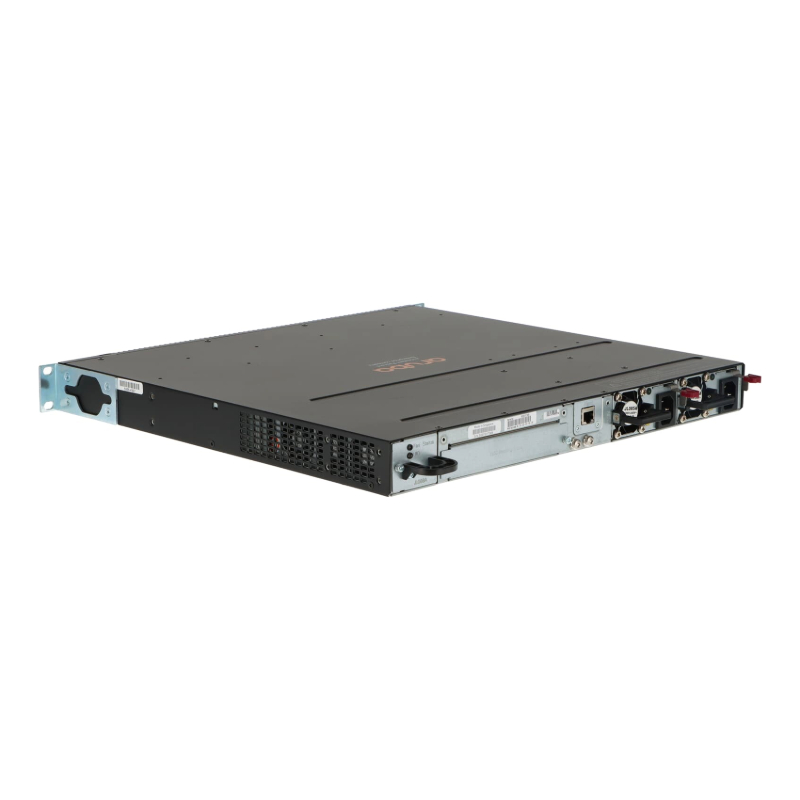

HPE JL074-61002 Aruba 3810m 48g Rj-45 Poe+ 1 Open Slot Managed - Rack-mountable Switch

Overview of the HPE JL074-61002 Aruba 3810m Managed Switch

Key Features

• Device Type: 48-Port Managed Layer 3 Stackable Switch
• Mounting Type: 1U Rack-mountable Enclosure
• Ethernet Type: Gigabit Ethernet
• Ports: 48 x 10/100/1000 PoE+ Ports
• Open Slot: 1 Available Slot for Expansion

Performance Specifications

• Latency:
  • 2.8µs (1000Base-T)
  • 1.8µs (10 Gbps)
  • 1.5µs (40 Gbps)
• Throughput: Up to 190.5 Million Packets Per Second (Mpps) at 64-byte Packet Size
• Routing and Switching Capacity: 320 Gbps
• Switching Fabric Bandwidth: 338 Gbps

Routing and Table Capacities

• IPv4 Routing Table: 10,000 Entries
• IPv6 Routing Table: 5,000 Entries
• MAC Address Table: 64,000 Entries

Supported Protocols and Features

• Routing Protocols: OSPF, RIP, BGP, VRRP, Static IPv4/IPv6 Routing, and more
• Remote Management: SNMP, Telnet, SSH, CLI, XRMON, and more
• Security: SSL encryption, RADIUS, TACACS+ for Authentication
• Advanced Features: QoS, ACL, STP, PVST, MVRP, and OpenFlow support

Compliance and Standards

• IEEE Standards: 802.3, 802.3u, 802.3ab, 802.1x, 802.1p, 802.3af, 802.3at, and more
• Power over Ethernet (PoE) Support: Compliant with IEEE 802.3af/802.3at/802.3bt

Processor and Memory

• CPU: Dual Processor
• RAM: 6 GB DDR3 SDRAM
• Flash Memory: 1 GB

Expansion and Connectivity Options

• Ports:
  • 48 x 1000Base-T (RJ-45) PoE+
  • 1 x Serial Console (RJ-45)
  • 1 x Management (RJ-45)
  • 1 x Micro-USB Type B
• Expansion Slots: 1 Free Slot for Stacking or Modules

Power Specifications

• Power Supply: Internal, No PSU Installed (Max 2 Slots)
• Energy Efficiency: 80 Plus Silver Certified
• Energy Star: Certified for Energy Efficiency

HPE JL074-61002 Aruba 3810m 48g RJ-45 PoE+ 1 Open Slot Managed - Rack-Mountable Switch

Overview of the Aruba 3810m Series

The HPE JL074-61002 Aruba 3810m 48g RJ-45 PoE+ 1 Open Slot Managed Switch is part of the Aruba 3810m series, which is designed to deliver high-performance, reliable network solutions for enterprises, data centers, and other critical applications. This series is known for its advanced features, including Power over Ethernet Plus (PoE+), which allows for the simultaneous transmission of both power and data to network devices over a single Ethernet cable.

Key Features of the HPE JL074-61002 Aruba 3810m Switch

• 48 Gigabit Ethernet Ports: The Aruba 3810m switch offers 48 RJ-45 Gigabit Ethernet ports that are capable of supporting high-speed data transfer, making it ideal for network-intensive applications.
• Power over Ethernet (PoE+): The PoE+ functionality ensures that connected devices such as IP phones, wireless access points, and cameras receive both data and power through the Ethernet cable, reducing cable clutter and installation time.
• Managed Switch Capabilities: With its managed switch capabilities, the HPE JL074-61002 allows for fine-grained control over your network settings, including VLAN configurations, security policies, and more.
• 1 Open Slot for Expansion: This model includes 1 open slot that allows users to add additional expansion modules, making the device highly customizable to meet specific networking needs.
• Rack-Mountable Design: Designed for use in data centers and server rooms, this switch is rack-mountable, saving space and allowing for a more organized network setup.

Applications of the Aruba 3810m 48g Switch

Enterprise Networking

The HPE Aruba 3810m switch is perfect for enterprises that require a robust, scalable, and secure networking solution. Its PoE+ capabilities allow for easy integration with IP phones, security cameras, and wireless access points, making it ideal for office environments. Moreover, the managed nature of the switch provides IT departments with the tools necessary to monitor and control the network performance and troubleshoot any issues that may arise.

Data Center Networks

In data centers, network reliability and speed are crucial for maintaining service uptime and optimizing performance. The HPE JL074-61002 delivers both, providing a high-performance solution for connecting servers, storage, and other critical equipment. Its scalability, combined with the ability to add expansion modules, ensures it can grow with the needs of the data center.

Campus Networks

The Aruba 3810m switch is also well-suited for large campus networks where multiple devices require reliable connections. Its advanced features, such as network segmentation through VLANs, ensure that different departments or areas of the campus network can function efficiently and securely.

Technical Specifications of the Aruba 3810m 48g RJ-45 PoE+ Switch

Ports and Expansion

The Aruba JL074-61002 offers 48 Gigabit Ethernet RJ-45 ports, providing ample connectivity for a wide range of devices. Additionally, the 1 open slot allows for network expansion through various modules, such as fiber optic modules, to accommodate different media types or to increase the number of ports.

Performance and Throughput

This switch provides high throughput for demanding applications. Its advanced switching capabilities, coupled with a high-speed forwarding engine, ensure that large volumes of data can be transmitted with minimal delay, ensuring network efficiency and optimal performance.

Power over Ethernet (PoE+)

Supporting PoE+ (802.3at), the Aruba 3810m delivers up to 30 watts of power per port, which is sufficient to power a wide range of network devices such as IP phones, wireless access points, and surveillance cameras. This capability eliminates the need for separate power cables, simplifying the installation and maintenance of connected devices.

Network Management Features

The Aruba 3810m switch is a managed switch, offering several advanced features for controlling and optimizing network traffic. Features like VLAN support, Quality of Service (QoS), and access control lists (ACLs) allow network administrators to customize and secure their network configurations. With tools such as Aruba’s ClearPass Policy Manager, you can easily enforce security policies and ensure compliance with industry standards.

Benefits of Rack-Mountable Design

Space Efficiency

One of the standout features of the Aruba 3810m 48g switch is its rack-mountable design. This allows for easy installation in a server rack, which is essential for space efficiency in server rooms and data centers. By consolidating network equipment into a single, compact form factor, this switch helps maximize available space and maintain an organized network setup.

Easy Installation

Rack-mountable switches, such as the Aruba 3810m, come with included brackets that make installation quick and straightforward. By mounting the switch in a rack, you can avoid clutter from cables and reduce the need for additional floor space, making it ideal for environments where space is at a premium.

Scalability and Flexibility

Expandable with Modules

The HPE JL074-61002 offers excellent scalability through its open expansion slot, allowing users to tailor the switch to meet specific needs. The addition of expansion modules can increase port capacity or support various types of connectivity, such as fiber or high-speed uplinks. This flexibility ensures that the switch can adapt to the growing demands of your network without requiring a complete hardware replacement.

Adaptable to Various Network Environments

Whether you're running a large enterprise network, a data center, or a campus-wide infrastructure, the Aruba 3810m switch can meet the demands of various network environments. Its PoE+ support, high port density, and advanced management features make it adaptable to many different use cases, from connecting office devices to providing backbone support for large-scale operations.

Security Features for Network Protection

Access Control

Security is a primary concern for network administrators, and the Aruba 3810m switch provides several security features to help protect your network. Through access control lists (ACLs) and port security settings, you can control who has access to your network, as well as enforce policies that restrict unauthorized traffic.

Network Segmentation

VLAN support on the Aruba 3810m allows for network segmentation, which is essential for creating isolated network zones for different departments, users, or types of traffic. This segmentation can improve both security and performance, as it prevents unauthorized access and helps optimize network traffic management.

Enhanced Monitoring and Logging

To detect and address security threats in real-time, the Aruba 3810m offers enhanced monitoring and logging features. Administrators can track network activity, generate reports, and receive alerts regarding unusual events, ensuring that security issues are promptly addressed and minimizing the risk of downtime or data breaches.

Support and Maintenance for the Aruba 3810m Switch

Easy Firmware Updates

Keeping the Aruba 3810m switch up to date with the latest firmware ensures that you have access to new features, security patches, and performance improvements. Aruba provides an easy-to-use interface for downloading and applying firmware updates, which ensures that your switch remains reliable and secure over time.

Comprehensive Technical Support

Hewlett Packard Enterprise offers comprehensive technical support for the Aruba 3810m series, including 24/7 assistance, troubleshooting guides, and community forums. This support ensures that any issues with the switch can be resolved quickly, minimizing downtime and ensuring optimal performance for your network.

Warranty and Service Options

The Aruba 3810m switch comes with a standard warranty that provides coverage for hardware failure and other manufacturing defects. Additionally, HPE offers extended service options for customers who require enhanced coverage, such as next-business-day replacements and proactive monitoring services.
