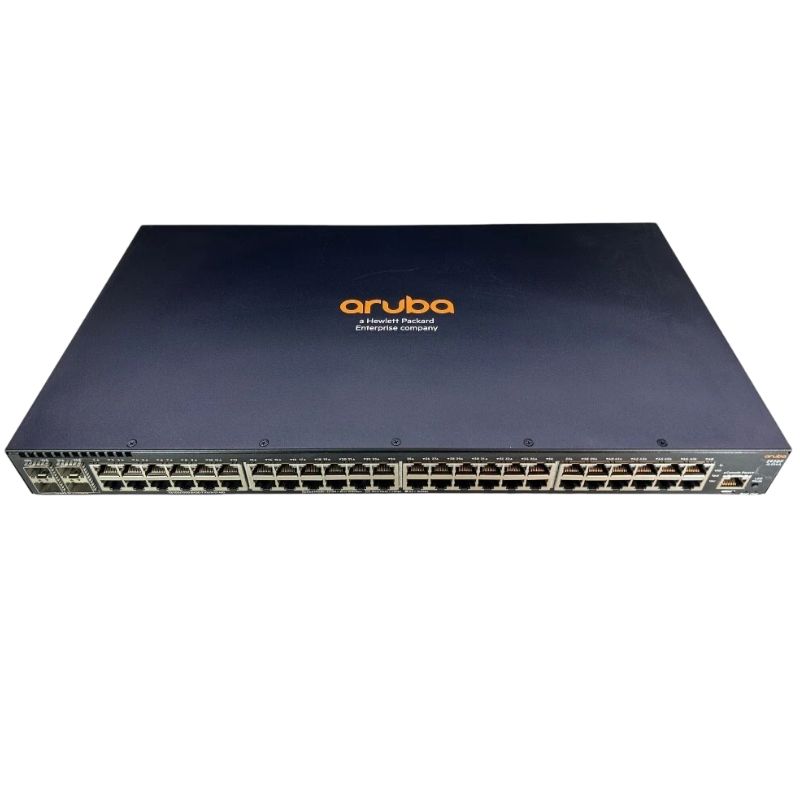

HPE JL254-61001 Aruba 48 Ports Switch 2930f 48g 4sfp+ Managed Rack-mountable.

Overview of HPE JL254-61001 Aruba 48 Ports Switch 2930F 48G 4SFP+

The HPE JL254-61001 Aruba 48 Ports Switch 2930F 48G 4SFP+ Managed Rack-mountable offers robust and efficient network performance for businesses of all sizes. Designed for flexibility and scalability, this managed switch is ideal for enterprises, small businesses, and branch offices looking to optimize their network infrastructure with advanced management features, high-speed connectivity, and reliable security protocols.

Product Highlights of HPE JL254-61001 Aruba 2930F

• Device Type: 48-Port Layer 3 Managed Switch, stackable for high scalability.
• Design: Compact rack-mountable 1U enclosure.
• Subtype: Supports Gigabit Ethernet connectivity.

Port Configuration

• Standard Ports: 48 x 10/100/1000 Mbps Ethernet ports.
• Uplink Ports: 4 x SFP+ supporting 1GbE and 10GbE.

Performance Metrics

• Throughput: Handles up to 112 million packets per second (Mpps).
• Switching Capacity: 176 Gbps ensures seamless data flow.
• Low Latency: 3.8 µs (1 Gbps) and 1.6 µs (10 Gbps).

Advanced Capabilities

• Routing: IPv4 and IPv6 routing with entries for 10,000 and 5,000 tables, respectively.
• Jumbo Frames: Supports frame sizes up to 9,220 bytes for optimized network performance.
• MAC Address Table: Stores up to 32,000 entries.

Supported Protocols and Standards

• Routing Protocols: OSPF, RIP, BGP, IGMPv3, Static IP Routing, and more.
• Management Protocols: SNMP (v1, v2, v3), SSH, Telnet, CLI.
• Encryption: Secure with MD5 and SSL algorithms.

Additional Features

• Quality of Service (QoS): Ensures prioritized data traffic.
• VLAN Support: Includes dynamic VLAN and multiple VLAN registration protocol (MVRP).
• Security: Includes DHCP protection, ARP support, ACL, and more.
• Energy Efficiency: Compliant with IEEE 802.3az.

Hardware Specifications

• Processor: ARM Cortex-A9 operating at 1.016 GHz.
• Memory: 1 GB DDR3 SDRAM with 4 GB flash memory.

Connectivity and Expansion

• Interfaces: 48 x 1000Base-T (RJ-45), 4 x SFP+ ports, and 1 console port.
• Expansion Slot: 1 slot available for additional modules.

Power and Energy Management

• Power Supply: Internal unit with operational consumption of 46.6 watts.
• Voltage: Supports AC 120/230 V input.

Compliance and Standards

• IEEE Standards: Includes 802.1d, 802.1q, 802.1x, 802.3af, and others for robust performance.

Features and Capabilities

High-Performance Networking

Equipped with 48 Gigabit Ethernet ports and 4 SFP+ ports, the HPE Aruba 2930F switch ensures high-speed data transfer across devices. The integration of SFP+ ports provides additional flexibility for connecting to high-bandwidth uplinks and servers, supporting speeds up to 10Gbps.

Advanced Layer 3 Features

With advanced Layer 3 capabilities, this switch supports routing, enabling seamless communication between different network segments. Features such as static routing, RIP, and Access Control Lists (ACLs) allow for enhanced control and traffic management, improving network efficiency and security.

Centralized Management

The Aruba 2930F series integrates seamlessly with Aruba Central, a cloud-based platform for managing network devices. This ensures streamlined operations, simplified monitoring, and proactive troubleshooting, providing IT administrators with comprehensive control over network performance.

Use Cases for the Aruba 2930F 48G Switch

Enterprise Applications

Designed for demanding environments, this switch is perfect for enterprises requiring high performance, scalability, and secure networking. Its ability to handle heavy workloads and manage multiple devices ensures consistent and uninterrupted service delivery.

Small to Medium Businesses

The HPE JL254-61001 switch provides SMBs with a cost-effective solution that delivers enterprise-level features. Its intuitive setup and user-friendly management make it suitable for businesses with limited IT resources.

Educational Institutions

Schools and universities can benefit from this switch’s robust features to support bandwidth-intensive applications such as online learning platforms, video conferencing, and collaborative tools.

Technical Specifications

Port Configuration

• 48 Gigabit Ethernet ports for device connectivity.
• 4 SFP+ ports for high-speed uplink and fiber connections.

Performance Metrics

• Switching capacity: 176 Gbps.
• Forwarding rate: 130.95 Mpps.

Power and Energy Efficiency

This switch supports Energy Efficient Ethernet (EEE) and offers advanced power management features, reducing operational costs while maintaining optimal performance.

Security Features

Enhanced Network Protection

Security protocols such as Secure Shell (SSH), Secure Sockets Layer (SSL), and TACACS+ ensure encrypted communication and secure device access. Role-based access control adds another layer of security by limiting access to specific users.

Integrated Network Security

With features like Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard, and Dynamic ARP Inspection, this switch helps prevent malicious activities and unauthorized access.

Ease of Deployment

Zero-Touch Provisioning

HPE Aruba 2930F switches come with zero-touch provisioning, simplifying installation and reducing deployment time. This feature is particularly beneficial for multi-site installations.

Rack-Mountable Design

The switch’s rack-mountable design ensures space-efficient deployment in server rooms and data centers. It also supports flexible mounting options to adapt to different environmental setups.

Integration with Aruba Solutions

Seamless Compatibility

This switch is designed to work seamlessly with other Aruba products, including access points and network controllers. This ensures a unified network infrastructure with consistent performance.

Cloud-Based Management

Aruba Central offers an intuitive cloud management platform, providing insights into network health, device status, and user activity, ensuring optimal resource utilization and operational efficiency.

Network Insights

Aruba Central provides detailed analytics and reports, enabling data-driven decisions to optimize network performance and user experience.
