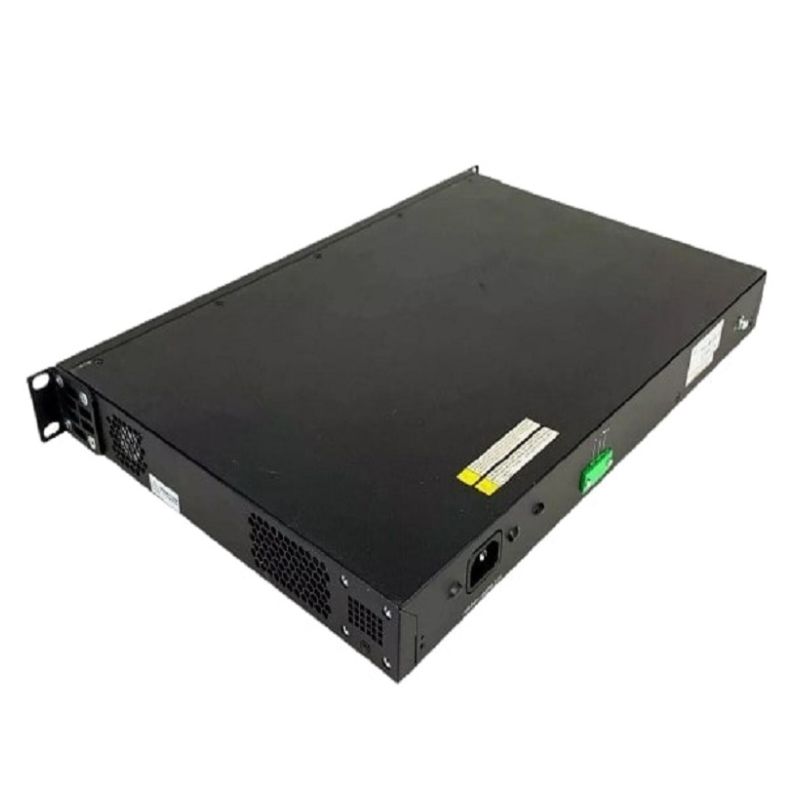

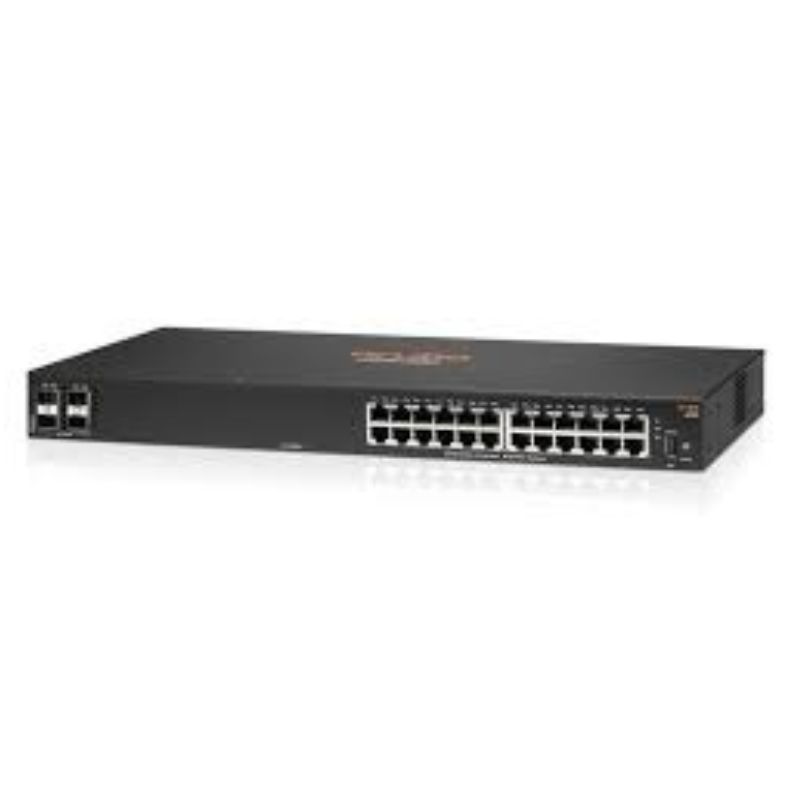

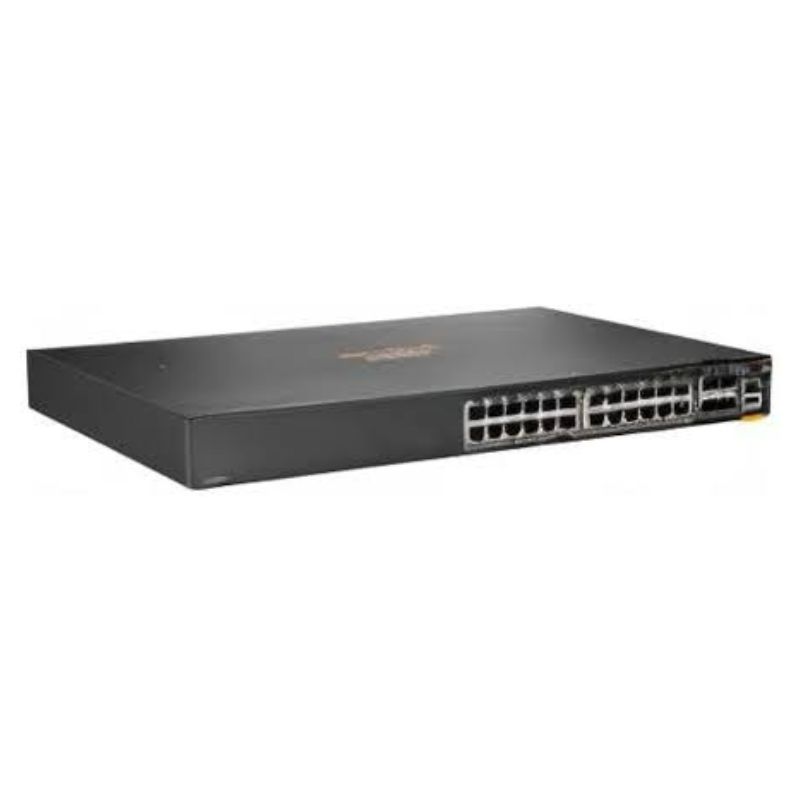

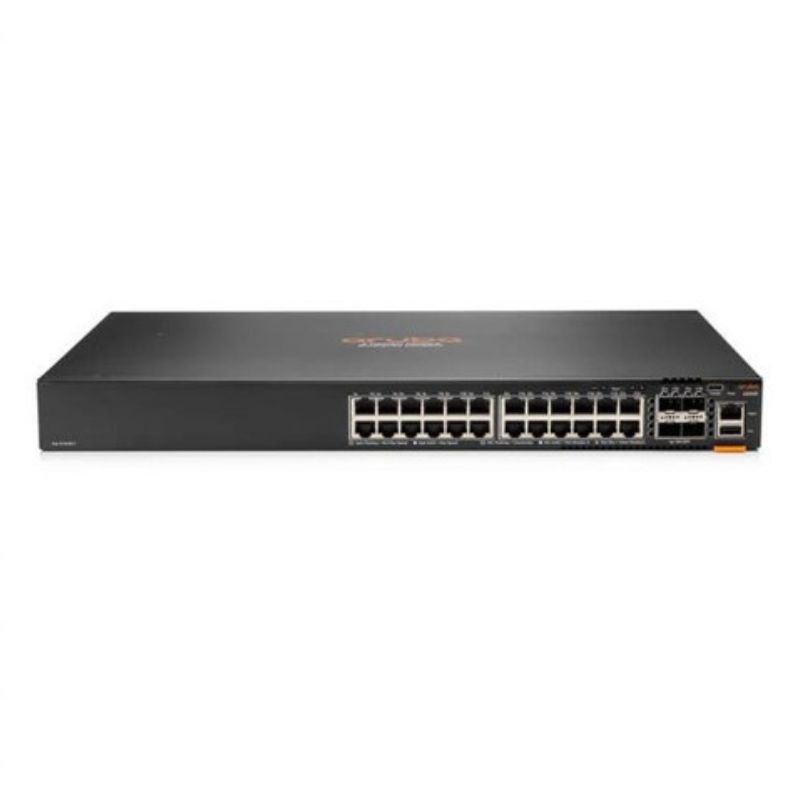

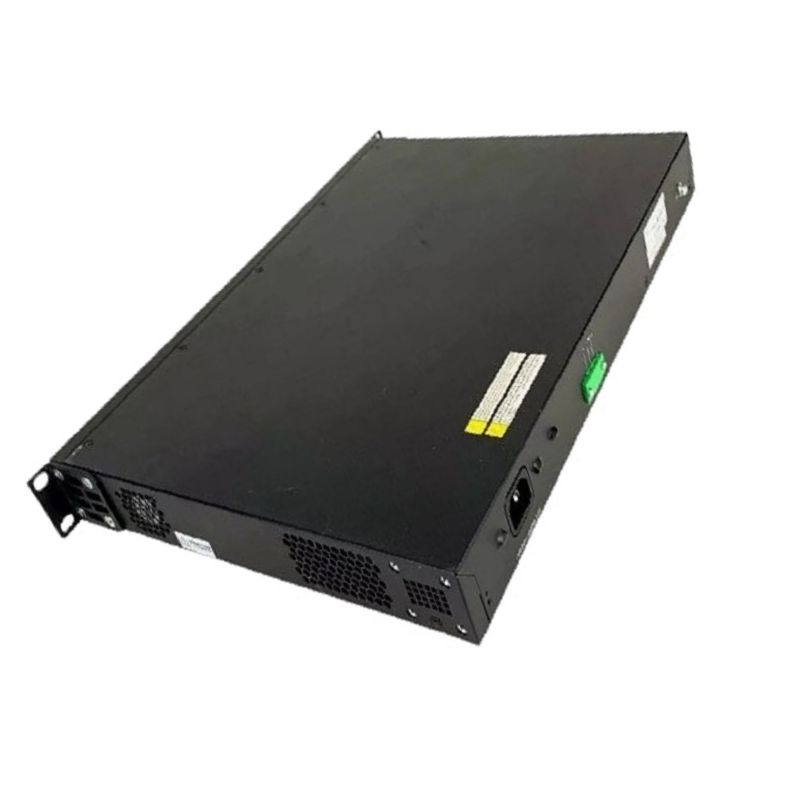

JL263-61001 HPE Aruba 2930F 24G PoE+ 4SFP+ TAA Managed Switch

Outline of HPE 24 Ports 4SFP+ TAA Managed Switch

The HPE JL263-61001 Aruba 2930F 24G PoE+ 4SFP+ TAA Switch is a fully managed, Layer 3 stackable solution designed for secure enterprise networks, campus environments, and branch deployments. Built in a compact 1U rack-mountable chassis, this Gigabit Ethernet switch delivers advanced routing intelligence, resilient uplinks, and enterprise-grade scalability.

General Specification

• Manufacturer: HPE
• Part Number: JL263-61001
• Device Type: TAA Managed Switch

Technical Specification

• 24 x 10/100/1000Base-T PoE+ access ports
• 4 x 1Gb/10Gb SFP+ uplink interfaces
• Advanced L3 routing with static and dynamic protocols
• Stackable architecture for network expansion
• 1U rack-optimized enclosure

Power over Ethernet (PoE+) Efficiency

• IEEE 802.3af and IEEE 802.3at compliance
• Centralized power distribution across 24 ports
• Energy-efficient design with 80 Plus Silver certified PSU
• AC 120/230V internal power supply

Comprehensive Layer 3 Routing Support

• OSPFv2 / OSPFv3
• RIP, RIP-1, RIP-2, RIPng
• BGP for scalable routing control
• Static IPv4 and IPv6 routing
• IGMP (v2/v3), MLD, and CIDR support

Large Forwarding & Routing Tables

• Up to 10,000 IPv4 routing entries
• Up to 5,000 IPv6 routing entries
• 32K MAC address table capacity
• Jumbo frame support up to 9,220 bytes

Enterprise-Grade Security & Access Control

• RADIUS, TACACS, TACACS+, PAP, CHAP authentication
• SSH / SSH-2 secure management
• SSL and MD5 encryption algorithms
• IEEE 802.1X port-based authentication

Built-in Network Protection

• Access Control Lists (ACLs)
• Dynamic ARP Protection
• DHCP Protection
• CPU protection mechanisms
• MAC address lockout functionality
• STP Root Guard and UDLD

Remote Management Options

• SNMP v1, v2c, v3
• RMON and XRMON monitoring
• CLI management
• Telnet access
• Syslog and sFlow support

Smart Traffic Optimization

• Quality of Service (QoS) prioritization
• Class of Service (CoS) and Type of Service (ToS)
• DiffServ support
• Flow control and full-duplex operation
• Link Aggregation Control Protocol (LACP)

Advanced VLAN & Segmentation Support

• IEEE 802.1Q VLAN tagging
• Dynamic VLAN via GVRP
• MVRP for VLAN registration
• VXLAN support for virtualized environments
• Neighbor Discovery Protocol (NDP)

Spanning Tree & Redundancy Protocols

• STP (802.1D)
• RSTP (802.1W)
• MSTP (802.1S)
• IEEE 802.1AX link aggregation

Powerful Internal Components

• 1 x ARM Cortex-A9 processor (1.016 GHz)
• 1GB DDR3 SDRAM
• 4GB flash memory

Connectivity & Expansion

• 24 x RJ-45 Gigabit PoE+ interfaces
• 4 x SFP+ 1/10GbE uplink ports
• 1 x Serial console port
• 1 expansion slot (1 available)
• Supports up to 4 modules (maximum)

IEEE & Networking Certifications

• IEEE 802.1D, 802.1W, 802.1S (Spanning Tree variants)
• IEEE 802.1Q, 802.1P VLAN standards
• IEEE 802.3af / 802.3at PoE standards
• IEEE 802.3ad (LACP) & 802.1AX
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.1AB LLDP
• IEEE 802.1X network access control

Ideal Deployment Scenarios

• Enterprise access layer switching
• Campus LAN environments
• Branch office networking
• Secure government and TAA-compliant installations
• High-density PoE device connectivity

Benefits of the Aruba 2930F 24G PoE+ Switch

• Enterprise-ready Layer 3 intelligence
• Scalable stacking capability
• High PoE budget for device-heavy environments
• Robust security framework
• Flexible 10Gb SFP+ uplink expansion

Overview of HPE JL263-61001 Aruba 24G PoE+ Switch

The HPE JL263-61001 Aruba 2930F 24G PoE+ 4SFP+ TAA - Switch is a high-performance Layer 3 access switch designed to deliver secure, scalable, and intelligent edge connectivity for modern enterprise networks. Built on the trusted architecture of the Aruba 2930F series, this model combines advanced routing capabilities, robust Power over Ethernet support, and high-speed uplink flexibility to meet the evolving needs of campus environments, branch offices, government agencies, and distributed enterprises. With TAA compliance, it is particularly well-suited for federal, public sector, and regulated deployments that require adherence to strict procurement standards.

Advanced Enterprise-Class Switching Performance

Optimized for High-Density Access Layers

The Aruba 2930F 24G PoE+ switch delivers 24 auto-sensing 10/100/1000Base-T ports, providing dependable Gigabit Ethernet connectivity for wired clients. These ports are engineered to support high-throughput applications, ensuring that bandwidth-intensive workloads such as video conferencing, unified communications, and cloud-based services operate without interruption. The switch is designed to handle growing device counts, making it ideal for environments where multiple endpoints must connect simultaneously with minimal latency.

Powerful Layer 3 Static and Dynamic Routing

Beyond basic Layer 2 switching, the HPE JL263-61001 supports advanced Layer 3 features, including static routing and dynamic routing protocols. This allows network administrators to segment traffic efficiently, reduce broadcast domains, and improve overall performance across distributed networks. By enabling intelligent traffic management at the edge, organizations can enhance resiliency while simplifying network design.

Hardware-Based Architecture

The Aruba 2930F series is built on a robust hardware platform that accelerates forwarding performance and ensures low-latency packet processing. With high switching capacity and substantial throughput capabilities, the switch supports demanding enterprise workloads while maintaining consistent performance levels. This hardware-optimized architecture contributes to improved reliability and reduced bottlenecks in high-traffic environments.

Integrated Power over Ethernet (PoE+) Capabilities

Efficient Power Delivery to Network Devices

The JL263-61001 model includes PoE+ functionality across its 24 Gigabit ports, delivering up to 30 watts per port in compliance with IEEE 802.3at standards. This integrated power delivery eliminates the need for separate electrical outlets for connected devices, streamlining installations and reducing infrastructure costs. Devices such as IP phones, wireless access points, surveillance cameras, and IoT endpoints can be powered directly through Ethernet cabling.

Flexible Power Budget Management

Administrators benefit from intelligent power allocation features that prioritize and manage power distribution based on device requirements. This ensures that critical systems remain operational even during peak usage or partial power scenarios. By optimizing power consumption, the Aruba 2930F 24G PoE+ switch supports energy-efficient operations while maintaining consistent device performance.

Ideal for Modern Workplace Deployments

In contemporary work environments where wireless connectivity and IP-based communication are essential, PoE+ support is indispensable. The switch enables seamless deployment of high-performance wireless access points, particularly in dense office layouts or educational institutions. It also supports advanced security cameras and collaboration devices, reinforcing its suitability for smart office and campus environments.

High-Speed Uplink Connectivity with 4 SFP+ Ports

10 Gigabit Uplink Flexibility

Equipped with four dedicated SFP+ ports, the HPE JL263-61001 provides high-speed 10 Gigabit Ethernet uplink connectivity. These uplink interfaces enable seamless aggregation to core switches or data center infrastructure, ensuring that traffic from multiple access devices flows efficiently without congestion. This is especially valuable in networks experiencing heavy east-west and north-south traffic patterns.

Scalable Network Expansion

The presence of 4 SFP+ ports enhances scalability by supporting fiber connections over longer distances. Whether connecting to aggregation layers in multi-building campuses or linking to centralized core switches, the switch ensures reliable and high-bandwidth backbone integration. This capability future-proofs network investments by accommodating increasing bandwidth demands.

Support for Multiple Transceiver Options

The SFP+ slots are compatible with a range of supported transceivers, allowing administrators to tailor connectivity based on distance, medium, and performance requirements. From short-range fiber connections within wiring closets to longer-distance links between facilities, the switch adapts to various deployment scenarios with ease.

Enhanced Security and Access Control

Comprehensive Network Protection

Security is a foundational component of the Aruba 2930F series. The JL263-61001 integrates advanced access control mechanisms such as IEEE 802.1X authentication, MAC-based authentication, and robust VLAN segmentation. These features ensure that only authorized devices and users can access network resources, reducing the risk of unauthorized intrusion.

Secure Management and Encryption

Administrators can manage the switch securely through encrypted protocols and role-based access controls. Secure Shell (SSH), Secure Sockets Layer (SSL), and other secure management interfaces help safeguard configuration data and prevent interception. This focus on secure management aligns with the needs of organizations handling sensitive data or operating in regulated industries.

Protection Against Network Threats

Built-in protection mechanisms such as storm control, loop protection, and denial-of-service mitigation enhance network stability. By proactively identifying and containing abnormal traffic patterns, the switch contributes to uninterrupted network operations and reduces downtime caused by malicious or accidental disruptions.

Aruba Intelligent Management and Automation

Centralized Management Integration

The HPE JL263-61001 Aruba 2930F integrates seamlessly with Aruba’s centralized management platforms, enabling simplified configuration, monitoring, and troubleshooting. Network administrators can deploy, provision, and maintain multiple switches from a unified interface, streamlining operations across large-scale deployments.

Zero-Touch Provisioning and Automation

Automation features facilitate rapid deployment through zero-touch provisioning, allowing new switches to be configured automatically when connected to the network. This reduces manual configuration errors and accelerates rollout in branch or remote locations. Automated firmware updates and configuration consistency further enhance operational efficiency.

Cloud-Ready Management Capabilities

The switch supports modern management frameworks that integrate with cloud-based monitoring solutions. This enables real-time visibility into network health, performance metrics, and device status, empowering IT teams to respond quickly to evolving network demands.

TAA Compliance for Government and Regulated Environments

Meeting Trade Agreements Act Requirements

The TAA designation of the HPE JL263-61001 indicates compliance with the Trade Agreements Act, making it suitable for U.S. federal government and public sector procurements. This compliance ensures that the product meets sourcing and manufacturing standards mandated for government contracts.

Reliable Choice for Public Sector Networks

Government agencies, educational institutions, and healthcare organizations often require networking equipment that aligns with strict regulatory guidelines. The Aruba 2930F 24G PoE+ 4SFP+ TAA switch delivers enterprise-grade functionality while satisfying these compliance obligations.

Resiliency and High Availability

Stacking and Virtual Switching Capabilities

The Aruba 2930F series supports advanced stacking technologies that allow multiple switches to operate as a single logical unit. This enhances network resiliency by providing redundancy and simplified management. In the event of a hardware failure, traffic can be rerouted seamlessly to maintain connectivity.

Redundant Power and Reliable Operation

Designed with business continuity in mind, the switch incorporates robust power and cooling systems that ensure stable operation under sustained workloads. High mean time between failures (MTBF) ratings reflect the durability and reliability expected in enterprise-grade networking equipment.

Energy Efficiency and Environmental Responsibility

Optimized Power Consumption

The HPE JL263-61001 is engineered for energy-efficient performance, incorporating intelligent power management features that reduce consumption during periods of low activity. Energy Efficient Ethernet support further minimizes operational costs without compromising performance.

Environmentally Conscious Design

Compliance with environmental standards and efficient thermal management design reduce the overall carbon footprint of the switch. This makes it an excellent option for organizations pursuing sustainability initiatives while maintaining high-performance networking infrastructure.

Deployment Scenarios and Use Cases

Enterprise Campus Networks

Within enterprise campuses, the Aruba 2930F 24G PoE+ switch serves as a reliable access-layer solution, supporting hundreds of users across office floors and departments. Its PoE+ capabilities simplify the deployment of wireless access points and IP-based communication systems.

Branch Offices and Distributed Locations

For branch environments, the switch provides the necessary balance of performance, security, and manageability. High-speed SFP+ uplinks ensure efficient connectivity to headquarters or data centers, while centralized management reduces administrative overhead.

Educational and Healthcare Facilities

Educational institutions benefit from the switch’s ability to support high device densities and secure segmentation for students, faculty, and administrative staff. Healthcare facilities can rely on its stable connectivity and PoE+ support for medical devices, IP cameras, and wireless infrastructure.

Technical Specifications

Port Configuration

The HPE JL263-61001 Aruba 2930F features 24 Gigabit Ethernet PoE+ ports and 4 SFP+ 10GbE uplink ports, providing a versatile mix of copper and fiber connectivity. This configuration ensures adaptability across diverse network topologies.

Switching Capacity and Throughput

With substantial switching capacity and wire-speed forwarding, the switch handles large volumes of data traffic efficiently. These performance metrics support demanding enterprise applications while maintaining consistent quality of service.

Form Factor and Rack Mounting

Designed for standard rack installations, the switch integrates seamlessly into existing network cabinets and data center racks. Its compact 1U form factor optimizes space utilization while delivering comprehensive feature sets.
