JL563-61101 HPE Aruba 10GBASE-t Sfp+ Rj45 Transceiver 10 Gigabit Ethernet

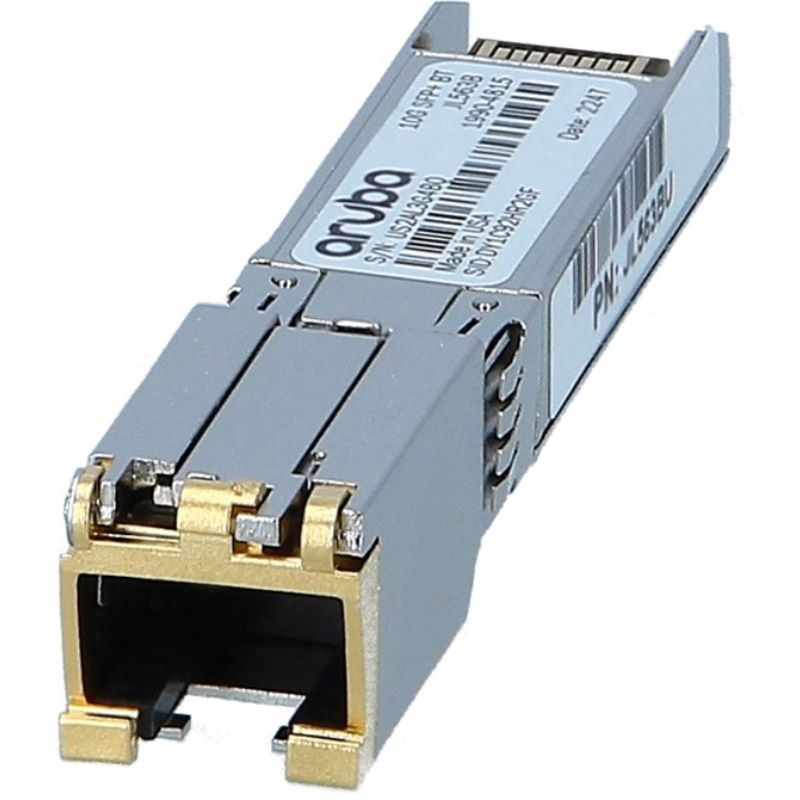

Overview of the HPE JL563-61101 Aruba 10GBASE-T SFP+ RJ45 Transceiver

The HPE JL563-61101 Aruba 10GBASE-T SFP+ RJ45 transceiver is a high-performance networking module engineered for enterprises seeking robust and cost-efficient 10 Gigabit Ethernet connectivity. Designed to operate over twisted pair copper cabling (Cat6a), this plug-in module offers seamless integration with Aruba and compatible HPE networking equipment. Supporting a maximum reach of up to 30 meters, it delivers 10GBASE-T throughput with an RJ-45 connector, making it ideal for top-of-rack deployments and short-reach connections in data centers and enterprise campus environments.

Technical Capabilities and Performance

10GBASE-T Ethernet Compatibility

This transceiver adheres to the IEEE 802.3an 10GBASE-T standard, ensuring interoperability with other 10GBASE-T-compliant devices. It facilitates data rates up to 10 Gbps over standard Cat6a twisted-pair copper cables, eliminating the need for more expensive fiber optic runs in short-distance applications.

Plug-In Module with RJ-45 Interface

The plug-in module form factor allows for easy installation and replacement, minimizing downtime during upgrades or maintenance. The RJ-45 interface is universally recognized and widely used, simplifying connectivity with other network equipment. This design is especially beneficial for IT administrators managing complex network infrastructures with mixed media types.

Transmission Distance and Cable Type

Supporting up to 30 meters over Cat6a cabling, the JL563-61101 transceiver is ideal for intra-rack or rack-to-rack connections within data centers and enterprise network environments. This reach makes it suitable for many use cases where fiber optic solutions would be cost-prohibitive or unnecessary.

Backward Compatibility

The transceiver provides backward compatibility with existing 1GBASE-T and 1000BASE-T network equipment, offering flexibility during network transitions or mixed-speed environments. This feature ensures organizations can future-proof their infrastructure without needing complete hardware overhauls.

Use Cases and Deployment Scenarios

Data Center Deployments

Within data centers, the Aruba 10GBASE-T SFP+ RJ45 transceiver is widely deployed for top-of-rack (ToR) configurations, where servers, switches, and storage appliances are connected in high-density environments. The short reach is perfectly suited for connecting equipment located within or across adjacent racks, promoting efficient cabling management and reduced latency.

Campus Networking and Aggregation Layers

Enterprises often deploy this module at the aggregation layer in campus networks, connecting core switches to access switches with cost-effective copper links. The transceiver’s compatibility with existing copper infrastructure provides a smooth transition to 10GbE performance without requiring costly rewiring.

Small to Medium Enterprise (SME) Environments

SMEs benefit from the Aruba 10GBASE-T module as it brings enterprise-grade speeds to modest infrastructures. It allows businesses to scale their networks affordably while maintaining the high throughput needed for virtual environments, VoIP, video conferencing, and large file transfers.

Server Connectivity and Storage Networks

When used in conjunction with HPE or Aruba switches, the JL563-61101 enables low-latency 10Gbps links to servers and network-attached storage (NAS) systems. It enhances virtualization and data access speeds in environments where performance and reliability are critical.

Compatibility and Supported Devices

Aruba and HPE Switch Compatibility

The JL563-61101 is engineered for compatibility with a wide range of Aruba switches, particularly the 2930M and 3810M series. These switches support SFP+ transceiver slots, providing modular uplink options to expand network bandwidth and improve performance.

Interoperability with Third-Party Devices

While optimized for HPE and Aruba systems, the module can also interoperate with other vendor switches and network interface cards (NICs) that support the 10GBASE-T standard and accept SFP+ form factor modules. This flexibility enhances its appeal in mixed-vendor environments.

Reliability and Environmental Specifications

Build Quality and Design

Constructed with premium materials and designed for high thermal efficiency, the JL563-61101 offers a reliable operating life under demanding conditions. Its compact form ensures it fits securely into SFP+ slots, minimizing wear on ports and connectors.

Operating Temperature and Humidity Ranges

This transceiver operates in temperature ranges suitable for standard data center environments. It maintains stable performance within 0°C to 70°C operating temperatures and relative humidity up to 85% non-condensing, making it versatile across different deployment scenarios.

Advantages Over Fiber Optic Transceivers

Cost Efficiency

Compared to SFP+ fiber optic transceivers, the Aruba 10GBASE-T RJ-45 module is more cost-effective for short-reach applications. It removes the need for optical fiber, transceivers at both ends, and specialized fiber termination tools, thus lowering overall infrastructure costs.

Ease of Deployment

Copper cabling is more flexible and easier to install than fiber. The RJ-45 interface is universally supported and does not require special handling or technician certifications, simplifying deployment for IT teams and reducing rollout time.

Enhanced Port Density

Utilizing RJ-45 transceivers enables high-density port configurations without the need for bulky fiber patch panels. This makes them a practical choice for network closets and rack-mounted switching environments where space is limited.

Installation and Maintenance

Hot-Swappable Design

The HPE JL563-61101 features a hot-swappable design, allowing network administrators to replace or upgrade modules without shutting down the switch or affecting adjacent ports. This design supports continuous operation and simplifies maintenance procedures.

Status Monitoring and Diagnostics

Many HPE and Aruba switches equipped with this transceiver can report module status through the network management interface. Administrators can view temperature, link status, and signal integrity in real time to ensure optimal operation.

Tool-Free Setup

The transceiver plugs directly into SFP+ slots without the need for tools, making installation straightforward. The latch mechanism ensures secure seating, reducing the risk of accidental disconnection or signal interruption.

Security and Compliance Features

Secure Hardware Compatibility

The transceiver integrates with HPE’s hardware authentication and device-level access control features, providing an extra layer of security for enterprise networks. Combined with Aruba’s ClearPass solutions, it contributes to a zero-trust security posture.

RoHS and Industry Certifications

The JL563-61101 complies with environmental and safety standards, including RoHS (Restriction of Hazardous Substances) directives. Its certifications assure that it meets international benchmarks for manufacturing safety and environmental responsibility.

Long-Term Value and Lifecycle Management

Future-Proofing Enterprise Networks

By leveraging existing Cat6a infrastructure while supporting 10G speeds, the JL563-61101 helps businesses scale their networks for future growth. It provides the performance needed for increasing bandwidth demands without requiring fiber investments.

Reduced Total Cost of Ownership (TCO)

Lower initial costs, combined with reduced maintenance and simplified installation, result in a lower total cost of ownership compared to fiber-based networking solutions. The transceiver’s reliability and compatibility contribute to long-term operational efficiency.

Vendor Support and Warranty Coverage

HPE and Aruba offer comprehensive support for their transceivers, including firmware updates, compatibility testing, and technical assistance. The JL563-61101 is covered under HPE’s enterprise hardware warranty, ensuring peace of mind for IT teams.
