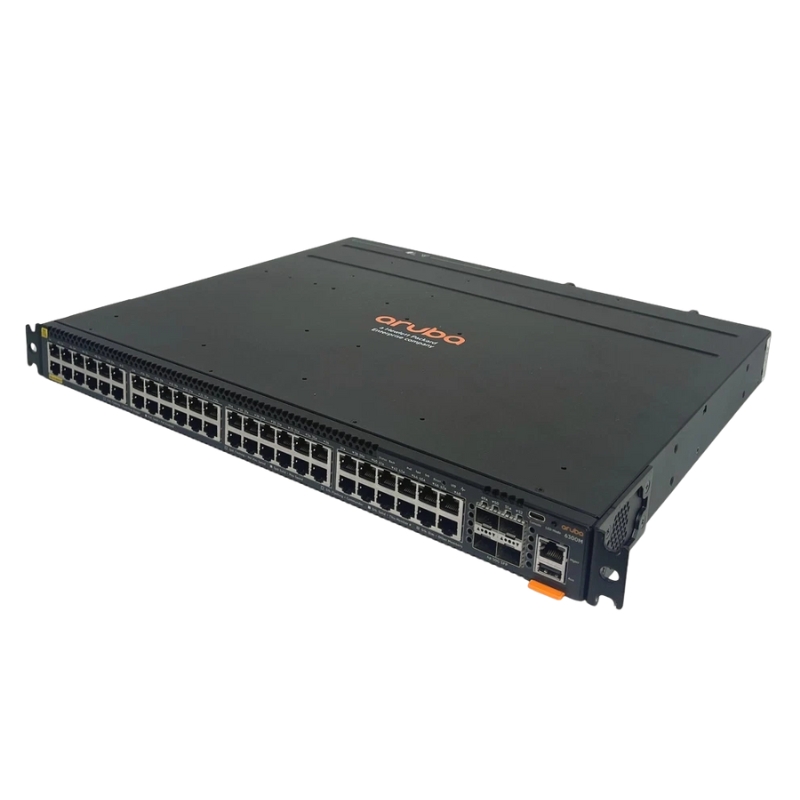

HPE JL667-61001 Aruba 6300f 48-Port L3 Managed Stackable Switch

JL667-61001
Hover on image to enlarge

Brief Overview of JL667-61001

HPE JL667-61001 Aruba 6300f 48-ports L3 Managed Stackable 1gbe and 4-ports SFP56 Switch - Aruba 6300f 48-Port L3 Managed Stackable Switch. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE JL667-61001 Aruba 6300f 48-Port L3 Managed Stackable Switch
$4,989.60
$3,355.00
You save: $1,634.60 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNJL667-61001Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview Of HPE JL667-61001

  • Device Category: Switch - 48 Ports - Layer 3 - Managed - Stackable
  • Form Factor: Rack-mountable 1U
  • Subtype: Gigabit Ethernet

Port Configuration

  • Total Ports: 48 x 10/100/1000 + 4 x SFP56 (1G/10G/25G/50G for uplink/stacking)

Performance Metrics

  • Switching Capacity: 496 Gbps
  • Throughput: 369 Mpps
  • Latency:
    • 1 Gbps: 2.28 µs
    • 10 Gbps: 1.46 µs
    • 25 Gbps: 1.9 µs
    • 50 Gbps: 3.49 µs
  • Stacking Bandwidth: 200 Gbps

Capacity Details

  • Switched Virtual Interfaces: 1000
  • IPv4 Host Table: 32,000
  • IPv6 Host Table: 32,000
  • Unicast Routes:
    • IPv4: 64,000
    • IPv6: 32,000
  • Multicast Routes:
    • IPv4: 8,000
    • IPv6: 8,000
  • IGMP Groups: 8,000
  • MLD Groups: 4,000
  • Access Control List Entries:
    • IPv4 Ingress: 5,000
    • IPv6 Ingress: 1,250
    • MAC Ingress: 5,000
    • IPv4 Egress: 2,000
    • IPv6 Egress: 500
    • MAC Egress: 2,000
  • MAC Address Table Size: 32,000 Entries
  • Jumbo Frame Support: 9,198 Bytes

Routing Capabilities

  • Supported Protocols: EGP, BGP-4, IGMPv2, IGMPv3, OSPFv2, OSPFv3, VRRP, MSDP, Static IPv6 Routing, ECMP, MLD, BFD

Remote Management

  • Protocols: RMON, Telnet, SNMP v3, SNMP v2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP

Authentication Protocols

  • Secure Shell (SSH), RADIUS, TACACS+

Key Features

  • DHCP Support
  • ARP Support
  • VLAN Support
  • Auto-uplink (Auto MDI/MDI-X)
  • IGMP Snooping
  • Syslog Support
  • High Availability
  • Per-VLAN Spanning Tree (PVST)
  • Multiple Spanning Tree Protocol (MSTP) Support
  • Quality of Service (QoS)
  • Jumbo Frames Support
  • Dynamic IPv6 Lockdown
  • Zero-touch Provisioning (ZTP)
  • Multicast Storm Protection
  • Network Timing Protocol (NTP)
  • Virtual Extensible LAN (VXLAN)
  • Unicast Storm Protection

Standards Compliance

  • IEEE 802.1d, 802.1q, 802.1p, 802.3ad (LACP), 802.1w, 802.1x, 802.3ae, 802.1s, 802.1t, 802.1v, 802.1ab (LLDP), 802.1ak, 802.1ax

Hardware Specifications

  • Processor: 1 x ARM Cortex-A72 at 1.78 GHz
  • RAM: 8 GB DDR4 SDRAM
  • Flash Memory: 32 GB

Connectivity Options

Interface Types

  • 48 x 10/100/1000 Base-T RJ-45 POE+
  • 4 x SFP56 (1G/10G/25G/50G)
  • 1 x USB-C Console Port
  • 1 x Management Port
  • 1 x USB Type A Port

HPE JL667-61001 Aruba 6300f 48-ports L3 Managed Stackable 1gbe and 4-ports SFP56 Switch - Aruba 6300f 48-Port L3 Managed Stackable Switch

Port Count

The HPE Aruba 6300f L3 Managed Stackable Switch is an incredible networking solution that offers a multitude of features to enhance your network infrastructure. One of the standout features of this switch is its impressive port count, boasting a total of 48 ports.

Unparalleled Connectivity

With 48 ports, the Aruba 6300f switch provides unparalleled connectivity options for your network. Whether you need to connect multiple devices, servers, or workstations, this switch has you covered. The abundance of ports ensures that you can easily expand your network without any limitations. This is particularly beneficial for businesses or organizations that require high-speed and reliable connectivity.

Flexibility and Scalability

The 48 port count allows for greater flexibility and scalability. As your network grows, you can effortlessly add new devices without worrying about running out of available ports. This flexibility is essential in today's fast-paced and ever-evolving technological landscape. With the Aruba 6300f switch, you can future-proof your network infrastructure and adapt to the changing needs of your organization.

Improved Performance

Having 48 ports available on the Aruba 6300f switch significantly improves network performance. Each port can handle high-bandwidth applications and data transfers, ensuring smooth and uninterrupted communication between devices. Whether you are streaming high-definition videos, transferring large files, or hosting online conferences, this switch provides the necessary bandwidth to keep your network running at optimal speeds.

Efficient Network Management

The increased port count simplifies network management tasks. With a larger number of ports available, you can consolidate devices onto a single switch, reducing clutter and minimizing the need for additional equipment. This simplification streamlines network administration and makes troubleshooting and maintenance more efficient.

Reduced Cost

By having 48 ports on a single switch, you can save on costs associated with purchasing multiple switches or additional networking equipment. This switch eliminates the need for complex and costly network configurations, allowing you to allocate your budget towards other critical areas of your organization.

Enhanced Security

The Aruba 6300f switch offers advanced security features, and the 48 port count plays a crucial role in ensuring network security. With more ports available, you can create separate VLANs (Virtual Local Area Networks) to isolate and secure different segments of your network. This helps prevent unauthorized access and protects sensitive data from potential threats.

Increased Productivity

The 48 port count of the Aruba 6300f switch enhances productivity by providing seamless connectivity for all devices on the network. Whether it's computers, printers, IP phones, or surveillance cameras, each device can be connected to a dedicated port, ensuring reliable and uninterrupted communication. This eliminates bottlenecks and allows for efficient data transfer, ultimately boosting overall productivity.

Future-Proof Investment

Investing in a switch with a high port count like the Aruba 6300f ensures that your network infrastructure is future-proofed. As technology advances and network demands increase, having ample ports will allow you to adapt without the need for significant hardware upgrades. This longevity saves both time and money in the long run.

SKU

The SKU (Stock Keeping Unit) is an essential feature for identifying and managing inventory. In the case of the HPE Aruba 6300f L3 Managed Stackable Switch, the SKU is JL667-61001.

Efficient Inventory Management

The SKU provides a unique identifier for this particular switch model. It simplifies inventory management by allowing businesses to accurately track stock levels and quickly identify specific products in their inventory. With the JL667-61001 SKU, you can streamline your inventory management processes and ensure that you have the necessary stock on hand.

Replacement and Warranty

The SKU is also crucial for replacement and warranty purposes. If you encounter any issues with your Aruba 6300f switch, the SKU JL667-61001 helps ensure that you receive the correct replacement or support under the manufacturer's warranty. This simplifies the process of obtaining assistance and reduces downtime for your network.

Easy Identification

The JL667-61001 SKU allows for easy identification of the HPE Aruba 6300f switch model. This is particularly beneficial when purchasing or upgrading networking equipment. By referencing the SKU, you can be confident that you are selecting the correct switch model to meet your specific requirements.

Compatibility Assurance

The SKU also plays a vital role in ensuring compatibility with other networking components. By referencing the JL667-61001 SKU, you can easily verify that the switch is compatible with your existing network infrastructure. This compatibility assurance saves time and eliminates potential issues that may arise from using incompatible equipment.

Efficient Customer Support

When seeking customer support or technical assistance, providing the SKU JL667-61001 enables customer service representatives to quickly identify your specific switch model. This expedites the troubleshooting process and ensures that you receive accurate and tailored support for your HPE Aruba 6300f switch.

In conclusion, the HPE Aruba 6300f L3 Managed Stackable Switch offers a remarkable port count of 48, providing unparalleled connectivity, flexibility, scalability, improved performance, efficient network management, cost savings, enhanced security, increased productivity, and future-proof investment. Additionally, its SKU (JL667-61001) facilitates efficient inventory management, simplifies replacement and warranty processes, allows for easy identification, ensures compatibility, and enables efficient customer support. With these outstanding features, the HPE Aruba 6300f switch is an excellent choice for organizations looking to elevate their network infrastructure.
