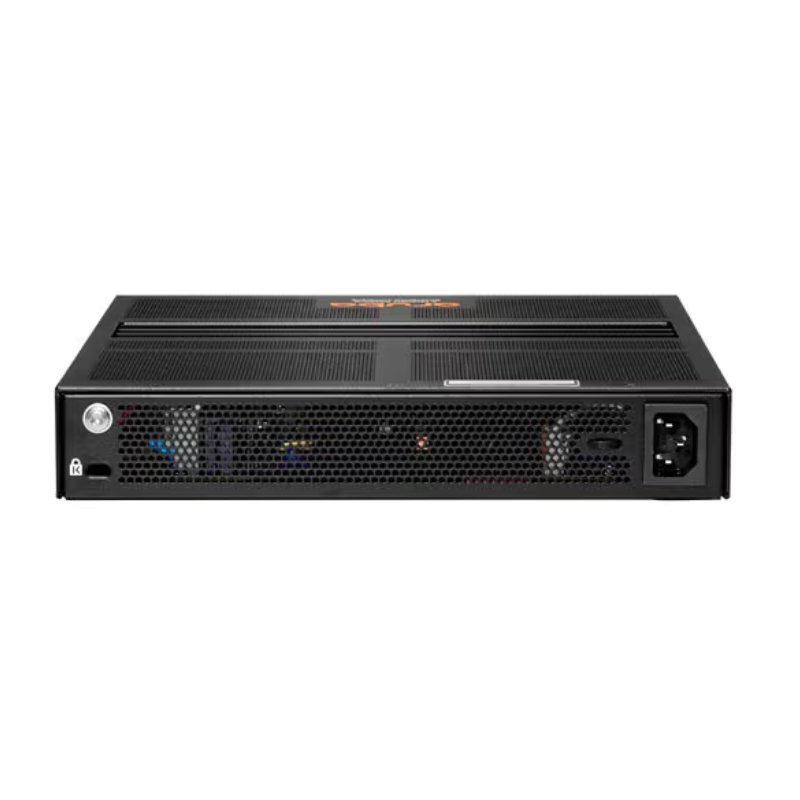

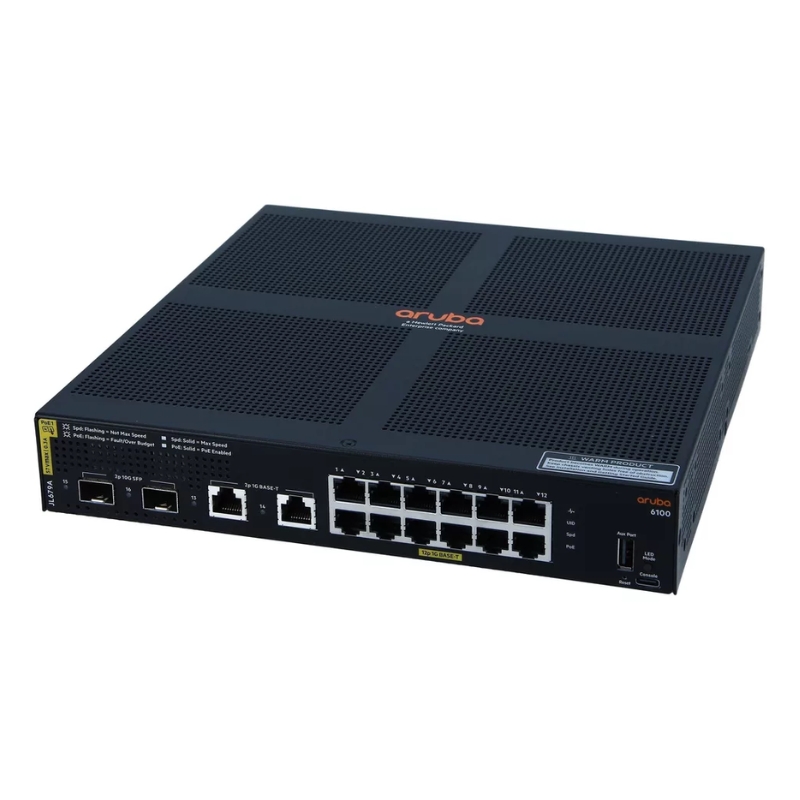

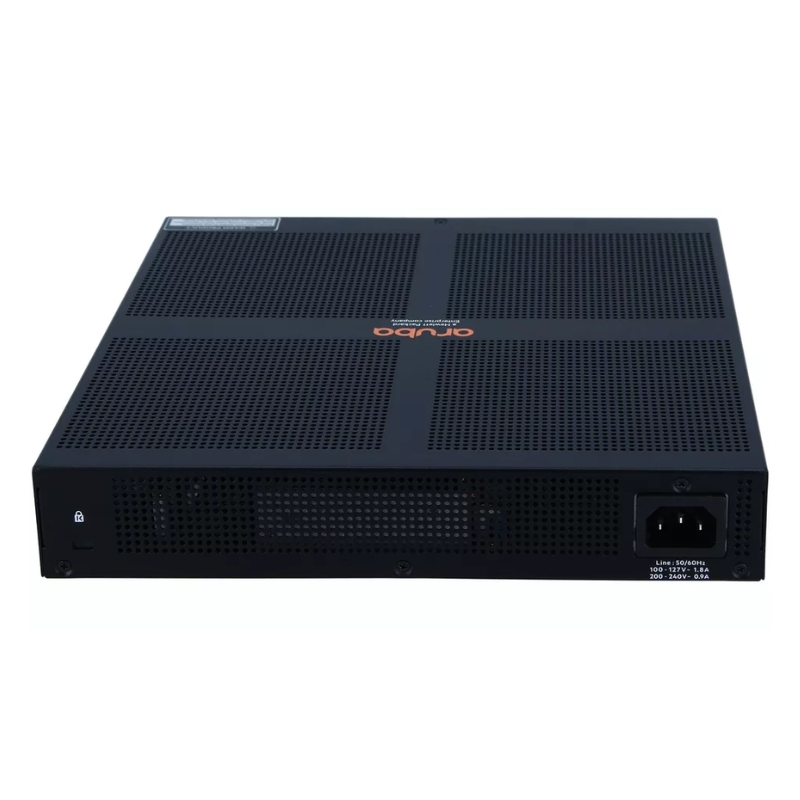

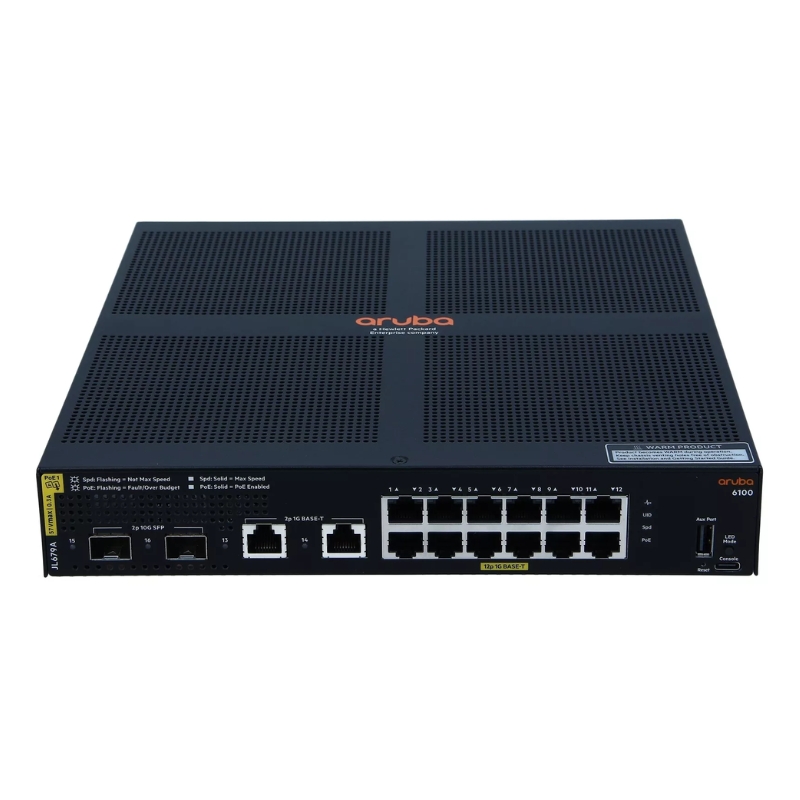

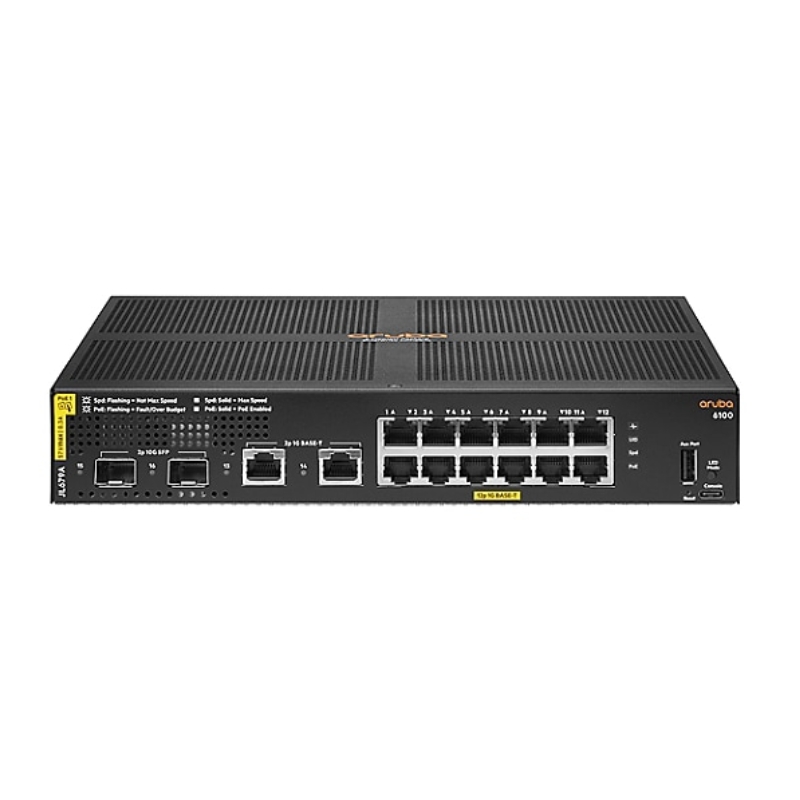

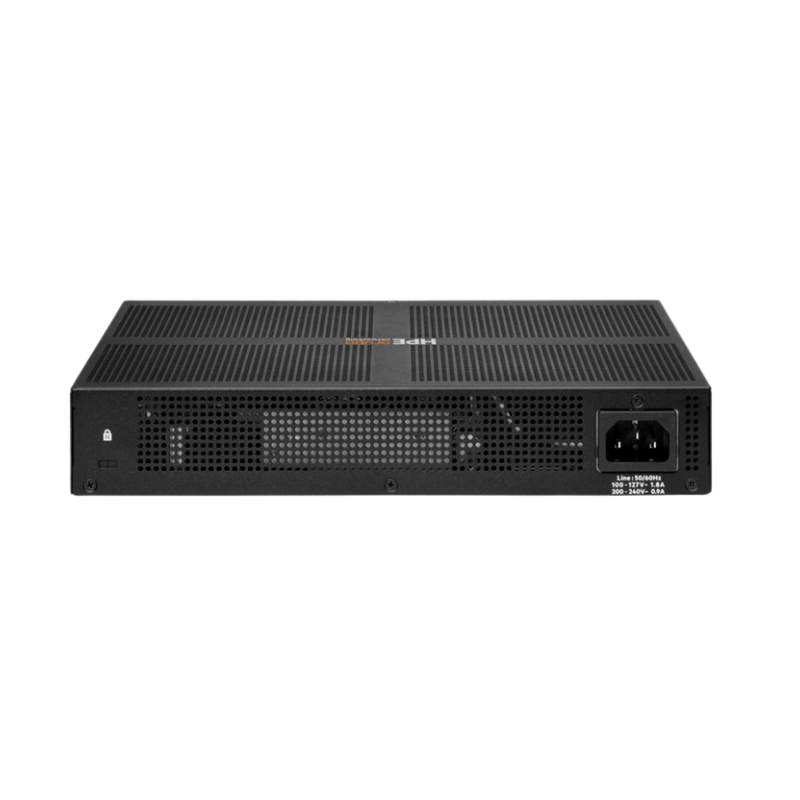

HPE JL679A 16-Port Managed Network Switch with PoE, 2 Gigabit, 2 SFP+ Ports
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
JL679A | Six-Month (180 Days) | $710.00 | Factory-Sealed New in Original Box (FSB) | You save: $363.25 (34%) |
JL679A | Six-Month (180 Days) | $652.00 | New (System) Pull | You save: $392.90 (38%) |
Product Specifications
Overview
The HPE JL679A Aruba 6100 is a versatile 12G Class 4 PoE switch designed for robust network environments. With its rack-mountable design and advanced features, it offers superior performance and scalability.
General Details
- Device Type: Managed Switch with 16 Ports, Stackable
- Form Factor: Rack-mountable (1U)
- Network Type: 10 Gigabit Ethernet
Port Configuration
- 12 x 10/100/1000 (PoE+)
- 2 x 1 Gigabit / 10 Gigabit SFP+
- 2 x 1000BASE-T
Power Over Ethernet (PoE) Capabilities
- PoE Standard: PoE+
- Power Budget: 139 Watts
Performance Metrics
- Switching Capacity: 68 Gbps
- Throughput: 45.1 Mpps
- Latency: 2.3 µs (1 Gbps), 2.6 µs (10 Gbps)
Capacity Features
- Switched Virtual Interfaces (SVIs): 16
- ARP Entries: 1,024
- IPv4 Unicast Routes: 512
- IPv6 Unicast Routes: 512
- IGMP Groups: 512
- MLD Groups: 512
- IPv4 ACL Entries (Ingress): 256
- IPv6 ACL Entries (Ingress): 128
- MAC ACL Entries (Ingress): 256
MAC Address Table Size
8,192 Entries
Routing and Security Protocols
- Supported Routing Protocols: IGMPv2, IGMPv3
- Encryption Algorithm: SSL
- Authentication Methods: SSH, RADIUS, TACACS+, SSH v2
Advanced Features
- Flow Control
- BootP and ARP Support
- VLAN and DiffServ Support
- IPv6 and SNTP Support
- SFlow and MSTP Support
- Fanless Operation
- Port-Based Access Control
- Energy Efficient Ethernet
- SNMP Support
Compliant Standards
- IEEE 802.3, 802.1d, 802.1q, 802.3ab, 802.1p
- 802.3x, 802.3ad (LACP), 802.1w, 802.1s
- 802.3at, 802.3az
Hardware Specifications
- Processor: 1 x ARM A9, 1.016 GHz
- RAM: 4 GB DDR3 SDRAM
- Flash Memory: 16 GB
Connectivity Options
Interface Configuration
- 12 x 10/100/1000 BASE-T RJ-45
- 2 x 1/10 Gbit LAN SFP+
- 1 x USB-C Console Port
- 1 x USB Type-A Port
- 2 x Gigabit LAN Ports
Power Specifications
- Power Source: Internal Power Supply
- Power Capacity: 165 Watts (0.9 A)
- Voltage Requirement: AC 230 V (50/60 Hz)
- Operational Power Consumption: 16 Watts
Ports
The HPE JL679A Managed Network Switch is equipped with 16 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports allow for seamless connectivity between various devices, such as computers, printers, servers, and more.
Increased Connectivity
With 16 ports at your disposal, you can easily connect multiple devices to the switch without the need for additional equipment. This enables you to establish a robust network infrastructure that can support the growing demands of your business. Whether you need to connect workstations in an office or devices in a conference room, the ample number of ports ensures that you have enough connectivity options.
Efficient Data Transfer
The 16 ports on the HPE JL679A Managed Network Switch support high-speed data transfer rates, ensuring that your network operates smoothly and efficiently. Whether you are transferring large files, streaming media, or engaging in online collaboration, the switch's ports provide the necessary bandwidth to handle these tasks without any lag or interruptions.
Flexibility and Scalability
Having 16 ports gives you the flexibility to expand your network infrastructure as your business grows. You can easily connect new devices or add additional switches to accommodate the increasing demands of your organization. This scalability ensures that your network remains future-proof and adaptable to changing requirements.
PoE
The HPE JL679A Managed Network Switch features 1 Power over Ethernet (PoE) port, which brings added convenience and flexibility to your network setup. PoE technology allows you to power compatible devices through the Ethernet cable itself, eliminating the need for separate power cables and adapters.
Simplified Installation
With the PoE port on this switch, you can effortlessly power devices such as IP phones, wireless access points, and security cameras. This simplifies the installation process as you don't have to worry about finding nearby power outlets or dealing with excessive cable clutter. The PoE feature also reduces the overall cost of deploying these devices by eliminating the need for additional power sources.
Improved Flexibility
Having a PoE port enables you to install devices in locations where power outlets may be scarce or difficult to access. This flexibility allows you to optimize the placement of devices based on factors such as signal strength or security requirements. You can easily deploy wireless access points in optimal locations, ensuring seamless connectivity throughout your workspace.
Enhanced Reliability
By utilizing the PoE feature, you can ensure a reliable power supply to your connected devices. The switch automatically detects and manages the power requirements of each device, providing the necessary power without overloading or damaging them. This eliminates the risk of power fluctuations and enhances the overall reliability of your network infrastructure.
Gigabit Ports
The HPE JL679A Managed Network Switch boasts 2 Gigabit ports, offering lightning-fast network speeds that are essential for bandwidth-intensive tasks and data-intensive applications. These ports provide a significant boost in performance compared to standard Ethernet ports, making them an indispensable feature for businesses that rely on high-speed connectivity.
Unparalleled Speed
With Gigabit ports, you can take advantage of network speeds up to 10 times faster than traditional Fast Ethernet ports. This increased speed is crucial for activities such as large file transfers, video conferencing, and multimedia streaming. By utilizing Gigabit ports, you can significantly reduce transfer times and enhance productivity across your organization.
Seamless Multimedia Streaming
If your business relies on media-rich applications or requires high-quality video streaming, Gigabit ports are a necessity. They provide the necessary bandwidth to support uninterrupted streaming of high-definition videos, ensuring smooth playback and a seamless user experience. Whether you are conducting virtual meetings or delivering multimedia presentations, Gigabit ports guarantee optimal performance.
Improved Network Performance
Gigabit ports not only enhance the speed of individual connections but also improve the overall performance of your network. With faster data transmission, you can minimize bottlenecks and congestion, allowing multiple users to access network resources simultaneously without experiencing a drop in performance. This translates into improved efficiency and productivity for your entire organization.
SFP+ Ports
The HPE JL679A Managed Network Switch is equipped with 2 SFP+ (Small Form-Factor Pluggable Plus) ports, which offer even higher network speeds and greater flexibility compared to Gigabit ports. These ports are specifically designed for high-performance applications that demand ultra-fast connectivity and low latency.
High-Speed Connectivity
SFP+ ports provide unparalleled network speeds, capable of reaching up to 10 gigabits per second. This level of speed is essential for bandwidth-intensive tasks such as data backups, server virtualization, and cloud computing. With SFP+ ports, you can ensure that your network infrastructure can handle the most demanding applications without compromising performance.
Low Latency
The low latency offered by SFP+ ports is crucial for real-time applications such as online gaming and VoIP (Voice over Internet Protocol) communications. By minimizing the delay between data transmission and reception, SFP+ ports enable seamless and responsive interactions. Whether you are engaged in competitive gaming or conducting important voice calls, the low latency provided by these ports ensures a smooth and uninterrupted experience.
Flexible Network Design
SFP+ ports offer greater flexibility in network design by allowing for long-range connectivity and the use of fiber optic cables. These ports support various types of SFP+ transceivers, including single-mode and multimode fiber, allowing you to choose the most suitable medium for your network requirements. This flexibility enables you to extend your network over longer distances and connect devices in different locations within your organization.
