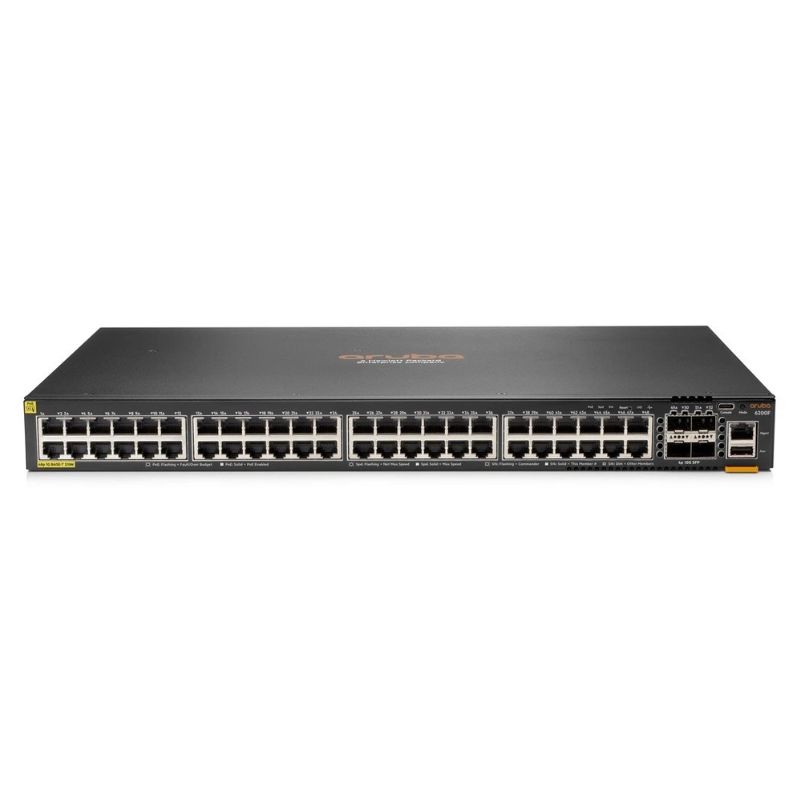

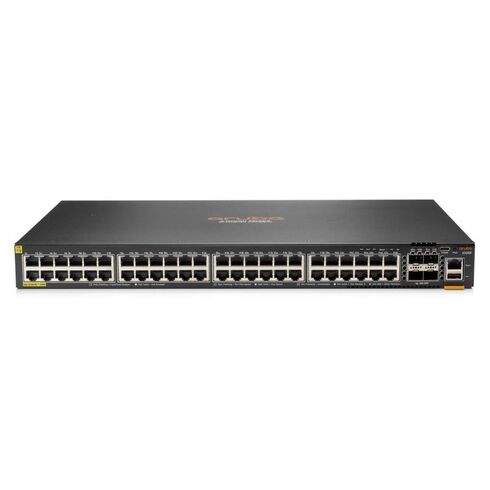

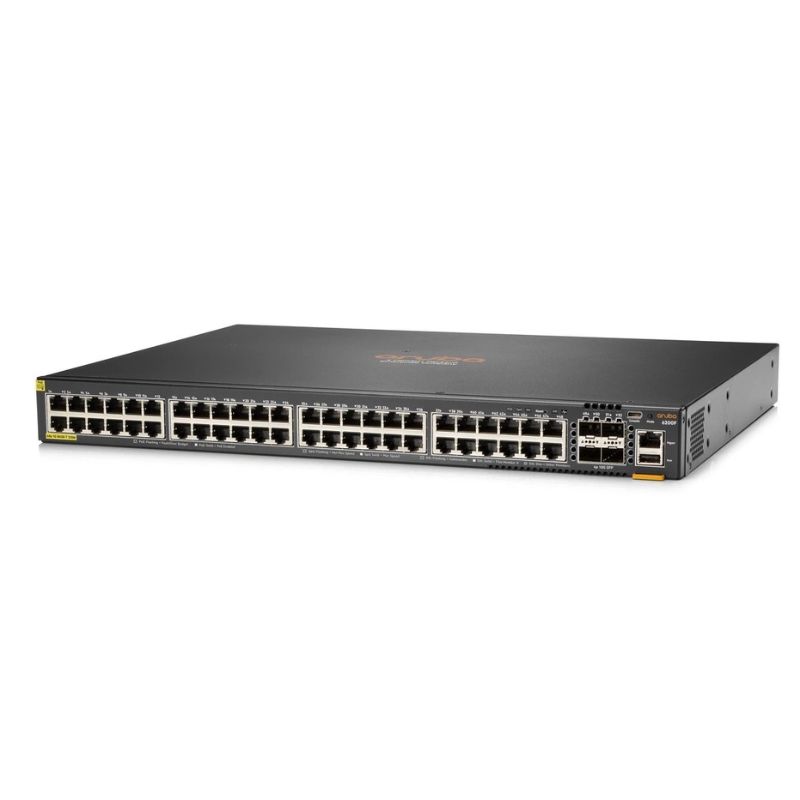

JL707C HPE Aruba 48-Ports 8360-48XT4C Pwr-2-Prt 3Fans 2PSU QSFP28 Rack Mountable Switch

Overview of the HPE Switch

Discover the ultimate high-performance network switch designed for enterprise and data center environments. Engineered for efficiency and scalability, this 48-port L3 managed switch ensures superior connectivity and advanced routing capabilities.

Main Information

• Part: JL707C
• Brand: HPE
• Product Type: Switch

Key Specifications

• Device Type: 48-port Layer 3 managed switch
• Enclosure: 1U rack-mountable with back-to-front airflow
• Network Subtype: 10 Gigabit Ethernet
• Port Configuration: 48 x 100/1000/10000 Mbps + 4 x 40/100 Gbps QSFP+/QSFP28
• Switching Performance: 1.76 Tbps capacity

Capacity & Scalability

• Supports up to 4094 VLANs for flexible network segmentation
• Handles 7000 IGMP and MLD multicast groups
• IPv4 and IPv6 multicast routes: 7000 each
• IPv4 ingress ACL entries: 65,536 | IPv6 ingress ACL entries: 16,384
• IPv4 unicast routes: 606,977 | IPv6 unicast routes: 630,784
• MAC addresses capacity: 212,992 | Host table entries (IPv4/IPv6): 145,780
• Jumbo frame support up to 9 KB

Routing & Network Protocols

• Dynamic and static routing: OSPF, BGP-4, BGP, VRRP, PIM-SM
• Multicast and redundancy: IGMP, MLD, Bidirectional Forwarding Detection (BFD)
• Advanced features: QoS, VRF, Loopback, ERPS, ECN, RoCE v2, VxLAN Anycast Gateway
• Network security: Packet Storm Protection, ARP/ND suppression, MAC ACLs

Management & Security

• Remote management protocols: SNMP, RMON, TFTP, CLI, SFTP, NTP, DHCP
• Authentication & encryption: RADIUS, TACACS+, EAP-TLS, SSH2
• Automation & APIs: REST API interface, job scheduling framework, dual flash image support

Hardware & Memory

• Processor: 1 x 1.8 GHz high-performance CPU
• RAM: 16 GB for seamless multitasking
• Flash memory: 32 GB to store system and configuration files

Interfaces & Connectivity

• 48 x 100/1000/10G Ethernet ports
• 4 x 40/100 Gbps QSFP28/QSFP+ ports for uplinks
• 1 x Serial RJ-45 console | 1 x Type C console port | 1 x Management Type A port

Power & Redundancy

• Internal hot-swappable power supplies, dual installation
• Power capacity: 550 W | Standby consumption: 120 W
• AC voltage support: 100-127 / 200-240 V at 50/60 Hz
• Full redundancy for uninterrupted operation

Standards Compliance

• IEEE 802.1d, 802.3ad (LACP), 802.1w, 802.1s, 802.1ab (LLDP)

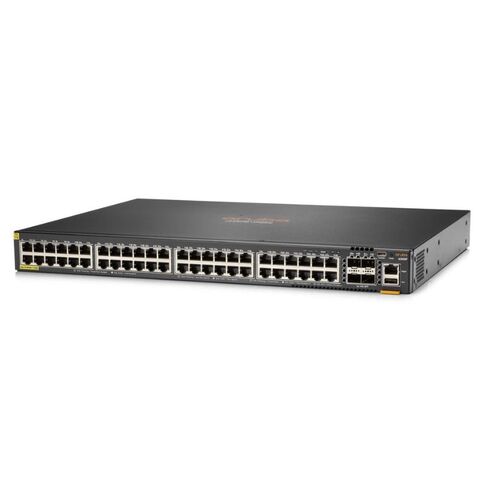

HPE Aruba 48-Ports 3Fans 2PSU QSFP28 Switch

The JL707C HPE Aruba 8360-48XT4C switch is a high-performance, enterprise-class aggregation and core networking solution engineered to deliver exceptional throughput, scalability, and resiliency for modern data center and campus environments. Designed as part of the Aruba CX 8360 family, this rack-mountable switch provides 48 multi-gigabit 10GBASE-T ports and 4 QSFP28 100GbE uplink ports, offering a powerful combination of access density and high-speed backbone connectivity.

Purpose-built for organizations demanding consistent performance, advanced automation, and secure segmentation, the 8360-48XT4C switch addresses the evolving needs of digital transformation initiatives, cloud adoption strategies, and high-density virtualization deployments. With dual power supplies, three hot-swappable fans, and robust hardware redundancy, this model ensures business continuity and minimal downtime in mission-critical network infrastructures.

High-Density 10GBASE-T Access for Modern Enterprises

The JL707C switch features 48 10GBASE-T ports, making it ideal for high-bandwidth environments that require copper-based 10 Gigabit Ethernet connectivity. These ports support multi-gigabit speeds and are backward compatible with 1GbE devices, allowing seamless integration with existing infrastructure while enabling future scalability.

Enterprises deploying high-performance servers, virtualization clusters, hyperconverged infrastructure, or advanced wireless access points benefit significantly from the 10G copper connectivity. The 8360-48XT4C provides the flexibility to connect storage arrays, blade servers, high-performance computing nodes, and aggregation layers without the immediate need for fiber infrastructure upgrades.

Optimized for Virtualization and Hyperconverged Infrastructure

Virtualized environments generate high east-west traffic patterns within data centers. The 48-port 10GbE configuration ensures adequate bandwidth for virtual machine mobility, storage replication, and distributed applications. The switch architecture minimizes latency and maximizes throughput, ensuring consistent performance for hypervisors and containerized workloads.

Hyperconverged infrastructure deployments benefit from the ability to interconnect nodes using low-latency 10GBASE-T ports, while the 100GbE uplinks provide high-speed backbone aggregation for clustered environments.

QSFP28 100GbE Uplinks for Core and Aggregation

The JL707C model includes four QSFP28 ports supporting 100 Gigabit Ethernet uplinks. These high-speed interfaces enable seamless integration into core switching layers, spine-leaf architectures, and data center fabrics. Organizations can leverage these uplinks for stacking, inter-switch links (ISLs), or high-capacity uplink connections to core routers and distribution switches.

Scalable Spine-Leaf Architecture Support

In modern spine-leaf data center architectures, bandwidth and low latency are critical. The 100GbE QSFP28 uplinks allow the 8360-48XT4C to function as a high-capacity leaf or aggregation switch. With non-blocking architecture and high switching capacity, the device ensures predictable performance even under heavy workloads.

These uplinks also support breakout configurations, enabling flexible connectivity options such as 4x25GbE connections per QSFP28 port when required. This flexibility supports gradual network upgrades and incremental expansion.

Redundant Power Supplies and Hot-Swappable Components

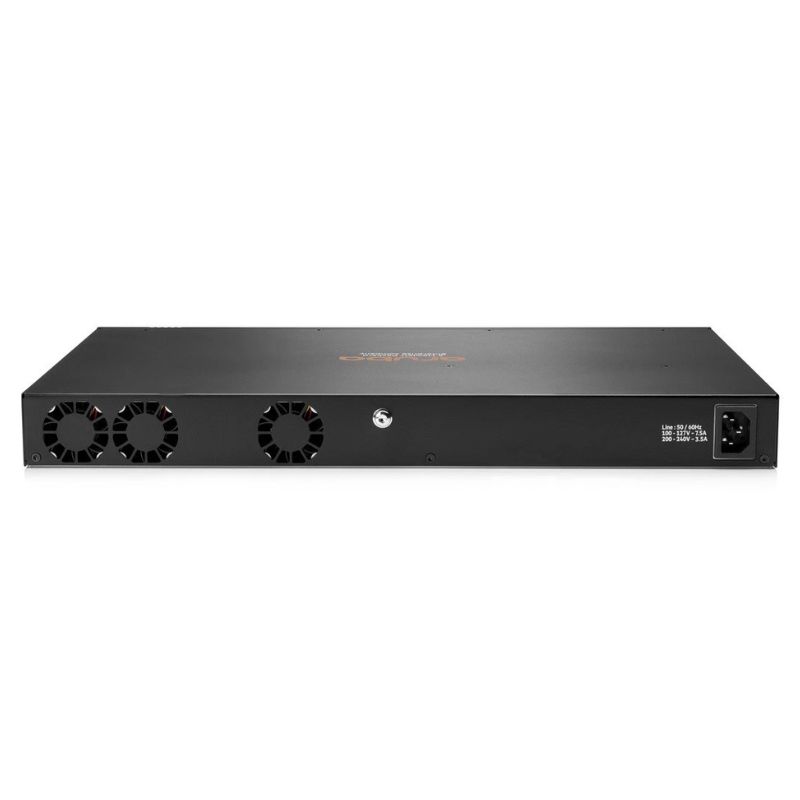

The JL707C 8360-48XT4C switch is equipped with two power supply units (2PSU) and three field-replaceable fan modules. This redundancy enhances network resiliency and ensures uninterrupted operation during hardware maintenance or unexpected failures.

Dual Power Supply Architecture

With dual power supply slots populated, the switch can operate with full redundancy. If one PSU fails, the second unit automatically maintains operational continuity without service interruption. This design is particularly valuable in enterprise data centers, financial institutions, healthcare facilities, and mission-critical industrial networks.

Advanced Cooling with Three Fans

The three hot-swappable fan modules ensure optimal thermal management, even in high-density rack environments. Efficient airflow design helps maintain consistent operating temperatures, extending hardware lifespan and reducing the risk of thermal-related failures.

Rack-Mountable Design for Data Center Deployment

The rack-mountable form factor of the 8360-48XT4C allows seamless installation into standard 19-inch racks. Its compact design optimizes rack space utilization while delivering high port density. Front-to-back airflow options align with modern hot-aisle/cold-aisle data center designs, ensuring compatibility with enterprise rack layouts.

Mounting rails and installation accessories support quick deployment, reducing installation time and operational complexity for network engineers and IT administrators.

Enterprise-Grade Performance and Switching Capacity

The JL707C switch delivers high switching capacity and wire-speed forwarding performance across all ports. Designed to handle demanding workloads, it supports advanced Layer 2 and Layer 3 capabilities, including dynamic routing protocols, virtual routing and forwarding (VRF), and multicast routing.

Its high-performance ASIC architecture enables low-latency packet processing and deep buffering, minimizing congestion and packet loss in high-traffic environments.

Layer 2 and Layer 3 Capabilities

Comprehensive Layer 2 features include VLAN support, link aggregation, spanning tree protocols, and port mirroring. Advanced Layer 3 capabilities enable routing between VLANs, static and dynamic routing configurations, and high-availability gateway implementations.

Support for dynamic routing protocols enhances scalability, making the 8360-48XT4C suitable for both campus core and data center aggregation roles.

Automation and Programmability with Modern Network OS

The Aruba CX switching platform introduces an advanced network operating system designed for automation and analytics. The JL707C 8360-48XT4C supports REST APIs, Python scripting, and integration with automation tools, enabling zero-touch provisioning and infrastructure-as-code deployment models.

REST APIs and DevOps Integration

Modern IT environments require programmable infrastructure. The switch provides fully programmable interfaces, allowing integration with configuration management systems and orchestration platforms. This enables faster rollouts, simplified upgrades, and improved operational efficiency.

Network Analytics and Telemetry

Advanced telemetry capabilities provide real-time visibility into network performance. Built-in analytics engines monitor traffic patterns, identify anomalies, and support proactive troubleshooting. These features reduce mean time to resolution (MTTR) and enhance overall network reliability.

Advanced Security and Segmentation

Security is a critical component of enterprise networking. The 8360-48XT4C supports role-based access control, secure management access, and encrypted control-plane communications. Network segmentation capabilities allow administrators to isolate sensitive traffic and enforce security policies across the infrastructure.

Role-Based Access Control

Granular administrative controls restrict access to authorized personnel, ensuring compliance with internal governance and regulatory standards. Multi-factor authentication and encrypted management sessions protect configuration integrity.

Dynamic Segmentation and Policy Enforcement

Dynamic segmentation enables secure connectivity for IoT devices, guest networks, and corporate endpoints. Policies can be centrally defined and automatically enforced across the switching infrastructure, simplifying compliance and reducing operational complexity.

Use Cases for the Aruba 8360-48XT4C Switch

High-density 10G access and 100G uplinks make this switch ideal for server aggregation layers. It supports virtualization clusters, storage networks, and backup systems with predictable performance.

Campus Core and Distribution

In large campus networks, the 8360-48XT4C can serve as a core or distribution switch, aggregating access-layer switches and providing high-speed uplinks to backbone networks.

High-Performance Computing Environments

HPC environments benefit from the low-latency switching architecture and high port density. Research institutions and engineering firms can leverage the robust performance for data-intensive applications.

Energy Efficiency

Energy-efficient components and intelligent power management reduce overall power consumption without sacrificing performance. The dual power supplies support load sharing, improving efficiency during normal operations.

Advanced monitoring tools help administrators track energy usage and optimize network resource allocation, contributing to reduced total cost of ownership.

Scalability for Future Growth

The JL707C Aruba 8360-48XT4C is designed to grow with your organization. Its high port density, flexible uplinks, and advanced software capabilities allow businesses to scale bandwidth and add new services without replacing core infrastructure.

Support for virtualization, cloud connectivity, and hybrid network architectures ensures long-term investment protection and adaptability to emerging technologies.

Centralized Management Platforms

The switch integrates with centralized network management platforms, enabling administrators to configure, monitor, and troubleshoot devices from a single interface. This reduces administrative overhead and enhances visibility across distributed networks.

Proactive Fault Detection

Built-in health monitoring continuously checks system components, including power supplies and fans. Alerts and notifications allow IT teams to respond quickly to potential issues before they impact network performance.

Aruba 8360-48XT4C Switch

Organizations seeking a high-performance, resilient, and scalable network switch will find the JL707C Aruba 8360-48XT4C to be a compelling solution. Its blend of 10G copper density and 100G uplink capacity addresses the bandwidth demands of modern applications while supporting future expansion.

With redundant hardware components, advanced automation features, and comprehensive security capabilities, this rack-mountable switch serves as a cornerstone for enterprise networking strategies. Whether deployed in data centers, campus cores, or aggregation layers, the 8360-48XT4C delivers consistent performance, operational efficiency, and long-term reliability.
