JW174A HPE Aruba Ap-225 Wireless Access Point

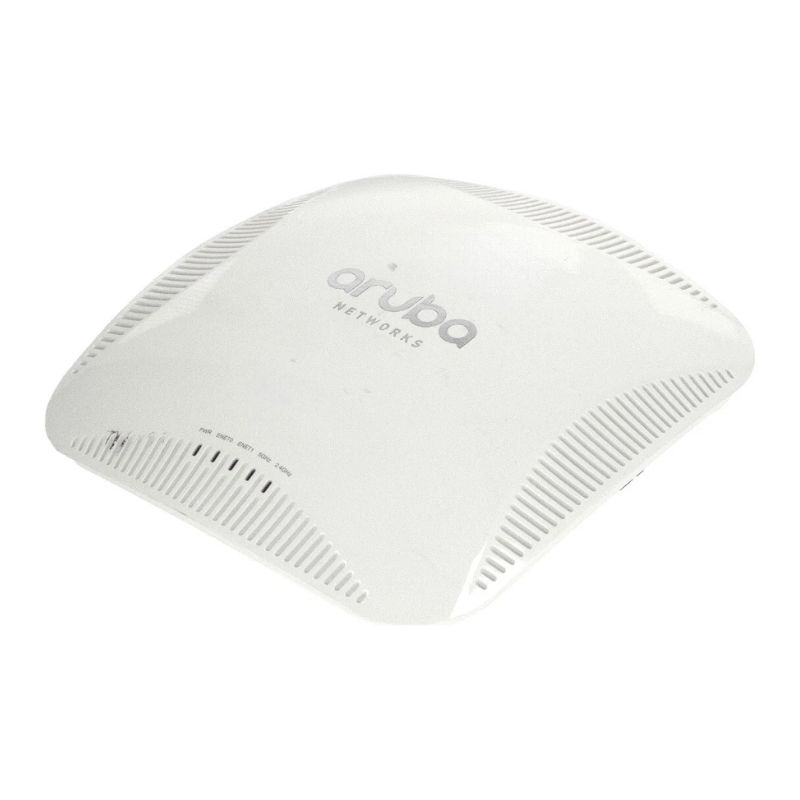

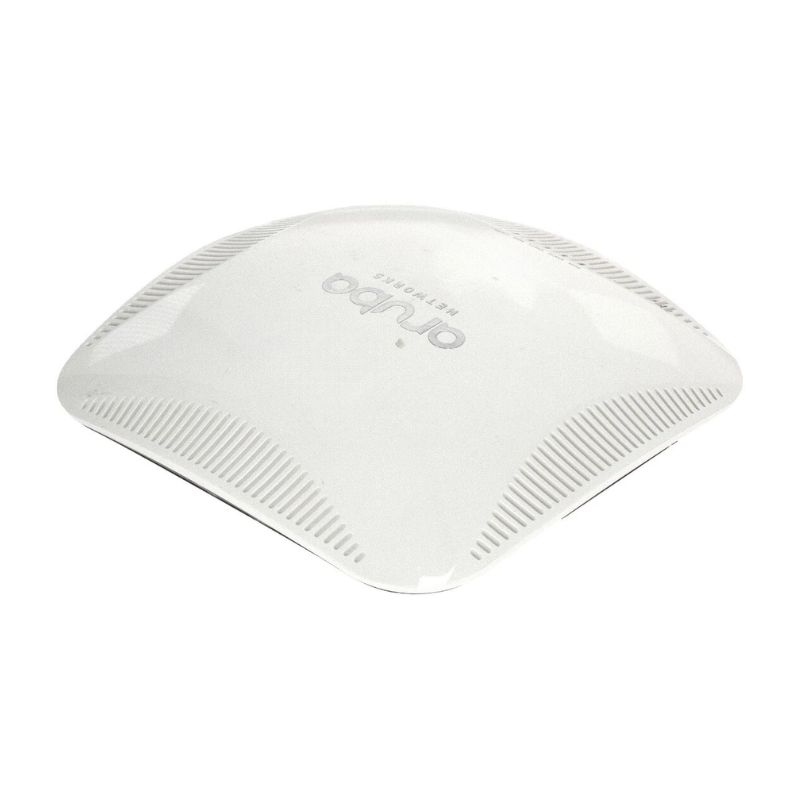

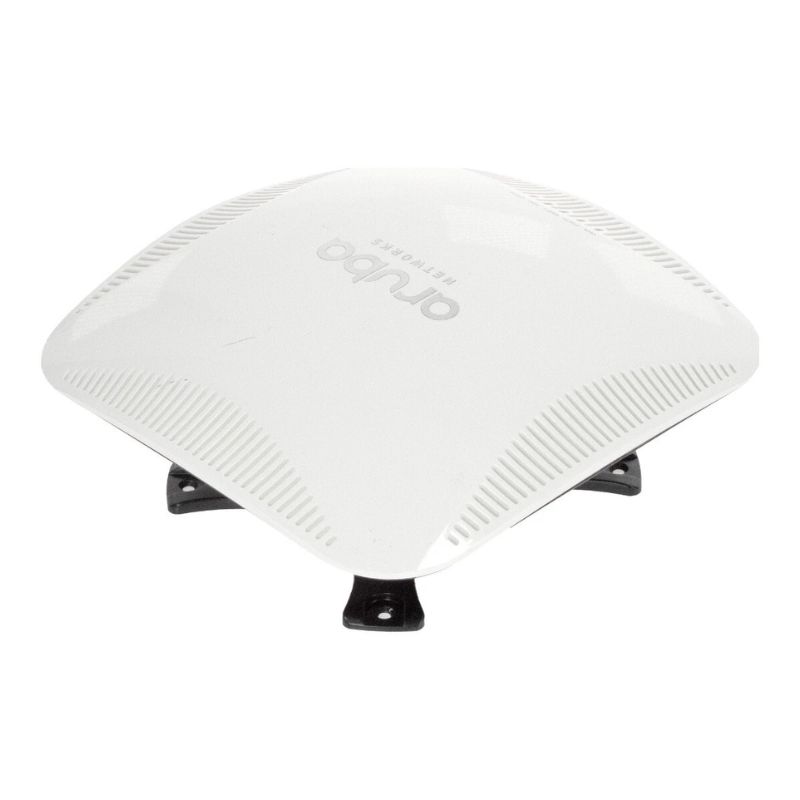

HPE JW174A Aruba AP-225 Wireless Access Point

The is a high-performance enterprise-grade Wi-Fi solution engineered to deliver reliable wireless connectivity, exceptional throughput, and advanced security for business environments. Designed for ceiling-mounted installations, this dual-band access point supports the latest IEEE wireless standards and provides seamless connectivity for high-density deployments such as offices, schools, healthcare facilities, hotels, and retail spaces.

General Information

• Manufacturer: HPE
• Part Number: JW174A
• Device Type: Wireless Access Point

Technical Specifications

• 3x3 MIMO Technology
• Maximum Ratio Combining (MRC)
• Low Density Parity Check (LDPC)
• Transmit Beamforming (TxBF)
• Space Time Block Coding (STBC)
• Cyclic Delay Diversity (CDD)
• Dynamic Frequency Selection (DFS)
• Advanced Cellular Coexistence (ACC)
• ClientMatch Technology
• A-MPDU Packet Aggregation
• A-MSDU Packet Aggregation
• Energy Efficient Ethernet (IEEE 802.3az)

Performance Highlights

• 5 GHz wireless speed up to 1.3 Gbps
• 2.4 GHz wireless speed up to 600 Mbps
• Total aggregate throughput up to 1.9 Gbps
• Supports up to 255 wireless clients per radio
• Supports up to 16 BSSIDs per radio

Supported Wireless Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g

Frequency Bands

• 2.4 GHz
• 5 GHz

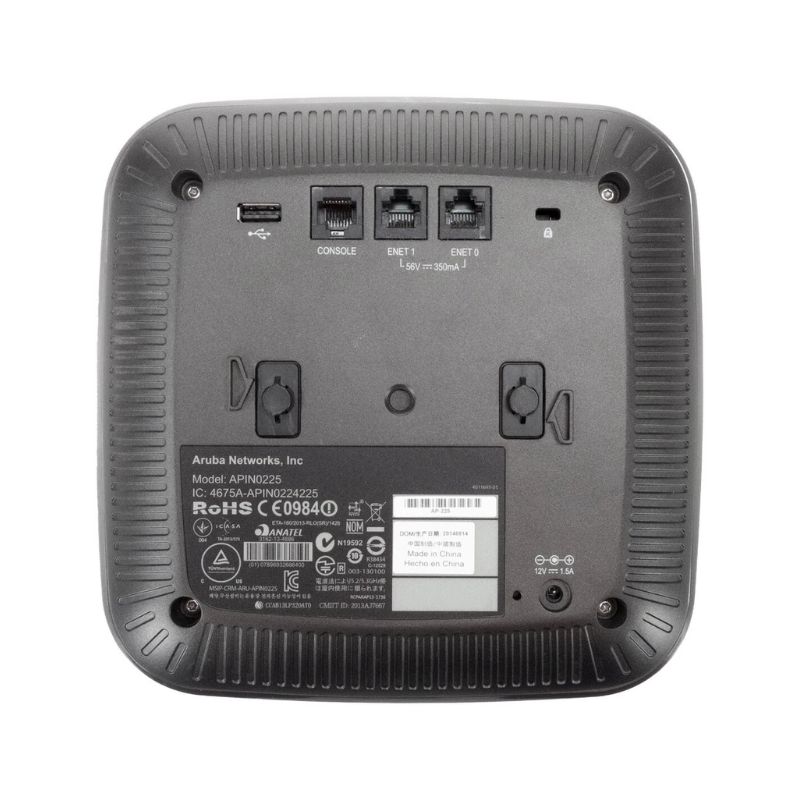

Networking Interfaces

• 2 × Gigabit Ethernet (1000Base-T RJ-45)
• 1 × RJ-45 Console Port
• 1 × USB 2.0 Port

Industry Standards

• IEEE 802.11a/b/g/n/ac
• IEEE 802.3az
• FCC Certified
• UL 60950
• IEC 60950
• CB Certification
• UL 2043
• EN 60950
• EN 301 893
• EN 300 328
• EN 301 489
• EN 60601-1-1
• EN 60601-1-2
• R&TTE Directive 1995/5/EC
• LVD 72/23/EEC
• CTUVus

Overview of HPE JW174A Aruba Ap-225 Wireless Access Point

The HPE JW174A Aruba Ap-225 Wireless Access Point represents a powerful solution in enterprise-grade networking, designed to deliver high-performance wireless connectivity for modern organizations. This category focuses on the Aruba Ap-225, a dual-radio access point engineered to support demanding environments such as offices, campuses, and large facilities. With advanced features like 802.11ac technology, robust security protocols, and seamless scalability, the Aruba Ap-225 stands out as a reliable choice for businesses seeking consistent and secure wireless coverage.

Design and Build Quality

The Aruba Ap-225 is crafted with a sleek and compact design that allows easy installation in diverse environments. Its unobtrusive build ensures that it blends seamlessly into office ceilings or walls without disrupting aesthetics. The durable casing is engineered to withstand continuous operation, making it suitable for high-traffic areas where reliability is paramount.

Durability and Longevity

Built with enterprise-grade materials, the Aruba Ap-225 is designed to last. The hardware components are optimized for long-term use, ensuring that organizations can rely on consistent performance over extended periods. This durability reduces maintenance costs and enhances the overall value of the device.

802.11ac Wireless Standard

The Aruba Ap-225 leverages the 802.11ac standard, offering faster speeds and improved efficiency compared to older technologies. This ensures that users experience smooth connectivity for bandwidth-intensive applications such as video conferencing, cloud computing, and large file transfers. The dual-radio setup allows simultaneous support for both 2.4 GHz and 5 GHz bands, maximizing flexibility and minimizing interference.

High User Density Support

One of the defining features of the Aruba Ap-225 is its ability to handle high user density. In environments such as lecture halls, conference centers, or open office spaces, multiple users can connect without experiencing degradation in performance. This makes it ideal for organizations that prioritize scalability and reliability.

Advanced Encryption Standards

Security is a cornerstone of the Aruba Ap-225. It supports advanced encryption standards that safeguard data transmissions against unauthorized access. This ensures that sensitive information remains protected, a necessity for industries such as finance, healthcare, and education.

Role-Based Access Control

The device incorporates role-based access control, allowing administrators to define permissions based on user roles. This granular approach enhances security by ensuring that only authorized individuals can access specific resources. It also simplifies management by aligning network access with organizational policies.

Integrated Firewall Capabilities

The Aruba Ap-225 includes integrated firewall capabilities that provide an additional layer of protection. By monitoring traffic and blocking potential threats, the firewall helps maintain a secure environment for all connected devices.

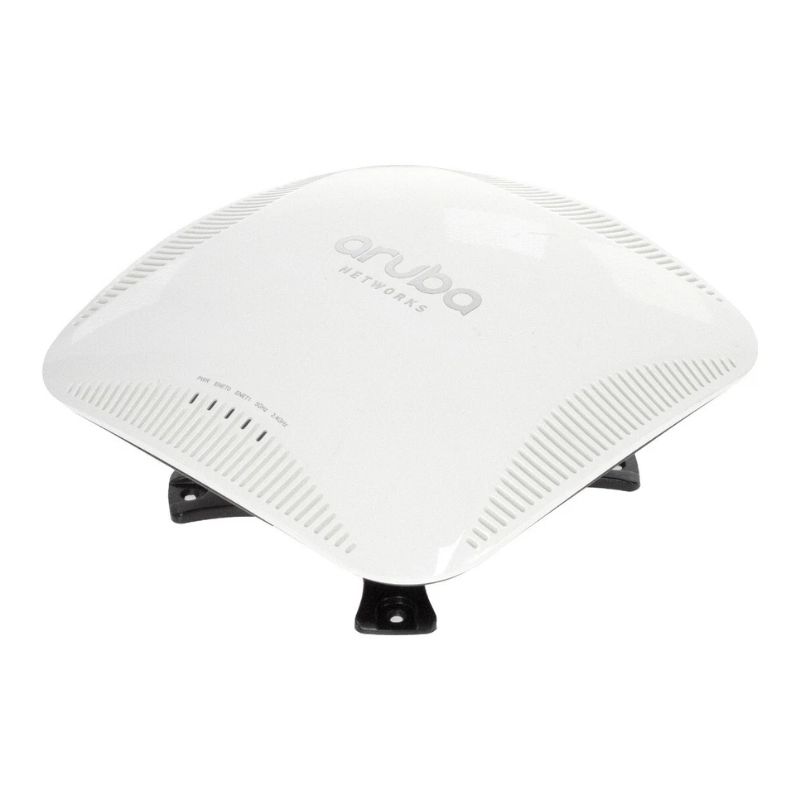

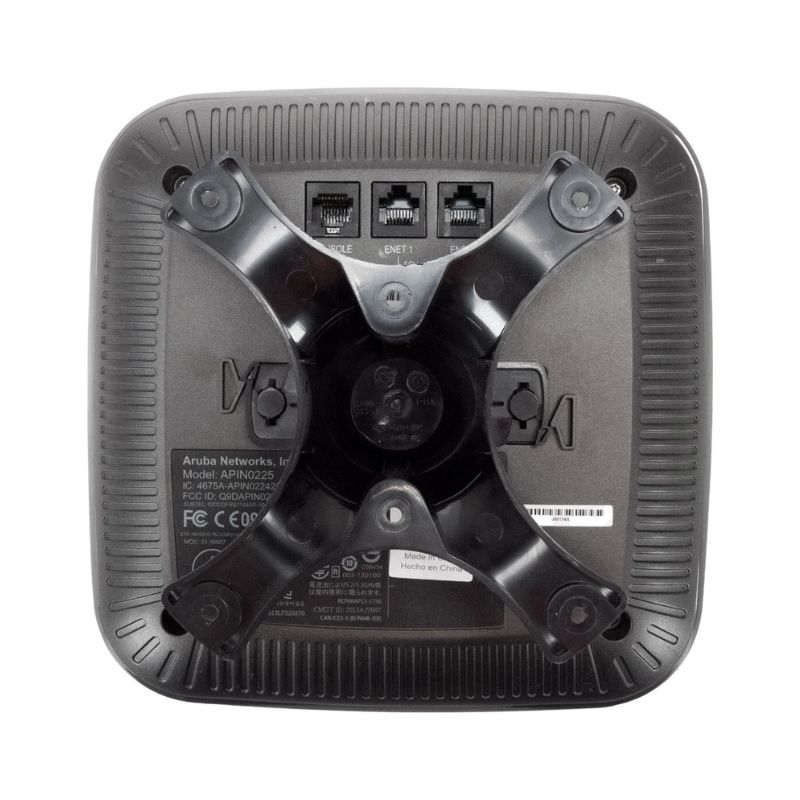

Ceiling and Wall Mount Options

The Aruba Ap-225 offers versatile deployment options, including ceiling and wall mounts. This flexibility allows organizations to optimize coverage based on their unique layouts. Whether installed in a classroom, office corridor, or large auditorium, the device can be positioned to deliver maximum performance.

Scalable Architecture

Scalability is a key advantage of the Aruba Ap-225. Organizations can start with a few units and expand as needed, ensuring that the network grows alongside business demands. This modular approach reduces upfront costs while providing room for future expansion.

Integration with Aruba Controllers

The access point integrates seamlessly with Aruba controllers, enabling centralized management of multiple devices. This simplifies configuration, monitoring, and troubleshooting, making it easier for IT teams to maintain large-scale deployments.

Power over Ethernet (PoE) Support

The Aruba Ap-225 supports Power over Ethernet (PoE), allowing both power and data to be delivered through a single cable. This reduces installation complexity and minimizes the need for additional power outlets. PoE support also enhances energy efficiency by optimizing power consumption.

Use Cases and Applications

In corporate environments, the Aruba Ap-225 provides reliable connectivity for employees, enabling seamless collaboration and communication. Its ability to support high user density ensures that even large teams can work efficiently without connectivity issues.

Educational Institutions

Schools and universities benefit from the Aruba Ap-225’s robust performance, supporting digital learning platforms, online assessments, and multimedia content delivery. The device ensures that students and faculty have consistent access to resources across campus.

Cloud-Based Management

For organizations seeking flexibility, the Aruba Ap-225 supports cloud-based management. This enables remote monitoring and configuration, making it easier to manage distributed networks across multiple locations.

Seamless Device Connectivity

The Aruba Ap-225 is compatible with a wide range of devices, including laptops, smartphones, tablets, and IoT equipment. This ensures that users can connect effortlessly, regardless of their device type or operating system.

Integration with Existing Infrastructure

Organizations can integrate the Aruba Ap-225 with their existing infrastructure without disruption. Its compatibility with standard networking protocols ensures smooth deployment alongside legacy systems.

Future-Proof Technology

The device is designed with future-proof technology, ensuring that it remains relevant as networking standards evolve. This protects investments and reduces the need for frequent upgrades.

Reliability and Redundancy

The Aruba Ap-225 includes failover capabilities that ensure continuous connectivity even in the event of hardware or network issues. This reliability is critical for organizations that cannot afford downtime.

Data Rate and Throughput

With support for data rates up to 1.3 Gbps, the Aruba Ap-225 ensures that users experience fast and reliable connectivity. This high throughput is essential for modern applications that demand significant bandwidth.
