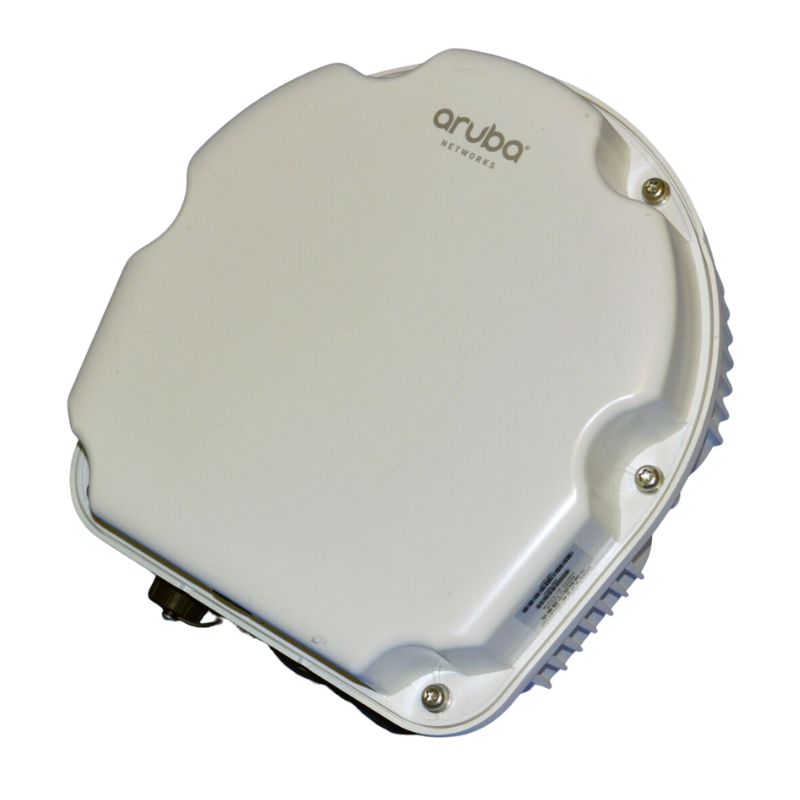

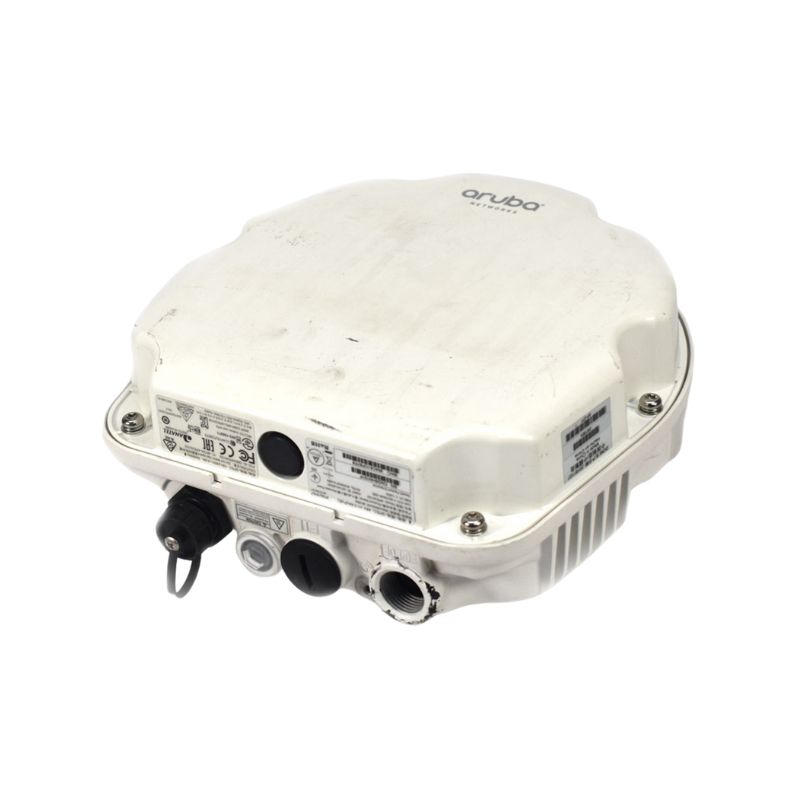

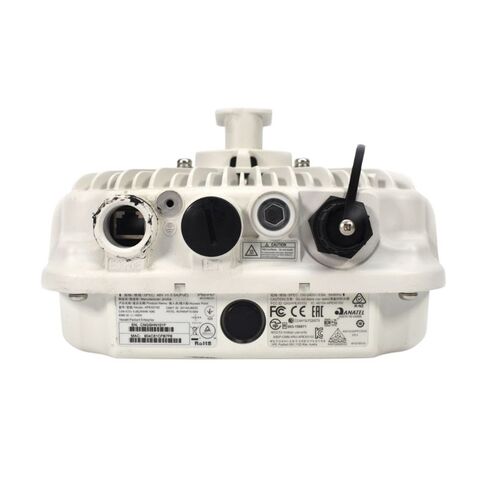

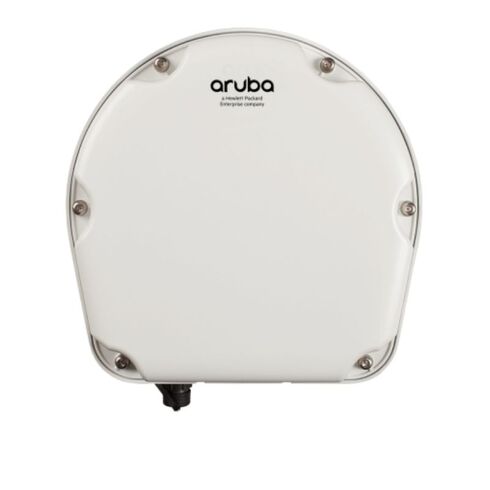

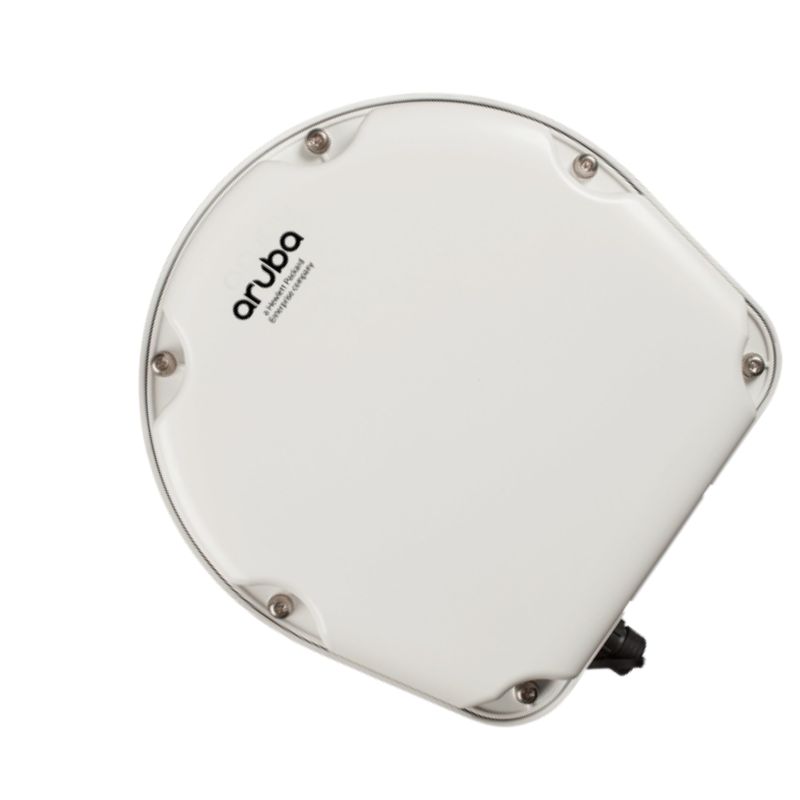

JW180A HPE Aruba AP-277 802.11n/ac Dual 3x3:3 Radio Integrated Directional Antenna

Hardware features and interfaces

Ethernet, PoE and power budget

• One Gigabit Ethernet RJ-45 port (10/100/1000BASE-T) with PoE PD support to accept PoE+ power from an upstream switch or PoE injector.
• Designed to operate from PoE+ (Class and power requirements per installation guide), with maximum operational power consumption around 23 W depending on feature usage (radios, USB, etc.).
• Industrial-grade surge protection on electrical interfaces (typical of 270-series outdoor APs) to protect against lightning transients and power irregularities in outdoor installations.

PoE+ support simplifies outdoor deployments because a single Ethernet cable can provide both data and power; when planning, confirm the upstream switch or injector supplies sufficient PoE budget for the AP and any attached USB accessories.

Physical and environmental design

• IP-rated, sealed enclosure suitable for continuous outdoor exposure: built to withstand temperature extremes, moisture, precipitation, dust and airborne contaminants.
• Mechanically reinforced housing and mounting brackets for pole or wall attachment; mounting kits available to adapt to diverse outdoor poles and conduit installations.
• Industrial surge-protected interfaces and conformal coatings where required by the product family for extended field life.

The AP-277 is explicitly marketed as an outdoor-rated unit engineered to survive harsh conditions without sacrificing wireless performance — an essential consideration for deployments that cannot tolerate frequent field service.

Software, management and security

ArubaOS / Instant mode and controller options

The AP-277 can be operated as part of an Aruba controller-based architecture or in Instant (controllerless) mode, providing flexible management choices depending on scale and operational preference. Controller deployment delivers centralized policy, RF management and analytics; Instant mode is a lightweight option for smaller site deployments or distributed outdoor hotspots. Integration with Aruba's management platforms (on-premises controllers, Aruba Central cloud management, and AirWave in some environments) enables monitoring, firmware orchestration and client troubleshooting at scale.

Security features

• Enterprise authentication support including 802.1X/EAP and secure WPA2/WPA3 (feature availability depends on firmware generation).
• Guest access, captive portal options and role-based access controls for segmentation between guest and corporate traffic.
• Integrated RF protection features such as rogue detection and spectrum analysis (with the appropriate Aruba management tools or dedicated sensors).

Robust security controls are typical for Aruba APs and can be tied to centralized policy servers and AAA infrastructure to ensure outdoor clients receive the appropriate levels of access and containment.

Performance tuning and RF best practices

Channel planning and capacity

Outdoor AP deployments face unique RF challenges: multipath reflections from buildings, variable client orientations, co-channel interference from neighboring deployments, and environmental noise. Best practice includes mapping potential AP locations, using 5 GHz channels for capacity where possible, and reserving 2.4 GHz primarily for legacy or long-range connectivity. When using the AP-277:

• Prefer 80 MHz or 40 MHz channel widths on 5 GHz only when site surveys show limited adjacent deployments and regulatory constraints allow.
• Use adaptive power control and antenna orientation to minimize co-channel interference between neighboring sectors.
• Leverage Aruba ClientMatch™ and RF optimization features (if enabled) to steer clients to the best available AP and band for consistent performance.

Proper capacity planning reduces contention and maximizes per-user throughput across the coverage area.

Common deployment scenarios & use cases

Higher-education campuses and municipal Wi-Fi

Large campuses and municipal deployments benefit from the AP-277’s sectorized outdoor coverage and ruggedness. Typical use cases include perimeter coverage, quad/park hotspots, and outdoor event augmentation. The AP’s multi-antenna array and centralized management options make it straightforward to provide authenticated access for students, staff and guests while maintaining segregated guest services.

Retail and hospitality outdoor spaces

Retail shopping centers, outdoor dining areas, and resort properties use the AP-277 to deliver consistent guest Wi-Fi, POS connectivity for outdoor kiosks/terminals, and staff device access. Directional antenna patterns reduce unnecessary spill into adjacent properties while delivering strong client throughput in the intended service area.

Transit, parking and stadium perimeter

High-density foot traffic areas such as transit platforms, parking lots and stadium concourses can leverage AP-277s mounted at intervals to provide contiguous coverage for ticketing kiosks, wayfinding, and guest connectivity. Proper planning and channel reuse are key to maintaining high user experience during peak events.

Comparisons and positioning

AP-277 vs other Aruba outdoor models

• AP-277 — focused on sectorized directional outdoor coverage with 3x3 MIMO and strong environmental protection.
• Other 270-series units — may offer omni or different antenna patterns, or slightly different interface/PoE options; choose based on required coverage pattern and density.

Selecting the correct outdoor model depends on the site topology: choose directional (AP-277) for focused corridors and sectors; choose omni variants for circular coverage around a single pole or point. Always consult the Aruba datasheet for exact antenna patterns and mechanical dimensions.

Licensing, firmware and lifecycle considerations

Firmware and support

Aruba’s APs receive periodic firmware updates that include feature improvements, security patches and management enhancements. For outdoor deployments, maintaining firmware currency is particularly important due to evolving security threats and to preserve interoperability with newer client devices. Check Aruba/HPE support channels for the latest end-of-sale or end-of-support notices that may apply to specific model numbers. (Some parts in the 270 series have received end-of-sale notices in prior years; validate lifecycle status before large purchases.)
