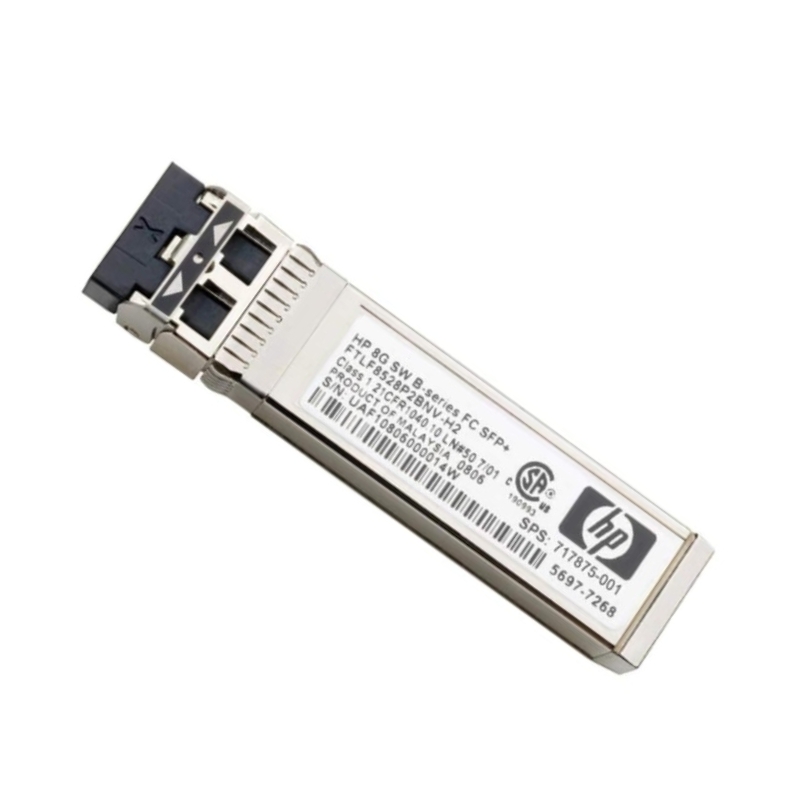

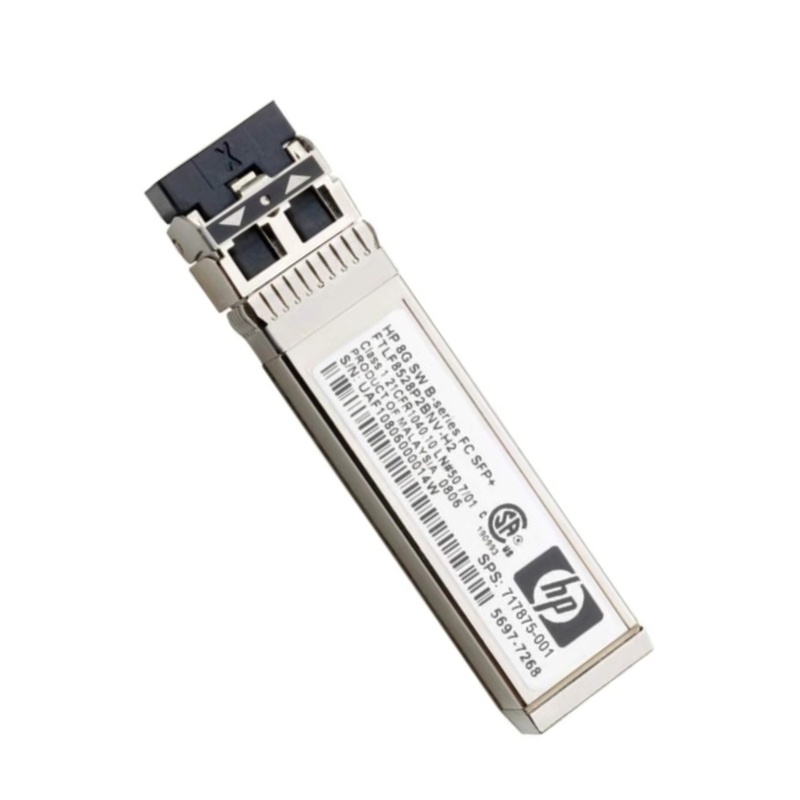

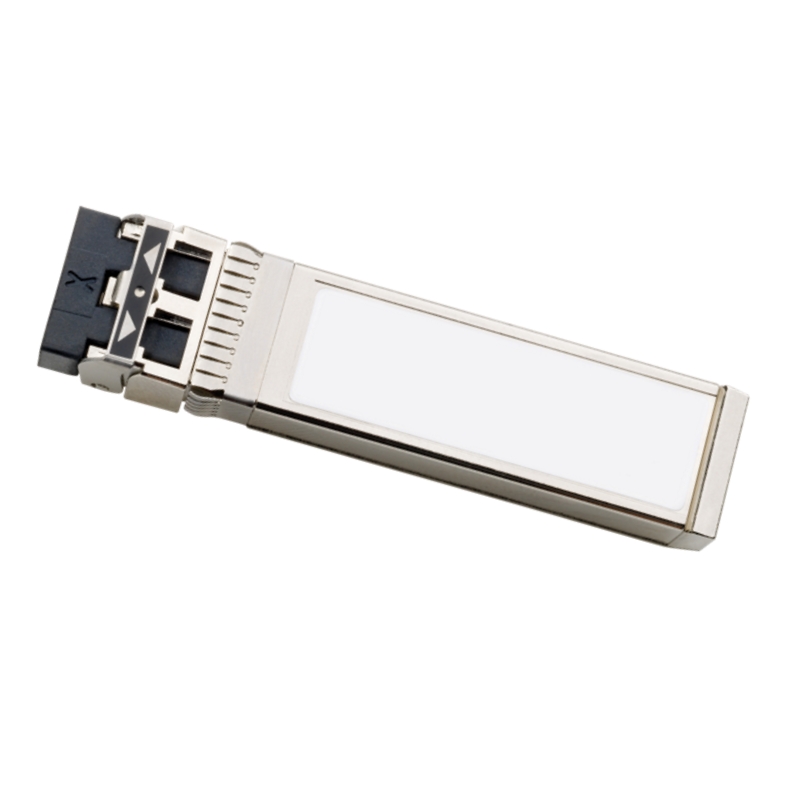

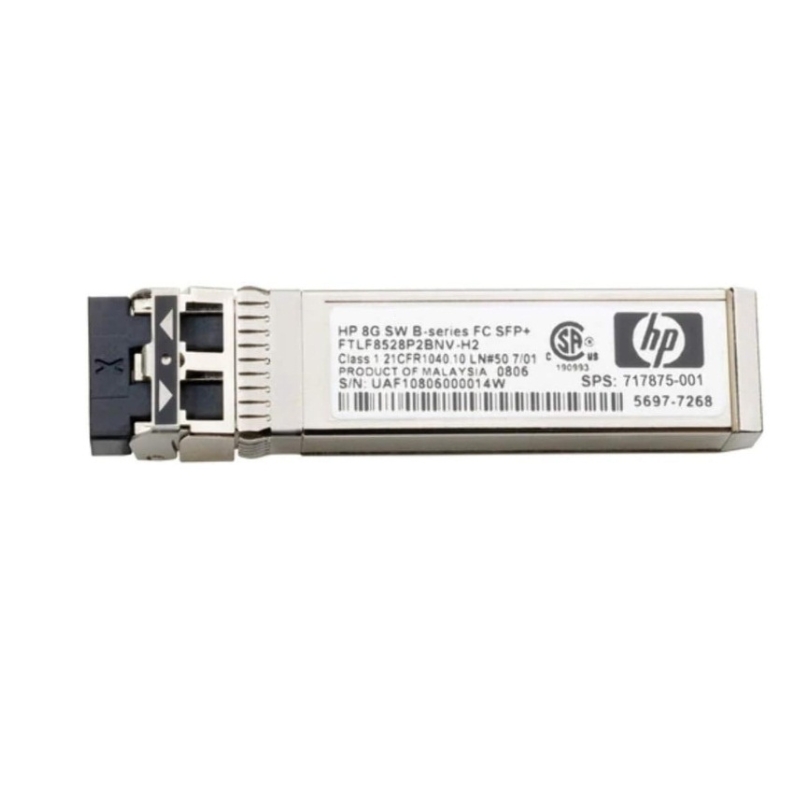

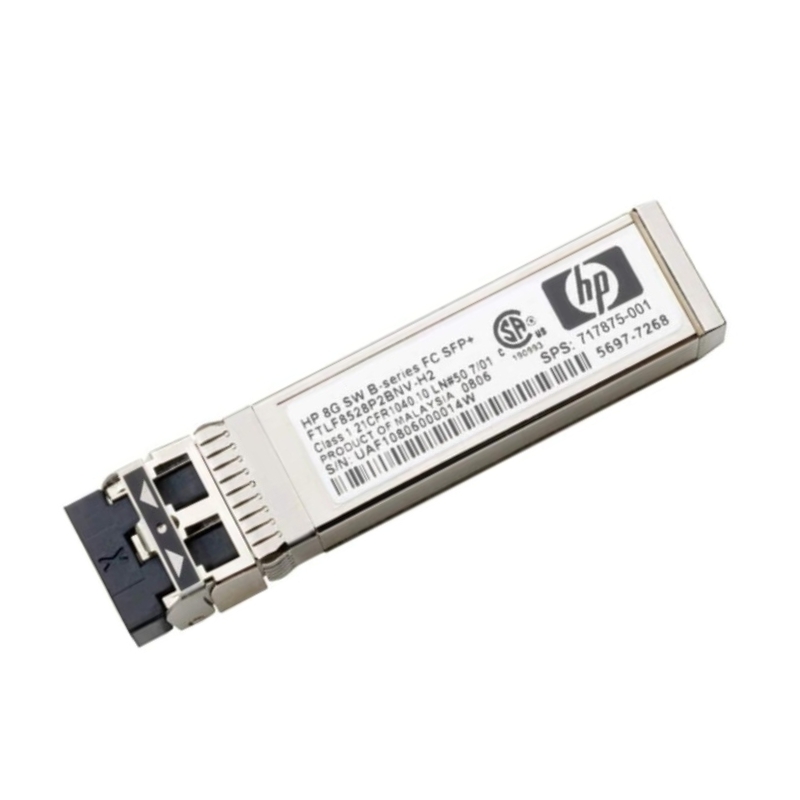

C8R23B HPE MSA 8GBPS SW FC SFP+ 4-Pack Transceiver

HPE MSA 8GBPS SW FC SFP+ Transceiver

Explore the advanced capabilities of the HPE MSA 8GB transceiver module, part number C8R23B. This high-performance networking component is designed to enhance connectivity and data transfer speeds for various networking applications.

Main Specifications

• Manufacturer: HPE
• Part Number: C8R23B
• Device Type: SFP+ Transceiver Module

Networking Capabilities

• Form Factor: Plug-in Module
• Technology: Wired
• Cabling Type: Fibre Channel
• Data Link Protocol: 8 Gb Fibre Channel (Short Wave)
• Data Transfer Rate: 8.5 Gbps

Expansion and Connectivity

• Interfaces: 1 x Network – 8 GB Fibre Channel (Short Wave)
• Compatible Slots: 1 x SFP+

Key Benefits

• Reliable fibre channel connectivity for enterprise storage
• Compact SFP+ design for easy integration
• High-speed data transfer for demanding workloads

Enterprise Storage Networking Optical Connectivity Overview

The HPE C8R23B MSA 8Gbps Short Wave Fibre Channel SFP+ 4-Pack Transceiver is positioned within the critical layer of enterprise storage networking where high-speed optical communication defines the reliability, scalability, and throughput of Storage Area Networks (SANs). These compact SFP+ modules are engineered to convert electrical signals into optical signals and vice versa, enabling seamless high-bandwidth communication across fiber optic infrastructure.

In enterprise SAN environments, particularly those leveraging HPE MSA (Modular Smart Array) systems, the demand for predictable latency, lossless data transport, and sustained throughput makes 8Gbps Fibre Channel technology a foundational layer. The HPE C8R23B 4-pack transceiver kit is designed to meet these requirements by offering short wave optical connectivity optimized for multimode fiber environments commonly deployed within data centers.

Technical Architecture of HPE C8R23B Fibre Channel SFP+ Modules

Optical Transmission Principles in 8Gbps Fibre Channel

The 8Gbps Fibre Channel architecture utilized in the HPE C8R23B module relies on short-wave laser optics typically operating at a wavelength of 850nm. This wavelength is optimized for multimode fiber (MMF) transmission, ensuring efficient signal propagation over short to medium distances within data center environments. The optical transceiver converts serialized electrical data into modulated light pulses that travel through fiber strands, maintaining signal integrity and minimizing attenuation.

Form Factor and SFP+ Integration Standards

The Small Form-factor Pluggable Plus (SFP+) design used in the HPE C8R23B module allows for hot-swappable installation into compatible Fibre Channel switches and storage controllers. The modular design ensures minimal downtime during upgrades or replacements. Each transceiver in the 4-pack adheres to strict HPE validation standards to ensure interoperability with MSA storage platforms and supported SAN switching infrastructure.

Signal Encoding and Data Integrity Mechanisms

Fibre Channel systems employ 8b/10b encoding to ensure clock recovery and maintain DC balance across the transmission medium. The HPE C8R23B module supports these encoding mechanisms while ensuring low bit error rates (BER). Forward error correction at the protocol layer, combined with optical signal stability, enhances reliability for mission-critical workloads such as virtualization, database replication, and enterprise backup operations.

Characteristics of HPE C8R23B MSA Fibre Channel Transceivers

Bandwidth Efficiency and Throughput Stability

The 8Gbps throughput capability of the HPE C8R23B transceiver provides predictable performance in environments where consistent storage access is required. Unlike burst-oriented networking protocols, Fibre Channel ensures dedicated bandwidth allocation, making it suitable for high-performance workloads in enterprise storage clusters. The transceiver maintains stable signal performance even under sustained high I/O loads typical of virtualized server farms.

Latency Optimization in Storage Area Networks

Latency is a critical factor in SAN performance, and the HPE C8R23B module is engineered to minimize optical and electrical conversion delays. Short wave transmission over multimode fiber ensures minimal propagation delay, while the optimized internal photonics reduce switching latency. This results in faster block-level storage access, which is essential for applications requiring real-time data processing.

Signal Distance Capabilities and Deployment Scenarios

The short wave optical design supports typical intra-data center distances, often ranging from a few meters up to several hundred meters depending on fiber grade. OM3 and OM4 multimode fibers are commonly used with these transceivers to maximize reach and maintain signal integrity. This makes the HPE C8R23B ideal for rack-to-rack or row-to-row SAN connectivity within enterprise facilities.

Integration with HPE MSA Storage Ecosystem

Compatibility with MSA Storage Arrays and Controllers

The HPE C8R23B MSA 8Gbps Fibre Channel SFP+ 4-Pack Transceiver is specifically validated for use with HPE MSA storage systems, ensuring seamless interoperability with storage controllers and Fibre Channel switches. This compatibility reduces configuration complexity and ensures that SAN deployments adhere to vendor-certified architectures, improving stability and supportability.

Role in MSA SAN Expansion and Scalability

In scalable storage environments, transceivers such as the HPE C8R23B enable expansion of SAN fabric without redesigning existing infrastructure. Organizations can add additional storage nodes, expand switch connectivity, or integrate new server clusters while maintaining consistent performance across the fabric. This modular scalability is a core advantage of Fibre Channel-based storage networking.

Interoperability with Fibre Channel Switch Fabrics

The HPE C8R23B transceivers operate within Brocade and Cisco Fibre Channel switch environments when configured under HPE interoperability matrices. These modules maintain consistent optical signaling standards, ensuring compatibility across heterogeneous SAN environments while still adhering to HPE-certified deployment frameworks.

Deployment and Installation Considerations

Hot-Swap Capability and Maintenance Efficiency

One of the key advantages of the SFP+ architecture is hot-swappability. The HPE C8R23B module can be inserted or removed without powering down the connected switch or storage device. This feature significantly reduces maintenance windows and ensures continuous availability of storage services in enterprise environments.

Fiber Cabling Requirements and Best Practices

Proper fiber cabling is essential for optimal performance. The HPE C8R23B transceiver is designed for multimode fiber infrastructures, requiring precise connector cleanliness and correct polishing standards. Data center technicians must ensure that LC connectors are properly aligned and free from contamination to prevent signal degradation and insertion loss.

Environmental and Physical Installation Factors

Temperature control, airflow management, and rack density play a crucial role in maintaining transceiver reliability. The HPE C8R23B modules are engineered to operate within standard enterprise data center environmental ranges, but optimal performance is achieved when airflow is properly managed to prevent overheating of adjacent switching hardware.

Reliability Engineering and Lifecycle Management

Enterprise-Grade Quality Assurance Standards

Each HPE C8R23B module undergoes rigorous testing for optical performance, signal integrity, and compatibility validation. These quality assurance processes ensure that the transceivers meet enterprise-grade expectations for continuous operation in mission-critical SAN environments. Reliability testing includes stress validation under variable temperature and load conditions.

Lifecycle Management in Storage Infrastructure

Lifecycle management of Fibre Channel transceivers involves monitoring optical performance degradation over time. The HPE C8R23B modules are designed for long operational life, but administrators often incorporate proactive replacement strategies as part of SAN lifecycle planning to ensure zero downtime in high-availability environments.

Failure Detection and Diagnostic Integration

Modern SAN management tools can monitor optical signal strength, error rates, and link status. The HPE C8R23B supports diagnostic features that allow administrators to detect early warning signs of degradation. This proactive monitoring enhances overall system reliability and prevents unexpected downtime in production environments.

Use Cases in Enterprise and Data Center Environments

Virtualization and Cloud Infrastructure Support

Virtualized environments require consistent and high-throughput storage access. The HPE C8R23B transceivers support hypervisor-driven workloads by ensuring stable SAN connectivity between virtual machine hosts and shared storage arrays. This is critical for platforms supporting VMware, Hyper-V, and other enterprise virtualization stacks.

Database and Transactional Workload Acceleration

Database systems rely heavily on low-latency storage access. The predictable performance of 8Gbps Fibre Channel connectivity ensures that transactional systems such as ERP and CRM platforms can operate efficiently without bottlenecks. The HPE C8R23B contributes to reducing I/O wait times and improving query response consistency.

Backup, Archival, and Disaster Recovery Systems

Enterprise backup systems require sustained throughput for large data transfers. The HPE C8R23B modules support high-speed replication and backup operations across SAN fabrics, ensuring that data protection strategies remain efficient and reliable even during peak usage periods.

Performance Optimization Strategies

Fabric Tuning and Traffic Management

Optimizing Fibre Channel SAN performance involves proper fabric configuration, zoning strategies, and load balancing. The HPE C8R23B transceivers provide the physical layer stability required for these optimizations, allowing administrators to focus on logical network configuration without concerns about optical instability.

Balancing Workloads Across SAN Paths

Multipathing configurations ensure redundancy and load distribution across multiple Fibre Channel links. The consistent performance of HPE C8R23B modules ensures that failover and load balancing mechanisms operate smoothly without introducing latency spikes or packet loss.

Security and Data Integrity in Fibre Channel Networks

Physical Layer Security Advantages

Fibre Channel networks inherently provide higher security compared to traditional Ethernet networks due to their isolated fabric architecture. The HPE C8R23B contributes to this secure environment by enabling dedicated storage pathways that are not exposed to general network traffic.

Data Integrity Assurance Mechanisms

Error detection, CRC validation, and lossless transport mechanisms ensure that data transmitted through HPE C8R23B transceivers remains intact. These features are critical for preventing corruption in sensitive enterprise datasets.
