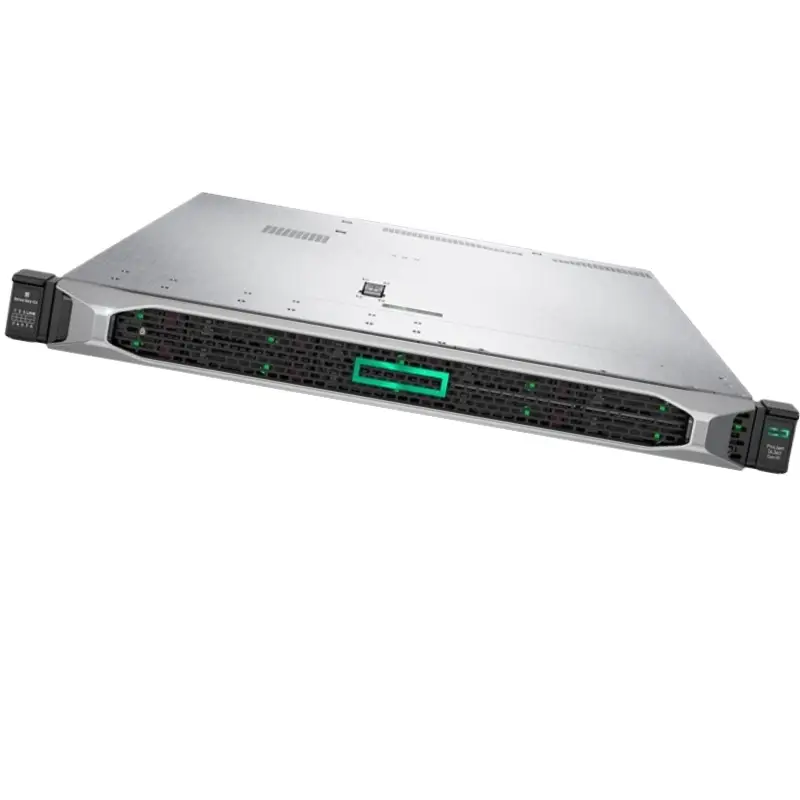

HPE P02722-B21 Xeon 2.2GHz Server 18-Core 2P 64GB-R P408I-A 8SFF 800W RPS

RAM

The HPE Xeon 2.2GHz Server 18-Core 2P is equipped with an impressive 64GB-R RAM, which plays a crucial role in enhancing the performance and efficiency of the server. In this section, we will explore the benefits and importance of this feature in detail.

General Details of Xeon 2.2GHz

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P02722-B21
• Product Name: ProLiant DL380 Gen10 - 1U Rack-Mountable Server (High Performance Model)

Processor & Chipset

• Processor: 2nd Gen Intel Xeon Gold 5220, 2.2 GHz
• Max Turbo Frequency: 3.9 GHz
• Core Count: 18 cores
• Processor Quantity: 2 CPUs
• Max CPUs Supported: 2
• Upgrade Capability: Upgradable

Main Processor Features

• Hyper-threading Technology
• Intel Turbo Boost Technology 2
• Intel Smart Cache

Chipset Details

• Chipset Type: Intel C621

Cache Memory

• Installed Cache Size: L3 Cache - 49.5 MB
• Cache Per Processor: 24.75 MB

Memory Configuration

• Installed Memory Size: 64 GB, expandable up to 2 TB
• Memory Type: DDR4 SDRAM
• Effective Memory Speed: 2666 MHz
• Rated Memory Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total (22 available)

Memory Features

• Registered
• Online Spare Memory
• Dual Rank
• HPE SmartMemory
• 6-channel Memory Architecture

Supported RAM

• 2 TB Registered
• 6 TB Load-reduced
• 192 GB Non-volatile

Storage Controllers

• Type: 1 x RAID - PCIe 3.0 x8
• Controller Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking & Communication

• Interface Type: FlexibleLOM
• Ethernet Ports: 4 x Gigabit Ethernet, 2 x 25 Gigabit Ethernet
• Ethernet Controller: HPE 640FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• External Bays: 1 total / 1 free
• Hot-swap Bays: 8 total / 8 free (2.5" SFF)
• PCIe Slots:
  • 1 x PCIe 3.0 x16 - Three-quarter-length, Full-height (1 free)
  • 1 x PCIe 3.0 x8 - Low-profile (0 free)
  • 1 x FlexibleLOM - Three-quarter-length, Full-height (low-profile) (0 free)
• MicroSD Card Slot: 1 internal (1 free)

Interfaces

• 8 x SATA-600 / SAS 3.0
• 1 x HPE iLO - Type A (front)
• 1 x HPE iLO - RJ-45 (rear)
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x VGA (rear)
• 4 x LAN (Gigabit Ethernet) - RJ-45 (rear)
• 2 x LAN (25 Gigabit Ethernet) (SFP28) (rear)

Additional Information

• CPU Standard Heatsink
• 7 x High-Performance Fans
• SFF Easy Install Rails

Compliance Standards

• AES
• WEB
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

• Device Type: Power Supply - Hot-plug
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

Having a substantial amount of RAM is essential for a server, especially when dealing with resource-intensive tasks and applications. The 64GB-R RAM ensures that the server can handle multiple processes simultaneously without experiencing any lag or slowdown. This allows for seamless multitasking and efficient execution of complex operations.

Improved Data Processing

RAM plays a vital role in data processing as it serves as temporary storage for information that needs to be accessed quickly. With 64GB-R RAM, the server can store and retrieve large amounts of data rapidly, resulting in faster response times and reduced latency. This is particularly advantageous for businesses that rely on real-time data processing and analysis.

Optimized Virtualization

Virtualization has become increasingly popular as it allows businesses to maximize their server resources by running multiple virtual machines simultaneously. However, virtualization can be resource-intensive, requiring significant amounts of RAM to ensure smooth operation. The 64GB-R RAM provides ample capacity to support virtualization, enabling businesses to run numerous virtual machines without compromising performance.

Scalability

One of the key advantages of the HPE Xeon 2.2GHz Server 18-Core 2P's 64GB-R RAM is its scalability. As businesses grow and their requirements evolve, they may need to expand their server's capabilities to accommodate increased workloads. The server's RAM can be upgraded easily, allowing organizations to scale up their operations without the need for extensive hardware changes or disruptions in service.

Efficient Resource Management

With 64GB-R RAM, the server can efficiently manage its resources and allocate them as needed. This ensures that each task or application receives the necessary amount of memory, preventing bottlenecks and optimizing overall system performance. Efficient resource management also contributes to energy savings as the server can operate more efficiently, reducing power consumption and minimizing costs.

Reliability and Redundancy

The HPE Xeon 2.2GHz Server 18-Core 2P's 64GB-R RAM offers reliability and redundancy, which are crucial for businesses that rely heavily on their servers. In the event of a hardware failure or error, the server can utilize its redundant memory modules to continue operating without interruption. This ensures maximum uptime and minimizes the risk of data loss or downtime.

Future-Proofing

Investing in a server with ample RAM, such as the HPE Xeon 2.2GHz Server 18-Core 2P's 64GB-R RAM, is a wise decision for future-proofing your infrastructure. As technology advances and software requirements become more demanding, having sufficient memory will enable your server to meet future needs without requiring immediate upgrades or replacements.

Conclusion:

In conclusion, the HPE Xeon 2.2GHz Server 18-Core 2P's 64GB-R RAM is a valuable feature that enhances performance, improves data processing, optimizes virtualization, allows for scalability, enables efficient resource management, provides reliability and redundancy, and ensures future-proofing. With its substantial memory capacity, this server is well-equipped to handle demanding workloads and support the growth of businesses across various industries.
