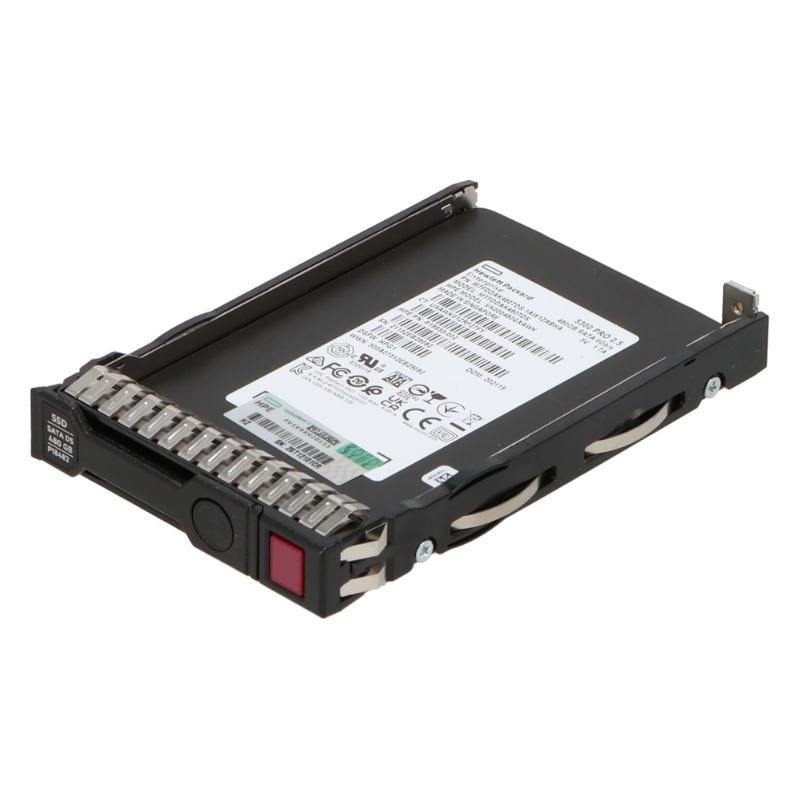

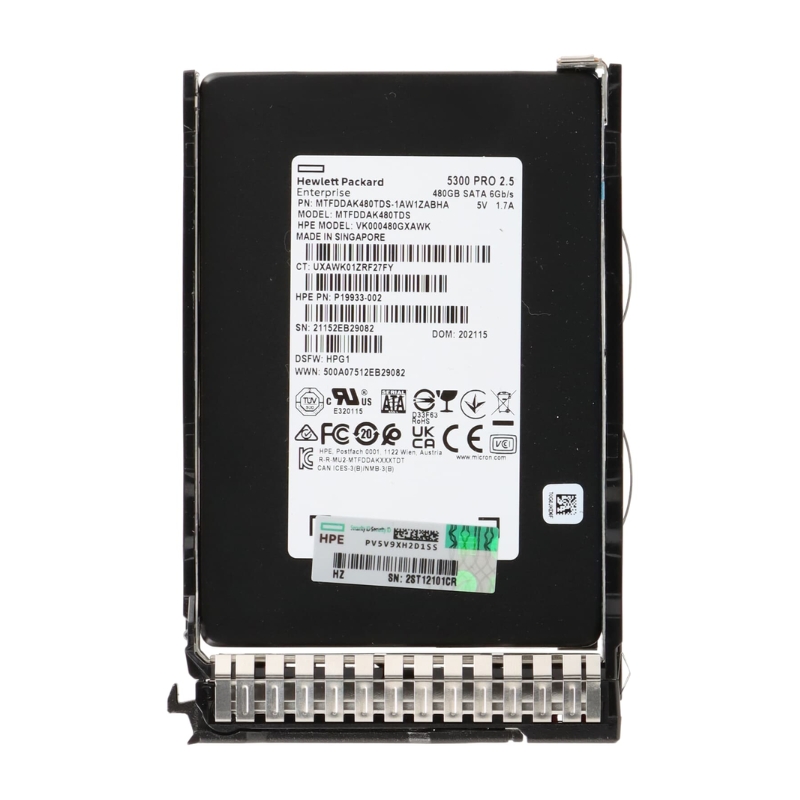

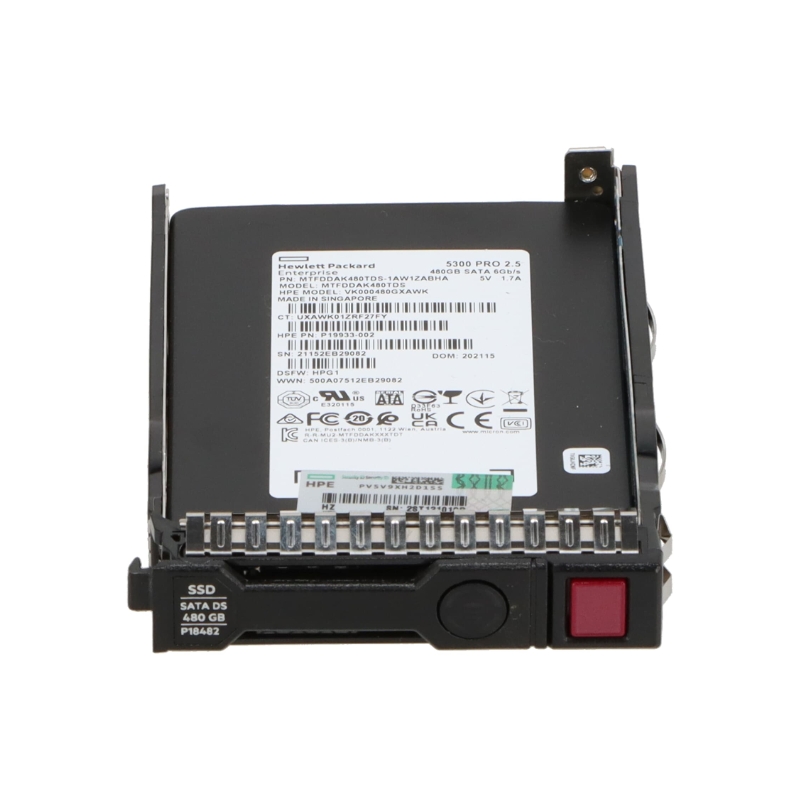

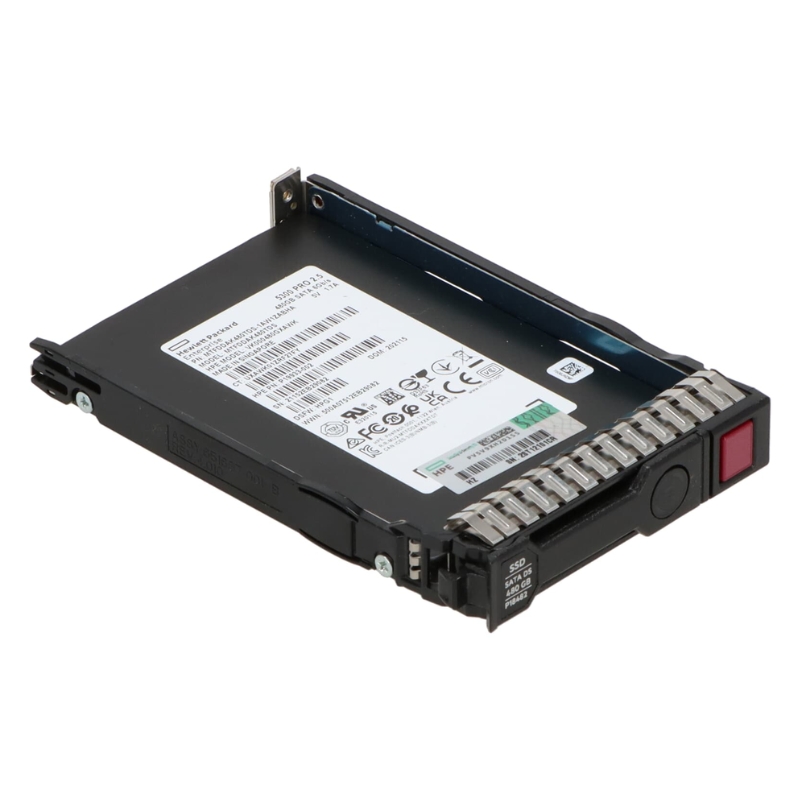

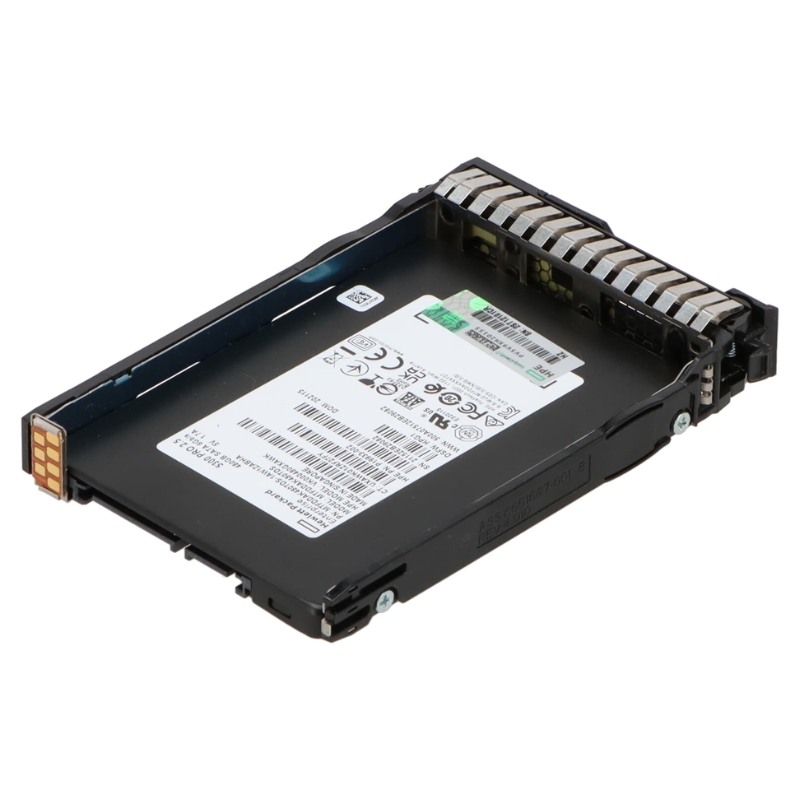

HPE P05960-002 480GB SATA 6GBPS TLC Mixed Use 2.5inch SSD

Product Details

General Specifications

• Device Type: Hot-swappable Solid State Drive
• Capacity: 480GB
• Form Factor: 2.5-inch SFF
• Interface: SATA 6Gbps
• NAND Flash Memory: Triple-Level Cell (TLC)
• Plug Type: Hot Pluggable
• Connectivity: Single
• Carrier Type: Basic Carrier (BC)
• Workload Type: Mixed Use
• Bundled Item: HPE Basic Carrier (BC)
• Features: Digitally Signed Firmware (DS)
• Platform Support: HPE ProLiant Rack
• Height: 15mm

Performance Specifications

• Writes Over 90 Days: 3000 TB
• Endurance (DWPD): 3.50 Drive Writes Per Day
• Drive Transfer Rate: 6 Gbps (external)
• Sequential Reads Throughput (Mib/s): 530
• Sequential Writes Throughput (Mib/s): 480
• Random Read Average Latency (4K, Q1): 110 µs
• Random Write Average Latency (4K, Q1): 52 µs
• Random Read IOPS (4K, Q=16): 68,000
• Random Write IOPS (4K, Q=16): 40,000
• Max Random Read IOPS (4K, Q32): 76,000
• Max Random Write IOPS (4K, Q32): 42,000

Power Consumption

• Idle: 1.31W
• Random Read: 2.94W
• Random Write: 2.94W
• Sequential Read: 2.32W
• Sequential Write: 3.33W
• Random Read/Write: 2.94W
• Max Power: 3.33W

Expansion & Connectivity

• Compatible Bay: 2.5-inch SFF

Device Compatibility

Supported HPE ProLiant DL Series

• DL20 Gen10 Plus (2.5-inch)
• DL20 Gen10 Plus Base (2.5-inch)
• DL20 Gen10 Plus Entry (2.5-inch)
• DL20 Gen10 Plus High Performance (2.5-inch)
• DL20 Gen10 Plus Performance (2.5-inch)
• DL325 Gen10 Plus V2 (2.5-inch)
• DL325 Gen10 Plus V2 Base (2.5-inch)
• DL325 Gen10 Plus V2 For Weka Base Tracking (2.5-inch)
• DL325 Gen10 Plus V2 Performance (2.5-inch)
• DL345 Gen10 Plus (2.5-inch)
• DL345 Gen10 Plus Base (2.5-inch)
• DL345 Gen10 Plus Entry (2.5-inch)
• DL360 Gen10 Plus (2.5-inch)
• DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5-inch)
• DL360 Gen10 Plus For Weka Base Tracking (2.5-inch)
• DL360 Gen10 Plus Network Choice (2.5-inch)
• DL365 Gen10 Plus (2.5-inch)
• DL380 Gen10 Plus (2.5-inch)
• DL380 Gen10 Plus Network Choice (2.5-inch)

HPE P05960-002 480GB SATA 6GBPS TLC Mixed Use 2.5inch Hot-swap Solid State Drive

Overview of HPE Solid State Drives

Hewlett Packard Enterprise (HPE) is recognized globally for providing high-performance computing solutions that cater to a range of business needs. Among their extensive portfolio of storage solutions, HPE Solid State Drives (SSDs) stand out for their reliability, speed, and efficiency. The HPE P05960-002 is one such high-quality SSD offering, designed for both enterprise and data center applications that demand speed and stability.

As businesses continue to rely on faster data access and processing, HPE's innovative SSD technology meets those demands, ensuring robust performance and an efficient storage solution that can handle heavy workloads. In this category, we will take an in-depth look at the features and benefits of the HPE P05960-002 480GB SATA 6GBPS TLC Mixed Use 2.5inch Hot-swap Solid State Drive, and how it fits into the broader landscape of HPE SSD offerings.

Key Features of the HPE P05960-002 SSD

Capacity and Storage Performance

The HPE P05960-002 offers a 480GB capacity, which is ideal for organizations looking to optimize performance while maintaining a reasonable storage footprint. With an SSD, you can expect rapid data access and retrieval speeds, far surpassing the performance of traditional hard disk drives (HDDs). The 480GB capacity allows for efficient storage of critical business applications and workloads, providing plenty of space for high-performance tasks without compromising on speed.

SATA 6Gbps Interface

The P05960-002 utilizes the SATA 6Gbps interface, which delivers reliable and fast data transfer speeds. The 6Gbps speed ensures that data is transferred swiftly between the drive and the system, contributing to faster boot times, improved application performance, and reduced latency. This interface is widely supported and is compatible with a variety of servers, workstations, and other enterprise-grade systems, making it a versatile choice for many storage applications.

Mixed Use and TLC Technology

Designed as a Mixed Use drive, the HPE P05960-002 is engineered to handle both read and write-intensive workloads. It supports multiple use cases, including databases, virtualized environments, and other applications where both types of operations need to be managed efficiently. By offering a balance between read and write performance, the P05960-002 caters to diverse enterprise storage needs.

Additionally, the drive uses Triple-Level Cell (TLC) NAND flash technology. TLC SSDs store three bits of data per cell, providing a higher storage density at a lower cost compared to Single-Level Cell (SLC) or Multi-Level Cell (MLC) SSDs. This makes the P05960-002 an affordable yet high-performance solution suitable for a wide range of enterprise applications that do not require the extreme endurance of SLC SSDs but still demand impressive performance for everyday tasks.

Performance Benefits of the HPE P05960-002 SSD

Enhanced Speed for Faster Data Access

With its SATA 6Gbps interface, the P05960-002 offers read and write speeds that are far superior to traditional hard drives. This improvement in data throughput translates into faster application load times, quicker file transfers, and an overall increase in system performance. The responsiveness of the SSD ensures that organizations can effectively manage large datasets and handle demanding applications with ease.

Reduced Latency for Improved User Experience

The low latency of the P05960-002 SSD ensures that data retrieval occurs almost instantaneously. This makes the drive particularly beneficial for real-time applications, such as those used in financial services, video editing, or data analytics. The drive’s low latency ensures minimal delay in accessing critical data, leading to a smoother and more responsive user experience.

Power Efficiency

Compared to traditional HDDs, SSDs consume less power, making them an environmentally-friendly choice. The HPE P05960-002 features low power consumption, which helps reduce overall energy costs in data centers or enterprise environments. This energy efficiency is a significant advantage for businesses looking to optimize their infrastructure without sacrificing performance.

Hot-swap Capability for Increased Flexibility

One of the standout features of the HPE P05960-002 is its hot-swap capability. Hot-swapping allows the SSD to be replaced or added without shutting down the system. This is crucial for maintaining continuous uptime in mission-critical applications, reducing downtime, and allowing for seamless upgrades or replacements of drives. The ability to perform maintenance without taking systems offline is particularly beneficial for large-scale data centers or businesses that require 24/7 availability.

Support for Redundancy and Reliability

The hot-swap functionality also works in tandem with advanced RAID configurations, ensuring redundancy and data protection in the event of a failure. By integrating the P05960-002 SSD into a RAID setup, businesses can achieve higher levels of data availability and reliability, protecting against data loss and maintaining system uptime.

Applications of the HPE P05960-002 SSD

Data Centers

The HPE P05960-002 is a prime candidate for use in data centers, where high-performance and reliability are paramount. With its speed, mixed-use functionality, and hot-swap capabilities, this SSD ensures that data is readily available for mission-critical applications. Whether used for hosting virtualized environments, large databases, or high-demand applications, the P05960-002 ensures that performance is never compromised.

Enterprise Servers

For enterprise server environments, the P05960-002 provides the necessary storage reliability and speed to handle complex workloads. Its 480GB capacity is ideal for applications that require fast access to large datasets, such as customer relationship management (CRM) systems, enterprise resource planning (ERP) solutions, and other business-critical software.

Virtualized Environments

Virtualization workloads, which demand both read and write-intensive operations, benefit from the mixed-use nature of the P05960-002. This SSD is well-suited to support virtual machine storage, ensuring that virtualized applications operate smoothly without bottlenecks. With improved random read/write performance, the P05960-002 contributes to faster VM boot times and better overall performance for virtual environments.

Storage Expansion and Backup

For businesses looking to expand their storage capacity, the P05960-002 offers an efficient and reliable solution. The 480GB storage capacity makes it an excellent option for backing up critical business data, ensuring that essential files and systems are securely stored while maintaining high data access speeds. Its hot-swap functionality allows for easy integration into existing storage arrays, making it a flexible choice for businesses needing to scale their storage quickly and efficiently.

Compatibility and Integration

Easy Integration with HPE Servers

The HPE P05960-002 is designed to work seamlessly with HPE’s wide range of enterprise servers, ensuring that businesses can take full advantage of the performance benefits this SSD provides. Its compatibility with HPE ProLiant and HPE Apollo servers makes it an excellent choice for enterprises already utilizing HPE’s server infrastructure.

Third-Party Compatibility

Although it is optimized for HPE systems, the P05960-002 can also be used with other third-party servers and storage systems that support the SATA 6Gbps interface. This flexibility makes the drive a versatile option for businesses that may use a mix of hardware vendors within their data centers or server farms.

Durability and Endurance

Built to Endure Heavy Workloads

The HPE P05960-002 features high endurance and is built to withstand demanding environments. Its durability ensures that the drive will perform reliably over its lifespan, even under heavy write-intensive workloads. While TLC NAND typically has lower endurance than other types of NAND, the P05960-002 has been optimized to provide a balanced solution that offers both cost-effectiveness and endurance suitable for most enterprise environments.

Advanced Wear-Leveling for Longevity

HPE incorporates advanced wear-leveling algorithms to ensure that data is distributed evenly across the drive’s NAND cells. This prolongs the lifespan of the SSD and helps prevent premature failure due to excessive wear on specific areas of the drive. With wear-leveling, the P05960-002 ensures consistent performance over time, even with heavy usage.
