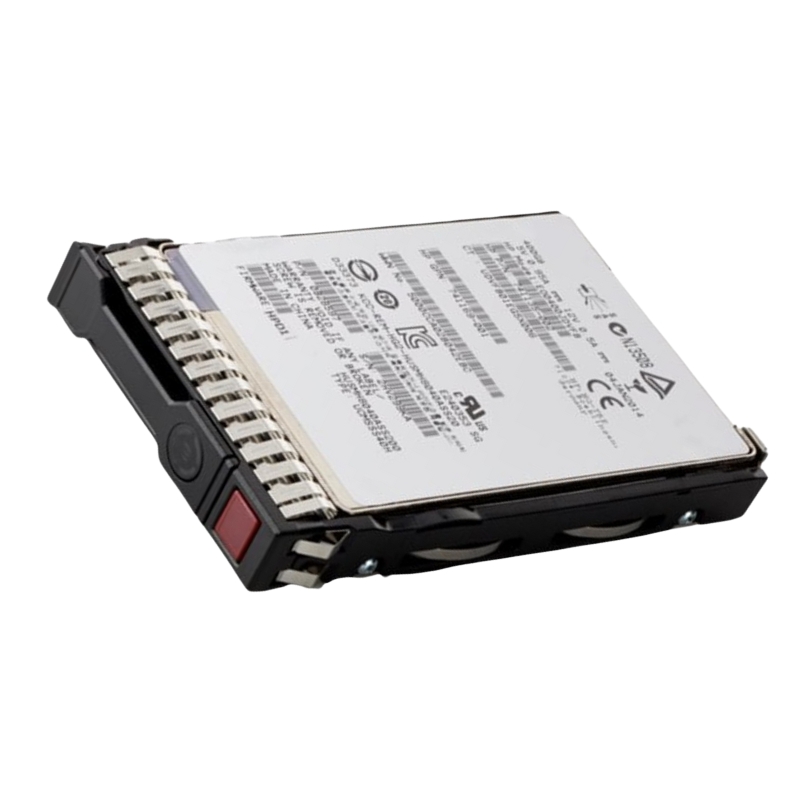

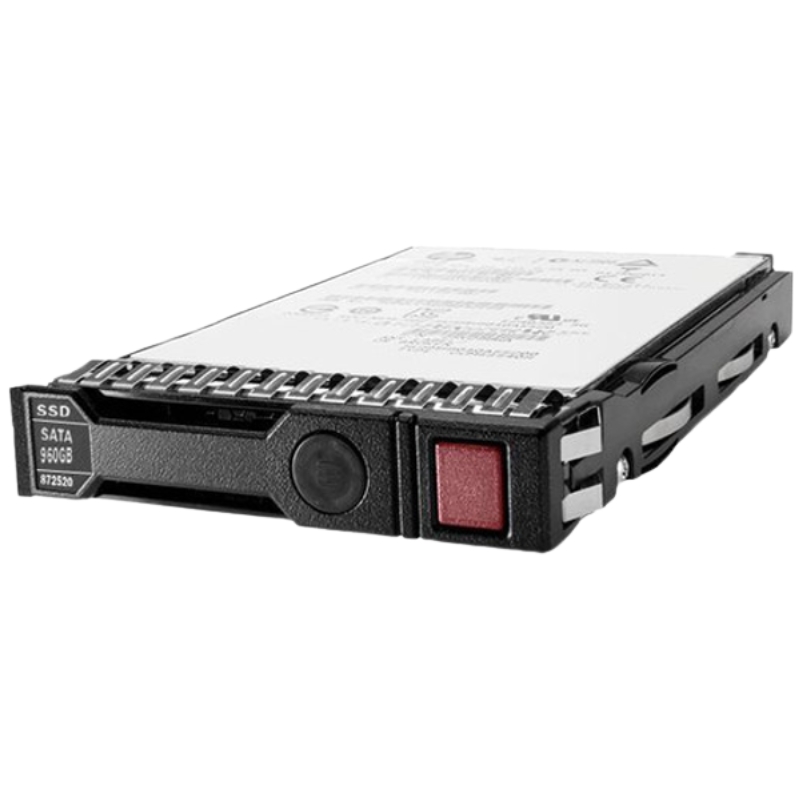

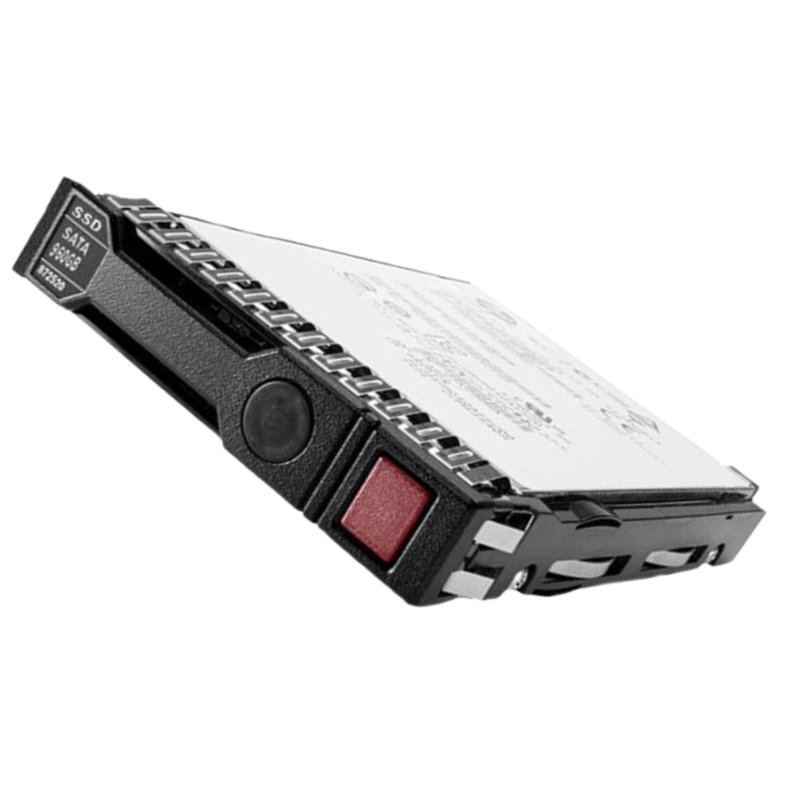

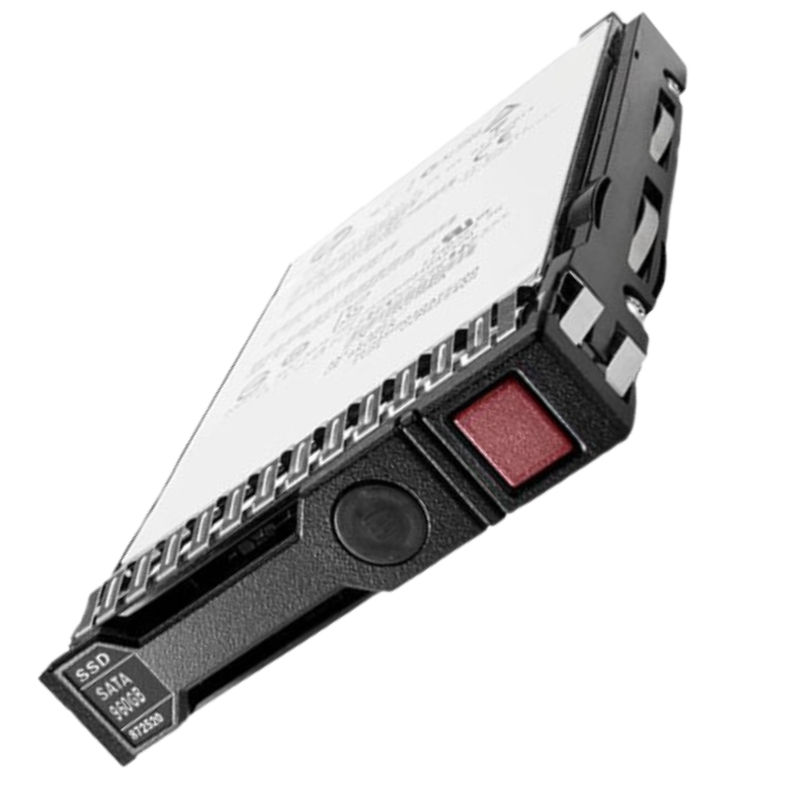

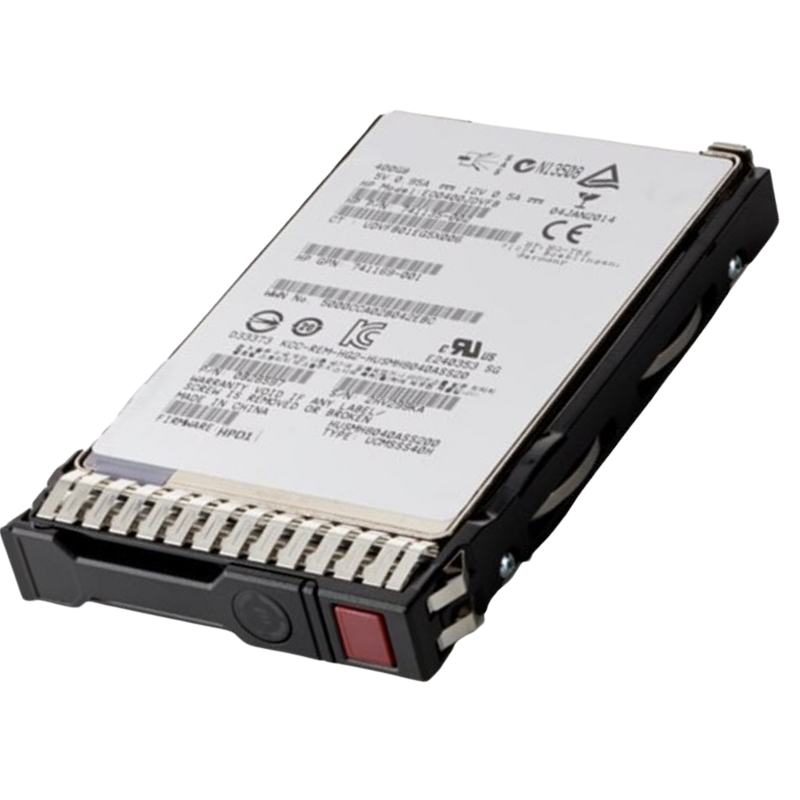

HPE P09691-H21 960GB SATA 3.5" SSD

HPE Read Intensive Solid State Drive (SSD) - 960 GB

Key Features

• Storage Type: Hot-swappable solid-state drive (SSD)
• Storage Capacity: 960 GB
• Memory Type: Multi-Level Cell (MLC) NAND Flash
• Form Factor: 3.5-inch large form factor (LFF)
• Interface: SATA 6 Gb/s with a transfer rate of 600 MB/s
• Firmware: Digitally signed for enhanced security
• Dimensions: 0.3 inches in height, includes HPE low profile converter

Extended Specifications

• Device Type: Hot-swappable solid-state drive (SSD)
• Capacity: 960 GB, offering high-density storage
• NAND Flash Memory: Multi-Level Cell (MLC) technology for durability and performance
• Physical Size: 3.5-inch LFF for seamless compatibility
• Interface: SATA 6 Gb/s ensuring swift data transfers
• Security: Equipped with digitally signed firmware for robust data protection
• Height: Slim 0.3-inch design, bundled with HPE low profile converter

Performance Metrics

• 90-day writes: 1400
• Endurance Rating: 0.80 drive writes per day (DWPD)
• External Drive Transfer Rate: 6 Gb/sec for rapid data transmission
• Max Sequential Read Throughput: 535 MiB/s
• Max Sequential Write Throughput: 495 MiB/s
• Random Read Average Latency (4KiB, Q1): 105 µs
• Random Write Average Latency (4KiB, Q1): 36 µs
• Random Read IOPS (4KiB, Q=16): 65,000
• Random Write IOPS (4KiB, Q=16): 29,000
• Max Random Read IOPS (4KiB, Q=32): 76,000
• Max Random Write IOPS (4KiB, Q=4): 29,000

Expansion and Connectivity

• Interface: Single SATA 6 Gb/s port
• Compatible Bays: Designed for 3.5-inch LFF drive bays

Compatible Systems

HPE Apollo Series

• Apollo 4200 Gen9 (3.5-inch bay)

HPE ProLiant DL Series

• DL180 Gen10 (3.5-inch)
• DL180 Gen10 Entry (3.5-inch)
• DL325 Gen10 (3.5-inch)
• DL325 Gen10 Base (3.5-inch)
• DL325 Gen10 Entry (3.5-inch)
• DL325 Gen10 Performance (3.5-inch)
• DL325 Gen10 SMB Solution (3.5-inch)

HPE ProLiant ML Series

• ML110 Gen10 (3.5-inch)
• ML110 Gen10 Entry (3.5-inch)
• ML110 Gen10 Performance (3.5-inch)
• ML110 Gen10 Solution (3.5-inch)
• ML30 Gen10 (3.5-inch)
• ML30 Gen10 Entry (3.5-inch)
• ML30 Gen10 Performance (3.5-inch)
• ML30 Gen10 Solution (3.5-inch)
• ML350 Gen10 (3.5-inch)
• ML350 Gen10 Base (3.5-inch)
• ML350 Gen10 Entry (3.5-inch)
• ML350 Gen10 High Performance (3.5-inch)
• ML350 Gen10 SMB (3.5-inch)
• ML350 Gen10 Solution (3.5-inch)
• ML350 Gen10 Special Server (3.5-inch)
• ML350 Gen10 Sub-entry (3.5-inch)

Capacity: 960GB

Benefits of a Large Storage Capacity

When it comes to storage devices, having a large capacity is a crucial aspect that directly impacts the overall efficiency and performance of your system. The HPE P09691-H21 SSD offers an impressive capacity of 960GB, providing ample space to store all your important files, applications, and data. Here are some notable benefits of this substantial storage capacity:

1. More Room for Data

With 960GB of storage, this SSD allows you to store a vast amount of data without worrying about running out of space. Whether you are a professional who deals with large files or a casual user who loves to store multimedia content, the generous capacity ensures that you never have to compromise on what you want to keep on your device.

2. Enhanced Performance

Having a larger storage capacity can positively impact the performance of your system. With more space available, the HPE P09691-H21 SSD can efficiently manage data, resulting in faster read and write speeds. This translates into reduced loading times for applications and quicker transfer of files, ultimately boosting your overall productivity.

3. Room for Future Growth

Investing in a storage device with a significant capacity like 960GB ensures that you have room for future growth. As technology advances and file sizes continue to increase, having enough space becomes even more crucial. With this SSD, you can be confident that you won't run out of storage anytime soon, allowing you to seamlessly adapt to future needs without the hassle of upgrading or replacing your storage device.

4. Simplified Organization

A larger storage capacity simplifies the organization of your files and data. With ample space available, you can keep everything organized in one place, making it easier to locate and access your files whenever you need them. This leads to improved efficiency, as you spend less time searching for specific documents or media files.

5. Reliable Backup Solution

The 960GB capacity of the HPE P09691-H21 SSD also makes it an excellent option for creating reliable backups. With enough space to store multiple backups, you can ensure the safety and integrity of your data. Having a secure backup solution is crucial to protect against data loss due to hardware failures, accidental deletion, or malware attacks.

Importance of 960GB Capacity

The importance of a 960GB capacity cannot be overstated, especially in today's data-driven world. Here are some key reasons why this capacity is essential for users:

1. Professional Use

Professionals who work with large files, such as graphic designers, video editors, and architects, rely heavily on ample storage space. The 960GB capacity provides these professionals with the necessary room to store their projects, ensuring smooth workflow and preventing any interruptions due to insufficient storage.

2. Gaming Enthusiasts

Gamers are known for their vast collections of games, which often occupy a significant amount of storage space. With a 960GB capacity, gamers can install and store numerous games without worrying about constantly deleting and reinstalling them to free up space. This allows them to have all their favorite games readily accessible for an immersive gaming experience.

3. Media Content Creators

Content creators, including photographers, videographers, and musicians, generate a substantial amount of data through their work. The 960GB capacity enables them to store their high-resolution photos, videos, and audio files without compromising on quality or quantity. This ensures that they have easy access to their content for editing and sharing purposes.

4. Business and Enterprise Users

Businesses and enterprises deal with vast amounts of data on a daily basis. Whether it's managing customer information, financial records, or large databases, having a 960GB capacity is crucial to accommodate the ever-increasing volume of data. This capacity allows businesses to efficiently store, manage, and access their critical data, ensuring smooth operations and optimal productivity.

5. Personal Use

Even for everyday users, having a 960GB capacity offers peace of mind. It allows them to store their personal documents, photos, videos, and music libraries without worrying about running out of space. This capacity also accommodates future needs, such as software updates or new applications, ensuring that users can seamlessly expand their digital footprint without limitations.

With its impressive 960GB capacity, the HPE P09691-H21 SSD provides users with a reliable, high-performance storage solution that meets their diverse needs. Whether you are a professional in need of ample space for your work or a casual user looking for an efficient and future-proof storage option, this SSD offers the perfect balance between capacity and performance.

Interface: SATA 6GBPS

Benefits of SATA 6GBPS Interface

The interface of a storage device plays a crucial role in determining its performance and compatibility with various systems. The HPE P09691-H21 SSD features a SATA 6GBPS interface that offers several benefits for users. Let's explore these advantages in detail:

1. Increased Data Transfer Speeds

One of the primary benefits of the SATA 6GBPS interface is its ability to deliver faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second (Gbps), this interface ensures swift communication between the SSD and the host system. This results in reduced loading times for applications, quicker file transfers, and improved overall system responsiveness.

2. Backward Compatibility

Another significant advantage of the SATA 6GBPS interface is its backward compatibility with previous SATA versions. This means that the HPE P09691-H21 SSD can be used with systems that have SATA II (3GBPS) or SATA I (1.5GBPS) interfaces, providing flexibility and compatibility across a wide range of devices. Whether you have an older computer or a modern system, this SSD can seamlessly integrate into your setup.

3. Wide Availability

The SATA interface has been widely adopted in the computer industry, making it highly accessible and compatible with various devices. This means that finding compatible cables, connectors, and motherboards is relatively easy, ensuring a hassle-free installation process for users. The widespread availability of SATA 6GBPS also means that you can easily upgrade your existing storage device without having to replace other components of your system.

4. Cost-Effective Solution

Compared to other high-speed interfaces like PCIe, the SATA 6GBPS interface offers a cost-effective solution for users who require fast data transfer speeds but are mindful of their budget. The affordability of this interface makes it an attractive choice for both personal and business users who want to enhance their system's performance without breaking the bank.

5. Reliable Performance

The SATA interface has proven to be highly reliable over the years, and the SATA 6GBPS interface is no exception. With its robust design and widespread usage, users can expect a stable and consistent performance from their HPE P09691-H21 SSD. This reliability ensures that your data remains secure and accessible, minimizing the risk of data loss or system failures.

Importance of SATA 6GBPS Interface

The SATA 6GBPS interface holds significant importance for users across various domains. Here are some key reasons why this interface is crucial:

1. Faster System Boot Times

The faster data transfer speeds offered by the SATA 6GBPS interface result in quicker system boot times. This means that you can start using your computer or device within seconds of powering it on, saving valuable time and improving productivity. Whether you are a professional who needs instant access to your work or a casual user who wants a seamless computing experience, this interface ensures a speedy startup process.

2. Enhanced Gaming Experience

Gamers often rely on fast storage solutions to ensure smooth gameplay and reduced loading times. The SATA 6GBPS interface enables quick access to game files, resulting in shorter loading screens and minimal lag during gameplay. This enhances the overall gaming experience, allowing gamers to fully immerse themselves in their favorite titles without disruptions.

3. Efficient Multimedia Editing

For professionals working with multimedia content, such as video editors and photographers, the SATA 6GBPS interface is essential. The high-speed data transfer capabilities of this interface enable seamless editing of large media files. Whether you are editing high-resolution videos or batch-processing RAW images, the enhanced transfer speeds ensure that your workflow remains uninterrupted and efficient.

4. Smooth Application Performance

Applications often require rapid access to data stored on the storage device. The SATA 6GBPS interface ensures that applications can retrieve data swiftly, resulting in smoother performance and reduced waiting times. Whether you are running resource-intensive software or multitasking with multiple applications, this interface helps maintain optimal performance levels.

5. Reliable Data Storage

The reliability of the SATA 6GBPS interface ensures that your valuable data is stored securely without any compromise. This interface offers stable connections and robust data transfer capabilities, minimizing the risk of data corruption or loss. Whether you are storing critical business files or personal documents, you can trust that your data is safe and accessible.

With its SATA 6GBPS interface, the HPE P09691-H21 SSD provides users with a reliable and high-performance storage solution. Whether you are a professional seeking faster access to your work files or a gamer looking for reduced loading times, this interface delivers the speed and compatibility required for demanding tasks.

Form Factor: 3.5inch

Benefits of a 3.5inch Form Factor

The form factor of a storage device plays a crucial role in its compatibility, installation, and overall versatility. The HPE P09691-H21 SSD features a 3.5inch form factor, offering several benefits for users. Let's explore the advantages of this form factor in detail:

1. Easy Installation

The 3.5inch form factor is widely supported by desktop computers and server systems, making installation a breeze. Most PC cases and drive bays are designed to accommodate 3.5inch drives, ensuring a straightforward setup process for users. This eliminates the need for additional adapters or modifications, saving time and effort during installation.

2. Larger Storage Capacity

Compared to smaller form factors like 2.5inch, the 3.5inch form factor allows for larger storage capacities. With more physical space available, manufacturers can fit multiple high-capacity storage modules within the drive, resulting in higher storage densities. This enables users to store more data on a single drive, reducing the need for multiple drives and simplifying their storage setup.

3. Improved Cooling and Heat Dissipation

The larger size of the 3.5inch form factor offers improved cooling and heat dissipation capabilities. The extra space inside the drive allows for better airflow, helping to keep the internal components at optimal operating temperatures. This is especially important for high-performance SSDs that generate heat during intensive tasks, ensuring a longer lifespan and consistent performance.

4. Enhanced Stability

The larger size and weight of 3.5inch drives contribute to their enhanced stability within computer cases or drive bays. This stability reduces the risk of drive movement or vibration, minimizing the chances of data corruption or physical damage to the drive. Additionally, the solid construction of 3.5inch drives offers increased protection against accidental bumps or drops.

5. Versatile Compatibility

The 3.5inch form factor is compatible with a wide range of devices, including desktop computers, workstations, and many server systems. This versatility ensures that the HPE P09691-H21 SSD can seamlessly integrate into various setups without any compatibility issues. Whether you are upgrading your personal computer or expanding your server storage capacity, this form factor offers the flexibility you need.

Importance of 3.5inch Form Factor

The importance of a 3.5inch form factor lies in its compatibility, ease of installation, and ability to accommodate larger storage capacities. Here are some key reasons why this form factor is important for users:

1. Desktop Systems

For desktop systems, the 3.5inch form factor is essential as it ensures hassle-free installation and compatibility with most PC cases and drive bays. Whether you are building a new PC or upgrading an existing one, this form factor allows you to easily incorporate the HPE P09691-H21 SSD into your setup without any additional modifications.

2. Server Environments

Servers often require large storage capacities to handle vast amounts of data. The 3.5inch form factor enables the HPE P09691-H21 SSD to provide the necessary storage density required in server environments. With a higher capacity per drive, servers can efficiently manage their data storage needs, ensuring smooth operations and reliable performance.

3. Data Centers

Data centers rely on efficient storage solutions to handle massive volumes of data. The 3.5inch form factor allows for increased storage densities, reducing the physical footprint required to store large amounts of data. This form factor is widely supported in data center equipment, making it an ideal choice for organizations that require reliable and scalable storage solutions.

4. Multimedia Servers

Multimedia servers, used for streaming media content, require substantial storage capacities to store large video and audio files. The 3.5inch form factor provides the necessary space to accommodate multiple high-capacity drives, allowing users to create extensive media libraries without compromising on quality or quantity.

5. Backup and Archival Systems

Backup and archival systems need reliable and efficient storage options to safeguard critical data. The 3.5inch form factor ensures that these systems can handle the large volumes of data that need to be stored for extended periods. With its larger capacity and robust construction, the HPE P09691-H21 SSD is an ideal choice for backup and archival purposes.

The 3.5inch form factor of the HPE P09691-H21 SSD offers users compatibility, easy installation, improved cooling capabilities, and versatile usage options. Whether you are a desktop user in need of a straightforward storage upgrade or a data center administrator looking for scalable storage solutions, this form factor provides the necessary reliability and performance.

Intended Use: Read Intensive

Benefits of Read Intensive SSDs

The intended use of an SSD significantly impacts its performance, endurance, and suitability for specific applications. The HPE P09691-H21 SSD is designed for read-intensive workloads, offering several benefits for users operating in such environments. Let's explore the advantages of this intended use in detail:

1. Enhanced Read Performance

Read-intensive SSDs prioritize read operations, resulting in improved read speeds compared to other types of SSDs. This makes them ideal for applications that heavily rely on reading data, such as databases, content delivery networks (CDNs), and virtualization environments. The HPE P09691-H21 SSD excels in delivering fast and efficient read performance, ensuring swift access to critical data.

2. Extended Endurance

Read-intensive SSDs are optimized to handle frequent and heavy read operations without compromising on endurance. The HPE P09691-H21 SSD is built to withstand high read workloads over extended periods, making it suitable for applications that involve continuous data retrieval. This extended endurance ensures consistent performance and reliability, even under demanding usage scenarios.

3. Cost-Effective Solution

Read-intensive SSDs often offer a cost-effective storage solution for users who primarily require fast read speeds but do not rely heavily on write operations. These SSDs typically have lower write endurance, which reduces their overall cost compared to write-intensive or mixed-use SSDs. This makes them an attractive choice for users who prioritize read performance while managing their budget effectively.

3.1 Lower Total Cost of Ownership (TCO)

The cost-effectiveness of read-intensive SSDs translates into a lower total cost of ownership (TCO) for users. With their competitive pricing and optimized read performance, these SSDs provide excellent value for money. Users can benefit from enhanced read speeds without having to invest in more expensive storage options, allowing them to allocate their resources efficiently.

3.2 Energy Efficiency

Read-intensive SSDs are known for their energy efficiency, which can result in significant cost savings over time. By minimizing power consumption during read operations, these SSDs
