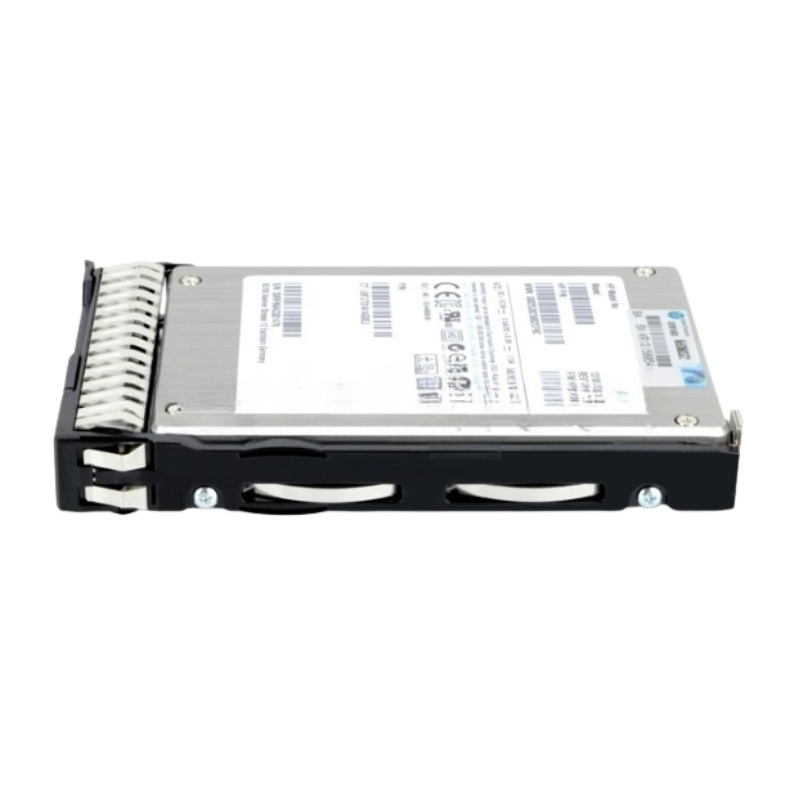

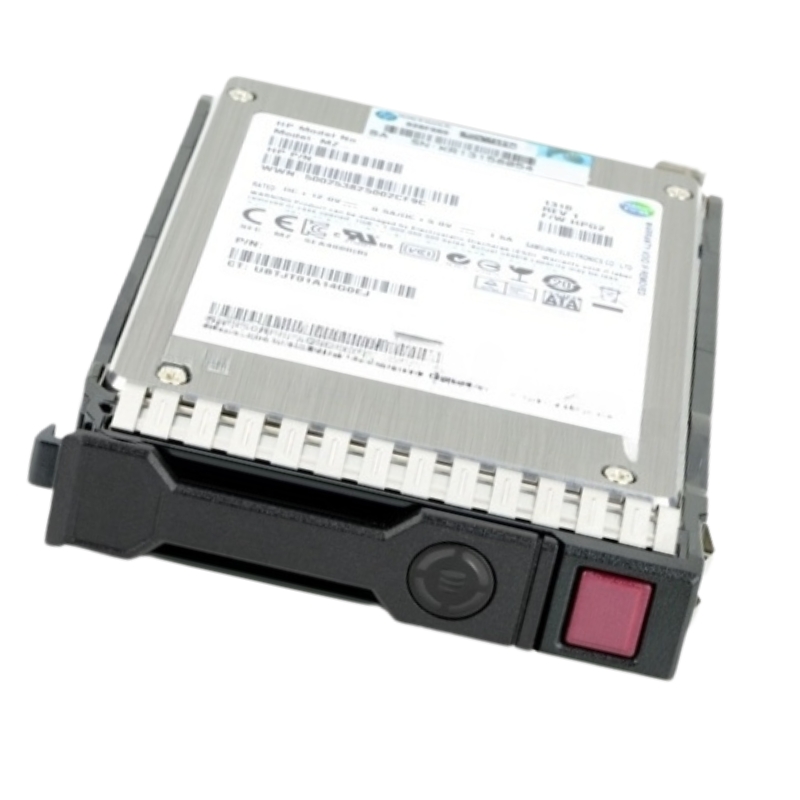

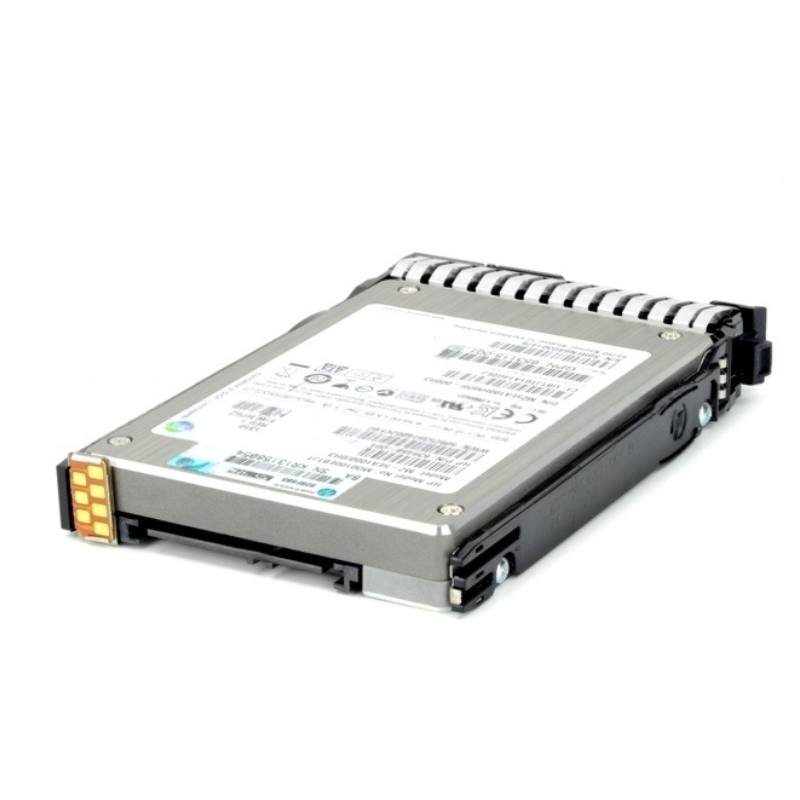

HPE P13682-B21 7.68TB PCI-E NVMe SSD

General Specifications of the HPE P13682-B21 SSD

• Manufacturer: HPE
• Model Number: P13682-B21
• Device Type: Solid State Drive (SSD)
• Interface: PCIe (Peripheral Component Interconnect Express)

Technical Attributes

• Capacity: 7.68 Terabytes
• Form Factor: Small Form Factor (SFF) 2.5-inch
• Plug Type: Hot-Swappable
• Connectivity: Single-Port Interface
• Usage Category: Optimized for Read-Intensive Applications
• Firmware: Securely Digitally Signed
• Carrier: Integrated with HPE’s Smart Carrier NVMe (SCN)
• NAND Type: Triple-Level Cell (TLC) Flash Memory

Compatible Platforms and Servers

• Supported by: HPE ProLiant Rack, Tower, BladeSystem Servers, and Synergy solutions

Performance Metrics

• Endurance (Drive Writes Per Day): 1.36 DWPD
• Lifetime Writes: 19,062 TBW
• Sequential Read Speed: 3100 MiB/s
• Sequential Write Speed: 2550 MiB/s
• Average Latency (Read): 105 µs (4KiB, Q1)
• Average Latency (Write): 31 µs (4KiB, Q1)
• Random Read IOPS (4KiB, Q16): 154,000
• Random Write IOPS (4KiB, Q16): 73,000
• Maximum Random Read IOPS: 635,000 (4KiB, Q256)
• Maximum Random Write IOPS: 73,000 (4KiB, Q4)

Power Consumption of the NVMe SSD

• Idle Power Draw: 3.49 Watts
• Maximum Power Consumption: 13.81 Watts
• Power Use for Random Read/Write: 10.65 Watts
• Sequential Read Power Usage: 9.12 Watts
• Sequential Write Power Usage: 13.81 Watts

Physical Dimensions and Weight

• Height: 5.00 inches
• Width: 7.00 inches
• Depth: 9.00 inches
• Weight: 1.10 lbs

Compatibility with HPE Solutions

• HPE Nimble Storage dHCI Solutions: Large, Medium, and Small configurations with HPE ProLiant DL380 Gen10 and DL360 Gen10
• HPE ProLiant DL Series: Includes models such as DL325 Gen10, DL360 Gen10, DL380 Gen10, DL388 Gen10, DL560 Gen10, and DL580 Gen10 with variations across performance, SMB, and network choice configurations
• HPE Synergy Compute Modules: Includes Synergy 480 Gen10 Base, Performance, Premium, and Standard Backplane Modules, as well as the 660 Gen10 series

Capacity: 7.68TB

The HPE P13682-B21 PCI-E NVMe SSD boasts an impressive capacity of 7.68TB. This massive storage capability allows users to store and access a significant amount of data, making it an ideal choice for businesses and individuals with demanding data storage needs.

Benefits of a 7.68TB Capacity

1. Ample Storage Space: With 7.68TB at your disposal, you can store vast amounts of data without worrying about running out of space. This is especially important for businesses that deal with large datasets, such as those in the fields of artificial intelligence, machine learning, and big data analytics.

2. Streamlined Workflow: The extensive capacity provided by the HPE P13682-B21 SSD ensures that you can keep all your important files and applications in one place. This eliminates the need for multiple storage devices or constantly shuffling data between different drives, resulting in a more streamlined workflow.

3. Enhanced Performance: The large capacity of this SSD enables faster data access and retrieval. With more space available, the drive can distribute data across a greater number of memory cells, reducing the strain on individual cells and improving overall performance.

Importance of a 7.68TB Capacity

1. Future-Proofing: As technology advances and file sizes continue to increase, having a high-capacity storage solution becomes increasingly important. Investing in a 7.68TB SSD ensures that you have enough room to accommodate future data growth without having to upgrade or replace your storage solution anytime soon.

2. Cost Efficiency: Rather than investing in multiple smaller drives to achieve the desired capacity, opting for a single 7.68TB SSD can be more cost-effective in the long run. It eliminates the need for additional hardware and reduces maintenance costs associated with managing multiple drives.

3. Simplified Data Management: Dealing with multiple drives can be a hassle when it comes to data management. Consolidating your data onto a single 7.68TB SSD simplifies the process, making it easier to organize and access your files. This improves productivity and reduces the chances of data loss or misplacement.

Future Applications

The 7.68TB capacity of the HPE P13682-B21 SSD opens up new possibilities for various industries and applications. Here are a few examples:

1. Media and Entertainment: With the increasing demand for high-resolution content, media professionals require large storage capacities to store and edit their projects. The 7.68TB capacity provides ample space for storing raw footage, editing files, and final renders.

2. Data Centers: In data-intensive environments, such as cloud computing and virtualization, having a high-capacity SSD is crucial. The 7.68TB capacity allows data centers to store vast amounts of information while maintaining fast access speeds for optimal performance.

3. Scientific Research: Scientists and researchers generate enormous amounts of data that need to be stored securely and accessed quickly. The HPE P13682-B21 SSD's capacity enables them to store and analyze large datasets without compromising on speed or efficiency.

Intended Use: Read Intensive

One of the notable features of the HPE P13682-B21 PCI-E NVMe SSD is its suitability for read-intensive operations. This makes it an excellent choice for applications that require fast and frequent access to data.

Benefits of Read Intensive SSDs

1. Faster Data Retrieval: Read-intensive SSDs are optimized for rapid data retrieval, allowing users to access their files and applications quickly. This is particularly beneficial in scenarios where speed is crucial, such as in real-time analytics or high-frequency trading.

2. Improved Endurance: Read-intensive SSDs are designed to handle a high volume of read operations, resulting in enhanced endurance. This means that the drive can withstand prolonged use without experiencing significant performance degradation or premature failure.

3. Cost Savings: Compared to write-intensive SSDs, read-intensive SSDs tend to be more cost-effective. Since they prioritize read operations, they typically have lower write endurance requirements, resulting in a lower price point per unit of storage.

Importance of Read Intensive SSDs

1. Server Applications: In server environments, where fast and reliable data access is vital, read-intensive SSDs shine. They can handle the high read workloads typically encountered in web servers, content delivery networks (CDNs), and database applications.

2. Virtualization: Read-intensive SSDs are well-suited for virtualized environments, providing rapid access to virtual machines and improving overall performance. By leveraging the speed and responsiveness of these drives, virtualization administrators can deliver better user experiences and optimize resource allocation.

3. Business Intelligence and Analytics: Analyzing large datasets often involves querying and retrieving data from storage systems. Read-intensive SSDs ensure that data retrieval does not become a bottleneck, allowing organizations to gain insights faster and make data-driven decisions more efficiently.

Real-World Applications

The read-intensive nature of the HPE P13682-B21 SSD makes it an excellent choice for a wide range of applications. Here are a few examples:

1. E-commerce Websites: Online retailers rely on fast page load times to provide a seamless shopping experience. The HPE P13682-B21 SSD's read-intensive capabilities improve website performance, ensuring that product listings, images, and customer reviews load quickly.

2. Financial Institutions: Banks and financial institutions handle large volumes of transactional data that require rapid access for processing and analysis. The HPE P13682-B21 SSD's read-intensive design enables faster transaction processing, resulting in improved customer service and reduced latency.

3. Content Delivery Networks (CDNs): CDNs distribute content to users around the world, requiring quick access to cached data. The read-intensive capabilities of this SSD allow CDN providers to deliver content rapidly, reducing latency and improving the end-user experience.

Interface: PCI-E

The HPE P13682-B21 SSD utilizes the PCI-E (Peripheral Component Interconnect Express) interface, a high-speed data transfer standard. This interface offers several advantages over traditional storage interfaces such as SATA.

Benefits of the PCI-E Interface

1. Enhanced Speed: The PCI-E interface provides significantly faster data transfer speeds compared to SATA. This allows for quicker file transfers, reduced application loading times, and improved overall system responsiveness.

2. Increased Bandwidth: PCI-E offers greater bandwidth capacity, enabling more data to be transmitted simultaneously. This is particularly beneficial for applications that require high throughput, such as video editing, gaming, and virtual reality.

3. Scalability: The PCI-E interface supports multiple lanes, allowing for scalability and future expansion. This means that users can easily add additional PCI-E SSDs to their systems without sacrificing performance or compatibility.

Importance of the PCI-E Interface

1. High-Performance Computing: The HPE P13682-B21 SSD's PCI-E interface makes it an ideal choice for high-performance computing applications. Whether it's scientific simulations, artificial intelligence, or rendering complex graphics, the increased speed and bandwidth offered by PCI-E can significantly improve performance.

2. Gaming and Multimedia: Gamers and multimedia enthusiasts demand fast storage solutions to ensure smooth gameplay and seamless media playback. The PCI-E interface enables rapid access to game files, reducing load times and providing a more immersive gaming experience.

3. Workstation Environments: Professionals in fields such as video editing, 3D modeling, and animation require storage solutions that can keep up with their demanding workflows. The PCI-E interface facilitates faster data access and transfer, allowing these professionals to work more efficiently.

Future-Proofing with PCI-E

Choosing a storage solution with a PCI-E interface ensures compatibility with future technologies and advancements. As the industry continues to push the boundaries of data transfer speeds, having a PCI-E SSD positions users to take advantage of these advancements without the need for immediate hardware upgrades.

Technology: NVMe

The HPE P13682-B21 SSD utilizes NVMe (Non-Volatile Memory Express) technology, a communication protocol designed specifically for solid-state drives. This technology offers numerous benefits over traditional storage interfaces.

Benefits of NVMe Technology

1. Improved Performance: NVMe is optimized for flash memory, resulting in significantly faster data transfer speeds compared to legacy protocols. This translates into reduced latency, quicker application loading times, and improved overall system performance.

2. Efficient Command Handling: NVMe allows for parallel command processing, enabling the drive to handle multiple tasks simultaneously. This improves input/output (I/O) efficiency and reduces the potential for bottlenecks, making NVMe SSDs ideal for multitasking and heavy workloads.

3. Low Latency: NVMe's streamlined design minimizes protocol overhead, resulting in lower latency compared to traditional storage interfaces such as SATA. This is particularly important for applications that require real-time data processing, such as virtual reality, augmented reality, and financial trading.

Importance of NVMe Technology

1. Professional Workflows: Professionals who rely on data-intensive applications like video editing, 3D rendering, and scientific simulations can benefit greatly from NVMe technology. The increased speed and efficiency provided by NVMe SSDs allow for faster file transfers and data processing, reducing downtime and improving productivity.

2. Gaming Performance: Gamers demand fast and responsive storage to ensure smooth gameplay and quick loading times. NVMe SSDs deliver the speed required for modern games, allowing for shorter load screens, faster level transitions, and reduced stuttering.

3. Server Applications: In server environments, where speed and reliability are paramount, NVMe SSDs excel. They provide rapid access to data, making them ideal for database servers, cloud computing, and virtualization platforms.

The Future of NVMe

NVMe technology continues to evolve, with ongoing advancements in speed, efficiency, and scalability. By adopting an NVMe SSD like the HPE P13682-B21, users can stay at the forefront of storage technology and harness the benefits of future NVMe developments.

Form Factor: DS (Double Sided)

The HPE P13682-B21 SSD features a Double Sided (DS) form factor, which allows for increased storage capacity in a compact design. This form factor offers several advantages for users seeking high-density storage solutions.

Benefits of DS Form Factor

1. Compact Design: The DS form factor enables a high storage capacity in a small physical footprint. This is particularly important in space-constrained environments such as laptops or embedded systems where maximizing storage within a limited space is crucial.

2. Increased Storage Density: By utilizing both sides of the SSD for storage, the DS form factor allows for higher storage density compared to single-sided drives. This is advantageous in scenarios where maximizing storage capacity without sacrificing physical space is a priority.

3. Compatibility: Despite its compact size, the DS form factor maintains compatibility with standard drive bays and connectors. This means that users can easily integrate the HPE P13682-B21 SSD into existing systems without requiring any additional modifications or hardware.

Importance of DS Form Factor

1. Mobile Devices: The DS form factor is particularly valuable in mobile devices such as laptops, tablets, and ultrabooks. These devices often have limited space for storage, and the DS form factor allows manufacturers to provide higher storage capacities without compromising on size or weight.

2. Edge Computing: As edge computing becomes more prevalent, compact and high-capacity storage solutions are essential. The DS form factor enables edge devices to store and process large amounts of data locally, reducing the need for constant data transmission to a central server.

3. Embedded Systems: In embedded systems where space is at a premium, the DS form factor provides an efficient storage solution. This is critical in applications such as IoT devices, medical equipment, and automotive systems where reliable and compact storage is required.

Optimizing Storage with DS Form Factor

The DS form factor of the HPE P13682-B21 SSD offers users the opportunity to maximize their storage capacity without compromising on physical space. Whether it's in portable devices, edge computing environments, or embedded systems, the DS form factor enables efficient and high-density storage solutions.
