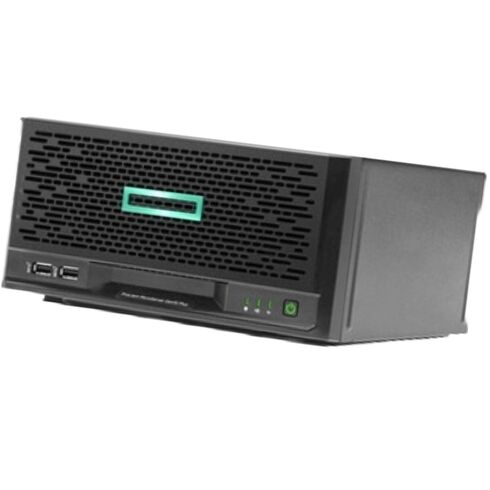

HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 Gold G5420 8GB RAM Gigabit Ethernet 4 X Lff Bay 180w Ps

Processor: Pentium Gold G5420

The HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 is powered by the Intel Pentium Gold G5420 processor, offering exceptional performance and reliability for users. The Pentium Gold G5420 is a dual-core processor built on the 14nm architecture, featuring a base clock speed of 3.8GHz and 4MB of cache.

General Specifications

• Type: Server
• Form Factor: Ultra Micro Tower
• Scalability: 1-way
• Internal Bays Quantity: 4
• Localization Region: United States

Processor and Chipset

CPU Details

• Processor: Intel Pentium Gold G5420 at 3.8 GHz
• Core Count: Dual-core
• CPU Quantity: 1
• Maximum CPU Quantity: 1
• CPU Upgradability: Upgradable
• Main Features: Hyper-threading Technology, Intel Smart Cache
• Socket Type: LGA1151
• Chipset: Intel C242

Cache Memory

• Installed Cache Size: 4 MB
• Cache Per Processor: 4 MB

Memory Specifications

RAM Details

• Installed RAM: 8 GB
• Maximum RAM Capacity: 32 GB
• RAM Technology: DDR4 SDRAM - ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Memory Specification Compliance: PC4-21333
• Form Factor: DIMM 288-pin
• Total Slots: 2 (1 occupied, 1 free)
• Features: Unbuffered
• Configuration: 1 x 16 GB

Storage and Controllers

Hard Drive

• Type: No HDD

Storage Controller

• Controller Type: 1 x RAID - PCIe 3.0 x4
• Interface Type: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software RAID
• Channel Quantity: 14
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

• Type: No Optical Drive

Graphics and Networking

Graphics Controller

• Processor: Intel UHD Graphics 610
• Video Interfaces: VGA, DisplayPort

Networking

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: Intel I350-AM4
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Features: Wake on LAN (WoL), ACPI Support, PXE Support

Expansion and Connectivity

Bays and Slots

• Bays: 4 total (all free) x Internal 3.5 LFF
• PCIe Slots: 1 x PCIe 3.0 x16 (Low-profile, free), 1 x Expansion Slot (iLO Enablement Kit Slot, free)

Interfaces

• Video Interfaces: 1 x VGA, 1 x DisplayPort
• USB Ports: 4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 (2 in front)
• LAN Ports: 4 x Gigabit Ethernet

Miscellaneous Features

• Theft/Intrusion Protection: Security Lock Slot (cable lock sold separately), Padlock Loop
• Security Slot Type: Kensington Security Slot
• Compliance Standards: FCC Class B Certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AES, FCC CFR47 Part 15, Triple DES, EMC Class B, GB 9254, CNS 13438, TLS v1.2, K24, CISPR 32, EN 55032, K32, ASHRAE Class A2, Redfish API, UEFI

Power Specifications

• Device Type: Power Adapter
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 180 Watts

Dimensions and Weight

• Width: 9.6 inches
• Depth: 9.6 inches
• Height: 4.7 inches
• Weight: 9.33 lbs

Enhanced Performance

One of the key benefits of the Pentium Gold G5420 processor is its enhanced performance capabilities. With a base clock speed of 3.8GHz, this processor ensures fast and efficient data processing, allowing users to handle demanding tasks and applications with ease. Whether you are running multiple virtual machines or handling complex calculations, the Pentium Gold G5420 delivers the performance you need.

Smooth Multitasking

Multitasking is a breeze with the Pentium Gold G5420 processor. With its dual-core design, this processor can efficiently handle multiple tasks simultaneously, ensuring smooth and seamless performance. Whether you are editing videos, running simulations, or performing data analysis, you can rely on the Pentium Gold G5420 to keep up with your workload without any lag or slowdowns.

Improved Energy Efficiency

Energy efficiency is an important consideration for any server environment. The Pentium Gold G5420 excels in this area by offering improved power efficiency without compromising on performance. This means that you can enjoy high-performance computing while minimizing your energy consumption and reducing your overall operational costs.

Reliable and Durable

Reliability is crucial when it comes to server processors, and the Pentium Gold G5420 delivers in this aspect as well. Built using high-quality components and advanced manufacturing processes, this processor offers exceptional durability and reliability. You can trust that your server will perform consistently and reliably, even under heavy workloads and demanding conditions.

RAM: 8GB

The HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 comes equipped with 8GB of RAM, providing ample memory for efficient data processing and multitasking. The 8GB RAM configuration allows users to run multiple applications simultaneously, ensuring smooth and efficient operation.

Seamless Multitasking

With 8GB of RAM, the server can handle multiple tasks and applications simultaneously without experiencing any performance issues. This is particularly important for businesses that rely on their servers for critical operations. Whether you are running a database, hosting websites, or managing virtual machines, the 8GB of RAM ensures smooth multitasking and minimizes the risk of slowdowns or crashes.

Improved System Responsiveness

The generous amount of memory offered by the 8GB RAM configuration significantly improves system responsiveness. It allows the server to store frequently accessed data in memory, reducing the need for frequent disk access. This results in faster response times when accessing files or running applications, enhancing user experience and productivity.

Efficient Virtualization

Virtualization has become a vital technology for businesses, enabling them to maximize the utilization of their server resources. The 8GB RAM capacity of the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 allows for efficient virtualization, enabling users to create and manage multiple virtual machines without compromising performance. This is particularly beneficial for businesses that require a flexible and scalable infrastructure.

Future-Proofing

With technology constantly evolving, it is crucial to future-proof your server infrastructure. The 8GB RAM capacity of this server provides room for expansion and growth. As your business requirements increase, you can easily upgrade the RAM to accommodate higher workloads and demanding applications. This ensures that your server can adapt to changing needs without the need for a complete hardware overhaul.

Networking: Gigabit Ethernet

The HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 is equipped with Gigabit Ethernet capabilities, delivering high-speed networking performance for seamless connectivity and data transfer.

Fast and Reliable Connectivity

Gigabit Ethernet offers significantly faster data transfer speeds compared to traditional Ethernet connections. With a data transfer rate of up to 1000Mbps, Gigabit Ethernet ensures fast and reliable connectivity for your server. This is particularly important in environments where large amounts of data need to be transferred quickly, such as file sharing, video streaming, or database synchronization.

Reduced Network Latency

Low network latency is crucial for real-time applications and services. The Gigabit Ethernet capability of the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 ensures minimal delays in data transmission, resulting in improved responsiveness and reduced lag. This is particularly beneficial for businesses that rely on time-sensitive applications such as voice over IP (VoIP), video conferencing, or online gaming.

Scalability and Flexibility

Gigabit Ethernet provides scalability and flexibility for your server infrastructure. With its high-speed connectivity, you can easily connect multiple devices to your server without experiencing bottlenecks or performance issues. This allows you to expand your network as your business grows, ensuring that your server can handle increased workloads and accommodate additional users or devices.

Secure Networking

Security is a top priority for any server environment, and the Gigabit Ethernet capability of the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 ensures secure networking. With advanced security features such as VLAN support, traffic segmentation, and encryption capabilities, you can protect your data and sensitive information from unauthorized access or interception. This provides peace of mind and enhances the overall security of your server infrastructure.

Drive Bays: 4

The HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 features four drive bays, offering ample storage capacity for your data and applications.

Expandable Storage

The four drive bays provide the flexibility to expand your storage capacity as your business needs grow. Whether you need additional storage for file sharing, database management, or application hosting, the drive bays allow you to easily add more hard drives or solid-state drives to accommodate your requirements. This ensures that you have enough space to store your data without compromising on performance.

RAID Support

The drive bays in the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 support RAID configurations, allowing you to enhance data protection and improve system reliability. RAID (Redundant Array of Independent Disks) combines multiple drives into a single logical unit, providing data redundancy and increased performance. By configuring RAID levels such as RAID 1 (mirroring) or RAID 5 (striping with parity), you can protect your data from drive failures and ensure high availability.

Hot-Swappable Drives

Hot-swappable drive bays offer convenience and ease of maintenance. With hot-swappable drives, you can replace a failed or faulty drive without shutting down the server or interrupting its operation. This minimizes downtime and ensures continuous availability of your data and applications. The hot-swappable drive bays in the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 provide a reliable storage solution that can be easily managed and maintained.

Efficient Data Organization

The four drive bays allow for efficient data organization and management. You can configure the drives to suit your specific needs, such as separating the operating system from user data or creating different storage tiers based on performance requirements. By organizing your data effectively, you can improve access times, simplify backup and recovery processes, and enhance overall system efficiency.

Power Supply: 180w

The HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 is equipped with a 180w power supply, providing reliable and efficient power delivery for optimal server performance.

Stable Power Delivery

The 180w power supply ensures stable and consistent power delivery to the server components, minimizing the risk of power fluctuations or disruptions. This is crucial for maintaining system stability, preventing unexpected shutdowns, and protecting your data and applications from potential damage or corruption.

Energy Efficiency

Energy efficiency is an essential consideration for any server environment. The 180w power supply of the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 is designed to optimize power usage, reducing energy consumption and operational costs. By utilizing energy-efficient components and advanced power management technologies, this server ensures that power is utilized effectively without compromising performance.

Redundancy and Reliability

The power supply in the HPE Proliant Gen10 Plus Ultra Micro Tower Server P16005-001 offers built-in redundancy features to enhance system reliability. Redundant power supplies ensure that the server remains operational even if one power supply fails. This is particularly crucial for businesses that require continuous availability of their data and applications. The redundant power supply design provides an added layer of protection against unexpected power failures.

Quiet Operation

Noise levels can be a concern in office environments. The 180w power supply is designed to operate quietly, ensuring minimal noise disruption. This allows the server to be placed in close proximity to users without causing distractions or discomfort. The quiet operation of the power supply enhances the overall user experience and contributes to a more productive and comfortable working environment.
