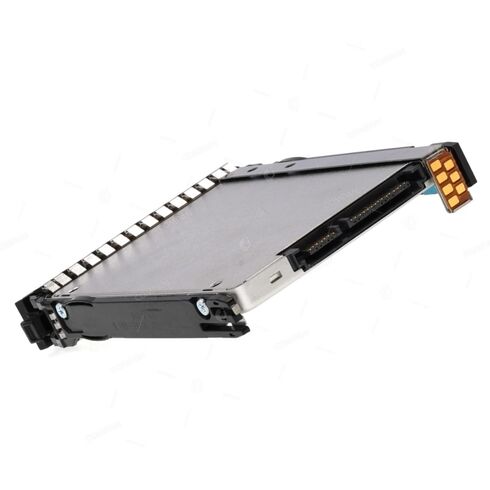

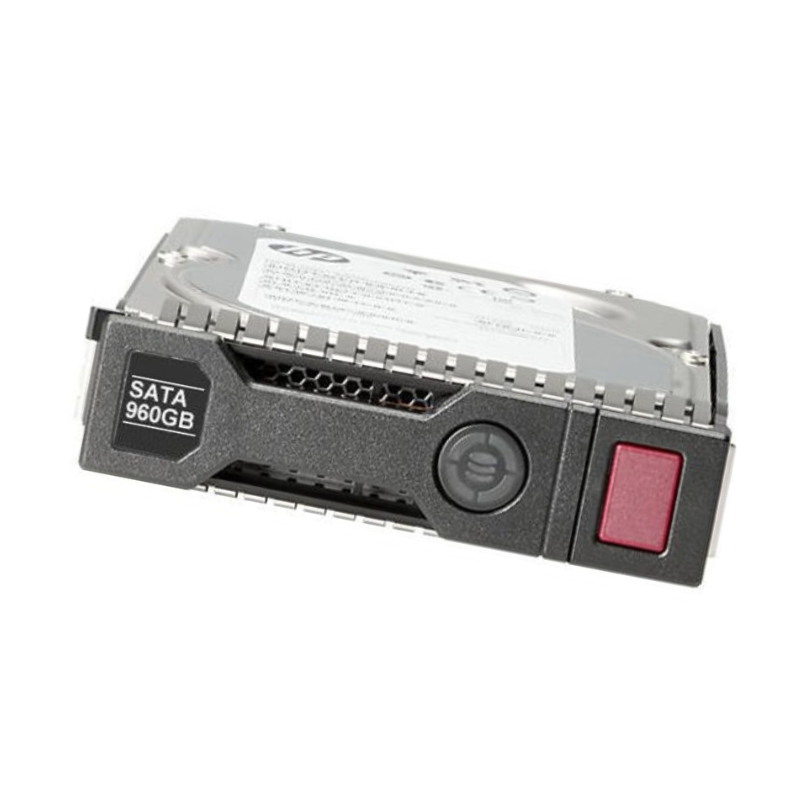

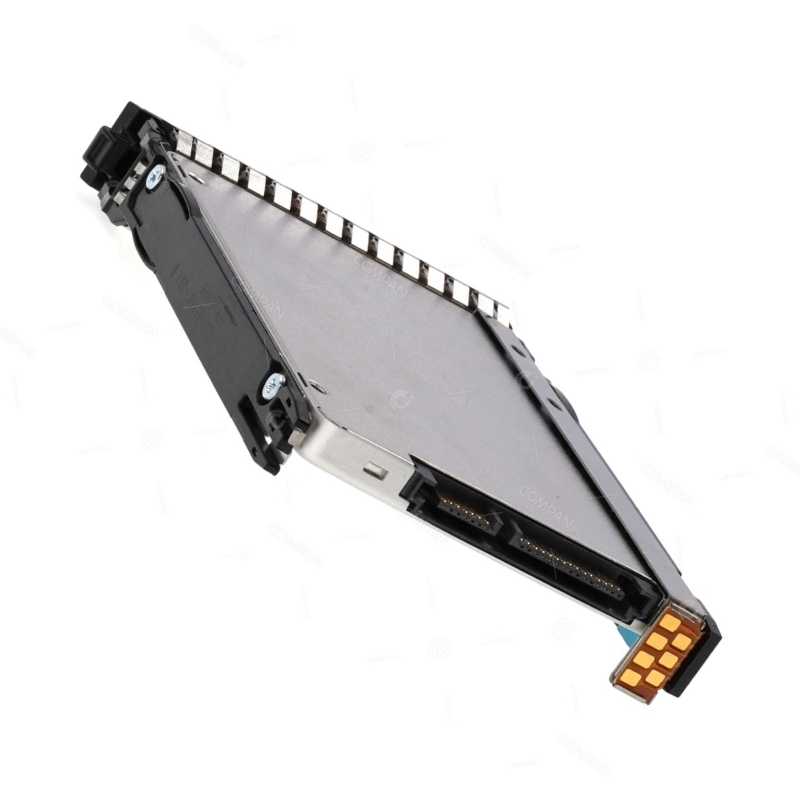

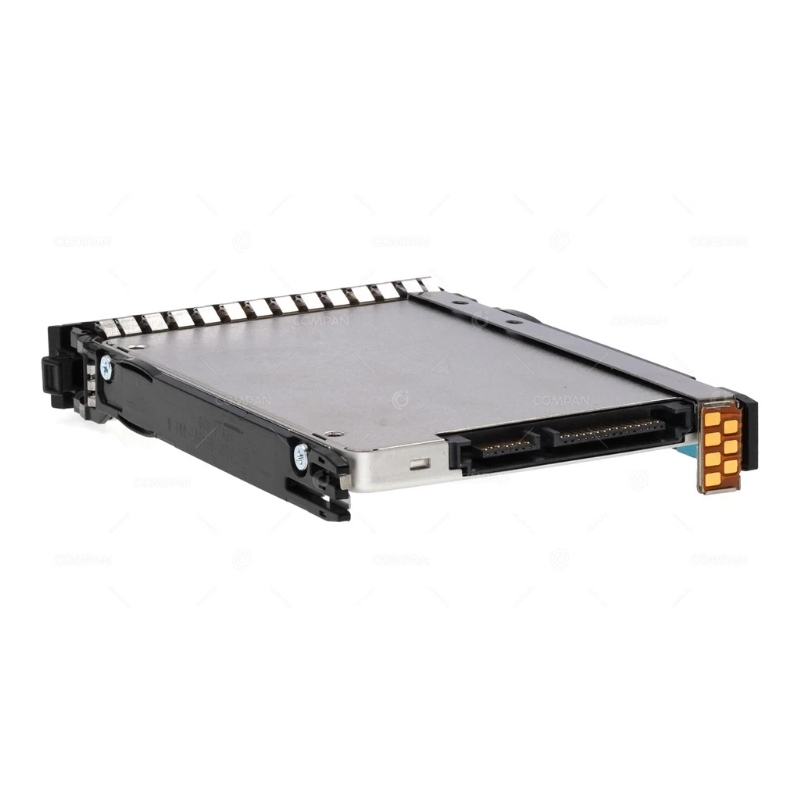

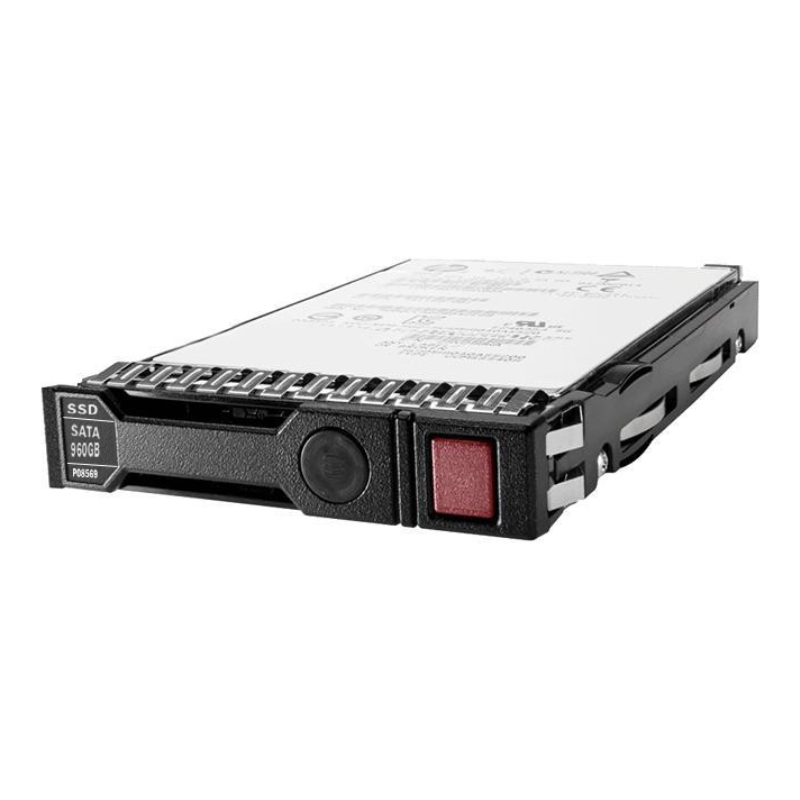

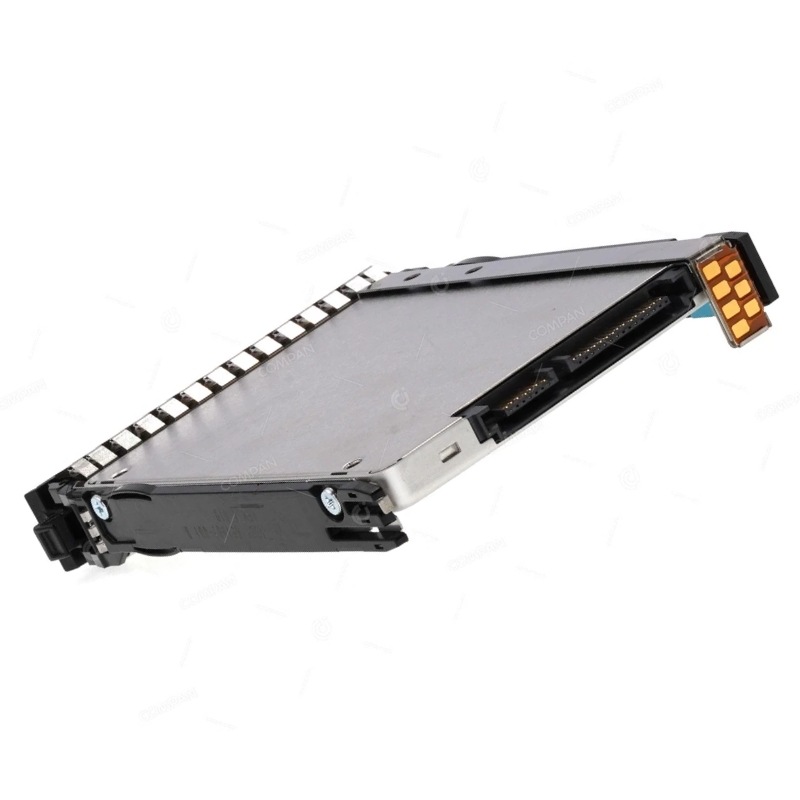

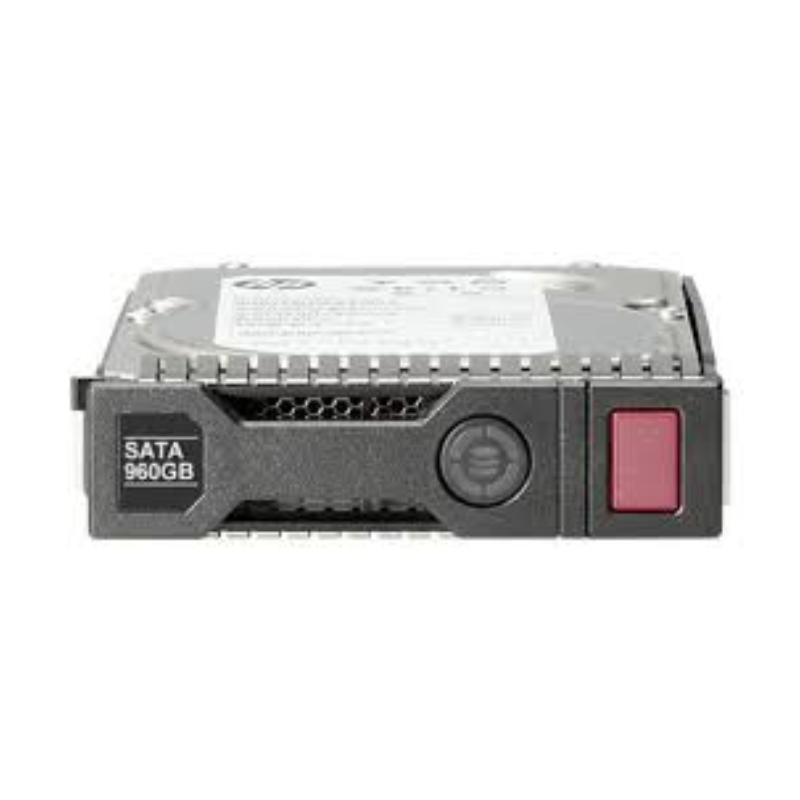

HPE P18424-K21 960GB SATA 6GBPS 2.5 Inch SSD

Product Overview

HPE 960GB SATA 6Gbps Internal Solid State Drive

This 960GB SATA internal solid-state drive (SSD) offers fast and reliable storage tailored for HPE ProLiant Rack, Tower, and BladeSystem servers, as well as Synergy environments. Designed for read-intensive workloads, it integrates a Smart Carrier (SC) for easy hot-swappable installation.

Technical Specifications

General Information

• Part Number: P18424-K21
• Capacity: 960GB
• Interface Type: SATA 6 Gbps
• Form Factor: 2.5-inch Small Form Factor (SFF)
• NAND Flash Memory Type: Triple-level Cell (TLC)
• Hot Plug Capability: Yes, hot-pluggable design
• Carrier Type: HPE SmartDrive Carrier
• Platform Compatibility: HPE ProLiant Rack, Tower, BladeSystem Servers, and Synergy
• Workload Profile: Optimized for read-intensive applications

Drive Connectivity

• Interface: SATA 6 Gbps, single-port configuration
• Compatibility Bay: 2.5-inch SFF

Performance Characteristics

Read and Write Performance

• 30 Days Write Endurance: 1400
• Drive Writes Per Day (DWPD): 0.80
• Sequential Read Throughput: Up to 515 MiB/s
• Sequential Write Throughput: Up to 480 MiB/s

Random Input/Output Operations

• Random Read IOPS (4KiB, Queue Depth = 16): 58,500 IOPS
• Random Write IOPS (4KiB, Queue Depth = 16): 29,000 IOPS
• Maximum Random Read IOPS (4KiB): 58,500 IOPS at QD32
• Maximum Random Write IOPS (4KiB): 15,400 IOPS at QD1

Latency Performance

• Random Read Latency (4KiB, QD1): 125 µs average
• Random Write Latency (4KiB, QD1): 60 µs average

Power Efficiency

Power Consumption

• Idle Power: 1.35 Watts
• Active Power (Random Read/Write): 3.02 Watts
• Sequential Read Power: 3.05 Watts
• Sequential Write Power: 3.37 Watts
• Maximum Power Draw: 3.37 Watts

Physical Dimensions and Weight

• Height: 7.00 mm (0.30 inches)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility and Platform Support

Supported HPE Solutions

• HPE Nimble Storage dHCI Medium Solution: HPE ProLiant DL325 Gen10 Plus, DL360 Gen10 (2.5 inch)
• HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
• HPE ProLiant DL Series: DL180 Gen10, DL325 Gen10, DL360 Gen10 (various configurations)
• HPE ProLiant ML Series: ML30 Gen10, with multiple variants

Supported HPE Synergy Modules

• Compute Module Support: 480 Gen10 Plus, 660 Gen10 (Base, Performance, Premium, Entry)

Special Features

Security and Firmware Protection

• Firmware Integrity: Digitally signed firmware for added security
• Data Safety: Built for high performance while ensuring data protection and integrity

Design and Accessibility

• Hot-Swap Design: Facilitates easy replacement without downtime
• SmartDrive Carrier: Enhanced user experience with Smart Carrier for quick status indication

Capacity: 960GB

The HPE P18424-K21 SSD is equipped with an impressive capacity of 960GB. This substantial storage space allows users to store a vast amount of data, including documents, photos, videos, and applications. Whether you are a professional seeking to store large files or an individual looking to keep a collection of media files, this capacity ensures that you have ample space to accommodate your needs.

Benefits of 960GB Capacity

1. Extensive Data Storage

With a capacity of 960GB, this SSD provides users with a significant amount of storage space. You can effortlessly store extensive amounts of data without worrying about running out of room. This is particularly advantageous for professionals who work with large files or individuals who have a vast media library.

2. Improved Performance

Having more storage space can positively impact the performance of the SSD. With ample room available, the drive can operate more efficiently and access files quickly. This results in faster data transfer speeds and reduced loading times, enhancing overall system performance.

3. Enhanced Productivity

By offering a generous capacity of 960GB, this SSD enables users to maintain a clutter-free workspace. With sufficient storage space, you can keep all your important files and documents in one place, making it easier to locate and access them whenever needed. This streamlined workflow enhances productivity as you spend less time searching for files and more time focusing on your tasks.

4. Future-Proofing

As technology advances and file sizes continue to increase, having a high-capacity SSD becomes crucial for future-proofing your storage needs. The 960GB capacity ensures that you will be able to accommodate larger file sizes without having to upgrade your storage solution in the near future.

The Importance of 960GB Capacity

Having a large-capacity SSD like the HPE P18424-K21 is essential for individuals and professionals alike. Here are a few reasons why the 960GB capacity is of utmost importance:

1. Data Intensive Professions

Professions that involve working with large files, such as video editing, graphic design, and data analysis, require significant storage space. The 960GB capacity caters to the needs of these data-intensive professions, allowing professionals to store and access their files efficiently.

2. Media Enthusiasts

For media enthusiasts who collect and store a large number of movies, TV shows, music albums, and high-resolution photos, a 960GB capacity is invaluable. It provides ample space to store your entire media library without compromising on quality or having to delete files to make room for new ones.

3. Gaming

The gaming industry has witnessed a surge in file sizes due to advanced graphics and immersive gaming experiences. Gamers need substantial storage space to accommodate their growing collection of games and downloadable content (DLC). The 960GB capacity ensures that gamers can store numerous games without worrying about limited space.

Interface: SATA 6GBPS

The HPE P18424-K21 SSD features a SATA 6Gbps interface, which offers excellent performance and compatibility with various systems. This interface ensures seamless communication between the SSD and the motherboard, resulting in efficient data transfer and overall system responsiveness.

Benefits of SATA 6Gbps Interface

1. High-Speed Data Transfer

The SATA 6Gbps interface provides significantly faster data transfer speeds compared to its predecessors. This means that you can transfer large files or perform backups at a much quicker rate, saving you valuable time and improving your productivity.

2. Improved System Responsiveness

With the SATA 6Gbps interface, the HPE P18424-K21 SSD delivers enhanced system responsiveness. Whether you are booting up your computer, launching applications, or accessing files, the SSD's interface ensures minimal lag and quick access to data, resulting in a smooth and efficient user experience.

3. Backward Compatibility

One of the key advantages of the SATA 6Gbps interface is its backward compatibility with previous SATA versions. This means that you can use the HPE P18424-K21 SSD with older systems that support SATA 3Gbps or even SATA 1.5Gbps interfaces. This flexibility allows you to upgrade your storage solution without having to replace your entire system.

The Importance of SATA 6Gbps Interface

The SATA 6Gbps interface holds significant importance for users due to its advantages and compatibility. Here are a few reasons why this interface is essential:

1. Speed and Performance

The high-speed data transfer capabilities of the SATA 6Gbps interface ensure that you can work with large files seamlessly. It eliminates bottlenecks and allows for quick access to data, enhancing overall system performance.

2. Versatility

The backward compatibility of the SATA 6Gbps interface makes it versatile and compatible with a wide range of systems. You can use this SSD with newer systems that support the latest SATA standard as well as older systems that may have slower SATA interfaces.

3. Future-Proofing

Investing in an SSD with a SATA 6Gbps interface ensures that your storage solution is future-proofed. As newer systems continue to adopt faster interfaces, your SSD will be able to take full advantage of their capabilities without requiring an upgrade.

Form Factor: 2.5 Inch

The HPE P18424-K21 SSD features a 2.5-inch form factor, making it compatible with a wide range of devices and systems. The compact size of the 2.5-inch form factor allows for easy installation in laptops, desktops, servers, and other devices that support this standard.

Benefits of 2.5-Inch Form Factor

1. Compatibility

The 2.5-inch form factor is widely adopted and supported by various systems, making it highly compatible. Whether you are upgrading your laptop's storage or adding an SSD to your server, the HPE P18424-K21's 2.5-inch form factor ensures seamless integration without the need for additional adapters or modifications.

2. Compact Design

The compact size of the 2.5-inch form factor allows for easy installation in tight spaces. It is particularly advantageous for laptops and small form factor systems where space is limited. Despite its small size, the HPE P18424-K21 SSD delivers exceptional performance and storage capacity.

3. Upgrade Flexibility

The 2.5-inch form factor provides users with flexibility when it comes to upgrading their storage solution. You can easily replace your existing hard drive or SSD with the HPE P18424-K21 without having to make significant modifications to your system. This makes upgrading a hassle-free process, saving you time and effort.

The Importance of 2.5-Inch Form Factor

The 2.5-inch form factor plays a crucial role in ensuring compatibility and ease of installation for users. Here are a few reasons why this form factor is important:

1. Laptop Upgrades

Laptops often have limited space for storage upgrades. The 2.5-inch form factor allows users to replace their existing hard drives with the HPE P18424-K21 SSD without requiring any additional modifications. This enables laptop users to enjoy the benefits of increased storage capacity and improved performance.

2. Server Deployments

Servers typically utilize multiple drives for redundancy and increased performance. The 2.5-inch form factor allows for easy installation of the HPE P18424-K21 SSD in server systems, enabling efficient data storage and retrieval for critical applications.

3. Small Form Factor Systems

Small form factor systems, such as mini PCs or compact desktops, require storage solutions that can fit within their limited space. The 2.5-inch form factor meets this requirement, allowing users to upgrade their systems with the HPE P18424-K21 SSD without compromising on performance or storage capacity.

In conclusion, the HPE P18424-K21 SSD offers a remarkable capacity of 960GB, ensuring extensive data storage, improved performance, enhanced productivity, and future-proofing capabilities. Its SATA 6Gbps interface provides high-speed data transfer, improved system responsiveness, and backward compatibility. The 2.5-inch form factor ensures compatibility, compact design, and upgrade flexibility for various devices and systems. With these features combined, the HPE P18424-K21 SSD delivers an exceptional storage solution for professionals and individuals alike.
