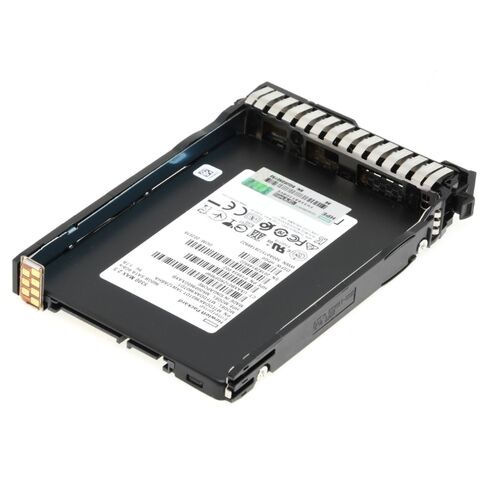

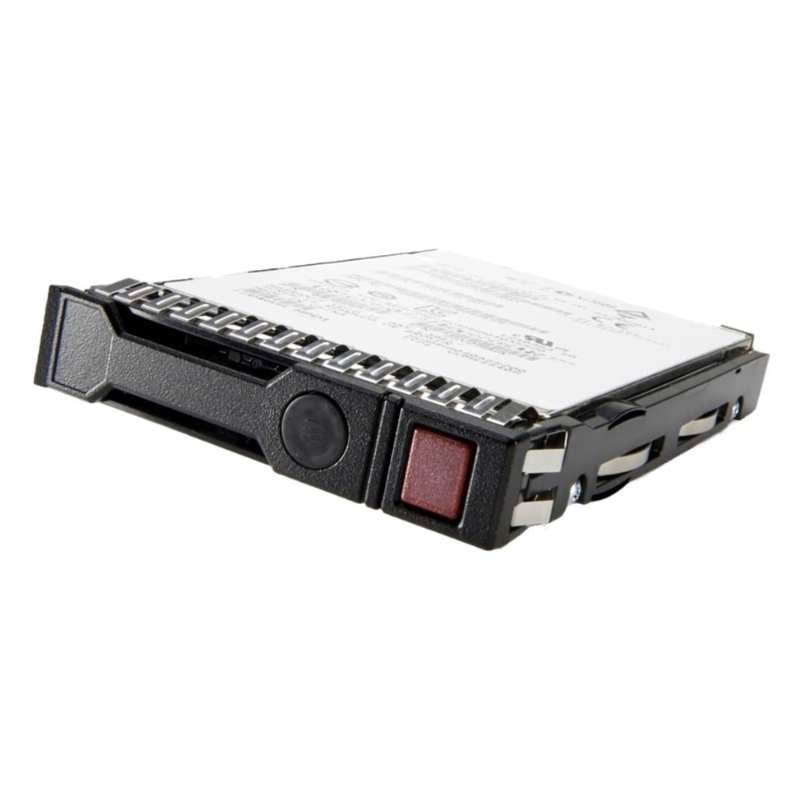

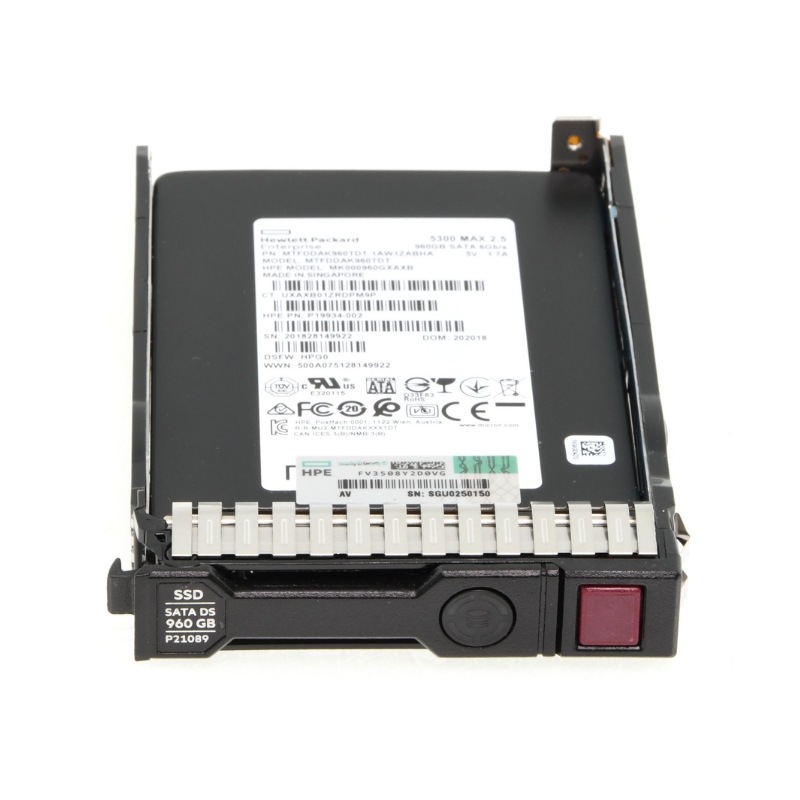

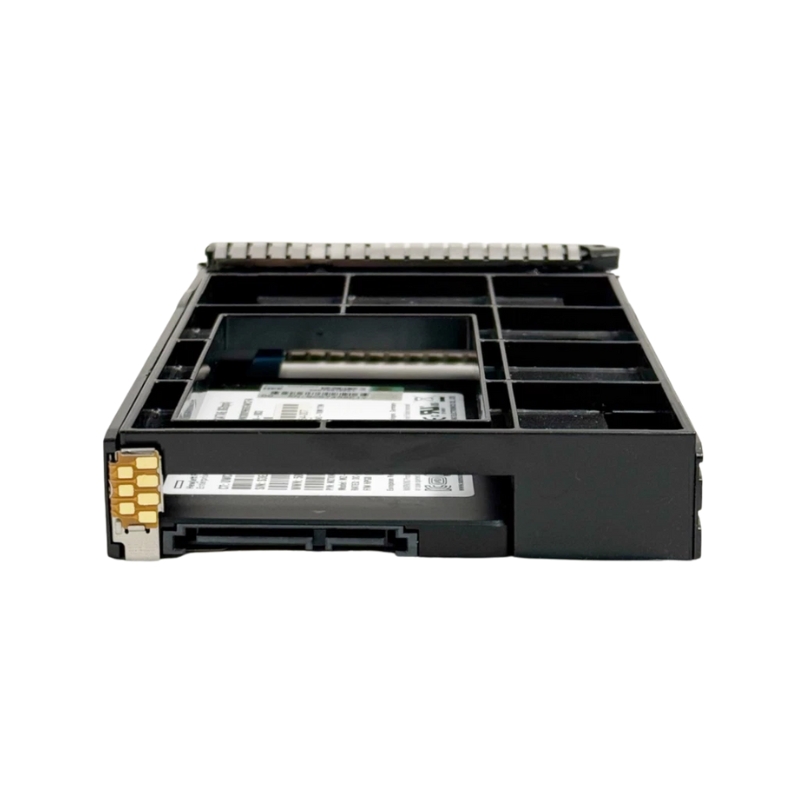

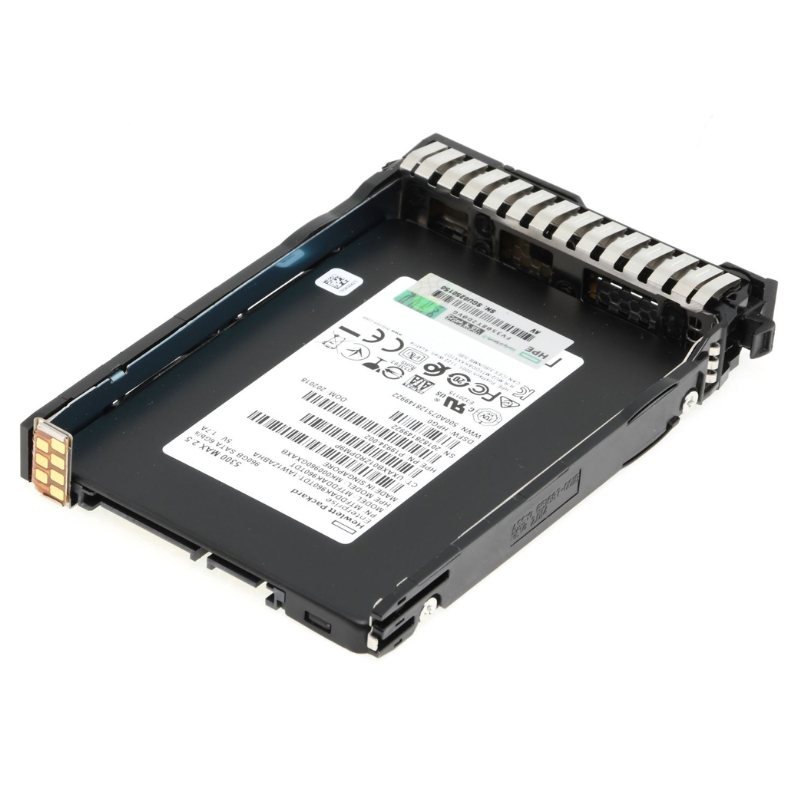

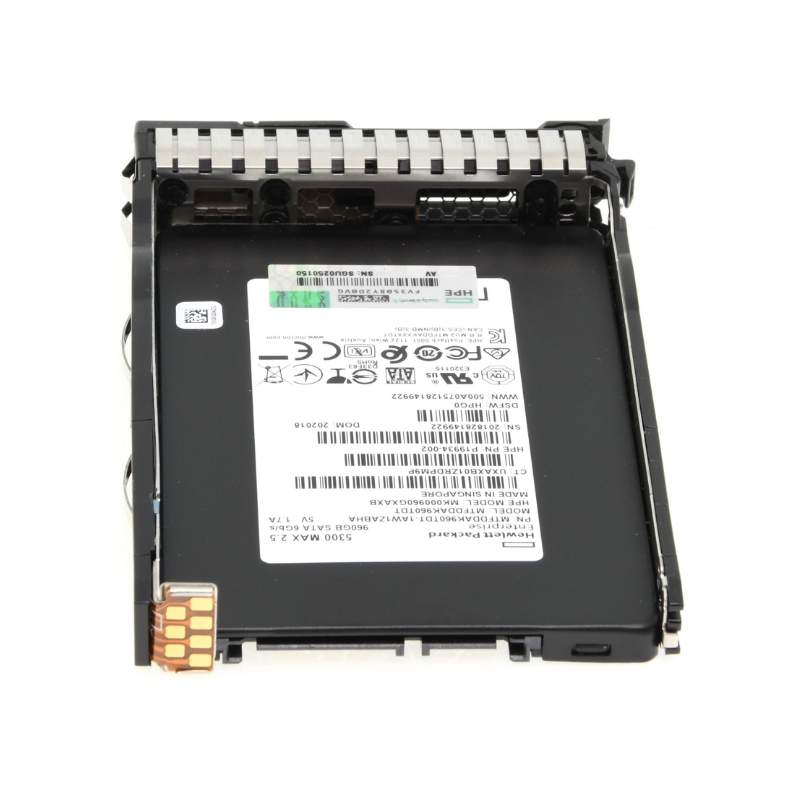

HPE P18424-X21 960GB SATA-6GBPS SFF RI Smart Carrier SSD

High-Capacity Storage Solution for HPE Servers

The 960GB SATA 6Gbps 2.5-inch SFF Solid State Drive (SSD) is designed for optimal compatibility with a range of HPE servers. Featuring a 2.5-inch form factor, it is built for high performance and reliable storage, utilizing Triple-Level Cell (TLC) NAND flash memory to offer efficient read-intensive workload support.

Key Specifications of the HPE 960GB SATA SSD

• Capacity: 960 GB
• Part: P18424-X21
• Interface: SATA 6 Gbps
• Form Factor: 2.5-inch Small Form Factor (SFF)
• Memory Type: Triple-level cell (TLC) NAND Flash
• Plug Type: Hot Swappable
• Carrier Type: Smart Carrier (SC)

Ideal for Read-Intensive Workloads

This SSD is optimized for read-intensive applications, making it suitable for environments where frequent data access is required but data writing remains moderate. The drive is engineered for lower latency, providing faster data retrieval, improved server performance, and lower operational costs.

Connectivity and Compatibility

• Connectivity: Single Port SATA Interface
• Compatibility: Specifically engineered for use in HPE ProLiant Rack, Tower, BladeSystem, and Synergy servers
• Bundled with: HPE SmartDrive Carrier

Enhanced Performance and Reliability

This 960GB SSD provides exceptional performance metrics, with up to 515 MiB/s in sequential read speeds and up to 480 MiB/s in sequential write speeds, delivering efficient data handling under heavy read loads. Enhanced firmware provides digital security through a digitally signed firmware (DS) feature to help protect against malicious attacks and firmware integrity issues.

Performance Specifications

• Drive Transfer Rate: 6 Gb/s external
• Maximum Sequential Reads: 515 MiB/s
• Maximum Sequential Writes: 480 MiB/s
• Random Read Latency: 125 µSec (4KiB, Q1)
• Random Write Latency: 60 µSec (4KiB, Q1)
• Maximum Random Read IOPS: 58,500 IOPS at Q32
• Maximum Random Write IOPS: 15,400 IOPS at Q1

Endurance and Data Integrity

• 30-Day Writes: 1400
• Drive Writes Per Day (DWPD): 0.80

Energy-Efficient Power Consumption

The 960GB SATA SSD is designed to offer high performance while keeping power consumption low, contributing to a greener data center with reduced operational costs. This efficiency also means extended battery life for battery-powered systems.

Power Consumption Details

• Idle Power Consumption: 1.35 Watts
• Random Read Power Usage: 3.02 Watts
• Random Write Power Usage: 3.02 Watts
• Sequential Read Power Usage: 3.05 Watts
• Sequential Write Power Usage: 3.37 Watts
• Max Power Consumption: 3.37 Watts

Compact Dimensions and Lightweight Build

• Height: 7.00 mm (0.30 inches)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Broad Compatibility with HPE Systems

Optimized for diverse HPE solutions, this SSD integrates seamlessly with the following:

HPE Nimble Storage Solutions

• HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
• Medium Solution with HPE ProLiant DL360 Gen10
• Small Solution with HPE ProLiant DL360 Gen10

HPE ProLiant BL Series

• BL460c Gen10

HPE ProLiant DL Series

• DL180 Gen10
• DL180 Gen10 Entry
• DL325 Gen10 Plus, including Base and All-NVMe Flash Node variants
• DL360 Gen10 series, including models tailored for high performance, flash, network choice, and SMB needs

HPE ProLiant ML Series

• ML30 Gen10, with options in Entry, Performance, and Solution builds

HPE Synergy Compute Modules

• Synergy 480 Gen10 Plus Base Compute Module
• Synergy 660 Gen10 Base, Entry, Performance, and Premium Compute Modules

This versatile, high-capacity SSD enhances HPE server environments with dependable, low-latency, and energy-efficient storage, supporting rapid data access and operational efficiency across a variety of HPE configurations.

Capacity: 960GB

The HPE P18424-X21 SSD boasts an impressive capacity of 960GB, making it an ideal choice for users who require ample storage space for their data. Whether you are a professional who deals with large files or a home user looking to store a vast collection of multimedia content, this SSD's capacity ensures that you have enough room to accommodate your needs.

Efficient Data Storage

With its 960GB capacity, this SSD allows you to store a significant amount of data without the need for additional storage devices. This means that you can keep all your important files, documents, photos, videos, and applications in one place, making it easier to access and manage your data efficiently.

Furthermore, the ample storage space provided by the 960GB capacity allows you to create backups and duplicate files without worrying about running out of space. This is especially beneficial for businesses that require redundant copies of critical data for disaster recovery purposes.

Enhanced Performance

In addition to its large storage capacity, the HPE P18424-X21 SSD offers enhanced performance that allows for faster data transfer speeds and improved overall system responsiveness. The increased capacity ensures that you can take full advantage of these performance benefits without compromising on storage space.

Whether you are transferring large files or running resource-intensive applications, the 960GB capacity ensures that you have enough room to perform these tasks efficiently. This means reduced waiting times and improved productivity, allowing you to focus on your work or enjoy seamless multimedia experiences without any slowdowns or lag.

Future-Proof Investment

Investing in a high-capacity SSD like the HPE P18424-X21 with 960GB ensures that your storage needs are met now and in the future. As technology continues to advance and file sizes continue to grow, having a generous amount of storage space becomes increasingly important.

By choosing a 960GB SSD, you future-proof your storage solution, reducing the need for frequent upgrades or expansions. This not only saves you money in the long run but also provides peace of mind knowing that you have enough storage capacity to accommodate any future requirements.

Interface: SATA-6GBPS

The HPE P18424-X21 SSD features a SATA-6GBPS interface, which plays a crucial role in ensuring seamless data transfer and compatibility with various systems. The SATA-6GBPS interface offers several benefits that make it an excellent choice for users seeking reliable and efficient storage solutions.

High-Speed Data Transfer

The SATA-6GBPS interface provides faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second (Gbps), this interface allows for quick and smooth data transmission between the SSD and your computer.

Whether you are copying large files, installing applications, or accessing data stored on the SSD, the high-speed data transfer capabilities of the SATA-6GBPS interface ensure that these tasks are completed swiftly and without any noticeable delays. This translates into improved overall system performance and user experience.

Wide Compatibility

One of the key advantages of the SATA-6GBPS interface is its widespread compatibility with various systems and devices. This interface is widely supported by modern motherboards, ensuring that the HPE P18424-X21 SSD can be easily integrated into your existing setup without any compatibility issues.

Whether you are using a desktop computer or a laptop, chances are that your system supports the SATA-6GBPS interface. This makes it a versatile choice for users who want to upgrade their storage solutions or replace their existing hard drives with a high-performance SSD.

Easy Installation

The SATA-6GBPS interface also offers the advantage of easy installation. Most computers and laptops have dedicated SATA ports that allow for straightforward connection of storage devices. The HPE P18424-X21 SSD can be easily installed by connecting it to the SATA port on your motherboard, eliminating the need for complex setups or additional adapters.

This ease of installation makes the SATA-6GBPS interface a user-friendly choice, even for individuals with limited technical knowledge or experience. Whether you are a home user upgrading your personal computer or an IT professional managing multiple systems, the simplicity of the SATA-6GBPS interface ensures a hassle-free installation process.

Form Factor: SFF

The HPE P18424-X21 SSD features a Small Form Factor (SFF) design, which offers several benefits in terms of space efficiency, compatibility, and flexibility. The SFF form factor is particularly advantageous for users who require compact storage solutions without compromising on performance or capacity.

Space-Efficient Design

The SFF form factor allows for a smaller physical footprint compared to larger form factors such as 3.5-inch drives. This makes the HPE P18424-X21 SSD an ideal choice for systems with limited space, such as small form factor desktops, mini PCs, or rack-mounted servers.

By utilizing the SFF form factor, this SSD can be easily integrated into tight spaces without obstructing airflow or impeding the overall efficiency of the system. This is particularly important in environments where space optimization is crucial, such as data centers or office setups with limited desk space.

Enhanced Compatibility

The SFF form factor is widely supported by various systems and devices, ensuring compatibility with a wide range of hardware configurations. Whether you are upgrading your personal computer or managing enterprise-level storage solutions, the HPE P18424-X21 SSD's SFF design ensures that it can be seamlessly integrated into your existing setup.

Furthermore, the compact size of the SFF form factor allows for greater flexibility in terms of system design and expansion. This makes it easier to incorporate multiple SSDs or other components into your system, maximizing storage capacity and performance without sacrificing valuable space.

Hot-Swappable Capability

Another advantage of the SFF form factor is its hot-swappable capability, which allows for easy installation and removal of the HPE P18424-X21 SSD without the need to power down the system. This feature is particularly beneficial in environments where uninterrupted operation is critical, such as servers or high-demand computing environments.

The hot-swappable capability of the SFF form factor ensures that you can quickly replace or upgrade your storage solution without disrupting ongoing operations. This minimizes downtime and allows for seamless maintenance or expansion of your storage infrastructure, enhancing overall system reliability and availability.

Intended Use: Read Intensive

The HPE P18424-X21 SSD is specifically designed for read-intensive workloads, making it an optimal choice for users who require fast and reliable access to data. The read-intensive nature of this SSD offers several benefits in terms of performance, durability, and cost-effectiveness.

Faster Data Access

Read-intensive SSDs prioritize read operations over write operations, resulting in faster data access speeds. This makes the HPE P18424-X21 SSD an ideal choice for applications that require frequent data retrieval, such as booting up the operating system, launching applications, or accessing frequently used files.

By prioritizing read operations, this SSD ensures that data is readily available, reducing waiting times and improving overall system responsiveness. Whether you are a professional working with large datasets or a home user looking for snappy performance, the read-intensive nature of this SSD delivers the speed you need.

Extended Durability

The read-intensive design of the HPE P18424-X21 SSD also contributes to its extended durability. Since read operations are less demanding on the SSD's flash memory cells compared to write operations, the wear and tear on the drive are significantly reduced.

With less stress on the flash memory cells, the HPE P18424-X21 SSD can withstand a higher number of read cycles before experiencing performance degradation or failure. This extended durability ensures that your data remains safe and accessible for an extended period, making it an excellent choice for long-term storage solutions.

Cost-Effective Solution

Read-intensive SSDs offer a cost-effective storage solution for users who prioritize fast data access over high write speeds. By focusing on read operations, these SSDs can provide excellent performance at a lower price point compared to their write-intensive counterparts.

For users who primarily engage in activities that involve reading data rather than writing, such as multimedia consumption, web browsing, or document editing, the HPE P18424-X21 SSD's read-intensive design offers an optimal balance between performance and cost-effectiveness.

Smart Carrier: 1

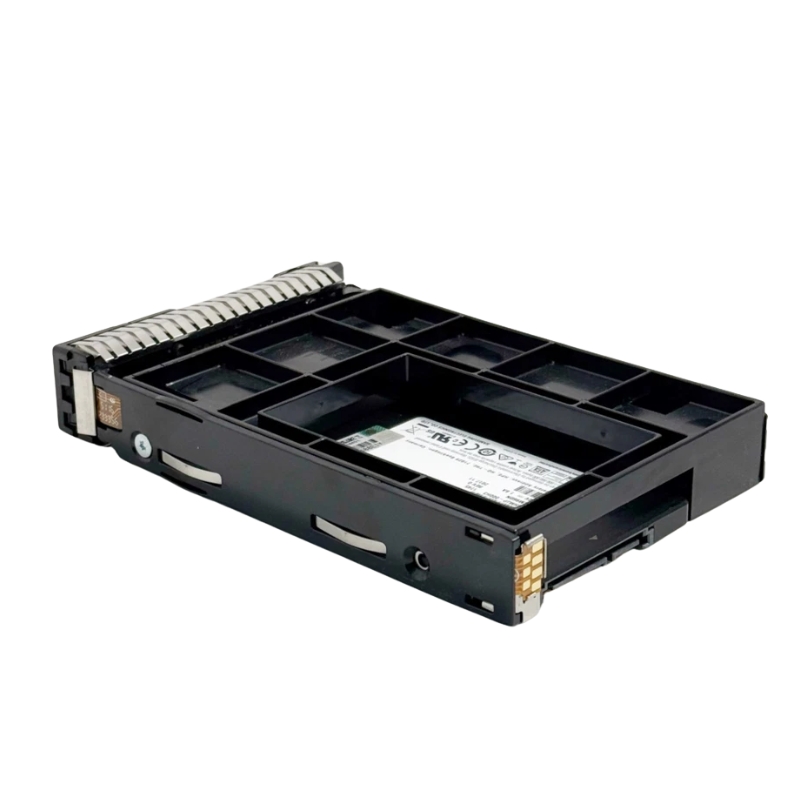

The HPE P18424-X21 SSD is equipped with a Smart Carrier that enhances its functionality and ease of use. The Smart Carrier offers several benefits that contribute to improved system management, security, and efficiency.

Enhanced Drive Identification

The Smart Carrier of the HPE P18424-X21 SSD features enhanced drive identification capabilities, making it easier to manage and identify the drive within your system. The Smart Carrier provides detailed information about the drive, including its model, capacity, and health status.

By offering clear and accurate drive identification, the Smart Carrier simplifies system management tasks, such as drive replacement, upgrade, or troubleshooting. This ensures that you can quickly identify the HPE P18424-X21 SSD and take appropriate actions without confusion or delays.

Secure Drive Operation

The Smart Carrier also enhances the security of the HPE P18424-X21 SSD by providing additional features that protect against unauthorized access or tampering. The Smart Carrier can be locked to prevent physical removal of the drive, ensuring that your data remains secure even in high-risk environments.

In addition to physical security measures, the Smart Carrier may also offer advanced encryption capabilities to protect data stored on the HPE P18424-X21 SSD. This ensures that sensitive information remains encrypted and inaccessible to unauthorized users, enhancing overall data security.

Efficient Cooling and Power Management

Another key benefit of the Smart Carrier is its ability to improve cooling and power management for the HPE P18424-X21 SSD. The Smart Carrier is designed to facilitate efficient airflow around the drive, dissipating heat effectively and preventing overheating.

By maintaining optimal operating temperatures, the Smart Carrier helps prolong the lifespan of the HPE P18424-X21 SSD and ensures consistent performance. Additionally, the Smart Carrier may incorporate power management features that optimize power consumption, resulting in energy savings and increased efficiency.

In conclusion, the HPE P18424-X21 SSD offers an impressive capacity of 960GB, ensuring ample storage space for users' data needs. The high capacity allows for efficient data storage, enhanced performance, and future-proof investment. The SATA-6GBPS interface provides high-speed data transfer, wide compatibility, and easy installation. The SFF form factor offers space efficiency, enhanced compatibility, and hot-swappable capability. The read-intensive nature of the SSD ensures faster data access, extended durability, and cost-effectiveness. The Smart Carrier enhances drive identification, secure operation, and efficient cooling and power management. Together, these features make the HPE P18424-X21 SSD a reliable and versatile storage solution for various users and applications.
