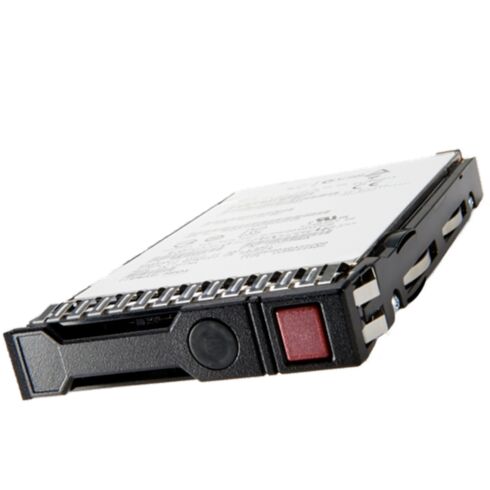

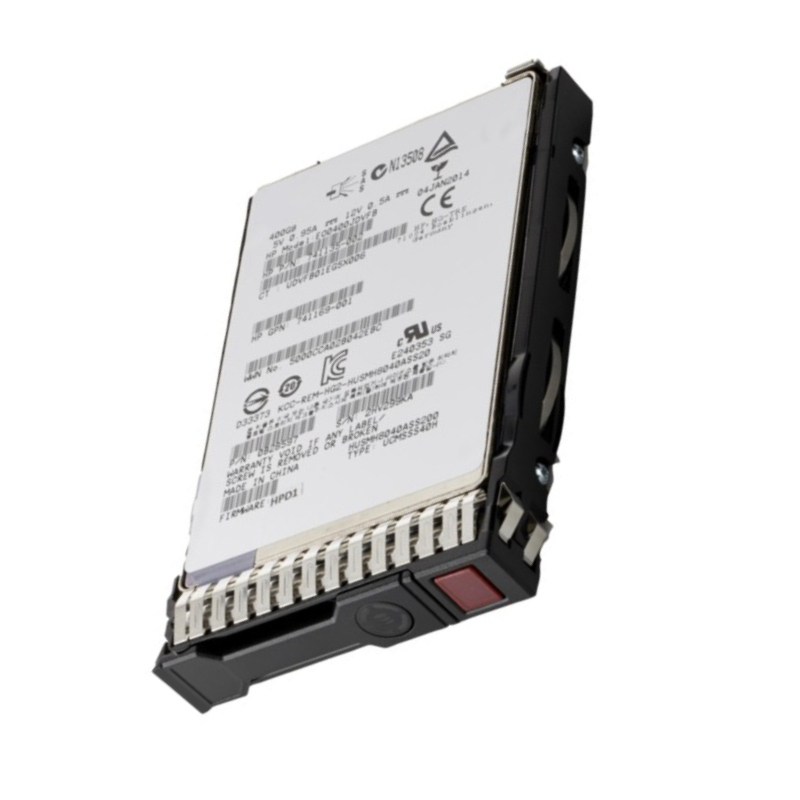

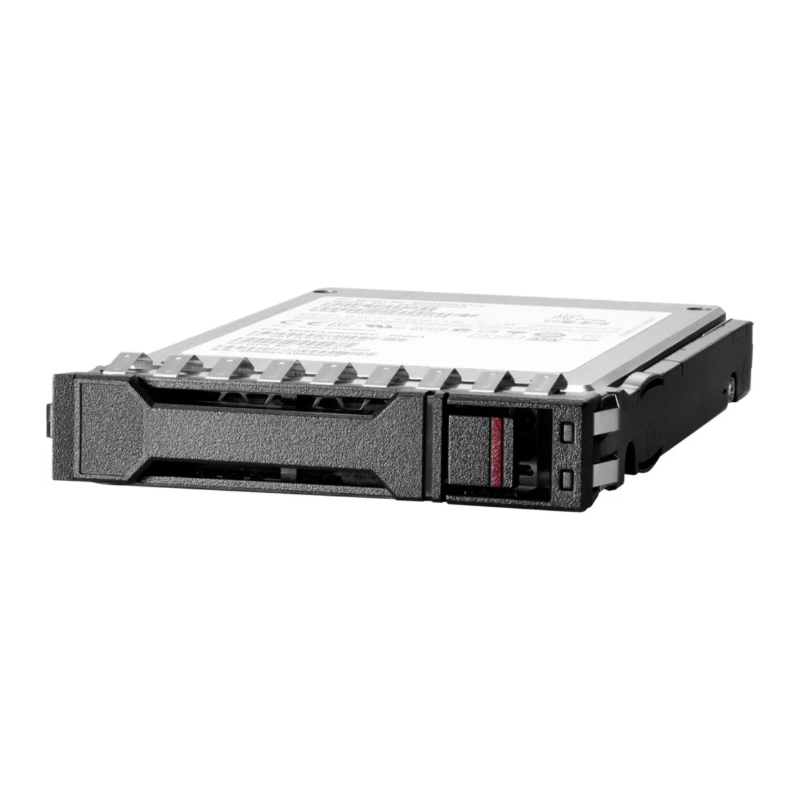

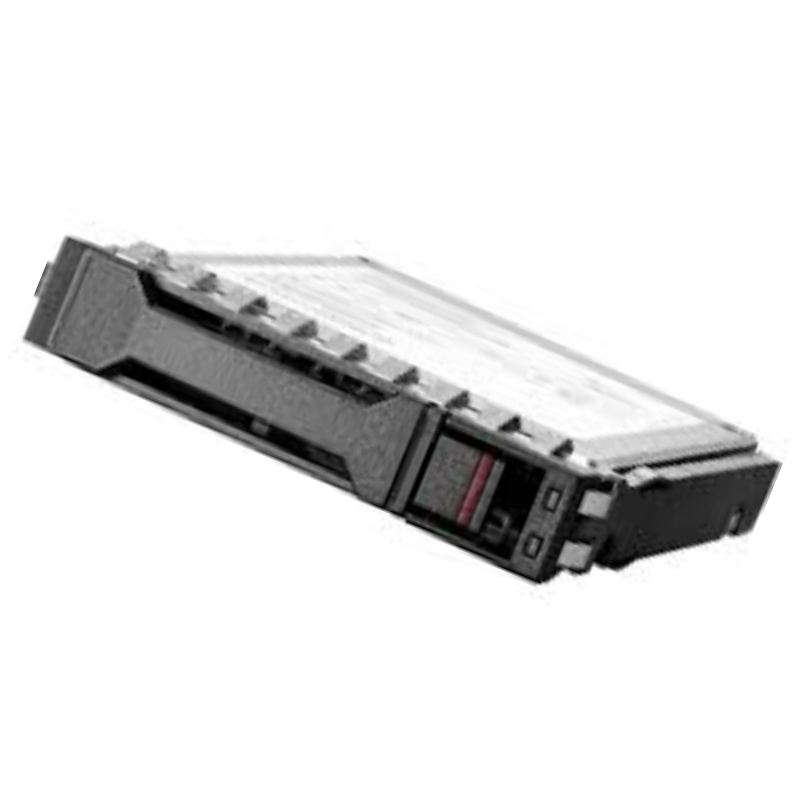

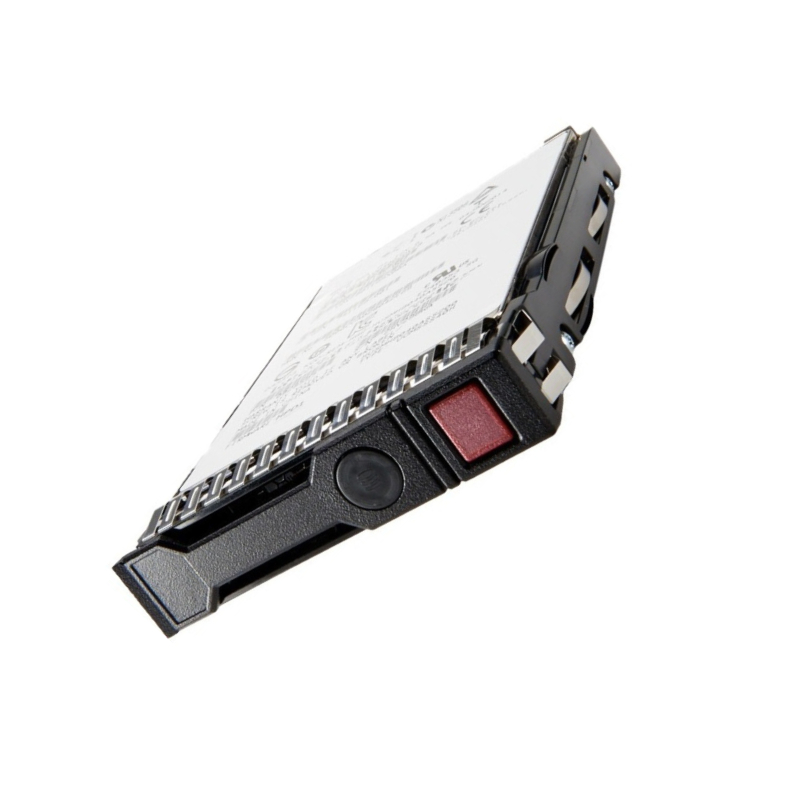

P21083-001 HPE 1.92TB SATA 6GBPS SFF TLC Smart Carrier SSD.

Overview of HPE P21083-001 1.92TB SATA 6GBPS SFF SSD

The HPE P21083-001 is a high-performance 1.92TB solid-state drive designed for enterprise environments. Engineered for speed, reliability, and compatibility with HPE servers, this SSD features a Smart Carrier and Triple-Level Cell (TLC) NAND technology.

General Information

• Manufacturer: HPE
• Part Number: P21083-001
• Device Type: Solid State Drive (SSD)

Technical Specifications

• Storage Capacity: 1.92 TB
• Form Factor: 2.5 Inch SFF
• Interface: SATA 6Gbps
• NAND Flash: Triple-Level Cell (TLC)
• Hot-Swap Capability: Yes
• Carrier Type: Smart Carrier (SC)
• Workload Type: Read Intensive
• Connectivity: Single Port
• Bundled Accessories: HPE SmartDrive Carrier
• Security Feature: Digitally Signed Firmware (DS)

Performance Metrics

Write and Endurance

• 30 Days Writes: 5256
• Endurance (DWPD): 1.50 Drive Writes Per Day

Data Transfer Rates

• Maximum Sequential Read: 500 MiB/s
• Maximum Sequential Write: 495 MiB/s
• External Drive Transfer Rate: 600 MBps

Latency and IOPS

• Random Read Latency (4KiB, Q1): 125 μs
• Random Write Latency (4KiB, Q1): 38 μs
• Random Read IOPS (4KiB, Q=16): 67,000
• Random Write IOPS (4KiB, Q=16): 31,000
• Maximum Random Read IOPS (4KiB, Q32): 76,000
• Maximum Random Write IOPS (4KiB, Q32): 33,000

Connectivity and Expansion

• Interface: 1 x SATA 6Gb/s
• Compatible Drive Bay: 2.5" SFF

Power Consumption

• Idle Power: 1.21 W
• Random Read/Write: 1.51 W
• Sequential Read: 2.20 W
• Sequential Write: 2.88 W
• Maximum Power: 2.88 W

Compatibility with HPE Servers

Supported HPE Solutions

• Nimble Storage dHCI Large Solution with ProLiant DL380 Gen10
• Medium Solution with ProLiant DL325 Gen10 Plus
• Medium Solution with ProLiant DL360 Gen10
• Small Solution with ProLiant DL360 Gen10

Compatible HPE ProLiant DL Series

• DL160 Gen10 Base, Entry, SMB (2.5inch)
• DL180 Gen10 Base, Entry, SMB (2.5inch)
• DL20 Gen10 Entry, Performance, Solution (2.5inch)
• DL325 Gen10 Base, Entry, Plus, All-NVMe Flash Node for Qumulo (2.5inch)
• DL360 Gen10 All Flash Server for Weka, Compute Server for Cohesity, Network Choice (2.5inch)

HPE P21083-001 1.92TB 2.5-Inch SFF Solid State Drives

The HPE P21083-001 1.92TB 2.5-inch Small Form Factor (SFF) solid-state drive is designed for high-performance computing environments where reliability, speed, and efficiency are paramount. This enterprise-class SSD is part of HPE's advanced storage solutions and is engineered specifically for HPE ProLiant servers, providing exceptional read-intensive performance and consistent endurance over prolonged workloads. Leveraging SATA 6Gbps interface technology, the drive ensures high-speed data transfers and seamless integration with enterprise storage infrastructures, making it a reliable choice for organizations aiming to optimize server storage capabilities.

Advanced Storage Architecture and Technology

Triple-Level Cell NAND Flash Memory

The P21083-001 utilizes Triple-Level Cell (TLC) NAND flash memory, which allows for increased storage density while maintaining operational efficiency and cost-effectiveness. TLC technology stores three bits of data per cell, striking a balance between high capacity and sustained performance. This technology is particularly well-suited for read-intensive applications where frequent retrieval of large datasets is required, such as database operations, virtualization, and cloud storage solutions. With TLC flash, organizations can benefit from high-capacity storage without compromising reliability.

Digitally Signed Firmware for Enhanced Security

Security and integrity of data are critical in enterprise environments. The HPE P21083-001 comes with Digitally Signed Firmware, ensuring that every firmware update applied to the drive is authenticated and validated. This feature protects the SSD against unauthorized firmware modifications and enhances overall system security. The digitally signed firmware not only safeguards critical enterprise data but also contributes to maintaining consistent drive performance throughout its operational lifespan.

Smart Carrier Integration

The Smart Carrier (SC) feature is an integral part of the HPE P21083-001, simplifying drive installation and management within HPE ProLiant servers. The Smart Carrier provides intuitive status indicators and ensures compatibility across a wide range of HPE server models. This plug-and-play design reduces downtime during maintenance and enhances operational efficiency, especially in environments where rapid drive replacement or upgrades are common. With Smart Carrier technology, IT administrators can easily monitor drive health and quickly respond to any alerts.

Performance Characteristics of HPE P21083-001

Sequential and Random Read Performance

The HPE P21083-001 excels in both sequential and random read operations, making it ideal for applications that require fast access to large datasets or frequent retrieval of small data blocks. Sequential read throughput can reach up to 500 MiB/s, enabling rapid data loading for large files or database tables. Meanwhile, random read input/output operations per second (IOPS) reach up to 76,000 at queue depth 32, ensuring minimal latency in environments with high concurrency and multiple simultaneous read requests. These performance characteristics make the drive an ideal solution for virtualized environments and cloud computing platforms.

Write Endurance and Reliability

While optimized for read-intensive workloads, the P21083-001 maintains strong write endurance, rated at 1.5 drive writes per day (DWPD). This ensures that even under consistent read/write cycles, the drive maintains reliability and avoids premature wear. Sequential write speeds can reach up to 495 MiB/s, providing sufficient throughput for system logging, transactional workloads, or periodic write operations without impacting overall performance. HPE’s engineering ensures that the SSD continues to deliver consistent performance even in high-demand operational scenarios.

Latency Optimization

Low latency is a critical factor in enterprise storage performance. The HPE P21083-001 delivers an average random read latency of 125 microseconds and a random write latency of 38 microseconds. These latency figures guarantee that applications experience minimal delays in data access, resulting in smoother performance for mission-critical workloads. Optimized firmware and controller design minimize read/write overhead, ensuring consistent responsiveness across all operational conditions.

Connectivity and Expandability

SATA 6Gbps Interface

The HPE P21083-001 employs a SATA 6Gbps interface, ensuring compatibility with a wide range of HPE ProLiant servers and storage enclosures. This interface provides a reliable connection for high-speed data transfers, supporting both sequential and random workloads with minimal latency. Its broad compatibility with HPE server bays enhances operational flexibility, allowing IT teams to deploy the drive across multiple server platforms without concern for interface mismatches or connectivity issues.

Small Form Factor Design

The 2.5-inch SFF form factor is optimized for modern server architectures, offering a balance of high storage capacity and space-efficient deployment. This compact design enables dense storage configurations, which is essential for data centers with limited rack space. Small form factor drives also facilitate easier handling during installation or replacement, reducing maintenance time and ensuring operational continuity.

Energy Efficiency and Power Management

Thermal Management

Efficient thermal management is achieved through optimized drive architecture and the Smart Carrier design. By maintaining consistent operating temperatures, the drive reduces the risk of thermal throttling or premature component degradation. Data centers benefit from more predictable cooling requirements, which translates into reduced air conditioning loads and overall energy savings.

Compatibility with HPE ProLiant Servers

Optimized for Nimble Storage dHCI Solutions

The P21083-001 is fully compatible with HPE Nimble Storage dHCI solutions, including large configurations with the ProLiant DL380 Gen10 and medium setups with the ProLiant DL325 Gen10 Plus and DL360 Gen10. Its seamless integration ensures that storage performance is optimized across both compute and storage tiers, facilitating high-throughput operations and minimal latency in distributed storage environments. This makes the SSD an ideal choice for hybrid cloud, virtualization, and software-defined storage applications.

ProLiant DL Series Servers

This SSD category also encompasses broad compatibility with HPE ProLiant DL series servers, including models DL160, DL180, DL20, DL325, and DL360 across various generations and configurations. Enterprises benefit from a versatile storage solution that can be deployed across multiple server types, simplifying procurement and inventory management. The Smart Carrier ensures that the drives can be quickly installed or replaced with minimal disruption to server operations.

Enterprise Deployment Considerations

For IT administrators, the P21083-001 provides straightforward deployment across different server solutions, including base, entry, performance, and all-flash configurations. The drive's high reliability, energy efficiency, and robust performance metrics make it an ideal candidate for mission-critical applications where downtime or data loss is not acceptable. By standardizing on this SSD category, organizations can streamline maintenance procedures and enhance storage consistency across their data centers.

Workload Optimization and Use Cases

Read-Intensive Applications

The HPE P21083-001 is explicitly designed for read-intensive workloads. Applications that involve frequent data retrieval, such as analytics, business intelligence, virtual desktop infrastructure (VDI), and content delivery networks (CDNs), benefit greatly from its fast read performance and low latency. By prioritizing read efficiency, the SSD ensures that performance bottlenecks are minimized and user experience remains consistently high.

Virtualization and Cloud Infrastructure

Virtualized environments demand storage solutions that can handle high IOPS and multiple concurrent read/write operations. The P21083-001’s optimized performance and low latency make it ideal for virtual machines, containerized applications, and cloud-native workloads. Its compatibility with HPE ProLiant servers ensures that IT teams can scale storage capacity and performance as needed without compromising system reliability or response times.

Hybrid Storage Configurations

The SSD can be deployed as part of hybrid storage arrays, where it serves as a high-speed tier for frequently accessed data, complementing slower, high-capacity HDDs for archival storage. This tiered storage approach maximizes overall system efficiency and reduces the total cost of ownership by ensuring that critical data is delivered rapidly, while less frequently accessed data is stored cost-effectively.

Cloud and Edge Computing Environments

With growing adoption of edge computing and distributed cloud architectures, the P21083-001 provides a reliable and compact storage option for edge servers. Its small form factor, energy-efficient operation, and robust performance metrics allow enterprises to deploy high-speed storage close to users and devices, improving responsiveness and reducing latency for distributed applications.

Scalability and Enterprise Adaptability

Deployment in Multi-Server Environments

The HPE P21083-001 category is designed with scalability in mind. Enterprises can deploy multiple SSDs across racks of HPE ProLiant servers to build high-performance storage arrays capable of handling massive workloads. Its consistent performance and reliability ensure predictable behavior, making it suitable for large-scale data center operations, high-performance computing clusters, and virtualized environments.

Future-Proofing Enterprise Storage

With growing data demands and evolving application requirements, deploying a robust SSD like the P21083-001 ensures that enterprises are prepared for future workloads. The combination of high-capacity storage, low latency, energy efficiency, and extensive compatibility with HPE servers makes it a forward-looking investment for organizations seeking to modernize their storage infrastructure without sacrificing reliability or performance.
