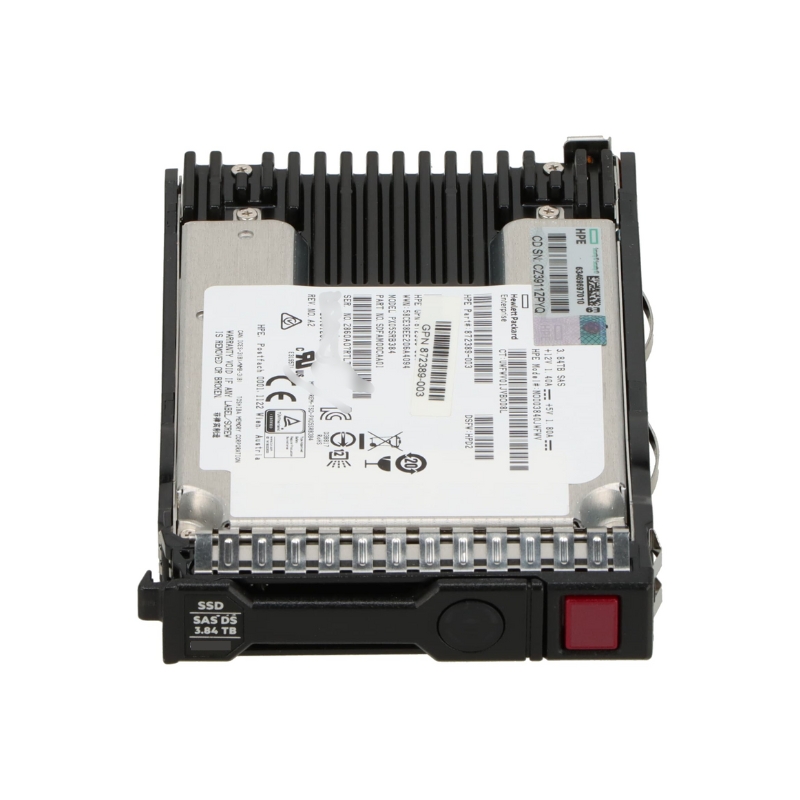

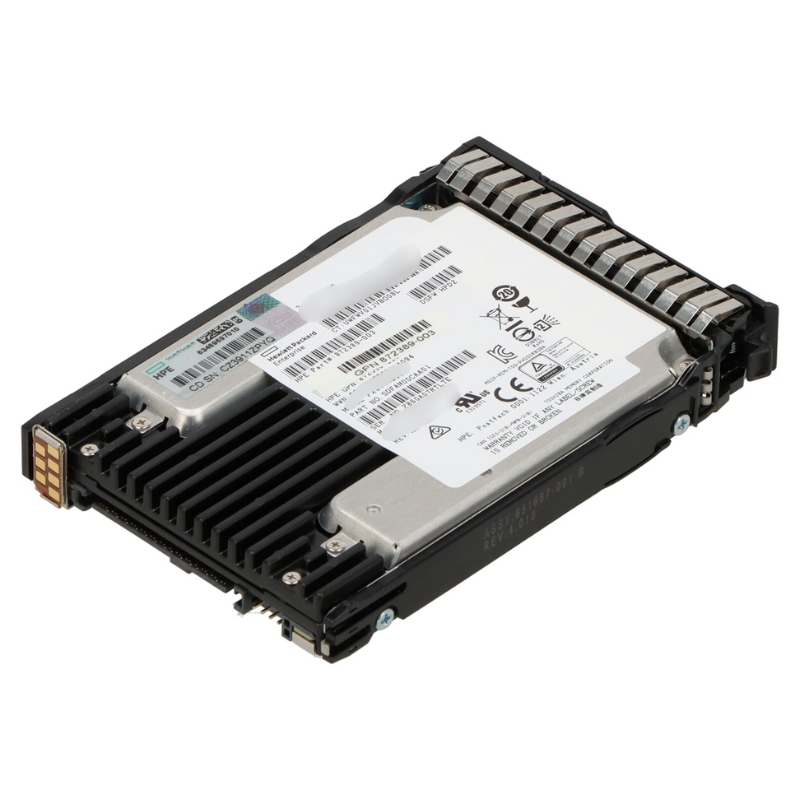

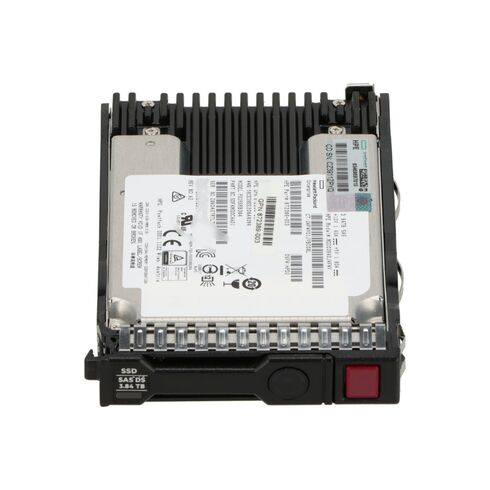

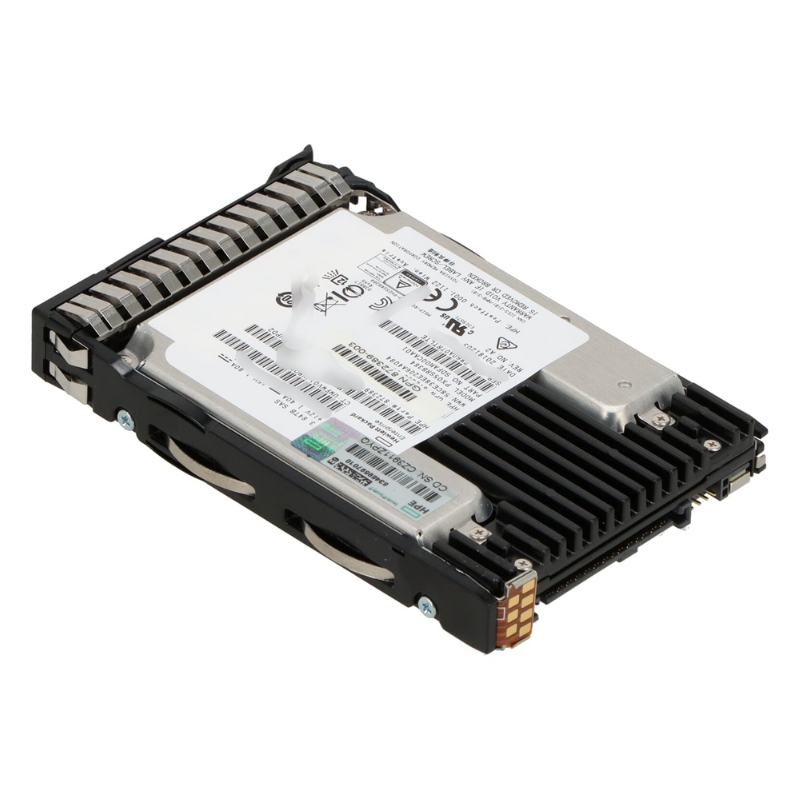

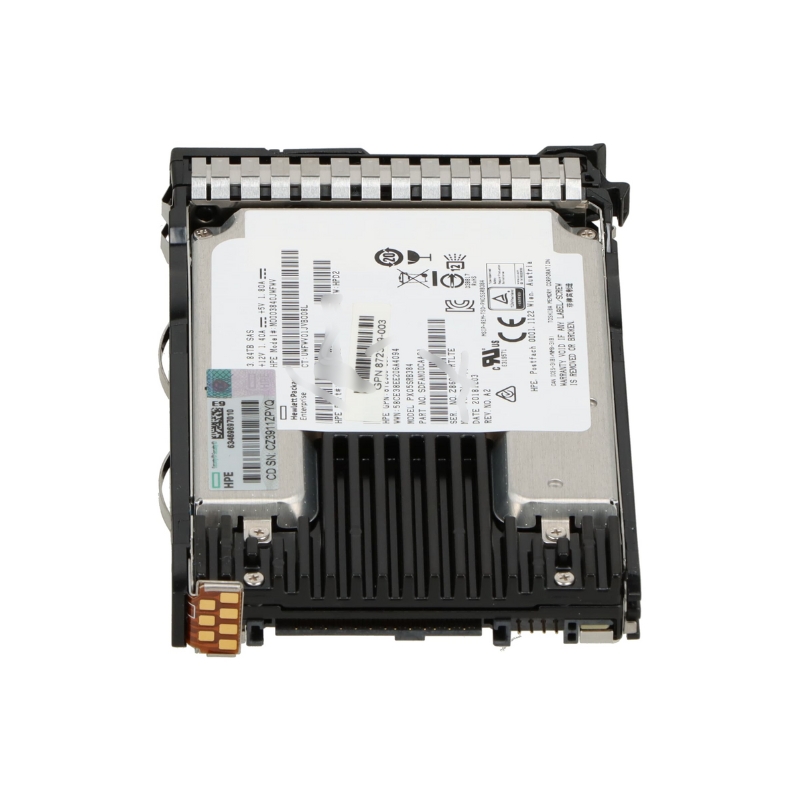

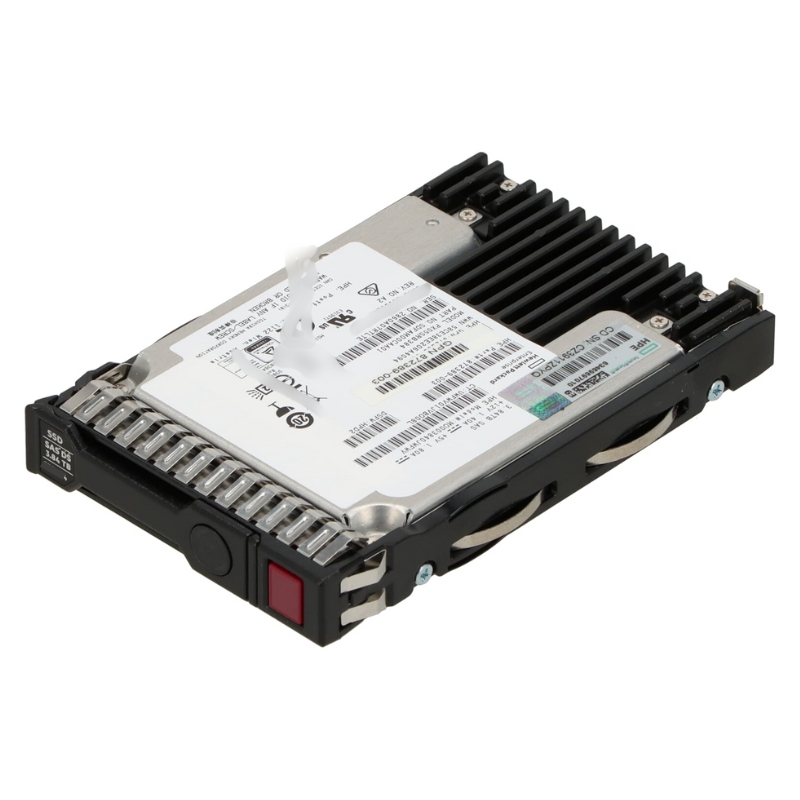

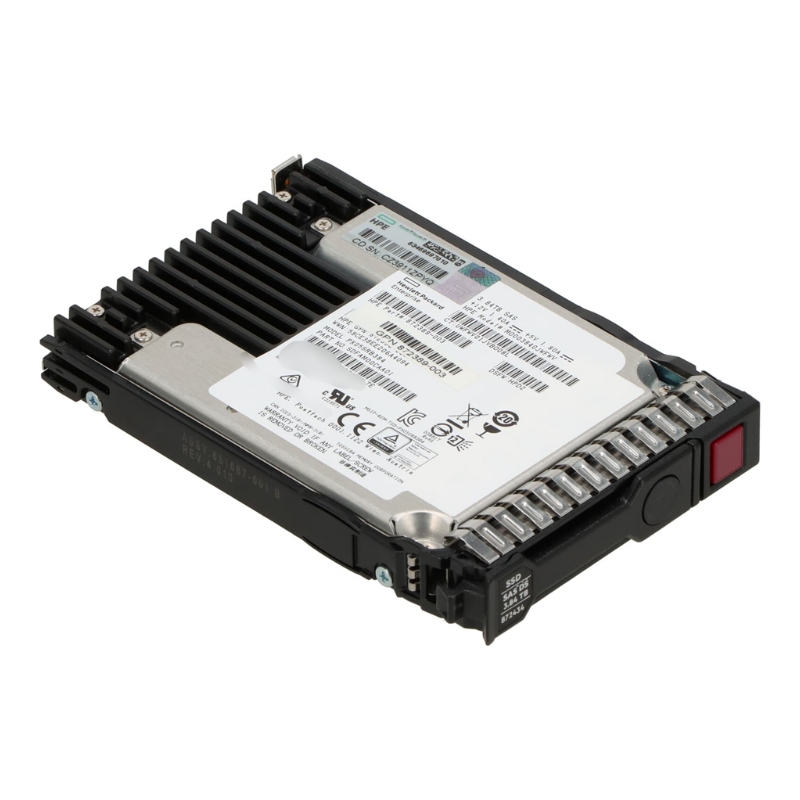

HPE P21143-H21 3.84TB SAS-12GGBPS Smart Carrier 2.5" SSD

P21143-H21
Hover on image to enlarge

Brief Overview of P21143-H21

3.84TB Digitally Signed SAS-12GGBPS Smart Carrier 2.5inch SSD HPE P21143-H21. Excellent Refurbished

with 6-Month Replacement Warranty
QR Code of HPE P21143-H21 3.84TB SAS-12GGBPS Smart Carrier 2.5" SSD
$877.50
$595.37
You save: $282.13 (32%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP21143-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview of HPE P21143-H21 SSD

Key Specifications

  • Manufacturer: HPE
  • Model Number: P21143-H21
  • Product Type: Solid State Drive
  • Sub-Type: SAS-12GBPS

Technical Features

Drive Characteristics

  • Device Type: Hot-Swap Solid State Drive
  • Storage Capacity: 3.84TB
  • Form Factor: 2.5-inch SFF
  • Interface Speed: SAS 12GBPS
  • NAND Flash Type: Triple-Level Cell (TLC)
  • Connectivity: Dual Port
  • Plug Type: Hot Pluggable
  • Carrier Type: Smart Carrier (SC)
  • Workload Type: Read Intensive
  • Additional Features: Digitally Signed Firmware (DS)
  • Included Accessories: HPE Smart Carrier
  • Supported Platforms: HPE ProLiant Rack, Tower, BladeSystem Servers, Synergy

Performance Metrics

  • Total Lifetime Writes: 6848 TB
  • Endurance (DWPD): 1.0 Drive Writes Per Day
  • Data Transfer Rate: 1.2 GBps (external)
  • Random Read IOPS: 140,000 (4KiB, Q=16)
  • Random Write IOPS: 95,000 (4KiB, Q=16)
  • Max Random Read IOPS: 210,000 @ Q128 (4KiB)
  • Max Random Write IOPS: 100,000 @ Q64 (4KiB)

Power Consumption Details

Power Usage

  • Idle State: 3.89 Watts
  • Random Read: 6.75 Watts
  • Random Write: 6.75 Watts
  • Sequential Read: 6.64 Watts
  • Sequential Write: 10.14 Watts
  • Random Read/Write: 6.75 Watts
  • Maximum Power Consumption: 10.14 Watts

Dimensions and Weight

  • Height: 0.63 Inches
  • Width: 3.10 Inches
  • Depth: 5.45 Inches
  • Weight: 1.50 Pounds

Compatibility Information

HPE ProLiant DL Series

  • DL160 Gen10 (2.5 inch)
  • DL180 Gen10 (2.5 inch)
  • DL325 Gen10 (2.5 inch)
  • DL360 Gen10 (2.5 inch)
  • DL385 Gen10 (2.5 inch)
  • DL560 Gen10 (2.5 inch)
  • DL580 Gen10 (2.5 inch)

HPE ProLiant ML Series

  • ML350 Gen10 (2.5 inch)
  • ML350 Gen10 Base (2.5 inch)
  • ML350 Gen10 High Performance (2.5 inch)
  • ML350 Gen10 SMB (2.5 inch)

Capacity: 3.84TB

Unparalleled Storage Capacity

The HPE P21143-H21 SSD offers an impressive storage capacity of 3.84TB, making it an ideal choice for users who require a substantial amount of storage space for their data-intensive applications. Whether you are a professional photographer, video editor, or data analyst, this high-capacity SSD ensures that you have ample room to store all your files, documents, and multimedia content.

Seamless Workflow

With a storage capacity of 3.84TB, you can store a vast number of high-resolution images, videos, and other large files without worrying about running out of space. This allows you to work seamlessly without the need for frequent backups or transferring files to external storage devices. You can keep all your data in one place, ensuring easy accessibility and efficient workflow.

Reduced Downtime

The large capacity of the HPE P21143-H21 SSD minimizes the need for frequent data transfers or the use of additional storage solutions. This reduces the risk of system downtime caused by running out of storage space or the need to manage multiple drives. By having all your data in one place, you can focus on your tasks without interruptions, maximizing productivity and minimizing downtime.

Future-Proof Investment

In today's fast-paced digital world, data sizes continue to grow rapidly with advancements in technology and increasing demand for high-quality content. By choosing a 3.84TB capacity SSD like the HPE P21143-H21, you are future-proofing your storage solution. You can confidently store and manage your data without worrying about constantly upgrading or adding more storage devices as your needs expand.

Scalability

The 3.84TB capacity of the HPE P21143-H21 SSD provides room for expansion and scalability. As your business or personal data requirements increase, you can easily add more data to your existing storage solution without the need for complex configurations or additional hardware investments. This flexibility allows you to adapt to changing storage needs without disrupting your workflow or incurring significant costs.

Enhanced Data Management

With a larger storage capacity, you can efficiently organize and manage your data. The HPE P21143-H21 SSD enables you to categorize and store your files in a logical manner, making it easier to locate specific information when needed. This efficient data management enhances productivity by saving time spent on searching for files and ensures that your data remains organized and easily accessible.

Interface: SAS-12Gbps

Lightning-Fast Data Transfer Speeds

The HPE P21143-H21 SSD features a SAS-12Gbps interface, providing users with lightning-fast data transfer speeds. This high-performance interface allows you to quickly read from and write to the SSD, ensuring smooth and efficient operations for demanding applications that require rapid access to data.

Accelerated Workflows

The SAS-12Gbps interface significantly reduces data transfer times, enabling you to complete tasks faster and improve overall workflow efficiency. Whether you are dealing with large multimedia files or running resource-intensive applications, the fast interface ensures minimal waiting times, allowing you to focus on your work without experiencing lag or delays.

High Bandwidth Applications

The HPE P21143-H21 SSD's SAS-12Gbps interface is particularly beneficial for high-bandwidth applications that require large amounts of data to be processed in real-time. Industries such as media and entertainment, scientific research, and financial services can greatly benefit from the high-speed interface as it enables smooth playback of high-definition videos, faster data analysis, and seamless transaction processing.

Improved System Responsiveness

By utilizing the SAS-12Gbps interface, the HPE P21143-H21 SSD enhances system responsiveness. The fast data transfer speeds ensure that your operating system and applications load quickly, resulting in a more responsive computing experience. You will experience reduced boot times, instantaneous application launches, and improved overall system performance.

Efficient Data Backup

The high-speed SAS-12Gbps interface enables quick and efficient data backup processes. Whether you need to create regular backups of critical files or perform system backups for disaster recovery purposes, the fast interface ensures that your data is swiftly transferred to backup storage without causing disruptions to your workflow. This ensures that your valuable data remains safe and accessible at all times.

Seamless RAID Configuration

If you are planning to configure your storage solution in a RAID (Redundant Array of Independent Disks) configuration, the SAS-12Gbps interface offers seamless compatibility. This interface allows for efficient data distribution across multiple drives, improving fault tolerance and overall system performance. With the HPE P21143-H21 SSD's SAS-12Gbps interface, you can easily set up a reliable and high-performing RAID system to meet your specific requirements.

Form Factor: 2.5inch

Compact Design

The HPE P21143-H21 SSD adopts a compact 2.5inch form factor, making it suitable for various computing devices and environments. Its small size allows for easy integration into desktops, laptops, servers, and storage arrays without occupying excessive space. Whether you need to upgrade your existing system or build a new one, the 2.5inch form factor offers versatility and convenience.

Enhanced Portability

If you require a portable storage solution, the 2.5inch form factor of the HPE P21143-H21 SSD is ideal. It can easily fit into external enclosures or portable docking stations, allowing you to conveniently carry your data wherever you go. Whether you are traveling for business or need to share files with colleagues or clients, the compact size ensures that your data is always accessible.

Improved Airflow and Cooling

The smaller form factor of the HPE P21143-H21 SSD promotes better airflow within the system. This is particularly advantageous in high-performance computing environments where heat dissipation is crucial for maintaining optimal performance and prolonging the lifespan of components. The compact design allows for efficient cooling, reducing the risk of overheating and ensuring reliable operation.

Space Optimization

The 2.5inch form factor is an excellent choice for systems with limited space, such as small form factor PCs or densely populated server racks. By utilizing this compact design, you can optimize space utilization without sacrificing storage capacity or performance. The HPE P21143-H21 SSD's small footprint allows for efficient use of available space, ensuring that you can maximize the potential of your computing infrastructure.

Compatibility with Existing Systems

The 2.5inch form factor is widely supported by various computing devices and systems. Whether you are upgrading an older system or integrating the HPE P21143-H21 SSD into a new one, compatibility is ensured. You can effortlessly install this SSD into standard drive bays or use adapter brackets to accommodate different form factor requirements. The versatility of the 2.5inch form factor simplifies the integration process, allowing for a seamless upgrade or installation.

Hot-Swap Capability

The HPE P21143-H21 SSD's 2.5inch form factor enables hot-swapping functionality in systems that support it. Hot-swapping allows for the replacement or addition of drives while the system is still running, eliminating the need for system downtime. This feature is particularly useful in mission-critical environments where continuous operation is essential. With hot-swapping capability, you can easily expand your storage capacity or replace faulty drives without interrupting your workflow.

Features: Digitally Signed, Smart Carrier

Enhanced Security

The HPE P21143-H21 SSD incorporates advanced security features such as digital signature technology. The digitally signed firmware ensures the authenticity and integrity of the drive's firmware, protecting against unauthorized modifications or tampering. This feature enhances data security and mitigates the risk of malware attacks or unauthorized access to sensitive information.

Data Protection

By utilizing digital signature technology, the HPE P21143-H21 SSD offers an additional layer of data protection. The digitally signed firmware provides a means to verify the integrity of the drive's firmware, reducing the risk of data corruption or loss due to firmware-related issues. This ensures that your data remains safe and protected, even in the event of unexpected system failures or power outages.

Smart Carrier Technology

The HPE P21143-H21 SSD features Smart Carrier technology, which provides enhanced monitoring and management capabilities. The Smart Carrier allows for remote monitoring of drive health and performance, enabling proactive maintenance and preventing potential issues before they impact system functionality. This feature enhances reliability, minimizes downtime, and simplifies drive management tasks.

Efficient Drive Identification

The Smart Carrier technology of the HPE P21143-H21 SSD includes drive identification functionality, making it easier to manage and identify specific drives within a system. The Smart Carrier provides clear labeling and visual indicators, reducing the chance of human error in drive identification and minimizing the risk of accidental drive removal or replacement. This simplifies drive maintenance and enhances overall system efficiency.

Seamless Integration

The HPE P21143-H21 SSD's Smart Carrier technology seamlessly integrates with various HPE systems and management tools, allowing for centralized drive management and monitoring. This simplifies the administration of storage resources, enabling efficient provisioning, configuration, and maintenance of drives across multiple systems. The seamless integration saves time and effort, streamlining storage management processes.

Optimized Performance

The Smart Carrier technology of the HPE P21143-H21 SSD includes performance optimization features. These features allow the drive to adapt to workload demands, dynamically adjusting performance parameters to deliver optimal performance in different usage scenarios. By optimizing performance based on workload characteristics, the HPE P21143-H21 SSD ensures that you get the best possible performance for your specific applications and workloads.
