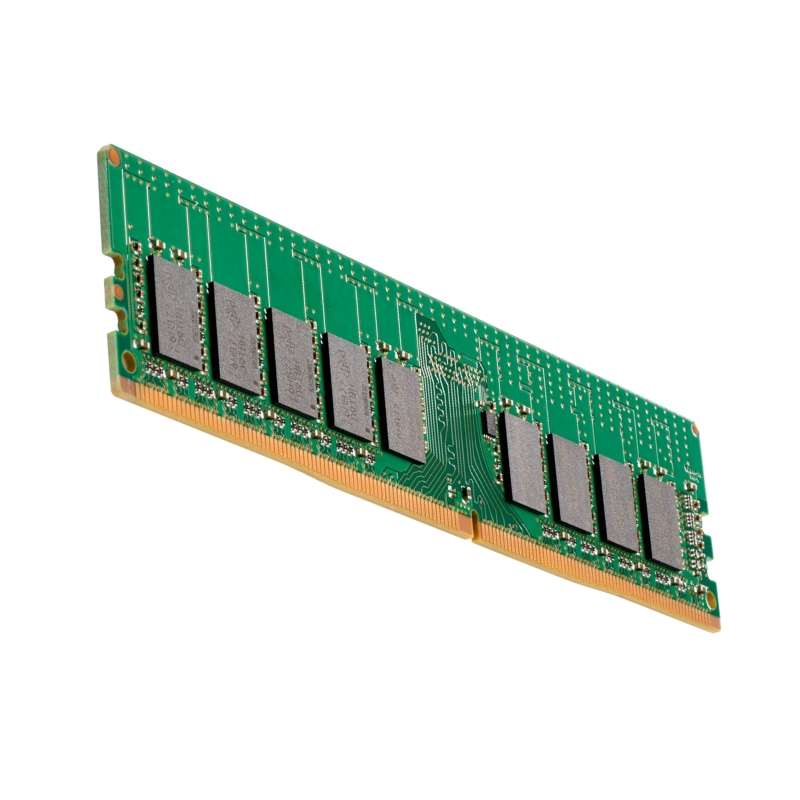

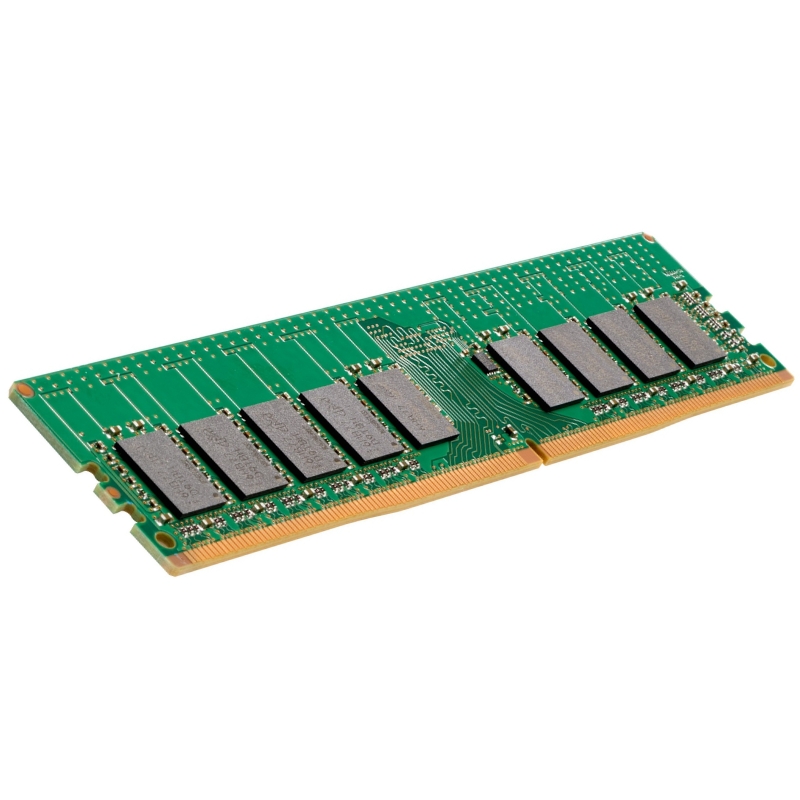

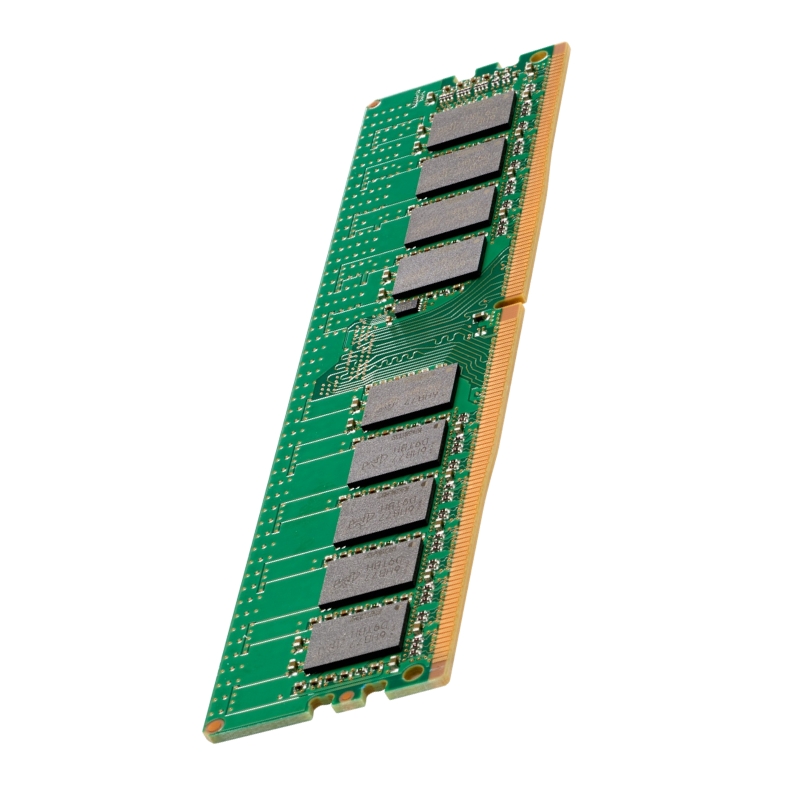

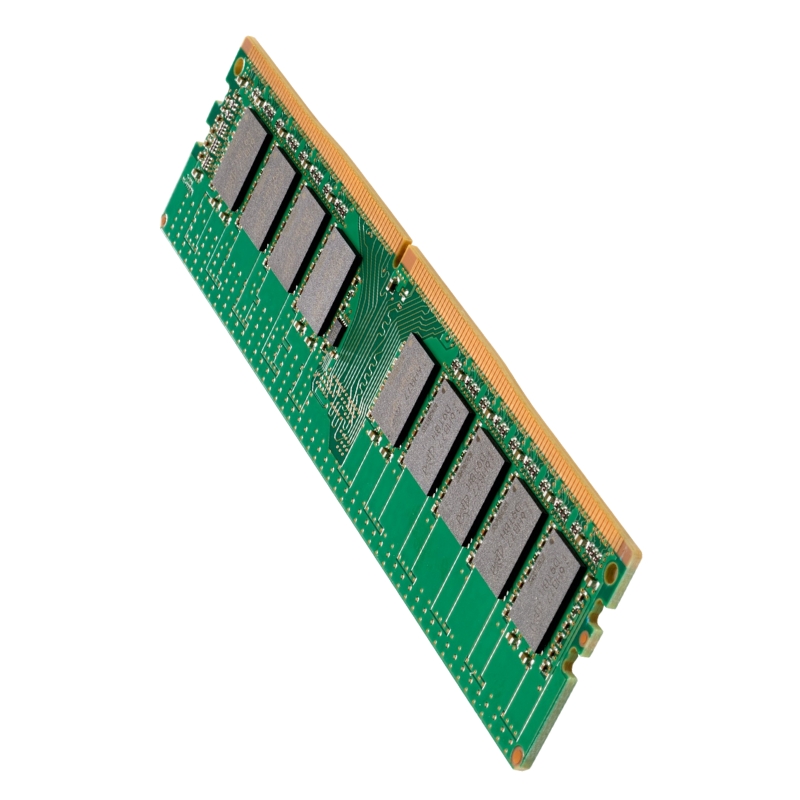

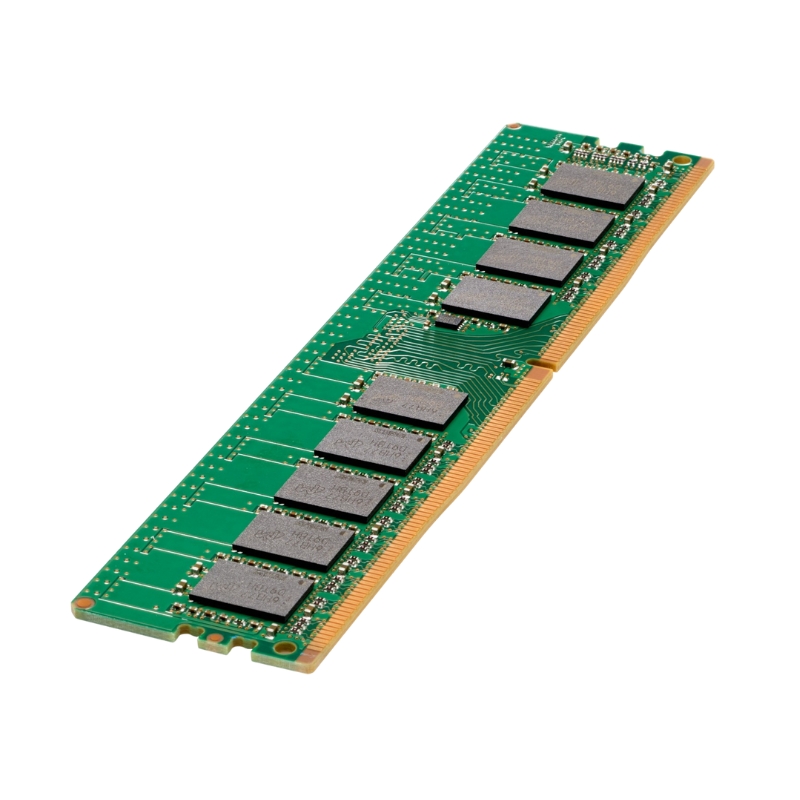

P21677-001 HPE 128GB 3200MHz Pc4-25600 Quad Rank Reduced DDR4 SDRAM 288-pin LRDIMM Smart Memory Kit

HPE 128GB 3200MHz PC4-25600 Memory Kit

The HPE P21677-001 128GB DDR4 SDRAM Smart Memory Kit is engineered for enterprise-grade servers, delivering exceptional speed, reliability, and scalability. Designed to support high-performance workloads, this module ensures seamless data processing and optimized efficiency.

General Information

• Brand: Hewlett Packard Enterprise (HPE)
• Part Number: P21677-001
• Device Type: 128GB DDR4 SDRAM Memory Module

Technical Specifications

Core Features

• Capacity: 128GB
• Memory Technology: DDR4 SDRAM
• Module Count: 1 x 128GB
• Bus Speed: 3200MT/s DDR4-3200 / PC4-25600

Performance Enhancements

• Data Integrity: ECC (Error-Correcting Code)
• Signal Processing: Registered
• Latency: CL22
• Rank Configuration: Quad Rank (4Rx4)

Physical Characteristics

Form Factor

• Type: 288-pin LRDIMM

Dimensions & Weight

• Height: 1.00 inch
• Depth: 6.75 inches
• Weight: 0.20 lb

Compatibility

Supported HPE Server Platforms

• Gen10 Plus Systems
• ProLiant Rack Servers
• ProLiant Tower Servers
• BladeSystem Solutions
• HPE Synergy Infrastructure

P21677-001 128GB PC4-25600 Quad Rank Memory Kit Overview

The HPE P21677-001 128GB 3200MHz PC4-25600 Quad Rank Reduced DDR4 SDRAM 288-pin LRDIMM Smart Memory Kit is engineered to meet the rigorous demands of modern enterprise data centers. Designed and validated by :contentReference[oaicite:0]{index=0}, this high-capacity memory module is purpose-built for HPE servers that require dependable, high-bandwidth memory performance. As workloads continue to scale in complexity across virtualization, database management, artificial intelligence, and cloud-native applications, memory infrastructure becomes a foundational component of system efficiency and reliability.

This 128GB DDR4 Smart Memory module operates at 3200MT/s, delivering substantial bandwidth improvements over earlier generations. Built on PC4-25600 standards and leveraging a quad rank architecture, it ensures enhanced memory density and stability. The 288-pin LRDIMM form factor allows for optimized signal integrity, making it ideal for multi-socket server environments where performance consistency is critical.

Advanced DDR4 Architecture and 3200MHz Performance

DDR4 SDRAM Technology Overview

DDR4 SDRAM represents a significant advancement over previous memory standards by providing increased bandwidth, improved power efficiency, and greater module density. Operating at 3200MHz, the HPE P21677-001 Smart Memory module achieves a theoretical bandwidth of up to 25.6GB/s per module, supporting memory-intensive workloads with minimal latency impact.

DDR4 technology reduces operating voltage compared to DDR3, typically running at 1.2V. This lower voltage not only decreases overall power consumption within server chassis but also contributes to reduced heat output. In high-density rack environments, thermal management is essential for maintaining hardware longevity and minimizing cooling infrastructure costs.

PC4-25600 Bandwidth Optimization

PC4-25600 denotes the module’s data transfer capacity of 25,600MB/s. In multi-channel server configurations, the aggregate bandwidth can scale dramatically, providing a significant performance advantage for memory-bound applications. High-frequency memory like 3200MHz modules is particularly beneficial in environments utilizing advanced processors that support higher memory speeds and optimized memory controllers.

With optimized signal integrity and improved timing parameters, this LRDIMM module enables consistent high-speed data throughput even under sustained enterprise workloads. Such reliability ensures predictable application performance and reduces the risk of memory bottlenecks.

Quad Rank Configuration and Its Enterprise Benefits

Understanding Quad Rank Memory Design

The quad rank configuration of the HPE P21677-001 memory module allows four independent blocks of memory chips to operate within a single DIMM. This design significantly increases memory density without requiring additional DIMM slots. In enterprise servers where slot availability may be limited, quad rank LRDIMMs maximize memory capacity per slot.

Rank interleaving enhances performance by allowing the memory controller to access different ranks sequentially. This reduces wait states and improves effective throughput during heavy parallel operations such as virtualization and database indexing.

Improved Scalability in Multi-Socket Servers

In dual- and quad-socket server configurations, memory scalability becomes a key performance determinant. Quad rank LRDIMMs support large aggregate memory capacities, enabling systems to scale to multiple terabytes of RAM. This scalability is crucial for in-memory databases, real-time analytics platforms, and high-performance computing clusters.

By integrating reduced load buffering technology, the LRDIMM architecture isolates electrical load from the memory controller, allowing more modules to be populated per channel without compromising stability. This design is particularly advantageous in servers with extensive memory population requirements.

LRDIMM Technology and Signal Integrity

Reduced Load DIMM Advantages

Load-Reduced DIMMs incorporate a memory buffer that minimizes the electrical load presented to the system’s memory controller. By buffering command, address, and data signals, LRDIMMs enable higher memory capacities and more stable high-frequency operation compared to traditional Registered DIMMs.

The HPE P21677-001 module leverages this architecture to maintain signal integrity at 3200MHz speeds. In enterprise environments where uptime and data accuracy are non-negotiable, this enhanced stability reduces the likelihood of signal degradation or transmission errors.

Advanced Error Detection and Correction

Enterprise workloads demand robust error mitigation mechanisms. The HPE 128GB LRDIMM incorporates ECC functionality, detecting and correcting single-bit memory errors in real time. Advanced memory error detection algorithms help prevent data corruption, safeguarding transactional integrity in financial systems, healthcare databases, and enterprise resource planning applications.

By combining ECC with HPE’s system-level monitoring tools, administrators gain visibility into memory health metrics. Proactive alerting mechanisms enable predictive maintenance, reducing unexpected downtime.

Database and Analytics Platforms

Modern databases frequently rely on in-memory processing to accelerate query execution. Whether operating traditional relational databases or NoSQL architectures, sufficient memory capacity significantly enhances throughput. The HPE P21677-001 module provides the bandwidth and capacity required for handling large datasets in memory.

Analytics engines and business intelligence tools leverage high memory bandwidth to perform complex calculations, aggregations, and predictive modeling. Reduced latency contributes to faster report generation and improved decision-making timelines.

High-Performance Computing and AI

High-performance computing clusters demand consistent and high-bandwidth memory access. Scientific simulations, engineering modeling, and AI training workloads all benefit from large memory capacities and rapid data transfer rates. The quad rank LRDIMM architecture ensures optimal utilization across multi-core processor architectures.

Machine learning frameworks often manipulate large tensors and datasets, placing heavy demands on system memory. The 3200MHz frequency supports data-intensive training cycles and reduces memory-related bottlenecks in CPU-bound AI tasks.

Compatibility with HPE Server Platforms

Optimized for ProLiant and Enterprise Servers

The HPE P21677-001 Smart Memory module is validated for compatibility with select HPE server platforms that support DDR4-3200 LRDIMMs. These include enterprise-grade rack, tower, and blade servers engineered for scalability and reliability. Proper population guidelines ensure balanced memory channel distribution and maximum throughput.

Administrators should verify processor compatibility and BIOS firmware levels to ensure full 3200MHz operational capability. Supported platforms automatically configure optimal timings and voltage parameters to align with HPE’s performance standards.

Data Center Sustainability

Energy efficiency is a growing priority for enterprise IT operations. By deploying high-density 128GB LRDIMMs, organizations can consolidate workloads onto fewer physical servers. This consolidation reduces overall power consumption, rack space utilization, and carbon footprint.

Efficient memory architecture aligns with sustainability initiatives while maintaining the performance standards required for competitive business operations.
