P35519-B21 HPE Proliant DL180 Intel Xeon 10-Core 2.4GHz 16GB DDR4 Server.

HPE P35519-B21 Proliant DL180 Xeon 10-Core 2.4GHz Server

This comprehensive guide details the HPE P35519-B21, a powerful and scalable 2U rackmount solution engineered for demanding workloads. Discover its robust architecture, expansion capabilities, and performance specifications.

General Information

• Brand Name: HPE
• Manufacturer Part: P35519-B21
• Product Name: Server
• Form Factor: 2U Rackmount Chassis

Processing Capabilities and CPU Specifications

Installed Processor Details

• Model: Intel Xeon Silver 4210R (2nd Generation)
• Base Clock Speed: 2.4 GHz
• Maximum Turbo Frequency: 3.2 GHz
• Total Processing Cores: 10 Cores
• Socket: FCLGA3647

Platform Architecture and Upgrade Path

• Chipset: Intel C621
• CPU Quantity Installed: 1
• Maximum CPU Support: 2 (Providing a 2-way configuration)
• CPU Feature Set: Intel Turbo Boost 2.0, Hyper-Threading, Intel Smart Cache
• L3 Cache per CPU: 13.75 MB

Memory Configuration and RAM Details

• Installed RAM Capacity: 16 GB
• Maximum Supported RAM: 1 TB
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2400 MHz (Rated for 2933 MHz)
• Module Format: 288-pin DIMM
• Total/Free Slots: 16 Slots (15 Available)
• Advanced Features: Registered, Online Spare, HPE SmartMemory, 6-channel Architecture

Storage and RAID Controller Information

Drive Bays and Controller

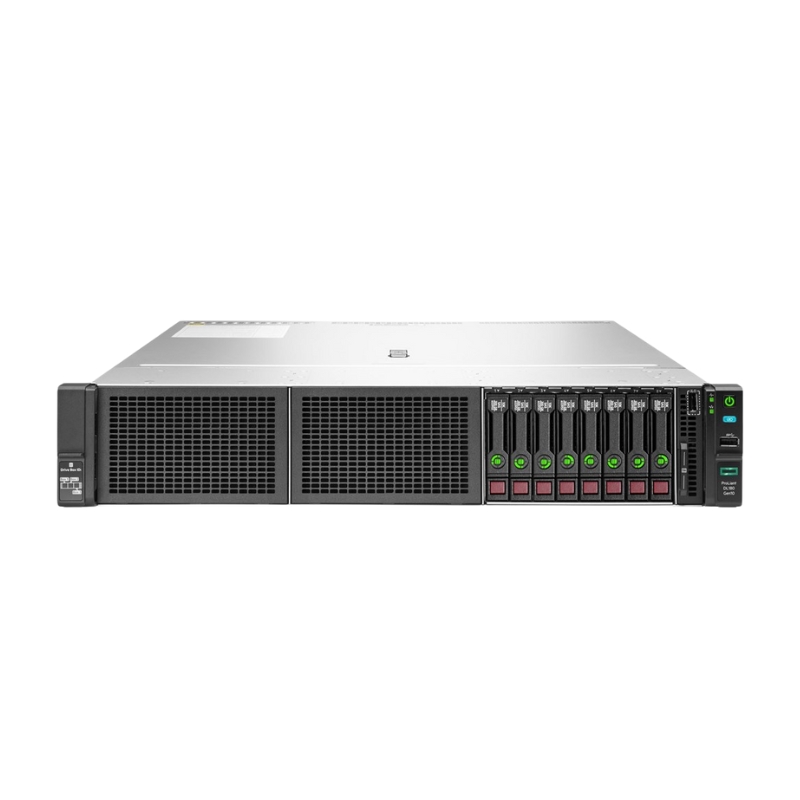

• Drive Bays: 8 Hot-swap 2.5" SFF Bays (All Available)
• Storage Controller: HPE Smart Array S100i SR Software RAID
• Controller Interface: SATA 6Gb/s (PCIe 3.0 x4)
• Supported RAID Levels: 0, 1, 5, 10
• Internal Storage: Hard Drive Not Included

Connectivity, Networking, and Expansion

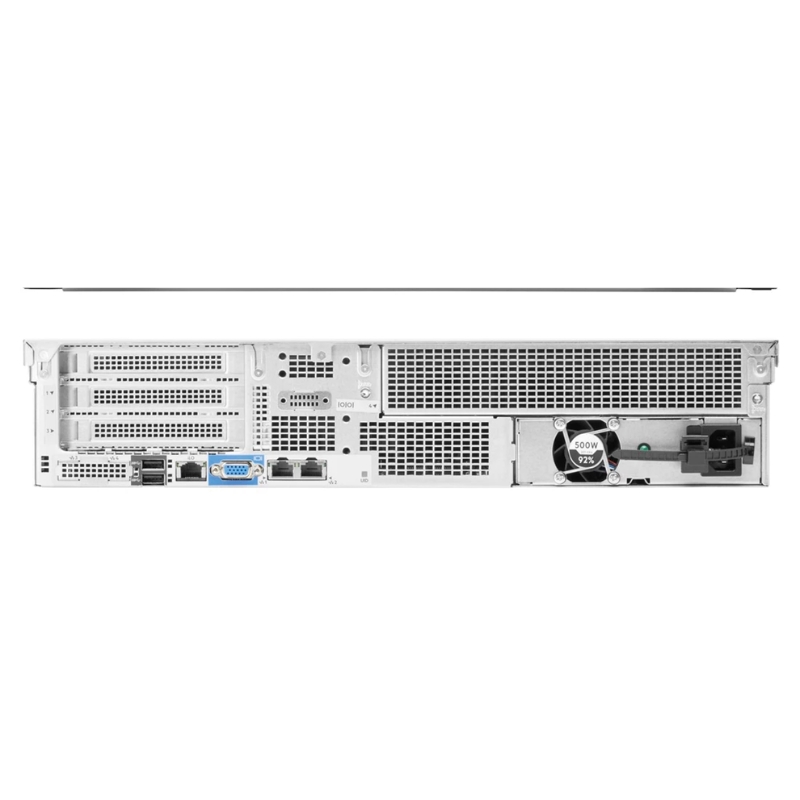

Network and Ports

• Ethernet Ports: 2 Embedded Gigabit Ethernet (1GbE) Ports
• Network Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• USB Ports: 4 x USB 3.0 (Front: 1, Rear: 2, Internal: 1)
• Video Output: 1 x VGA Port

Internal Expansion Slots

• 2 x PCIe 3.0 x8 (Half-length, Full-height)
• 1 x PCIe 3.0 x8 (Full-height)
• 1 x Internal MicroSD Card Slot

Power Supply and Cooling System

• Power Supply Unit (PSU): 500W Hot-plug
• Efficiency Rating: 80 PLUS Platinum (94% Efficiency)
• Installed PSUs: 1
• Redundancy Capable: Yes, supports 1+1 configuration with an optional second PSU
• Input Voltage: AC 120/230 V (50/60 Hz)
• Cooling: Includes 3 System Fans and CPU Heatsink

Management, Dimensions, and Compliance

Remote Management Features

• Management Controller: HPE Integrated Lights-Out 5 (iLO 5)
• Protocols: SNMP 3, IPMI 2.0
• Network Features: Wake-on-LAN (WoL), PXE Support

Physical Specifications

• Dimensions (W x D x H): 17.5" x 25" x 3.4"
• Unit Weight: 28.66 lbs
• Included Accessories: SFF Easy Install Rails
• Compliance: WEEE, ACPI 6.1

Optical and Graphics

• Optical Drive: Not Included
• Graphics Controller: Integrated VGA

HPE P35519-B21 Proliant DL18010-Core Server Overview

The HPE P35519-B21 ProLiant DL180 Gen10 server category represents a balanced, enterprise-grade 2U rackmount platform designed to support modern data center workloads that demand reliability, scalability, and cost efficiency. Positioned as a versatile solution within the ProLiant Gen10 portfolio, this server class addresses the needs of small to mid-sized businesses, remote offices, and enterprise branch deployments that require dependable compute performance without unnecessary complexity. Built on proven HPE engineering principles, the DL180 Gen10 category emphasizes stability, manageability, and workload adaptability, making it suitable for a wide range of IT use cases including virtualization, file and print services, collaboration platforms, and line-of-business applications.This category of servers is engineered to integrate seamlessly into standard 19-inch rack infrastructures, utilizing a 2U form factor that provides an optimal balance between density and expandability. The physical design allows organizations to scale storage, memory, and networking resources while maintaining efficient airflow and thermal management. By combining Intel Xeon Scalable processing, DDR4 memory architecture, embedded storage controllers, and enterprise networking capabilities, the DL180 Gen10 server category delivers a dependable foundation for organizations seeking long-term IT value.

Intel Xeon Silver Processing for Consistent Multi-Core

At the core of the HPE ProLiant DL180 Gen10 category is support for Intel Xeon Silver processors, including configurations built around a 10-core architecture running at 2.4GHz. This processing class is designed to handle multi-threaded workloads efficiently while maintaining power-conscious operation. Intel Xeon Silver CPUs provide an ideal middle ground between performance and operational efficiency, making them well-suited for mixed workloads commonly found in enterprise environments.

Optimized for Virtualization and Business Applications

The processor capabilities in this server category enable smooth handling of virtualization platforms, database services, and application hosting. With multiple cores and advanced instruction sets, the Xeon Silver architecture supports hypervisors, containerized workloads, and multi-user environments without performance bottlenecks. Organizations leveraging virtualization can consolidate workloads effectively, reducing hardware sprawl while maintaining consistent performance across virtual machines.

Scalable Dual-Socket Architecture

The DL180 Gen10 category supports a 2-way processor configuration, allowing businesses to scale compute resources as requirements grow. This dual-socket capability ensures investment protection by enabling future upgrades without replacing the entire server platform. Enterprises can start with a single processor and expand to a dual-processor setup to meet increasing application demands, ensuring flexibility in evolving IT environments.

DDR4 Memory Architecture for Reliable Data Handling

This server category is built on DDR4 SDRAM technology, offering enhanced bandwidth, lower power consumption, and improved reliability compared to previous memory generations. Configurations starting with 16GB of DDR4 memory provide a solid baseline for essential workloads while supporting expansion to accommodate more memory-intensive applications. The DDR4 architecture plays a critical role in maintaining system responsiveness and ensuring smooth multitasking across concurrent processes.

Memory Scalability for Growing Workloads

The DL180 Gen10 server category allows organizations to expand memory capacity as application requirements evolve. This scalability is particularly valuable for virtualization environments, in-memory databases, and analytics workloads that benefit from higher memory availability. By supporting multiple DIMM slots and industry-standard memory modules, the platform enables cost-effective upgrades while preserving system compatibility.

Enhanced Reliability and Error Protection

DDR4 memory support within this category includes enterprise-grade reliability features that help protect data integrity and system uptime. Error detection and correction capabilities reduce the risk of memory-related failures, ensuring stable operation in mission-critical environments. These features contribute to the overall resilience of the server, making it a dependable choice for continuous business operations.

Embedded Smart Array S100i Storage Controller Capabilities

The HPE ProLiant DL180 Gen10 category integrates the Smart Array S100i embedded controller, designed to manage storage resources efficiently while simplifying system configuration. This embedded solution supports software-defined storage management, providing essential RAID functionality for boot and data drives without the need for additional hardware controllers. The inclusion of the Smart Array S100i aligns with the category’s focus on cost-effective enterprise storage management.

Flexible Storage Configuration Options

This server category supports a variety of internal storage configurations, enabling organizations to tailor storage layouts based on performance, capacity, and redundancy requirements. The embedded controller facilitates basic RAID configurations, helping protect data and improve availability for critical workloads. Whether deployed as a file server, application server, or virtualization host, the DL180 Gen10 category offers adaptable storage capabilities.

Integration with HPE Storage Ecosystem

The Smart Array S100i controller is designed to work seamlessly within the broader HPE storage ecosystem, allowing for compatibility with a wide range of enterprise drives. This integration ensures that organizations can leverage trusted HPE storage components while maintaining consistent management and monitoring across their infrastructure.

Integrated Networking with Dual 1GbE Ports

Networking capabilities are a critical aspect of any server category, and the HPE ProLiant DL180 Gen10 is equipped with embedded dual-port 1GbE networking. This integrated solution provides reliable connectivity for everyday business operations, supporting data transfer, remote management, and application access across the network. The dual-port design enables network redundancy and load balancing, enhancing overall availability.

Designed for Business-Critical Connectivity

The embedded 1GbE ports are optimized for stable and consistent network performance, making them suitable for workloads such as file sharing, web hosting, and internal business applications. Organizations can rely on these networking features to maintain smooth communication between servers, storage systems, and client devices.

Expansion Options for Advanced Networking Needs

While the embedded networking meets standard requirements, the DL180 Gen10 category also supports additional network expansion through PCIe slots. This flexibility allows organizations to deploy higher-speed networking solutions as their infrastructure evolves, ensuring long-term adaptability and performance scalability.

Efficient Power Delivery with Redundant Power Supply

Power efficiency and reliability are essential for enterprise server environments, and this category incorporates a 500W redundant power supply design to support continuous operation. Redundant power supply capability minimizes downtime by providing failover protection in the event of a power supply failure. This design aligns with best practices for enterprise IT infrastructure, where uptime and resilience are critical.

Optimized Energy Consumption

The 500W power supply configuration is engineered to deliver sufficient power for typical workloads while maintaining energy efficiency. By balancing performance requirements with power consumption, the DL180 Gen10 category helps organizations manage operational costs without compromising system reliability.

Support for High Availability Deployments

Redundant power supply support ensures that the server can remain operational during maintenance or unexpected power issues. This feature is particularly valuable in environments where downtime can impact productivity or revenue, reinforcing the server category’s suitability for business-critical applications.

2U Rack Form Factor Designed for Expandability

The 2U rackmount design of the HPE ProLiant DL180 Gen10 category provides ample internal space for expansion while maintaining efficient rack density. This form factor allows for additional storage devices, expansion cards, and cooling components, making it an ideal choice for organizations that anticipate future growth. The physical layout is optimized for ease of serviceability, enabling IT teams to perform upgrades and maintenance with minimal disruption.

Thermal Management and Airflow Optimization

Efficient cooling is a defining characteristic of this server category. The chassis design promotes optimal airflow, ensuring consistent thermal performance even under sustained workloads. Advanced cooling mechanisms help maintain component longevity and system stability, which are essential for enterprise-grade reliability.

Serviceability and Maintenance Efficiency

The DL180 Gen10 category is engineered with tool-less access to key components, simplifying maintenance tasks and reducing service time. This design consideration enhances operational efficiency, allowing IT staff to focus on strategic initiatives rather than routine hardware management.

Management Features Aligned with ProLiant Gen10 Standards

Security and manageability are integral to the HPE ProLiant DL180 Gen10 server category. Built on the ProLiant Gen10 security framework, this category incorporates hardware-rooted security features that protect against firmware attacks and unauthorized access. These capabilities help organizations safeguard sensitive data and maintain compliance with industry standards.

Integrated Management with HPE iLO

Remote management capabilities are a cornerstone of the ProLiant ecosystem, and the DL180 Gen10 category benefits from integrated HPE iLO functionality. This management interface enables administrators to monitor system health, perform remote troubleshooting, and manage firmware updates from anywhere. Such capabilities reduce the need for on-site intervention and improve overall IT efficiency.

Lifecycle Management and Automation

The server category supports automated lifecycle management processes, including provisioning, monitoring, and maintenance. These features streamline deployment and ongoing operations, making it easier for organizations to maintain consistent configurations across multiple servers.

Compliance and Governance

Security and management features within this category also support compliance and governance initiatives by providing detailed system insights and audit capabilities. This level of transparency is essential for organizations operating in regulated industries or managing sensitive workloads.
