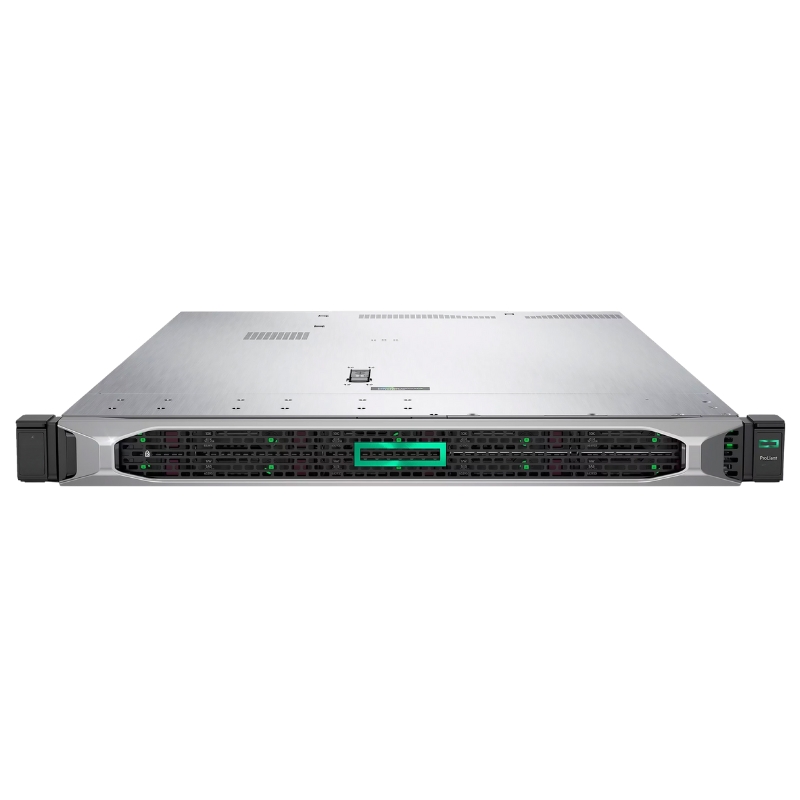

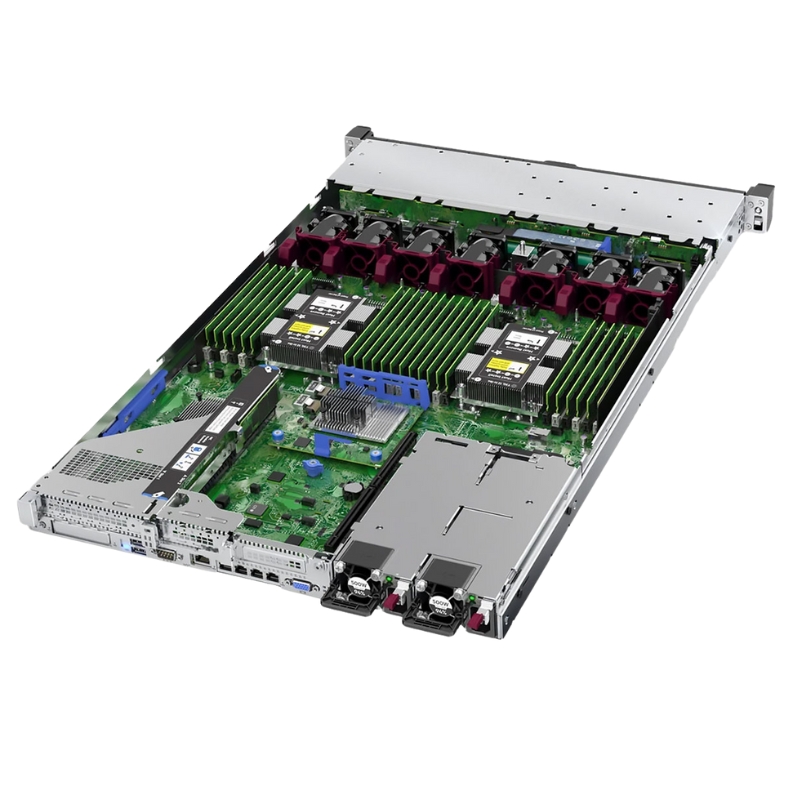

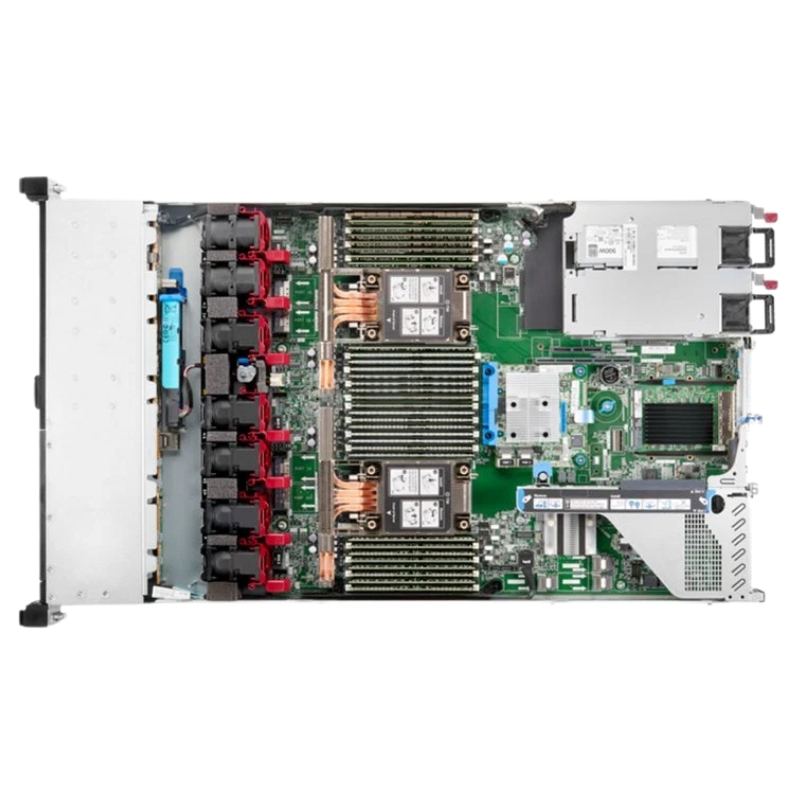

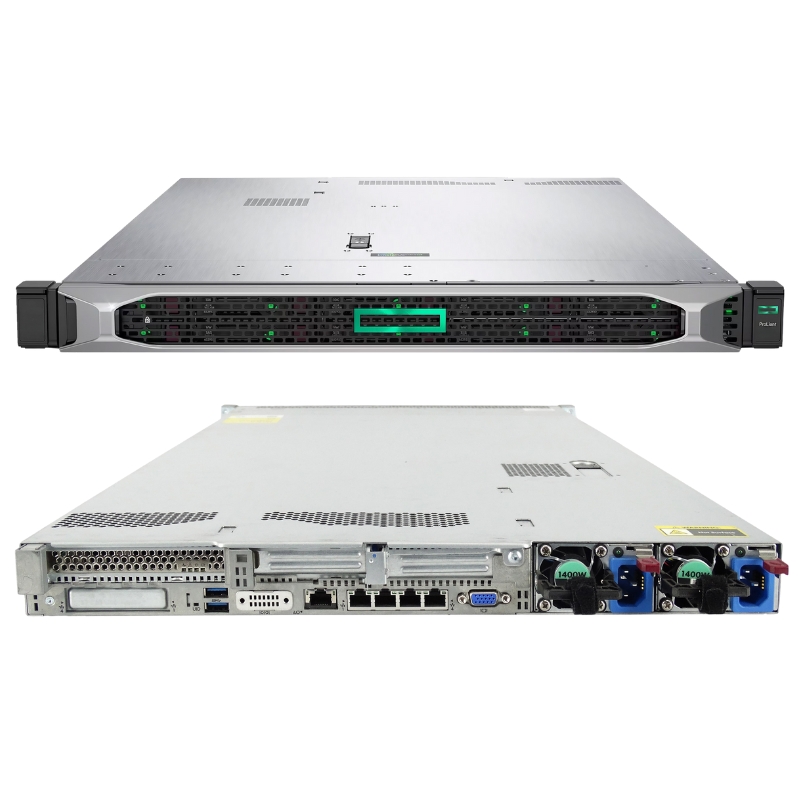

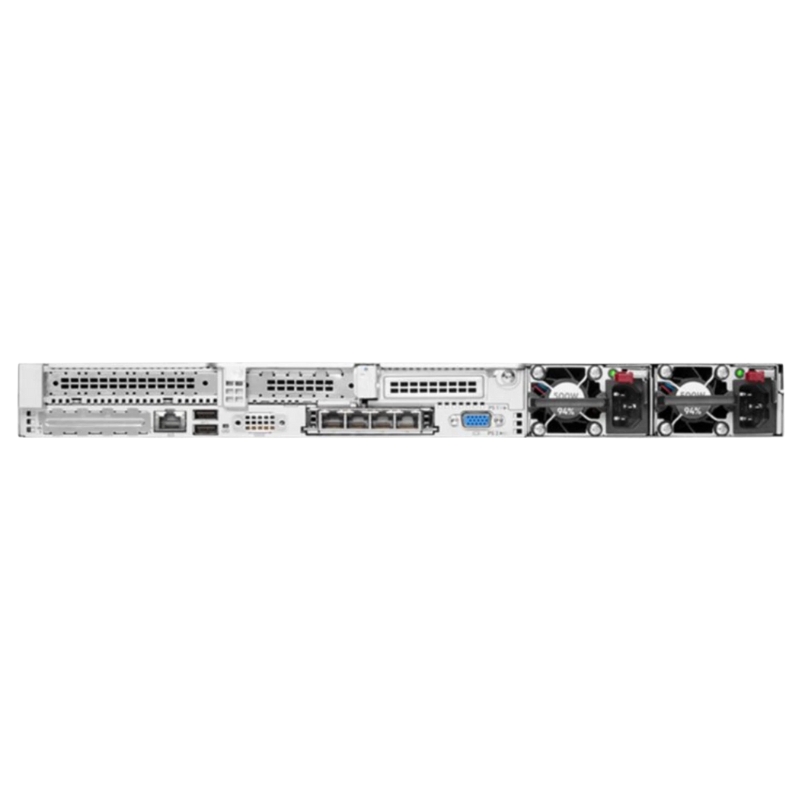

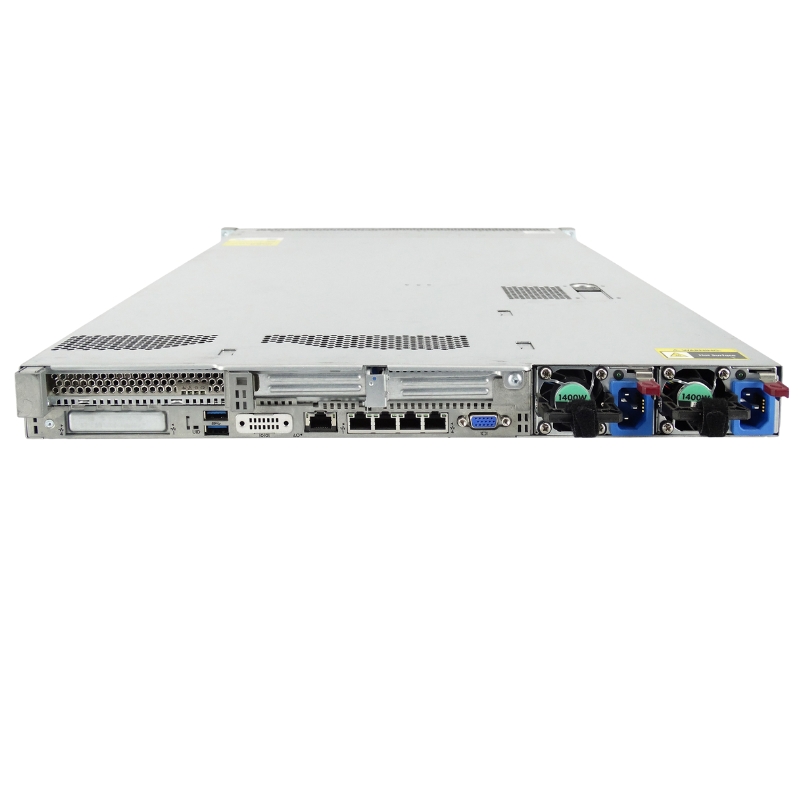

P40401-B21 HPE DL360 Gen10 5220 2P 64GB-R P408i-a NC 8SFF 800W RPS Server

HPE DL360 Gen10 5220 800W Server

The HPE P40401-B21 DL360 Gen10 5220 2P 64GB-R P408i-a NC 8SFF 800W RPS Server is a high-performance rack-mountable solution designed for enterprise workloads, offering scalability, reliability, and advanced features.

Main Information

• Brand: HPE
• Model Number: P40401-B21
• Category: ProLiant DL360 Gen10 – Rack Server

Technical Specifications

Processor Details

• CPU: 2nd Gen Intel Xeon Gold 5220 / 2.2 GHz
• Turbo Frequency: 3.9 GHz
• Cores: 18-core
• Quantity: 2 processors
• Upgradeable: Yes
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Socket: FCLGA3647
• Chipset: Intel C621

Cache Memory

• Total Cache: 49.5 MB L3
• Per Processor: 24.75 MB

Memory (RAM)

• Installed: 64 GB DDR4 SDRAM – Advanced ECC
• Maximum Capacity: 768 GB
• Speed: Effective 2666 MHz / Rated 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 12 total / 10 available
• Features: Registered, Online Spare, 6-channel architecture
• Configuration: 2 x 32 GB
• Supported Types: Registered up to 768 GB, Load-reduced up to 3 TB, Non-volatile up to 192 GB

Storage

Hard Drive

• Drive Bays: No HDD included

Storage Controller

• Type: RAID
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Controller: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Optical Drive

• None

Graphics & Display

• Video Memory: 16 MB
• Interface: VGA

Networking & Communication

• Ethernet Ports: 2 x 10/25 Gigabit Ethernet SFP28
• Controller: BCM57414
• Protocols: Gigabit Ethernet, 10GbE, 25GbE
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Management Controller: Integrated Lights-Out 5
• Features: Wake-on-LAN, PXE Support

Expansion & Connectivity

Bays

• 1 x External Universal Media Bay
• 8 x Hot-swap 2.5" SFF

Slots

• PCIe 3.0 x16 – Full-height
• PCIe 3.0 x8 – Low-profile
• FlexibleLOM – Full-height
• MicroSD Card (internal)
• PCIe x16 – Full-height

Interfaces

• HPE iLO Type A (front)
• HPE iLO RJ-45 (rear)
• 5 x USB 3.0 (front, rear, internal)
• 1 x VGA (rear)
• 2 x LAN (10/25GbE SFP28)

Miscellaneous Features

• Accessories: Standard Heatsink, 7 Fans, SFF Easy Install Rails
• Compliance: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A3/A4, WEEE, ACPI 6.1

Power Supply

• Type: Hot-plug PSU
• Redundancy: Optional 1+1 scheme
• Installed: 2 units
• Voltage: AC 120/230 V (50/60 Hz)
• Output: 800W
• Certification: 80 Plus Platinum

Operating System

• Provided: None

Environmental Standards

• Energy Star Certified: Yes
• Version: 3.0

Environmental Parameters

• Operating Temperature: 50°F – 95°F
• Humidity Range: 8% – 90% (non-condensing)

Dimensions & Weight

• Width: 17.1 in
• Depth: 27.8 in
• Height: 1.7 in
• Weight: 28.75 lbs

High-Density Enterprise Rack Server Architecture Overview

The HPE P40401-B21 ProLiant DL360 Gen10 NC Model Rack Server represents a powerful and compact enterprise-grade computing solution designed to support intensive workloads within modern data center environments. Built in a 1U rack form factor, this system is engineered for organizations requiring high processing density, advanced memory scalability, flexible networking, and robust storage performance while optimizing physical space and energy efficiency. Its compact footprint makes it ideal for virtualization clusters, cloud infrastructure, database operations, AI analytics, and business-critical applications.

The DL360 Gen10 platform integrates premium Intel Xeon Gold processors, high-speed memory architecture, intelligent storage controllers, enterprise-class networking, and redundant power systems. This combination enables seamless handling of demanding enterprise workloads with consistent uptime and scalability. As organizations shift toward hybrid cloud, containerized workloads, and software-defined infrastructure, the DL360 Gen10 NC Model offers the reliability and performance foundation necessary for growth.

Optimized 1U Rack Form Factor Design

The streamlined 1U chassis of the ProLiant DL360 Gen10 ensures maximum compute density while maintaining airflow efficiency and thermal management. Designed for high rack density environments, the server supports advanced cooling technologies that maintain optimal operating temperatures even under heavy processing loads. This design helps reduce energy consumption while ensuring hardware longevity.

The 1U architecture also allows enterprises to deploy large clusters of servers within limited rack space, making it particularly suitable for data centers focused on consolidation, colocation services, and scalable cloud platforms.

Dual Intel Xeon Gold 5220 Processing Power

At the core of the HPE P40401-B21 ProLiant DL360 Gen10 NC Model are two Intel Xeon Gold 5220 processors, each featuring 18 cores and operating at a base frequency of 2.2 GHz. Together, these CPUs deliver a total of 36 high-performance cores, enabling exceptional parallel processing capabilities for compute-intensive applications.

The Intel Xeon Gold series is engineered for enterprise workloads, offering advanced features such as Intel Hyper-Threading, Intel Turbo Boost Technology, and enhanced security instructions. These processors support high memory bandwidth, advanced virtualization capabilities, and accelerated data processing, making them ideal for modern multi-tenant environments.

Multi-Core Performance for Virtualized Workloads

The 36-core processing configuration enables the DL360 Gen10 to efficiently handle virtualization platforms such as VMware, Hyper-V, and container orchestration systems like Kubernetes. Multiple virtual machines can operate simultaneously without performance bottlenecks, ensuring high availability and resource efficiency.

Enterprise databases, ERP platforms, and large-scale analytics systems benefit from the parallel execution capabilities provided by the dual Xeon Gold architecture. This processing power ensures smooth operation even during peak usage periods.

Advanced CPU Features for Enterprise Security

The Intel Xeon Gold 5220 processors include built-in security technologies such as Intel Software Guard Extensions and secure boot capabilities. These features help protect sensitive workloads and data against modern cyber threats, making the DL360 Gen10 an ideal platform for secure enterprise deployments.

High-Capacity 64GB SDRAM Memory Configuration

The server is equipped with 64GB of high-performance SDRAM, providing a solid foundation for memory-intensive applications. The Gen10 architecture supports scalable memory expansion, allowing organizations to increase capacity as workloads grow.

High-speed memory access ensures faster application response times, improved virtualization density, and enhanced performance for data-heavy processes such as real-time analytics and transaction processing systems.

Enterprise Memory Reliability

The memory modules used in the ProLiant DL360 Gen10 support enterprise-class reliability features such as ECC error correction, ensuring data integrity and system stability. This minimizes downtime caused by memory errors and contributes to overall system reliability.

Scalable Memory Architecture

The platform is designed to support future memory upgrades, enabling enterprises to scale up capacity without replacing the entire system. This flexibility reduces long-term infrastructure costs and ensures adaptability to evolving business demands.

Smart Array P408i-a Storage Controller with Smart Storage Battery

The HPE Smart Array P408i-a controller integrated into this server delivers advanced RAID capabilities and high-performance storage management. Equipped with 2GB of cache memory and paired with a Smart Storage Battery, the controller ensures data protection, write acceleration, and power-loss data preservation.

This storage solution enables faster read and write operations while maintaining enterprise-grade reliability. It supports multiple RAID levels to provide flexible configurations tailored to performance, redundancy, or capacity requirements.

High-Speed Data Throughput

The P408i-a controller is designed to handle high I/O workloads with minimal latency, making it suitable for transactional databases, virtualization storage pools, and data-intensive applications. The cache memory improves throughput by storing frequently accessed data for rapid retrieval.

Power Loss Protection Technology

The Smart Storage Battery ensures that cached data is safely preserved during unexpected power outages. This technology prevents data corruption and loss, ensuring business continuity and data integrity.

Advanced RAID Management Capabilities

With flexible RAID configurations, administrators can optimize storage for performance, redundancy, or cost-efficiency. The controller supports hot-swappable drives, allowing for maintenance and upgrades without system downtime.

Flexible 8SFF Drive Bay Configuration

The ProLiant DL360 Gen10 NC Model includes an 8 Small Form Factor drive bay configuration, allowing for the installation of high-speed SAS or SATA drives. This flexible storage layout supports a variety of workloads, from high-performance applications requiring SSDs to large-capacity storage deployments using HDDs.

The compact SFF design enhances airflow efficiency and enables higher storage density within the 1U chassis. This makes it easier for organizations to scale storage capacity while maintaining optimal cooling.

Support for High-Performance SSD Storage

Enterprises can deploy solid-state drives within the 8SFF bays to achieve ultra-fast data access speeds. This configuration is ideal for database servers, virtual machine storage, and real-time analytics systems.

Hybrid Storage Configurations

The system supports hybrid configurations combining SSDs for performance-critical data and HDDs for bulk storage. This approach balances speed, capacity, and cost efficiency.

Advanced Networking with Broadcom BCM57414 10/25Gb Ethernet

The server features an ETH 10/25GB 2-port FLR-SFP28 Broadcom BCM57414 network adapter, providing ultra-high-speed connectivity for data-intensive environments. This advanced networking solution enables fast data transfers, reduced latency, and seamless integration into modern high-bandwidth networks.

High-speed Ethernet connectivity is essential for virtualization clusters, cloud computing platforms, and large-scale data processing systems. The BCM57414 adapter ensures reliable and consistent network performance even under heavy traffic loads.

Dual-Port High-Bandwidth Connectivity

The dual-port configuration allows for network redundancy, load balancing, or segmented traffic management. This improves overall network reliability and performance, reducing the risk of downtime caused by network failures.

Support for Modern Data Center Networks

With 10Gb and 25Gb Ethernet capabilities, the DL360 Gen10 integrates seamlessly into next-generation data center infrastructures. This ensures compatibility with high-speed switches and software-defined networking solutions.

Optimized Performance for Virtualized Environments

The high-throughput network adapter enhances virtual machine migration speeds, cloud application performance, and distributed storage synchronization, contributing to a responsive and efficient infrastructure.

Redundant 800W Power Supply System

The HPE P40401-B21 ProLiant DL360 Gen10 NC Model is equipped with two 800W redundant power supplies configured in a 2-way redundant power supply system. This ensures continuous operation even if one power unit fails, minimizing downtime and maintaining business continuity.

Redundant power design is a critical component of enterprise-grade infrastructure, ensuring reliability in mission-critical environments.

Energy-Efficient Power Delivery

The 800W power supplies are designed for high efficiency, reducing energy consumption and operating costs. They support dynamic power management features that adjust power usage based on system workload.

Hot-Swappable Power Modules

The hot-swappable design allows administrators to replace or upgrade power supplies without shutting down the system. This enhances uptime and simplifies maintenance procedures.

Ideal Use Cases for the ProLiant DL360 Gen10 NC Model

This server is engineered to support a wide range of enterprise workloads. Its high core count, scalable memory, advanced storage management, and ultra-fast networking make it suitable for virtualization environments, private and hybrid cloud deployments, enterprise databases, ERP systems, web hosting platforms, and big data analytics.

Organizations seeking a balance of performance, reliability, and scalability within a compact rack form factor will find the DL360 Gen10 NC Model an excellent foundation for modern IT infrastructure.

Virtualization and Cloud Infrastructure

The powerful processing and networking capabilities enable efficient virtualization clusters that support large numbers of virtual machines with high availability and performance.

Database and Transaction Processing

High-speed storage access, memory reliability, and multi-core processing ensure optimal performance for enterprise database platforms and transaction-heavy applications.

High-Performance Computing and Analytics

The server’s architecture supports compute-intensive analytics workloads, enabling faster data processing and insights generation for business intelligence and AI-driven applications.
