P49029-K21 HPE 960GB SAS 24GBPS Read Intensive SSD.

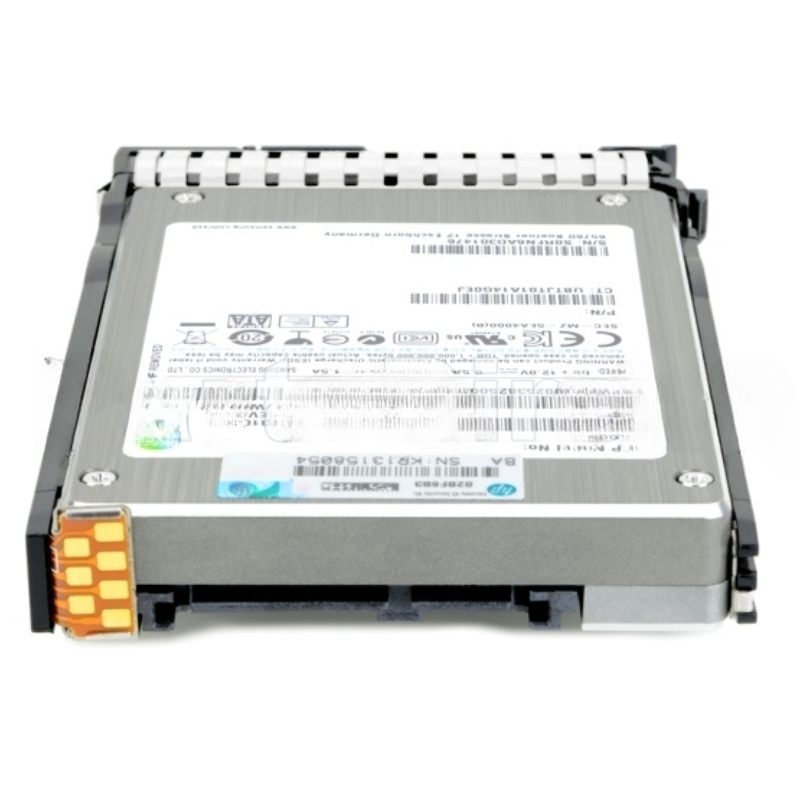

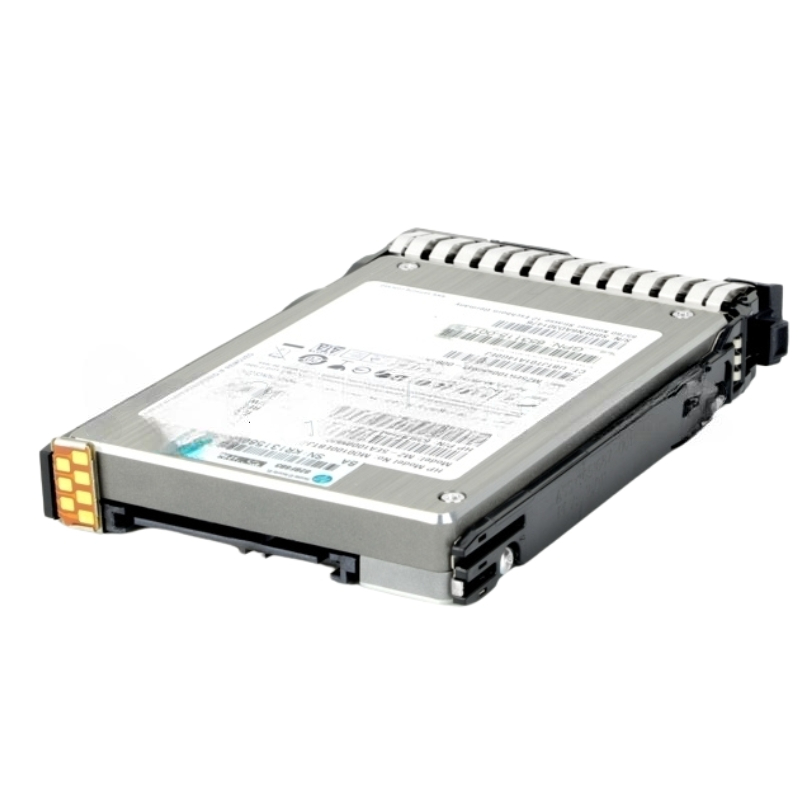

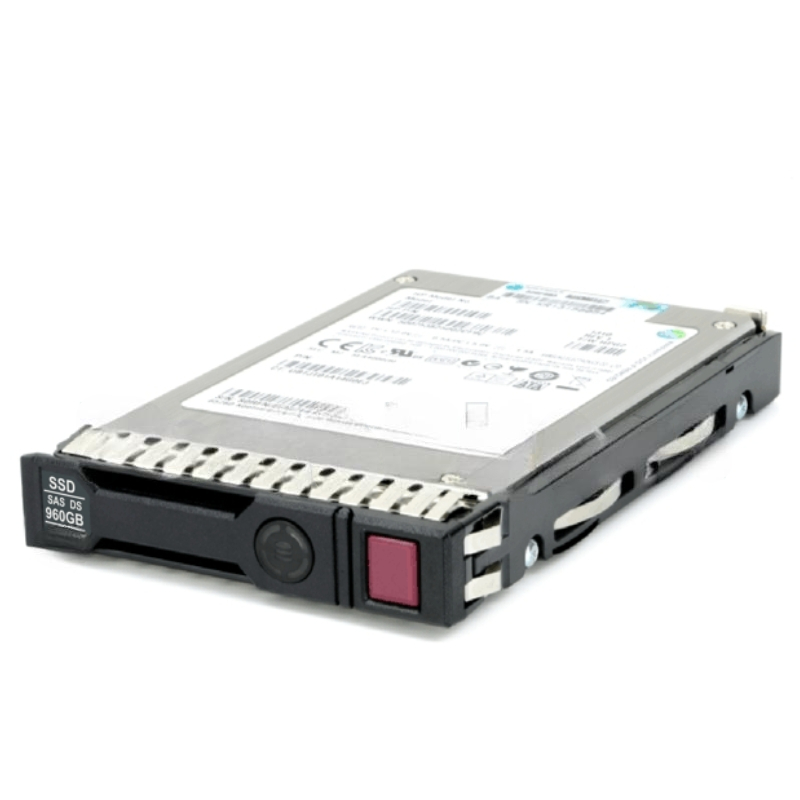

HPE P49029-K21 960GB SAS 24GBPS Read Intensive 2.5Inch SSD

The high-performance HPE P49029-K21 solid state drive, a 960GB storage solution engineered for demanding data center environments. This SAS SSD delivers exceptional read performance and reliability for enterprise applications.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Model Number: P49029-K21
• Alternative Part ID: P49733-001
• Storage Category: Solid State Drive

Technical Specifications and Capabilities

Storage Capacity and Physical Dimensions

• Total Storage: 960GB
• Physical Size: 2.5-inch Small Form Factor
• Component Height: 15.00 mm (0.60 inch)

Interface and Connection Features

• Host Interface: SAS 24Gbps
• Port Configuration: Dual Port architecture
• Installation Method: Hot-pluggable capability
• Mounting Bracket: Includes Basic Carrier

Memory Technology and Endurance Ratings

• Flash Memory: Triple-level cell (TLC) NAND
• Usage Profile: Read-intensive workload optimized
• 30-Day Write Capacity: 1712 Terabytes
• Drive Writes Per Day: 1 DWPD
• Security Feature: Digitally Signed Firmware implementation

Performance Metrics and Speed Capabilities

Sequential Data Transfer Rates

• Peak Sequential Read Speed: 2030 MiB/s
• Peak Sequential Write Speed: 1280 MiB/s
• External Transfer Rate: 24 Gb/s

Random Input/Output Operations

• Random Read IOPS (4KB, Q16): 155,000 operations
• Random Write IOPS (4KB, Q16): 65,000 operations
• Maximum Random Read IOPS: 17,400 at Queue Depth 64
• Maximum Random Write IOPS: 65,000 at Queue Depth 4

Response Time Measurements

• Random Read Latency: 90 microseconds
• Random Write Latency: 26 microseconds

Power Requirements and Energy Consumption

Operational Power Draw

• Inactive State: 6.19 Watts
• Random Read Activity: 7.81 Watts
• Random Write Activity: 7.81 Watts
• Sequential Read Operation: 8.42 Watts
• Sequential Write Operation: 10.34 Watts
• Peak Power Consumption: 10.34 Watts

Compatibility and Supported Platforms

Server Platform Support

This storage component is verified for use with multiple HPE server families including:

• HPE ProLiant Rack-mounted Systems
• HPE ProLiant Tower Servers
• HPE BladeSystem Infrastructure
• HPE Synergy Compute Modules

Specific ProLiant DL Series Models

• DL20 Gen10 Plus configurations
• DL325 Gen10 Plus V2 platforms
• DL345 Gen10 Plus systems
• DL360 Gen10 Plus servers
• DL365 Gen10 Plus solutions
• DL380 Gen10 Plus models
• DL385 Gen10 Plus V2 environments

Additional Supported Systems

• HPE SimpliVity 325 Gen10 Plus V2 Node

Connection and Expansion Capabilities

• Host Interface: Single SAS 24 Gb/s connector
• Compatible Enclosure: 2.5-inch SFF drive bay

HPE P49029-K21 960GB SAS 24GBPS Multi Vendor DS BC Read Intensive 2.5Inch SSD Overview

The HPE P49029-K21 960GB SAS 24GBPS Multi Vendor DS BC Read Intensive 2.5Inch SSD represents a high-performance, enterprise-grade storage solution designed to deliver exceptional reliability and speed for modern data centers. Engineered to meet the demanding needs of read-intensive applications, this HPE SSD combines advanced SAS interface technology with optimized firmware, enabling rapid access to large datasets while maintaining low latency. As part of the HPE SSD portfolio, the P49029-K21 model is tailored for multi-vendor compatibility, providing seamless integration into heterogeneous storage environments and ensuring flexibility for enterprise IT infrastructures.

Advanced SAS 24GBPS Interface for Maximum Throughput

One of the defining features of the HPE P49029-K21 SSD is its 24GBPS SAS interface, which supports high-speed data transfers and reduces bottlenecks in enterprise storage arrays. This high-bandwidth interface is essential for data-intensive workloads such as online transaction processing, business analytics, and virtualization. The SAS 24GBPS connectivity ensures that multiple simultaneous read operations can be executed efficiently, resulting in faster application performance and improved user experience. Additionally, this interface offers enhanced error correction and reliability compared to traditional SATA drives, making it ideal for mission-critical enterprise deployments.

Optimized Read-Intensive Performance

The P49029-K21 model is specifically designed for read-intensive workloads, where data retrieval is more frequent than write operations. This optimization makes it suitable for environments such as content delivery networks, database servers, and large-scale analytics platforms. The SSD's architecture is tuned to minimize read latency and maximize IOPS, allowing enterprises to achieve predictable performance under heavy read workloads. By focusing on read-intensive optimization, HPE ensures that organizations can maintain high-speed access to critical data without sacrificing endurance or reliability.

Enterprise-Grade Endurance and Reliability

Durability is a key factor in enterprise storage, and the HPE P49029-K21 excels in this regard. Engineered with high-quality NAND flash components and advanced wear-leveling algorithms, this SSD delivers sustained performance over extended periods of operation. The drive's power-loss protection mechanisms safeguard data integrity during unexpected outages, and its error correction code (ECC) functionality mitigates potential read errors, ensuring the safety of sensitive business information. With HPE’s rigorous testing and quality assurance processes, the P49029-K21 SSD provides a robust and reliable solution for demanding enterprise storage environments.

Seamless Multi-Vendor Compatibility

The HPE P49029-K21 SSD is designed with broad compatibility in mind, supporting multiple server and storage vendor platforms. This feature enables organizations to integrate the SSD into diverse IT infrastructures without concerns about hardware conflicts or compatibility issues. Multi-vendor support enhances flexibility, allowing businesses to adopt a best-of-breed approach to storage solutions and leverage existing investments in servers, storage arrays, and management software. Furthermore, this compatibility simplifies deployment and reduces administrative overhead by standardizing on a high-performance read-intensive SSD across heterogeneous systems.

2.5-Inch Form Factor and Hot-Plug Functionality

The compact 2.5-inch form factor of the HPE P49029-K21 SSD makes it an ideal choice for high-density server and storage environments. Its small footprint allows organizations to maximize storage capacity in limited physical space, which is particularly valuable in modern data centers where rack space is at a premium. Additionally, the drive supports hot-plug capability, enabling IT administrators to replace or upgrade SSDs without powering down servers or storage arrays. This feature minimizes downtime and enhances operational efficiency, supporting continuous availability for mission-critical applications.

Advanced Data Management Features

The HPE P49029-K21 SSD incorporates sophisticated data management features that enhance performance, reliability, and security. These include support for advanced S.M.A.R.T. monitoring, which provides real-time insights into drive health and predictive failure analysis. The drive also leverages HPE’s proprietary firmware optimizations, which enhance data consistency and reduce latency during high-demand workloads. These capabilities help IT teams proactively manage storage infrastructure, prevent unplanned outages, and maintain high levels of service availability.

Scalable Storage Solutions for Enterprise Workloads

Enterprise environments demand storage solutions that can scale efficiently as data requirements grow, and the HPE P49029-K21 SSD delivers on this front. By supporting multiple RAID configurations and integration with HPE storage management software, this SSD enables organizations to build scalable storage architectures that meet evolving business needs. Whether used in virtualization clusters, high-performance computing systems, or database servers, the P49029-K21 provides consistent, high-speed access to data while supporting future expansion. Its ability to scale in multi-vendor storage environments ensures long-term value and adaptability for growing enterprises.

Energy Efficiency and Thermal Management

Energy efficiency is a critical consideration in enterprise storage deployments, and the HPE P49029-K21 SSD is designed to deliver high performance with minimal power consumption. Advanced thermal management features monitor drive temperature in real time and optimize performance to prevent overheating. This not only extends the lifespan of the SSD but also reduces cooling requirements and energy costs for data center operations. By balancing performance, reliability, and energy efficiency, HPE enables organizations to achieve operational cost savings without compromising on storage capabilities.

Ideal Applications for Read-Intensive Workloads

The HPE P49029-K21 SSD is highly suited for applications that demand fast and reliable read operations. These include online transaction processing systems, large-scale databases, data analytics platforms, virtual desktop infrastructure (VDI), and content delivery networks. In such environments, the drive’s read-intensive optimization ensures rapid access to critical information, supporting high IOPS requirements and low latency for end-users. By deploying the P49029-K21, organizations can enhance application responsiveness, streamline operations, and support a data-driven enterprise strategy.

Enterprise Reliability and Support from HPE

Purchasing an HPE SSD like the P49029-K21 ensures access to HPE’s industry-leading support and service ecosystem. Enterprises benefit from comprehensive warranty coverage, firmware updates, and technical assistance that help maintain optimal performance and minimize downtime. HPE’s global support network provides peace of mind for IT administrators, ensuring that storage infrastructure remains reliable and resilient. The combination of high-performance hardware and dedicated support makes the P49029-K21 a dependable choice for organizations with critical business workloads.

Integration with HPE Storage Ecosystem

As part of the broader HPE storage ecosystem, the P49029-K21 SSD integrates seamlessly with HPE’s storage arrays, servers, and management platforms. This tight integration simplifies deployment, monitoring, and maintenance of enterprise storage infrastructure. HPE InfoSight and other management tools provide predictive analytics and automated recommendations to optimize performance and prevent issues before they impact operations. By leveraging the P49029-K21 within the HPE ecosystem, enterprises can achieve a unified and intelligent storage environment that supports both current and future IT initiatives.

Future-Ready Storage Investment

Investing in the HPE P49029-K21 SSD ensures that organizations are prepared for future data demands. Its combination of high-speed SAS 24GBPS connectivity, read-intensive optimization, multi-vendor compatibility, and enterprise-grade reliability creates a future-ready storage solution capable of adapting to evolving workloads. By implementing these SSDs, IT teams can confidently support expanding data environments, enhance application performance, and reduce operational risks associated with storage infrastructure. The P49029-K21 represents a forward-thinking investment that aligns with long-term business objectives and digital transformation strategies.
