P54644-001 HPE Microserver Gen10 Plus Intel Pentium Gold 2-Core 4.1 GHz 16GB DDR4 Sdram 4-Port Server

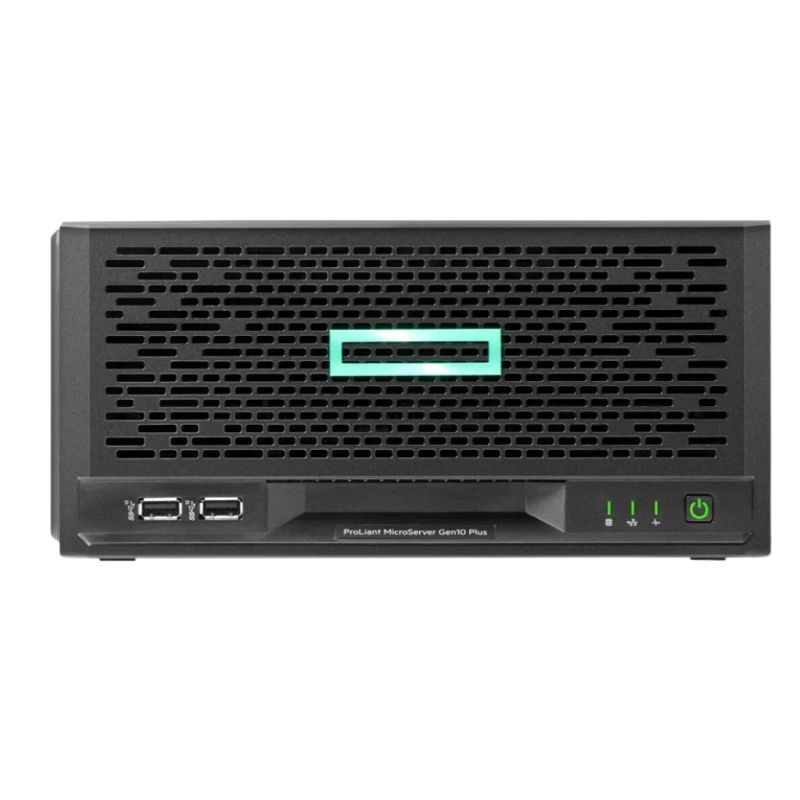

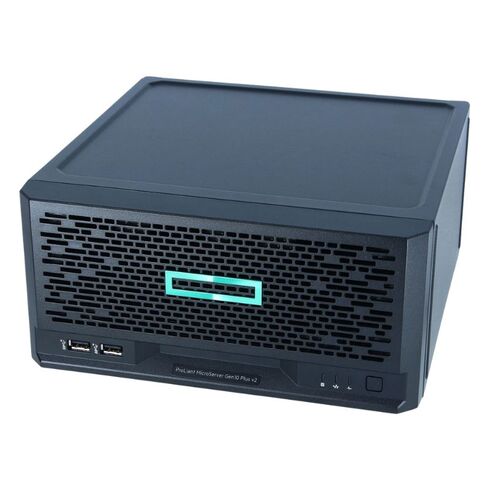

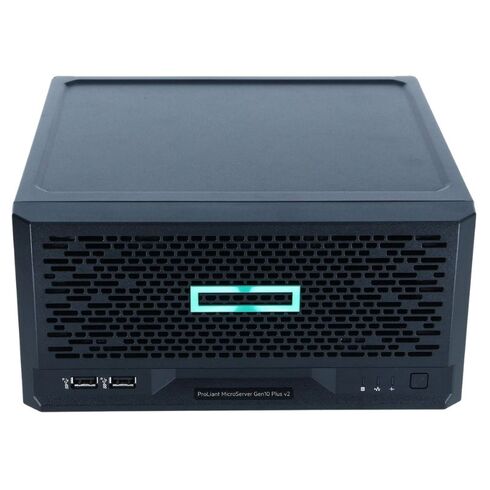

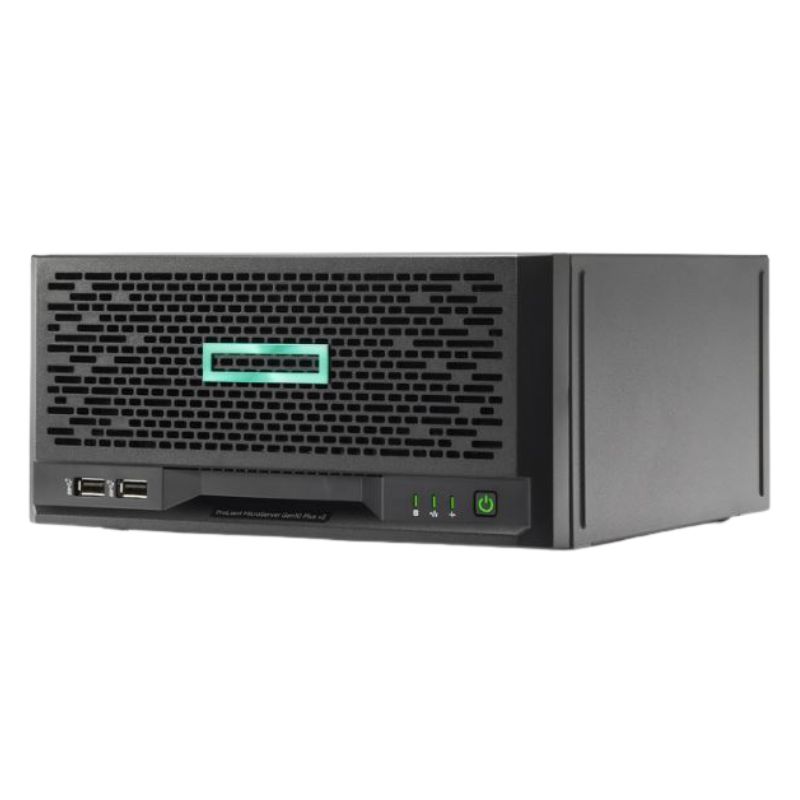

HPE ProLiant MicroServer Gen10 Plus V2

The HPE ProLiant MicroServer Gen10 Plus V2 is a compact yet capable ultra micro tower server designed for small businesses, remote offices, and edge computing deployments. Powered by an Intel Pentium Gold processor, this entry-level server balances performance, reliability, and scalability in a space-saving chassis. Its flexible configuration supports essential workloads such as file sharing, collaboration tools, virtualization at the edge, and light database operations.

General Product Specifications

• Manufacturer: HPE
• Part Number: P54644-001
• Product Name: HPE ProLiant MicroServer Gen10 Plus V2 G6405 Entry Model
• Form Factor: Ultra Micro Tower
• Server Scalability: Single-socket (1-way)
• Hot-Swap Drive Bays: Four bays supported

CPU Specifications

• Processor Model: Intel Pentium Gold G6405
• Number of Cores: Dual-core
• Base and Turbo Frequency: 4.1 GHz
• Processor Socket: FCLGA1200
• CPU Quantity: One installed, one supported maximum
• Upgrade Capability: Processor is upgradeable

Advanced Processor Features

• Intel Identity Protection Technology
• Enhanced Intel SpeedStep Technology
• Thermal Monitoring Technologies

Cache Memory Capabilities

• Total Cache Size: 4 MB
• Cache per Processor: 4 MB

Installed and Maximum Memory

• Installed Memory: 16 GB
• Maximum Supported Memory: Up to 64 GB
• Memory Technology: DDR4 SDRAM ECC
• Effective Speed: 2666 MHz
• Rated Speed: 3200 MHz
• Memory Standard: PC4-21333

Memory Slots and Features

• Form Factor: 288-pin DIMM
• Total Slots: Two
• Available Slots: One free
• Configuration: 1 × 16 GB module
• Type: Unbuffered ECC memory

Drive Bay

• Drive Bays: Four internal 3.5-inch LFF bays
• Hot-Swap Support: Yes

Integrated Storage Controller

• Controller Type: Integrated RAID controller
• Interface: SATA 6 Gb/s
• Channels Supported: Six
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Display Output

• Graphics Interface: VGA
• Additional Output: DisplayPort

Network Connectivity

• Ethernet Ports: Four Gigabit LAN ports
• Ethernet Controller: Intel I350-AM4
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Management and Networking Features

• Wake-on-LAN support
• PXE boot capability
• ACPI power management
• Remote management protocols: SNMP v3, IPMI 2.0, SMASH CLP

Expansion Slots

• One PCI Express 3.0 x16 low-profile slot
• One dedicated expansion slot for iLO enablement kit

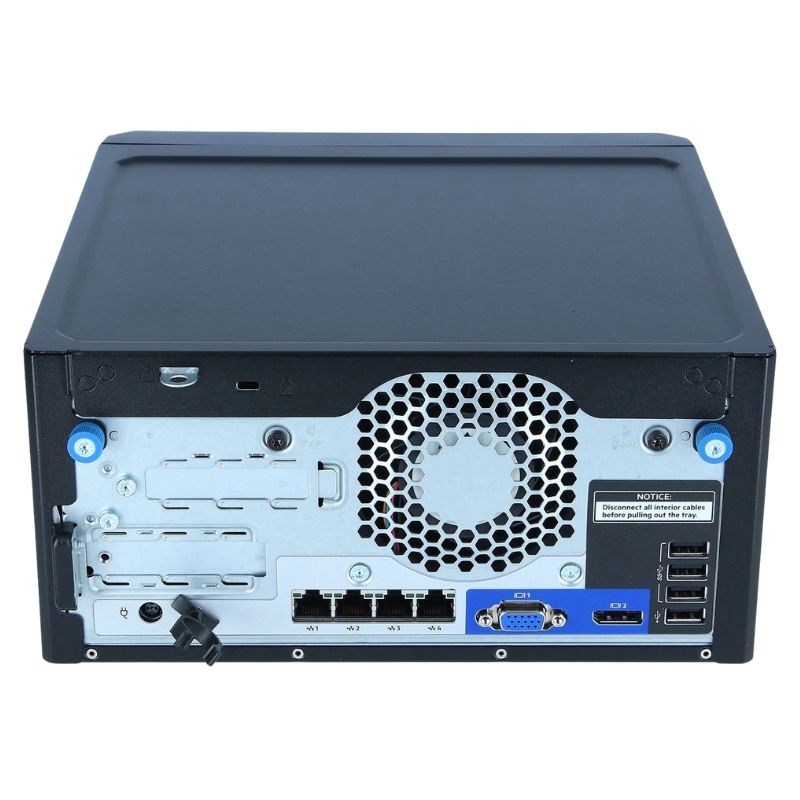

External and Internal Interfaces

• Video Outputs: 1 × VGA, 1 × DisplayPort
• USB Ports: 4 × USB 3.2 Gen1
• Front USB Ports: 2 × USB 3.2 Gen2
• Network Interfaces: 4 × Gigabit Ethernet LAN

Physical Security Features

• Kensington security slot
• Padlock loop for chassis protection

Regulatory and Industry Standards

• FCC Class B and EMC Class B compliance
• EN 55032, EN 55024, CISPR 32
• AES and Triple DES encryption support
• UEFI and Redfish API compatibility
• ASHRAE Class A2 thermal guidelines

Power Supply and Electrical Specifications

• Power Supply Type: External power adapter
• Input Voltage: AC 120–230 V
• Frequency: 50/60 Hz
• Maximum Power Output: 180 Watts

Ultra Micro Tower Server Architecture for Compact Enterprise Deployments

The HPE P54644-001 MicroServer Gen10 Plus represents a specialized category of ultra micro tower servers designed to deliver enterprise-grade reliability, efficiency, and manageability within an exceptionally compact physical footprint. This category focuses on organizations, branch offices, home offices, and edge environments that require dependable compute and storage resources without the spatial, power, or noise constraints typically associated with traditional rack or tower servers. Built with a balance of performance, expandability, and simplified administration, this class of servers supports modern workloads while remaining cost-conscious and energy-efficient.

Design Philosophy and Physical Form Factor

Ultra micro tower servers emphasize space optimization while maintaining structural durability and thermal efficiency. The compact tower design of the HPE P54644-001 MicroServer Gen10 Plus enables deployment on desktops, shelves, or small cabinets without specialized racks. Its understated chassis design blends seamlessly into office environments, making it suitable for locations where dedicated server rooms are unavailable. The enclosure is engineered to facilitate effective airflow, ensuring consistent cooling even in constrained environments with limited ventilation.

Material Construction and Thermal Considerations

The chassis construction combines reinforced metal framing with precision ventilation pathways to support continuous operation. Thermal zones are carefully managed to isolate critical components such as the processor, memory modules, and storage bays, enabling sustained performance under load. Quiet operation is a defining characteristic of this server category, achieved through optimized fan profiles and efficient power delivery components.

Intel Pentium Gold Processor Integration

This category of compact servers leverages Intel Pentium Gold processors to strike an optimal balance between processing capability and power efficiency. The integrated dual-core architecture operating at 4.1 GHz provides responsive performance for file sharing, light virtualization, collaboration tools, and line-of-business applications commonly deployed in small and medium-sized environments.

Dual-Core Performance for Everyday Server Tasks

The Pentium Gold 2-core processor delivers strong single-threaded performance, which is particularly beneficial for transactional workloads, file services, and application hosting that rely on responsive core execution. This makes the server suitable for directory services, lightweight databases, and backup applications, ensuring consistent user experience without unnecessary overhead.

Energy Efficiency and Thermal Headroom

Energy-efficient processor design minimizes power consumption while maintaining sufficient computational headroom for peak workloads. This aligns with the category’s emphasis on reduced operational costs and simplified cooling requirements, allowing deployment in environments with limited power and climate control infrastructure.

Memory Architecture and DDR4 SDRAM

Memory scalability and reliability are central to the ultra micro server category, and the HPE P54644-001 MicroServer Gen10 Plus exemplifies this through its support for DDR4 SDRAM. Equipped with 16GB of DDR4 memory, this server class provides sufficient capacity for multitasking, caching, and virtualization within small-scale deployments.

DDR4 Performance Advantages

DDR4 memory technology offers increased bandwidth and improved energy efficiency compared to previous generations. This results in faster data access, smoother application performance, and reduced latency for concurrent users. The memory architecture supports stable operation under sustained workloads, making it suitable for always-on services.

Scalability and Workload Adaptability

The ability to expand memory allows organizations to adapt the server to evolving requirements. As workloads grow or new services are introduced, additional memory capacity ensures continued responsiveness and prevents performance bottlenecks, reinforcing the long-term value of this server category.

Integrated Storage Connectivity and Four-Port Configuration

Storage flexibility defines the HPE P54644-001 MicroServer category, enabling organizations to implement tailored data solutions. The four-port storage configuration supports multiple drive installations, allowing for a combination of capacity, performance, and redundancy depending on organizational needs.

Diverse Storage Use Cases

With four internal drive bays, this server category supports file storage, backup repositories, and application data hosting. The architecture accommodates various storage configurations, enabling organizations to optimize for data protection, access speed, or archival capacity.

Data Availability and Redundancy Options

The multi-drive design supports redundancy strategies that enhance data availability. This is particularly valuable for small environments where a single server may host critical data and applications, ensuring operational continuity even in the event of individual drive failures.

External 180W Power Adapter Efficiency

The inclusion of a 180W external power adapter underscores the category’s focus on efficiency and reliability. External power delivery reduces internal heat generation, contributing to quieter operation and extended component lifespan.

Power Optimization for Continuous Operation

The external power adapter is engineered to deliver stable and consistent power under varying load conditions. This supports continuous operation scenarios such as file serving, backup scheduling, and remote access services without interruption.

Operational Cost and Energy Savings

Energy-efficient power delivery reduces overall electricity consumption, lowering operational costs over time. This aligns with sustainability objectives and makes the server category attractive to organizations seeking environmentally responsible IT solutions.

Network Connectivity and Four-Port Capability

Reliable network connectivity is a cornerstone of the ultra micro server category. The four-port configuration enhances network flexibility, enabling segmentation, redundancy, and optimized traffic management within compact environments.

Enhanced Network Throughput and Redundancy

Multiple network ports allow for link aggregation, failover configurations, or separation of management and data traffic. This improves network resilience and ensures consistent connectivity for users and applications.

Adaptability to Modern Network Topologies

The multi-port design supports integration into diverse network architectures, from simple office LANs to more complex segmented networks. This adaptability ensures the server remains relevant as network demands evolve.

Security and Firmware-Level Protection

Security is integral to the HPE P54644-001 MicroServer Gen10 Plus category, addressing the growing need for data protection at the edge. Firmware-level safeguards and secure boot mechanisms help protect against unauthorized access and firmware tampering.

Trusted Platform Features

Embedded security features establish a root of trust, verifying system integrity during startup. This ensures that only validated firmware and software are executed, reducing the risk of persistent threats.

Data Protection for Small Environments

These security measures are particularly important for small offices and remote sites that may lack dedicated IT security personnel. Built-in protections help safeguard sensitive data and maintain compliance with organizational policies.

Management and Remote Administration Capabilities

Efficient management is a defining characteristic of this server category. Remote administration tools enable monitoring, configuration, and troubleshooting without physical access, reducing maintenance overhead.

Simplified Deployment and Monitoring

Management interfaces provide visibility into system health, performance metrics, and hardware status. This allows administrators to proactively address issues and optimize resource utilization.

Reduced IT Complexity

Centralized management capabilities simplify IT operations for organizations with limited staff. The server category supports streamlined workflows that minimize downtime and enhance overall system reliability.

Virtualization and Application Hosting Potential

While compact in size, the HPE P54644-001 MicroServer Gen10 Plus category supports light virtualization and application hosting scenarios. This enables consolidation of services onto a single platform, improving efficiency and reducing hardware sprawl.

Virtual Machines and Containers

The processor and memory configuration accommodate virtualization platforms and containerized applications, making the server suitable for development environments, testing, and lightweight production workloads.

Flexible Workload Deployment

This flexibility allows organizations to deploy a variety of services, from file servers and collaboration tools to edge analytics and monitoring applications, all within a compact and manageable system.

Use Cases Across Industries and Environments

The ultra micro tower server category addresses a wide range of use cases across industries. Its compact design, reliable performance, and efficient operation make it suitable for diverse deployment scenarios.

Small Business and Branch Office Applications

In small business environments, this server category provides essential IT infrastructure for file sharing, backups, and business applications. Branch offices benefit from localized compute resources that reduce reliance on centralized data centers.

Edge Computing and Remote Deployments

The compact footprint and low power requirements make the server ideal for edge computing scenarios, including retail locations, manufacturing sites, and remote offices. Local data processing reduces latency and enhances operational responsiveness.

Reliability and Long-Term Value

Reliability is a core attribute of the HPE P54644-001 MicroServer Gen10 Plus category. Enterprise-grade components and rigorous testing ensure consistent operation over extended periods, even in non-traditional server environments.

Component Longevity and Stability

High-quality components contribute to extended service life, reducing the frequency of replacements and minimizing total cost of ownership. Stable operation supports mission-critical workloads in small-scale deployments.

Investment Protection and Scalability

The scalable architecture protects investment by accommodating future upgrades and evolving requirements. Organizations can expand memory, storage, or networking capabilities as needed, ensuring the server remains a valuable asset over time.
