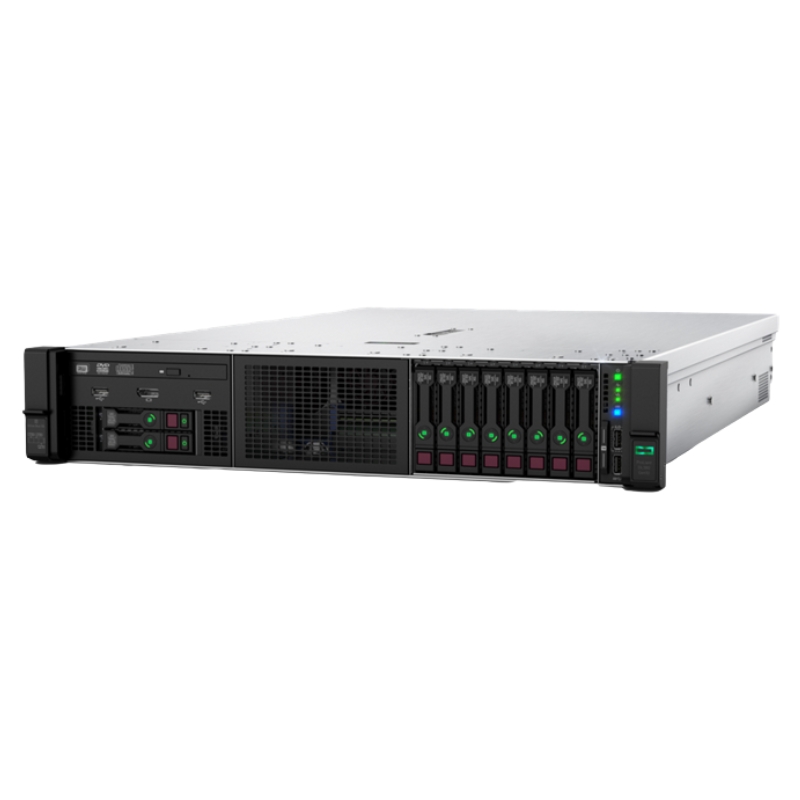

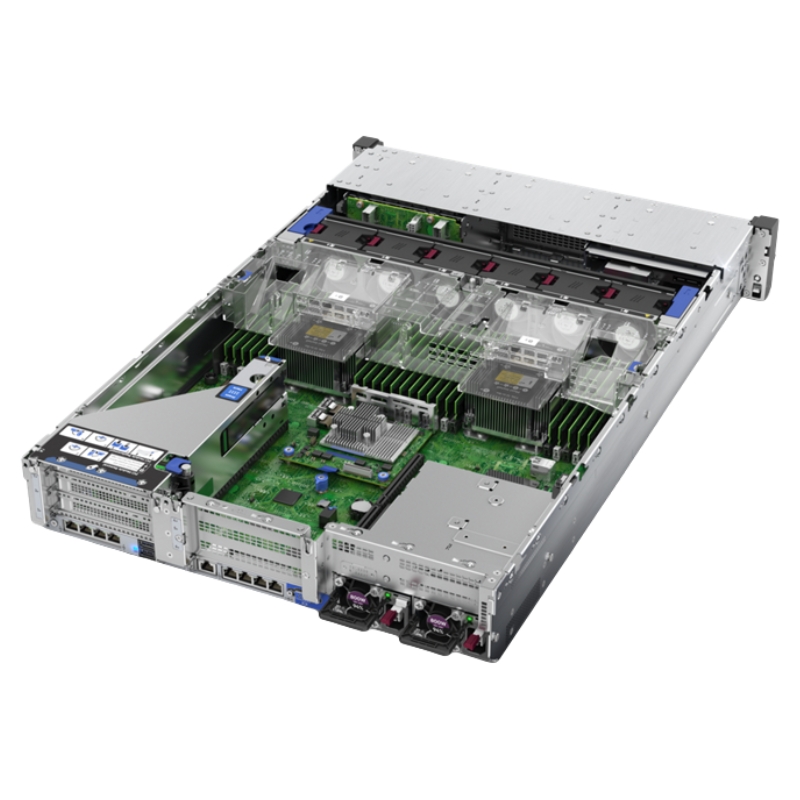

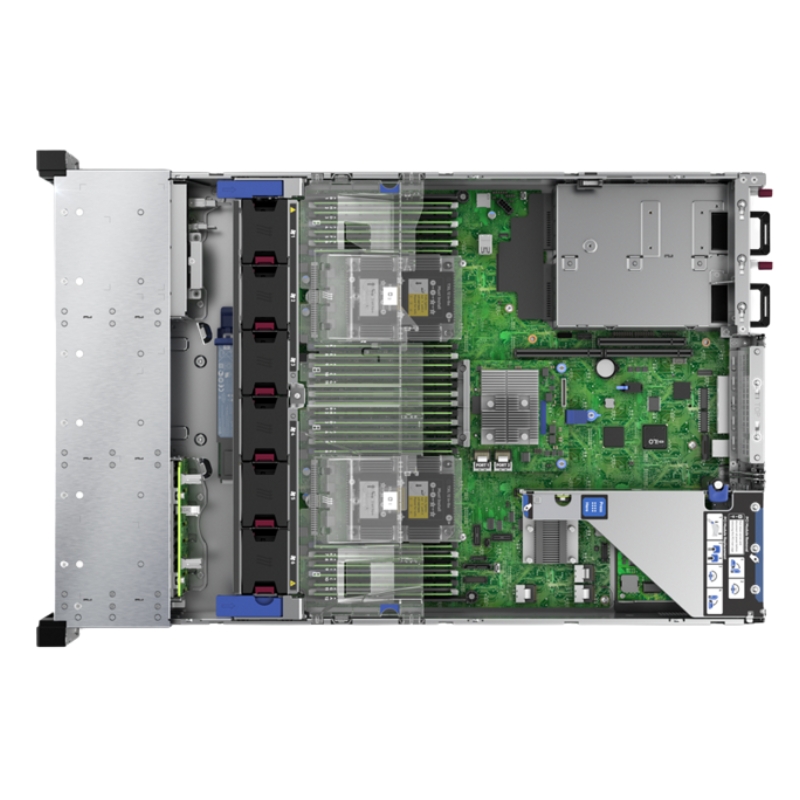

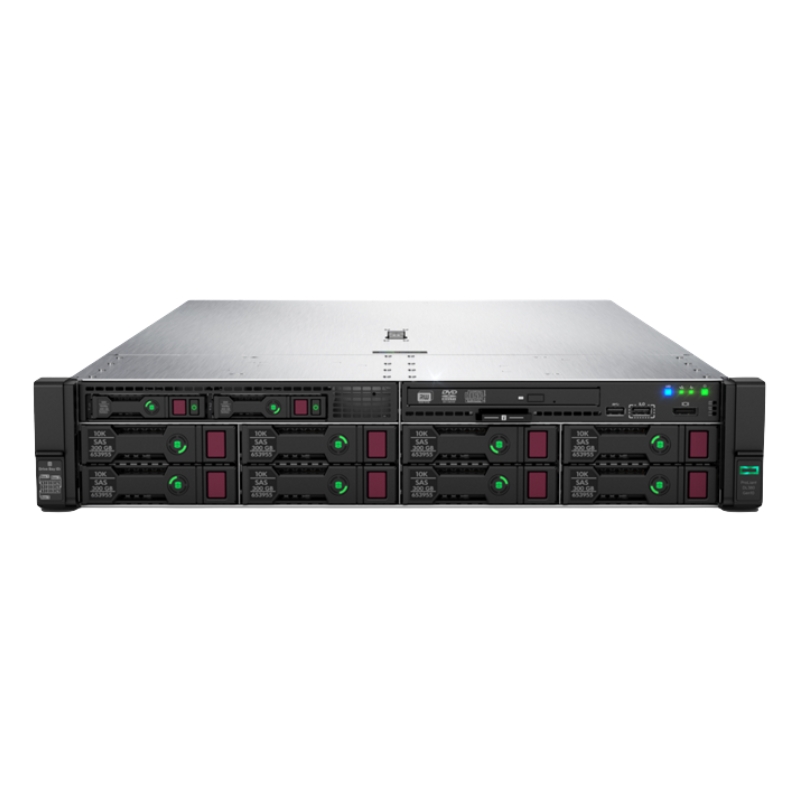

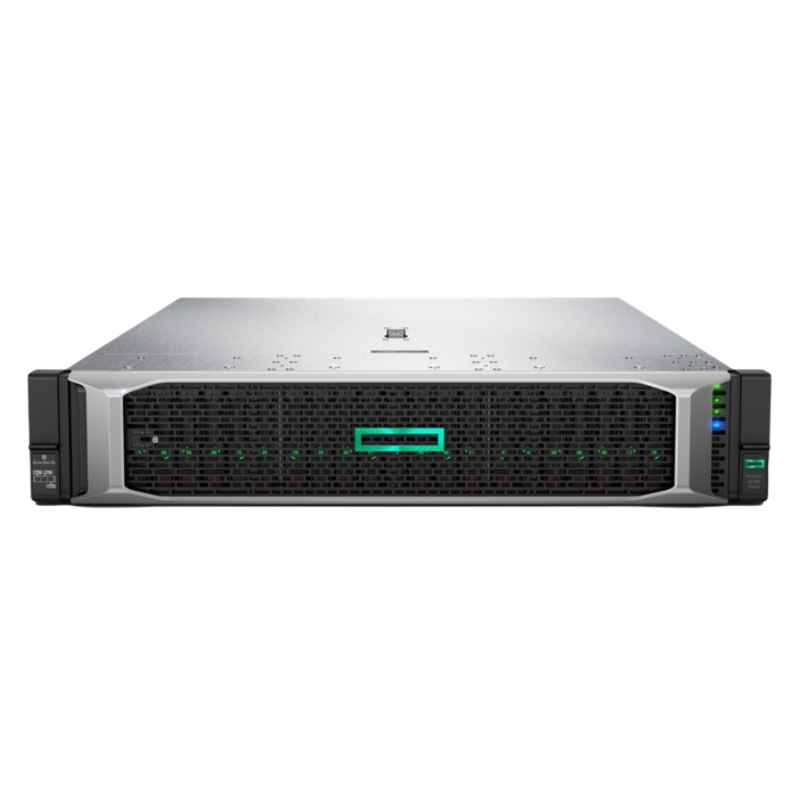

HPE Proliant DL380 Gen10 5218R 20-Core 1P 32GB-R 8SFF Rack Server

Processor

The HPE Proliant DL380 Gen10 Rack Server is equipped with a powerful Xeon 5218R 20-Core 2.1GHz processor. This advanced processor provides users with exceptional performance and reliability, making it a valuable feature for businesses and organizations across various industries.

Server Specifications of P56964-B21

• Type: Rack-Mountable Server
• Form Factor: 2U
• Built-in Devices: LED Panel
• Scalability: 2-Way
• Hot-Swap Bays: 8
• Localization: Available Worldwide (excluding China, Japan)

Processor & Chipset

• Model: Intel Xeon Gold 5218R
• Base Clock Speed: 2.1 GHz
• Max Turbo Speed: 4.0 GHz
• Cores: 20
• Quantity: 1 (Upgradeable to 2)
• Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2.0

Chipset

• Type: Intel C621

Cache Memory

• Installed Size: 27.5 MB L3 Cache
• Cache Per Processor: 27.5 MB

Memory

• Installed Size: 32 GB (expandable up to 1.5 TB)
• Technology: DDR4 SDRAM with Advanced ECC
• Effective Memory Speed: 2666 MHz
• Rated Memory Speed: 2933 MHz
• Form Factor: DIMM 288-Pin
• Slots: 12 (1 occupied, 11 free)
• Features: Registered, Dual Rank, HPE SmartMemory

Supported Configurations

• 3 TB Load-Reduced ECC
• 1.5 TB Registered ECC
• 192 GB Non-Volatile ECC
• 6 TB HPE Persistent Memory - Optane DC Persistent

Storage

• Type: No HDD Included

Storage Controller

• Type: RAID Controller
• Interface: SAS 12 Gb/s
• Model: Broadcom MegaRAID MR416i-P
• Channels: 16
• Buffer Size: 4 GB

Additional Components

• Type: No Optical Drive Included

Monitor

• Monitor Type: None

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57414
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake-On-LAN (WOL), PXE Support

Expansion & Connectivity

Bays

• 1 x External Universal Media Bay
• 8 x Hot-Swap 2.5” SFF Bays

Slots

• 1 x FlexibleLOM
• 1 x PCIe 3.0 x16 (Half-Length, Full-Height)
• 2 x PCIe 3.0 x8 (Half-Length, Full-Height)
• 1 x MicroSD Card (Internal)

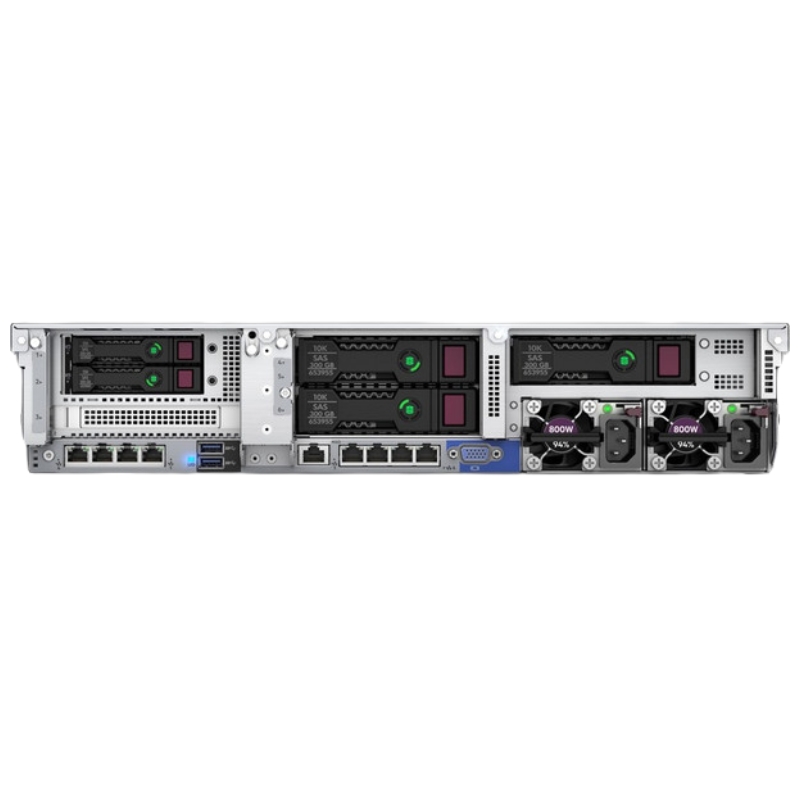

Interfaces

• 1 x HPE iLO Type A (Front)
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)
• 1 x HPE iLO RJ-45 (Rear)
• 2 x LAN (10 Gigabit Ethernet) - SFP28 (Rear)
• 1 x VGA (Rear)

Miscellaneous

• 4 Standard Fans
• CPU Standard Heatsink
• HPE Easy Install Rails with CMA

Compliant Standards

• AES
• FIPS 140-2
• WEEE
• Triple DES
• TLS V1.2
• ASHRAE Class A4
• ASHRAE Class A3
• Redfish API
• UEFI
• ACPI 6.3
• SMBIOS 3.2

Power Specifications

• Type: Hot-Plug Power Supply
• Redundancy: Optional (1+1 with Optional Power Supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Voltage Required: AC 100-240V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Environmental Standards

• Energy Star Certified: Yes
• Energy Star Version: 3.0

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Enhanced Performance

The Xeon 5218R processor delivers superior computational power, allowing users to efficiently handle demanding workloads and complex tasks. With its 20 cores and 40 threads, this processor enables faster data processing, reducing the time required for critical operations. Whether you are running resource-intensive applications, virtualization environments, or high-performance databases, this processor ensures smooth and uninterrupted performance.

Multi-Threaded Processing

The Xeon 5218R's multi-threading capability is especially beneficial for users who need to perform multiple tasks simultaneously. This feature enables parallel execution of tasks, improving overall system responsiveness and productivity. With the ability to handle more threads per core, this processor is well-suited for multitasking environments where efficient resource allocation is essential.

Optimized Workloads

Thanks to its optimized architecture, the Xeon 5218R processor excels in a wide range of workloads. From data analytics and scientific simulations to content delivery networks and virtual desktop infrastructure, this processor can handle diverse computing needs with ease. It ensures that your server can efficiently process the specific workloads required by your business or organization.

RAM

The HPE Proliant DL380 Gen10 Rack Server boasts a generous 32GB RAM capacity. This ample memory size provides users with numerous benefits and plays a crucial role in optimizing server performance.

Improved System Responsiveness

With 32GB of RAM, the server can store and access a significant amount of data quickly. This results in improved system responsiveness, as applications and processes can be loaded into memory without delays. Users will experience smoother and more efficient operations, even when working with resource-intensive tasks or running multiple applications simultaneously.

Enhanced Virtualization Performance

Virtualization has become an essential aspect of modern server infrastructure, allowing businesses to consolidate their hardware resources and increase flexibility. The 32GB RAM capacity of the HPE Proliant DL380 Gen10 enables efficient virtual machine management, ensuring that each virtual instance has sufficient memory to operate optimally. This capability is particularly valuable for organizations running virtual desktop infrastructure (VDI) or hosting multiple virtual servers on a single physical machine.

Future-Proofing and Scalability

The 32GB RAM capacity of the server ensures that it can meet the demands of today's applications while also providing room for future growth. As your business expands or your workload requirements increase, you can easily upgrade the server's memory capacity to accommodate higher workloads. This scalability allows you to invest in a system that can adapt to your evolving needs without requiring a complete hardware replacement.

Drive Bays

The HPE Proliant DL380 Gen10 Rack Server comes equipped with 8SFF (Small Form Factor) drive bays, offering users a versatile storage solution that combines efficiency and flexibility.

Optimized Storage Density

The 8SFF drive bays provide an ideal balance between storage capacity and physical space utilization. By accommodating up to eight small form factor drives, this configuration maximizes storage density within the server chassis. This is particularly advantageous for businesses or organizations with limited rack space, as it allows them to store a significant amount of data within a compact footprint.

Hot-Swap Capability

One of the notable benefits of the 8SFF drive bays is their hot-swap capability. This feature allows users to replace or upgrade drives without powering down the server, minimizing downtime and facilitating seamless maintenance operations. The hot-swap capability ensures continuous availability of data and reduces the risk of data loss or disruption during drive replacements.

Flexible Storage Configuration

The 8SFF drive bays offer flexibility in terms of storage configuration. Users can choose from a variety of storage options, including SAS (Serial Attached SCSI), SATA (Serial ATA), or solid-state drives (SSDs). This flexibility allows businesses to tailor the storage configuration to their specific needs, whether it's prioritizing speed and performance with SSDs or maximizing capacity with traditional hard disk drives.

Part Number

The HPE Proliant DL380 Gen10 Rack Server features the part number P56964-B21. This unique identifier plays a crucial role in ensuring accurate identification, compatibility, and efficient maintenance of the server.

Accurate Identification

With a specific part number assigned to the server, it becomes easier to identify and differentiate it from other server models or variations. This is especially advantageous when managing multiple servers within an IT infrastructure. The part number serves as a reliable reference point during troubleshooting, deployment, or inventory management, enabling IT personnel to quickly locate and address any issues that may arise.

Compatibility Assurance

The part number P56964-B21 ensures compatibility with specific components, upgrades, and accessories designed for the HPE Proliant DL380 Gen10 Rack Server. When expanding or upgrading the server's capabilities, having the correct part number helps ensure that any additional hardware or software is compatible with the existing system. This minimizes the risk of compatibility issues that could lead to reduced performance, system instability, or operational disruptions.

Efficient Maintenance and Support

By using the part number to reference the server, IT teams can easily access documentation, firmware updates, and support resources specific to the HPE Proliant DL380 Gen10 Rack Server. This streamlines the maintenance and support process, allowing for timely troubleshooting, firmware upgrades, and access to relevant knowledge base articles or user forums. Having the correct part number readily available facilitates a smoother and more efficient maintenance experience.
