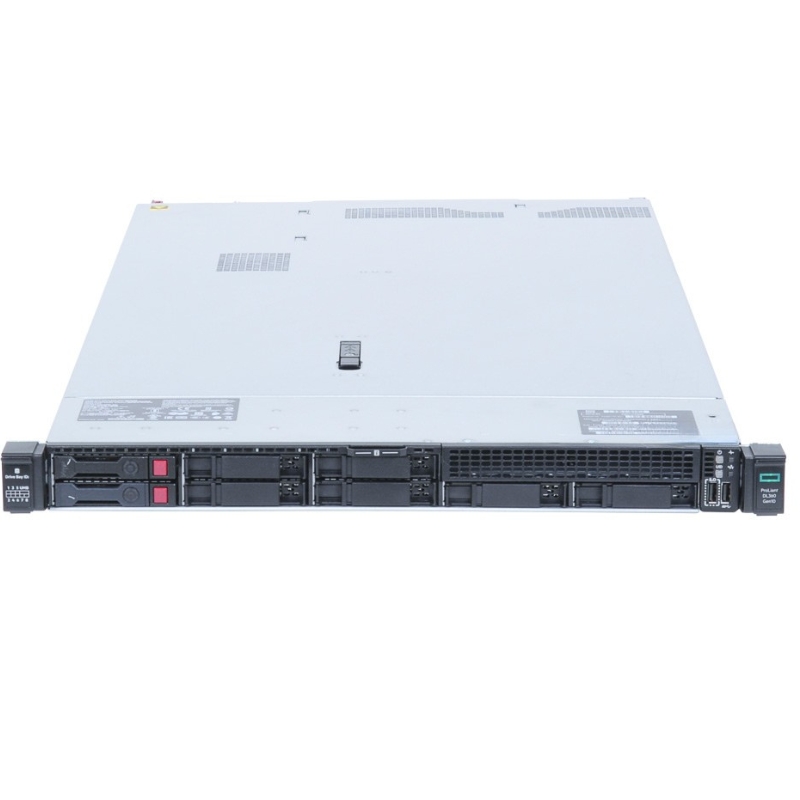

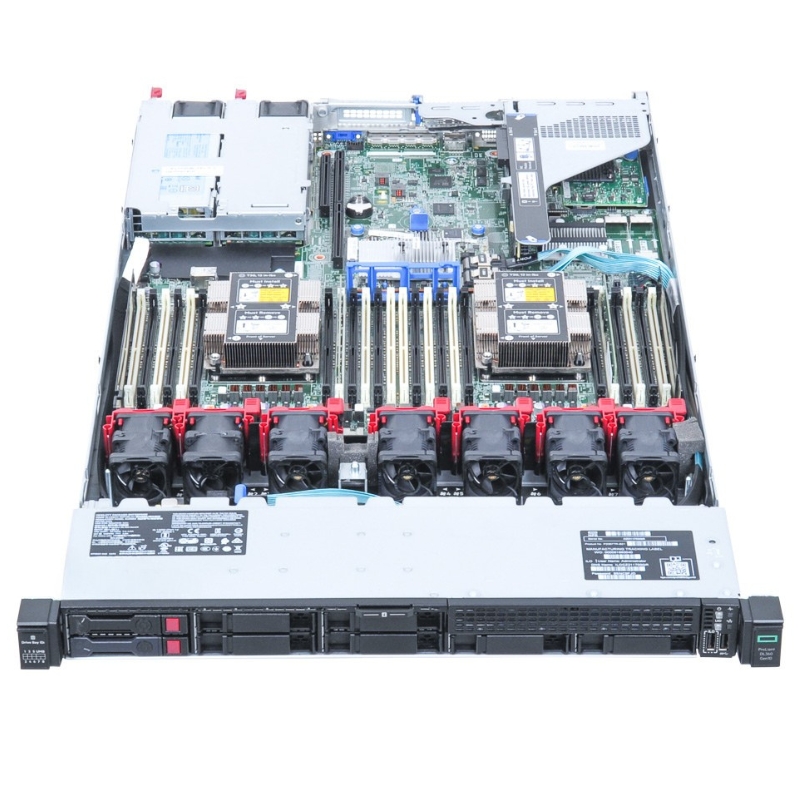

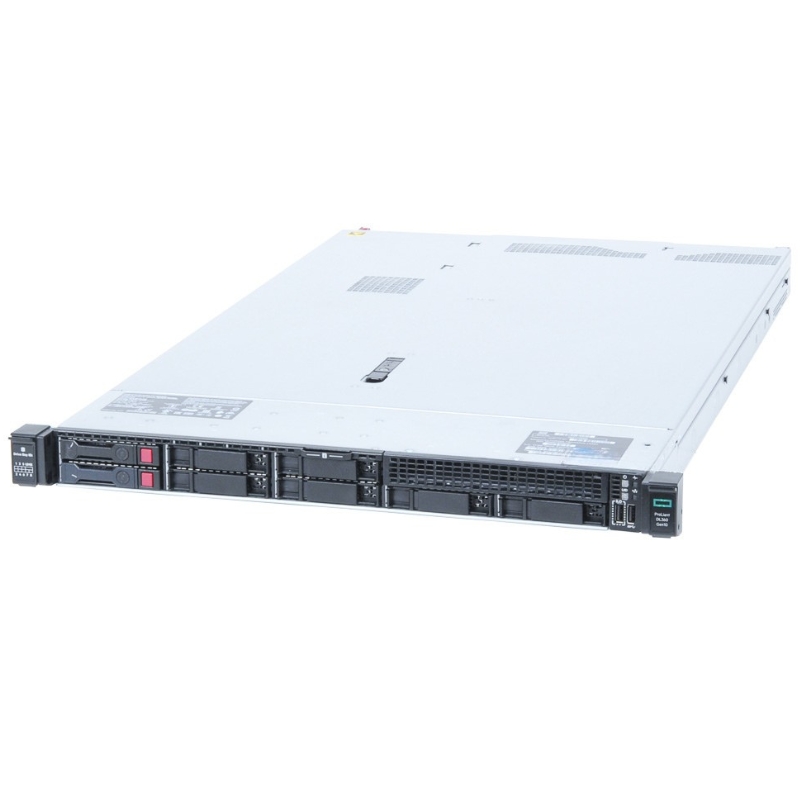

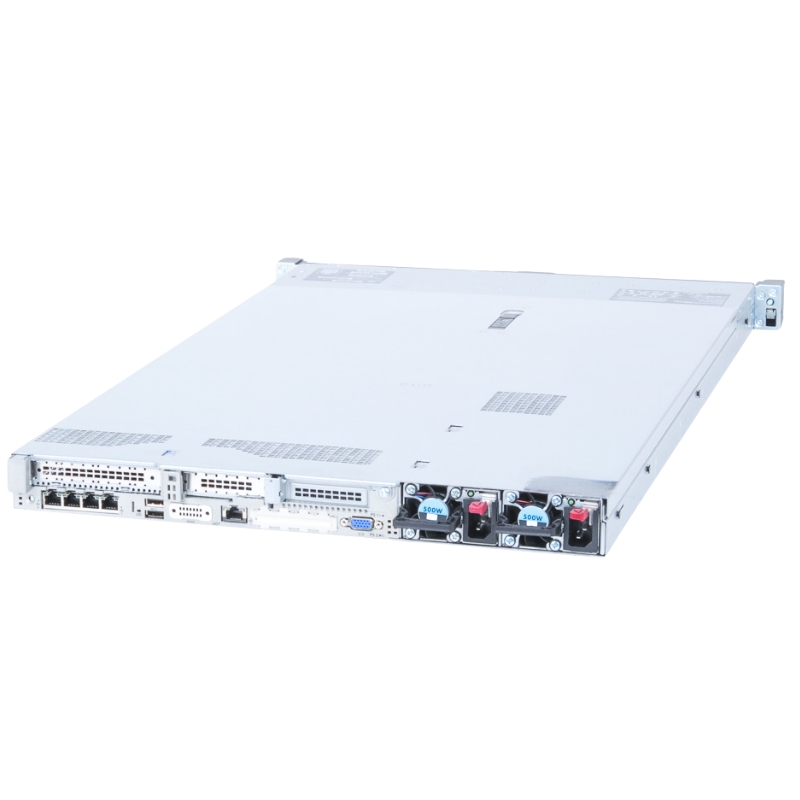

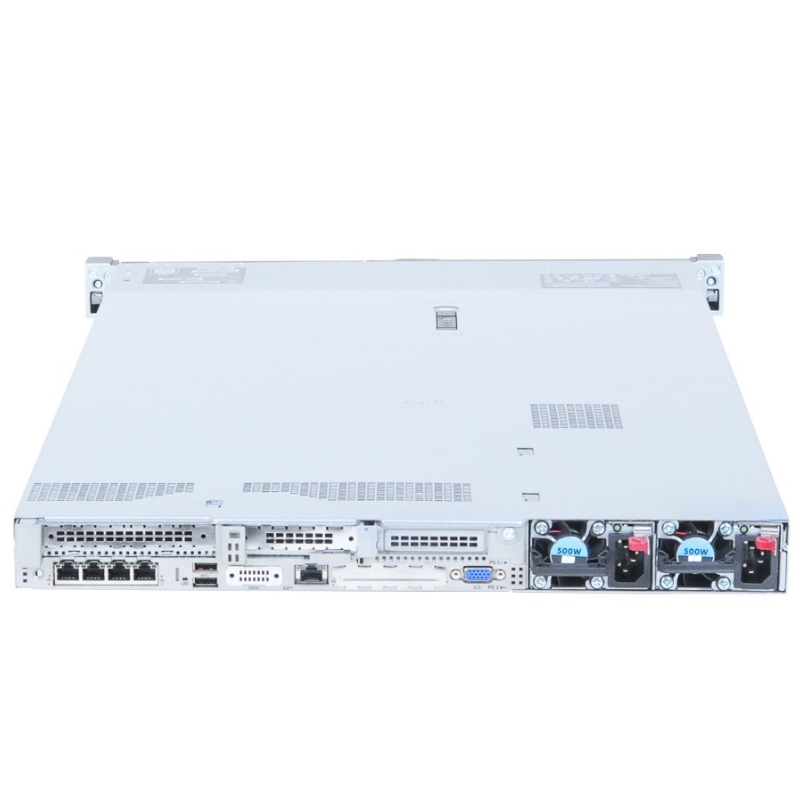

HPE Proliant DL360 Gen10 P63679-B21 Server Xeon Silver 4208 2.1Ghz, 64GB DDR4 SDRAM, 960GB SSD, 8x SFF Bays, 2x 500W Power, 1U Rack.

Processor

The HPE Proliant DL360 Gen10 Server is powered by the impressive Xeon Silver 4208 2.1Ghz processor. This processor is a significant feature that sets this server apart from its competitors. With its exceptional performance capabilities, the Xeon Silver 4208 ensures that users can handle demanding workloads and achieve optimal productivity.

Manufacturer Details of DL360 Gen10

• Brand: Hewlett Packard Enterprise
• Part Number: P63679-B21
• Product Name: HPE Proliant DL360 Gen10 Network Choice

System Specifications

• Form Factor: Rack-mountable
• Processor: Intel Xeon Silver 4208, 2.1 GHz
• RAM: 64 GB (expandable up to 1.54 TB)
• Storage: SSDs (2 x 480 GB)

Processor and Chipset

• Type: Intel Xeon Silver 4208
• Base Clock Speed: 2.1 GHz
• Max Turbo Speed: 3.2 GHz
• Cores: 8-core
• Socket: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Cache Size: 11 MB L3 Cache
• Cache Per Processor: 11 MB

RAM Specifications

• Size: 64 GB
• Maximum Capacity: 1.54 TB

Memory Technology

• Type: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2400 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 12 total (8 empty)
• Configuration: 4 x 16 GB
• Supported Configurations: Up to 3 TB Load-reduced ECC, 1.54 TB Registered ECC

Hard Drive and Storage

• Type: SSD
• Capacity: 2 x 480 GB
• Interface: SATA 6 Gb/s
• Features: Read Intensive, Multi Vendor Support

Storage Controller

• Type: RAID Controller
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Model: HPE Smart Array E208i-a SR Gen10
• Channels: 8

Connectivity and Expansion

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Controller: HPE 535FLR-T
• Protocols: 10 Gigabit Ethernet, SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion and Slots

• Bays: 1 External Universal Media Bay, 8 Hot-swap 2.5 SFF
• PCIe Slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x FlexibleLOM, 1 x MicroSD Card, 1 x PCIe x16
• Interfaces: 1 x HPE iLO Type A, 1 x HPE iLO RJ-45, 5 x USB 3.0, 1 x VGA, 2 x LAN (10 Gigabit Ethernet)

Power Supply and Cooling

• Type: Hot-plug Power Supply
• Redundancy: Yes (1+1)
• Installed Quantity: 2
• Voltage Required: AC 100-240 V (50/60 Hz)
• Power Output: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Physical Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Additional Information

• HPE Standard Heatsink
• 5 x Standard Fans
• SFF Easy Install Rails (without CMA)

Compliance and Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4, A3
• WEEE 2002/95/EC
• ACPI 6.1

Enhanced Performance

The Xeon Silver 4208 processor delivers outstanding performance through its eight cores and sixteen threads. This allows for efficient multitasking and the ability to handle resource-intensive applications with ease. Users can expect improved responsiveness and faster processing times, enabling them to accomplish tasks more quickly and efficiently.

Increased Scalability

One of the key benefits of the Xeon Silver 4208 processor is its scalability. It supports up to 768GB of RAM, allowing for extensive memory configurations. This scalability is particularly valuable for businesses that anticipate future growth or need to accommodate increasing workloads. The ability to easily upgrade the server's memory ensures that it can adapt to changing demands without the need for a complete system overhaul.

Reliability and Security

In addition to its exceptional performance, the Xeon Silver 4208 processor offers enhanced reliability and security features. Intel's built-in hardware security technologies protect against potential security threats, preserving the integrity of data and ensuring business continuity. With robust security measures in place, users can have peace of mind knowing that their critical information is safeguarded.

Memory

The HPE Proliant DL360 Gen10 Server is equipped with 64GB DDR4 SDRAM, providing users with ample memory capacity to handle complex workloads effortlessly. The memory capacity plays a crucial role in determining how efficiently a server can process data and execute tasks, making it a critical feature for users.

Improved Performance

With 64GB of DDR4 SDRAM, the server can handle multiple applications simultaneously without experiencing performance bottlenecks. This increased memory capacity allows for more efficient data processing and reduces the chances of system slowdowns. Users can expect improved overall performance and responsiveness, resulting in enhanced productivity.

Enhanced Virtualization

Virtualization has become an essential aspect of modern server environments. The 64GB DDR4 SDRAM in the HPE Proliant DL360 Gen10 Server enables efficient virtualization by providing sufficient memory resources for virtual machines to operate smoothly. Users can deploy and manage multiple virtual instances, maximizing server utilization and optimizing resource allocation.

Future-Proofing

Investing in a server with ample memory capacity like the HPE Proliant DL360 Gen10 ensures future-proofing. As businesses grow and workloads increase, the demand for memory also rises. The 64GB DDR4 SDRAM offers room for expansion, allowing users to accommodate future needs without requiring a complete hardware replacement.

Storage

The HPE Proliant DL360 Gen10 Server is equipped with a fast and reliable 960GB SSD storage solution. This storage feature plays a crucial role in data management and accessibility, offering numerous benefits for users.

Improved Data Transfer Speed

The 960GB SSD storage provides faster data transfer speeds compared to traditional mechanical hard drives. This translates into reduced latency and improved overall performance. With faster access to data, users can experience quicker application launches, faster file transfers, and improved responsiveness.

Enhanced Reliability

Solid-state drives (SSDs) are renowned for their durability and reliability. They have no moving parts, making them less susceptible to physical damage caused by shocks or vibrations. Additionally, SSDs have a longer lifespan compared to traditional hard drives, reducing the chances of unexpected data loss or system failures.

Increased Efficiency

The 960GB SSD storage enables efficient data management and storage consolidation. Its high capacity allows users to store large amounts of data in a compact form factor, optimizing space utilization within the server. This efficiency is particularly beneficial for businesses with limited physical storage space or those aiming to reduce their overall infrastructure footprint.

Drive Bays

The HPE Proliant DL360 Gen10 Server features 8x SFF (Small Form Factor) drive bays, providing users with ample storage options and flexibility. The drive bays offer numerous benefits that enhance the server's functionality and adaptability.

Flexible Storage Configuration

With 8x SFF drive bays, users have the freedom to configure their storage setup according to their specific needs. They can opt for a combination of SSDs and traditional hard drives or choose a RAID configuration for improved data redundancy and performance. This flexibility enables users to tailor the server to their unique requirements, ensuring optimal storage performance.

Scalability and Expandability

The 8x SFF drive bays provide ample room for future expansion. As storage requirements increase, users can easily add additional drives to accommodate growing data volumes. This scalability ensures that the server can adapt to changing business needs without incurring significant costs or disruptions.

Hot-Swappable Drives

One of the key advantages of the 8x SFF drive bays is their hot-swappable capability. This allows users to replace or upgrade drives without shutting down the server, minimizing downtime and ensuring uninterrupted operation. Hot-swappable drive bays are particularly valuable in mission-critical environments where continuous availability is essential.

Power Supply

The HPE Proliant DL360 Gen10 Server is equipped with 2x 500W power supplies, providing reliable and efficient power delivery. The power supply feature is of utmost importance as it ensures the server's stability and availability.

Redundancy and Failover Protection

The dual 500W power supplies offer built-in redundancy, ensuring continuous power supply to the server. In the event of a power supply failure, the second power supply seamlessly takes over, preventing any disruptions to the server's operation. This failover protection is critical for businesses that rely on uninterrupted access to their applications and data.

Efficiency and Cost Savings

The 2x 500W power supplies are designed for energy efficiency, helping businesses reduce their carbon footprint and lower operating costs. By optimizing power usage, users can enjoy significant savings on electricity bills while contributing to a greener environment. The power supplies also meet industry standards for energy efficiency, ensuring compliance with environmental regulations.

Ease of Maintenance

The HPE Proliant DL360 Gen10 Server's 2x 500W power supplies support hot-plug functionality, allowing for easy maintenance and replacement. Users can swap out a faulty power supply without shutting down the server, minimizing downtime and simplifying maintenance procedures. This ease of maintenance translates into improved system availability and reduced operational disruptions.

Form Factor

The HPE Proliant DL360 Gen10 Server boasts a sleek 1U Rack form factor, making it an ideal choice for businesses with limited physical space or those looking to optimize their data center footprint.

Space Optimization

The 1U Rack form factor allows users to maximize their server density within a confined space. With its compact design, the DL360 Gen10 Server can be easily mounted in standard server racks, freeing up valuable floor space. This space optimization is particularly beneficial for businesses with limited data center real estate or those looking to scale their infrastructure without expanding their physical footprint.

Improved Airflow and Cooling

The 1U Rack form factor promotes efficient airflow and cooling within the server. Its design ensures proper ventilation, preventing overheating and reducing the risk of component failures. The improved cooling capabilities contribute to the server's overall reliability and longevity, ensuring optimal performance even under demanding workloads.

Easy Deployment and Maintenance

The DL360 Gen10 Server's 1U Rack form factor simplifies deployment and maintenance procedures. Its compact size allows for easy installation in standard server racks, minimizing setup time and effort. Additionally, the form factor's accessibility facilitates quick access to internal components, simplifying troubleshooting and hardware upgrades. This ease of deployment and maintenance translates into improved operational efficiency and reduced downtime.
