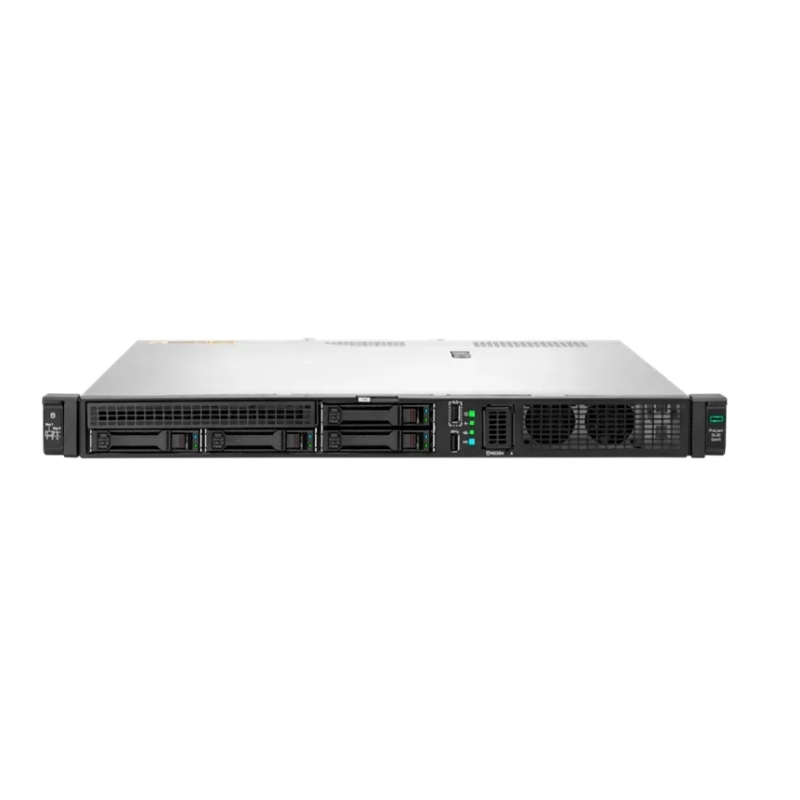

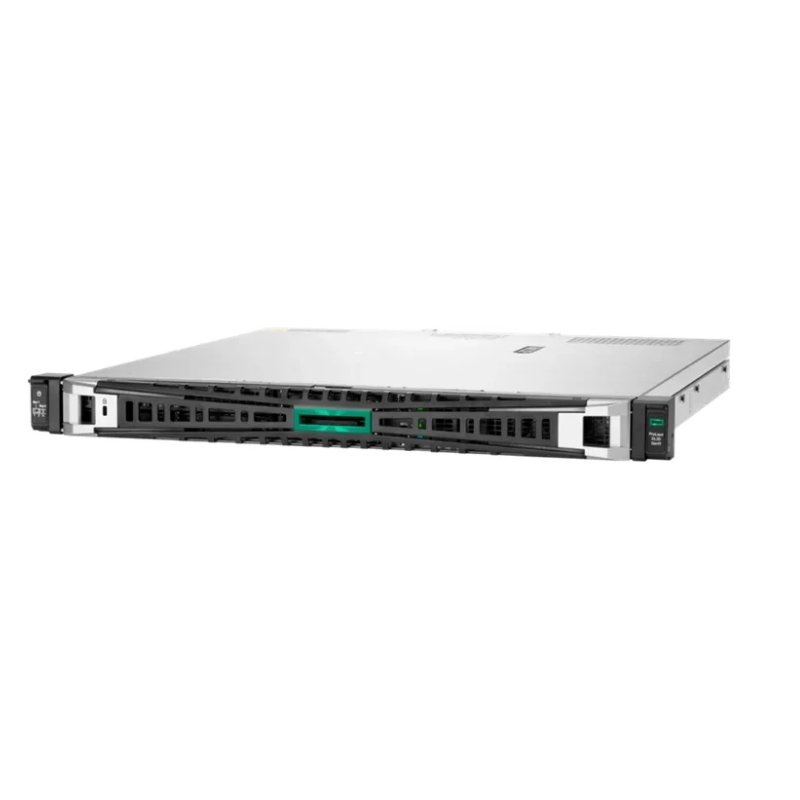

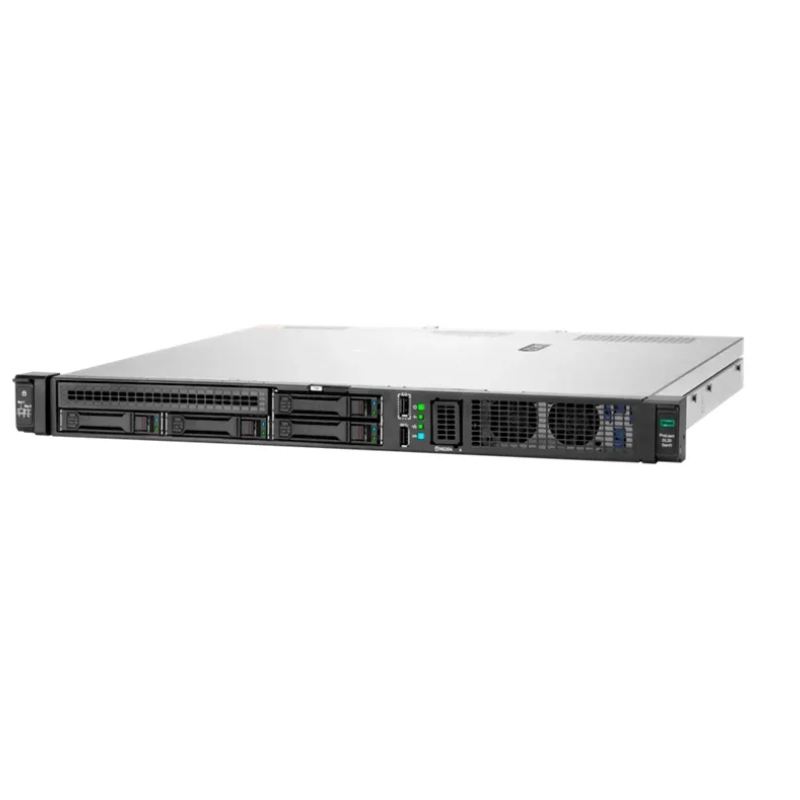

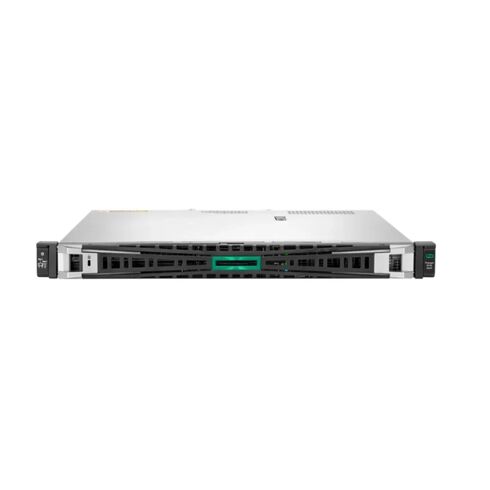

P65396-B21 HPE Proliant Dl20 Gen11 Intel Xeon 6-core 2.9GHz DDR5 1U Rack Server

Product Overview of HPE ProLiant DL20 Gen11 High-Performance Server

• Model: P65396-B21
• Rack Type: 1U Compact Rackmount
• Form Factor: Single-processor, 1-way scalable
• Hot-plug Support: 4x SFF HDD Bays
• Power Supply: 500W Flex Slot Platinum, low-halogen, hot-swappable

Model Keywords & Search Phrases

• HPE P65396-B21 rack server
• ProLiant DL20 Gen11 1U
• Intel Xeon 6-core 2.9GHz DDR5
• Small form factor enterprise server
• Edge and branch office server

General Specifications

Manufacturer Details

• Brand: Hewlett Packard Enterprise (HPE)
• Part Number: P65396-B21

Server Characteristics

• Rack Height: 1U
• Scalability: 1-way
• Drive Bays: 4x hot-swap SFF

Processor and Chipset

CPU Performance

• Processor: Intel Xeon E-2436, 6-core
• Base Speed: 2.9 GHz
• Max Turbo Frequency: 5.0 GHz
• Upgrade Support: Yes (single-socket system)
• Processor Features: Intel Turbo Boost 2.0, Smart Cache

Chipset

• Type: Intel C262

Memory and Cache

Cache Memory

• L3 Cache: 18 MB per processor

System Memory

• Installed: 16GB DDR5 ECC SDRAM
• Max Capacity: 128GB
• Speed: 4800 MHz
• Slots: 4 DIMM slots (3 available)
• Features: Unbuffered, HPE Standard Memory

Storage Options

Internal Storage

• Default: No pre-installed HDD/SSD
• Optical Drive: Not included

Storage Controller

• Controller: Intel VROC SATA Software RAID
• Interface: SATA 6Gb/s
• Supported RAID Levels: 0, 1, 5, 10

Graphics and Display

Video Capabilities

• Graphics Processor: Matrox G200
• Video Memory: 16 MB
• Outputs: VGA, DisplayPort

Networking and Connectivity

Ethernet Features

• Ports: 4x Gigabit Ethernet RJ-45
• Controller: Broadcom BCM5719
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0
• Additional Functions: PXE boot, Wake-on-LAN, ACPI support

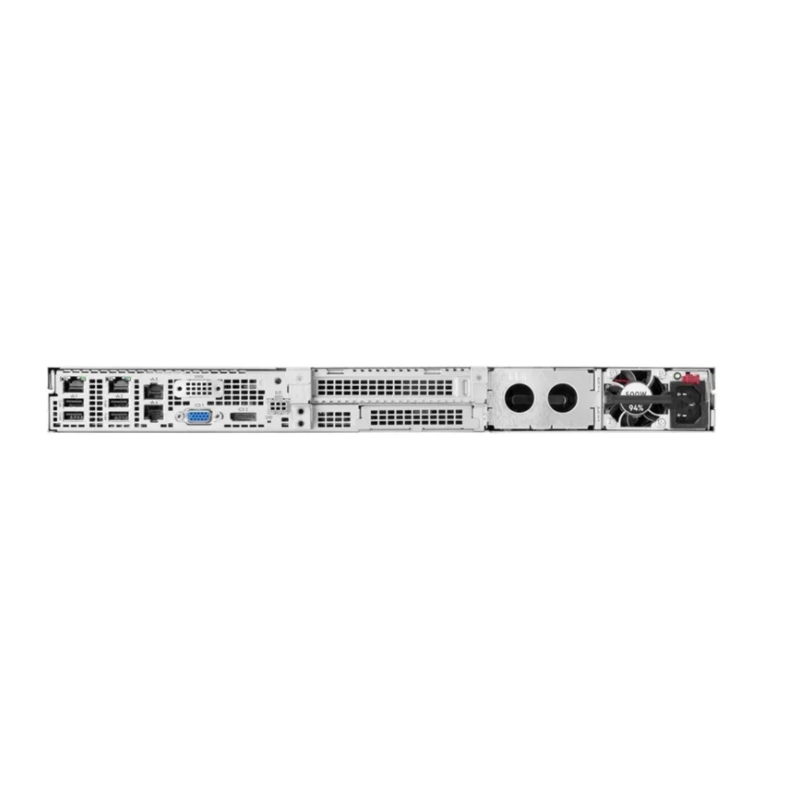

Expansion and Interfaces

• Expansion Slots:
  • 1x PCIe 5.0 x16 (half-length, full-height)
  • 1x OCP 3.0 mezzanine slot
• Interfaces:
  • 5x USB 3.2 Gen 1 (1 front, 4 rear)
  • 2x USB 3.2 Gen 2 (internal)
  • 1x iLO service port
  • 1x VGA
  • 1x DisplayPort

Power Efficiency

Power Supply

• Installed: 500W Flex Slot Platinum (hot-swappable)
• Redundancy: Optional 1+1 configuration
• Input Voltage: 100-120V / 200-240V (50/60Hz)
• Certification: 80 PLUS Platinum

Preloaded Tools

• HPE Intelligent Provisioning
• HPE iLO Management

Compliance and Environmental Standards

Certifications

• Energy Star Certified (v4.0)
• IPv6 Ready, PCI DSS, TLS 1.2
• AES, FIPS 140-2, Triple DES
• ASHRAE Class A3 & A4
• WEEE Directive, UEFI 2.9, Redfish API

Physical Dimensions

Size and Weight

• Width: 17.11 in
• Depth: 15.25 in
• Height: 1.69 in
• Weight: 19.84 lbs
