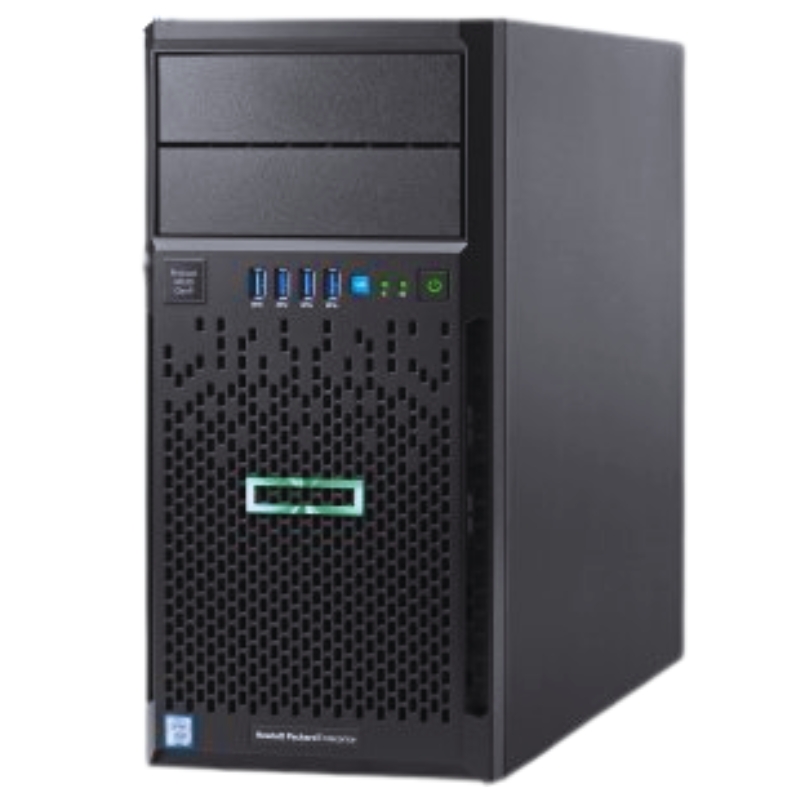

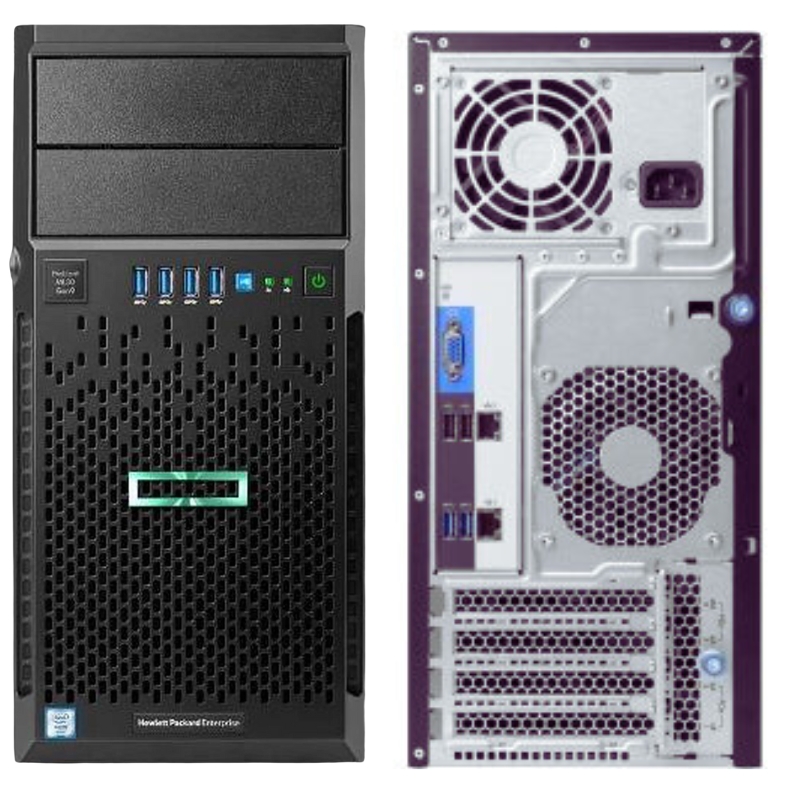

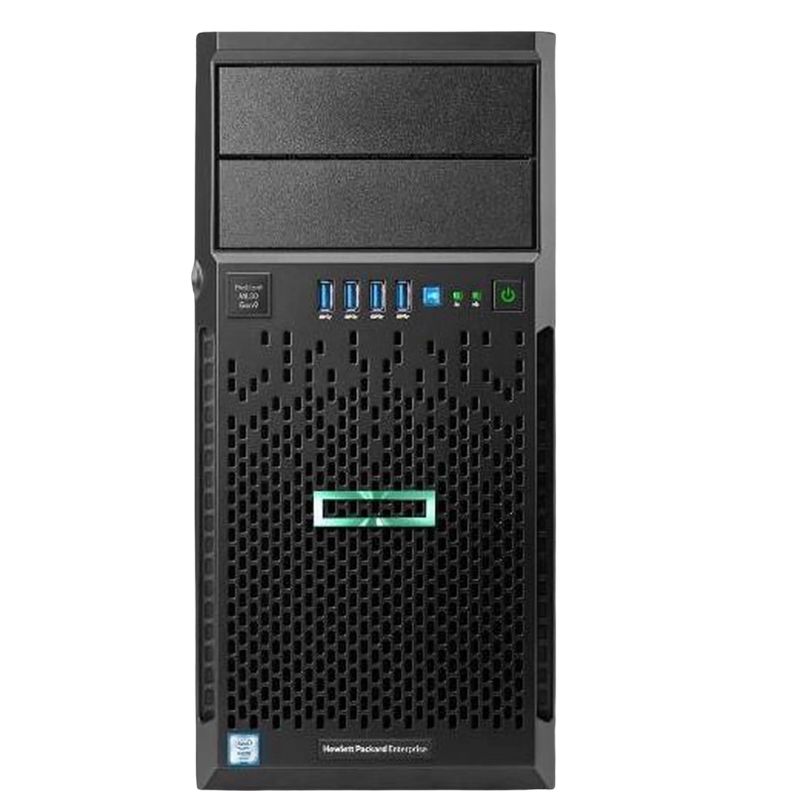

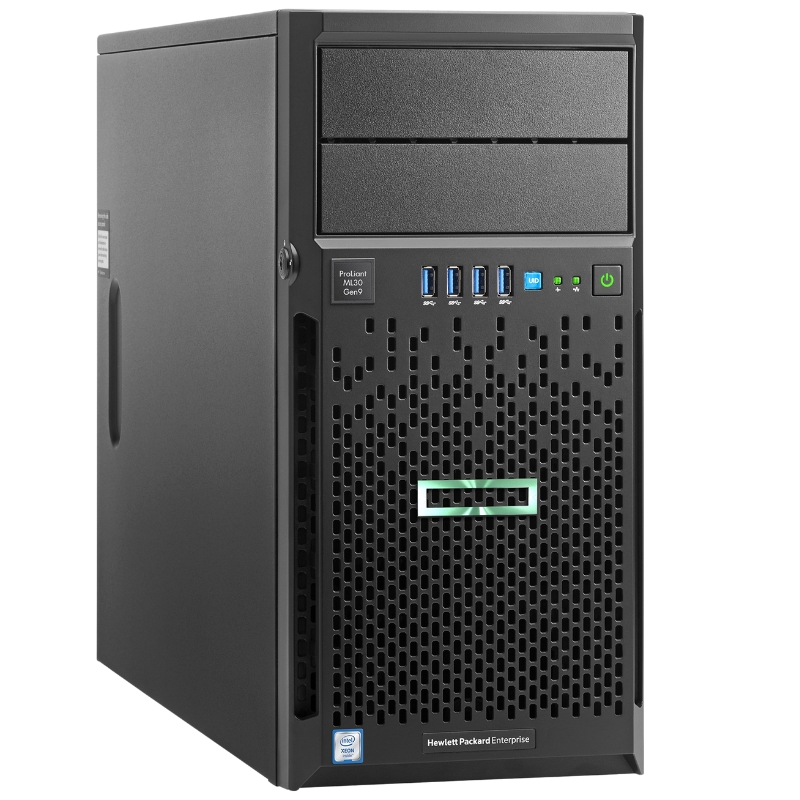

HPE Proliant P65397-001 Ml30 Gen11 Pre-configured Server - E-2414, 16GB DDR5 SDRAM, 1TB SATA HDD, 4x 1gbe Ethernet Adapter, 350w Power Supply, 4LFF Tower Server

Processor:

The HPE ML30 Gen11 Pre-configured Server is equipped with the powerful Intel Xeon E-2414 processor. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses and individuals who require high computing power.

Main Information of Proliant Ml30

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P65397-001
• Product Type: Tower Server
• Rack Units: 4U
• Scalability: 1-way
• Hot-Swap Bays: 4
• Product Name: HPE ProLiant ML30 Gen11 E-2414 2.6GHz 4-Core 1P 16GB-U 4LFF-NHP 1TB 350W PS Server

Processor and Chipset

• CPU: Intel Xeon E-2414
• Clock Speed: 2.6 GHz
• Max Turbo Speed: 4.5 GHz
• Number of Cores: Quad-Core
• CPU Quantity: 1
• Max CPU Quantity: 1
• CPU Upgradability: Yes
• Processor Features: Hyper-Threading Technology, Intel Smart Cache
• Chipset: Intel C262

Cache Memory

• Installed Cache Size: 12 MB L3 Cache
• Cache Per Processor: 12 MB

Memory

• Installed RAM: 16 GB
• Maximum RAM: 128 GB
• Memory Technology: DDR5 SDRAM - ECC
• Memory Speed: 4800 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 4 (total) / 3 (empty)
• Configuration: 1 x 16 GB

Internal Storage

• Type: HDD
• Capacity: 1 TB
• Interface Type: SATA 6Gb/s
• Spindle Speed: 7200 RPM

Optical Drive

No Optical Drive

Storage Controller

• Type: SATA
• Controller Interface Type: SATA 6Gb/s
• Controller Name: Intel VROC SATA Software RAID
• Channel Quantity: 4
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA, DisplayPort

Networking

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: Broadcom BCM5719
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 6
• Features: Wake On LAN (WoL), PXE Support

Expansion and Connectivity

• Internal 3.5 LFF Bays: 4 (total) / 4 (free)

Slots

• PCIe 5.0 x16: 1 (total) / 1 (free)
• PCIe 4.0 x8: 1 (total) / 1 (free) (Processor Mode)
• PCIe 4.0 x8: 2 (total) / 2 (free) (PCH Mode)
• M.2 Card Slot: 1 (total) / 1 (free)

Interfaces

• DisplayPort: 1
• VGA: 1
• Gigabit Ethernet (RJ-45): 4 (3 Rear, 1 Front)
• HPE iLO (Type A): 1 (Front Service Port)
• USB 3.2 Gen 1: 5 (1 Front, 4 Rear)

Miscellaneous

• Included Accessories: Non-Hot Plug Non-Redundant System Fan
• Theft/Intrusion Protection: Security Lock Slot (Cable Lock Sold Separately), Padlock Eye
• Security Slot Type: Kensington Security Slot
• Compliance Standards: AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.3, Active Directory V1.0, UEFI 2.9

Power

• Device Type: Power Supply
• Installed Quantity: 1
• Max Supported Quantity: 2
• Voltage Required: AC 100-120/200-240 V (50/60 Hz)
• Power Provided: 350 Watts

Operating System and Software

• Software Included: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (Free Download)

Sustainability Information

• Energy Star Certified: Yes
• Energy Star Version: 4.0

Environmental Parameters

• Minimum Operating Temperature: 50 °F
• Maximum Operating Temperature: 95 °F
• Humidity Range Operating: 8 - 90% RH (Non-Condensing)
• Sound Emission: 22 dBA

Dimensions and Weight

• Width: 6.9 inches
• Depth: 18.7 inches
• Height: 14.5 inches
• Weight: 22.49 lbs

Benefits of the E-2414 Processor:

1. Enhanced Performance:

The E-2414 processor boasts a quad-core architecture with a base clock speed of 3.2GHz, ensuring smooth and efficient multitasking capabilities. Whether you are running resource-intensive applications or handling large datasets, this processor can handle it all with ease, allowing you to maximize productivity.

2. Advanced Security Features:

Security is a top concern for any business or individual. The E-2414 processor offers advanced security features, including Intel Software Guard Extensions (Intel SGX) and Intel Trusted Execution Technology (Intel TXT). These features help protect your data and ensure that your system is secure from potential threats.

3. Energy Efficiency:

In addition to its impressive performance capabilities, the E-2414 processor is also designed to be energy-efficient. It utilizes Intel's advanced power management technologies to optimize power consumption without compromising performance. This not only helps reduce electricity costs but also contributes to a greener environment.

4. Compatibility and Scalability:

The E-2414 processor is built on the Intel Xeon platform, ensuring compatibility with a wide range of software and hardware solutions. Whether you are running Windows, Linux, or other operating systems, you can rely on the E-2414 processor to provide seamless compatibility and scalability as your business grows.

Importance of the E-2414 Processor:

The processor is often considered the heart of a server, responsible for executing all tasks and calculations. The E-2414 processor's exceptional performance, advanced security features, energy efficiency, and compatibility make it a crucial component of the HPE ML30 Gen11 Pre-configured Server.

With the E-2414 processor, you can effortlessly handle resource-intensive applications, virtualization, database management, and much more. Its enhanced performance ensures that your server can handle demanding workloads without any slowdowns or bottlenecks, enabling you to achieve excellent productivity and efficiency.

Moreover, the advanced security features provided by the E-2414 processor offer peace of mind by protecting your valuable data and ensuring that your system is secure from potential threats. With Intel SGX and Intel TXT, you can trust that your sensitive information remains confidential and safe from unauthorized access.

Energy efficiency is another key aspect of the E-2414 processor. By optimizing power consumption, this processor helps reduce electricity costs while minimizing environmental impact. This is particularly important for businesses that rely on multiple servers or data centers, as energy-efficient processors can significantly contribute to overall cost savings and sustainability efforts.

Furthermore, the compatibility and scalability offered by the E-2414 processor ensure seamless integration with various software and hardware solutions. This flexibility allows businesses to adapt their server infrastructure to evolving needs and easily accommodate future growth or changes in technology.

In summary, the E-2414 processor featured in the HPE ML30 Gen11 Pre-configured Server delivers exceptional performance, advanced security features, energy efficiency, compatibility, and scalability. These benefits make it an essential component for users who require reliable computing power, enhanced security, cost savings, and the ability to adapt to changing business needs.
