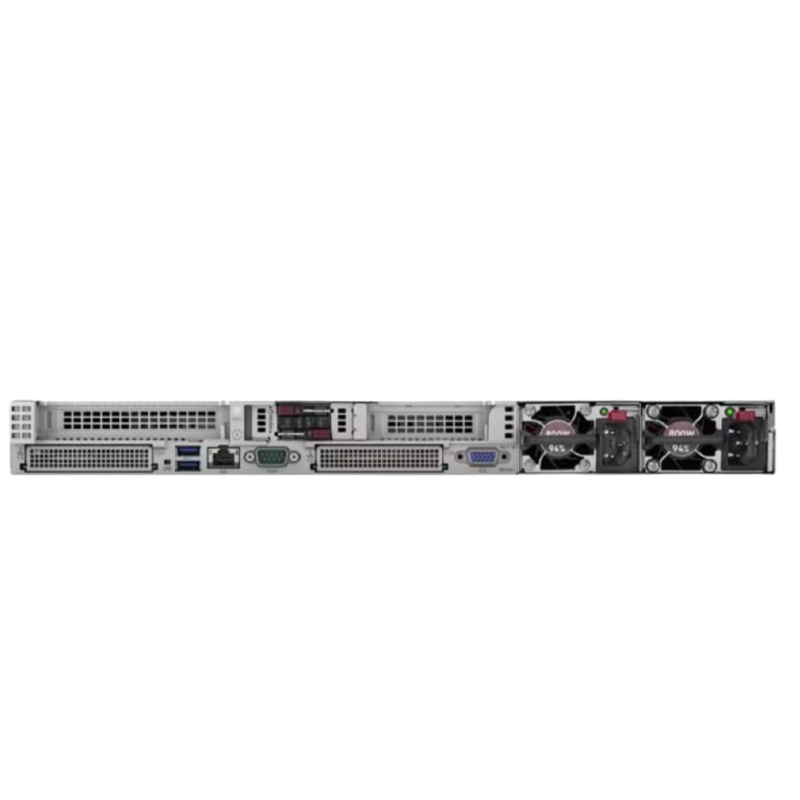

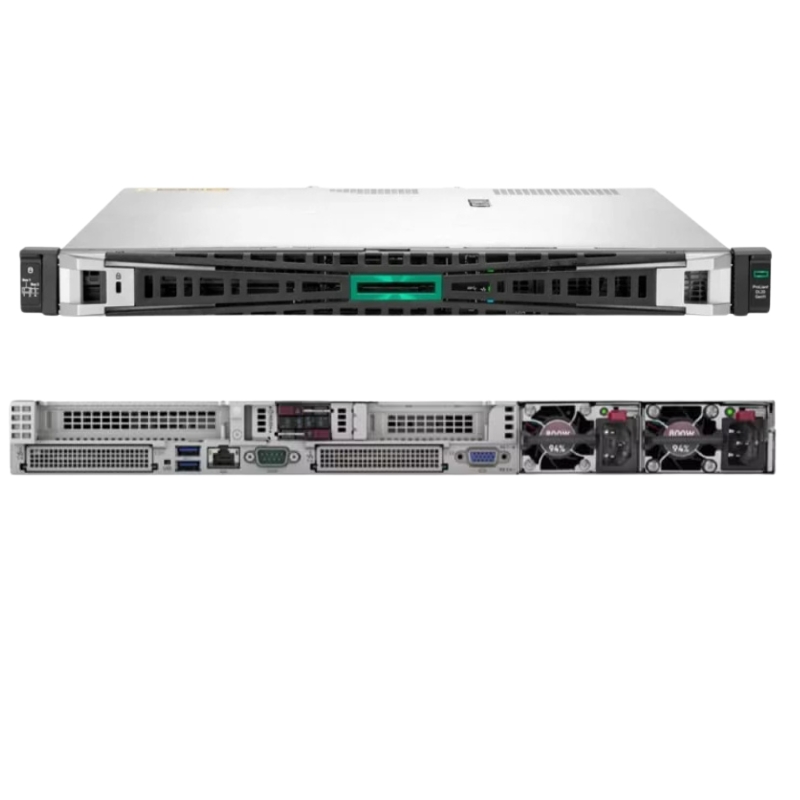

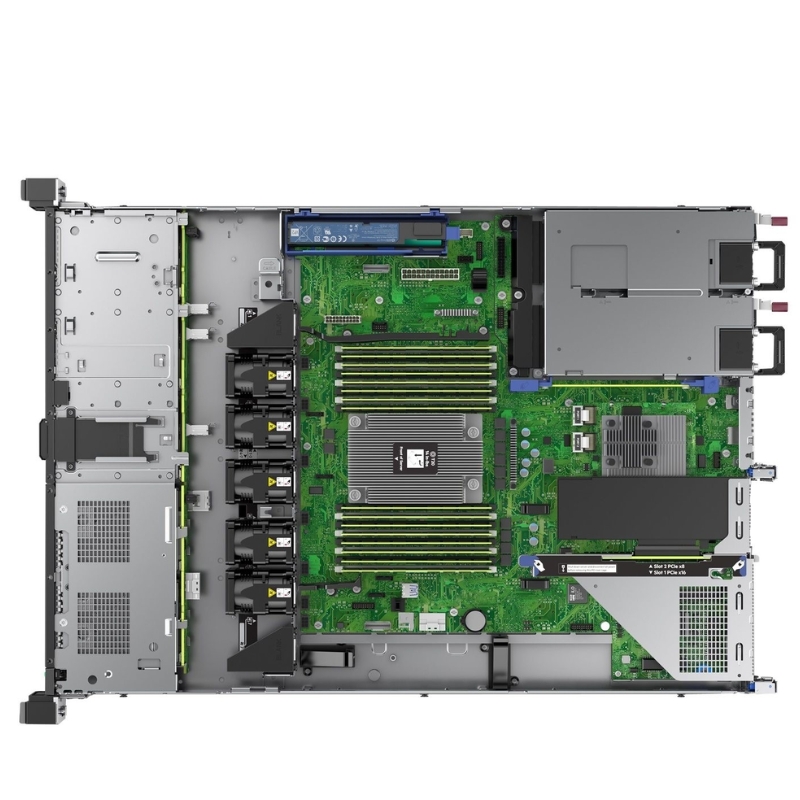

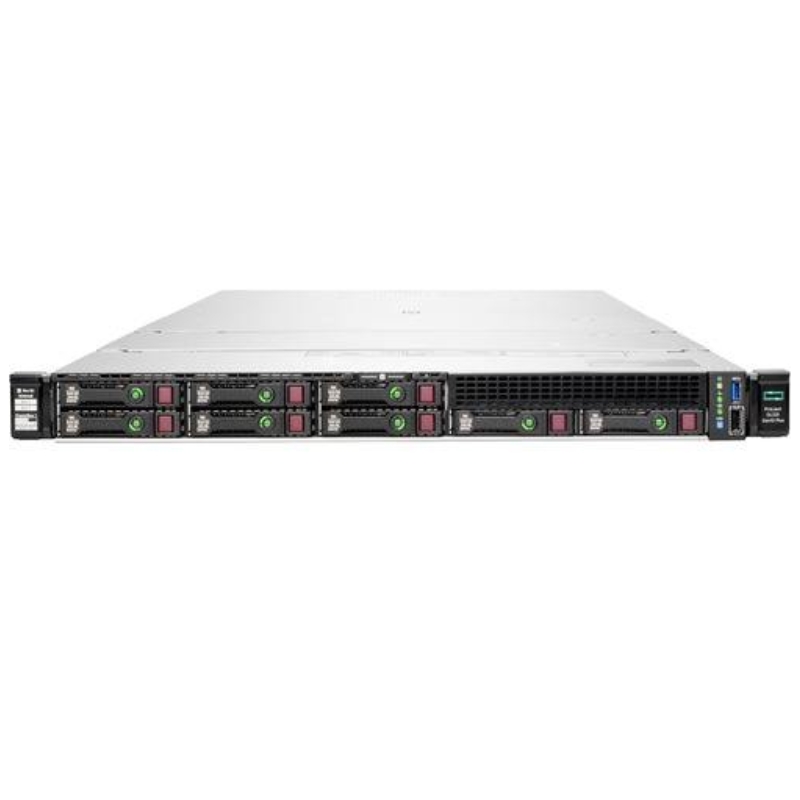

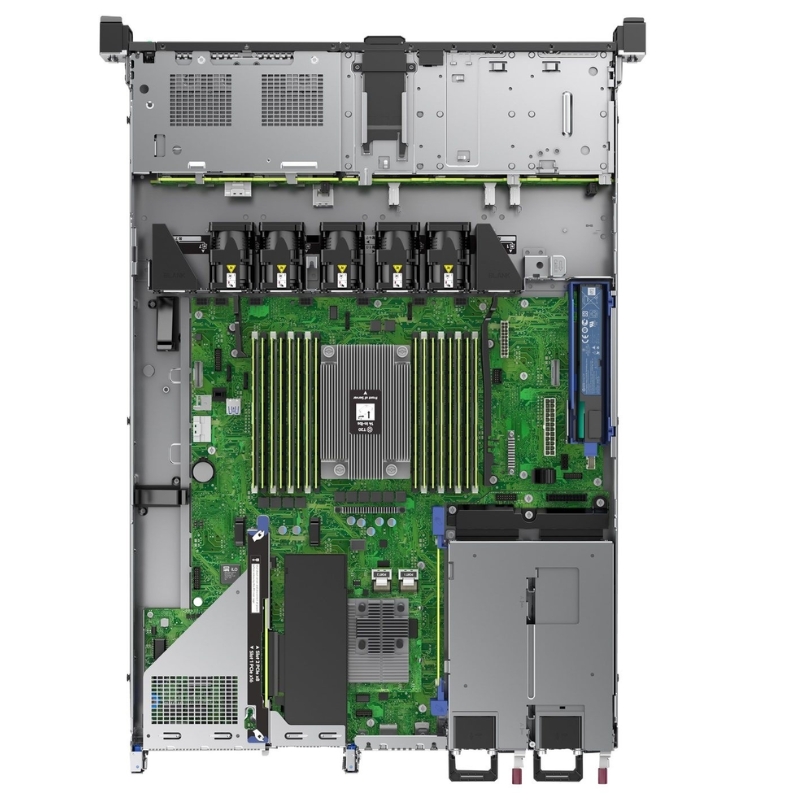

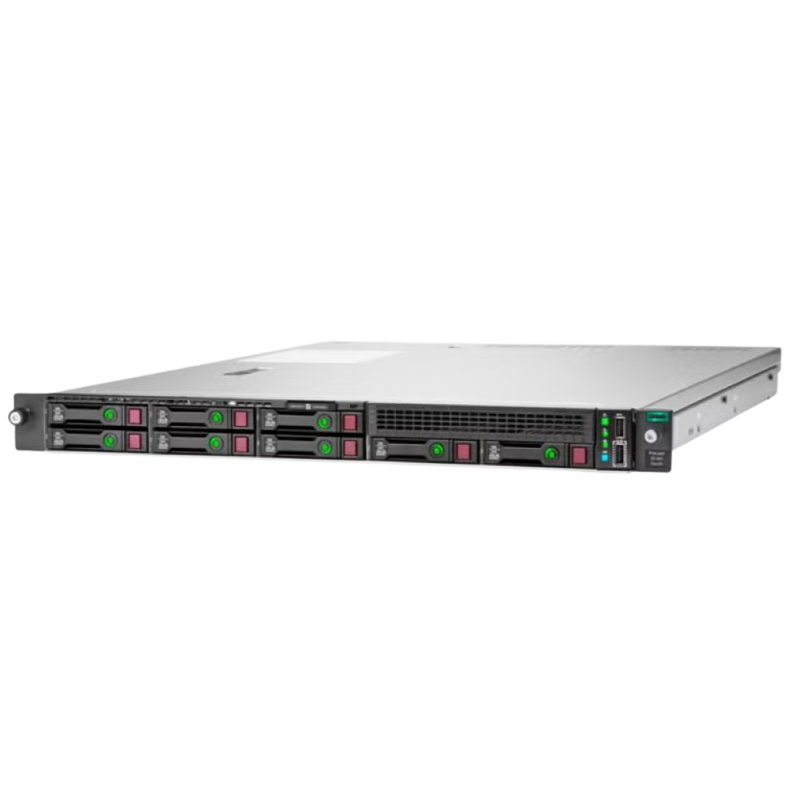

HPE DL320 Gen11 64GB 8 SFF 2x 800W FS PS 1U Rack Server P69302-005.

Processor

The HPE Proliant DL320 Gen11 Pre-configured Model 1U Rack Server is powered by the impressive Intel Xeon Gold 5416s processor, running at a clock speed of 2.0 GHz. This processor is specifically designed to meet the demanding needs of modern businesses and offers a range of benefits that make it an excellent choice for users.

General Overview of Gen11 Intel

Discover the HPE Proliant DL320 Gen11 server, designed for efficient rack-mountable solutions. This pre-configured model, SKU# P69302-005, is ideal for various business needs.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P69302-005

Form Factor and Dimensions

• Form Factor: Rack-mountable, 1U
• Height: 1U (Rack Units)
• Width: 17.1 inches
• Depth: 23.8 inches
• Height: 1.7 inches
• Weight: 26.46 lbs

Processor and Chipset

• CPU Model: Intel Xeon Gold 5416s
• Clock Speed: 2 GHz
• Max Turbo Speed: 4 GHz
• Cores: 16-core
• CPU Quantity: 1
• CPU Upgradability: Upgradable
• Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
• Socket Type: LGA4677 Socket-E
• Chipset: Intel C741

Cache Memory

• Installed Size: 30 MB L3 Cache
• Cache Per Processor: 30 MB

Memory Specifications

• Installed RAM: 64 GB (expandable up to 2.04 TB)
• Memory Technology: DDR5 SDRAM
• Effective Memory Speed: 4400 MHz
• Rated Memory Speed: 4800 MHz
• Form Factor: DIMM 288-pin
• Slots: 16 total, 14 empty
• Features: Registered, HPE SmartMemory
• Configuration: 2 x 32 GB

Internal Storage

• HDD/SSD: None included as standard
• Optical Drive: None

Storage Controller

• Type: SATA
• Controller Interface: SATA 6 Gb/s
• Controller Name: Intel VROC SATA Software RAID
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Video

• Video Memory: 16 MB
• Video Interface: VGA

Networking Capabilities

• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: Broadcom BCM5720
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: SNMP 3, IPMI 2.0
• Remote Management Controller: Integrated Lights-Out 6
• Features: Wake-on-LAN (WOL), ACPI Support, PXE Support

Expansion and Connectivity

• Hot-swap Bays: 8 x 2.5 SFF (all available)
• PCIe Slots:
  • 2 x PCIe 5.0 x16 (Half-length, Full-height)
  • 1 x PCIe 5.0 x16 / OCP 3.0 (x16 Mode)
• Interfaces:
  • 1 x VGA
  • 1 x USB 2.0 (internal)
  • 2 x Gigabit Ethernet
  • 3 x USB 3.2 Gen 1 (1 front, 2 rear)
  • 1 x HPE iLO (service port, front)

Power Specifications

• Device Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 scheme
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Voltage Required: AC 100-120/200-240 V (50/60 Hz)
• Power Provided: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Operating System and Software

• Operating System Provided: None
• Certified OS:
  • SUSE Linux Enterprise Server
  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • CentOS
  • VMware ESXi
  • Oracle Linux
  • Canonical Ubuntu
  • Oracle VM
  • Citrix
• Software Included:
  • HPE iLO Standard with Intelligent Provisioning
  • HPE OneView Standard (free download)

Environmental and Sustainability Information

• Energy Star Certified: Yes, Version 3.0
• Operating Temperature Range: 50 °F to 95 °F
• Humidity Range: 8 - 90% RH (non-condensing)

Compliance and Standards

• AES
• FIPS 140-2
• Triple DES
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• Redfish API
• ACPI 6.3
• SMBIOS 3.2

Included Accessories

• 5 Standard Fans
• HPE Easy Install Rail 1 Kit

Additional Information

• Manufacturer Selling Program: HPE Express Buy

Enhanced Performance

With the Intel Xeon Gold 5416s processor, users can expect enhanced performance and faster processing speeds. The 2.0 GHz clock speed ensures that tasks are executed swiftly and efficiently, leading to improved productivity and reduced waiting times. Whether you are running complex applications or handling large datasets, this processor can handle the workload with ease.

Multi-threading Capabilities

One of the standout features of the Intel Xeon Gold 5416s processor is its support for multi-threading. This means that it can handle multiple tasks simultaneously, dividing the workload across its cores. With a total of 16 cores, this processor can handle even the most resource-intensive applications without breaking a sweat. This feature is particularly beneficial for users who frequently engage in tasks such as virtualization, rendering, or data analysis.

Increased Efficiency

The Intel Xeon Gold 5416s processor utilizes advanced technologies to deliver increased efficiency. With features such as Intel Turbo Boost Technology and Intel Hyper-Threading Technology, this processor optimizes power usage to deliver maximum performance when needed while conserving energy during periods of lower demand. This not only improves overall system efficiency but also helps reduce energy costs.

Intel Turbo Boost Technology

Intel Turbo Boost Technology dynamically adjusts the processor's clock speed based on workload demands. This intelligent feature allows the processor to operate at higher frequencies for tasks that require extra processing power. As a result, users can experience improved performance and responsiveness when running demanding applications or performing resource-intensive tasks.

Intel Hyper-Threading Technology

With Intel Hyper-Threading Technology, the Intel Xeon Gold 5416s processor can handle multiple threads per core. This technology effectively doubles the number of virtual cores available, allowing for better utilization of resources. By enabling simultaneous multi-threading, users can achieve more efficient multitasking and improved system responsiveness.

Reliability and Security

The Intel Xeon Gold 5416s processor is built with enterprise-level reliability and security features. It includes advanced hardware-enhanced security measures to protect against various threats, such as unauthorized access or data breaches. These security features help safeguard sensitive information and ensure the integrity of critical business operations.

Intel Trusted Execution Technology

Intel Trusted Execution Technology (TXT) provides a hardware-based foundation for establishing trust and security in the server platform. It helps protect against software-based attacks by creating a secure environment where critical operations can be performed safely. This technology provides peace of mind for businesses that deal with sensitive data or require secure computing environments.

Enhanced Error Correction

The Intel Xeon Gold 5416s processor incorporates advanced error correction capabilities, such as ECC (Error-Correcting Code) memory support. ECC memory detects and corrects single-bit errors, reducing the risk of data corruption and improving system reliability. This feature is especially important for businesses that rely on continuous operation and cannot afford downtime due to memory errors.

ECC Memory Support

The support for ECC memory in the Intel Xeon Gold 5416s processor ensures data integrity by detecting and correcting single-bit errors in real-time. ECC memory is crucial for mission-critical applications where data accuracy is of utmost importance, such as financial transactions or scientific computations. By utilizing ECC memory, businesses can maintain the highest level of data integrity and minimize the risk of costly errors.

In conclusion, the Intel Xeon Gold 5416s processor featured in the HPE Proliant DL320 Gen11 Pre-configured Model 1U Rack Server offers exceptional performance, enhanced efficiency, and robust security features. With its advanced multi-threading capabilities, users can enjoy seamless multitasking and improved system responsiveness. The reliability and security features provide peace of mind for businesses that handle sensitive data or require a secure computing environment. Additionally, the support for ECC memory ensures data integrity and reduces the risk of errors. Overall, the Intel Xeon Gold 5416s processor is a powerful and reliable choice for users who demand top-tier performance and security from their server hardware.
