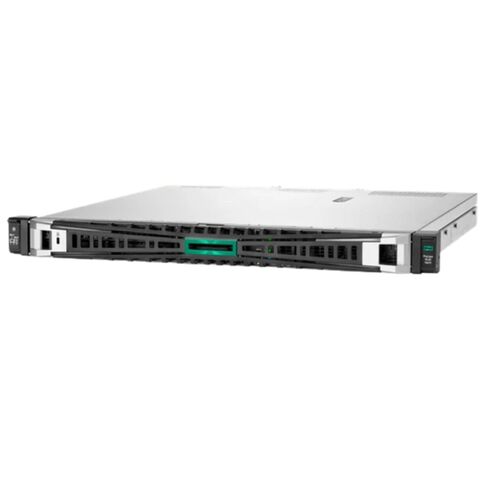

HPE P71682-005 DL20 Gen11 6-core 1x32GB 4SFF 2x500W RPS NA Server
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Details
- The HPE Proliant DL20 Gen11 Smart Choice Model delivers exceptional performance and flexibility for a wide range of applications. Powered by the Intel Xeon E-2436 processor, this rack server offers reliable power and scalability. It features high-speed DDR5 ECC memory, advanced networking, and secure storage options for optimal efficiency in demanding environments.
General Specifications
- Manufacturer: HPE
- Part Number: P71682-005
- Product Type: Rack Server
- Rack Units: 1U
- Scalability: 1-Way
- Hot-Swap Bays: 4
- Product Name: HPE Proliant DL20 Gen11
Processor and Chipset
The server is equipped with an Intel Xeon E-2436 processor running at 2.9 GHz, offering excellent performance and scalability for modern workloads. With Intel Turbo Boost Technology 2 and Smart Cache, it can reach speeds up to 5 GHz for demanding tasks.
- CPU: Intel Xeon E-2436 (6-core)
- Clock Speed: 2.9 GHz
- Max Turbo Speed: 5.0 GHz
- CPU Upgradability: Yes
- Chipset: Intel C262
- Cache: 18 MB L3 Cache
Memory Configuration
With 32 GB of DDR5 SDRAM ECC memory installed, this server provides ample capacity for various business applications. It supports a maximum of 128 GB of RAM, enabling it to handle extensive workloads efficiently.
- Installed RAM: 32 GB DDR5 SDRAM
- Max RAM Capacity: 128 GB
- Memory Speed: 4800 MHz
- Form Factor: DIMM 288-pin
- Empty Slots: 3
Storage and Controller
The server offers two 960 GB SATA SSDs for fast data access. Equipped with the HPE MR408i-o Gen11 storage controller, it supports RAID 0, 1, 5, 6, 10, 50, and 60 configurations, ensuring data integrity and high availability.
- Storage Type: 2 x 960 GB SATA SSD
- Controller: HPE MR408i-o Gen11
- RAID Support: RAID 0, 1, 5, 6, 10, 50, 60
- Buffer Size: 4 GB
Networking Features
With four Gigabit Ethernet ports, the HPE Proliant DL20 Gen11 ensures high-speed connectivity. The Broadcom BCM5719 Ethernet controller supports various protocols, including SNMP 3 and IPMI 2.0, for comprehensive remote management.
- Ethernet Ports: 4 x Gigabit Ethernet
- Controller: Broadcom BCM5719
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management: SNMP 3, IPMI 2.0
- Additional Features: Wake On LAN (WoL), PXE Support
Expansion and Connectivity
This server offers significant expansion opportunities with multiple bays and PCIe slots for future upgrades. It also includes several USB ports and video interfaces for versatile connectivity options.
- Bays: 4 x Hot-Swap 2.5 SFF (2 free)
- PCIe Slots: 1 x PCIe 5.0 x16 (1 free)
- External Slot: 1 x Open Compute Project Mezzanine (OCP 3.0)
- USB Ports: 6 x USB 3.2 (5 rear, 1 front)
- Video Ports: 1 x VGA, 1 x DisplayPort
Power Supply
The HPE Proliant DL20 Gen11 is equipped with two 500W Flex Slot Platinum Hot-Plug power supplies, ensuring energy efficiency and redundancy. The server meets 80 Plus Platinum certification for optimal energy savings.
- Power Supply Type: Hot-Plug Flex Slot
- Power Redundancy: 1+1 (with optional power supply)
- Voltage Required: AC 100-120V / 200-240V
- Maximum Power: 500W
- Energy Certification: 80 Plus Platinum
Operating System Compatibility
This server is compatible with Microsoft Windows Server 2019, 2022, and VMware ESXi 8.0 Update 2. HPE Intelligent Provisioning and iLO Management tools are included for easier setup and management.
- Supported OS: Windows Server 2019, 2022, VMware ESXi 8.0 Update 2
- Management Software: HPE Intelligent Provisioning, HPE iLO Management
Sustainability and Compliance
This server is Energy Star certified, ensuring efficient energy usage. It also meets various international standards for environmental impact, including WEEE and RoHS compliance.
- Energy Star Certification: Yes (Version 4.0)
- Compliant Standards: PCI DSS, FIPS 140-2, AES, IPv6 Ready, and more
Environmental Specifications
Designed to operate in a variety of environmental conditions, the server supports a wide range of temperatures and humidity levels, making it suitable for various operational settings.
- Operating Temperature: 50 °F to 95 °F
- Humidity Range: 8% - 90% RH (non-condensing)
- Noise Emission: 22 dBA
Physical Dimensions and Weight
- Width: 17.11 inches
- Depth: 15.25 inches
- Height: 1.69 inches
- Weight: 19.84 lbs
Overview of HPE P71682-005 6-Core 1x32GB DL20 2x500W
The HPE P71682-005 6-Core 1x32GB 1xE-2436 DDR5 DL20 Gen11 MR408i 4SFF 2x500W RPS NA Server is an enterprise-grade server designed to provide outstanding performance and scalability for a wide range of business applications. Powered by advanced technologies, this model ensures reliable and efficient operations for businesses looking to streamline their IT infrastructure. With the latest Intel processors, DDR5 memory, and optimized storage capabilities, the HPE DL20 Gen11 is engineered to support demanding workloads while ensuring smooth performance even during peak demand periods.
Key Features and Benefits
When it comes to performance, reliability, and flexibility, the HPE P71682-005 is designed to meet the challenges of modern business environments. Let's explore the key features and benefits that make this server an ideal choice for enterprise-grade applications:
1. Powerful Intel Xeon Processor
The HPE P71682-005 is equipped with the Intel Xeon E-2436 processor, a 6-core CPU offering impressive processing power for multitasking and resource-intensive applications. With the ability to handle multiple virtual machines (VMs) and complex workloads simultaneously, this processor ensures seamless performance for both small and large enterprises alike.
2. DDR5 Memory Support
The server features 32GB of DDR5 memory, which provides faster data transfer rates and greater bandwidth than previous memory generations. With DDR5, users can experience improved system responsiveness and better overall performance, particularly for memory-heavy workloads such as big data analytics and virtualization.
3. Flexible Storage Configuration
For storage, the HPE P71682-005 comes with a 4SFF (Small Form Factor) configuration that allows for flexible storage options. With support for multiple hard drives and solid-state drives (SSDs), businesses can scale their storage needs as data requirements grow. This versatility is essential for organizations with evolving storage demands, ensuring that the server can accommodate high-performance storage solutions as needed.
4. Dual Redundant Power Supply (RPS)
The server is equipped with two 500W redundant power supplies (RPS), ensuring continued operation even in the event of a power failure. This feature is critical for maintaining business continuity, particularly for mission-critical applications that cannot afford downtime.
5. Efficient and Scalable Network Connectivity
The MR408i network card adds enhanced network connectivity to the HPE DL20 Gen11. This feature ensures that the server can handle a high volume of traffic and maintain a fast, reliable connection to other networked devices. Whether the server is being used for file sharing, web hosting, or running virtual machines, the MR408i guarantees high throughput and low latency, contributing to improved productivity and system uptime.
Server Applications and Use Cases
The HPE P71682-005 is an ideal solution for a variety of applications across different industries. From data centers to edge computing environments, its versatile architecture makes it a dependable choice for businesses of all sizes. Below are some of the most common use cases for this server:
1. Virtualization
With the support for powerful multi-core processing and ample DDR5 memory, the HPE P71682-005 is well-suited for virtualization environments. It can handle multiple virtual machines (VMs) simultaneously, enabling businesses to consolidate their IT infrastructure and improve resource utilization. Whether it’s running VMware, Microsoft Hyper-V, or other hypervisors, this server provides the computing power required for smooth virtualized operations.
2. Data Analytics
The server's robust processing power combined with its ample memory makes it ideal for data analytics workloads. The ability to run data analysis and machine learning algorithms efficiently allows businesses to derive insights from large datasets quickly. This is particularly useful in sectors such as finance, healthcare, and retail, where real-time data processing is critical for decision-making.
3. Web Hosting and Cloud Computing
For organizations involved in web hosting or cloud computing, the HPE P71682-005 offers the scalability and reliability required for high-traffic websites and services. With its flexible storage configuration and powerful networking capabilities, this server ensures that businesses can provide uninterrupted services to their customers.
4. File Storage and Sharing
Businesses with substantial file storage and sharing needs can benefit from the HPE P71682-005's large storage capacity. With the ability to support multiple hard drives or SSDs, this server can be configured to store and share large volumes of data, making it an essential component in any enterprise IT infrastructure.
Technical Specifications
Here are the technical specifications for the HPE P71682-005 6-Core 1x32GB 1xE-2436 DDR5 DL20 Gen11 MR408i 4SFF 2x500W RPS NA Server:
Processor
- Model: Intel Xeon E-2436
- Cores: 6 cores
- Base Frequency: 2.60 GHz
- Max Turbo Frequency: 4.00 GHz
- Cache: 12MB Intel Smart Cache
Memory
- Memory Type: DDR5
- Capacity: 32GB
- Memory Speed: Up to 4800 MT/s
Storage Configuration
- Form Factor: 4 Small Form Factor (SFF) slots
- Drive Support: SATA, SAS, and NVMe
Power Supply
- Redundant Power Supply: Dual 500W RPS
Networking
- Network Card: HPE MR408i
- Supported Interfaces: Gigabit Ethernet
Form Factor
- Chassis: Rack-mounted 1U
- Dimensions: 17.4 x 1.7 x 26.3 inches (W x H x D)
1. Superior Performance and Reliability
The combination of a powerful Intel Xeon processor, high-speed DDR5 memory, and redundant power supplies makes the HPE P71682-005 a highly reliable and efficient server solution. This ensures that businesses can operate with minimal downtime, even in the most demanding environments.
2. Scalability for Future Growth
With its flexible storage options and robust network connectivity, this server can scale to meet the growing demands of your business. Whether you're expanding your IT infrastructure or adding new applications, the HPE P71682-005 provides the versatility needed to handle future growth.
3. Energy-Efficient Design
The HPE P71682-005 is designed to be energy-efficient, with dual 500W redundant power supplies and a compact 1U form factor that minimizes physical space usage. This makes it an ideal choice for businesses looking to optimize energy consumption while maintaining high performance.
4. Exceptional Support and Warranty
Hewlett Packard Enterprise is known for its exceptional customer support and warranty services. When you choose the HPE P71682-005, you gain access to HPE's extensive support network, which includes technical assistance and replacement parts to ensure your server remains up and running at peak performance.
Conclusion
The HPE P71682-005 6-Core 1x32GB 1xE-2436 DDR5 DL20 Gen11 MR408i 4SFF 2x500W RPS NA Server is a high-performance, reliable, and scalable server solution for businesses seeking to enhance their IT infrastructure. With powerful processing capabilities, fast memory, flexible storage options, and redundant power supplies, it is well-suited for a wide range of applications, including virtualization, data analytics, cloud computing, and more. Its energy-efficient design and exceptional support services make it a smart investment for businesses looking to optimize their operations while ensuring long-term reliability and performance.
