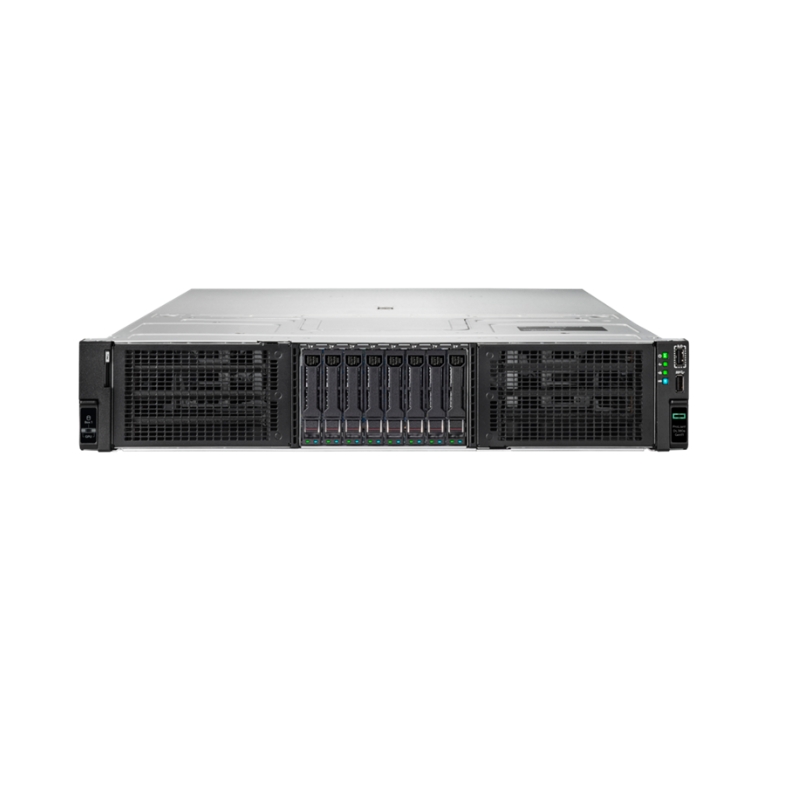

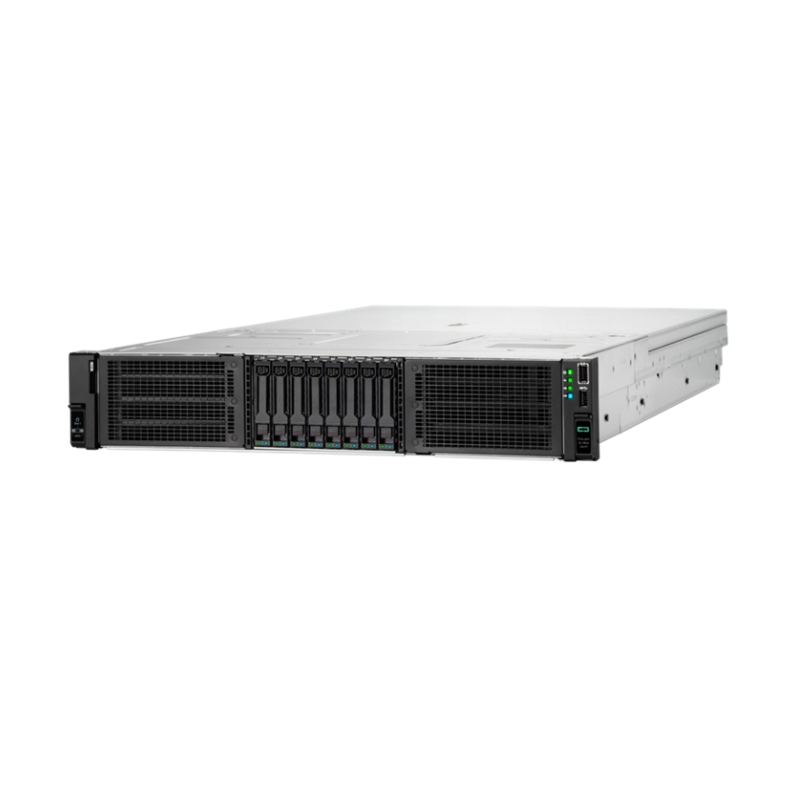

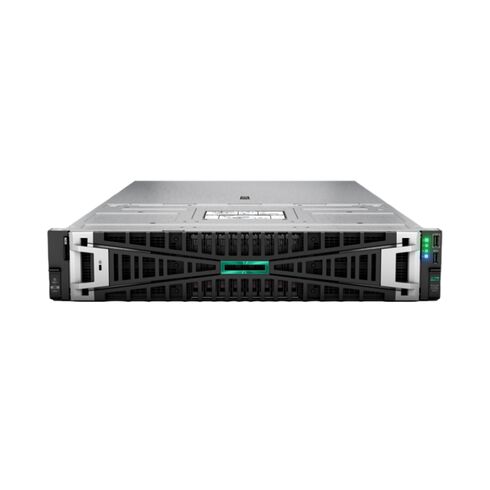

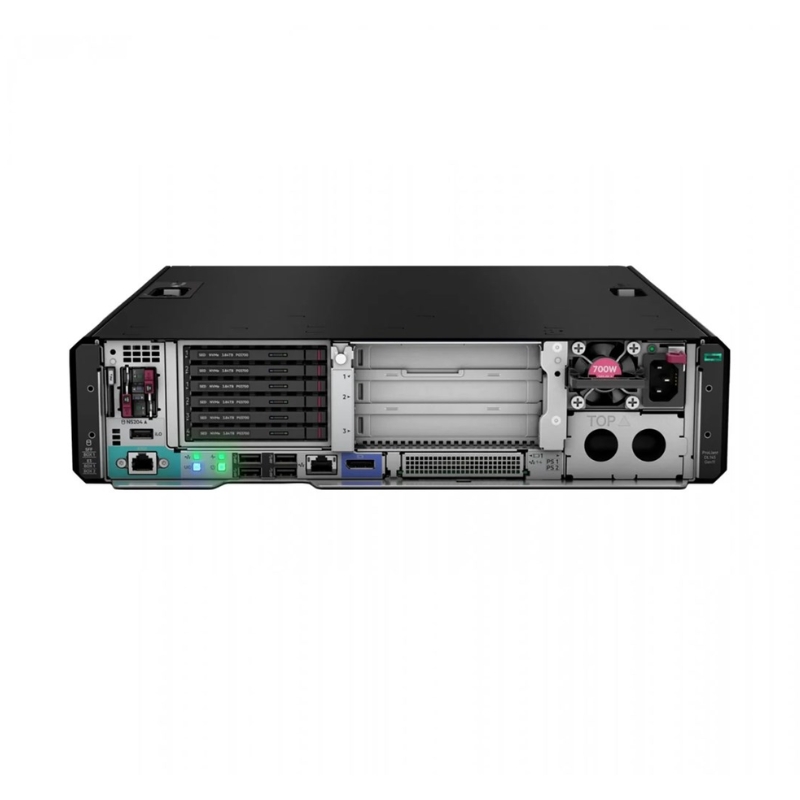

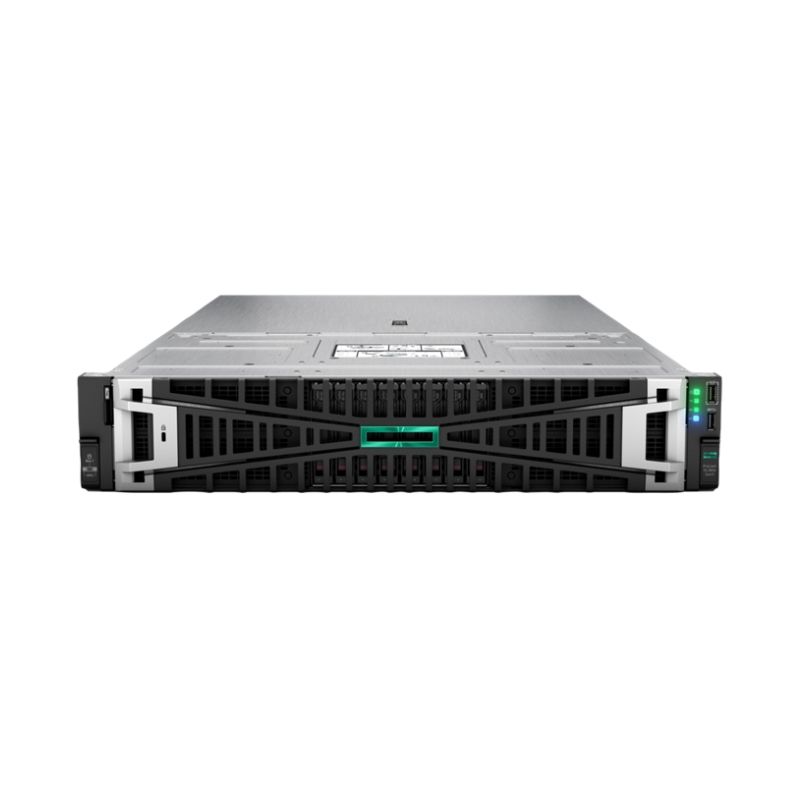

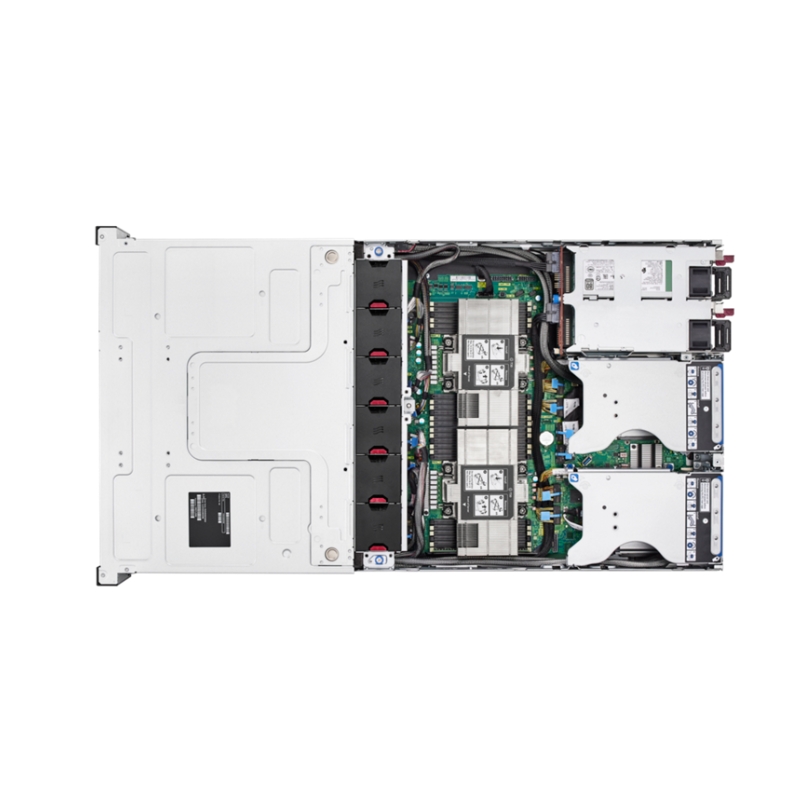

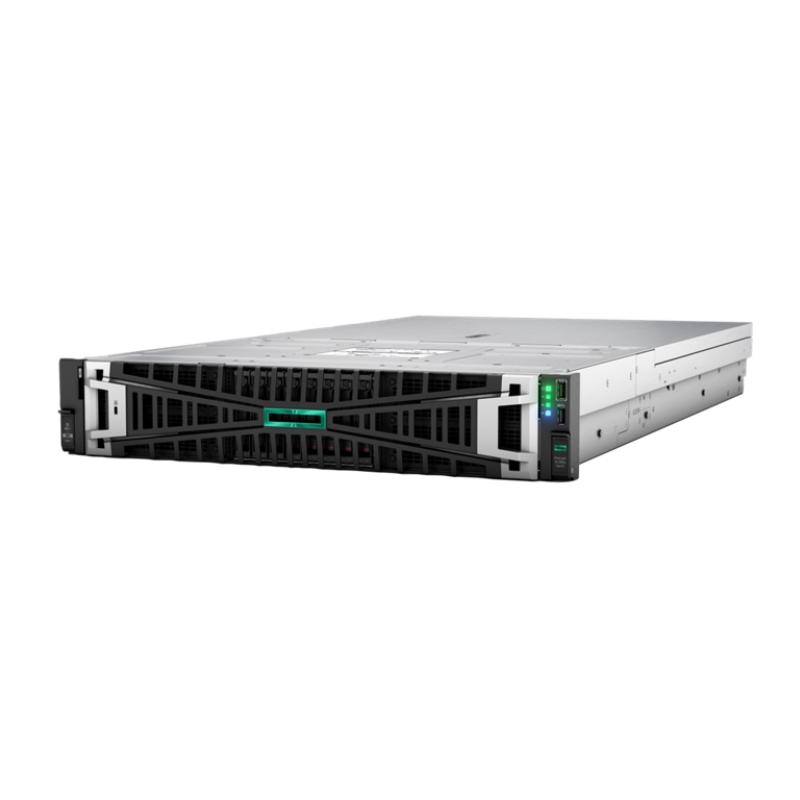

P79810-005 HPE Proliant Dl145 Gen11 16-core 2.45GHz DDR4 2 SFF 2U Rack-Mountable Server

HPE P79810-005 ProLiant DL145 Gen11 Server Overview

The HPE P79810-005 ProLiant DL145 Gen11 is a high-performance 2U rack-mount server engineered for demanding enterprise workloads. Equipped with a 16-core processor and DDR4 memory, it ensures efficiency, reliability, and scalability for modern data centers.

Manufacturer Details

• Brand: Hewlett Packard Enterprise (HPE)
• Model Number: P79810-005
• Form Factor: 2U Rack Server
• Server Scalability: Single-processor configuration
• Hot-swap Drive Bays: 2

Processor & Chipset Specifications

• CPU: AMD EPYC 8124p
• Base Clock Speed: 2.45 GHz
• Max Turbo Frequency: 3.0 GHz
• Cores: 16
• Processor Socket: SP6
• CPU Upgradeability: Upgradable
• Key Features: AMD Infinity Guard, AMD Infinity Architecture

Cache Memory

• L3 Cache: 64 MB per processor

Memory Configuration

• Installed RAM: 64 GB DDR5 SDRAM ECC
• Maximum Supported RAM: 768 GB
• Memory Slots: 6 total, 4 available
• Memory Speed: 4800 MHz (effective and rated)
• Registered HP Smart Memory modules included (2x32 GB)

Internal Storage & Controllers

• Internal Drives: None pre-installed
• Hot-plug Bays: 2 x SFF
• Storage Controller: HPE MR216i-p Gen11 PCIe SPDM Plug-in
• Supported RAID Levels: 0, 1, 10
• Controller Interfaces: SATA 6 Gb/s, SAS 12 Gb/s

Graphics & Video

• Video Memory: 16 MB
• Display Interfaces: VGA and DisplayPort

Networking Capabilities

• Interface Type: OCP 3.0 Mezzanine
• Ethernet: 4 x 1 GbE ports
• Controller: Broadcom BCM5719
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: iLO 6, SNMP v3, IPMI 2.0, SMASH CLP
• Additional Features: Wake-on-LAN (WOL), PXE Boot Support

Expansion & Connectivity

Drive Bays & Slots

• 2 hot-swap 2.5" SFF bays available
• PCIe Slots:
• 1 x PCIe 5.0 x16 Full-length, Full-height
• 1 x PCIe 5.0 x16 Full-length, Full-height (x8 mode)
• 1 x PCIe 5.0 x16 Half-length, Full-height (x8 mode)
• 2 x FlexibleLOM slots

Interfaces

• USB: 1 x USB 3.2 front (iLO service port), 4 additional USB 3.2 (1 front, 2 rear, 1 internal)
• Network: 4 x RJ-45 Gigabit Ethernet
• Video: 1 x VGA front
• Remote Management Port: 1 x RJ-45 iLO

Security & Compliance

• Theft Protection: Security Lock Slot (cable lock sold separately)
• Kensington Security Slot included
• Standards Compliance: ACPI, FCC Class B, EN 61000 series, ICES-003, CISPR 22, WEEE

Power Supply & Efficiency

• Hot-plug Redundant Power Supply: 2 x 700W Flex Slot Platinum
• Redundancy Scheme: 1+1
• Voltage Range: AC 100–120 / 200–240 V, 50/60 Hz
• Efficiency Certification: 80 Plus Platinum

Operating System Support & Software

• No OS pre-installed
• Certified OS: VMware vSphere 6.0 (ESXi), SUSE Linux Enterprise Server 11 SP4
• Software: HPE Server UEFI

Dimensions & Weight

• Width: 14.14 in
• Depth: 16 in
• Height: 3.44 in
• Weight: 25.09 lbs

Key Features of HPE DL145 Gen11

• 16-core Intel processor delivering robust computational power
• DDR4 memory support for fast and reliable performance
• 2 SFF drive bays supporting high-speed storage options
• Compact 2U rack-mount form factor for efficient space utilization
• Advanced management tools for monitoring and maintenance

Performance and Scalability

This server is designed to handle intensive workloads and scale effortlessly as your business grows.

Processor Capabilities

• High-frequency 2.45GHz processing speed
• 16 cores for multi-threaded applications and virtualization
• Optimized for enterprise-grade workloads and AI processing

Memory and Storage

• Supports DDR4 memory modules for improved data throughput
• Expandable memory for future-proofing
• 2 SFF drive bays for SSD or SAS storage integration

Reliability and Manageability

HPE ProLiant DL145 Gen11 emphasizes uptime and manageability to ensure uninterrupted operations.

Enterprise-Grade Reliability

• Redundant power supplies for continuous operation
• Hot-swappable drives reduce maintenance downtime
• Hardware-level error correction and diagnostics

Management Tools

• Integrated Lights-Out (iLO) for remote server management
• Automated firmware updates and system monitoring
• Easy deployment through HPE management software

Technical Specifications

• Processor: 16-core, 2.45GHz Intel CPU
• Memory: DDR4, expandable
• Drive Bays: 2 SFF
• Form Factor: 2U rack-mountable
• Management: HPE iLO with remote monitoring
