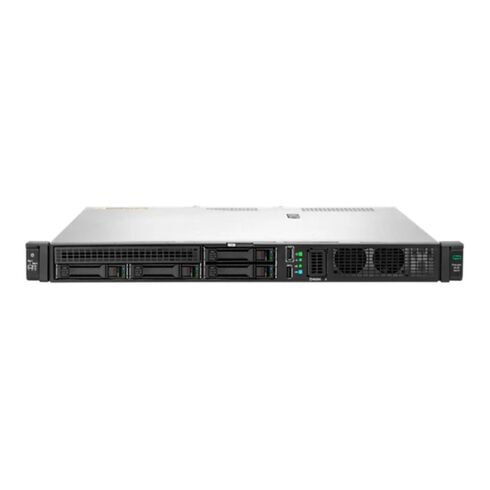

P83282-005 HPE 6325P 3.5GHz DL20 Gen11 4SFF 1x32GB 2x960GB Server

Highlights of HPE P83282-005 3.5GHz DL20 Gen11 4SFF Server

The HPE P83282-005 ProLiant DL20 Gen11 Server is a high-efficiency 1U rackmount solution built for businesses that require fast processing, reliable SSD storage, and redundant power in a compact footprint. Powered by the Intel Xeon 6325P processor and DDR5 ECC memory, this server is ideal for virtualization, file services, edge computing, and enterprise branch deployments.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P83282-005
• Product Type: Rack Server
• Form Factor: 1U Rack-mount
• Hot-Swap Bays: 4 x SFF
• Sub Type: HPE ProLiant DL20 Gen11 Smart Choice

Technical Specifications

• Processor Family: Intel Xeon Raptor Lake
• Server Architecture: Single Processor (1-Way)
• CPU Model: Xeon 6325P
• Core Count: 4 Cores
• Base Clock Speed: 3.5 GHz
• Maximum Turbo Frequency: Up to 5.2 GHz
• CPU Configuration: 1 Installed / 1 Supported
• Interconnect Speed: 16 GT/s
• Thermal Design Power: 55W

Advanced Processor Technologies

• Intel Turbo Boost Technology 2.0
• Intel Turbo Boost Max Technology 3.0
• Intel Smart Cache
• Upgradeable CPU Design

Chipset Details

• Chipset Type: Intel C262

Cache Memory

• L3 Cache: 12MB per Processor

System Memory (RAM)

DDR5 ECC Memory Configuration

• Installed Memory: 32GB DDR5 UDIMM ECC
• Maximum Memory Capacity: Up to 128GB
• Memory Speed: 4800 MT/s
• DIMM Slots: 4 Total (3 Available)
• Form Factor: 288-pin DIMM

Memory Reliability Features

• Error-Correcting Code (ECC) Support
• Unbuffered HPE Standard Memory
• Optimized for Enterprise Stability

Internal Storage Configuration

High-Speed SSD Storage

• Total Storage Capacity: 1.92TB
• Drive Type: SATA Solid State Drive (SSD)
• Installed Drives: 2 x 960GB SSD
• Drive Size: 2.5-inch SFF
• Interface: SATA 6Gb/s

Drive Bay Layout

• 4 x Hot-Swap 2.5-inch SFF Bays
• 2 Bays Available for Expansion

Storage Controller and RAID Support

• Controller Type: Integrated SATA RAID
• Interface: SATA 6Gb/s
• Channels: 6
• Supported RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Display Output

• Graphics Controller: Matrox G200
• Video Memory: 16MB
• Display Interfaces: VGA, DisplayPort

Networking and Remote Management

Enterprise Network Connectivity

• Network Ports: 4 x Gigabit Ethernet
• LAN Controller: Broadcom BCM5719
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Features

• HPE iLO Remote Management Interface
• SNMP v3 and IPMI 2.0 Support
• Wake-on-LAN (WOL)
• PXE Boot and ACPI Support

Expansion Slots and Connectivity

Expansion Capabilities

• 1 x PCIe 5.0 x16 Slot (Full-height, Half-length)
• 1 x OCP 3.0 Mezzanine Slot

External and Internal Interfaces

• 1 x HPE iLO Type-A Service Port (Front)
• 5 x USB 3.2 Gen1 Type-A (1 Front, 4 Rear)
• 2 x USB 3.2 Gen2x2 Internal Ports
• 1 x DisplayPort
• 1 x VGA Port
• 4 x RJ-45 Gigabit LAN Ports

Power Supply and Redundancy

• Power Supply Type: Hot-Plug Power Supply
• Installed PSUs: 2 x 500W
• Redundancy Scheme: 1+1 Power Redundancy
• Efficiency Certification: 80 Plus Platinum
• Power Efficiency: Up to 94%
• Input Voltage: AC 100–120V / 200–240V

Operating System Compatibility and Software

Supported Operating Systems

• No Operating System Pre-installed
• Certified for Microsoft Windows Server 2019
• Certified for Microsoft Windows Server 2022
• Compatible with VMware ESXi 8.0 Update 2

Included HPE Software Tools

• HPE Intelligent Provisioning
• HPE iLO Management Software

Sustainability

• Energy Star Certified (Version 4.0)
• Compliance with AES, FIPS 140-2, and TLS v1.2
• Redfish API and UEFI 2.9 Support
• ASHRAE Class A3 and A4 Compliance

Environmental and Acoustic Specifications

• Operating Temperature: 50°F to 95°F
• Operating Humidity: 8% – 90% RH (Non-condensing)
• Sound Emission: 22 dBA

Physical Dimensions and Weight

• Width: 17.11 inches
• Depth: 15.25 inches
• Height: 1.69 inches
• Weight: 19.84 lbs

Included Accessories

• HPE Easy Install Rail 12 Kit
• 3 x High-Performance Non-Hot Plug, Non-Redundant Fans

Overview of HPE P83282-005 Enterprise Workloads Server

The HPE P83282-005 6325P 3.5GHz DL20 Gen11 4c 1P 1x32GB-U 4SFF 2x960GB SSD 2x500W PS NA Server represents a premium configuration within the compact enterprise server category, engineered to deliver high-frequency processing, fast solid-state storage, and enhanced power redundancy in a space-efficient 1U design. This category is tailored for organizations that demand responsive performance, dependable uptime, and enterprise-grade reliability in environments where rack space, energy efficiency, and operational simplicity are critical considerations. Built on the HPE ProLiant DL20 Gen11 platform, this server class is optimized for edge computing, branch office infrastructure, dedicated application hosting, and latency-sensitive workloads.

AMD EPYC 6325P Processor Computing Focus

At the core of the HPE P83282-005 DL20 Gen11 server category is the AMD EPYC 6325P processor, operating at a high base frequency of 3.5GHz. This four-core processor is designed to excel in workloads that benefit from strong single-threaded and lightly parallelized performance. The high clock speed enables fast execution of transactional processes, web services, authentication systems, and business applications that rely on rapid instruction processing rather than large core counts. The AMD EPYC 6325P is built on AMD’s advanced Zen architecture, delivering efficient instruction pipelines, optimized cache hierarchies, and improved memory access patterns.

Single-Socket Architecture

The one-processor design of the DL20 Gen11 server category reduces architectural complexity and minimizes inter-processor latency. This approach ensures predictable workload behavior and simplifies system management. By focusing on a single AMD EPYC 6325P processor, the HPE P83282-005 configuration delivers a streamlined computing platform that supports high performance without the overhead associated with multi-socket systems.

Enhanced Memory Configuration for Responsive Applications

The HPE P83282-005 configuration includes 1x32GB of unbuffered memory, providing a substantial improvement in memory capacity compared to entry-level configurations within the DL20 Gen11 category. This increased memory allocation supports more demanding applications, higher concurrency, and improved caching capabilities. It is particularly beneficial for virtualization hosts, in-memory databases, and application servers that require fast access to frequently used data. Unbuffered memory contributes to lower latency and efficient data transfer between the processor and memory subsystem. This aligns with the high-frequency processing focus of the AMD EPYC 6325P, ensuring that the server delivers responsive performance across a wide range of workloads.

Scalable Memory Path for Future Growth

The memory architecture of this server category is designed to evolve alongside business needs. Starting with 32GB of memory provides a strong foundation for current workloads while leaving room for future expansion. This scalability extends the useful life of the HPE P83282-005 server and supports gradual workload growth without requiring immediate hardware replacement.

Solid-State Storage with 4SFF Architecture

The storage subsystem of the HPE P83282-005 DL20 Gen11 server features a 4SFF design populated with two 960GB solid-state drives. This configuration emphasizes fast data access, low latency, and high reliability, making it ideal for performance-sensitive applications. Solid-state storage significantly improves boot times, application responsiveness, and overall system throughput compared to traditional spinning disks. The 4SFF architecture provides flexibility for future storage expansion or reconfiguration. Organizations can adapt the storage layout to meet changing data requirements, whether that involves adding capacity, improving redundancy, or optimizing for specific workload characteristics.

Storage for Transactional Workloads

Solid-state drives are particularly well-suited for transactional systems, virtualization environments, and database applications where low latency and high IOPS are critical. The HPE P83282-005 server category leverages this advantage to deliver reliable performance under concurrent access patterns. Firmware-level integration within the ProLiant platform ensures compatibility, data integrity, and predictable behavior across supported operating systems.

Compact 1U Form Factor with Enterprise-Grade Build Quality

The HPE DL20 Gen11 server category is housed in a compact 1U rack-mount chassis that maximizes space efficiency without compromising durability or performance. This form factor is ideal for environments with limited rack space, including edge locations, branch offices, retail installations, and colocation facilities. The short-depth design supports deployment in shallow racks and non-traditional enclosures. Despite its compact dimensions, the chassis is engineered to support enterprise-grade components, efficient airflow, and straightforward serviceability. Internal layout considerations ensure that critical components receive adequate cooling while remaining accessible for maintenance. This design philosophy supports reliable operation across diverse physical environments.

Thermal Acoustic

Advanced thermal engineering within the DL20 Gen11 platform ensures stable operation under sustained workloads. Intelligent fan control dynamically adjusts cooling based on system load, balancing thermal performance and acoustic output. This makes the server category suitable for deployments where noise levels must be controlled, such as office environments or customer-facing locations.

Redundant Power Supply Configuration for High Availability

The HPE P83282-005 DL20 Gen11 server includes dual 500W power supplies, providing enhanced power redundancy and resilience. This configuration is a key differentiator within the DL20 category, supporting high availability requirements and reducing the risk of downtime due to power supply failure. Redundant power supplies ensure continuous operation in mission-critical environments where uptime is essential. The higher wattage power supplies are designed to support the server’s solid-state storage configuration and high-frequency processor while maintaining efficient power delivery. This design supports consistent performance under varying load conditions and contributes to predictable energy consumption patterns.

Operational Stability

Although equipped with dual 500W power supplies, the DL20 Gen11 server category maintains a focus on energy efficiency. Power delivery is optimized to match system demand, minimizing waste and reducing operational costs. This balance of redundancy and efficiency makes the HPE P83282-005 configuration suitable for both centralized and distributed deployments.

Architecture and Firmware-Level Protection

The HPE DL20 Gen11 server category integrates a comprehensive security framework designed to protect systems from evolving threats. Hardware root of trust, secure boot processes, and firmware validation mechanisms ensure that only authenticated code is executed during system startup. These features help prevent unauthorized modifications and protect sensitive data. Security capabilities extend throughout the system lifecycle, from initial deployment to ongoing operation. Firmware updates and configuration changes can be managed securely, reducing exposure to vulnerabilities. This security-focused design is particularly valuable for organizations operating in regulated industries or handling confidential information.

Integrated Remote Administration

The HPE DL20 Gen11 server category includes integrated management capabilities that simplify administration and reduce operational overhead. Centralized management tools provide visibility into system health, performance metrics, and configuration status. Administrators can perform remote diagnostics, apply updates, and manage settings without requiring physical access to the server. This management approach is particularly beneficial for organizations with distributed infrastructure or limited IT staff. By reducing the need for on-site intervention, the HPE P83282-005 server category supports efficient operations and faster response times to emerging issues.

Operational Visibility and Predictive

Predictive analytics and monitoring capabilities help identify potential component failures before they occur. This proactive approach minimizes unplanned downtime and extends the operational lifespan of the server. Such features enhance the overall resilience of IT environments built on the DL20 Gen11 platform.

Workload Alignment and Deployment Versatility

The HPE P83282-005 6325P 3.5GHz DL20 Gen11 server category is well-suited for a wide range of workloads that require fast processing, reliable storage, and high availability. Its configuration supports edge computing, branch office infrastructure, virtualization hosts, dedicated application servers, and network services. The combination of high-frequency CPU performance and solid-state storage ensures responsive behavior across diverse use cases. This category also appeals to managed service providers and system integrators seeking a standardized, high-performance platform for repeatable deployments. The predictable performance profile and enterprise-grade reliability of the DL20 Gen11 platform simplify planning, scaling, and long-term support.

Edge Computing and Real-Time Processing

In edge computing scenarios, the DL20 Gen11 server category delivers local processing power that reduces latency and dependence on centralized data centers. The high-frequency AMD EPYC 6325P processor and fast SSD storage enable real-time data analysis, decision-making, and service delivery at the network edge.

Consolidated Infrastructure

For virtualization and infrastructure consolidation, this server category provides a stable and efficient platform capable of hosting multiple virtual machines or containers. The 32GB memory configuration and solid-state storage support higher consolidation ratios while maintaining performance isolation between workloads.

Strategic Investment

The HPE DL20 Gen11 server category, exemplified by the P83282-005 configuration, represents a strategic investment in compact, high-performance enterprise computing. Its balance of processing speed, memory capacity, fast storage, redundant power, and advanced management ensures long-term value, adaptability, and reliability for organizations navigating evolving IT demands.
