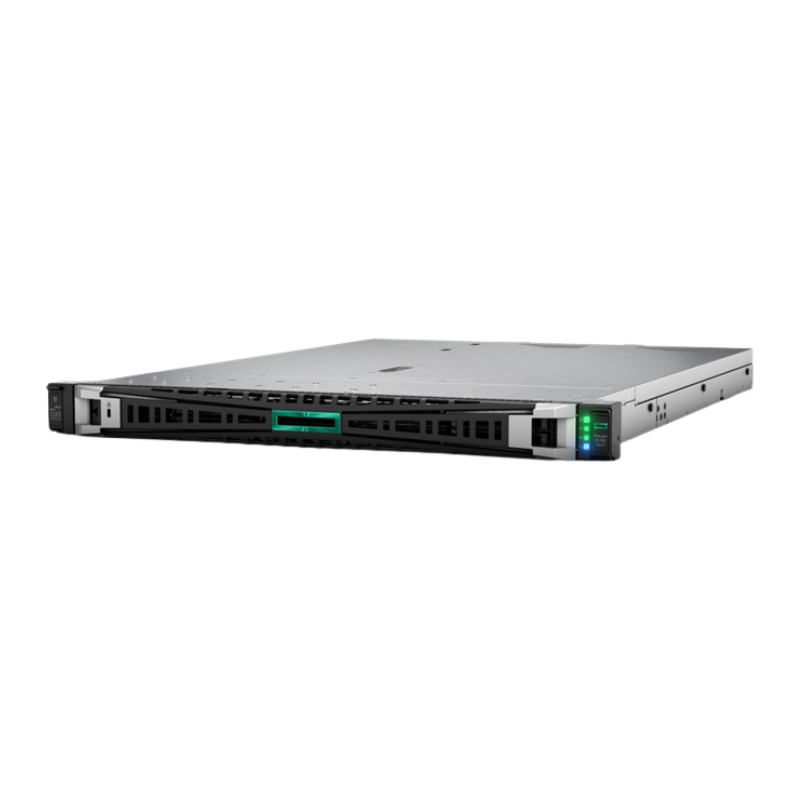

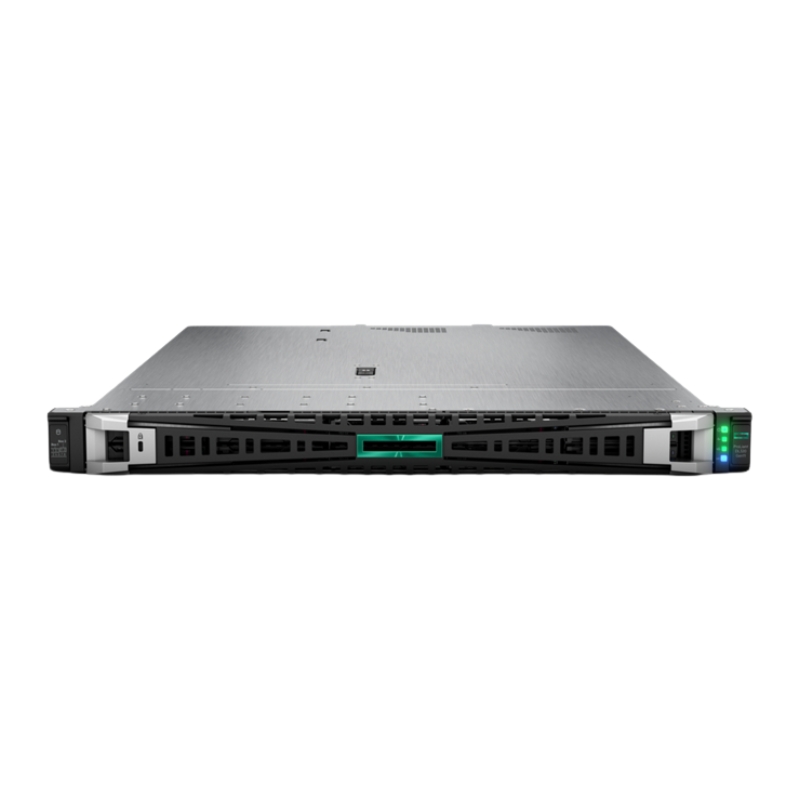

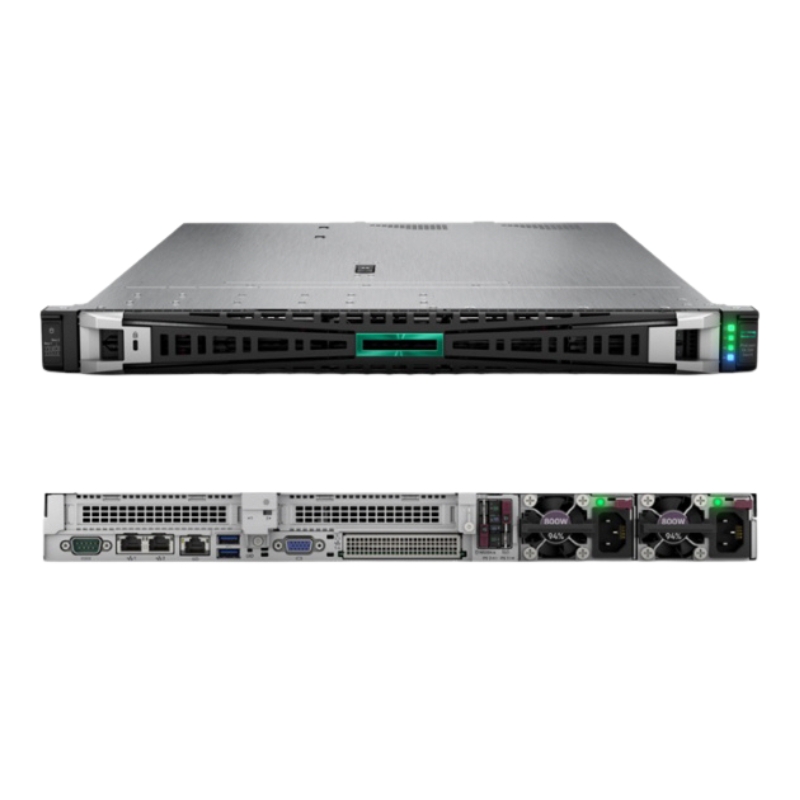

P83284-005 HPE DL320 4510 2.4GHz Gen11 12c 1P 1x32GB-R 8SFF Server

Highlights of HPE P83284-005 ProLiant DL320 Gen11 Server

The HPE P83284-005 ProLiant DL320 Gen11 Server is a performance-driven 1U rack server designed for data-intensive workloads, virtualization, and enterprise infrastructure. Built on the Intel Xeon Silver 4510 processor, this model delivers powerful multi-core processing, extensive memory scalability, and flexible storage expansion in a compact rack-mountable design.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P83284-005
• Product Type: Enterprise Rack Server
• Form Factor: 1U Rack-Mount
• Hot-Swap Drive Bays: 8 x SFF
• Sub Type: HPE ProLiant DL320 Gen11 Smart Choice

Technical Specifications

• Processor Model: Intel Xeon Silver 4510
• Server Architecture: Single Socket (1-way)
• Core Count: 12 Cores
• Base Frequency: 2.4 GHz
• Maximum Turbo Speed: Up to 4.1 GHz
• CPU Configuration: 1 Installed / 1 Supported
• Thermal Design Power: 150W

Advanced Processor Capabilities

• Intel Hyper-Threading Technology
• Intel Turbo Boost Technology 2.0
• Upgradeable CPU Platform

Chipset Details

• Chipset Type: Intel C741
• CPU Socket: LGA4677 (Socket E)

Cache Memory Specifications

• L3 Cache Capacity: 30MB per Processor

System Memory (RAM)

DDR5 Registered Smart Memory

• Installed Memory: 32GB DDR5 Registered DIMM
• Maximum Memory Capacity: Up to 4TB (Memory-Type Dependent)
• Effective Memory Speed: 4400 MT/s
• Memory Slots: 16 DIMM Slots (15 Available)
• Form Factor: 288-pin DIMM

Memory Reliability Features

• HPE DDR5 Smart Memory Technology
• Registered (RDIMM) Design
• Optimized for Mission-Critical Workloads

Storage Architecture and Drive Bays

Flexible Storage Deployment

• Default Drive Configuration: No HDD or SSD Shipped Standard
• Drive Bay Support: 8 x Hot-Swap 2.5-inch SFF Bays
• Ideal For: NVMe, SAS, or SATA Storage Expansion

Boot Optimized Storage Solution

• Controller Name: HPE NS204i-u Gen11
• Storage Type: NVMe Hot-Plug Boot Device
• Usable Capacity: 480GB
• RAID Support: Hardware RAID 1
• PCIe Support: Gen3

Advanced Storage Controller and RAID Options

HPE MR408i-o OCP Storage Controller

• Controller Model: HPE MR408i-o Gen11
• Interface Support: SATA, SAS 12Gb/s, PCIe (NVMe)
• Channel Count: 8 Channels
• Cache Memory: 4GB
• Supported RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60

Graphics and Video Output

• Graphics Output: Integrated VGA
• Video Memory: 16MB

Networking and Remote Management

Reliable Network Connectivity

• Ethernet Ports: 2 x Gigabit Ethernet
• Network Controller: Broadcom BCM5720
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Integrated Management Features

• HPE Integrated Lights-Out 6 (iLO 6)
• SNMP v3 and IPMI 2.0
• Wake-on-LAN (WOL)
• PXE Boot and ACPI Support

Expansion Slots and Connectivity Options

Expansion Capabilities

• 2 x PCIe 5.0 x16 Slots (Full-height, Half-length)
• 1 x PCIe 5.0 x16 / OCP 3.0 Mezzanine Slot

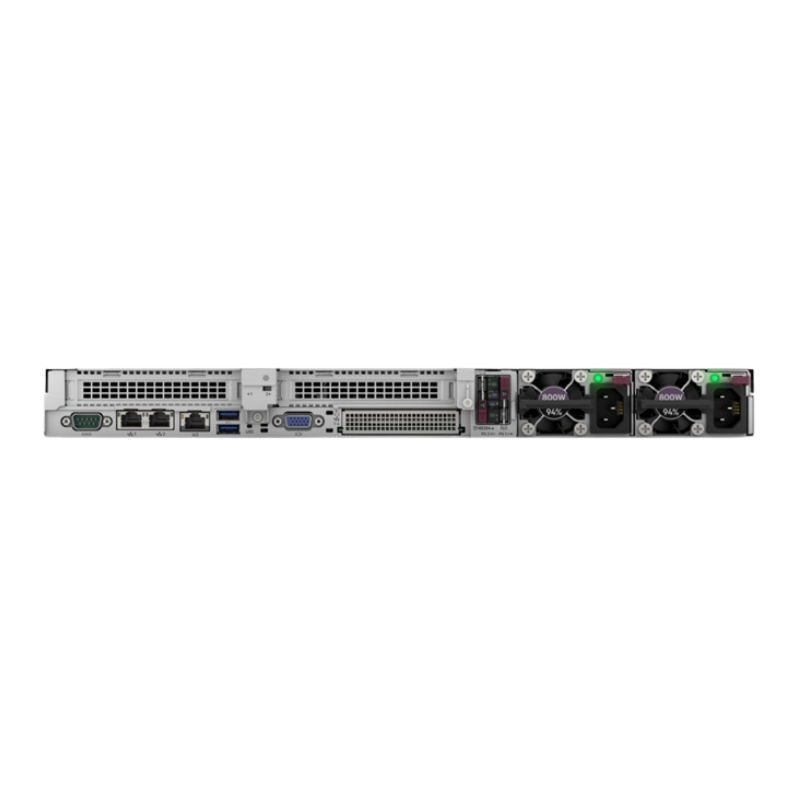

External and Internal Interfaces

• 1 x VGA Port
• 1 x USB 2.0 (Internal)
• 3 x USB 3.2 Gen1 (1 Front, 2 Rear)
• 2 x RJ-45 Gigabit LAN Ports
• 1 x HPE iLO Service Port (Front)

Power Supply and Energy Efficiency

• Power Supply Type: Hot-Plug Power Supply
• Installed Power Supplies: 2 x 500W
• Redundancy Support: Optional 1+1 Configuration
• Efficiency Certification: 80 Plus Platinum
• Input Voltage: AC 100–120V / 200–240V

Operating System Compatibility and Software

Certified Operating Systems

• No Operating System Pre-installed
• Supports Microsoft Windows Server
• Compatible with SUSE Linux Enterprise Server
• Certified for Red Hat Enterprise Linux and CentOS
• VMware ESXi, Oracle Linux, Ubuntu, Citrix, and Oracle VM Supported

HPE Management Software

• HPE iLO Standard with Intelligent Provisioning
• HPE OneView Standard (Free Download)

Sustainability

• Energy Star Certified (Version 4.0)
• Compliance with AES, FIPS 140-2, and TLS v1.2
• Support for Redfish API, SMBIOS 3.2, and ACPI 6.3
• ASHRAE Class A3 and A4 Certified

Environmental Specifications

• Operating Temperature: 50°F to 95°F
• Operating Humidity: 8% – 90% RH (Non-condensing)

Physical Dimensions and Weight

• Width: 17.11 inches
• Depth: 23.82 inches
• Height: 1.69 inches
• Weight: 26.44 lbs

Included Accessories

• HPE Easy Install Rail 1 Kit
• 7 x High-Performance Cooling Fans

Overview of HPE P83284-005 DL320 2.4GHz Enterprise Server

The HPE P83284-005 DL320 4510 2.4GHz Gen11 12c 1P 1x32GB-R 8SFF NS204i-u MR408i-o 2x500W PS NA Server defines a high-density, enterprise-focused server category engineered to support modern data center workloads that demand scalability, reliability, and balanced performance. Built on the HPE ProLiant DL320 Gen11 platform, this category targets organizations seeking a powerful single-socket solution capable of handling virtualization, software-defined storage, cloud-native applications, and data-driven enterprise services. The DL320 Gen11 form factor emphasizes compute density, storage flexibility, and advanced controller integration while maintaining the trusted reliability and security of the HPE ProLiant ecosystem.

12-Core Processor Architecture and Balanced Performance

At the core of the HPE P83284-005 DL320 Gen11 server category is a 12-core processor operating at a base frequency of 2.4GHz. This processor configuration is designed to deliver balanced multi-threaded performance suitable for a wide range of enterprise workloads. The increased core count enables efficient parallel processing, making this category well-suited for virtualization hosts, containerized applications, middleware platforms, and database services that benefit from concurrent execution. The processor architecture supports modern instruction sets and optimized cache hierarchies, ensuring consistent throughput under sustained workloads.

Single-Socket Strategy

The one-processor architecture simplifies system design and reduces power and cooling requirements while still providing ample compute resources. By focusing on a single high-core-count processor, this server category minimizes complexity and latency associated with multi-socket systems. This design approach supports efficient scaling across racks and clusters, making it ideal for standardized deployments in enterprise data centers.

Registered Memory Architecture for Stability and Scalability

The HPE P83284-005 configuration includes 1x32GB of registered memory, providing a stable and scalable memory foundation for demanding enterprise applications. Registered memory is engineered to support higher capacities and improved signal integrity, which is essential for workloads that require consistent performance and reliability. This memory type is particularly beneficial in virtualization environments and database-driven applications where memory stability directly impacts service availability. The DL320 Gen11 server category supports memory expansion, allowing organizations to scale capacity as application demands grow.

Memory Scalability for and Data Services

Starting with 32GB of registered memory provides a solid baseline for enterprise workloads while enabling future upgrades. This scalability supports higher virtual machine density, improved caching, and enhanced application responsiveness. The memory subsystem is optimized to work seamlessly with the processor architecture, ensuring efficient data access and consistent performance.

8SFF Storage Architecture for High-Density Data Handling

The HPE DL320 Gen11 server category features an 8SFF drive bay configuration, delivering high storage density within a compact 1U chassis. This design supports a wide range of storage media, enabling organizations to tailor the system for capacity, performance, or a hybrid approach. The 8SFF architecture is particularly advantageous for software-defined storage, virtualization, and database workloads that require flexible and scalable storage options. The increased number of small form factor bays allows for granular storage configuration and efficient use of rack space. This storage-centric design positions the DL320 Gen11 category as a versatile platform for modern data architectures that demand both performance and scalability.

Flexible Storage Expansion and Data

The storage subsystem supports future expansion and reconfiguration, enabling organizations to adapt to changing data requirements. Whether prioritizing high-performance SSDs or balanced capacity solutions, the DL320 Gen11 server category provides the flexibility needed to support diverse enterprise storage strategies.

Advanced Controller Integration with NS204i-u and MR408i-o

The HPE P83284-005 DL320 Gen11 server integrates advanced controller technologies, including the NS204i-u boot device and the MR408i-o storage controller. The NS204i-u provides a dedicated, resilient boot solution that separates the operating system from primary data storage, enhancing reliability and simplifying maintenance. This design supports consistent system startup and reduces the risk of boot-related failures. The MR408i-o controller delivers robust RAID functionality and optimized data management capabilities. It supports advanced storage configurations, data protection features, and performance optimization, making it a critical component for enterprise storage environments. Together, these controllers enhance the overall resilience, performance, and manageability of the server category.

Boot and Data Separation Strategy

By utilizing a dedicated boot device alongside an advanced RAID controller, the DL320 Gen11 platform ensures clear separation between system and data layers. This architecture simplifies upgrades, improves fault isolation, and supports enterprise best practices for system reliability and data protection.

Compact 1U Form Factor with High-Density Design

The HPE DL320 Gen11 server category is housed in a compact 1U rack-mount chassis optimized for high-density deployments. This form factor enables organizations to maximize compute and storage capacity per rack unit, making it ideal for data centers with space constraints or growth-focused strategies. Despite its compact size, the chassis is engineered to support enterprise-grade components and efficient airflow. The physical design emphasizes serviceability and durability, allowing administrators to maintain and upgrade systems with minimal disruption. This balance of density and accessibility supports operational efficiency in large-scale deployments.

Thermal Engineering for Sustained Performance

Advanced thermal management ensures that the DL320 Gen11 server category can operate reliably under sustained workloads. Intelligent cooling mechanisms dynamically adjust airflow based on system load, maintaining optimal operating temperatures while minimizing energy consumption and acoustic output.

Redundant Power Supplies for High Availability

The HPE P83284-005 DL320 Gen11 server includes dual 500W power supplies, providing power redundancy and enhanced fault tolerance. This configuration supports continuous operation in mission-critical environments where uptime is essential. Redundant power supplies reduce the risk of service interruption due to power component failure and support maintenance without downtime. The power subsystem is designed to deliver stable and efficient power across varying load conditions. This ensures consistent performance and predictable energy consumption, supporting both operational stability and cost management.

Infrastructure Resilience

Although equipped with redundant power supplies, the DL320 Gen11 category maintains a focus on energy efficiency. Power delivery is optimized to match system demand, reducing waste and supporting sustainability initiatives within enterprise data centers.

Architecture and Hardware Root of Trust

The HPE DL320 Gen11 server category incorporates a comprehensive security framework designed to protect systems from firmware-level threats and unauthorized access. Hardware root of trust, secure boot processes, and firmware validation ensure system integrity from power-on through runtime operation. These features are essential for organizations operating in regulated industries or handling sensitive data. Security capabilities extend throughout the system lifecycle, supporting secure updates, configuration management, and compliance with organizational policies. This security-first design enhances trust and reliability across enterprise deployments.

Integrated Enterprise Administration

The HPE DL320 Gen11 server category includes integrated management tools that provide centralized visibility and control over system operations. Administrators can monitor performance, health, and configuration status remotely, reducing the need for physical access and improving operational efficiency. These management capabilities are designed to scale across large server fleets. Remote administration features support faster troubleshooting, streamlined updates, and consistent configuration management. This approach is particularly valuable for enterprises managing distributed or large-scale data center environments.

Predictive Analytics and Proactive

Advanced monitoring and analytics capabilities enable predictive maintenance, helping organizations identify potential issues before they impact operations. This proactive approach reduces unplanned downtime and extends the operational lifespan of the server.

Enterprise Workload Alignment and Deployment Scenarios

The HPE P83284-005 DL320 4510 2.4GHz Gen11 server category is optimized for a broad range of enterprise workloads, including virtualization, container platforms, software-defined storage, private cloud infrastructure, and data analytics. Its balanced compute, memory, and storage architecture supports consolidation and efficient resource utilization. This category is also well-suited for service providers and enterprises seeking standardized, high-density server platforms. The DL320 Gen11 design simplifies scaling and supports consistent performance across clusters and data center environments.

Cloud Infrastructure Foundations

In virtualization and cloud deployments, the DL320 Gen11 server category provides the core resources needed to host multiple workloads efficiently. The 12-core processor, registered memory, and flexible storage architecture support high consolidation ratios while maintaining performance isolation.

Data-Centric and Software-Defined Architectures

For data-centric workloads and software-defined architectures, this server category delivers the I/O flexibility and processing capability required to support modern application frameworks. The integration of advanced controllers and dense storage options enables scalable and resilient data platforms.

Strategic Infrastructure Investment

The HPE DL320 Gen11 server category, exemplified by the P83284-005 configuration, represents a strategic investment in high-density, scalable enterprise infrastructure. Its combination of balanced compute performance, robust memory architecture, flexible storage, redundant power, advanced security, and integrated management ensures long-term value, adaptability, and reliability for organizations navigating complex and evolving IT demands.
