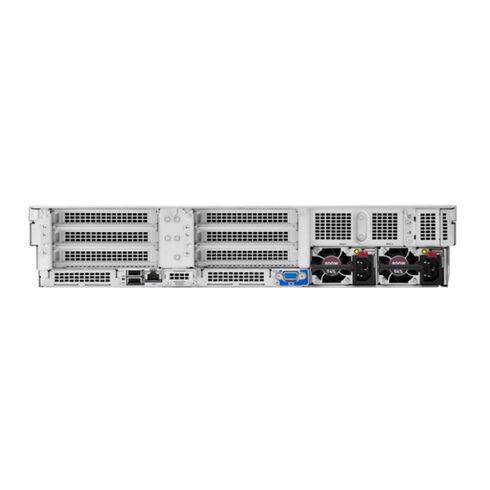

P83293-005 HPE 4410Y 2.0GHz DL380 Gen11 2x800W 8SFF PS NA Server

Highlights of HPE P83293-005 ProLiant DL380 Gen11 Server

The HPE ProLiant DL380 Gen11 Smart Choice Server is a powerful and scalable rack-mounted solution designed for modern data centers. Built with enterprise-grade components, it delivers strong compute performance, flexible storage, and enhanced security for virtualization, databases, and business-critical workloads.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P83293-005
• Server Type: Rack-Optimized enterprise server
• Form Factor: 2U Rack-Mountable Chassis
• Sub Type: HPE ProLiant DL380 Gen11

Technical Specifications

• Processor Model: Intel Xeon Silver 4410Y
• Base Frequency: 2.0 GHz
• Turbo Boost Speed: Up to 3.9 GHz
• Total Cores: 12 cores
• Installed CPUs: 1 (Upgradeable to 2)
• Socket Type: Intel LGA 4677
• Chipset: Intel C741
• Server Scalability: Supports up to two processors
• Hot-swap Drive Bays: 8 x Small Form Factor (SFF)

Advanced Processor Features

• Intel Turbo Boost Technology
• Hyper-Threading Technology
• Optimized for virtualization and multitasking

Cache and Memory Capabilities

Processor Cache Details

• Cache Type: Intel Smart Cache
• Cache Size per CPU: 30 MB

DDR5 Server Memory Configuration

• Installed Memory: 64 GB (2 x 32 GB)
• Maximum Supported Memory: Up to 8 TB
• Memory Technology: DDR5 SDRAM with ECC
• Effective Speed: 4400 MHz
• Rated Speed: 4800 MHz
• Memory Slots: 32 DIMM slots (30 available)

Memory Architecture Features

• Registered HPE SmartMemory support
• High reliability with ECC protection
• Expanded memory availability with dual-processor configuration

Internal Storage and RAID Management

Preconfigured Solid-State Storage

• Storage Type: Enterprise-grade SSD
• Capacity per Drive: 960 GB
• Installed Drives: 2 SSDs
• Total Raw Storage: 1.92 TB
• Drive Interface: SATA

HPE MR408i-o Gen11 RAID Controller

• Controller Type: OCP RAID controller
• Interface Support: SATA 6Gb/s, SAS 3.0, PCIe (NVMe)
• Cache Memory: 4 GB
• Channels: 8

Supported RAID Levels

• RAID 0, 1, 5, 6, 10
• Advanced RAID 50 and RAID 60 support

Networking and Remote Management

Integrated Network Connectivity

• Ethernet Ports: 4 x Gigabit Ethernet
• Network Controller: Broadcom BCM5719
• OCP 3.0 mezzanine interface

Enterprise Management Features

• HPE Integrated Lights-Out 6 (iLO 6)
• Remote protocols: SNMP v3, IPMI 2.0, SMASH CLP
• PXE boot and Wake-on-LAN support

Expansion Slots and I/O Interfaces

PCIe Expansion Options

• 2 x FlexibleLOM slots
• 1 x PCIe 5.0 x16 (full-length, full-height)
• 1 x PCIe 5.0 x16 (x8 mode)
• 1 x PCIe 5.0 x16 half-length slot

External and Internal Connectivity

• USB Ports: 5 x USB 3.0 (front, rear, internal)
• Dedicated HPE iLO RJ-45 management port
• VGA video output
• 4 x RJ-45 LAN ports

Graphics and Media Support

• Integrated graphics controller
• Video Memory: 16 MB
• Video Interface: VGA
• Integrated microSD card reader

Power Supply and Energy Efficiency

Redundant Power Configuration

• Power Supplies Installed: 2
• Power Output: 800 Watts per PSU
• Redundancy Mode: 1+1 hot-plug
• Input Voltage: AC 100–120V / 200–240V

Efficiency and Sustainability

• 80 PLUS Platinum certified
• Energy Star Certified (Version 3.0)

Operating System Compatibility

Supported Platforms

• Microsoft Windows Server
• VMware ESXi
• Red Hat Enterprise Linux
• Oracle Linux
• Canonical Ubuntu
• Citrix environments

Firmware and System Software

• HPE Server UEFI
• No operating system pre-installed

Physical Dimensions and Environmental Specs

Chassis Measurements

• Width: 17.6 inches
• Depth: 28.6 inches
• Height: 3.4 inches
• Weight: 35.27 lbs

Operating Environment

• Temperature Range: 50°F to 95°F
• Humidity: 8% – 90% non-condensing

Included Accessories and Compliance

• Cable Management Arm
• High-performance heatsink
• 4 standard cooling fans
• SFF Easy Install Rail Kit

Regulatory and Industry Standards

• AES and FIPS 140-2 compliance
• ASHRAE Class A3 and A4 certified
• Low-halogen and WEEE compliant
• ACPI 6.3 and ERP Lot 9 standards

Overview of HPE P83293-005 Enterprise Two-Socket Server

The HPE P83293-005 4410Y 2.0GHz DL380 Gen11 1P 2x32GB-R 8SFF MR408i-o 2x960GB SSD 2x800W PS NA Server defines a highly adaptable enterprise server category designed for organizations that require scalability, resilience, and balanced compute performance in modern data center environments. Built on the HPE ProLiant DL380 Gen11 platform, this category is engineered to support a wide spectrum of workloads ranging from virtualization and private cloud infrastructure to enterprise databases and business-critical applications. The DL380 Gen11 form factor is recognized globally as a standard for dependable, expandable, and long-term infrastructure investment.

2.0GHz Enterprise Processor Architecture for Throughput

At the heart of the HPE P83293-005 DL380 Gen11 server category is an enterprise-class processor operating at a 2.0GHz base frequency. This processor is designed to deliver consistent and predictable performance across multi-threaded workloads that dominate modern enterprise environments. Rather than focusing on peak clock speeds, this category prioritizes sustained throughput, efficient parallel processing, and reliability under continuous operation. The processor architecture supports advanced instruction sets, large cache structures, and optimized memory access pathways, enabling efficient execution of complex workloads such as virtualization hosts, enterprise resource planning systems, middleware platforms, and data services.

Future-Ready Compute Scalability

The DL380 Gen11 platform is architected to support future expansion, allowing organizations to adapt their infrastructure as business requirements evolve. Starting with a single-processor configuration enables cost-effective initial deployment while preserving the option to scale compute capacity later. This flexibility makes the server category suitable for long-term infrastructure planning and phased growth strategies.

Registered Memory Architecture for Enterprise Reliability

The HPE P83293-005 configuration includes 2x32GB of registered memory, providing a total of 64GB of enterprise-grade RAM. Registered memory is a critical component of server-class systems, offering improved signal integrity, enhanced stability, and reduced error rates compared to unbuffered alternatives. This memory architecture is designed to operate reliably under continuous load, making it ideal for mission-critical environments. The 64GB memory capacity supports a wide range of workloads, including virtualization, application hosting, and in-memory data processing. The DL380 Gen11 platform supports significant memory expansion, enabling organizations to scale capacity as application demands grow. This scalability ensures that the server category remains relevant as workloads become more complex and data-intensive.

Memory Stability for Consolidated Environments

In virtualized and consolidated infrastructures, memory reliability directly impacts workload isolation and service availability. Registered memory reduces the likelihood of data corruption and system instability, supporting consistent performance across multiple concurrent workloads. This makes the DL380 Gen11 server category a dependable foundation for enterprise virtualization platforms.

8SFF Storage Architecture with High-Performance

The HPE DL380 Gen11 server category features an 8SFF small form factor drive bay configuration, providing high storage density and flexibility within a 2U chassis. In the HPE P83293-005 configuration, this storage architecture is populated with two 960GB solid-state drives, delivering fast data access, low latency, and improved durability compared to traditional hard disk drives. Solid-state storage enhances system responsiveness and supports I/O-intensive workloads such as databases, virtual machines, and transactional applications. The 8SFF layout allows organizations to expand or reconfigure storage as requirements change, supporting a wide range of capacity and performance profiles. This adaptability makes the server category suitable for dynamic enterprise environments.

Storage Performance for Data-Driven Applications

Solid-state drives are particularly effective for workloads that generate frequent random read and write operations. The DL380 Gen11 server category leverages this capability to deliver consistent I/O performance, ensuring predictable application behavior and adherence to service-level objectives.

Advanced RAID with MR408i-o Controller

The inclusion of the MR408i-o RAID controller enhances the storage subsystem of the HPE P83293-005 DL380 Gen11 server category. This enterprise-grade controller provides hardware-based RAID functionality, enabling organizations to configure storage for redundancy, performance, or a balanced combination of both. By offloading RAID processing from the CPU, the controller ensures efficient data handling and consistent performance. The MR408i-o controller supports robust data protection strategies, helping safeguard critical information against drive failures and data integrity issues. This capability is essential for organizations that rely on continuous access to data and cannot tolerate extended downtime.

Enterprise Storage Resilience and Data Integrity

Hardware RAID configurations enhance fault tolerance and simplify recovery processes in the event of drive failures. This level of resilience is a key requirement for enterprise environments where data availability and integrity are critical to business operations.

2U Rack-Mount Form Factor for Expansion and Serviceability

The HPE DL380 Gen11 server category is housed in a 2U rack-mount chassis, providing additional internal space for expansion, cooling, and serviceability compared to 1U platforms. This form factor supports a broader range of configuration options, including additional storage, expansion cards, and future compute upgrades. The chassis design emphasizes durability, efficient airflow, and ease of maintenance. Components are arranged to support effective cooling and straightforward access, reducing maintenance time and minimizing operational disruption. This design is particularly valuable in enterprise data centers where uptime and serviceability are priorities.

Thermal Engineering for Sustained Enterprise Workloads

Advanced thermal management ensures that the DL380 Gen11 platform maintains stable operation under sustained workloads. Intelligent cooling systems dynamically adjust airflow based on system conditions, maintaining optimal temperatures while minimizing energy consumption.

Redundant Power Supply Architecture for High Availability

The HPE P83293-005 DL380 Gen11 server category includes dual 800W power supplies, delivering redundant power delivery and improved system resilience. Redundant power supplies reduce the risk of downtime caused by power component failure and support maintenance activities without interrupting operations. The power architecture is designed to provide efficient and reliable energy delivery to all system components. This ensures consistent performance under varying load conditions and supports enterprise requirements for uptime and reliability.

Operational Continuity

The dual power supply configuration supports high availability strategies and aligns with best practices for enterprise data center design. Efficient power delivery helps control energy costs while maintaining the reliability required for business-critical workloads.

Embedded Security with Hardware Root of Trust

The HPE DL380 Gen11 server category integrates a comprehensive security framework that protects against firmware-level threats and unauthorized modifications. Hardware root of trust technology verifies firmware integrity during system startup, ensuring that only trusted code is executed. Secure boot processes and continuous firmware validation provide an additional layer of protection throughout the server lifecycle. This embedded security approach is essential for organizations operating in regulated industries or managing sensitive data. By integrating security at the hardware level, the DL380 Gen11 platform supports compliance, risk mitigation, and long-term system trustworthiness.

Firmware Protection

Security features extend beyond initial deployment, supporting secure updates, configuration management, and proactive threat detection. Continuous monitoring helps identify potential vulnerabilities early, enabling timely remediation and reducing exposure to security risks.

Integrated Management for Enterprise-Scale Operations

The HPE DL380 Gen11 server category includes integrated management capabilities that provide centralized visibility and control across the server lifecycle. Administrators can remotely monitor system health, performance metrics, and configuration status, reducing the need for physical access and improving operational efficiency. These management tools are designed to scale across large deployments, enabling standardized provisioning, rapid deployment, and consistent configuration management. This centralized approach simplifies administration and reduces the operational complexity associated with managing enterprise infrastructure.

Predictive Analytics and Proactive

Advanced analytics and monitoring capabilities enable predictive maintenance by identifying potential issues before they impact operations. This proactive approach minimizes unplanned downtime, extends component lifespan, and supports high service availability.

Workload Versatility Across and Hybrid IT Environments

The HPE P83293-005 4410Y 2.0GHz DL380 Gen11 server category is designed to support a broad range of enterprise workloads, including virtualization platforms, private cloud infrastructure, enterprise applications, databases, and analytics solutions. Its balanced compute performance, reliable memory architecture, and solid-state storage make it suitable for both steady-state and dynamic workloads. This server category also aligns with hybrid IT strategies, where on-premises infrastructure must integrate seamlessly with cloud services. The DL380 Gen11 platform provides the flexibility, performance, and management capabilities required to support hybrid architectures and evolving workload placement models.

Databases and Business Applications

In virtualization and database environments, the DL380 Gen11 server category delivers consistent multi-threaded performance and reliable memory operation. This supports higher workload density while maintaining predictable performance and service levels.

Private Cloud and Scalable Infrastructure Deployments

For private cloud and scalable infrastructure use cases, the DL380 Gen11 platform provides the expansion capability and management integration required to support growth. Its modular design enables organizations to adapt infrastructure over time without disruptive platform changes.

Enterprise Infrastructure Platform Value

The HPE DL380 Gen11 server category, represented by the P83293-005 configuration, delivers a strategic combination of scalability, reliability, security, and performance. It provides a strong foundation for long-term enterprise infrastructure planning, supporting evolving business requirements while maintaining operational efficiency and resilience.
