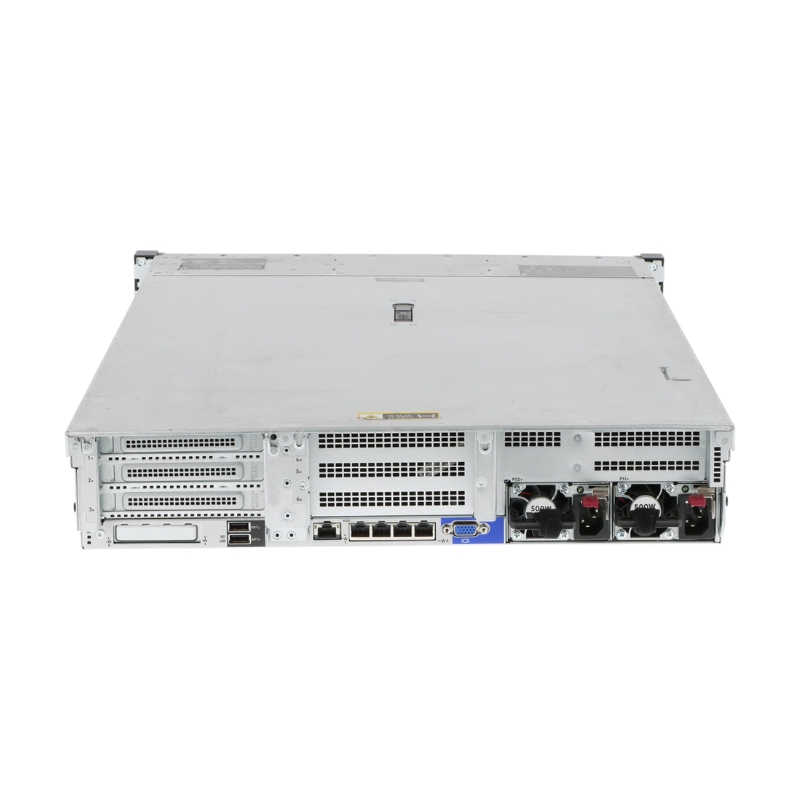

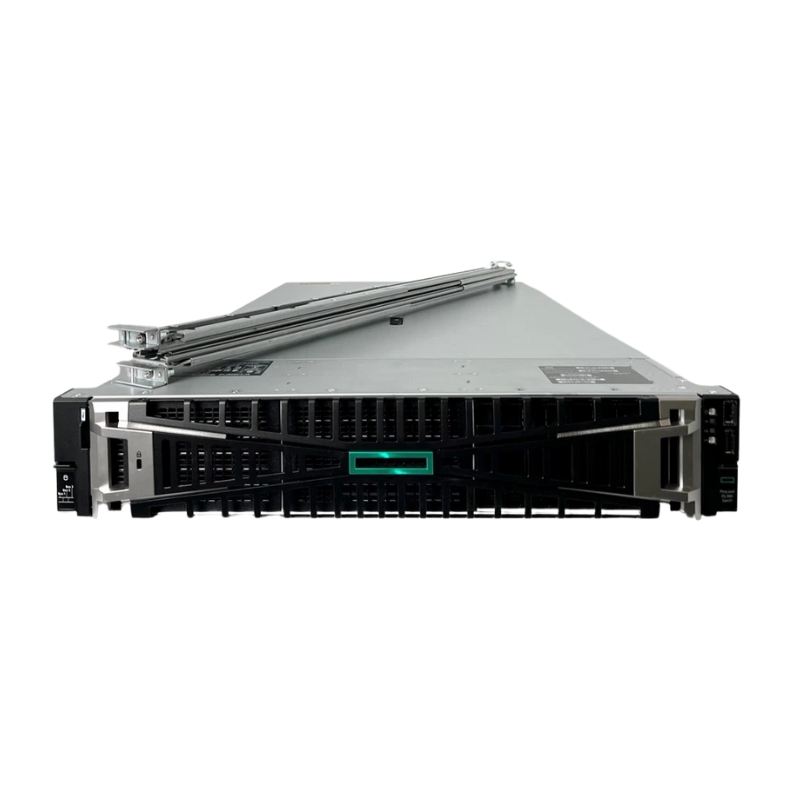

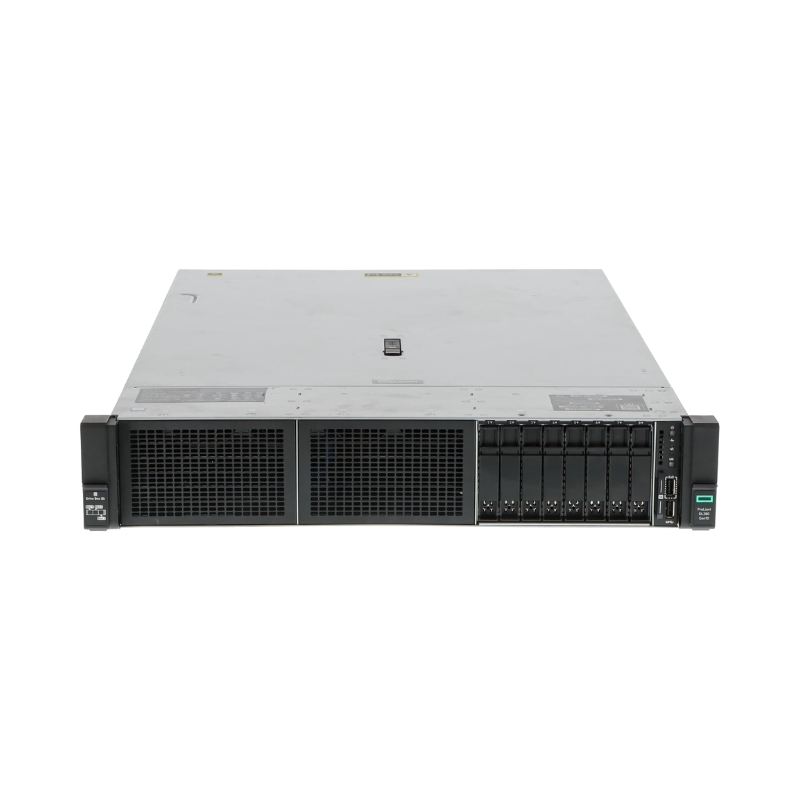

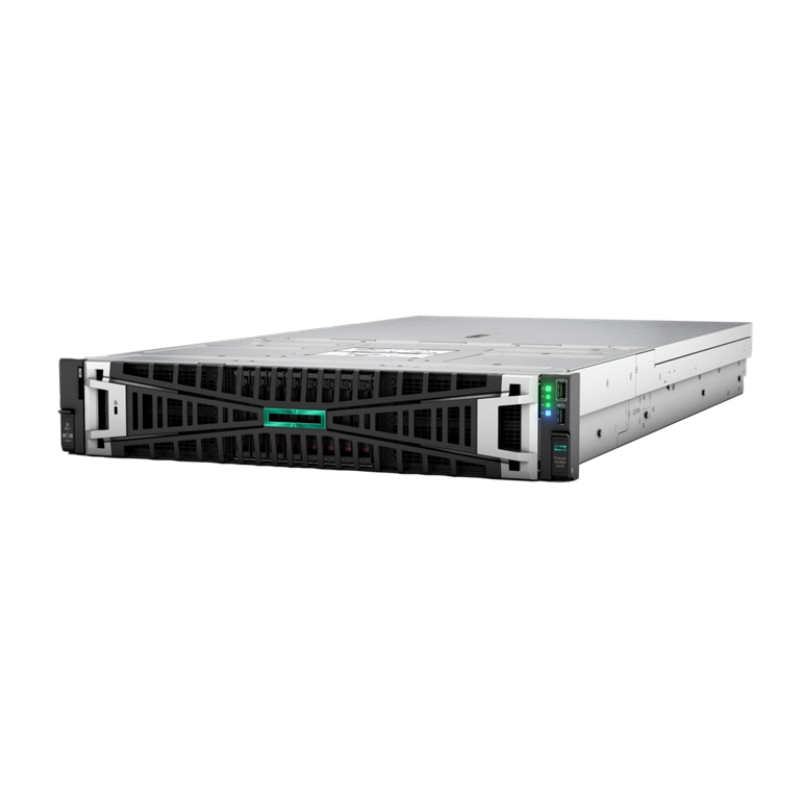

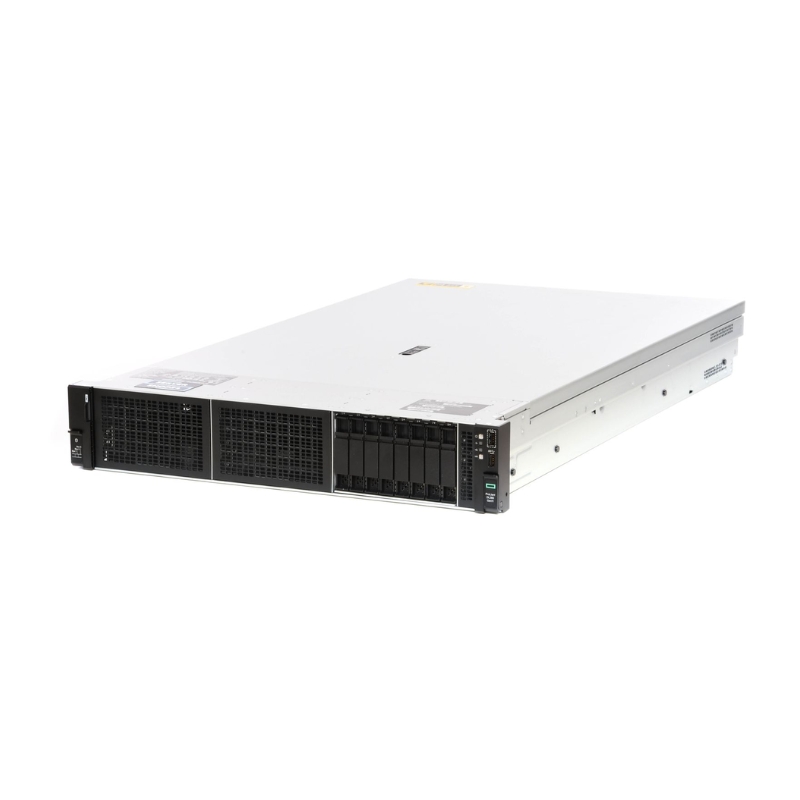

P83303-005 HPE Proliant Dl380 Gen11 Intel Xeon 8-core Gold 3.2GHz DDR4 8SFF 2U Rack Server

HPE ProLiant DL380 Gen11 Server Overview

The HPE P83303-005 ProLiant DL380 Gen11 is a high-performance 2U rack server designed for enterprise workloads, delivering robust processing power, reliability, and scalability. Built with Intel Xeon 8-core Gold processors and DDR4 memory support, this server is ideal for demanding business applications.

Manufacturer & Model Details

• Brand: Hewlett Packard Enterprise (HPE)
• Model Number: P83303-005
• Form Factor: 2U Rack-Mountable Server
• Scalability: Supports 2-way configuration
• Hot-Swap Drive Bays: 8 available slots
• Server Classification: Smart Choice Model with robust performance

Key Features of HPE DL380 Gen11

• Intel Xeon Gold 8-core 3.2GHz processor for seamless multitasking and efficient workload management
• Supports DDR4 memory for enhanced speed and low latency
• 8 Small Form Factor (SFF) drive bays for versatile storage options
• 2U rack-mountable design for space-efficient deployment
• Advanced reliability, availability, and serviceability (RAS) features

Processor & Chipset Features

• CPU: Intel Xeon Silver 5515+
• Cores / Threads: 8 cores with Hyper-Threading
• Base Clock: 3.2 GHz, Max Turbo: 4.1 GHz
• Socket: Intel Socket 4677
• Chipset: Intel C741
• Enhanced Performance: Intel Turbo Boost Technology enabled
• Upgradability: Supports up to 2 CPUs

Cache Memory

• Smart Cache: 22.5 MB per processor
• High-speed caching for improved data access and system responsiveness

Memory Specifications

• Total Installed RAM: 64 GB DDR5 SDRAM (2x32 GB configuration)
• Maximum Supported Memory: 8 TB
• Memory Slots: 32 DIMM slots, 30 empty for expansion
• Memory Technology: Registered ECC, HPE SmartMemory compatible
• Memory Speed: 4800 MHz effective (Rated up to 5600 MHz)

Internal Storage Options

• Primary Storage Type: SSD (SATA interface)
• Installed Drives: 2 x 960 GB SSD
• Drive Bays: 8 SFF hot-swap slots
• Supported RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Storage Controller: HPE MR408i-o Gen11 with 4 GB cache

Additional Storage Features

• Supports external Universal Media Bay
• High-speed connectivity with Serial ATA, SAS 3.0, and PCIe NVMe interfaces
• Integrated microSD card reader for additional flexibility

Networking & Remote Management

• Network Adapter: Broadcom BCM57416 Ethernet 10Gb 2-port Base-T
• Interfaces: Open Compute Project (OCP) 3.0 mezzanine
• Ethernet Ports: 2 x Gigabit
• Remote Management: HPE iLO 6, supporting SNMPv3, IPMI 2.0, SMASH CLP
• Features: Wake-on-LAN (WOL), PXE boot support

Expansion & Connectivity

• PCIe Slots: Multiple full-length and half-length slots supporting PCIe 5.0
• USB Ports: 4 x USB 3.0, plus dedicated iLO service port
• VGA and Ethernet RJ-45 interfaces for management and networking

Power & Cooling

• Redundant Power: 2 x 1000W Flex Slot Platinum hot-plug units (1+1 configuration)
• Certification: 80 Plus Titanium
• Included Cooling: HPE High Performance Heatsink, 4 standard fans
• Energy Star Certified, Version 3.0

Supported Operating Systems & Software

• Compatible OS: Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi, Oracle Linux, Ubuntu, Citrix
• Management Software: HPE Server UEFI tools included
• No pre-installed operating system for flexible deployment

Performance and Processing

The DL380 Gen11 leverages the Intel Xeon Gold CPU to deliver:

• High-speed computation for virtualization and cloud applications
• Optimized performance for large-scale database management
• Support for multiple concurrent workloads without latency

Memory and Storage Expansion

With DDR4 memory modules, this server ensures smooth performance under heavy workloads:

• Expandable RAM for future-proofing your infrastructure
• Flexible storage options with 8 SFF drive bays
• Hot-swappable drives for minimal downtime

Networking and Connectivity

• Integrated network adapters for high-speed data transfer
• Multiple PCIe slots for advanced expansion and connectivity
• Redundant power supplies for uninterrupted operation

Scalability and Reliability

• Designed for enterprise-grade workloads with high availability
• Support for HPE iLO management tools for remote monitoring and administration
• Efficient cooling system to maintain optimal performance
