P83315-005 HPE Proliant Ml30 Gen11 6315P 2.8GHZ Na Server

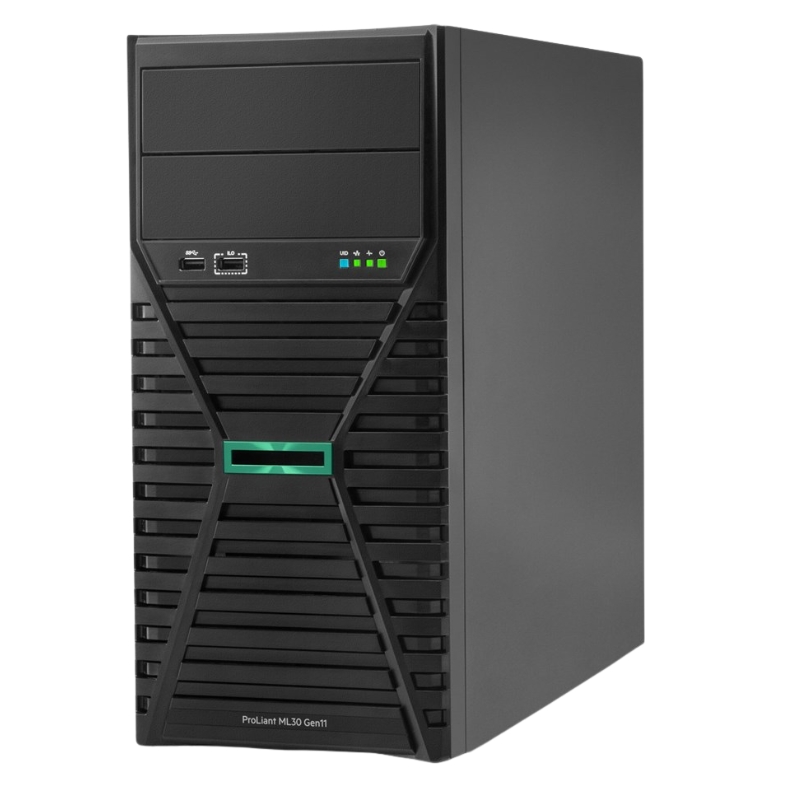

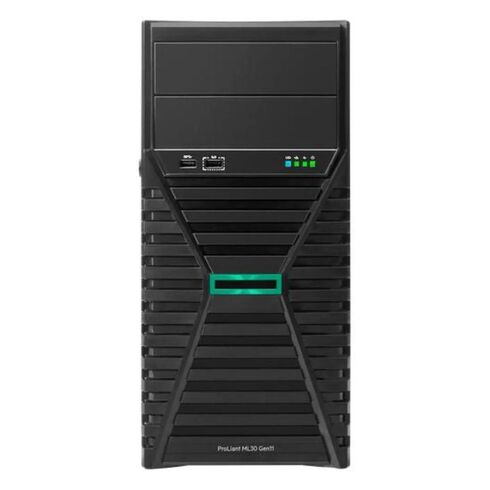

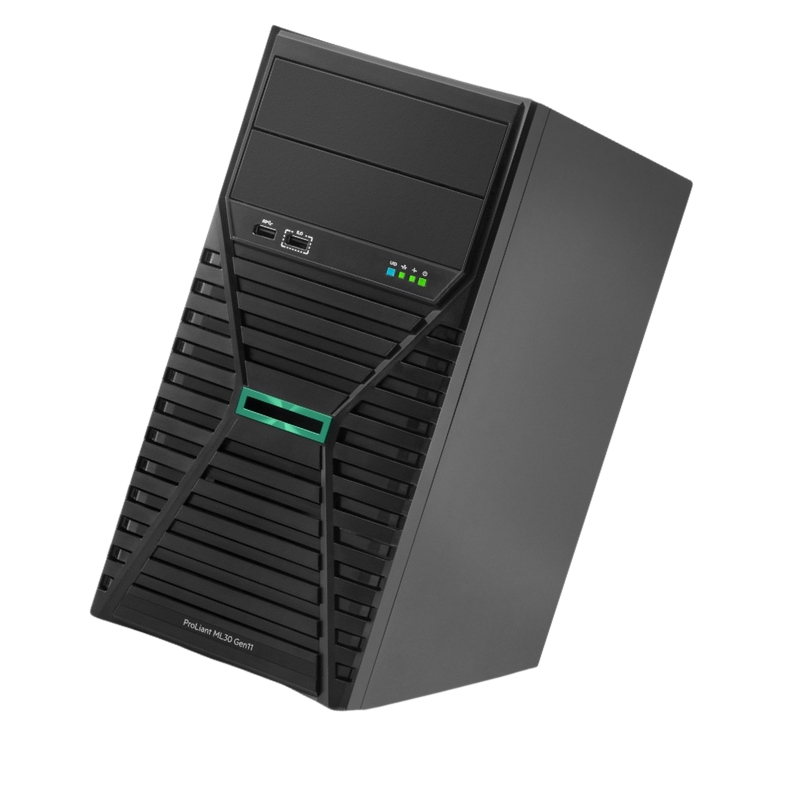

HPE ProLiant ML30 Gen11 Server

The HPE ProLiant ML30 Gen11 6315P 2.8GHz NA Server is a powerful tower system designed for small businesses and enterprise workloads. With advanced scalability, robust storage, and efficient performance, it ensures reliability and flexibility for IT environments.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P83315-005
• Device Type: Enterprise Server
• Form Factor: Tower – 4U
• Scalability: 1-way
• Hot-swap Bays: 8

Processor and Chipset

CPU Specifications

• Processor: Intel® Xeon 6315P
• Base Frequency: 2.8 GHz
• Turbo Speed: Up to 5.2 GHz
• Turbo Boost Max 3.0: 4.5 GHz
• Turbo Boost 2.0: 4.7 GHz
• Cores: 4-core
• Socket: FCLGA1700
• Chipset: Intel C262
• TDP: 55W

Processor Features

• Intel Turbo Boost Technology
• Hyper-Threading Technology
• Upgradeable CPU

Memory and Cache

Cache Memory

• L3 Cache: 12 MB

System RAM

• Type: HPE DDR5 Standard Memory (UDIMM)
• Installed: 16 GB (1x16)
• Maximum Capacity: 128 GB
• Speed: Effective 3600 MHz / Rated 4800 MHz
• Form Factor: DIMM 288-pin
• Slots: 4 (1 populated, 3 available)

Storage Capabilities

Internal Drives

• Type: HDD
• Size: 3.5-inch
• Interface: SATA 6 Gb/s
• Bays: 8
• Installed: 2 x 1TB HDD
• Total Capacity: 2TB
• Speed: 7200 RPM

Storage Controller

• Type: RAID Controller
• Interface: SATA 6 Gb/s
• Channels: 6
• Supported RAID Levels: RAID 0, 1, 5, 10

Graphics and Video

• Video Memory: 16 MB
• Interface: VGA

Networking Features

Connectivity

• Interface Type: OCP 3.0
• Ethernet Ports: 4 x Gigabit Ethernet
• Controller: Broadcom BCM5719

Protocols and Management

• Ethernet, Fast Ethernet, Gigabit Ethernet
• SNMP 3, IPMI 2.0, SMASH CLP
• Integrated Lights-Out 6 (iLO6)
• Wake-on-LAN (WoL), PXE Support

Expansion and Interfaces

Expansion Bays

• 8 total / 6 free hot-swap 3.5-inch bays

Expansion Slots

• 1 x PCIe 4.0 x16 (full-length, full-height)
• 1 x PCIe 3.0 x16 (x4 mode)
• 2 x PCIe 3.0 x8 (half-length, full-height)
• 1 x M.2 Card (PCIe x2 & SATA mode)

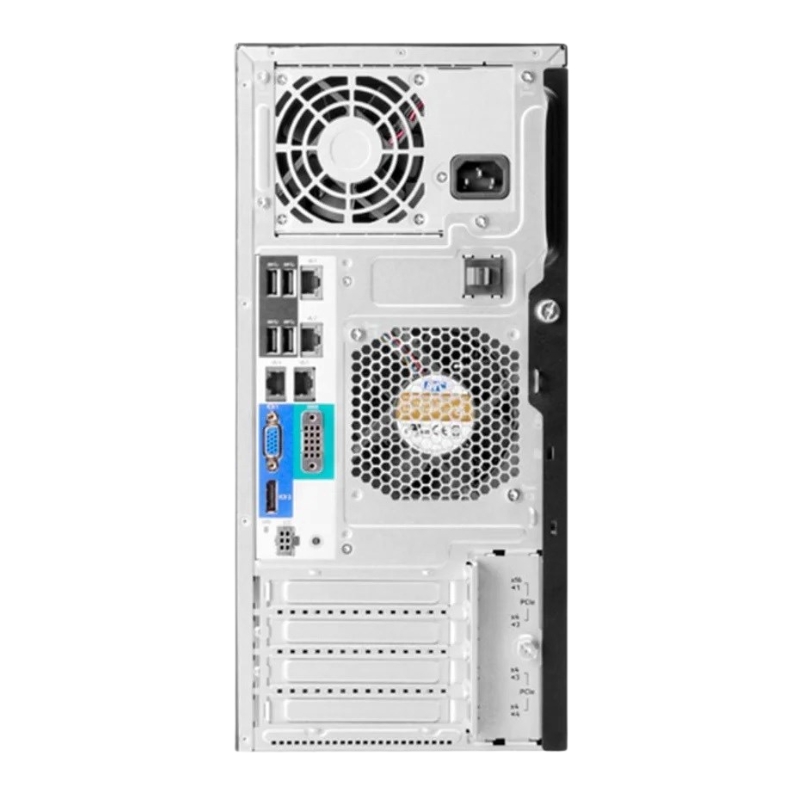

Interfaces

• 1 x VGA (rear)
• 1 x LAN (Gigabit Ethernet)
• 1 x LAN (Gigabit Ethernet / HPE iLO)
• 7 x USB 3.0 (front, rear, internal)
• 1 x USB 2.0 (front)

Miscellaneous Features

• Included: HPE Standard Heatsink, Non-hot Plug Fan
• Management: HPE iLO6 & Compute Ops Management (optional subscription)

Power Supply

• Type: Hot-plug PSU
• Installed: 1
• Max Supported: 2
• Voltage: 100–230 VAC
• Output: 350W
• Certification: 80 Plus Platinum

Sustainability and Environment

• Energy Star Certified: Yes (Version 4.0)
• Operating Temperature: 50°F – 95°F
• Humidity Range: 8–90% RH (non-condensing)

Dimensions and Weight

• Height: 14.5 in
• Width: 6.9 in
• Depth: 18.7 in
• Weight: 22.5 lbs

P83315-005 ProLiant ML30 Gen11 Server Tower Overview

The HPE ProLiant ML30 Gen11 tower server category represents a modern evolution of entry-level enterprise infrastructure, designed to deliver dependable performance, scalability, and security for small to mid-sized organizations, branch offices, and growing workloads. This category emphasizes versatility by combining enterprise-class reliability with an accessible tower form factor that can operate quietly in office environments or be adapted to rack deployments. Within this category, systems are engineered to balance cost efficiency with robust computing power, enabling businesses to modernize IT operations without excessive complexity.

Servers in this category are optimized for file and print services, collaboration platforms, virtualization, database hosting, and light-to-moderate enterprise applications. They are frequently deployed in environments where dedicated server rooms are unavailable, making acoustics, thermal efficiency, and physical accessibility important design considerations. The ML30 Gen11 class focuses on longevity, offering hardware components selected for durability and firmware ecosystems that support long-term lifecycle management.

HPE ProLiant ML30 Gen11 Architecture and Design Philosophy

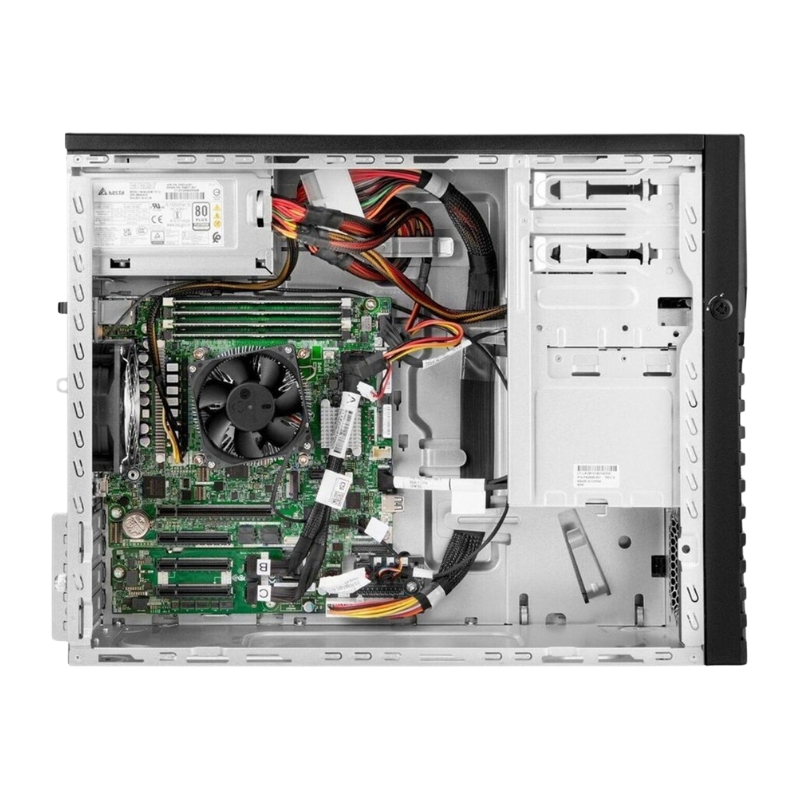

The architectural foundation of the ProLiant ML30 Gen11 category is centered on delivering next-generation compute performance within a compact, manageable tower chassis. The design philosophy prioritizes ease of deployment, serviceability, and future growth. Tool-less access panels, intuitive internal layouts, and clearly labeled components allow IT administrators to perform upgrades and maintenance with minimal downtime. This design approach reduces operational overhead and ensures that the system can evolve alongside changing business requirements.

Thermal engineering within this category has been carefully optimized to support continuous operation while maintaining low noise levels. Intelligent fan control dynamically adjusts airflow based on workload demands, ensuring components remain within safe operating temperatures without unnecessary power consumption. This balance between cooling efficiency and acoustic comfort makes the ML30 Gen11 category suitable for both office and back-office environments.

AMD EPYC 6315P Processing Capability

The HPE P83315-005 configuration within the ML30 Gen11 category is powered by the AMD EPYC 6315P processor, a modern server-class CPU designed to deliver high core efficiency and strong single-threaded performance. Operating at a base frequency of 2.8GHz, this processor provides the computational foundation required for multitasking environments, virtualization scenarios, and data-driven applications. The EPYC architecture emphasizes high memory bandwidth and efficient core utilization, enabling consistent performance under diverse workloads.

In this category, the processor’s capabilities are leveraged to support a wide range of business use cases, from transactional databases to application servers and infrastructure services. The balance between clock speed and core design ensures responsive performance for everyday operations while retaining sufficient headroom for growth. This makes the ML30 Gen11 category an attractive option for organizations seeking to consolidate workloads without sacrificing responsiveness.

Memory Subsystem and Expansion Flexibility

Memory architecture is a critical aspect of the ML30 Gen11 category, as it directly impacts application performance and scalability. Systems in this category support DDR5 memory technology, delivering higher bandwidth and improved power efficiency compared to previous generations. The memory subsystem is designed to accommodate incremental expansion, allowing organizations to start with a modest configuration and scale as workload demands increase.

Error-correcting code memory support enhances data integrity and system stability, which is essential for business-critical applications. The category emphasizes reliability by ensuring that memory errors are detected and corrected in real time, reducing the risk of data corruption and unplanned downtime. This focus on memory robustness aligns with the broader enterprise reliability goals of the ProLiant portfolio.

Storage Architecture and Data Management Capabilities

The storage architecture within the HPE ProLiant ML30 Gen11 category is designed to offer flexibility, performance, and data protection. Multiple drive bay configurations support a variety of storage media, including high-capacity hard disk drives and high-performance solid-state drives. This allows organizations to tailor storage solutions to their specific needs, whether prioritizing capacity for archival data or speed for transactional workloads.

Integrated storage controllers provide advanced features such as RAID support, enabling data redundancy and improved fault tolerance. This ensures that critical business data remains protected against hardware failures. The category also supports hot-plug drive capabilities in certain configurations, allowing storage components to be replaced or upgraded without system downtime, which is particularly valuable in environments requiring continuous availability.

Networking and Connectivity Features

Networking capabilities are a cornerstone of the ML30 Gen11 category, ensuring seamless integration into existing IT environments. Integrated Ethernet ports provide reliable connectivity for everyday business operations, while expansion slots allow for the addition of higher-speed network adapters as bandwidth requirements grow. This flexibility ensures that the server can adapt to evolving network infrastructures without requiring a complete system replacement.

The category supports modern networking standards and is designed to work efficiently with virtualization platforms and cloud-connected environments. Low-latency networking performance ensures that applications hosted on the server remain responsive, even under concurrent access by multiple users. This makes the ML30 Gen11 category suitable for collaborative workloads and distributed applications.

Security Foundations and Silicon Root of Trust

Security is deeply integrated into the HPE ProLiant ML30 Gen11 category, beginning at the hardware level. The Silicon Root of Trust establishes a secure foundation by validating firmware integrity during the boot process. This ensures that the system starts from a known, trusted state, protecting against firmware tampering and persistent threats.

Advanced security features extend beyond boot-time protection, encompassing runtime firmware validation and secure recovery mechanisms. These capabilities allow administrators to detect and remediate security issues quickly, minimizing the impact of potential breaches. The category’s security architecture is designed to align with modern compliance requirements and best practices, providing peace of mind for organizations handling sensitive data.

Virtualization and Workload Consolidation

The HPE ProLiant ML30 Gen11 category is well-suited for virtualization environments, offering the compute resources and memory bandwidth required to host multiple virtual machines efficiently. Support for leading hypervisors allows organizations to consolidate workloads, reduce hardware sprawl, and improve resource utilization. This capability is particularly valuable for small IT teams seeking to simplify infrastructure management.

Virtualization readiness within this category also supports hybrid IT strategies, enabling seamless integration with cloud services. Organizations can deploy on-premises workloads alongside cloud-based resources, achieving a balanced approach to scalability and control. The ML30 Gen11 category’s performance consistency ensures that virtualized applications remain responsive under varying load conditions.

Application Hosting and Business Workloads

This category is designed to handle a wide range of business applications, from collaboration platforms and email servers to line-of-business applications and databases. The processing power of the AMD EPYC 6315P, combined with high-speed memory and flexible storage options, ensures that applications can operate efficiently even as user demands increase.

The ML30 Gen11 category’s reliability features make it suitable for hosting applications that require consistent uptime. Redundant components, robust error detection, and proactive monitoring capabilities contribute to a stable operating environment, reducing the risk of service disruptions.

Deployment Scenarios and Industry Use Cases

The versatility of the ML30 Gen11 category makes it suitable for a wide range of deployment scenarios. Small and medium-sized businesses benefit from its balance of performance and affordability, while branch offices appreciate its compact form factor and quiet operation. Educational institutions, healthcare providers, and retail environments can leverage this category to support localized applications and data processing needs.

Industry-specific use cases often require tailored configurations, and the ML30 Gen11 category accommodates this through its modular design. From hosting point-of-sale systems to managing patient records or supporting classroom applications, the platform adapts to diverse operational requirements.
